HKT070DTA-4C
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Linli
Date: 2019-10-10
Date:
Date:
Rev.
Descriptions
Release Date
0.1
- Preliminary Draft release
2019-10-10
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 1 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
Table of Content
1
Basic Specification................................................................................................................................ ..... 3
1.1
General Specification................................................................................................ ............................ 3
1.2
Block Diagram ................................................................................................................................ ...... 3
1.3
Terminal Function................................................................................................................................ . 4
2
Absolute Maximum Ratings....................................................................................................................... 4
3
Electrical Characteristics................................................................................................ ........................... 5
3.1
DC Characteristics................................................................................................................................ 5
3.2
AC Characteristics................................................................................................................................ 5
4
Function Specifications ................................................................................................ ............................. 6
4.1
Basic Operation Function Descriptions ................................................................................................ 6
4.2
Quick Start Guide ................................................................................................................................ . 7
4.3
Command Descriptions ................................................................................................ ........................ 7
5
Optical Characteristics................................................................................................ ............................... 8
6
Assemble Precaution ................................................................................................................................ . 9
7
Precautions of using LCD Modules ........................................................................................................ 10
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 2 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
1 Basic Specification
TOPWAY HKT070DTA-4C is a Smart TFT Module with 32bit MCU on board. Its graphics engine
provides numbers of outstanding features. It supports TOPWAY TML for preload and pre-design
display interface that simplify the host operation and development time. Suitable for industry control,
instrumentation, medical electronics, power electric equipment applications.
1.1 General Specification
Screen Size(Diagonal) :
7.0”
Resolution :
800(RGB) x480
Color Depth :
65k color (16bit)
Pixel Configuration :
RGB Stripe
Display Mode :
Transmissive / Normal White
Viewing Direction :
6H (*1) (gray-scale inverse)
12H (*2)
Outline Dimension :

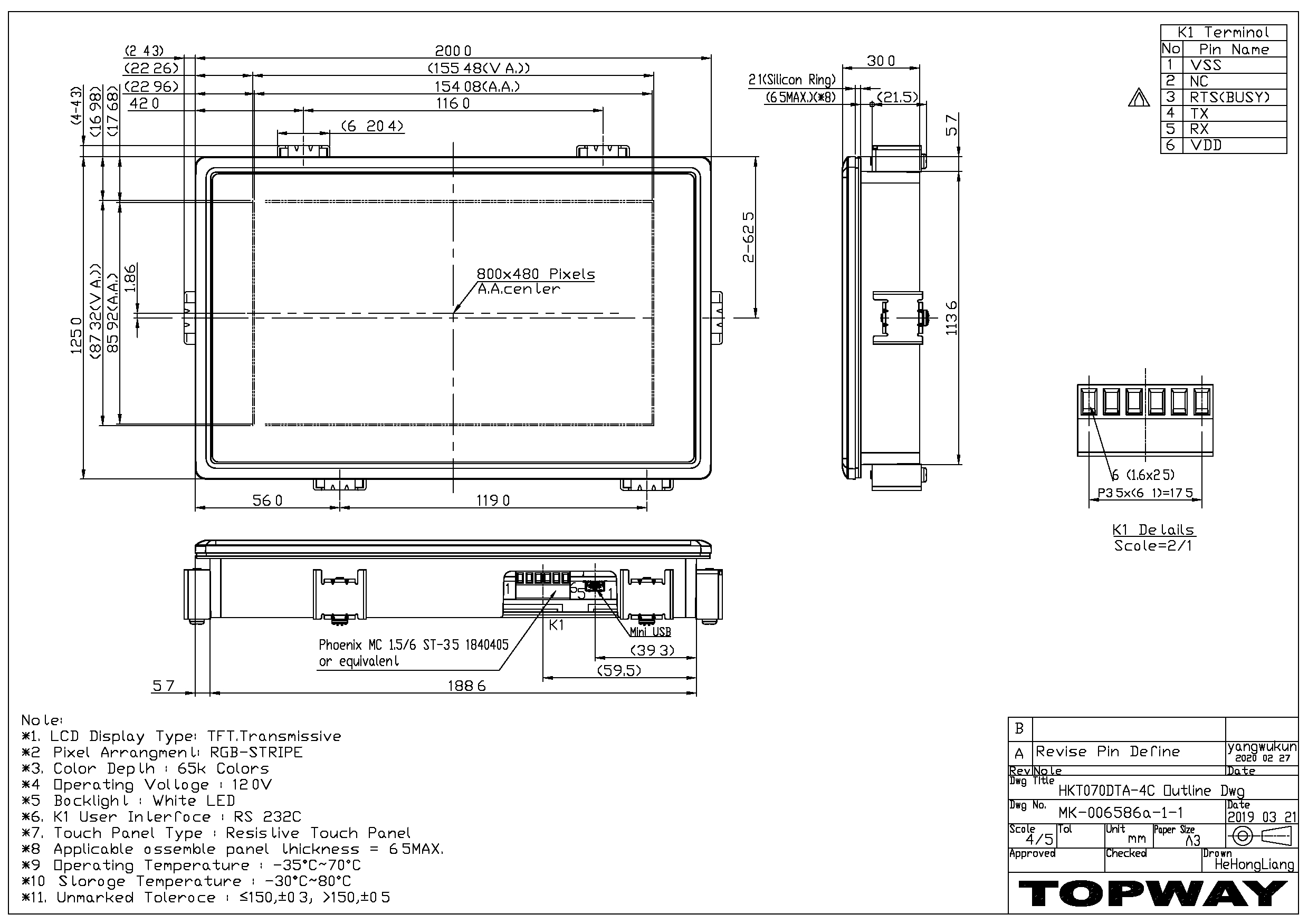

200.0x 125.0 x 30.0 (max)(mm)
(see attached drawing for details)
Active Area :
154.08 x 85.92 (mm)
Backlight :
LED
Command I/F:
RS-232C
Project Download:
by PC or by U-Drive (with OTG cable)
Operating Temperature :
-35 ~ +70°C
Storage Temperature :
-30 ~ +80°C
Note:
*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations).
*2. For “color scales” display content.
*3. Color tone may slightly change by Temperature and Driving Condition.
1.2 Block Diagram
Touch Panel
7.0” TFT
800 x 480 pixels
K1,K7,K8
RTS(BUSY)
TX, RX
Display Function Controller
VDD, VSS
with RTC
K2
ID, D-, D+
Flash
Memory
RAM
VUSB, VSS
Heating Circuit
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 3 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
1.3 Terminal Function
RS232 Interface Terminal (K1)
Pin No.
Pin Name
I/O
Descriptions
1
VSS
P
Ground, (0V)
2
NC
I
--
3
RTS(BUSY)
O
Request To Send (could function as busy BUSY signal)
(eg. to PC’s RS-232C pin8 <9pin D-connector>)
4
TX
O
Data output
(eg. to PC’s RS-232C pin2<9pin D-connector>)
5
RX
--
Data Input
(eg. to PC’s RS-232C pin3 <9pin D-connector>)
6
VDD
P
Power supply (12.0V)
Note.
*1. User data and commands transfer through this terminal.
*2. HOST using commamd hand shake during communication is suggested.
USB Interface Terminal (K2)
Pin No.
Pin Name
I/O
Descriptions
1
VUSB
P
Power supply(5.0 V)
2
D-
I/O
USB DATA negative signal
3
D+
I/O
USB DATA positive signal
4
ID
I
USB_ID,1:Client,0:HOST
5
VSS
P
Ground, (0V)
Note.
*1. TML files and image files preload through this terminal
*2. Standard “USB-drive” functions provided
*3. During the files transfer, all others display functions will be suspended
2 Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit
Condition
Power Supply voltage
V DD
-0.3
12.5
V
Operating Temperature
T OP
-35
70
° C
No Condensation
Storage Temperature
T ST
-30
80
° C
No Condensation
Note:
*1. This rating applies to all parts of the module and should not be exceeded.
*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,
and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25
*3. Ambient temperature when the backlight is lit (reference value)
*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged
exposure to extreme conditions may affect device reliability.
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 4 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
3 Electrical Characteristics
3.1 DC Characteristics
VSS=0V, VDD=12.0V,T OP =25 ° C
Items
Symbo
l
MIN.
TYP.
MAX.
Unit
Applicable Pin/FUNC
Operating Voltage
V DD
11.5
12
12.5
V
VDD
RxD Input MARK(1)
V RxDM
-3.0
-
-15.0
V
RxD
RxD Input SPACE(0)
V RxDS
+3.0
-
+15.0
V
RxD
TxD Output MARK(1)
V TxDM
-3.0
-
-15.0
V
TxD
TxD Output SPACE(0)
V TxDS
+3.0
-
+15.0
V
TxD
RTS(BUSY) Output High
V TxDH
-3.0
-15.0
V
RTS(BUSY)
RTS(BUSY) Output Low
V TxDL
+3.0
+15.0
V
RTS(BUSY)
Operating Current
I DD
-
300
-
mA
VDD (*1)
Heating Operating Current
I DD
-
1.8
-
A
VDD (*2)
Operating Current (USB)
I VUSB
-
240
-
mA
VUSB
Battery Supply Current
I BAT
-
6
-
uA
(*3)
Note.
*1. Normal display and no heating condition
*2. Normal display and heating condition
*3.For Battery driving RTC application,RTC configuration should be enabled in the project global setting
And after install/re-install the battery,it should be power-on once for correct RTC configurations.
3.2 AC Characteristics
Items
JP1,JP7=close,
JP1,JP8=close,
JP1,JP8= open,
JP1,JP7= open,
JP2,JP8=open
JP2,JP7=open
JP2,JP7= close
JP2,JP8= close
(factory default)
Start bit
1
1
1
1
Data bit
8
8
8
8
Parity bit
None
None
Even
Odd
Stop bit
1
1
1
1
Baud Rate(*1)
115200 bps
9600 bps
115200 bps
115200 bps
Items
JP3=close, JP4=open
JP3= open, JP4=close
(factory default)
Serial Data
busy
Xon/Xoff
Flow Control
Note.
*1.Baud Rate (1200bps 115200bps) could be adjusted by software.
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 5 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
4
Function Specifications
4.1 Basic Operation Function Descriptions
HKT070DTA-4C
Touch Panel
TML files
Picture files
ICONS files
Custom
Memories
TFT Display
HOST
PC
VP variables
Control and Draw Engine
-
TML files, Picture files, ICON files are stored inside FLASH memory area.
They are preloaded to HKT070DTA-4C for stand alone interface use.
-
Those files are preloaded via USB interface as an USB drive.
-
All the interface flow and the touch response are based on the preloaded TML files
-
VP variables memory is inside RAM area,
it provides real time access via UART by the HOST or display onto the TFT by TML file.
-
Custom Memories are inside FLASH memory area
It can be accessed via UART interface by the HOST.
-
Control and Draw Engine executes HOST commands and response respectively
-
It also reports the real time Touch Key number to the HOST
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 6 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C

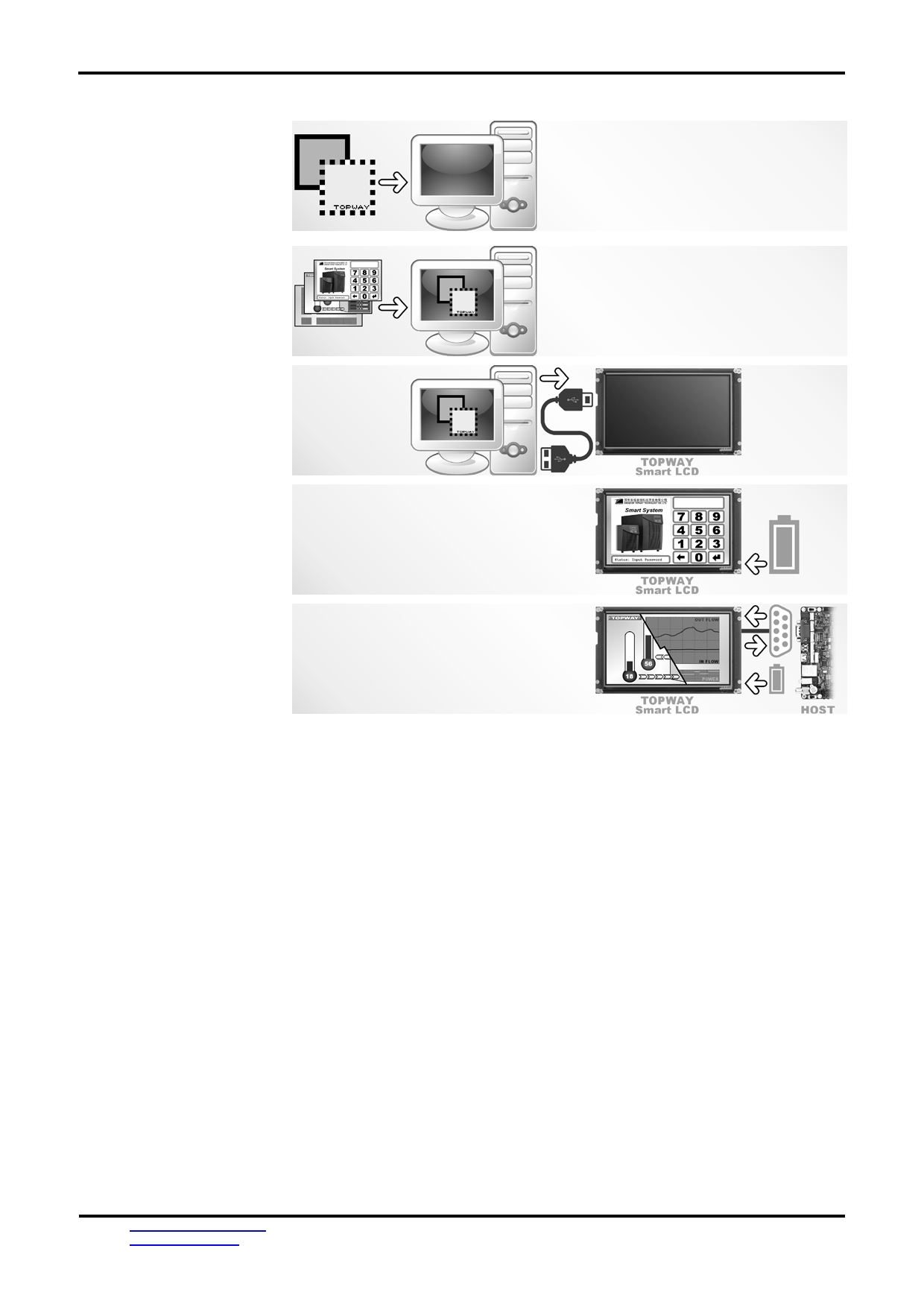

4.2 Quick Start Guide
1.
Install TOPWAY
Graphics Editor
Import pictures
2. design UI flow
3.
Download to
Smart LCD
4. power on &
display
Connect to
5.
host Show
real time
data
4.3 Command Descriptions
Please refer to “SMART LCD Command Manual”.
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 7 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
5 Optical Characteristics
Item
Symbol
Condition
MIN.
TYP.
MAX.
UNIT
Note.
θ L
9 o’clock
70
80
-
Viewing angle
θ R
3 o’clock
70
80
-
(CR 10)
degree
*2
θ T
12 o’clock
70
80
-
θ B
6 o’clock
50
60
-
T f
-
10
20
msec
Response Time
*3
T r
-
15
30
msec
Contrast ratio
CR
600
800
-
-
Normal
W X
0.26
0.31
0.26
-
*1
Color chromaticlty
θ=0 o
W Y
0.28
0.33
0.38
-
cd/m
2
Luminance
L
-
500
-
*4
Luminance uniformity
Y U
75
80
-
%
*4
Note:
*1. Definition of Contrast Ratio
The contrast ratio could be calculate by the following expression:
Contrast Ratio (CR) = Luminanc with all pixels white / Luminance with all pixels black

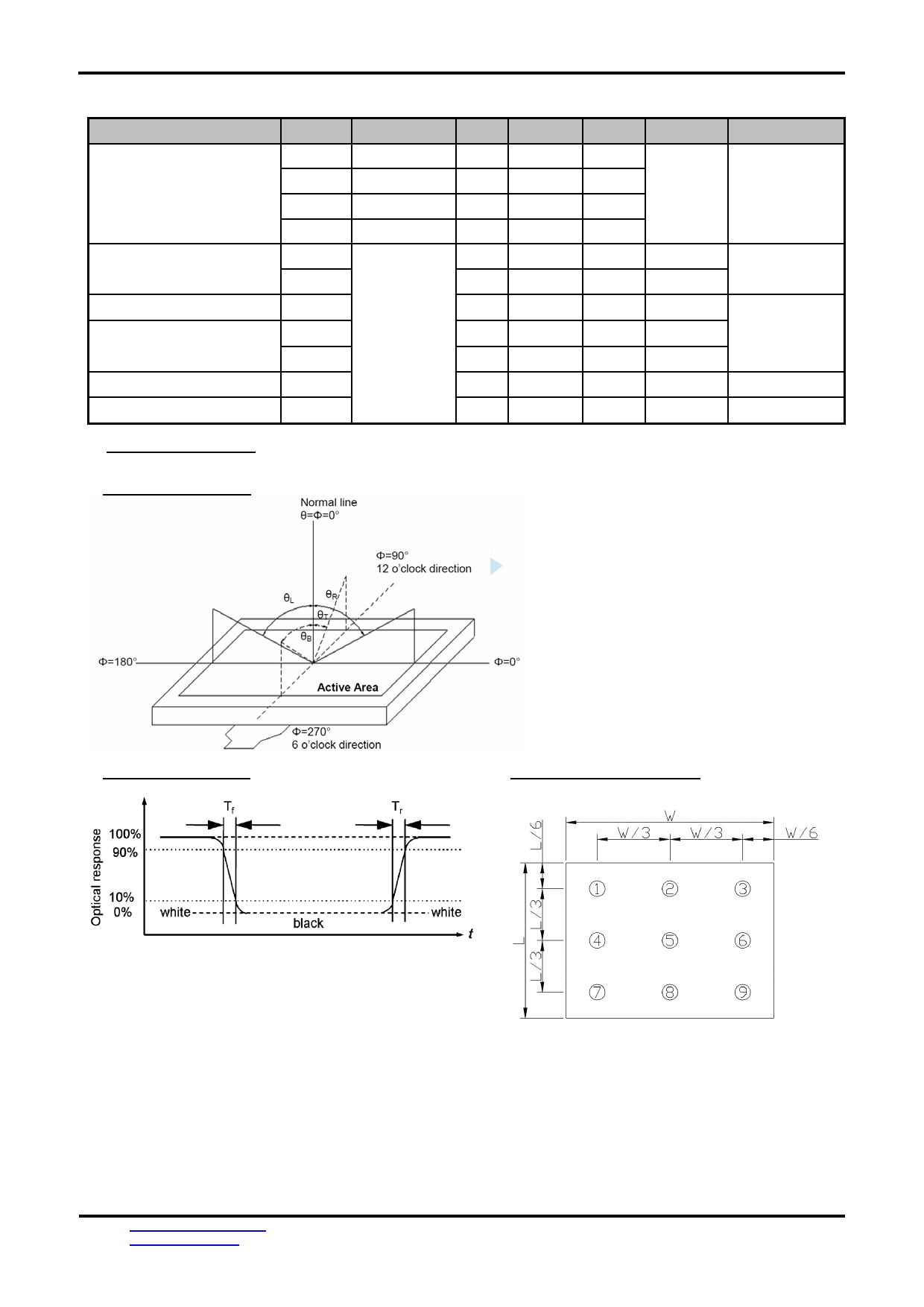

*2 Definition of Viewing Angle
*3 Definition of response time
*4 Definition of Luminance Uniformity
Luminance uniformity (Lu)=
Min. Luminance form pt1~pt9 / Max Luminance form Pt1~pt9
Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
Page: 8 of 10
TOPWAY
LCD Module User Manual
HKT070ATA-4C
6 Assemble Precaution
安装注意事项

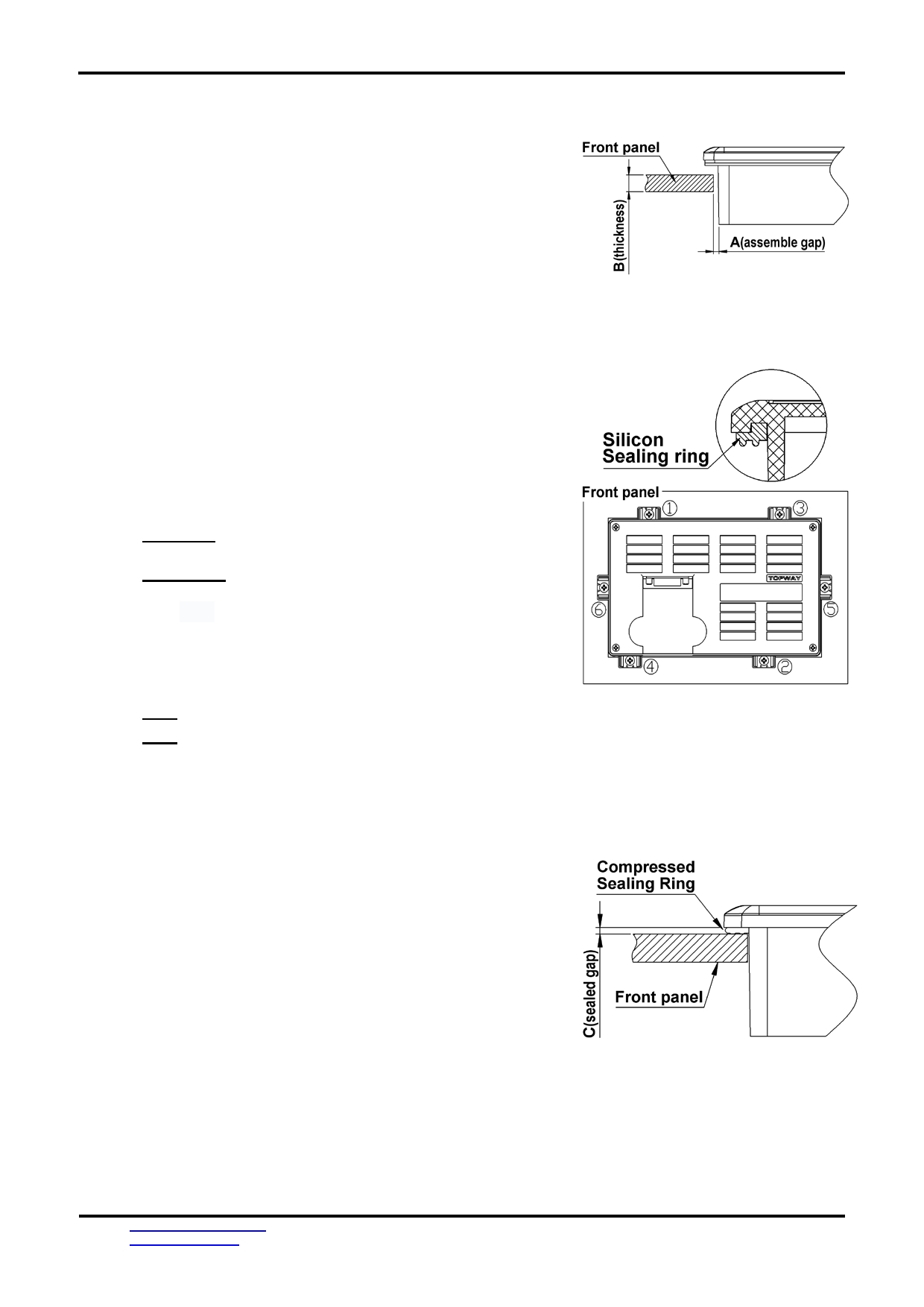

1. Customer front panel opening and thickness for TOPWAY
display module should be fit for its assembling and sealing.
  • The suggested assemble gap(A) should be about
  • 0.3~0.5mm on each side.
  • The suggested front panel thickness(B) should be
  • about 1.5~4.0mm.
    客户面板开窗及厚度应适合 TOPWAY 显示模块的安装及密
    封.
  • 建议每边安装间隙(A)约为 0.3 ~0.5mm.
  • 建议面板厚度(B) 约为 1.5~4.0mm.
  • 2. A silicon sealing ring ships with TOPWAY display module.
    It should be in place before assembling to the front panel.
    TOPWAY 显示模块上的硅胶密封圈在安装时确保嵌入到位 .
    3. It should fix the TOPWAY display module into the front
    panel with two steps.
  • Pre-fixing : Slightly tighten the screws on beam clamp in
  • sequence as picture on the right side.
  • Final-fixing : Tighten the fixing screws on beam clamp in
  • sequence as well with twist torque about 6~8kg.cm
    (*1) . and put the beam clamp straight.
    Note:
    *1. Over tightening might damage the shell and cause bad sealing
    result.
    应分两步将 TOPWAY 显示模块固定在面板上 .
  • 预紧 : 将卡扣螺钉按右图所示顺序稍加预紧.
  • 紧定 : 再次按顺序用 6~8kg.cm 扭力拧紧卡扣螺钉
  • (* 1) ,并注意卡扣置正无歪斜.
    注:
    *1. 过度拧紧可能会损坏外壳和影响密封效果.
    4. It is strongly suggested to check the seal balancing of the
    four-side of the TOPWAY display module.
  • The suggested after assemble sealed gap(C) should be
  • about 1.0~1.5mm.
    需注意检查 TOPWAY 显示模块四周在安装后保证平衡密封.
  • 建议组装后的密封间隙(C)约为 1.0 ~1.5 mm.
  • 5. Others:
  • Never hot plug the device! Power off the device before connect or disconnect the
  • display module.
  • Don't forget to remove the cover protective film for normal operation.
  • 其它:
  • 视频线禁止带电插拔! 在连接或断开显示模块之前先关闭设备电源.
  • 使用前请揭去保护膜.
  • Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
    Page: 9 of 10
    TOPWAY
    LCD Module User Manual
    HKT070ATA-4C
    7 Precautions of using LCD Modules
    Mounting
    -
    Mounting must use holes arranged in four corners or four sides.
    -
    The mounting structure so provide even force on to LCD module. Uneven force (ex. Twisted stress)
    should not applied to the module. And the case on which a module is mounted should have sufficient
    strength so that external force is not transmitted directly to the module.
    -
    It is suggested to attach a transparent protective plate to the surface in order to protect the polarizer. It
    should have sufficient strength in order to the resist external force.
    -
    The housing should adopt radiation structure to satisfy the temperature specification.
    -
    Acetic acid type and chlorine type materials for the cover case are not desirable because the former
    generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit
    break by electro-chemical reaction.
    -
    Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
    pencil lead. Never rub with dust clothes with chemical treatment. Do not touch the surface of polarizer
    for bare hand or greasy cloth.(Some cosmetics deteriorate the polarizer.)
    -
    When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
    chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
    used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
    chemical damage to the polarizer.
    -
    Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer
    Operating
    -
    The spike noise causes the mis-operation of circuits. It should be within the ± 200mV level (Over and
    under shoot voltage)
    -
    Response time depends on the temperature.(In lower temperature, it becomes longer.)
    -
    Brightness depends on the temperature. (In lower temperature, it becomes lower.) And in lower
    temperature, response time(required time that brightness is stable after turned on) becomes longer.
    -
    Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer
    or electrical contacted parts. And after fading condensation, smear or spot will occur.
    -
    When fixed patterns are displayed for a long time, remnant image is likely to occur.
    -
    Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
    done by system manufacturers. Grounding and shielding methods may be important to minimized the
    interference
    Electrostatic Discharge Control
    Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain
    that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin
    directly.
    Strong Light Exposure
    Strong light exposure causes degradation of polarizer and color filter.
    Storage
    When storing modules as spares for a long time, the following precautions are necessary.
    -
    Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the
    temperature between 5 ° C and 35 ° C at normal humidity.
    -
    The polarizer surface should not come in contact with any other object. It is recommended that they
    be stored in the container in which they were shipped.
    Protection Film
    -
    When the protection film is peeled off, static electricity is generated between the film and polarizer.
    This should be peeled off slowly and carefully by people who are electrically grounded and with well
    ion-blown equipment or in such a condition, etc.
    -
    The protection film is attached to the polarizer with a small amount of glue. If some stress is applied to
    rub the protection film against the polarizer during the time you peel off the film, the glue is apt tore
    main on the polarizer. Please carefully peel off the protection film without rubbing it against the
    polarizer.
    -
    When the module with protection film attached is stored for a long time, sometimes there remains a
    very small amount of glue still on the polarizer after the protection film is peeled off.
    -
    You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is
    recognized, please wipe them off with absorbent cotton waste or other soft material like chamois
    soaked with normal-hexane.
    Transportation
    The LCD modules should be no falling and violent shocking during transportation, and also should avoid
    excessive press, water, damp and sunshine.
    Document Name: HKT070DTA-4C-Manual-Rev0.1.doc
    Page: 10 of 10
    SMART LCD
    Command V5.04
    Manual
    Prepared by:
    Checked by:
    Approved by:
    liu
    Date: 2017-07-24
    Date:
    Date:
    Rev.
    Descriptions
    Release Date
    0.1
    - Preliminary Draft release
    2016-11-02
    0.2
    - Add a description of the 0xE8 command
    2017-01-12
    0.3
    - 4.1, 0xE2, 0xE3 command name correction
    2017-05-26
    0.4
    - Add a description of the 0xE7 command
    2017-07-24
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 1 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    Table of Content
    1   Basic Specifications...................................................................................................................................3
    1.1
    Hardware connection............................................................................................................................3
    2   Command Structure ...................................................................................................................................3
    2.1
    Communication Packet Structure .........................................................................................................3
    2.2
    Packet Acknowledgment ......................................................................................................................3
    3   Data arrangement .......................................................................................................................................4
    3.1
    Color Data Value Configuration............................................................................................................4
    3.2
    Data / Address / Page_ID / Location Values Configuration ..................................................................4
    4   Command Descriptions .............................................................................................................................5
    4.1
    Command table ....................................................................................................................................5
    4.2
    Config/ Status Function Commands Details.........................................................................................6
    4.2.1       hand_shake ( 0x30 ) .....................................................................................................................6
    4.2.2       read_version ( 0x31 )....................................................................................................................6
    4.2.3       read_pg_id ( 0x32 ).......................................................................................................................7
    4.2.4       touch_response ( 0x72/ 0x73/ 0x77/ 0x78/ 0x79 )........................................................................7
    4.2.5       set_sys_config ( 0xE0 ) .................................................................................................................8
    4.2.6       sel_project ( 0xE1 ).......................................................................................................................9
    4.2.7       touch_calib ( 0xE4 ) ......................................................................................................................9
    4.2.8       screen_saver (0x5E).....................................................................................................................9
    4.2.9       backlight_ctrl ( 0x5F )....................................................................................................................9
    4.2.10   buzzer_touch_sound ( 0x79 ) .......................................................................................................9
    4.2.11   buzzer_ ctrl ( 0x7A )......................................................................................................................9
    4.2.12   Flash_write ( 0x90 ) ....................................................................................................................10
    4.2.13   Flash_read ( 0x91 ).....................................................................................................................10
    4.2.14   RTC_read ( 0x9B )......................................................................................................................10
    4.2.15   RTC_set ( 0x9C )........................................................................................................................11
    4.2.16   USR_bin_read ( 0x93 )...............................................................................................................11
    4.2.17   U_drv_format ( 0xE2 ) ................................................................................................................11
    4.2.18   U_drv_unlock ( 0xE3 ) ................................................................................................................11
    4.3
    Display Control Function Commands Details..................................................................................... 12
    4.3.1       disp_page ( 0x70 ) ......................................................................................................................12
    4.3.2       set_element_fg ( 0x7E )..............................................................................................................12
    4.3.3       set_element_bg ( 0x7F ).............................................................................................................12
    4.3.4       Set_codepage (0xE7) .................................................................................................................12
    4.3.5       suspend_vp_refresh (0xE8)........................................................................................................13
    4.4
    VP Function Commands Details.........................................................................................................13
    4.4.1       Successive_write ( 0x82 )...........................................................................................................13
    4.4.2       Successive_read ( 0x83 ) ...........................................................................................................13
    4.4.3       BP1_write ( 0x4B )......................................................................................................................14
    4.4.4       BP1_write_compress ( 0x4C ) ....................................................................................................14
    4.4.5       G16_write ( 0x4D )......................................................................................................................15
    4.4.6       G16_write_rotate ( 0x4E )...........................................................................................................15
    4.4.7       System Register Write ( 0x3B ) ..................................................................................................15
    4.4.8       System Register Read ( 0x3C ) ..................................................................................................16
    4.4.9       STR_write ( 0x42 )......................................................................................................................16
    4.4.10   STR_read ( 0x43 ) ......................................................................................................................16
    4.4.11   STR_fill ( 0x46 ) ..........................................................................................................................17
    4.4.12   N16_write ( 0x3D )......................................................................................................................17
    4.4.13   N16_read ( 0x3E ) ......................................................................................................................17
    4.4.14   N16_fill ( 0x3F ) ..........................................................................................................................17
    4.4.15   N32_write ( 0x44 ) ......................................................................................................................18
    4.4.16   N32_read ( 0x45 ).......................................................................................................................18
    4.4.17   N32_fill ( 0x47 )...........................................................................................................................18
    4.4.18   N64_write ( 0x48 ) ......................................................................................................................19
    4.4.19   N64_read ( 0x49 ).......................................................................................................................19
    4.4.20   N64_fill ( 0x4A ) ..........................................................................................................................19
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 2 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    1 Basic Specifications
    TOPWAY Smart LCD serial command is for real-time control and access. Host machine get the data
    which input through the Smart LCD interface or provide the data for display.
    1.1 Hardware connection
    Smart LCD serial UART interface are mainly base on RS232-C standard, by default, config as 8N1
    115200bps.
    2 Command Structure
    2.1 Communication Packet Structure
    Commands and Response Packet should be format as follow (host  module):
    Seq
    Code
    Code type
    Description
    1
    0xAA
    Packet header
    1byte
    2
    Cmd-code
    Command
    1byte
    code
    3
    Par-data
    Parameter or
    (*1)
    Data
    :
    :
    -
    -
    :
    :
    -
    -
    :
    :
    -
    -
    N-3 th
    0xCC
    Packet tail
    4byte
    N-2 th
    0x33
    N-1 th
    0xC3
    N th
    0x3C
    Note.
    *1. Unless otherwise specified,
    all the multi-byte values, data, address’ byte sequence are MSB first, LSB last.
    2.2 Packet Acknowledgment
    Packet Acknowledgment is two byte in ASCII (module  host):
    Response
    code Description
    Command (in packet) executed and
    ":>"
    In ASCII
    wait for next Command
    (0x3a, 0x3e)
    Command (in packet) error and
    "!>"
    In ASCII
    wait for next Command
    (0x21,0x3e)
    15B
    Note.
    *1. Packet Acknowledgement response to a valid packet only.
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 3 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    3 Data arrangement
    3.1 Color Data Value Configuration
    16 bit Color value
    16 bit color value
    R4
    R3
    R2
    R1
    R0
    G5
    G4
    G3
    G2
    G1
    G0
    B4
    B3
    B2
    B1
    B0
    High byte (MSB)
    Low byte (LSB)
    D7
    D6
    D5
    D4
    D3
    D2
    D1
    D0
    D7
    D6
    D5
    D4
    D3
    D2
    D1
    D0
    3.2 Data / Address / Page_ID / Location Values Configuration
    64bit value
    64 bit number value
    D63…D56 D55…D48 D47…D40 D39..D32 D31…D24 D23…D16 D15…D8
    D7…D0
    Byte7
    Byte0
    (MSB)
    (LSB)
    D7…D0
    D7…D0
    D7…D0
    D7…D0
    D7…D0
    D7…D0
    D7…D0
    D7…D0
    32bit value
    32 bit number value
    D31…D24
    D23…D16
    D15…D8
    D7…D0
    Byte3 (MSB)
    Byte0 (LSB)
    D7…D0
    D7…D0
    D7…D0
    D7…D0
    16bit value
    16 bit number value
    D15…D8
    D7…D0
    High Byte (MSB)
    Low Byte (LSB)
    D7…D0
    D7…D0
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 4 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4 Command Descriptions
    4.1 Command table
    Functions
    Name
    Code
    Description
    Config/
    hand_shake
    0x30
    Read a Hand Shake
    Status
    read_version
    0x31
    Read firmware version
    Functions
    read_pg_id
    0x32
    Read Current page ID
    touch_response
    0x72/0x73/
    see also set_sys_config
    0x77/0x78/
    0x79
    set_sys_config
    0xE0
    System parameter configuration and Baud Rate
    sel_project
    0xE1
    Specify operating project folder
    touch_calib
    0xE4
    Touch panel calibration
    screen_saver
    0x5E
    Screen saver (backlight dim down time out)
    backlight_ctrl
    0x5F
    backlight brightness control (64 levels)
    buzzer_touch_sound
    0x79
    buzzer enable time length (in 10ms step)
    buzzer_ctrl
    0x7A
    Buzzer control
    Flash_write
    0x90
    Write data to the flash
    Flash_read
    0x91
    Read data from the flash
    RTC_read
    0x9B
    Read the RTC values
    RTC_set
    0x9C
    Set the RTC
    USR_bin_read
    0x93
    Read data from the USR_bin
    U_drv_format
    0xE2
    Format the U_drv
    U_drv_unlock
    0xE3
    Unlock the U_drv with pre-stored password
    Display
    disp_page
    0x70
    Display a pre-stored TML file (page)
    Control
    set_element_fg
    0x7E
    Set the foreground color of STR, N16, N32 or N64
    Functions
    set_element_bg
    0x7F
    Set the background color of STR, N16, N32 or N64
    set_codepage
    0xE7
    Sets country character set and code-page character set
    suspend_vp_fresh
    0xE8
    Set the screen to pause the refresh and deactivate the
    touchkey or release the pause to refresh and enable
    the touchkey
    VP
    Successive_write
    0x82
    Write successive value to VP_N16, VP_N32, VP_N64
    Functions
    Successive_read
    0x83
    Read successive value from VP_N16, VP_N32, VP_N64
    BP1_write
    0x4B
    Write bit-map (1bpp) data to VP_BP1
    BP1_write_comp
    0x4C
    Write compressed bit-map (1bpp) data to VP_BP1
    G16_write
    0x4D
    Write 16bit (signed integer) graphic array to VP_G16
    G16_write_rotate
    0x4E
    Rotate the VP_G16 array data inside the module and
    write a 16bit (signed integer) value into end-of-array
    System Register Write
    0x3B
    Write System Register
    System Register Read
    0x3C
    Read System Register
    STR_write
    0x42
    Write string to VP_STR
    STR_read
    0x43
    Read string form VP_STR
    STR_fill
    0x46
    Fill strings to the VP_STR
    N16_write
    0x3d
    Write 16bit (signed integer) value to VP_N16
    N16_read
    0x3e
    Read 16bit (signed integer) value from VP_N16
    N16_fill
    0x3f
    Fill numbers to the VP_N16
    N32_write
    0x44
    Write 32bit (signed integer) value to VP_N32
    N32_read
    0x45
    Read 32bit (signed integer) value from VP_N32
    N32_fill
    0x47
    Fill numbers to the VP_N32
    N64_write
    0x48
    Write 64bit (signed integer) value to VP_N64
    N64_read
    0x49
    Read 64bit (signed integer) value from VP_N64
    N64_fill
    0x4A
    Fill numbers to the VP_N64
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 5 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.2 Config/ Status Function Commands Details
    4.2.1 hand_shake ( 0x30 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x30
    Read a Hand Shake
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x30
    Command executed
    rd
    3
    “T”
    0x54
    “Topway HMT Ready\0” in ASCII
    th
    4
    “o”
    0x6f
    th
    5
    “P”
    0x70
    th
    6
    “w”
    0x77
    th
    7
    “a”
    0x61
    th
    8
    “y”
    0x79
    th
    9
    “ “
    0x20
    th
    10
    “H”
    0x48
    th
    11
    “M”
    0x4d
    th
    12
    “T”
    0x54
    th
    13
    “ “
    0x20
    th
    14
    “R”
    0x52
    th
    15
    “e”
    0x65
    th
    16
    “a”
    0x61
    th
    17
    “d”
    0x64
    th
    18
    “y”
    0x79
    th
    ‘\0’(0x00): string end mark
    19
    \0
    0x00
    th
    20
    Tail
    0xCC
    Communication packet tail
    st
    21
    0x33
    nd
    22
    0xC3
    rd
    23
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.2.2 read_version ( 0x31 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x31
    Read firmware version
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x31
    Command executed
    rd
    3
    “1”
    0x31
    “1.06\0” in ASCII
    th
    4
    “.”
    0x2e
    Where firmware version is V1.06(example)
    th
    5
    “0”
    0x30
    th
    6
    “6”
    0x36
    th
    7
    \0
    0x00
    ‘\0’(0x00): string end mark
    th
    8
    Tail
    0xCC
    Communication packet tail
    th
    9
    0x33
    th
    10
    0xC3
    th
    11
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 6 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.2.3 read_pg_id ( 0x32 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x32
    Read Current page ID
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x32
    Command executed
    rd
    3
    Page ID
    Page_IDh
    Current Page ID in 16bit binary value
    th
    4
    Page_IDl
    th
    5
    Tail
    0xCC
    Communication packet tail
    th
    6
    0x33
    th
    7
    0xC3
    th
    8
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.2.4 touch_response ( 0x72/ 0x73/ 0x77/ 0x78/ 0x79 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    --
    Use set_sys_config to config the functions
    Touch Release Coordinate Response code (0x72):
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x72
    Touched release Coordinate
    rd
    3
    X coordinate
    Xh
    Coordinate in 16bit binary value
    th
    4
    Xl
    X = horizontal coordinate
    th
    5
    Y coordinate
    Yh
    Y = vertical coordinate
    th
    6
    Yl
    th
    7
    Tail
    0xCC
    Communication packet tail
    th
    8
    0x33
    th
    9
    0xC3
    th
    10
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    Touch Down Coordinate Response code ( 0x73 ):
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x73
    Touched down Coordinate
    rd
    3
    X coordinate
    Xh
    Coordinate in 16bit binary value
    th
    4
    Xl
    X = horizontal coordinate
    th
    5
    Y coordinate
    Yh
    Y = vertical coordinate
    th
    6
    Yl
    th
    7
    Tail
    0xCC
    Communication packet tail
    th
    8
    0x33
    th
    9
    0xC3
    th
    10
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    Touch Key ID Response code ( 0x78 ):
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x78
    Touched release Key_ID defined by TOPWAY TML Graphic
    Editor will be response to host
    rd
    3
    Page_ID
    Page_IDh
    Page_ID = the touch key in page(16bit binary value)
    th
    4
    Page_IDl
    th
    5
    Y coordinate
    Key_ID
    Key_ID (8bit binary value)
    th
    6
    Tail
    0xCC
    Communication packet tail
    th
    7
    0x33
    th
    8
    0xC3
    th
    9
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 7 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    Touch Key ID Response code ( 0x79 ):
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x79
    Touched down Key_ID defined by TOPWAY TML Graphic
    Editor will be response to host
    rd
    3
    Page_ID
    Page_IDh
    Page_ID = the touch key in page(16bit binary value)
    th
    4
    Page_IDl
    th
    5
    Y coordinate
    Key_ID
    Key_ID (8bit binary value)
    th
    6
    Tail
    0xCC
    Communication packet tail
    th
    7
    0x33
    th
    8
    0xC3
    th
    9
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    Touch Key VP_ADD+VP_Value Response code ( 0x77 ):
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x77
    Touch Key VP_ADD+VP_Value Response code
    rd
    3
    VP_ADD
    Addr3 MSB VP Address
    th
    4
    Addr2
    0x080000 ~ 0x08FFFF:VP_N16 Address
    th
    5
    Addr1
    0x020000 ~ 0x02FFFF:VP_N32 Address
    th
    6
    Addr0(LSB)
    0x030000 ~ 0x03FFFF:VP_N64 Address
    0x000000 ~ 0x01FFFF:VP_STR Address
    th
    7
    Data
    :
    No.of byte
    :
    :
    VP_N16: 2byte
    :
    VP_N32: 4byte
    :
    VP_N64: 8byte
    :
    :
    VP_STR: string (with end mark (‘‘\0’(0x00)))
    :
    Tail
    0xCC
    Communication packet tail
    :
    0x33
    :
    0xC3
    :
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.2.5 set_sys_config ( 0xE0 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE0
    Baud Rate and system parameter configuration
    2
    0x55
    3
    0xAA
    4
    0x5A
    5
    0xA5
    6
    Baud_Set
    Baudrate Set:
    0x00 = 1200bps
    0x01 = 2400bps
    0x02 = 4800bps
    0x03 = 9600bps
    0x04 = 19200bps
    0x05 = 38400bps
    0x06 = 57600bps
    0x07 = 115200bps
    7
    sys_par1
    Bit7 = 0: Touch panel function disable
    Bit7 = 1: Touch panel functions enable (*3)(default)
    Bit[1..0]: Touch actions configuration (*2, *3)
    8
    0x00
    Reserved
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. Touch panel configuration:
    Sys_par1
    Sys_par1
    Sys_par1
    Response
    Bit7
    Bit1
    Bit0
    To host
    Descriptions
    0
    0
    0
    Null
    Not touch panel functions
    1
    0
    1
    Coordinates
    Touch down Coordinate will be response to host
    1
    1
    0
    Coordinates
    Touch release Coordinate will be response to host
    1
    1
    1
    Key ID
    Touch Key_ID defined by TOPWAY TML Graphic Editor will be
    response to host
    *3. see set_touch section for response code
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 8 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.2.6 sel_project ( 0xE1 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE1
    Select project folder
    2
    Prj_ID
    0~9, project ID
    0: System execute the default project “THMT”
    1~9: System execute the project “THMT01”~“THMT09”
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.2.7 touch_calib ( 0xE4 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE4
    Touch panel calibration
    2
    0x55
    3
    0xAA
    4
    0x5A
    5
    0xA5
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. Keep pressing the touch panel during power on, could also trigger the touch_calib function
    4.2.8 screen_saver (0x5E)
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x5E
    Screen saver
    2
    Time1h
    time out time in seconds, range: 0x0000 ~ 0xffff
    3
    Time1l
    (0x0000: disable screen saver function) (*2)
    4
    PWM_LE
    PWM_LE = 0 ~ 0x3F (default 0x19 in dim down),
    the backlight dimmed level in screen saving mode (*2)
    Screensavers brightness can not be greater than the backlight
    brightness.
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. default value defined by TML graphic editor configuration
    4.2.9 backlight_ctrl ( 0x5F )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x5F
    backlight brightness control
    2
    PWM_LE
    PWM_LE=0x00 ~ 0x3F (*2)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. default value defined by TML graphic editor configuration
    4.2.10 buzzer_touch_sound ( 0x79 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x79
    buzzer touch sound control
    2
    Time
    Sounding time length (in 10ms), range 0x00~0x3F
    0x00= disable (*2)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. default value defined by TML graphic editor configuration
    4.2.11 buzzer_ ctrl ( 0x7A )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x7A
    Buzzer control
    2
    Loop count
    Loop count, Range: 0x01 ~ 0xFF.
    0xFF = buzzer infinite loop
    3
    T1
    Buzzer play time 1
    Range: 0x00 ~ 0xFF (0~25.5s)(unit 100ms)
    4
    T2
    Buzzer play time 2
    Range: 0x00 ~ 0xFF (0~25.5s)(unit 100ms)
    5
    Freq1
    T1 time Buzzer frequency, Unit 100 Hz
    Ranges: 0x05 ~ 0x32 (500Hz ~ 5KHz)
    0x00 = T1 time period buzzer turn off
    6
    Freq2
    T2 time Buzzer frequency, Unit 100 Hz
    Ranges: 0x05 ~ 0x32 (500Hz ~ 5KHz)
    0x00 = T1 time period buzzer turn off
    Note:
    1. The buzzer sound time is (T1 + T2)*100ms
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 9 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.2.12 Flash_write ( 0x90 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x90
    Write data to the flash at specified address
    2
    Address3(MSB)
    the specified start address to write
    3
    Address2
    Address range =0x00000 ~ 0x03FFFF
    4
    Address1
    5
    Address0(LSB)
    6
    Data_Lengthh
    The no. of data byte to write.
    7
    Data_Lengthl
    Length =0x0001 ~ 0x0400
    8
    Data
    data to write.
    :
    :
    :
    :
    :
    :
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.2.13 Flash_read ( 0x91 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x91
    Read data from the flash at specified address
    2
    Address3(MSB)
    the specified start address to write
    3
    Address2
    Address range =0x00000 ~ 0x03FFFF
    4
    Address1
    5
    Address0(LSB)
    6
    Data_Lengthh
    The no. of data byte to read
    7
    Data_Lengthl
    Length =0x0001 ~ 0x0400
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x91
    Command executed
    rd
    3
    Data
    data
    Read back data
    :
    :
    :
    :
    :
    Tail
    0xCC
    Communication packet tail
    :
    0x33
    :
    0xC3
    :
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.2.14 RTC_read ( 0x9B )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x9B
    Read the current RTC value
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x9B
    Command executed
    rd
    3
    Date
    Year
    Year: 00~99 (00=year 2000) (8bit binary value)
    th
    4
    Month
    Month: 01~12 (8bit binary value)
    th
    5
    Day
    Day: 01~31 (8bit binary value)
    th
    6
    Time
    Hour
    Hour 00~23 (24hr format)(8bit binary value)
    th
    7
    Minute
    Minutes 00~59 (8bit binary value)
    th
    8
    Second
    Second 00~59 (8bit binary value)
    th
    9
    Tail
    0xCC
    Communication packet tail
    th
    10
    0x33
    th
    11
    0xC3
    th
    12
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 10 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.2.15 RTC_set ( 0x9C )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x9C
    Set the RTC
    2
    Year
    Year
    = 00~99(2000 ~ 2099)
    3
    Month
    Month = 00~12
    4
    Date
    Date
    = 00~31
    5
    Hour
    Hour
    = 00~23
    Minute = 00~59
    6
    Minute
    Second = 00~59
    7
    Second
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.2.16 USR_bin_read ( 0x93 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x93
    Read USR_bin data from the flash at specified address
    2
    Address3(MSB)
    the specified start address to write
    3
    Address2
    Address range = 0x00000 ~ 0x03FFFF
    4
    Address1
    5
    Address0(LSB)
    6
    Data_Lengthh
    The no. of data byte to read
    7
    Data_Lengthl
    Length = 0x0001 ~ 0x0400
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x93
    Command executed
    rd
    3
    Data
    data
    Read back data
    :
    :
    :
    :
    :
    Tail
    0xCC
    Communication packet tail
    :
    0x33
    :
    0xC3
    :
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.2.17 U_drv_format ( 0xE2 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE2
    Format the USB drive.
    2
    0x55
    All the files (include the security lock file) will be erased.
    3
    0xAA
    4
    0x5A
    5
    0xA5
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.2.18 U_drv_unlock ( 0xE3 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE3
    Unlock the USB drive of file read/write with pre-stored password.
    2
    PW
    PW: password in ASCII
    :
    :
    Length = 127max.
    :
    :
    :
    ‘\0’
    ‘\0’(0x00): string end mark
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 11 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.3 Display Control Function Commands Details
    4.3.1 disp_page ( 0x70 )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x70
    Display a pre-stored TML file(page)
    2
    Page_IDh
    Page_ID = 0~999
    3
    Page_IDl
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.3.2 set_element_fg ( 0x7E )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x7E
    Set foreground colors of the STR, N16, N32 or N64
    2
    Element
    0x00 = STR; 0x01 = N16, N32, N64
    3
    Page_IDh
    Page_ID = 0~999
    4
    Page_IDl
    5
    Element_ID
    VP_STR = 0~127; N16, N32, N64 = 0~119
    6
    0x00
    Reserve
    7
    FGh
    Foreground color(0~0xffff)
    8
    FGl
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.3.3 set_element_bg ( 0x7F )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x7F
    Set background color of the STR, N16, N32 or N64
    2
    Element
    0x00 = STR; 0x01 = N16, N32, N64
    3
    Page_IDh
    Page_ID = 0~999
    4
    Page_IDl
    5
    Element_ID
    VP_STR = 0~127, N16, N32, N64 = 0~119
    6
    Mode
    0x00: non transparent; 0x01 : transparent
    7
    BGh
    Background color(0 ~ 0xffff)
    8
    BGl
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.3.4 set_codepage (0xE7)
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE7
    Sets country character set and code-page character set
    2
    Country
    1 ~ 11, country character set
    3
    Codepage
    1 ~ 22, code-page character set
    Note.
    *1. Country and CodePage table
    Country Code
    Descriptions
    Code Page
    Descriptions
    1
    USA
    1
    437 (OEM – United States)
    2
    France
    2
    737 (OEM – Greek 437G)
    3
    Germany
    3
    852 (OEM – Latin II )
    4
    United Kingdom
    4
    860 (OEM – Portuguese)
    5
    Demark I
    5
    863 (OEM – Canadian French)
    6
    Demark II
    6
    865 (OEM – Nordic)
    7
    Sweden
    7
    866 (OEM – Russian)
    8
    Italy
    8
    874 (ANSI/OEM – Thai)
    9
    Spain
    9
    932 (ANSI/OEM – Japanese Shift-JIS)
    10
    Japan
    10
    1250 (ANSI - Central Europe)
    11
    Norway
    11
    1251 (ANSI – Cyrillic)
    --
    --
    12
    1252 (ANSI – Latin I )
    --
    --
    13
    1253 (ANSI – Greek)
    --
    --
    14
    1254 (ANSI – Turkish)
    --
    --
    15
    1255 (ANSI – Hebrew)
    --
    --
    16
    1256 (ANSI – Arabic)
    --
    --
    17
    1257 (ANSI – Baltic)
    --
    --
    18
    1258 (ANSI – Viet Nam)
    --
    --
    19
    GB2312
    --
    --
    20
    GBK
    --
    --
    21
    EUC_KR
    --
    --
    22
    Big5
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 12 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.3.5 suspend_vp_refresh (0xE8)
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0xE8
    Set the screen to pause the refresh and deactivate the touchkey or
    2
    55
    release the pause to refresh and enable the touchkey
    3
    AA
    4
    5A
    5
    A5
    6
    Mode
    0x00: r elease the pause to refresh and enable the touchkey
    0x01: pause the refresh and deactivate the touchkey
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4 VP Function Commands Details
    4.4.1 Successive_write ( 0x82 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x82
    Write successive value to VP_N16, VP_N32, VP_N64
    2
    Addr3(MSB)
    VP_N16 Address = 0x080000 ~ 0x08FFFF (should be aligned every 2
    3
    Addr2
    byte)
    4
    Addr1
    VP_N32 Address = 0x020000 ~ 0x02FFFF (should be aligned every 4
    5
    Addr0(LSB)
    byte)
    VP_N64 Address = 0x030000 ~ 0x03FFFF (should be aligned every 8
    byte)
    6
    Length
    The number of data to write (Length = 1~255)
    7
    Data 1(MSB)
    the value to write
    8
    Data 2
    No. of byte of Data:
    9
    Data 3
    VP_N16 = Length *2,
    :
    :
    VP_N32 = Length *4,
    :
    Data n(LSB)
    VP_N64 = Length *8,
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4.2 Successive_read ( 0x83 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x83
    Read successive value to VP_N16, VP_N32, VP_N64
    2
    Addr3(MSB)
    VP_N16 Address = 0x080000 ~ 0x08FFFF (should be aligned every 2
    3
    Addr2
    byte)
    4
    Addr1
    VP_N32 Address = 0x020000 ~ 0x02FFFF (should be aligned every 4
    5
    Addr0(LSB)
    byte)
    VP_N64 Address = 0x030000 ~ 0x03FFFF (should be aligned every 8
    byte)
    6
    Length
    The number of data to write (Length = 1 ~ 255)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x83
    Command executed
    rd
    3
    VP_ADD
    Addr3(MSB
    VP Address
    th
    4
    Addr2
    0x080000 ~ 0x08FFFF:VP_N16 Address
    th
    5
    Addr1
    0x020000 ~ 0x02FFFF:VP_N32 Address
    th
    6
    Addr0(LSB)
    0x030000 ~ 0x03FFFF:VP_N64 Address
    rd
    7
    Length
    NO.
    No. of data
    rd
    8
    Data
    Data n(MSB)
    No. of byte of Data:
    :
    :
    VP_N16 = Length *2,
    :
    :
    VP_N32 = Length *4,
    th
    (n-1)
    Data1
    VP_N64 = Length *8,
    th
    n
    Data0(LSB)
    (n+1)
    th
    Tail
    0xCC
    Communication packet tail
    (n+2)
    th
    0x33
    (n+3)
    th
    0xC3
    (n+4)
    th
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 13 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.4.3 BP1_write ( 0x4B )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x4B
    Write raw bit-map data to the VP_BP1
    2
    Addr3(MSB)
    VP_BP1 Address = 0x040000 ~ 0x05FFFF
    3
    Addr2
    4
    Addr1
    5
    Addr0(LSB)
    6
    Length3(MSB)
    the number of data
    7
    Length2
    Length = 1 ~ 98304
    8
    Length1
    9
    Length0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. After the above command issued, it follow with the raw data byte with out communication packet structure.
    *3. over all command flow
    HOST
    Flow
    module
    BP1_write Command
    Instruct to wait for data….
    (in communication packet structure)
    Raw 1bpp image data
    Store the data into VP_BP1
    (without communication packet structure)
    Response code “:>” in ASCII
    (without communication packet structure)
    4.4.4 BP1_write_compress ( 0x4C )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x4C
    Write compressed bit-map data to the VP_BP1
    2
    Addr3(MSB)
    VP_BP1 Address = 0x040000 ~ 0x05FFFF
    3
    Addr2
    4
    Addr1
    5
    Addr0(LSB)
    6
    Length3(MSB)
    the number of data
    7
    Length2
    Length = 1 ~ 98304
    8
    Length1
    9
    Length0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. After the above command issued, it follow with the compressed data byte with out communication packet structure.
    *3. over all command flow
    HOST
    Flow
    module
    BP1_write Command
    Instruct to wait for data….
    (in communication packet structure)
    compressed 1bpp image data
    Store the data into VP_BP1
    (without communication packet structure)
    Response code “:>” in ASCII
    (without communication packet structure)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 14 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.4.5 G16_write ( 0x4D )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x4D
    Write graph values to the VP_G16 array
    2
    Addr1_H
    VP_G16 Address = 0x060000 ~ 0x07FFFF
    3
    Addr1l
    4
    Addr2h
    5
    Addr2l
    6
    Sizeh
    Array-size = 1 ~ 1024
    7
    Sizel
    (*2, *3)
    8
    Data(MSB)
    16 bit data array
    9
    Data(LSB)
    (no. of byte = 2x array-size)
    10
    Data(MSB)
    11
    Data(LSB)
    :
    :
    :
    :
    :
    :
    :
    :
    :
    :
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. Array-size = no. of 16bit values
    *3. Array-size suggest to be same at the size value defined in TML editor
    4.4.6 G16_write_rotate ( 0x4E )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x4E
    Write graph values to the last position of VP_G16 array
    with rotation effect
    2
    Addr1_H
    VP_G16 Address = 0x060000 ~ 0x07FFFF
    3
    Addr1_L
    4
    Addr2_H
    5
    Addr2_L
    6
    Size_H
    Array-size to be rotate = 1 ~ 65535
    7
    Size_L
    (*2. *3)
    8
    Data(MSB)
    16 bit data value to be add to the end-of-array
    9
    Data(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    *2. Array-size = no. of 16bit values
    *3. Array-size suggest to be same at the value defined in TML editor
    4.4.7 System Register Write ( 0x3B )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x3B
    System Register Write Command
    2
    Addr3(MSB)
    3
    Addr2
    Timer_Ctrl0 Address = 0xFFFF00
    4
    Addr1
    Timer_Ctrl7 Address = 0xFFFF07
    5
    Addr0(LSB)
    6
    Data
    the value to write
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 15 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.4.8 System Register Read ( 0x3C )
    seq
    Cmd-code / Par-data
    Descriptions
    1
    0x3C
    System Register Read Command
    2
    Addr3(MSB)
    3
    Addr2
    Address = 0xFFFF00
    4
    Addr1
    Address = 0xFFFFFF
    5
    Addr0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x3C
    Command executed
    rd
    3
    Addr3(MSB)
    th
    4
    Addr2
    Address = 0xFFFF00
    th
    Address
    5
    Addr1
    th
    Address = 0xFFFFFF
    6
    Addr0(LSB)
    th
    7
    Data
    Data(1Byte)
    the value of the register
    th
    8
    0xCC
    th
    9
    0x33
    th
    Tail
    Communication packet tail
    10
    0xC3
    th
    11
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    *2. When Timer reach the 0x00000000 or 0x7FFFFFFF, a notification will be provided a 0x77 response code with the corresponding
    Timer Address and Value.(See touch_response(0x77)for details)
    4.4.9 STR_write ( 0x42 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x42
    Write string to VP_STR
    2
    Addr3(MSB)
    the VP_STR Address = 0x00000 ~ 0x01FFFF
    3
    Addr2
    (each VP_STR = 128 bytes)
    4
    Addr1
    (address value must be divisible by 128)
    5
    Addr0(LSB)
    6
    data
    String to write
    :
    :
    Total no. of byte in string ≤ 128
    :
    :
    :
    ‘\0’
    ‘\0’(0x00): string end mark
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4.10 STR_read ( 0x43 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x43
    Read string from VP_STR
    2
    Addr3(MSB)
    the VP_STR Address = 0x00000 ~ 0x01FFFF
    3
    Addr2
    (each VP_STR = 128 bytes)
    4
    Addr1
    (address value must be divisible by 128)
    5
    Addr0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x43
    Command executed
    rd
    3
    String data
    data
    String code
    :
    :
    :
    :
    :
    \0
    0x00
    ‘‘\0’(0x00): string end mark
    :
    Tail
    0xCC
    Communication packet tail
    :
    0x33
    :
    0xC3
    :
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 16 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.4.11 STR_fill ( 0x46 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x46
    Write string to VP_STR
    2
    Addr3(MSB)
    he VP_STR Address = 0x00000 ~ 0x01FFFF
    3
    Addr2
    (each VP_STR = 128 bytes)
    4
    Addr1
    (address value must be divisible by 128)
    5
    Addr0(LSB)
    6
    Lengthh
    the number of VP_STR (including the start address) to be filled
    7
    Lengthl
    Length = 1 ~ 1024
    8
    data
    String to write
    :
    :
    Total no. of byte in string ≤ 128
    :
    :
    :
    ‘\0’
    ‘\0’(0x00): string end mark
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4.12 N16_write ( 0x3D )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x3D
    Write 16bit number to VP_N16
    2
    Addr3(MSB)
    VP_N16 Address = 0x080000 ~ 0x08FFFF
    3
    Addr2
    (each VP_N16 = 2 byte)
    4
    Addr1
    (address value must be divisible by 2)
    5
    Addr0(LSB)
    6
    High Byte
    The 16 bit value to write
    7
    Low Byte
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4.13 N16_read ( 0x3E )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x3E
    Read 16bit number from VP_N16
    2
    Addr3(MSB)
    VP_N16 Address = 0x080000 ~ 0x08FFFF
    3
    Addr2
    (each VP_N16 = 2 byte)
    4
    Addr1
    (address value must be divisible by 2)
    5
    Addr0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x3E
    Command executed
    rd
    3
    N16 value
    Data1(MSB)
    16 bit value
    th
    4
    Data0(LSB)
    th
    5
    Tail
    0xCC
    Communication packet tail
    th
    6
    0x33
    th
    7
    0xC3
    th
    8
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.4.14 N16_fill ( 0x3F )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x3F
    Fill 16bit number to the VP_N16
    2
    Addr3(MSB)
    VP_N16 Address = 0x080000 ~ 0x08FFFF
    3
    Addr2
    (each VP_N16 = 2 byte)
    4
    Addr1
    (address value must be divisible by 2)
    5
    Addr0(LSB)
    6
    Lengthh
    the number of VP_N16 (including the start address) to be filled
    7
    Lengthl
    Length = 1 ~ 32768
    8
    High Byte
    the 16 bit value to fill
    9
    Low Byte
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 17 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.4.15 N32_write ( 0x44 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x44
    Write 32bit number to VP_N32
    2
    Addr3(MSB)
    VP_N32 Address = 0x020000 ~ 0x02FFFF
    3
    Addr2
    (each VP_N32 = 4 byte)
    4
    Addr1
    (address value must be divisible by 4)
    5
    Addr0(LSB)
    6
    Data3(MSB)
    the 32 bit no. value write.
    7
    Data2
    8
    Data1
    9
    Data0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4.16 N32_read ( 0x45 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x45
    Read 32bit number from VP_N32
    2
    Addr3(MSB)
    VP_N32 Address = 0x020000 ~ 0x02FFFF
    3
    Addr2
    (each VP_N32 = 4 byte)
    4
    Addr1
    (address value must be divisible by 4)
    5
    Addr0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x45
    Command executed
    rd
    3
    N32 value
    Data3(MSB)
    32 bit value
    th
    4
    Data2
    th
    5
    Data1
    th
    6
    Data0(LSB)
    th
    7
    Tail
    0xCC
    Communication packet tail
    th
    8
    0x33
    th
    9
    0xC3
    th
    10
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.4.17 N32_fill ( 0x47 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x47
    Fill 32bit number to the VP_N32
    2
    Addr3(MSB)
    VP_N32 Address = 0x020000 ~ 0x02FFFF
    3
    Addr2
    (each VP_N32 = 4 byte)
    4
    Addr1
    (address value must be divisible by 4)
    5
    Addr0(LSB)
    6
    Lengthh
    the number of VP_N32 (including the start address) to be filled
    7
    Lengthl
    Length = 1 ~ 16384
    8
    Data3(MSB)
    the 32 bit no. value to fill
    9
    Data2
    10
    Data1
    11
    Data0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 18 of 19
    TOPWAY
    SMART LCD Command Manual
    Protocol V5.04
    4.4.18 N64_write ( 0x48 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x48
    Write 64bit number to VP_N64
    2
    Addr3(MSB)
    VP_N64 Address= 0x030000 ~ 0x03FFFF
    3
    Addr2
    (each VP_N64 = 8 byte)
    4
    Addr1
    (address value must be divisible by 8)
    5
    Addr0(LSB)
    6
    Data7(MSB)
    the 64bit no. value write.
    7
    Data6
    :
    :
    :
    :
    12
    Data1
    13
    Data0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    4.4.19 N64_read ( 0x49 )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x49
    Read 64bit number from VP_N64
    2
    Addr3(MSB)
    VP_N64 Address= 0x030000 ~ 0x03FFFF
    3
    Addr2
    (each VP_N64 = 8 byte)
    4
    Addr1
    (address value must be divisible by 8)
    5
    Addr0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details
    Response code:
    Seq.
    Content
    Byte in Hex
    Descriptions
    st
    1
    Header
    0xAA
    Communication packet header
    nd
    2
    Command
    0x49
    Command executed
    rd
    3
    N64 value
    Data7(MSB)
    64 bit value
    th
    4
    Data6
    :
    :
    :
    :
    th
    9
    Data1
    th
    10
    Data0(LSB)
    th
    11
    Tail
    0xCC
    Communication packet tail
    th
    12
    0x33
    th
    13
    0xC3
    th
    14
    0x3C
    Note.
    *1. The Response code with communication packet format (see Communication Packet Structure Section for details)
    4.4.20 N64_fill ( 0x4A )
    Seq
    Cmd-code / Par-data
    Descriptions
    1
    0x4A
    Fill 64bit number to the VP_N64
    2
    Addr3(MSB)
    VP_N64 Address= 0x030000 ~ 0x03FFFF
    3
    Addr2
    (each VP_N64 = 8 byte)
    4
    Addr1
    (address value must be divisible by 8)
    5
    Addr0(LSB)
    6
    Lengthh
    the number of VP_N64 (including the start address) to be filled
    7
    Lengthl
    Length = 1 ~ 8192
    8
    Data7(MSB)
    the 64 bit no. value to fill
    9
    Data6
    :
    :
    :
    :
    14
    Data1
    15
    Data0(LSB)
    Note.
    *1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
    URL:
    www.topwaydisplay.com
    Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc
    www.topwaysz.com
    Page: 19 of 19
