LM6063DCW-A

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Gong huimei

Date:2021-12-25

Date:

Date:

Rev. Descriptions

Release Date

0.1

Preliminary release

2021-12-25

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 1 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

Table of Content

1. Basic Specifications .................................................................................................................................. 3

1.1 Display Specifications ....................................................................................................................................................................... 3

1.2 Mechanical Specifications ................................................................................................................................................................ 3

1.3 Block Diagram .................................................................................................................................................................................... 3

1.4 Terminal Functions ............................................................................................................................................................................ 4

2. Absolute Maximum Ratings ..................................................................................................................... 5

3. Electrical Characteristics ......................................................................................................................... 5

3.1 DC Characteristics ............................................................................................................................................................................. 5

3.2 LED Backlight Circuit Characteristics ............................................................................................................................................. 5

3.3 AC Characteristics ............................................................................................................................................................................. 6

4. Function specifications ............................................................................................................................ 7

4.1 The Serial Interface ........................................................................................................................................................................... 7

4.2 Basic Setting ....................................................................................................................................................................................... 7

4.3 Resetting the LCD module ............................................................................................................................................................... 7

4.4 Display Memory Map ......................................................................................................................................................................... 8

4.5 Display Commands ........................................................................................................................................................................... 9

5. Design and Handling Precaution ......................................................................................................... 10

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 2 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

1. Basic Specifications

1.1 Display Specifications

1) LCD Display Mode

: FSTN, Positive, Transflective

2) Display Color

: Display Data = “1” : Dark Gray(*1)

: Display Data = “0” : Light Gray (*2)

3) Viewing Angle

: 6H

4) Driving Method

: 1/65 duty, 1/9 bias

5) Backlight

: White LED backlight

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

*2. The Color is defined as the inactive / background color

1.2 Mechanical Specifications

1) Outline Dimension

: 79.5 x 64.0 x 10.1MAX (mm)

(See attached Outline Drawing for details)

1.3 Block Diagram

BLA

Backlight Circuit

LCD Panel

128 × 64Pixels

VDD

VSS

SI, SCL

ST7567A or equivalent

/CS1, /RES, A0

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 3 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

1.4 Terminal Functions

PIN

Pin No.

Name

I/O

Descriptions

1

VSS

Supply Negative power supply,0V

2

VDD

Supply Positive power supply

3

SI

Input

Serial data input

4

SCL

Input

Serial clock input

5

Input

Register Select

A0

A0 = H, Transferring the Display Data

A0 = L, Transferring the Control Data

6

Input

Reset signal

/RES

/RES = L, Initialization is executed

/RES = H, Normal running.

7

Input

Chip Select

/CS1

/CS1=L, enable access to the LCD module

/CS1=H, disable access to the LCD module

8

BLA

Supply Positive power for LED backlight

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 4 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

2. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+4.0

V

V SS = 0V

Input Voltage

V IN

-0.3

V DD +0.3

V

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

3. Electrical Characteristics

3.1 DC Characteristics

V SS =0V, V DD =3.3V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

3.0

3.3

3.6

V

VDD

Input High Voltage

V IH

0.7xV DD

-

V DD

V

/RES, /CS1, A0, SI,

Input Low Voltage

V IL

V SS

-

0.3xV DD

V

SCL

Operating Current

I DD

-

0.3

1.3

mA VDD

3.2 LED Backlight Circuit Characteristics

VSS=0V, If BLA =85mA, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Forward Voltage

Vf BLA

-

3.3

-

V

BLA

Forward Current

If BLA

-

85

100

mA

BLA

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

BLA

VSS

No. of LED = 5pcs

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 5 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

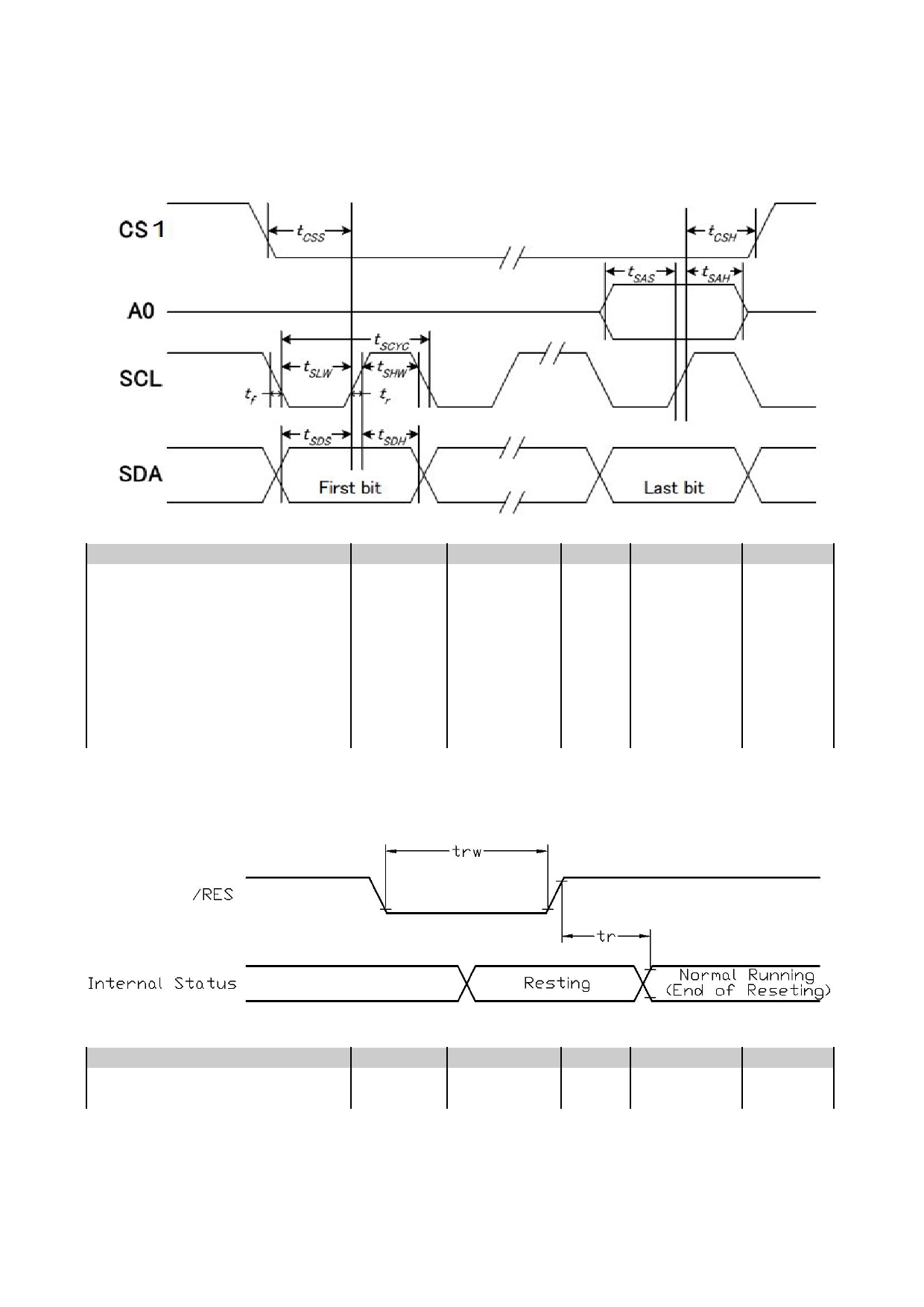

3.3 AC Characteristics

3.3.1 4-SPI Serial Mode Interface

V SS =0V, V DD =3.3V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Serial Clock Period

tscyc

65

-

-

ns

Address setup time (A0)

tsas

26

-

-

ns

Address hold time (A0)

tsah

13

-

-

ns

SCL “H” pulse width

tshw

33

-

-

ns

SCL “L” pulse width

tslw

33

-

-

ns

Data setup time

tsds

26

-

-

ns

Data hold time

tsdh

13

-

-

ns

CS-SCL time

tcss

26

-

-

ns

CS-SCL time

tcsh

52

-

-

ns

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. All timing is using 20% and 80% of VDD as the reference.

3.3.2 Reset Timing

V SS =0V, V DD =3.3V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset time

tr

-

-

2.5

μs

Reset LOW pulse width

trw

2.5

-

-

μs

Note:

*1.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 6 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

4. Function specifications

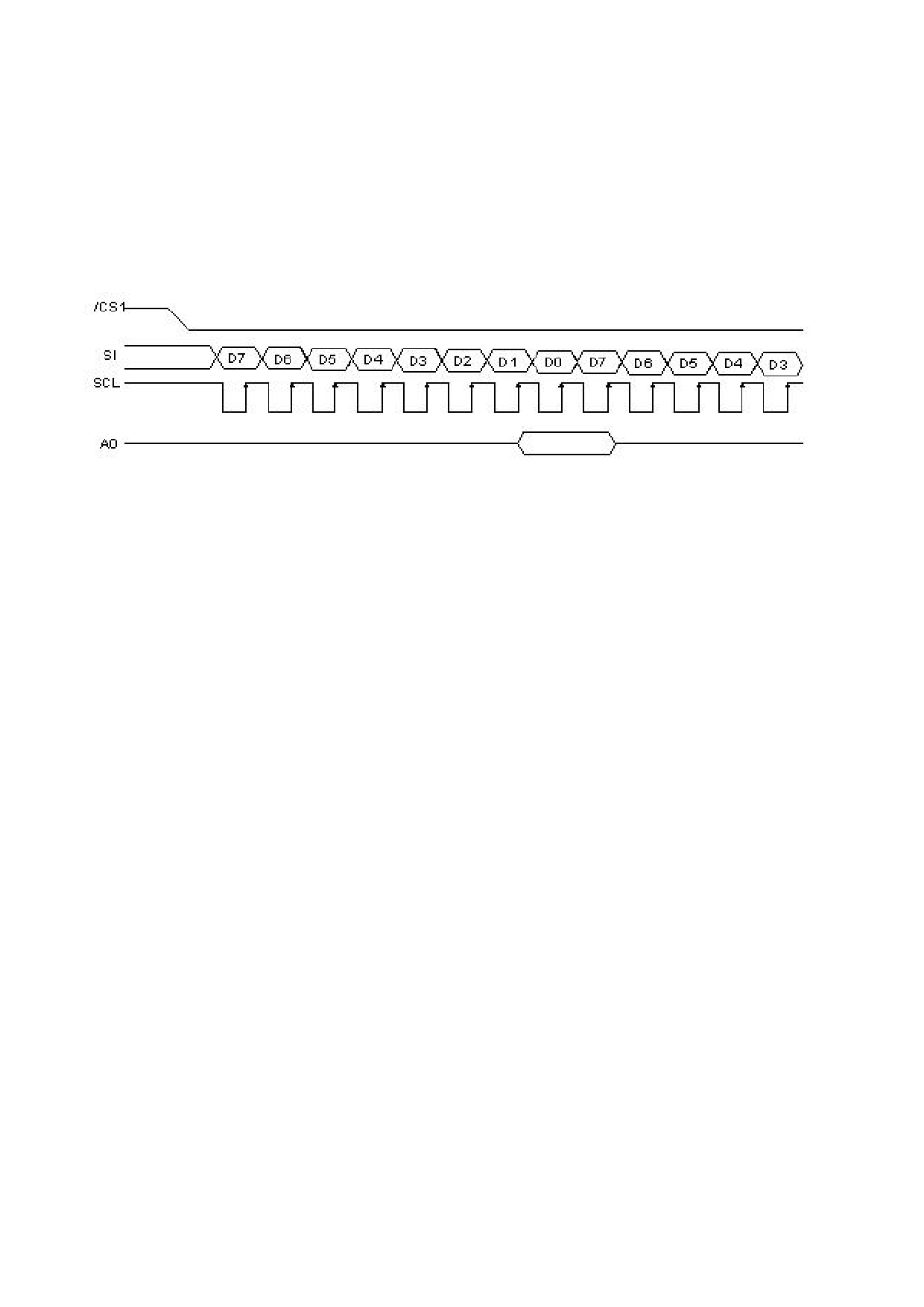

4.1 The Serial Interface

When the serial interface has been selected then when the chip is in active state the serial data

input(SI) and the serial clock(SCL) can be received. The serial data is read from the serial data

input pin in the rising edge of the serial clock . When “A0”=“H”, the data is display data, and when

“A0”=“L”, the data is command.

4.2 Basic Setting

To drive the LCD module correctly and provide normally display, please use the following setting

- MX = 1 (reverse)

- MY = 0 (normal)

- LCD Bias Select = 1/9

- Initial Display Line = 0

- Entire Display ON/OFF = OFF (normal)

- Reverse Display ON/OFF = OFF (normal)

- Set Power Control Set:

voltage follower = ON, voltage converter = ON, voltage regulator = ON

- Display ON/OFF = ON

Note:

*1. These setting/commands should issue the LCD module while start up.

*2. See the Display Commands section for details.

4.3 Resetting the LCD module

The LCD module should be initialized by using /RES terminal.

While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the

power supply stabilized, release the reset terminal (/RES=HIGH)

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 7 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

4.4 Display Memory Map

Page address

data

LCD Display (front view)

D0

0

:

D7

D0

1

:

D7

D0

2

:

D7

D0

3

:

D7

D0

4

:

128x64 pixels

D7

D0

5

:

D7

D0

6

:

D7

D0

7

:

D7

Column Address

00h



7Fh

Note:

*1. MX = 1 (reverse)

*2. MY = 0 (normal)

*3. Initial Display Line = 0

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 8 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

4.5 Display Commands

INSTRUCTION

COMMAND BYTE

DESCRIPTION

(1) Display ON/OFF

0 1 0

1

0

1

0

1

1

1

D

D=1, display ON

D=0, display OFF

(2) Set Start Line

0 1 0

0

1

S5

S4

S3

S2

S1

S0

Set display start line

(3) Set Page Address

0 1 0

1

0

1

1

Y3

Y2

Y1

Y0

Set page address

(4)Set Column Address 0 1 0

0

0

0

1

X7

X6

X5

X4

Set column address (MSB)

0 1 0

0

0

0

0

X3

X2

X1

X0

Set column address (LSB)

(5) Read Status

0 0 1

0

MX

D

RST

0

0

0

0

Read IC Status

(6) Write Data

1 1 0 D7 D6

D5

D4

D3

D2

D1

D0

Write display data to RAM

(7) Read Data

1 0 1 D7 D6

D5

D4

D3

D2

D1

D0

Read display data from RAM

Set scan direction of SEG

(8) SEG Direction

0 1 0

1

0

1

0

0

0

0

MX

MX=1, reverse direction

MX=0, normal direction

(9) Inverse Display

0 1 0

1

0

1

0

0

1

1

INV INV =1, inverse display

INV =0, normal display

(10) All Pixel ON

0 1 0

1

0

1

0

0

1

0

AP

AP=1, set all pixel ON

AP=0, normal display

(11) Bias Select

0 1 0

1

0

1

0

0

0

1

BS

Select bias setting

0=1/9; 1=1/7 (at 1/65 duty)

(12) Read-modify-Write 0 1 0

1

1

1

0

0

0

0

0

Column address increment:

Read:+0 , Write:+1

(13) END

0 1 0

1

1

1

0

1

1

1

0

Exit Read-modify-Write mode

(14) RESET

0 1 0

1

1

1

0

0

0

1

0

Software reset

Set output direction of COM

(15) COM Direction

0 1 0

1

1

0

0

MY

-

-

-

MY=1, reverse direction

MY=0, normal direction

(16) Power Control

0 1 0

0

0

1

0

1

VB

VR

VF

Control built-in power circuit

ON/OFF

(17) Regulation Ratio

0 1 0

0

0

1

0

0

RP1 RP1 RP0 Select regulation resistor

ratio

0 1 0

1

0

0

0

0

0

0

1

Double command!! Set

(18) Set EV

electronic volume (EV) level

0 1 0

0

0

EV5 EV4 EV3 EV2 EV1 EV0

0 1 0

1

1

1

1

1

0

0

0

Double command!!

Set booster level:

(19) Set Booster

0 1 0

0

0

0

0

0

0

0

BL

BL=0: 4X

BL=1: 5X

(20) Power Save

0 1 0

Compound Command

Display OFF + All Pixel ON

(21) NOP

0 1 0

1

1

1

0

0

0

1

1

No operation

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to ST7567A data sheet.

4.5.1 Power off the LCD Module

It recommends that enter Sleep Mode before power off the LCD module.

4.5.2 Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 9 of 10

TOPWAY

LCD Module User Manual

LM6063DCW-A

5. Design and Handling Precaution

1.

The LCD panel is made by glass. Any mechanical shock (eg. dropping form high place)

will damage the LCD module.

2.

Do not add excessive force on the surface of the display, which may cause the Display

color change abnormally.

3.

The polarizer on the LCD is easily get scratched. If possible, do not remove the LCD

protective film until the last step of installation.

4.

Never attempt to disassemble or rework the LCD module.

5.

Only Clean the LCD with Isopropyl Alcohol or Ethyl Alcohol. Other solvents (eg. water)

may damage the LCD.

6.

When mounting the LCD module, make sure that it is free form twisting, warping and

distortion.

7.

Ensure to provide enough space (with cushion) between case and LCD panel to prevent

external force adding on it, or it may cause damage to the LCD or degrade the display

result.

8.

Only hold the LCD module by its side. Never hold LCD module by add force on the heat

seal or TAB.

9.

Never add force to component of the LCD module. It may cause invisible damage or

degrade of the reliability.

10.

LCD module could be easily damaged by static electricity. Be careful to maintain an

optimum anti-static work environment to protect the LCD module.

11.

When peeling off the protective film from LCD, static charge may cause abnormal

display pattern. It is normal and will resume to normal in a short while.

12.

Take care and prevent get hurt by the LCD panel sharp edge.

13.

Never operate the LCD module exceed the absolute maximum ratings.

14.

Keep the signal line as short as possible to prevent noisy signal applying to LCD module.

15.

Never apply signal to the LCD module without power supply.

16.

IC chip (eg. TAB or COG) is sensitive to the light. Strong lighting environment could

possibly cause malfunction. Light sealing structure casing is recommend.

17.

LCD module reliability may be reduced by temperature shock.

18.

When storing the LCD module, avoid exposure to the direct sunlight, high humidity, high

temperature or low temperature. They may damage or degrade the LCD module

URL: www.topwaydisplay.com

Document Name: LM6063DCW-A-Manual-Rev0.1.DOC

Page: 10 of 10
