1. General Specification
Signal Interface :
Digital 16-bits RGB
Display Technology :
a-Si TFT active matrix
Display Mode :
Transmissive / Normal White
Screen Size(Diagonal) :
7.0”
Outline Dimension :
207.6 x 132.6 x 30 MAX(mm) (with mounting Bezel)
(see attached drawing for details)
Active Area :
154.08 x 85.92 (mm)
Number of dots :
800 x 3 (RGB) x 480
Pixel Pitch :
0.1926 x 0.179 (mm)
Pixel Configuration :
RGB Stripe
Backlight :
White LED
Viewing Direction :
6H (gray scale inverse) (*1)
12H (*2)
Touch Panel:
Toughened 4wire resistive
Operating Temperature :
-20 ~ +70°C
Storage Temperature :
-30 ~ +80°C
Note:
*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors-combinations).
*2. For “color scales” display content.
*3. Color tone may slightly change by temperature and driving condition.
2. Block Diagram
YU,YD,XR,XL
Touch Panel
VDD, GND
7’’ TFT Panel
/RST
DCLK
DE, HS, VS
R0~R4, G0~G5, B0~B4
Source Driver
LED_ADJ
Backlight Circuit
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 3 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA
3. Terminal Function
3.1 Input/output Terminal (K1)
K2
Pin No.
Pin Name
I/O
Descriptions
1
VDD
Power
Positive Power Supply
2
B0
3
B1
Input
Blue Data
4
B2
5
VDD
Power
Positive Power Supply
6
B3
7
B4
Input
Blue Data
8
G0
Input
Green Data
9
GND
Power
Power Supply Ground
10
G1
11
G2
Input
Green Data
12
G3
13
GND
Power
Power Supply Ground
14
G4
15
G5
Input
Green Data
16
R0
Input
Red Data
17
GND
Power
Power Supply Ground
18
R1
19
R2
Input
Red Data
20
R3
21
GND
Power
Power Supply Ground
22
R4
Input
Red Data
23
/RST
Input
Reset Signal Input
24
GND
Power
Power Supply Ground
25
DE
Input
DE Signal Input(Default)
26
VS
Input
Vertical Sync Input
27
HS
Input
Horizontal Sync Input
28
GND
Power
Power Supply Ground
29
DCLK
Input
Data Clock Input
Data shall be latched at the falling edge of DCLK.
30
GND
Power
Power Supply Ground
31
LED_ADJ
Input
LED driver adjust control
32
GND
Power
Power Supply Ground
33
YU
Passive Touch Panel Up side sensing
34
YD
Passive Touch Panel Down side sensing
35
XR
Passive Touch Panel Right side sensing
36
XL
Passive Touch Panel Left side sensing
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 4 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA
4. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit
Condition
Power Supply voltage
V CC
-0.3
6.0
V
Operating Temperature
T OP
-20
70
C
No Condensation
Storage Temperature
T ST
-30
80
C
No Condensation
Note:
*1. This rating applies to all parts of the module. And it should be not exceeded.
*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed, and the
other specification related to electro-optical display quality is determined at the room temperature, T OP =25.
*3. Ambient temperature when the backlight is lit (reference value)
*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device.
Functional operation of this device at other conditions beyond those listed in the specification is not implied
and prolonged exposure to extreme conditions may affect device reliability.

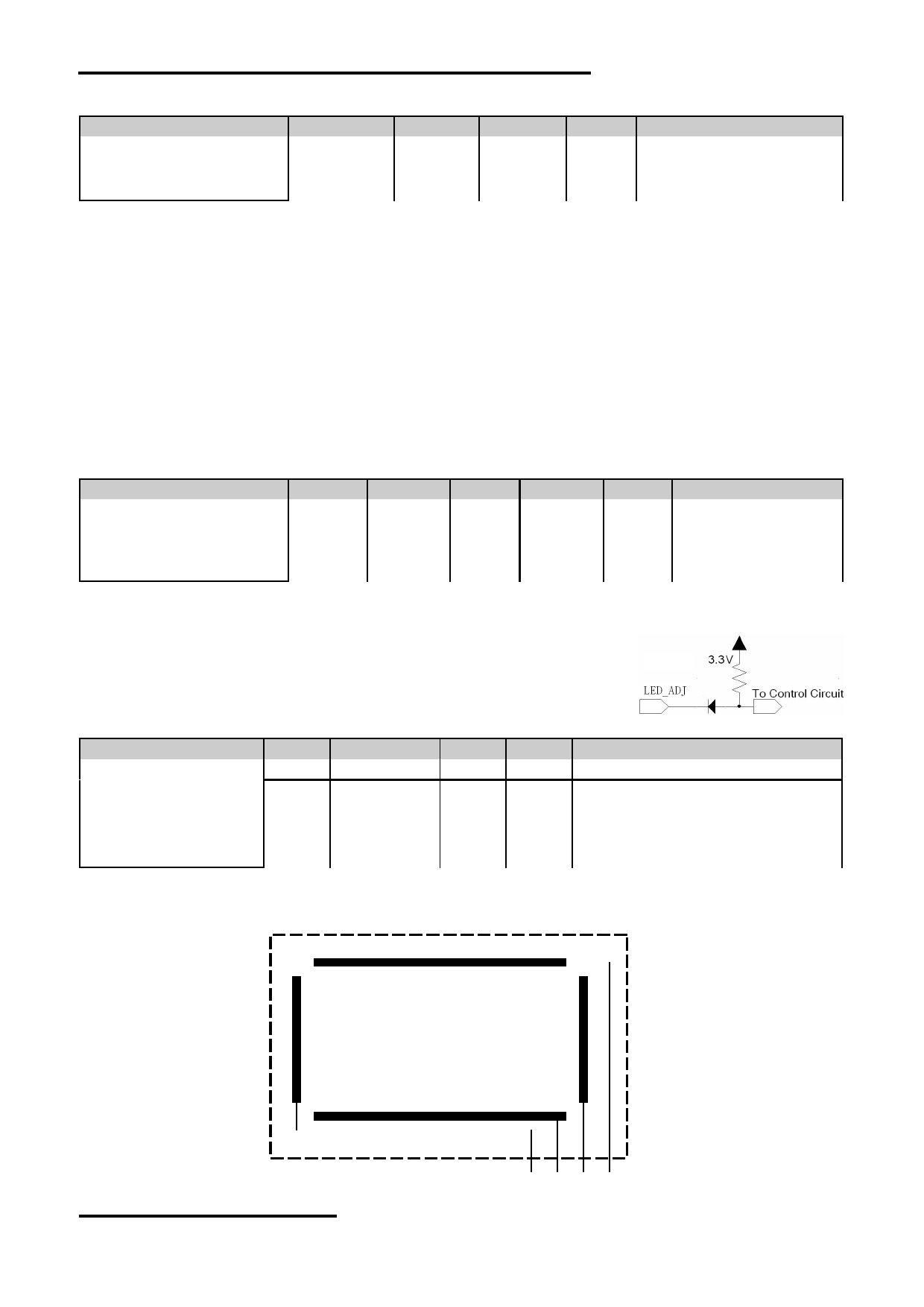

5. Electrical Characteristics
5.1 DC Characteristics
VCC=5.0V, GND=0V ,Top=25 ℃
Items
Symbol
Min.
Typ.
Max.
Unit
Remark
Power Supply Voltage
V CC
4.7
5.0
5.3
V
(*1)
Input logic high voltage
V IH
3.0
-
3.6
V
Input logic low voltage
V IL
0
-
0.7
V
Logic Supply (VDD)
I VDD
-
550
-
mA
LED_ADJ=High (*2)
Note1:
*1. LED_ADJ=Hi;
*3. Terminal circuit.
*2. Recommended LED_ ADJ PWM Freq. is 3kHz.
5.2 Touch panel Characteristics
Items
MIN.
TYP.
MAX.
Unit Applicable Pin
100
-
900
Ω
X- terminal
Terminal resistance
200
-
1200
Ω
Y- terminal
Operating Voltage
-
-
7
V
-
Response time
-
-
10
ms
-
Life Time
-
1,000,000
-
times -
Note1:
Exceeding the recommended Condition could cause substantial damage to the touch panel and shorten its
lifetime.
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 5 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA
5.3 POWER ON/OFF SEQUENCE
Parameter
Symbol
MIN.
TYP.
MAX.
Unit Note
VDD 5.0V to signal starting
Tp1
0
-
50
ms
Signal staring to backlight on
Tp2
150
-
-
ms
Signal off to VDD 5.0V
Tp3
0
-
50
ms
Backlight off to signal off
Tp4
150
-
-
ms
Interface Power On/Off Sequence
6. AC Characteristics
6.1 Timing Characteristics
Item
Symbol MIN. TYP. MAX.
Unit
Remark
HS setup time
Thst
8
-
-
ns
HS hold time
Thhd
8
-
-
ns
VS setup time
Tvst
8
-
-
ns
VS hold time
Tvhd
8
-
-
ns
Data setup time
Tdsu
8
-
-
ns
Data hole time
Tdhd
8
-
-
ns
DE setup time
Tesu
8
-
-
ns
V CC Power On Slew rate
TPOR
-
-
20
ms
From 0 to 90% V CC
DCLK cycle time
Tcph
20
-
-
ns
DCLK pulse duty
Tcwh
40
50
60
%
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 6 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA

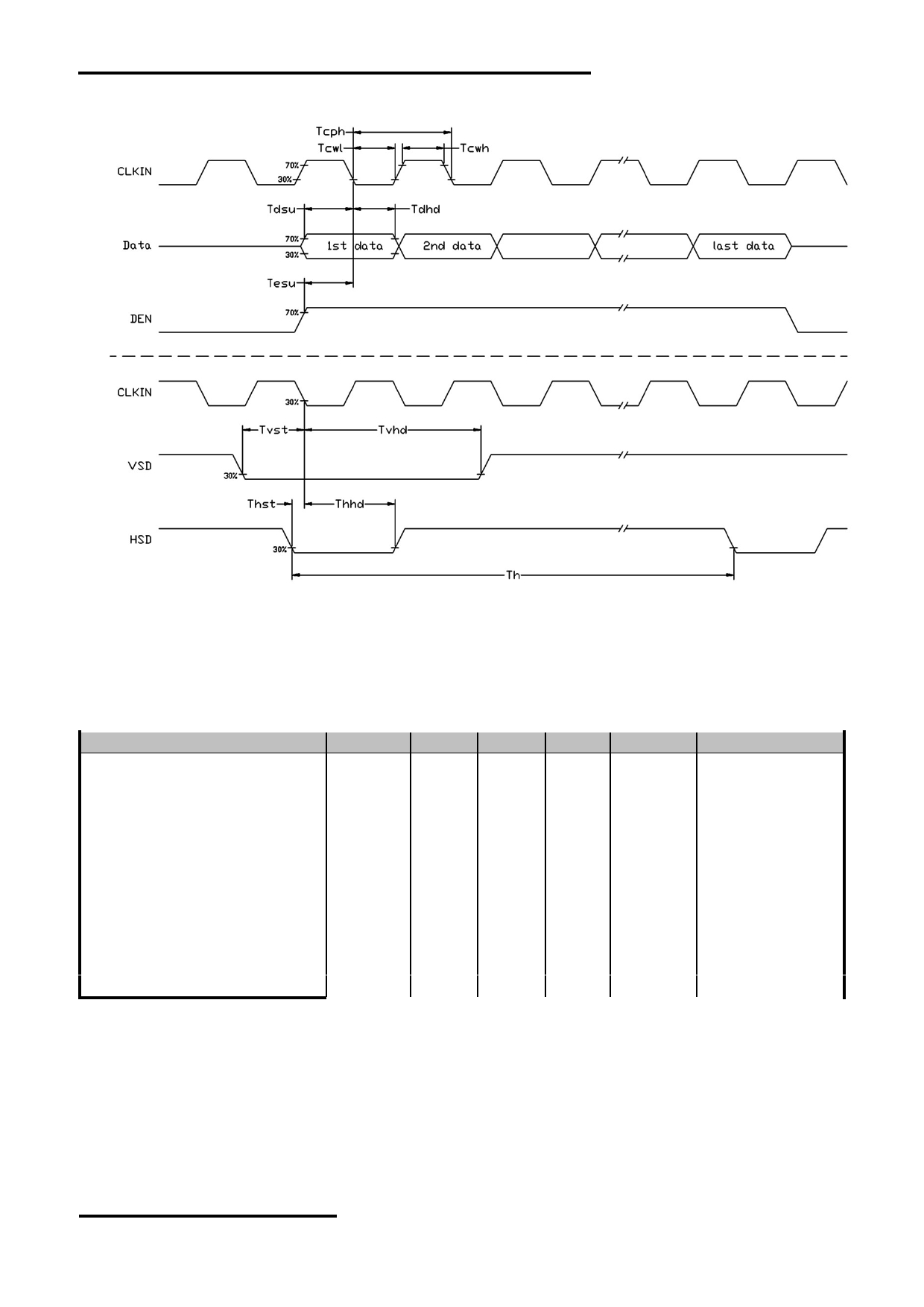

6.2 Input Clock and Data Timing Diagram
6.3 Timing
Item
Symbol
MIN.
TYP.
MAX.
Unit
Remark
Horizontal Display Area
thd
-
800
-
DCLK
DCLK Frequency
fclk
26.4
33.3
46.8
MHz
One Horizontal Line
th
862
1056
1200
DCLK
HS pulse width
thpw
1
-
40
DCLK
HS Blanking
thb
46
46
46
DCLK
HS Front Porch
thfp
16
210
354
DCLK
Vertical Display Area
tvd
-
480
-
TH
VS period time
tv
510
525
650
TH
VS pulse width
tvpw
1
-
20
TH
VS Blanking
tvb
23
23
23
TH
VS Front Porch
tvfp
7
22
147
TH
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 7 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA

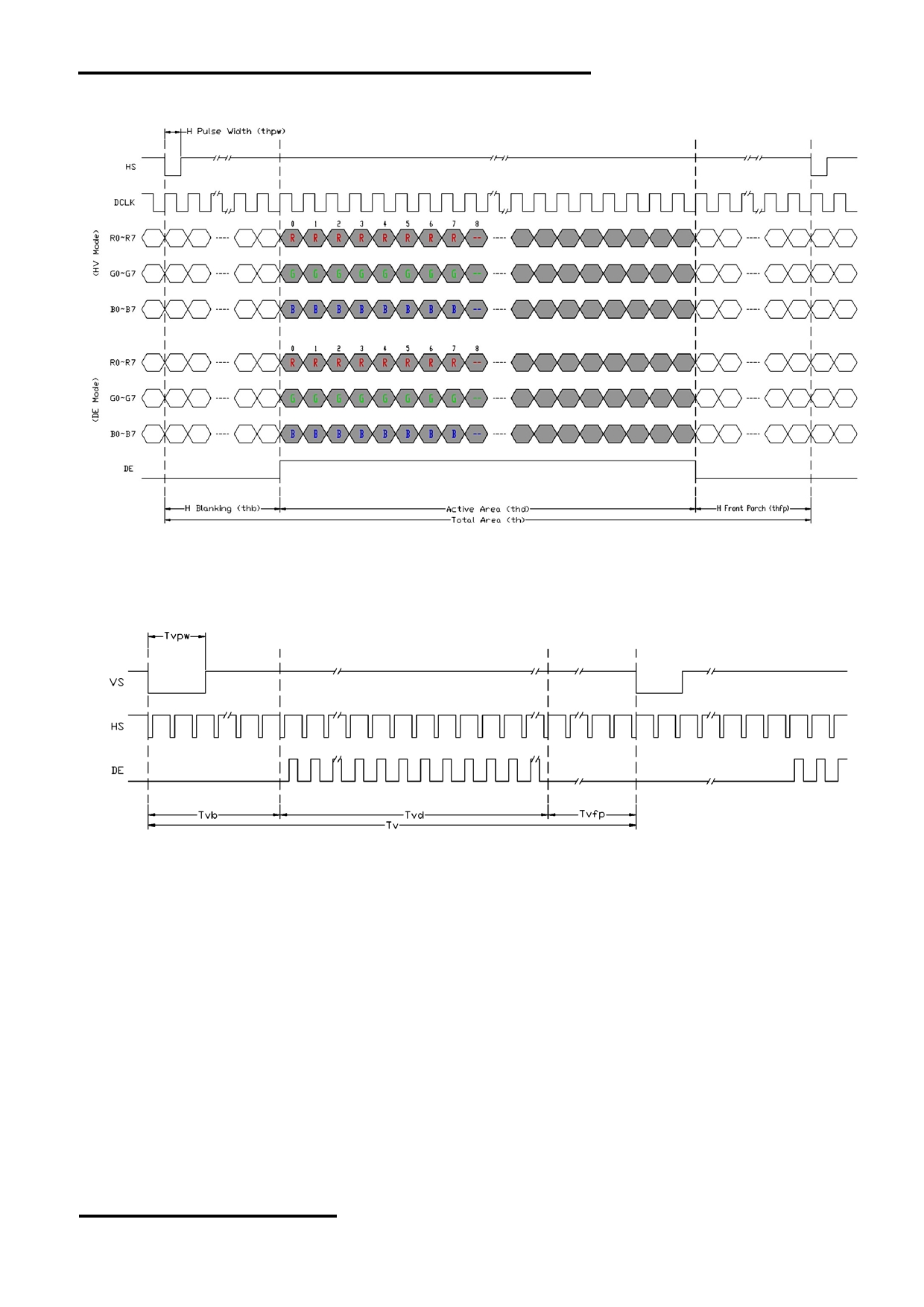

6.4 Data Input Format
Horizontal input timing diagram.
Vertical input timing diagram.
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 8 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA
7. Optical Characteristics
Item
Symbol
Condition
MIN.
TYP.
MAX.
UNIT
Note.
θ L
9 o’clock
60
70
-
Viewing angle
θ R
3 o’clock
60
70
-
(CR ≥ 10)
degree
*2
θ T
12 o’clock
40
50
-
θ B
6 o’clock
60
70
-
T f
-
10
20
msec
Response Time
*3
T r
-
15
30
msec
Contrast ratio
CR
400
500
-
-
Normal
W X
0.26
0.31
0.26
-
*1
Color chromaticlty
θ=0 o
W Y
0.28
0.33
0.38
-
Luminance
L
-
900
-
cd/m 2
*5
Luminance uniformity
Y U
70
75
-
%
*4
Note:
*1. Definition of Contrast Ratio
The contrast ratio could be calculate by the following expression:
Contrast Ratio (CR) = Luminanc with all pixels white / Luminance with all pixels black

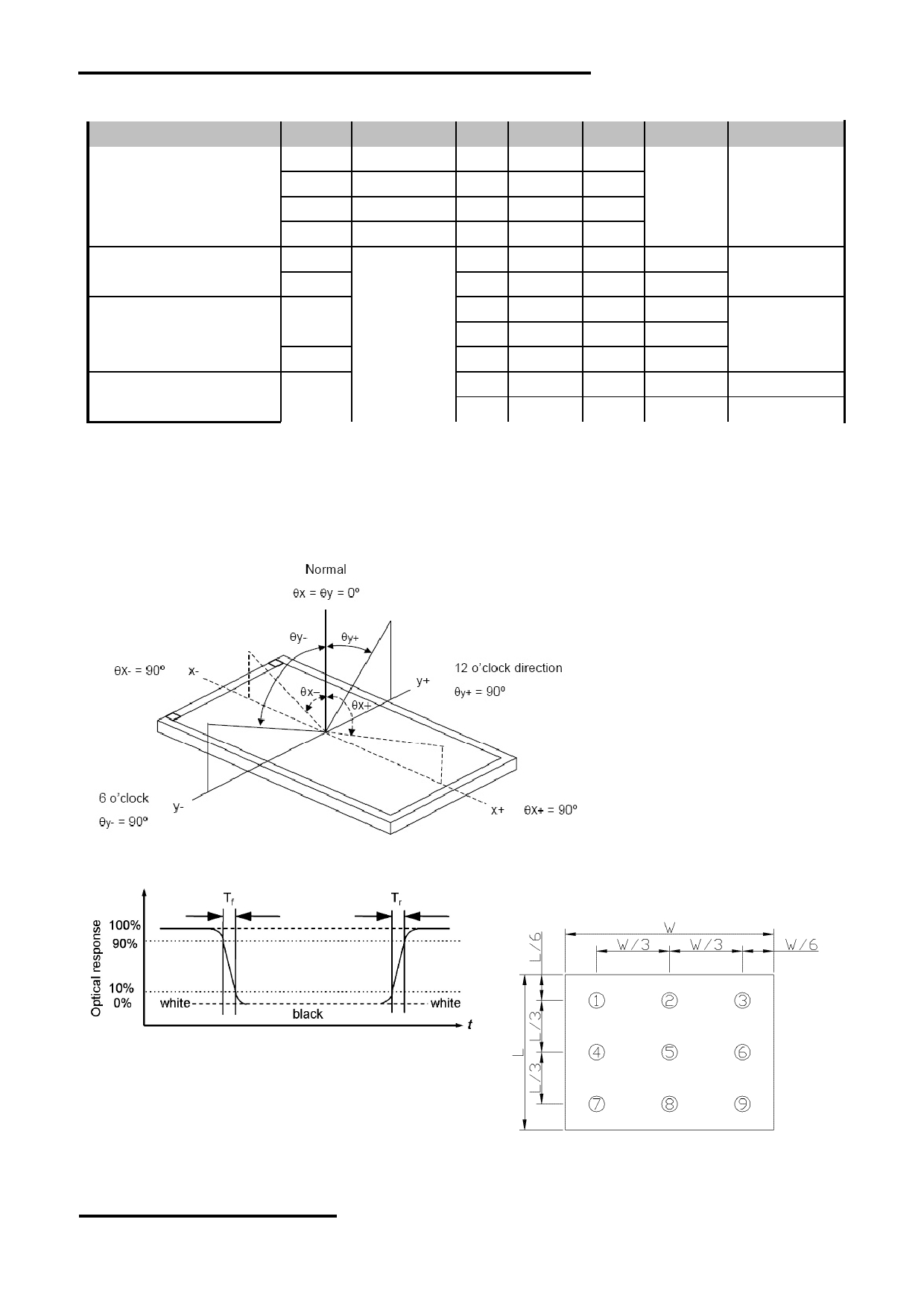

*2 Definition of Viewing Angle
*3 Definition of response time
*4 Definition of Luminance Uniformity
Luminance uniformity (Lu)=
Min. Luminance form pt1~pt9 / Max Luminance form
Pt1~pt9
*5 Exclude TP & Cover Film
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 9 of 10
TOPWAY
LCD Module User Manual
LMK070DICFWD-AMA
8. Precautions for Use of LCD Modules
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
9 . Assemble Precaution
安装注意事项

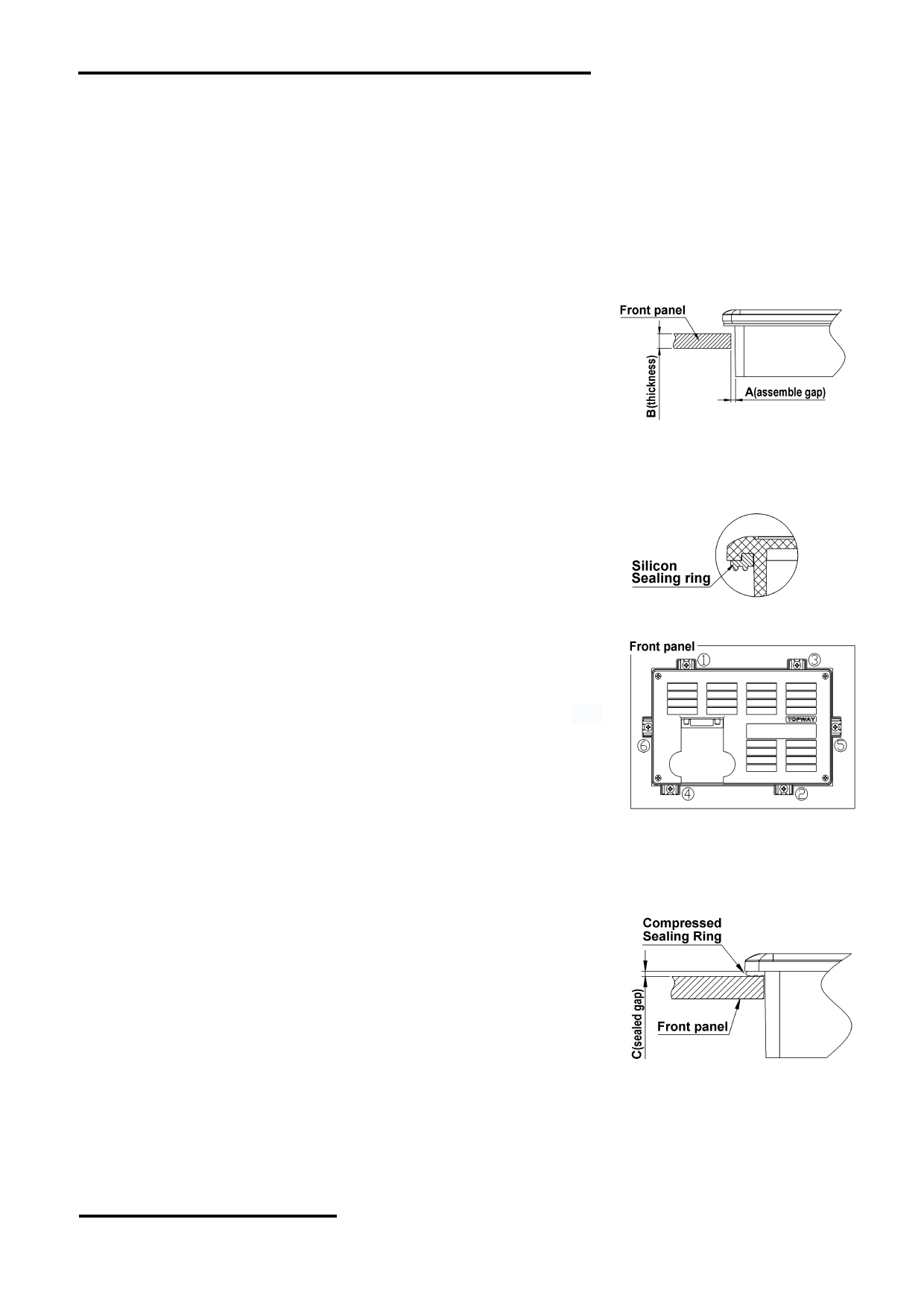

1. Customer front panel opening and thickness for TOPWAY
display module should be fit for its assembling and sealing.
The suggested assemble gap(A) should be about
0.3~0.5mm on each side.
The suggested front panel thickness(B) should be about
1.5~4.0mm.
客户面板开窗及厚度应适合 TOPWAY 显示模块的安装及密封 .
2. A silicon sealing ring ships with TOPWAY display module. It
should be in place before assembling to the front panel.
TOPWAY 显示模块上的硅胶密封圈在安装时确保嵌入到位 .
3. It should fix the TOPWAY display module into the front panel
with two steps.
Pre-fixing: Slightly tighten the screws on beam clamp in
sequence as picture on the right side.
Final-fixing: Tighten the fixing screws on beam clamp in
sequence as well with twist torque about 6~8kg.cm (*1) . and
put the beam clamp straight.
Note:
*1. Over tightening might damage the shell and cause bad sealing result.
应分两步将 TOPWAY 显示模块固定在面板上 .
卡扣置正无歪斜 .
注 :
*1. 过度拧紧可能会损坏外壳和影响密封效果 .
4. It is strongly suggested to check the seal balancing of the four-
side of the TOPWAY display module.
The suggested after assemble sealed gap(C) should be
about 1.0~1.5mm.
需注意检查 TOPWAY 显示模块四周在安装后保证平衡密封 .
5. Others:
Never hot plug the device! Power off the device before connect or disconnect the display
module.
Don't forget to remove the cover protective film for normal operation.
其它 :
URL: www.topwaydisplay.com
Document Name: LMK070DICFWD-AMA-Manual-Rev0.4
Page: 10 of 10
