HKT050ATA-C
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
HeHongLiang
Date: 2017-10-25
Date:
Date:
Rev. Descriptions
Release Date
0.1
- Preliminary Draft release
2016-11-10
0.2
- Assemble Precaution
2017-10-25
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 1 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
Table of Content
1
Basic Specification ..................................................................................................................................... 3
1.1
General Specification ............................................................................................................................ 3
1.2
Block Diagram ...................................................................................................................................... 3
1.3
Terminal Function ................................................................................................................................. 4
2
Absolute Maximum Ratings....................................................................................................................... 4
3
Electrical Characteristics ........................................................................................................................... 5
3.1
DC Characteristics ................................................................................................................................ 5
3.2
AC Characteristics ................................................................................................................................ 5
4
Function Specifications ............................................................................................................................. 6
4.1
Basic Operation Function Descriptions ................................................................................................ 6
4.2
Quick Start Guide ................................................................................................................................. 7
4.3
Command Descriptions ........................................................................................................................ 7
5 . Precautions of using LCD Modules ........................................................................................................... 8
6 . Assemble Precaution ................................................................................................................................. 8
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 2 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
1 Basic Specification
TOPWAY HKT050ATA-C is a Smart TFT Module with 32bit MCU on board. Its graphics engine provides
numbers of outstanding features. It supports TOPWAY TML 2.4 for preload and pre-design display
interface that simplify the host operation and development time. Suitable for industry control,
instrumentation, medical electronics, power electric equipment applications.
1.1 General Specification
Screen Size(Diagonal) :
5.0”
Resolution :
800(RGB) x 480
Color Depth :
65k color (16bit)
Pixel Configuration :
RGB Stripe
Display Mode :
Transmissive / Normal White
Viewing Direction :
12H (*1) (gray-scale inverse)
6H (*2)
Outline Dimension :
160.0 x 105.0 x 27.0 (max) (mm)
(see attached drawing for details)
Active Area :
108.0 x 64.8 (mm)
Backlight :
LED
Surface Treatment :
Glare Treatment(Anti-UV)
Command I/F:
RS232
Project Download:
by PC or by U-Drive (with OTG cable)
Operating Temperature :
-20 ~ +70°C
Storage Temperature :
-30 ~ +80°C
Note:
*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations).
*2. For “color scales” display content.
*3. Color tone may slightly change by Temperature and Driving Condition.
1.2 Block Diagram
Touch Panel
5.0” TFT
800 x 480 pixels
K1
RTS(BUSY)
TX, RX
Display Function Controller
VDD, VSS
K3
D-, D+
Flash
Memory
RAM
VUSB, VSS
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 3 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
1.3 Terminal Function
RS232 Interface Terminal (K1)
Pin No.
Pin Name
I/O Descriptions
1
VDD
P
Power supply (6.0~26.0 V)
2
RX
I
Data Input
(eg. to PC’s RS-232C pin3 <9pin D-connector>)
3
TX
O
Data output
(eg. to PC’s RS-232C pin2 <9pin D-connector>)
4
RTS(BUSY)
O
Request To Send (could function as busy BUSY signal)
(eg. to PC’s RS232C pin8 <9pin D-connector>)
5
NC
--
No connection, leave open
6
VSS
P
Ground, (0V)
Note.
*1. User data and commands transfer through this terminal
*2. HW hand shake is suggested
USB Interface Terminal (K3)
Pin No.
Pin Name
I/O Descriptions
1
VUSB
P
Power supply (5.0V)
2
D-
I/O
USB DATA negative signal
3
D+
I/O
USB DATA positive signal
4
ID
I
USB_ID, 1:Client, 0:HOST
5
VSS
P
Ground, (0V)
Note.
*1. TML files and image files preload through this terminal
*2. Standard “USB-drive” functions provided
*3. During the files transfer, all others display functions will be suspended
2 Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit
Condition
Power Supply voltage
V dd
6.0
26.0
V
Operating Temperature
T OP
-20
70
C
No Condensation
Storage Temperature
T ST
-30
80
C
No Condensation
Note:
*1. This rating applies to all parts of the module and should not be exceeded.
*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,
and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25 ℃
*3. Ambient temperature when the backlight is lit (reference value)
*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged
exposure to extreme conditions may affect device reliability.
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 4 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
3 Electrical Characteristics
3.1 DC Characteristics
VSS=0V, VDD=12V, T OP =25 C
Items
Symbol
MIN.
TYP.
MAX.
Unit Applicable Pin/FUNC
Operating Voltage
V dd
6.0
12.0
26.0
V
VDD
RxD Input MARK(1)
V RxDM
-3.0
-
-15.0
V
Rx
RxD Input SPACE(0)
V RXDS
+3.0
-
+15.0
V
Rx
TxD Output MARK(1)
V TXDM
-3.0
-
-15.0
V
Tx
TxD Output SPACE(0)
V TXDS
+3.0
-
+15.0
V
Tx
RTS Output High
V TXDH
-3.0
-
-15.0
V
RTS(BUSY)
RTS Output Low
V TXDL
+3.0
-
+15.0
V
RTS(BUSY)
Operating Current
I DD
-
210
-
mA
VDD (*1)
Operating Current (USB)
I VUSB
-
226
-
mA
VUSB
Battery Supply Current
I BAT
-
6
-
uA
Note.
*1. Normal display condition
3.2 AC Characteristics
Items
JP1,JP7=close,
JP1,JP8=close,
JP1,JP8= open,
JP1,JP7= open,
JP2,JP8=open
JP2,JP7=open
JP2,JP7= close
JP2,JP8= close
(factory default)
Start bit
1
1
1
1
Data bit
8
8
8
8
Parity bit
None
None
Even
Odd
Stop bit
1
1
1
1
Baud Rate(*1)
115200 bps
9600 bps
115200 bps
115200 bps
Items
JP3=close, JP4=open
JP3= open, JP4=close
(factory default)
Serial Data
busy
Xon/Xoff
Flow Control
Note.
*1.Baud Rate (1200bps ～ 115200bps) could be adjusted by software.
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 5 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
4 Function Specifications
4.1 Basic Operation Function Descriptions
HKT050ATA-C
Touch Panel
TML files
Picture files
ICONS files
Custom
Memories
TFT Display
HOST
PC
VP variables
Control and Draw Engine
- TML files, Picture files, ICON files are stored inside FLASH memory area.
They are preloaded to HKT050ATA-C for stand alone interface use.
- Those files are preloaded via USB interface as an USB drive.
- All the interface flow and the touch response are based on the preloaded TML files
- VP variables memory is inside RAM area,
it provides real time access via UART by the HOST or display onto the TFT by TML file.
- Custom Memories are inside FLASH memory area
It can be accessed via UART interface by the HOST.
- Control and Draw Engine executes HOST commands and response respectively
- It also reports the real time Touch Key number to the HOST
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 6 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C

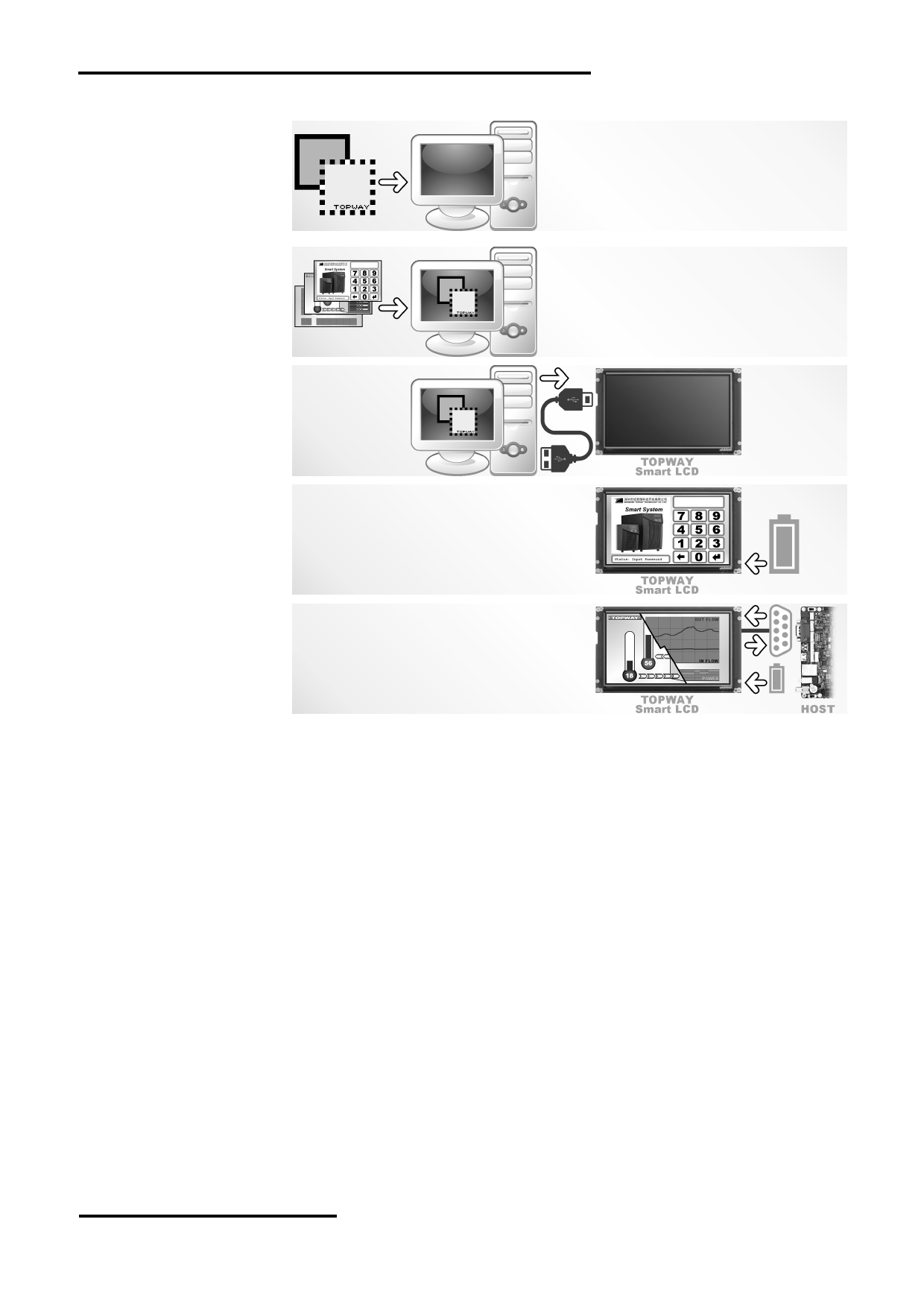

4.2 Quick Start Guide
1.
Install TOPWAY
Graphics Editor
Import pictures
2. design UI flow
3.
Download to
Smart LCD
4. power on &
display
Connect to
5.
host Show
real time
data
4.3 Command Descriptions
Please refer to “SMART LCD Command Manual”.
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 7 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
5 Precautions of using LCD Modules
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

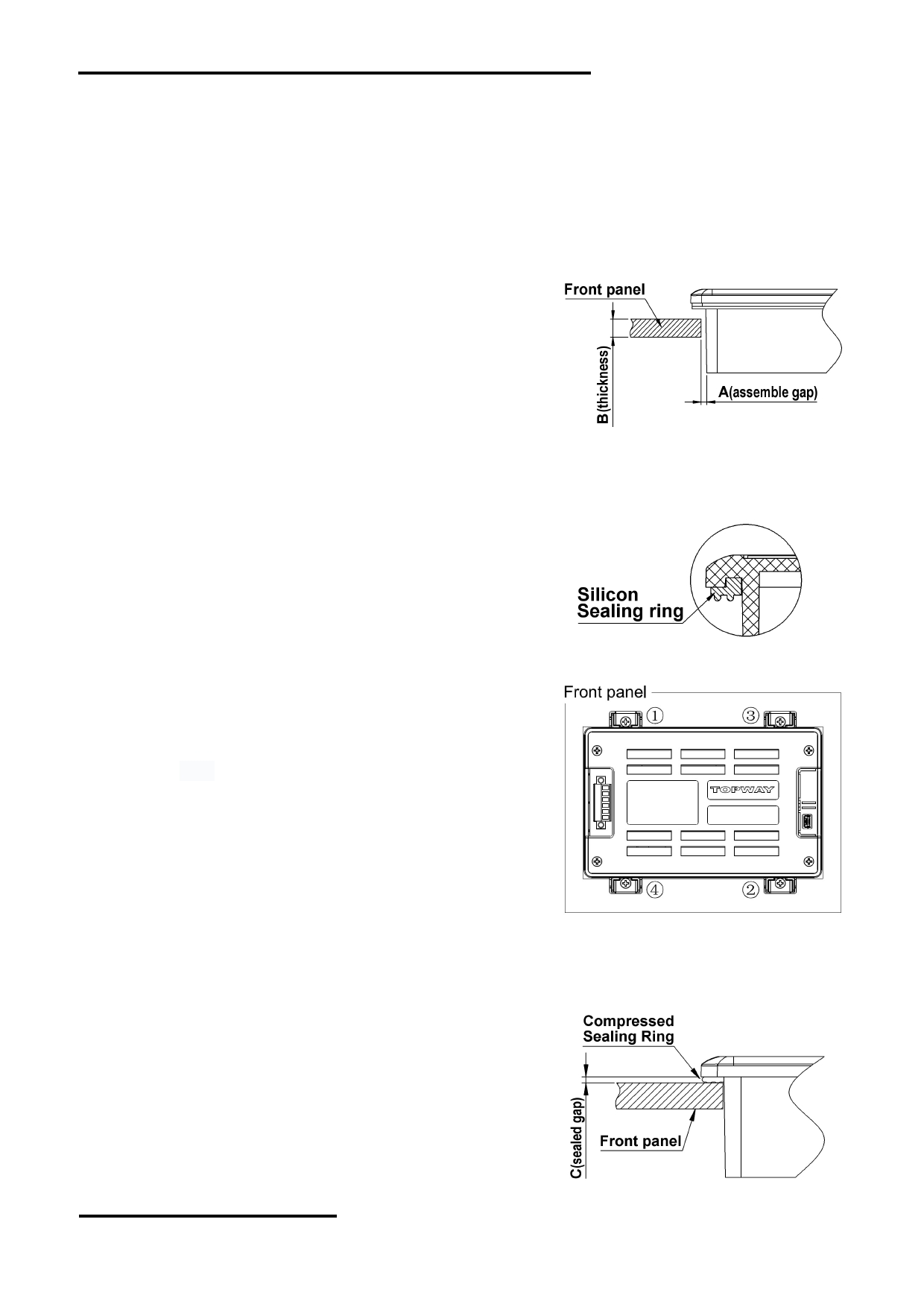

6 Assemble Precaution
安装注意事项
1. Customer front panel opening and thickness for
TOPWAY display module should be fit for its assembling
and sealing.
The suggested assemble gap(A) should be about
0.3~0.5mm on each side.
The suggested front panel thickness(B) should be
about 1.5~4.0mm.
客户面板开窗及厚度应适合
TOPWAY 显示模块的安装及密封 .
2. A silicon sealing ring ships with TOPWAY display
module. It should be in place before assembling to the
front panel.
TOPWAY 显示模块上的硅胶密封圈在安装时确保嵌入到
位 .
3. It should fix the TOPWAY display module into the front
panel with two steps.
Pre-fixing: Slightly tighten the screws on beam clamp
in sequence as picture on the right side.
Final-fixing: Tighten the fixing screws on beam clamp
in sequence as well with twist torque about 4~6kg.cm
(*1) . and put the beam clamp straight.
Note:
*1. Over tightening might damage the shell and cause bad sealing
result.
应分两步将 TOPWAY 显示模块固定在面板上 .
再次按顺序用 4~6kg.cm 扭力拧紧卡扣螺钉 (*
1), 并注意卡扣置正无歪斜 .
注 :
*1. 过度拧紧可能会损坏外壳和影响密封效果 .
4. It is strongly suggested to check the seal balancing of the
four-side of the TOPWAY display module.
The suggested after assemble sealed gap(C) should
be about 0.8~1.2mm.
需注意检查 TOPWAY 显示模块四周在安装后保证平衡密封 .
URL: www.topwaydisplay.com
Document Name: HKT050ATA-C
Page: 8 of 9
TOPWAY
LCD Module User Manual
HKT050ATA-C
5. Others:
Never hot plug the device! Power off the device before connect or disconnect the display
module.
Don't forget to remove the cover protective film for normal operation.
其它 :
