HMT070ATA-9C
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Song Mao
Date: 2022-01-11
Date:
Date:
Rev. Descriptions
Release Date
0.1
- Preliminary Draft release
2022-01-11
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 1 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
Table of Content
1 Basic Specification ........................................................................................................................................................ 3
1.1 General Specification ............................................................................................................................................... 3
1.2 Block Diagram ........................................................................................................................................................... 3
1.3 Terminal Function ..................................................................................................................................................... 4
2 Absolute Maximum Ratings ......................................................................................................................................... 4
3 Electrical Characteristics ............................................................................................................................................. 5
3.1 DC Characteristics .................................................................................................................................................... 5
4 Function Specifications ................................................................................................................................................ 6
4.1 Basic Operation Function Descriptions ................................................................................................................. 6
4.2 Quick Start Guide ...................................................................................................................................................... 7
4.3 Command Descriptions ............................................................................................................................................ 7
5 Optical Characteristics .................................................................................................................................................. 8
6 LCD Module Design and Handling Precautions ..................................................................................................... 9
7 CTP Mounting Instructions ........................................................................................................................................ 10
8 RTP Mounting Instructions ........................................................................................................................................ 11
Warranty ..................................................................................................................................................................... 12
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 2 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
1 Basic Specification
TOPWAY HMT070ATA-9C is a Smart TFT Module with 32bit MCU on board. Its graphics engine
provides numbers of outstanding features. It supports TOPWAY TML 3.0 for preload and pre-design
display interface that simplify the host operation and development time. Suitable for industry control,
instrumentation, medical electronics, power electric equipment applications.
1.1 General Specification
Screen Size(Diagonal) :
7.0”
Resolution :
800(RGB) x480
Color Depth :
65k color (16bit)
Pixel Configuration :
RGB Stripe
Display Mode :
Transmissive / Normal White
Viewing Direction :
6H (*1) (gray-scale inverse)
12H (*2)
Outline Dimension :
185.9 x 109.5 x 19.3 (max)(mm)

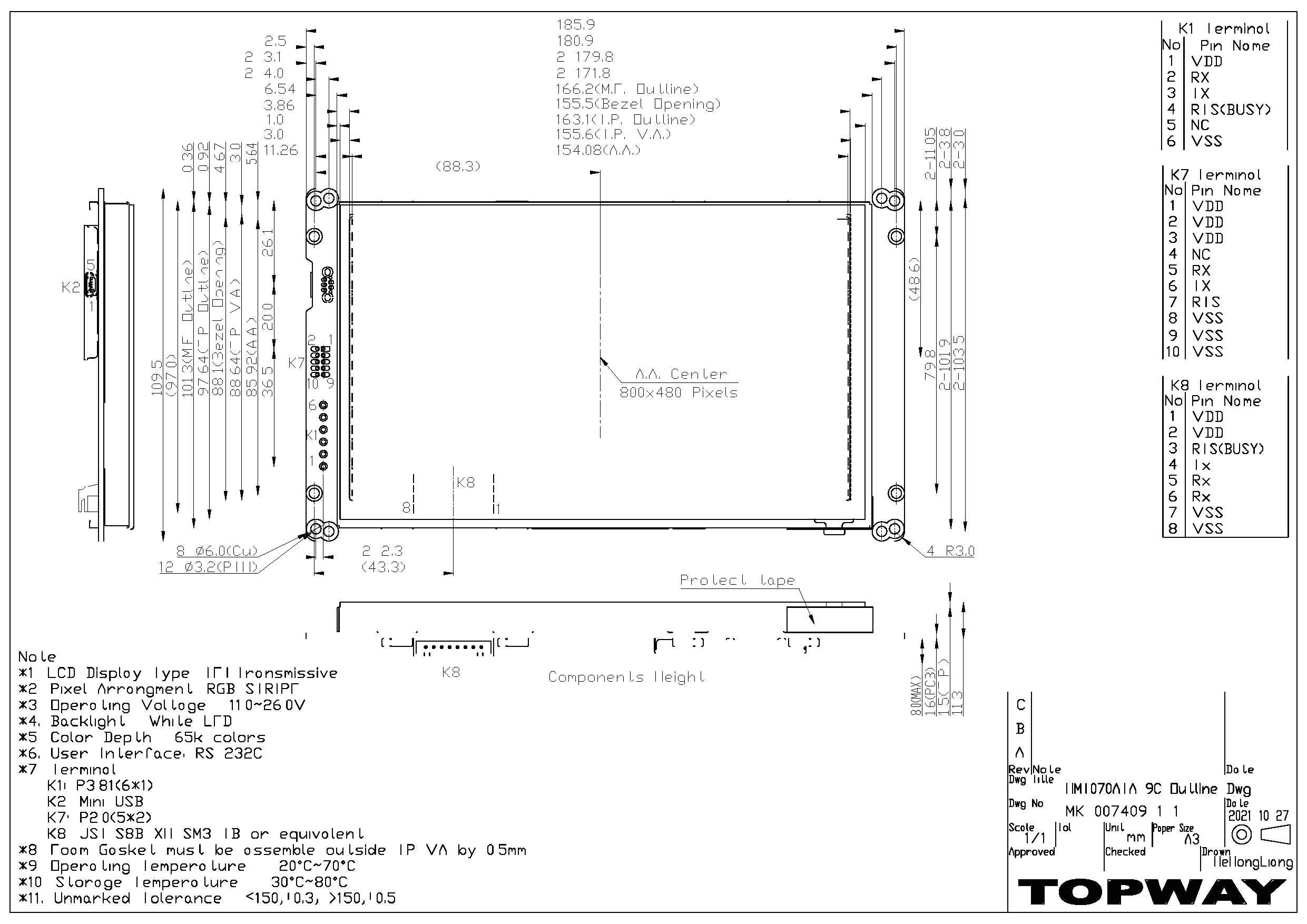

(see attached drawing for details)
Active Area :
154.08 x 85.92 (mm)
Backlight :
LED
Surface Treatment :
Anti-Glare Treatment
Touch Panel:
Resistive Touch
Command I/F:
RS-232C
Project Download:
by PC(USB), U-Drive (with OTG cable)
Operating Temperature :
-20 ~ +70°C
Storage Temperature :
-30 ~ +80°C
RTC without battery, Support 90 degrees rotation,
Highlight :
Lua script engine ， Buzzer
Note:
*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations).
*2. For “color scales” display content.
*3. Color tone may slightly change by Temperature and Driving Condition.
1.2 Block Diagram
Touch Panel
7.0” TFT
800 x 480 pixels
K8
RTS(BUSY)
TX, RX
Display Function Controller
VDD, VSS
with RTC
K2
ID, D-, D+
Flash
Memory
RAM
VUSB, VSS
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 3 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
1.3 Terminal Function
RS232 Interface Terminal (K1)
Pin No.
Pin Name
I/O Descriptions
1
VDD
P
Power supply (11.0~26.0 V)
2
RX
I
Data Input(eg. to PC’s RS-232C pin3 <9pin D-connector>)
3
TX
O
Data output(eg. to PC’s RS-232C pin2<9pin D-connector>)
4
RTS(BUSY)
O
Request To Send (could function as busy BUSY signal)
(eg. to PC’s RS-232C pin8 <9pin D-connector>)
5
NC
-
-
6
VSS
P
Ground, (0V)
RS232 Interface Terminal (K7)
Pin No.
Pin Name
I/O Descriptions
1,2,3
VDD
P
Power supply (11.0~26.0 V)
4
NC
-
-
5
RX
I
Data Input(eg. to PC’s RS-232C pin3 <9pin D-connector>)
6
TX
O
Data output(eg. to PC’s RS-232C pin2<9pin D-connector>)
7
RTS(BUSY)
O
Request To Send (could function as busy BUSY signal)
(eg. to PC’s RS-232C pin8 <9pin D-connector>)
8,9,10
VSS
P
Ground, (0V)
RS232 Interface Terminal (K8)
Pin No.
Pin Name
I/O Descriptions
1,2
VDD
P
Power supply (11.0~26.0 V)
3
RTS(BUSY)
O
Request To Send (could function as busy BUSY signal)
(eg. to PC’s RS-232C pin8 <9pin D-connector>)
4
TX
O
Data output(eg. to PC’s RS-232C pin2<9pin D-connector>)
5,6
RX
I
Data Input(eg. to PC’s RS-232C pin3 <9pin D-connector>)
7,8
VSS
P
Ground, (0V)
Note: *1. User data and commands transfer through this terminal.
*2. HW hand shake is suggested.
USB Interface Terminal (K2)
Pin No.
Pin Name
I/O Descriptions
1
VUSB
P
Power supply(5.0 V)
2
D-
I/O
USB DATA negative signal
3
D+
I/O
USB DATA positive signal
4
ID
I
USB_ID,1:Client,0:HOST
5
VSS
P
Ground, (0V)
Note: *1. TML files and image files preload through this terminal
*2. Standard “USB-drive” functions provided
*3. During the files transfer, all others display functions will be suspended
2 Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit
Condition
Power Supply voltage
V DD
-0.3
28.0
V
Operating Temperature
T OP
-20
70
C
No Condensation
Storage Temperature
T ST
-30
80
C
No Condensation
Note:
*1.This rating applies to all parts of the module and should not be exceeded.
*2.The operating temperature only guarantees operation of the circuit. The contrast, response speed,
and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25 ℃
*3.Ambient temperature when the backlight is lit (reference value)
*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged
exposure to extreme conditions may affect device reliability.
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 4 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
3 Electrical Characteristics
3.1 DC Characteristics
VSS=0V, VDD=12.0V,T OP =25 C
Items
Symbol
MIN.
TYP.
MAX.
Unit Applicable Pin/FUNC
Operating Voltage
V DD
11.0
12.0
26.0
V
VDD
RxD Input MARK(1)
V RxDM
-3.0
-
-15.0
V
RxD
RxD Input SPACE(0)
V RxDS
+3.0
-
+15.0
V
RxD
TxD Output MARK(1)
V TxDM
-3.0
-
-15.0
V
TxD
TxD Output SPACE(0)
V TxDS
+3.0
-
+15.0
V
TxD
RTS(BUSY) Output High
V TxDH
-3.0
-15.0
V
RTS(BUSY)
RTS(BUSY) Output Low
V TxDL
+3.0
+15.0
V
RTS(BUSY)
Operating Current
I DD
-
250
-
mA
VDD (*1)
Operating Current (USB)
I VUSB
-
140
-
mA
VUSB
Battery Supply Current
I BAT
-
0.6
-
uA
CR2032
Note.
*1. Normal display condition
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 5 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
4 Function Specifications
4.1 Basic Operation Function Descriptions
HMT070ATA-9C
Touch Panel
TML files
Picture files
ICONS files
Custom
Memories
TFT Display
HOST
PC
VP variables
Control and Draw Engine
- TML files, Picture files, ICON files are stored inside FLASH memory area.
They are preloaded to HMT070ATA-9C for stand alone interface use.
- Those files are preloaded via USB interface as an USB drive.
- All the interface flow and the touch response are based on the preloaded TML files
- VP variables memory is inside RAM area,
it provides real time access via UART by the HOST or display onto the TFT by TML file.
- Custom Memories are inside FLASH memory area
It can be accessed via UART interface by the HOST.
- Control and Draw Engine executes HOST commands and response respectively
- It also reports the real time Touch Key number to the HOST
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 6 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
4.2 Quick Start Guide
1.
Install TOPWAY
Graphics Editor
Import pictures
2. design UI flow
3.
Download to
Smart LCD
4. power on &
display
Connect to
5.
host Show
real time
data
4.3 Command Descriptions
Please refer to “SMART LCD Command Manual”.
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 7 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
5 Optical Characteristics
Item
Symbol
Condition
MIN.
TYP.
MAX.
UNIT
Note.
θ L
9 o’clock
60
80
-
Viewing angle
θ R
3 o’clock
60
80
-
(CR ≥ 10)
degree
*2
θ T
12 o’clock
50
60
-
θ B
6 o’clock
60
80
-
T f
Response Time
-
25
35
ms
*3
T r
Contrast ratio
CR
600
800
-
-
Normal
W X
0.27
-
0.33
-
*1
Color chromaticlty
θ=0 o
W Y
0.27
-
0.33
-
Luminance
L
-
400
-
cd/m 2
*4
Luminance uniformity
Y U
70
-
-
%
*4
Note:
*1. Definition of Contrast Ratio
The contrast ratio could be calculate by the following expression:
Contrast Ratio (CR) = Luminanc with all pixels white / Luminance with all pixels black

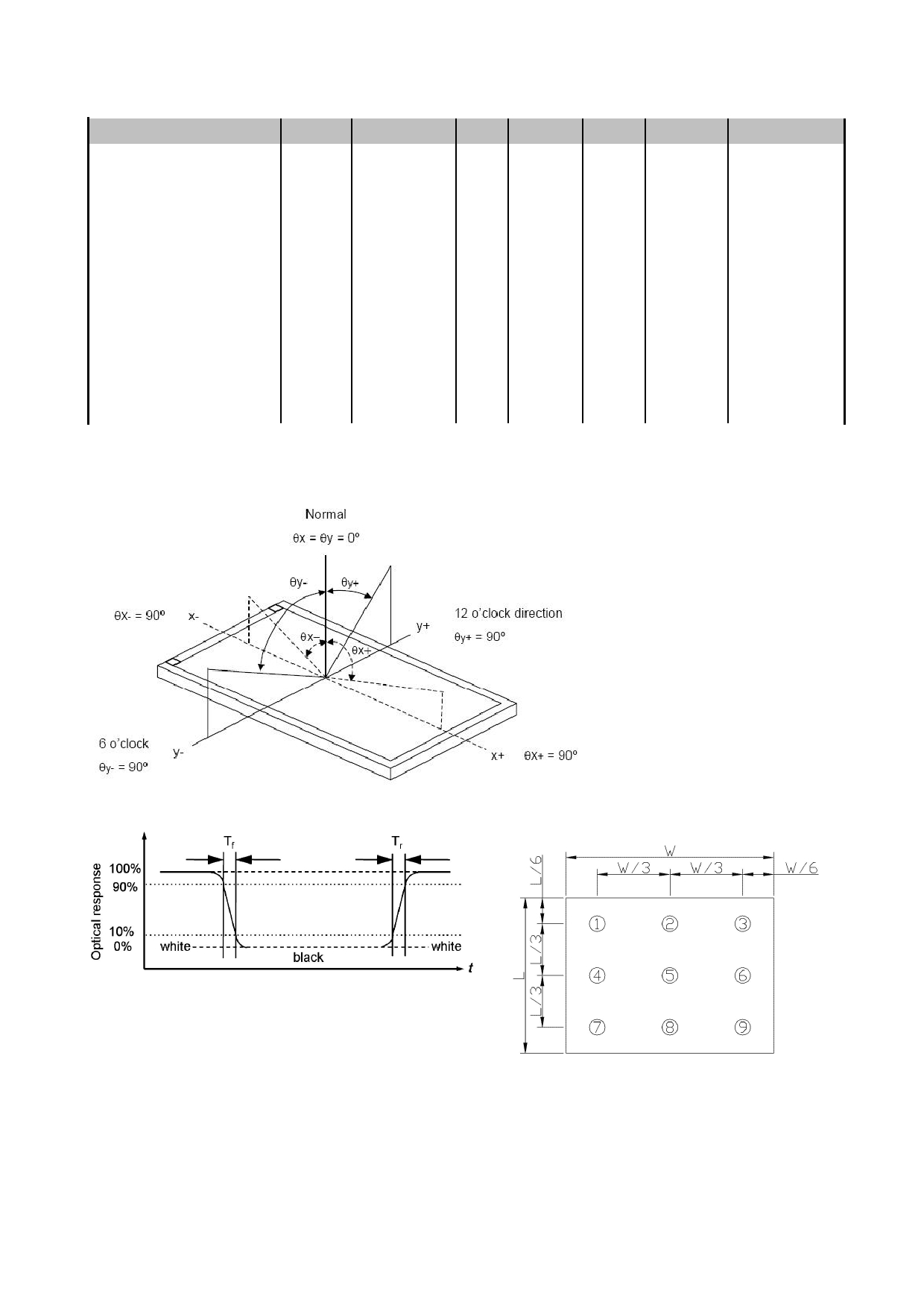

*2 Definition of Viewing Angle
*3 Definition of response time
*4 Definition of Luminance Uniformity
Luminance uniformity (Lu)=
Min. Luminance form pt1~pt9 / Max Luminance form Pt1~pt9
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 8 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
6 LCD Module Design and
6 液晶显示模块设计和使用须知
Handling Precautions
- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块在不同
module get the best contrast ratio under different
的使用温度下以及在不同的视角和位置观察模块显示，
temperatures, view angles and positions.
均能达到最佳对比度，请务必将应用电路上设置为对比
度可调。
- Normally display quality should be judged under the - 请注意液晶显示模块的显示品质判定是指在正常对比度
best contrast ratio within viewable area. Unexpected
下以及视窗(V.A)范围内进行的，非正常对比度下液晶
display pattern may com out under abnormal contrast
可能会出现非预期的显示不良，应注意区分。
ratio.
- 请勿在最大额定值以外使用液晶显示模块。
- Never operate the LCD module exceed the absolute
maximum ratings.
- 请勿在没有接通电源的条件下，给液晶显示模块输送信
- Never apply signal to the LCD module without power
号。
supply.
- 请尽可能缩短信号线的连接，以避免对液晶显示模块的
信号干扰。
- Keep signal line as short as possible to reduce external - 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为敏
noise interference.
感，强光环境下可能会引起液晶显示模块功能失效，故
- IC chip (e.g. TAB or COG) is sensitive to light. Strong
应采用不透光的外壳。
light might cause malfunction. Light sealing structure - 请在液晶显示模块与外壳之间保留足够的空间(可使用
casing is recommended.
衬垫)，以缓冲外力对液晶显示模块的损坏或因受力不
均而产生的显示不匀等异常现象。
- Make sure there is enough space (with cushion)
between case and LCD panel, to prevent external force - 避免液晶显示屏在某一画面下长时间点亮，否则有出现
passed on to the panel; otherwise that may cause
残影的风险；请通过软件每隔一段时间改变一次画面。
damage to the LCD and degrade its display result.
- 液晶显示模块的可靠性可能因温度冲击而降低。
- Avoid showing a display pattern on screen for a long - 请勿在阳光直射、高湿、高温或低温下储存和使用液晶
time (continuous ON segment).
显示模块，这将造成液晶显示模块的损坏或失效。
- LCD module reliability may be reduced by temperature - 请勿在极限环境(最大/最小存储/工作温度)下使用或放
shock.
置液晶显示模块超过 48 小时以上。
- When storing and operating LCD module, avoids - 液晶显示模块建议存储条件为: 0 C~40 C <80%RH 。
exposure to direct sunlight, high humidity, high or low - 请勿让液晶显示模块存储于带有 酸性, 碱性, 有害气
temperature. They may damage or degrade the LCD
体环境之中。
module.
- 在运输过程中, 请勿让液晶显示模块跌落与猛烈震动,
- Never leave LCD module in extreme condition
同时避免 异常挤压, 高湿度, 与阳光照射.
(max./min storage/operate temperature) for more than - 液晶显示模块极易受静电损坏，请务必保证液晶显示模
48hr.
块在防静电的工作环境中使用或保存。(如: 烙铁正确
- Recommend LCD module storage conditions is
接地,等)
0 C~40 C <80%RH.
- 拿取液晶显示模块时需注意操作人员的接地情况。
- LCD module should be stored in the room without acid, - 请手持液晶显示模块的边沿取放模块，防止热压纸或
alkali and harmful gas.
TAB 部位受力。
- Avoid dropping & violent shocking during - 焊接液晶模块时，请注意控制烙铁的温度、焊接时间，
transportation, and no excessive pressure press,
以免烫坏导光板或偏光片，导致显示不匀等不良现象发
moisture and sunlight.
生。
- LCD module can be easily damaged by static - 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐蚀
electricity. Please maintain an optimum anti-static
导光板或模块电路。
working environment to protect the LCD module. (eg.
ground the soldering irons properly)
- 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏表面，
- Be sure to ground the body when handling LCD
其他任何溶剂(如:水)都有可能损坏液晶模块。
module.
- 请勿挤压液晶显示模块上的元器件，以避免产生潜在的
- Only hold LCD module by its sides. Never hold LCD
损坏或失效而影响产品可靠性。
module by applying force on the heat seal or TAB.
- 装配液晶显示模块时，请务必注意避免液晶显示模块的
- When soldering, control the temperature and duration
扭曲或变形。
avoid damaging the backlight guide or diffuser which - 请勿挤压液晶显示屏表面，这将导致显示颜色的异常。
might degrade the display result such as uneven - 液晶屏由玻璃制作而成，任何机械碰撞(如从高处跌落)
display.
均有可能损坏液晶显示模块。
- Never let LCD module contact with corrosive liquids,
which might cause damage to the backlight guide or
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 9 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
the electric circuit of LCD module.
- Only clean LCD with a soft dry cloth, Isopropyl Alcohol
or Ethyl Alcohol. Other solvents (e.g. water) may
damage the LCD.
- Never add force to components of LCD module. It may
cause invisible damage or degrade the module's
reliability.
- When mounting LCD module, please make sure it is
free from twisting, warping and bending.
- Do not add excessive force on surface of LCD, which
may cause the display color change abnormally.
- LCD panel is made with glass. Any mechanical shock
(e.g. dropping from high place) will damage the LCD
module.
- Protective film is attached on LCD screen. Be careful - 液晶屏表面带有保护膜, 揭除保护膜时需要注意可能产
when peeling off this protective film, since static
生的静电。
electricity may be generated.
- 因液晶显示屏表面的偏光片极易划伤，安装完成之前请
- Polarizer on LCD gets scratched easily. If possible, do
尽量不要揭下保护膜。
not remove LCD protective film until the last step of - 请缓慢揭除保护膜，在此过程中液晶显示屏上可能会产
installation.
生静电线，此为正常情况，可在短时间内消失。
- When peeling off protective film from LCD, static
charge may cause abnormal display pattern. The - 请注意避免被液晶显示屏的边缘割伤。
symptom is normal, and it will turn back to normal in a - 请不要试图拆卸或改造液晶显示模块。
short while.
- 当液晶显示屏出现破裂, 内部液晶液体可能流出; 相关
- LCD panel has sharp edges, please handle with care.
液体不可吞吃, 绝对不可接触嘴巴, 如接触到皮肤或衣
- Never attempt to disassemble or rework LCD module.
服, 请使用肥皂与清水彻底清洗.
- If display panel is damaged and liquid crystal
substance leaks out, be sure not to get any in your
mouth, if the substance comes into contact with your 7 电容触摸屏安装指导
skin or clothes promptly wash it off using soap and
water.
7.1 面框安装（附图 1）
- 客户面框窗口应大于 CTP 动作区域，各边离动作区应≥
7 CTP Mounting Instructions
0.5mm.
- 面框与 CTP 面板间应垫有胶垫，其最终间隙约为 0.5～
7.1 Bezel Mounting (Figure 1)
1.0mm.
- The bezel window should be bigger than the CTP
- 建议必要时在背面提供附加支架(例如无安装结构的薄
active area. It should be ≥ 0.5mm each side.
型 TFT 模块)，应仅利用适当支撑以保持模块位置.
- Gasket should be installed between the bezel and the
CTP surface.
The final gap should be about 0.5~1.0mm.
- 安装结构应具有足够的强度，以防止外部不均匀力或扭
- It is recommended to provide an additional support
曲力作用到模块上.
bracket for backside support when necessary (e.g. slim
type TFT module without mounding structure). They
should only provide appropriate support and keep the
module in place.
- The mounting structure should be strong enough to
prevent external uneven force or twist act onto the
module.

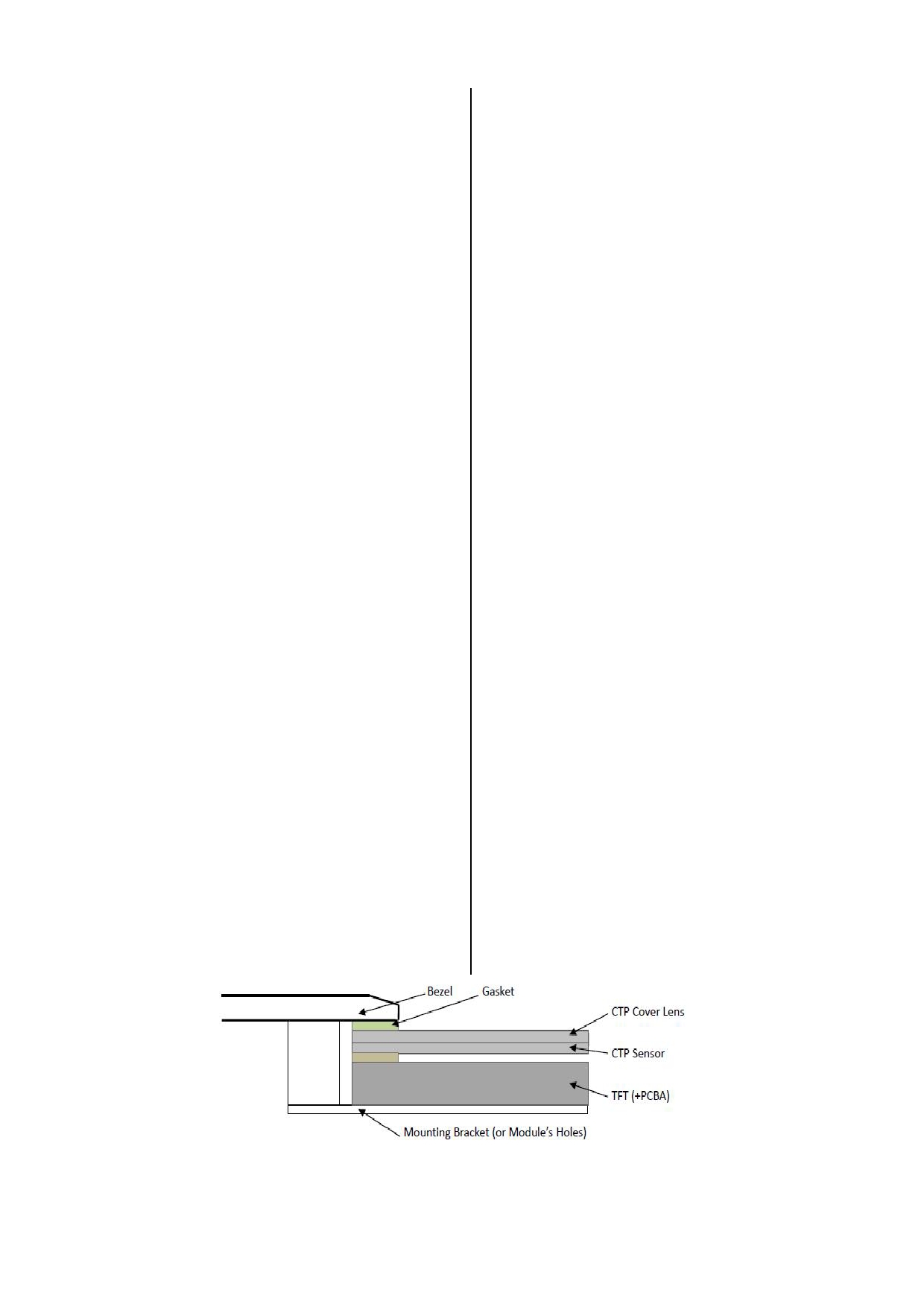

Figure 1
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 10 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
7.2 Surface Mounting (Figure 2)
7.2 嵌入安装（附图 2）
- As the CTP assembling on the countersink area with - 客户面框应具有使用双面胶粘贴 CTP 的结构沉台面，其
double side adhesive.
粘贴面要求平整且洁净无污以保证粘贴牢靠.
The countersink area should be flat and clean to
ensure the double side adhesive installation result.
- The Bezel is recommend to keep a gap ( ≥ 0.3mm each - 考虑到制作误差，建议面框与 CTP 盖板之间四周留有≥
side) around the cover lens for tolerance.
0.3mm 间隙.
- It is recommended to provide an additional support - 建议必要时在背面提供垫有胶垫附加支架(例如无安装
bracket with gasket for backside support when
结构的 TFT 模块)，应仅利用适当支撑以保持模块位置.
necessary (e.g.
TFT module without mounding
structure). They should only provide appropriate - 安装结构应具有足够的强度，以防止外部不均匀力或扭
support and keep the module in place.
曲力作用到模块上。
- The mounting structure should be strong enough to
prevent external uneven force or twist act onto the
module

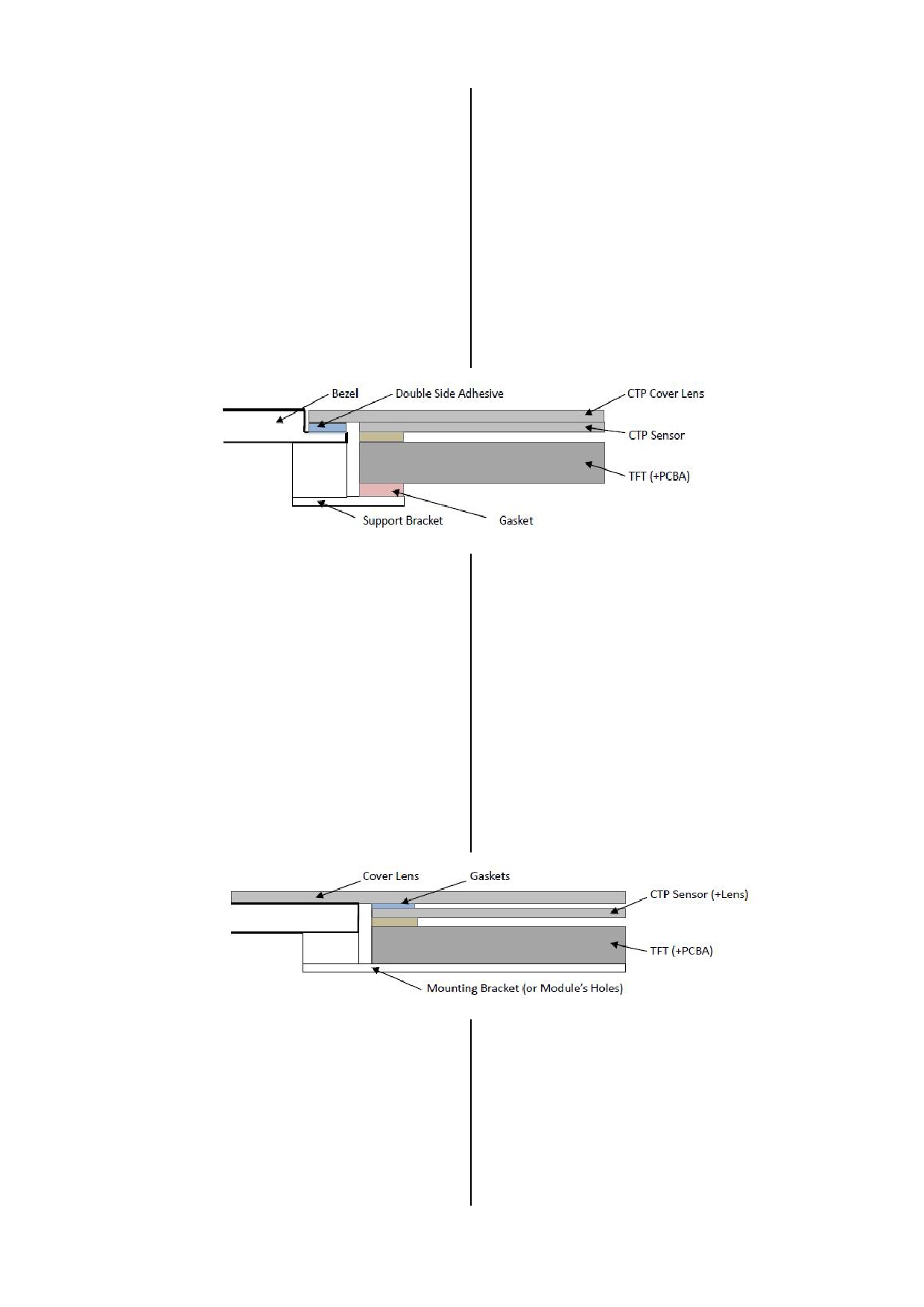

Figure 2
7.3 Additional Cover Lens Mounting (Figure 3)
7.3 覆加盖板（附图 3）
- For the case of additional cover Lens mounting, it is - 需要覆加玻璃盖板的安装，为确保其功能，有必要查看
necessary to recheck with the CTP specification about
产品规格书中有关盖板材料和厚度的说明.
the material and thickness to ensure the functionality.
- It should keep a 0.2~0.3mm gap between the cover - 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间隙.
lens and the CTP surface..
- The cover lens window should be bigger than the active - 玻璃盖板视窗应大于 CTP 动作区域，各边离动作区应≥
area of the CTP.It should be ≥ 0.5mm each side.
0.5mm。
- It is recommended to provide an additional support - 建议必要时在背面提供附加支架(例如无安装结构的薄
bracket for backside support when necessary (e.g. slim
型 TFT 模块)，应仅利用适当支撑以保持模块位置.
type TFT module without mounding structure). They
should only provide appropriate support and keep the
module in place.
- 安装结构应具有足够的强度，以防止外部不均匀力或扭
- The mounting structure should be strong enough to
曲力作用到模块上.
prevent external uneven force or twist act onto the
module.
Figure 3
8 RTP Mounting Instructions
8. 电阻触摸屏安装指导
- It should bezel touching the RTP Active Area (A.A.) to
- 为避免面框直接压在动作区(A.A.)上造成误动作，面框
prevent abnormal touch.It should left gab
与电阻触摸屏(RTP)之间应留有一定的空隙
D=0.2~0.3mm in between. (Figure 4)
D=0.2~0.3mm 之间.(附图 4)
- Outer bezel design should take care about the area
- 设计面框时，要注意用面框保护触摸屏四周的非保证操
outside the A.A. Those areas contain circuit wires
作区域，因为布线区域在此处形成一台阶，在此区域附
which is having different thickness. Touching those
近操作时 ITO Film 变形较大，容易导致 ITO 损坏而降
areas could de-form the ITO film. As a result bezel the
低寿命。为保护 RTP 和避免误操作，在 RTP 与面框之间
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 11 of 12
TOPWAY
LCD Module User Manual
HMT070ATA-9C
ITO film be damaged and shorten its lifetime.
垫缓冲物（Gasket），我们建议设计面框应覆盖动作区
It is suggested to protect those areas with gasket
的边缘，面框边缘到 V.A.区的距离 B≥0.50mm; 垫圈内
(between the bezel and RTP).The suggested figures
边缘到 V.A.区的距离 C≥0.50mm. (附图 4)
are B≥0.50mm; C≥0.50mm. (Figure 4)
- The bezel side wall should keep space E= 0.2 ~ 0.3mm - 在设计面框与 RTP 组装时，应考虑到面框内侧与 RTP 外
from the RTP. (Figure 4)
侧的间距 E≥0.2mm. (附图 4)

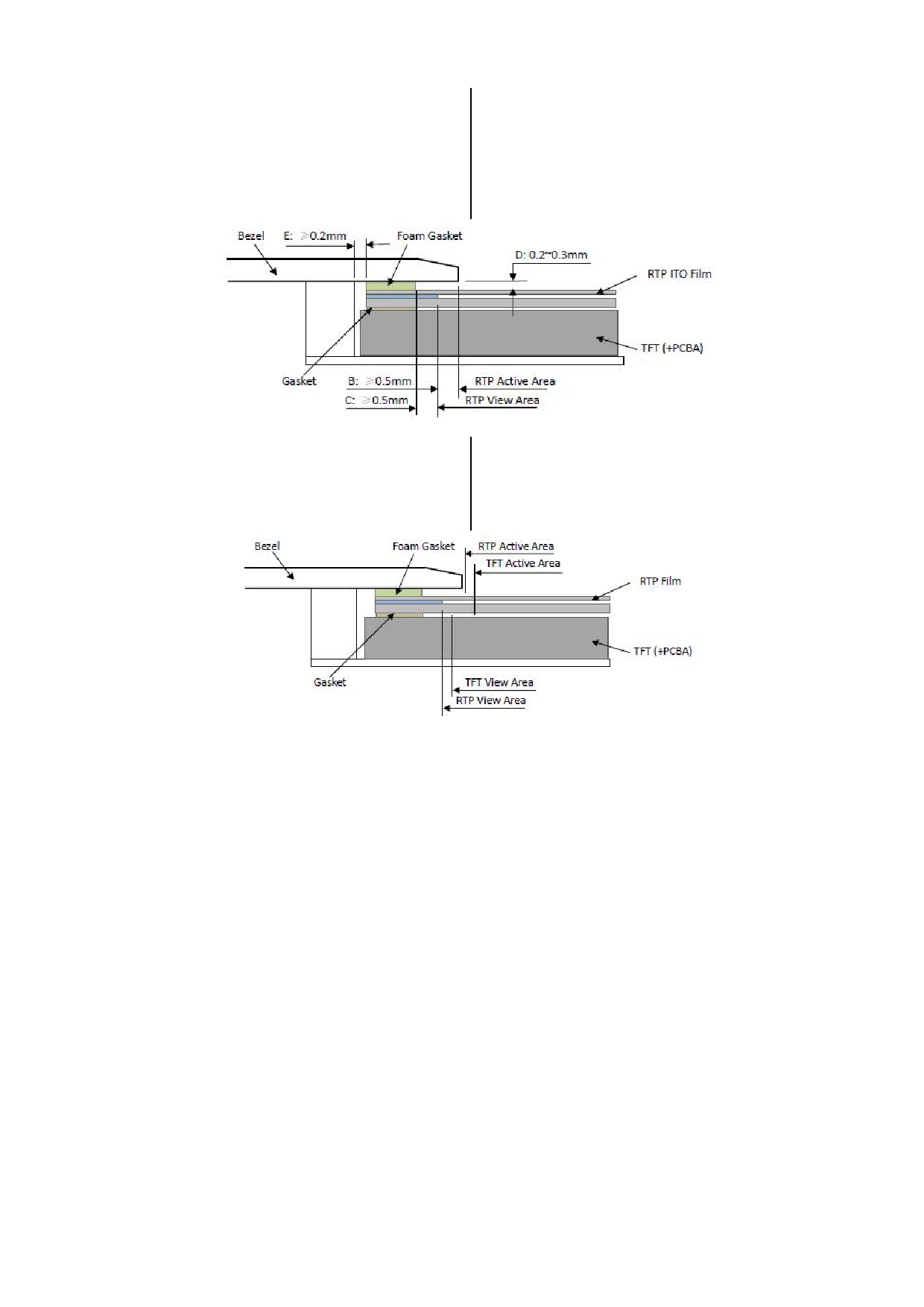

Figure 4
- In general design,
- 通常设计时：
RTP V.A. should be bigger than the TFT V.A.
RTP 的可视区 V.A. 应不小于 TFT 的可视区 V.A.
and RTP A.A. should be bigger than the TFT A.A.
及 RTP 的动作区 A.A. 应不小于 TFT 的动作区 A.A.
(Figure 5)
(附图 5)
Figure 5
Warranty
This product has been manufactured to our company’s specifications as a part for use in your company’s general
electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general
electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control
equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to
human life and where extremely high levels of reliability are required. If the product is to be used in any of the above
applications, we will need to enter into a separate product liability agreement.
- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product
(including disassembly and reassembly), after product delivery.
- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the
product.
- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the
product has passed our company’s acceptance inspection procedures.
- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the
inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may
arise.
- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our
product to our assembly with exception to those issues relating directly to the structure or method of manufacturing of
our product.
URL: www.topwaydisplay.com
Document Name: HMT070ATA-9C-Manual-Rev0.1.doc
Page: 12 of 12
SMART LCD
Command V6.12
Manual
Prepared by:
Checked by:
Approved by:
chenjian
Date: 2019-06-28
Date:
Date:
Rev.
Descriptions
Release Date
0.1
- Preliminary Draft release
2018-08-28
0.2
- add 0x94, 0x95
2018-11-22
0.3
- update section 2.1, 4.2.4, 4.2.7, 4.4.2, 4.4.9
2019-06-28
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 1 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
Table of Content
1
Basic Specifications ................................................................................................................................... 4
1.1
Hardware connection ............................................................................................................................ 4
2
Command Structure ................................................................................................................................... 4
2.1
Communication Packet Structure ......................................................................................................... 4
2.1.1
Basic Packet: .................................................................................................................................... 4
2.1.2
Packet with length: ............................................................................................................................ 4
2.1.3
Packet with CRC: .............................................................................................................................. 4
2.2
Packet Timeout ..................................................................................................................................... 5
2.3
Packet Acknowledgment ...................................................................................................................... 5
3
Data arrangement ....................................................................................................................................... 5
3.1
Color Data Value Configuration ............................................................................................................ 5
3.2
Data / Address / Page_ID / Location Values Configuration .................................................................. 5
4
Command Descriptions ............................................................................................................................. 6
4.1
Command table .................................................................................................................................... 6
4.2
Config/ Status Function Commands Details ......................................................................................... 7
4.2.1
hand_shake ( 0x30 ) ......................................................................................................................... 7
4.2.2
read_version ( 0x31 ) ........................................................................................................................ 7
4.2.3
read_pg_id ( 0x32 ) ........................................................................................................................... 8
4.2.4
touch_response ( 0x72/ 0x73/ 0x77/ 0x78/ 0x79 )............................................................................ 8
4.2.5
set_sys_config ( 0xE0 ) .................................................................................................................... 9
4.2.6
sel_project ( 0xE1 ) ......................................................................................................................... 10
4.2.7
touch_calib ( 0xE4 ) ........................................................................................................................ 10
4.2.8
screen_saver (0x5E) ....................................................................................................................... 10
4.2.9
backlight_ctrl ( 0x5F ) ..................................................................................................................... 10
4.2.10
buzzer_touch_sound ( 0x79 ) ..................................................................................................... 10
4.2.11
buzzer_ ctrl ( 0x7A ) .................................................................................................................... 10
4.2.12
Flash_write ( 0x90 ) .................................................................................................................... 11
4.2.13
Flash_read ( 0x91 ) ..................................................................................................................... 11
4.2.14
USR_bin_read ( 0x93 ) ............................................................................................................... 11
4.2.15
RTC_read ( 0x9B ) ...................................................................................................................... 12
4.2.16
RTC_set ( 0x9C ) ........................................................................................................................ 12
4.2.17
U_drv_format ( 0xE2 ) ................................................................................................................ 12
4.2.18
U_drv_unlock ( 0xE3 ) ................................................................................................................ 12
4.3
Display Control Function Commands Details ..................................................................................... 13
4.3.1
disp_page ( 0x70 ) .......................................................................................................................... 13
4.3.2
set_element_fg ( 0x7E ) .................................................................................................................. 13
4.3.3
set_element_bg ( 0x7F ) ................................................................................................................. 13
4.3.4
set_codepage (0xE7) ...................................................................................................................... 13
4.3.5
suspend_vp_refresh (0xE8) ............................................................................................................ 14
4.4
VP Function Commands Details ......................................................................................................... 14
4.4.1
Successive_write ( 0x82 ) ............................................................................................................... 14
4.4.2
Successive_read ( 0x83 ) ............................................................................................................... 14
4.4.3
VP_Backup ( 0x94 ) ........................................................................................................................ 15
4.4.4
VP_Preload ( 0x95 ) ....................................................................................................................... 15
4.4.5
BP1_write ( 0x4B ) .......................................................................................................................... 15
4.4.6
BP1_write_compress ( 0x4C ) ........................................................................................................ 16
4.4.7
G16_write ( 0x4D ) .......................................................................................................................... 16
4.4.8
G16_write_rotate ( 0x4E ) ............................................................................................................... 16
4.4.9
Reg_Write ( 0x3B ) ......................................................................................................................... 17
4.4.10
Reg_Read ( 0x3C ) ..................................................................................................................... 17
4.4.11
STR_write ( 0x42 ) ...................................................................................................................... 17
4.4.12
STR_read ( 0x43 ) ...................................................................................................................... 18
4.4.13
STR_fill ( 0x46 ) .......................................................................................................................... 18
4.4.14
N16_write ( 0x3D ) ...................................................................................................................... 18
4.4.15
N16_read ( 0x3E ) ...................................................................................................................... 19
4.4.16
N16_fill ( 0x3F )........................................................................................................................... 19
4.4.17
N32_write ( 0x44 ) ...................................................................................................................... 19
4.4.18
N32_read ( 0x45 ) ....................................................................................................................... 20
4.4.19
N32_fill ( 0x47 ) ........................................................................................................................... 20
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 2 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.20
N64_write ( 0x48 ) ...................................................................................................................... 20
4.4.21
N64_read ( 0x49 ) ....................................................................................................................... 21
4.4.22
N64_fill ( 0x4A ) .......................................................................................................................... 21
Appendix 1 ： CRC Calculate ............................................................................................................................ 22
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 3 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
1 Basic Specifications
TOPWAY Smart LCD serial command is for real-time control and access. Host machine get the data
which input through the Smart LCD interface or provide the data for display.
1.1 Hardware connection
Smart LCD serial UART interface are mainly base on RS232-C standard, by default, config as 8N1
115200bps.
2 Command Structure
2.1 Communication Packet Structure
TOPWAY SmartLCD offer 3 kinds of Communication Packet Structure, which can be defined in
editor project setting.
2.1.1 Basic Packet:
Seq
Code
Code type
Description
1
0xAA
Packet header
1byte
2
Cmd-code
Command
1byte
code
3
Par-data
Parameter or
(*1)
Data
4
0xCC
Packet tail
4byte
0x33
0xC3
0x3C
2.1.2 Packet with length:
Seq
Code
Code type
Description
1
0xAA
Packet header
1byte
2
Len
Packet length
2byte(*2)
3
Cmd-code
Command
1byte
code
4
Par-data
Parameter or
(*1)
Data
5
0xCC
Packet tail
4byte
0x33
0xC3
0x3C
2.1.3 Packet with CRC:
Seq
Code
Code type
Description
1
0xAA
Packet header
1byte
2
Len
Packet length
2byte(*2)
3
Cmd-code
Command
1byte
code
4
Par-data
Parameter or
(*1)
Data
5
0xCC
Packet tail
2byte
0x33
6
CRCL
2byte(*3)
CRCH
Note.
*1. Unless otherwise specified,
all the multi- byte values, data, address’ byte sequence are MSB first, LSB last.
*2. Packet length: from Seq3 to the end. (no. of byte)
*3. CRC Polynomial: x16+x15+x2+1, Calculate the CRC value from Seq3 to Seq5.Please refer to appendix 1.
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 4 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
2.2 Packet Timeout
TOPWAY SmartLCD support Timeout setting, which can be defined in editor project setting.
Timeout options: None, 1s, 2s, 3s, 5s, 10s, 20s. If timeout, The incomplete Packet will be discarded.
2.3 Packet Acknowledgment
Packet Acknowledgment is two byte in ASCII (module  host):
Response
code Description
Command (in packet) executed and
":>"
In ASCII
wait for next Command
(0x3a, 0x3e)
Command (in packet) error and
"!>"
In ASCII
wait for next Command
(0x21,0x3e)
15B15B15B15B
Note.
*1. Packet Acknowledgement response to a valid packet only.
3 Data arrangement
3.1 Color Data Value Configuration
16 bit Color value
16 bit color value
R4
R3
R2
R1
R0
G5
G4
G3
G2
G1
G0
B4
B3
B2
B1
B0
High byte (MSB)
Low byte (LSB)
D7
D6
D5
D4
D3
D2
D1
D0
D7
D6
D5
D4
D3
D2
D1
D0
3.2 Data / Address / Page_ID / Location Values Configuration
64bit value
64 bit number value
D63…D56 D55…D48 D47…D40 D39..D32 D31…D24 D23…D16 D15…D8 D7…D0
Byte7
Byte0
(MSB)
(LSB)
D7…D0
D7…D0
D7…D0
D7…D0
D7…D0
D7…D0
D7…D0
D7…D0
32bit value
32 bit number value
D 31…D24
D23…D16
D15…D8
D7…D0
Byte3 (MSB)
Byte0 (LSB)
D7…D0
D7…D0
D7…D0
D7…D0
16bit value
16 bit number value
D15…D8
D7…D0
High Byte (MSB)
Low Byte (LSB)
D7…D0
D7…D0
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 5 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4 Command Descriptions
4.1 Command table
Functions
Name
Code
Description
Config/
hand_shake
0x30
Read a Hand Shake
Status
read_version
0x31
Read firmware version
Functions
read_pg_id
0x32
Read Current page ID
touch_response
0x72/0x73/
see also set_sys_config
0x77/0x78/
0x79
set_sys_config
0xE0
System parameter configuration and Baud Rate
sel_project
0xE1
Specify operating project folder
touch_calib
0xE4
Touch panel calibration(only for RTP)
screen_saver
0x5E
Screen saver (backlight dim down time out)
backlight_ctrl
0x5F
backlight brightness control (64 levels)
buzzer_touch_sound
0x79
buzzer enable time length (in 10ms step)
buzzer_ctrl
0x7A
Buzzer control
Flash_write
0x90
Write data to the flash
Flash_read
0x91
Read data from the flash
RTC_read
0x9B
Read the RTC values
RTC_set
0x9C
Set the RTC
USR_bin_read
0x93
Read data from the USR_bin
U_drv_format
0xE2
Format the U_drv
U_drv_unlock
0xE3
Unlock the U_drv with pre-stored password
Display
disp_page
0x70
Display a pre-stored TML file (page)
Control
set_element_fg
0x7E
Set the foreground color of STR, N16, N32 or N64
Functions
set_element_bg
0x7F
Set the background color of STR, N16, N32 or N64
set_codepage
0xE7
Sets country character set and code-page character set
suspend_vp_fresh
0xE8
Set the screen to pause the refresh and deactivate the
touchkey or release the pause to refresh and enable
the touchkey
VP
Successive_write
0x82
Write successive value to VP_N16, VP_N32, VP_N64
Functions
Successive_read
0x83
Read successive value from VP_N16, VP_N32, VP_N64
VP_Backup
0x94
VP Backup to Flash or VP Restore from Flash
VP_Preload
0x95
VP Preload from usr.bin
BP1_write
0x4B
Write bit-map (1bpp) data to VP_BP1
BP1_write_comp
0x4C
Write compressed bit-map (1bpp) data to VP_BP1
G16_write
0x4D
Write 16bit (signed integer) graphic array to VP_G16
G16_write_rotate
0x4E
Rotate the VP_G16 array data inside the module and
write a 16bit (signed integer) value into end-of-array
Reg_Write
0x3B
Write System Register
Reg_Read
0x3C
Read System Register
STR_write
0x42
Write string to VP_STR
STR_read
0x43
Read string form VP_STR
STR_fill
0x46
Fill strings to the VP_STR
N16_write
0x3d
Write 16bit (signed integer) value to VP_N16
N16_read
0x3e
Read 16bit (signed integer) value from VP_N16
N16_fill
0x3f
Fill numbers to the VP_N16
N32_write
0x44
Write 32bit (signed integer) value to VP_N32
N32_read
0x45
Read 32bit (signed integer) value from VP_N32
N32_fill
0x47
Fill numbers to the VP_N32
N64_write
0x48
Write 64bit (signed integer) value to VP_N64
N64_read
0x49
Read 64bit (signed integer) value from VP_N64
N64_fill
0x4A
Fill numbers to the VP_N64
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 6 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.2 Config/ Status Function Commands Details
4.2.1 hand_shake ( 0x30 )
seq
Cmd-code / Par-data
Descriptions
1
0x30
Read a Hand Shake
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x30
Command executed
3 rd
“T”
0x54
“Topway HMT Ready \ 0” in ASCII
4 th
“o”
0x6f
5 th
“P”
0x70
6 th
“w”
0x77
7 th
“a”
0x61
8 th
“y”
0x79
9 th
“ “
0x20
10 th
“H”
0x48
11 th
“M”
0x4d
12 th
“T”
0x54
13 th
“ “
0x20
14 th
“R”
0x52
15 th
“e”
0x65
16 th
“a”
0x61
17 th
“d”
0x64
18 th
“y”
0x79
‘ \0 ’(0x00): string end mark
19 th
\0
0x00
20 th
Tail
0xCC
Communication packet tail
21 st
0x33
22 nd
0xC3
23 rd
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.2.2 read_version ( 0x31 )
Seq
Cmd-code / Par-data
Descriptions
1
0x31
Read firmware version
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x31
Command executed
3 rd
“1”
0x31
“1.06 \ 0” in ASCII
4 th
“.”
0x2e
Where firmware version is V1.06(example)
5 th
“0”
0x30
6 th
“ 6 ”
0x36
7 th
\0
0x00
‘ \0 ’(0x00): string end mark
8 th
Tail
0xCC
Communication packet tail
9 th
0x33
10 th
0xC3
11 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 7 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.2.3 read_pg_id ( 0x32 )
Seq
Cmd-code / Par-data
Descriptions
1
0x32
Read Current page ID
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x32
Command executed
3 rd
Page ID
Page_IDh
Current Page ID in 16bit binary value
4 th
Page_IDl
5 th
Tail
0xCC
Communication packet tail
6 th
0x33
7 th
0xC3
8 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.2.4 touch_response ( 0x72/ 0x73/ 0x77/ 0x78/ 0x79 )
seq
Cmd-code / Par-data
Descriptions
1
--
Use set_sys_config to config the functions
Touch Release Coordinate Response code (0x72):
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x72
Touched release Coordinate
3 rd
X coordinate
Xh
Coordinate in 16bit binary value
4 th
Xl
X = horizontal coordinate
5 th
Y coordinate
Yh
Y = vertical coordinate
6 th
Yl
7 th
Tail
0xCC
Communication packet tail
8 th
0x33
9 th
0xC3
10 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
Touch Down Coordinate Response code ( 0x73 ):
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x73
Touched down Coordinate
3 rd
X coordinate
Xh
Coordinate in 16bit binary value
4 th
Xl
X = horizontal coordinate
5 th
Y coordinate
Yh
Y = vertical coordinate
6 th
Yl
7 th
Tail
0xCC
Communication packet tail
8 th
0x33
9 th
0xC3
10 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
Touch Key ID Response code ( 0x78 ):
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x78
Touched release Key_ID defined by TOPWAY TML Graphic
Editor will be response to host
3 rd
Page_ID
Page_IDh
Page_ID = the touch key in page(16bit binary value)
4 th
Page_IDl
5 th
Key_ID
Key_ID
Key_ID (8bit binary value)
6 th
Tail
0xCC
Communication packet tail
7 th
0x33
8 th
0xC3
9 th
0x3C
Note.
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 8 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
Touch Key ID Response code ( 0x79 ):
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x79
Touched down Key_ID defined by TOPWAY TML Graphic
Editor will be response to host
3 rd
Page_ID
Page_IDh
Page_ID = the touch key in page(16bit binary value)
4 th
Page_IDl
5 th
Key_ID
Key_ID
Key_ID (8bit binary value)
6 th
Tail
0xCC
Communication packet tail
7 th
0x33
8 th
0xC3
9 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
Touch Key VP_ADD+VP_Value Response code ( 0x77 ):
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x77
Touch Key VP_ADD+VP_Value Response code
3 rd
VP_ADD
Addr3 （ MSB ） VP Address
4 th
Addr2
0x080000 ~ 0x08FFFF:VP_N16 Address
5 th
Addr1
0x020000 ~ 0x02FFFF:VP_N32 Address
6 th
Addr0(LSB)
0x030000 ~ 0x03FFFF:VP_N64 Address
0x000000 ~ 0x01FFFF:VP_STR Address
7 th
Data
:
No.of byte
:
:
VP_N16: 2byte
:
VP_N32: 4byte
:
VP_N64: 8byte
:
:
VP_STR: string (with end mark ( ‘‘ \0 ’(0x00) ))
:
Tail
0xCC
Communication packet tail
:
0x33
:
0xC3
:
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.2.5 set_sys_config ( 0xE0 )
seq
Cmd-code / Par-data
Descriptions
1
0xE0
Baud Rate and system parameter configuration
2
0x55
3
0xAA
4
0x5A
5
0xA5
6
Baud_Set
Baudrate Set:
0x00 = 1200bps
0x01 = 2400bps
0x02 = 4800bps
0x03 = 9600bps
0x04 = 19200bps
0x05 = 38400bps
0x06 = 57600bps
0x07 = 115200bps
7
sys_par1
Bit7 = 0: Touch panel function disable
Bit7 = 1: Touch panel functions enable (*3)(default)
Bit[1..0]: Touch actions configuration (*2, *3)
8
0x00
Reserved
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. Touch panel configuration:
Sys_par1
Sys_par1
Sys_par1
Response
Bit7
Bit1
Bit0
To host
Descriptions
0
0
0
Null
Not touch panel functions
1
0
1
Coordinates
Touch down Coordinate will be response to host
1
1
0
Coordinates
Touch release Coordinate will be response to host
1
1
1
Key ID
Touch Key_ID defined by TOPWAY TML Graphic Editor will be
response to host
*3. see set_touch section for response code
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 9 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.2.6 sel_project ( 0xE1 )
seq
Cmd-code / Par-data
Descriptions
1
0xE1
Select project folder
2
Prj_ID
0~9, project ID
0: System execute the default project “ THMT ”
1~9: System execute the project “ THMT01 ” ~ “ THMT09 ”
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.2.7 touch_calib ( 0xE4 )
seq
Cmd-code / Par-data
Descriptions
1
0xE4
Touch panel calibration
2
0x55
3
0xAA
4
0x5A
5
0xA5
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. Keep pressing the top right corner of touch panel during power on, could also trigger the touch_calib function (only for RTP)
4.2.8 screen_saver (0x5E)
seq
Cmd-code / Par-data
Descriptions
1
0x5E
Screen saver
2
Time1h
time out time in seconds, range: 0x0000 ~ 0xffff
3
Time1l
(0x0000: disable screen saver function) (*2)
4
PWM_LE
PWM_LE = 0 ~ 0x3F (default 0x19 in dim down),
the backlight dimmed level in screen saving mode (*2)
Screensavers brightness can not be greater than the backlight
brightness.
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. default value defined by TML graphic editor configuration
4.2.9 backlight_ctrl ( 0x5F )
seq
Cmd-code / Par-data
Descriptions
1
0x5F
backlight brightness control
2
PWM_LE
PWM_LE=0x00 ~ 0x3F (*2)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. default value defined by TML graphic editor configuration
4.2.10 buzzer_touch_sound ( 0x79 )
seq
Cmd-code / Par-data
Descriptions
1
0x79
buzzer touch sound control
2
Time
Sounding time length (in 10ms), range 0x00~0x3F
0x00= disable (*2)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. default value defined by TML graphic editor configuration
4.2.11 buzzer_ ctrl ( 0x7A )
seq
Cmd-code / Par-data
Descriptions
1
0x7A
Buzzer control
2
Loop count
Loop count, Range: 0x01 ~ 0xFF.
0xFF = buzzer infinite loop
3
T1
Buzzer play time 1
Range: 0x00 ~ 0xFF (0~25.5s)(unit 100ms)
4
T2
Buzzer play time 2
Range: 0x00 ~ 0xFF (0~25.5s)(unit 100ms)
5
Freq1
T1 time Buzzer frequency, Unit 100 Hz
Ranges: 0x05 ~ 0x32 (500Hz ~ 5KHz)
0x00 = T1 time period buzzer turn off
6
Freq2
T2 time Buzzer frequency, Unit 100 Hz
Ranges: 0x05 ~ 0x32 (500Hz ~ 5KHz)
0x00 = T1 time period buzzer turn off
Note:
1. The buzzer sound time is (T1 + T2)*100ms
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 10 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.2.12 Flash_write ( 0x90 )
seq
Cmd-code / Par-data
Descriptions
1
0x90
Write data to the flash at specified address
2
Address3(MSB)
the specified start address to write
3
Address2
Address range =0x00000 ~ 0x03FFFF
4
Address1
5
Address0(LSB)
6
Data_Lengthh
The no. of data byte to write.
7
Data_Lengthl
Length =0x0001 ~ 0x0400
8
Data
data to write.
:
:
:
:
:
:
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.2.13 Flash_read ( 0x91 )
seq
Cmd-code / Par-data
Descriptions
1
0x91
Read data from the flash at specified address
2
Address3(MSB)
the specified start address to write
3
Address2
Address range =0x00000 ~ 0x03FFFF
4
Address1
5
Address0(LSB)
6
Data_Lengthh
The no. of data byte to read
7
Data_Lengthl
Length =0x0001 ~ 0x0400
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x91
Command executed
3 rd
Data
data
Read back data
:
:
:
:
:
Tail
0xCC
Communication packet tail
:
0x33
:
0xC3
:
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.2.14 USR_bin_read ( 0x93 )
seq
Cmd-code / Par-data
Descriptions
1
0x93
Read USR_bin data from the flash at specified address
2
Address3(MSB)
the specified start address to write
3
Address2
Address range = 0x00000 ~ 0x03FFFF
4
Address1
5
Address0(LSB)
6
Data_Lengthh
The no. of data byte to read
7
Data_Lengthl
Length = 0x0001 ~ 0x0400
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x93
Command executed
3 rd
Data
data
Read back data
:
:
:
:
:
Tail
0xCC
Communication packet tail
:
0x33
:
0xC3
:
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 11 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.2.15 RTC_read ( 0x9B )
seq
Cmd-code / Par-data
Descriptions
1
0x9B
Read the current RTC value
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x9B
Command executed
3 rd
Date
Year
Year: 00~99 (00=year 2000) (8bit binary value)
4 th
Month
Month: 01~12 (8bit binary value)
5 th
Day
Day: 01~31 (8bit binary value)
6 th
Time
Hour
Hour 00~23 (24hr format)(8bit binary value)
7 th
Minute
Minutes 00~59 (8bit binary value)
8 th
Second
Second 00~59 (8bit binary value)
9 th
Tail
0xCC
Communication packet tail
10 th
0x33
11 th
0xC3
12 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.2.16 RTC_set ( 0x9C )
seq
Cmd-code / Par-data
Descriptions
1
0x9C
Set the RTC
2
Year
Year
= 00~99(2000 ~ 2099)
3
Month
Month = 00~12
4
Date
Date
= 00~31
Hour
= 00~23
5
Hour
Minute = 00~59
6
Minute
Second = 00~59
7
Second
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.2.17 U_drv_format ( 0xE2 )
seq
Cmd-code / Par-data
Descriptions
1
0xE2
Format the USB drive.
2
0x55
All the files (include the security lock file) will be erased.
3
0xAA
4
0x5A
5
0xA5
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.2.18 U_drv_unlock ( 0xE3 )
seq
Cmd-code / Par-data
Descriptions
1
0xE3
Unlock the USB drive of file read/write with pre-stored password.
2
PW
PW: password in ASCII
:
:
Length = 127max.
:
:
‘ \0 ’(0x00): string end mark
:
‘ \0 ’
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 12 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.3 Display Control Function Commands Details
4.3.1 disp_page ( 0x70 )
seq
Cmd-code / Par-data
Descriptions
1
0x70
Display a pre-stored TML file(page)
2
Page_IDh
Page_ID = 0~999
3
Page_IDl
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.3.2 set_element_fg ( 0x7E )
Seq
Cmd-code / Par-data
Descriptions
1
0x7E
Set foreground colors of the STR, N16, N32 or N64
2
Element
0x00 = STR; 0x01 = N16, N32, N64
3
Page_IDh
Page_ID = 0~999
4
Page_IDl
5
Element_ID
VP_STR = 0~127; N16, N32, N64 = 0~119
6
0x00
Reserve
7
FGh
Foreground color(0~0xffff)
8
FGl
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.3.3 set_element_bg ( 0x7F )
Seq
Cmd-code / Par-data
Descriptions
1
0x7F
Set background color of the STR, N16, N32 or N64
2
Element
0x00 = STR; 0x01 = N16, N32, N64
3
Page_IDh
Page_ID = 0~999
4
Page_IDl
5
Element_ID
VP_STR = 0~127, N16, N32, N64 = 0~119
6
Mode
0x00: non transparent; 0x01 : transparent
7
BGh
Background color(0 ~ 0xffff)
8
BGl
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.3.4 set_codepage (0xE7)
Seq
Cmd-code / Par-data
Descriptions
1
0xE7
Sets country character set and code-page character set
2
Country
1 ~ 11, country character set
3
Codepage
1 ~ 22, code-page character set
Note.
*1. Country and CodePage table
Country Code
Descriptions
Code Page
Descriptions
1
USA
1
437 (OEM – United States)
2
France
2
737 (OEM – Greek 437G)
3
Germany
3
852 (OEM – Latin II )
4
United Kingdom
4
860 (OEM – Portuguese)
5
Demark I
5
863 (OEM – Canadian French)
6
Demark II
6
865 (OEM – Nordic)
7
Sweden
7
866 (OEM – Russian)
8
Italy
8
874 (ANSI/OEM – Thai)
9
Spain
9
932 (ANSI/OEM – Japanese Shift-JIS)
10
Japan
10
1250 (ANSI - Central Europe)
11
Norway
11
1251 (ANSI – Cyrillic)
--
--
12
1252 (ANSI – Latin I )
--
--
13
1253 (ANSI – Greek)
--
--
14
1254 (ANSI – Turkish)
--
--
15
1255 (ANSI – Hebrew)
--
--
16
1256 (ANSI – Arabic)
--
--
17
1257 (ANSI – Baltic)
--
--
18
1258 (ANSI – Viet Nam)
--
--
19
GB2312
--
--
20
GBK
--
--
21
EUC_KR
--
--
22
Big5
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 13 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.3.5 suspend_vp_refresh (0xE8)
Seq
Cmd-code / Par-data
Descriptions
1
0xE8
Set the screen to pause the refresh and deactivate the touchkey or
2
55
release the pause to refresh and enable the touchkey
3
AA
4
5A
5
A5
6
Mode
0x00: r elease the pause to refresh and enable the touchkey
0x01: pause the refresh and deactivate the touchkey
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.4 VP Function Commands Details
4.4.1 Successive_write ( 0x82 )
Seq
Cmd-code / Par-data
Descriptions
1
0x82
Write successive value to VP_N16, VP_N32, VP_N64
2
Addr3(MSB)
VP_N16 Address = 0x080000 ~ 0x08FFFF (should be aligned every 2
3
Addr2
byte)
4
Addr1
VP_N32 Address = 0x020000 ~ 0x02FFFF (should be aligned every 4
byte)
5
Addr0(LSB)
VP_N64 Address = 0x030000 ~ 0x03FFFF (should be aligned every 8
byte)
6
Length
The number of data to write (Length = 1~255)
7
Data 1(MSB)
the value to write
8
Data 2
No. of byte of Data:
9
Data 3
VP_N16 = Length *2,
VP_N32 = Length *4,
:
:
VP_N64 = Length *8,
:
Data n(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.4.2 Successive_read ( 0x83 )
Seq
Cmd-code / Par-data
Descriptions
1
0x83
Read successive value to VP_N16, VP_N32, VP_N64
2
Addr3(MSB)
VP_N16 Address = 0x080000 ~ 0x08FFFF (should be aligned every 2
3
Addr2
byte)
4
Addr1
VP_N32 Address = 0x020000 ~ 0x02FFFF (should be aligned every 4
byte)
5
Addr0(LSB)
VP_N64 Address = 0x030000 ~ 0x03FFFF (should be aligned every 8
byte)
6
Length
The number of data to write (Length = 1 ~ 255)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x83
Command executed
3 rd
VP_ADD
Addr3(MSB ）
VP Address
4 th
Addr2
0x080000 ~ 0x08FFFF:VP_N16 Address
5 th
Addr1
0x020000 ~ 0x02FFFF:VP_N32 Address
6 th
Addr0(LSB)
0x030000 ~ 0x03FFFF:VP_N64 Address
7 th
Length
NO.
No. of data
8 th
Data
Data n(MSB)
No. of byte of Data:
:
:
VP_N16 = Length *2,
:
:
VP_N32 = Length *4,
(n-1) th
Data1
VP_N64 = Length *8,
n th
Data0(LSB)
(n+1) th
Tail
0xCC
Communication packet tail
(n+2) th
0x33
(n+3) th
0xC3
(n+4) th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 14 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.3
VP_Backup ( 0x94 )
seq
Cmd-code / Par-data
Descriptions
1
0x94
VP Backup to Flash or VP Restore from Flash
2
Dir
1: VP Restore 0: VP Backup
3
Addr3(MSB)
the specified Flash start address
4
Addr2
Address range = 0x000000 ~ 0x3FFFFF
5
Addr1
6
Addr0(LSB)
7
VP Addr3(MSB)
VP Address
8
VP Addr2
0x080000 ~ 0x08FFFF:VP_N16 Address
9
VP Addr1
0x020000 ~ 0x02FFFF:VP_N32 Address
0x030000 ~ 0x03FFFF:VP_N64 Address
10
VP Addr0(LSB)
0x000000 ~ 0x01FFFF:VP_STR Address
11
VP_Lengthh
The no. of VP
12
VP _Lengthl
VP _Length = 0x0001 ~ 0x8000
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. Random data may be restore, before the first time VP backup operation.
4.4.4 VP_Preload ( 0x95 )
seq
Cmd-code / Par-data
Descriptions
1
0x95
VP Preload from USR_bin
2
01
3
Addr3(MSB)
the specified usr.bin start address .
4
Addr2
5
Addr1
Address range = 0x000000 ~ 0x3FFFFF
6
Addr0(LSB)
7
VP Addr3(MSB)
VP Address
8
VP Addr2
0x080000 ~ 0x08FFFF:VP_N16 Address
9
VP Addr1
0x020000 ~ 0x02FFFF:VP_N32 Address
0x030000 ~ 0x03FFFF:VP_N64 Address
10
VP Addr0(LSB)
0x000000 ~ 0x01FFFF:VP_STR Address
11
VP_Lengthh
The no. of VP
12
VP_Lengthl
VP_Length = 0x0001 ~ 0x8000
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. If usr.bin read invalid, VP may not be update correctly.
4.4.5 BP1_write ( 0x4B )
Seq
Cmd-code / Par-data
Descriptions
1
0x4B
Write raw bit-map data to the VP_BP1
2
Addr3(MSB)
VP_BP1 Address = 0x040000 ~ 0x05FFFF
3
Addr2
4
Addr1
5
Addr0(LSB)
6
Length3(MSB)
the number of data
7
Length2
Length = 1 ~ 98304
8
Length1
9
Length0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. After the above command issued, it follow with the raw data byte with out communication packet structure.
*3. over all command flow
HOST
Flow
module
BP1_write Command
Instruct to wait for data….
(in communication packet structure)
Raw 1bpp image data
Store the data into VP_BP1
(without communication packet structure)
Response code “ :> ” in ASCII
(without communication packet structure)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 15 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.6 BP1_write_compress ( 0x4C )
Seq
Cmd-code / Par-data
Descriptions
1
0x4C
Write compressed bit-map data to the VP_BP1
2
Addr3(MSB)
VP_BP1 Address = 0x040000 ~ 0x05FFFF
3
Addr2
4
Addr1
5
Addr0(LSB)
6
Length3(MSB)
the number of data
7
Length2
Length = 1 ~ 98304
8
Length1
9
Length0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. After the above command issued, it follow with the compressed data byte with out communication packet structure.
*3. over all command flow
HOST
Flow
module
BP1_write Command
Instruct to wait for data….
(in communication packet structure)
compressed 1bpp image data
Store the data into VP_BP1
(without communication packet structure)
Response code “ :> ” in ASCII
(without communication packet structure)
4.4.7 G16_write ( 0x4D )
Seq
Cmd-code / Par-data
Descriptions
1
0x4D
Write graph values to the VP_G16 array
2
Addr1_H
VP_G16 Address = 0x060000 ~ 0x07FFFF
3
Addr1l
4
Addr2h
5
Addr2l
6
Sizeh
Array-size = 1 ~ 1024
7
Sizel
(*2, *3)
8
Data(MSB)
16 bit data array
9
Data(LSB)
(no. of byte = 2x array-size)
10
Data(MSB)
11
Data(LSB)
:
:
:
:
:
:
:
:
:
:
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. Array-size = no. of 16bit values
*3. Array-size suggest to be same at the size value defined in TML editor
4.4.8 G16_write_rotate ( 0x4E )
Seq
Cmd-code / Par-data
Descriptions
1
0x4E
Write graph values to the last position of VP_G16 array
with rotation effect
2
Addr1_H
VP_G16 Address = 0x060000 ~ 0x07FFFF
3
Addr1_L
4
Addr2_H
5
Addr2_L
6
Size_H
Array-size to be rotate = 1 ~ 65535
7
Size_L
(*2. *3)
8
Data(MSB)
16 bit data value to be add to the end-of-array
9
Data(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
*2. Array-size = no. of 16bit values
*3. Array-size suggest to be same at the value defined in TML editor
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 16 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.9 Reg_Write ( 0x3B )
seq
Cmd-code / Par-data
Descriptions
1
0x3B
System Register Write Command
2
Addr3(MSB)
3
Addr2
Address = 0xFFFF00
：
4
Addr1
Address = 0xFFFFFF
5
Addr0(LSB)
6
Data
the value to write
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.4.10 Reg_Read ( 0x3C )
seq
Cmd-code / Par-data
Descriptions
1
0x3C
System Register Read Command
2
Addr3(MSB)
3
Addr2
Address = 0xFFFF00
：
4
Addr1
Address = 0xFFFFFF
5
Addr0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x3C
Command executed
3 rd
Addr3(MSB)
4 th
Addr2
Address = 0xFFFF00
Address
：
5 th
Addr1
Address = 0xFFFFFF
6 th
Addr0(LSB)
7 th
Data
Data(1Byte)
the value of the register
8 th
0xCC
9 th
0x33
Tail
Communication packet tail
10 th
0xC3
11 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
*2. When Timer reach the 0x00000000 or 0x7FFFFFFF, a notification will be provided a 0x77 response code with the corresponding
Timer Address and Value.(See touch_response(0x77)for details)
4.4.11 STR_write ( 0x42 )
Seq
Cmd-code / Par-data
Descriptions
1
0x42
Write string to VP_STR
2
Addr3(MSB)
the VP_STR Address = 0x00000 ~ 0x01FFFF
3
Addr2
(each VP_STR = 128 bytes)
4
Addr1
(address value must be divisible by 128)
5
Addr0(LSB)
6
data
String to write
:
:
Total no. of byte in string ≤ 128
:
:
:
‘ \0 ’
‘ \0 ’(0x00): string end mark
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 17 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.12 STR_read ( 0x43 )
Seq
Cmd-code / Par-data
Descriptions
1
0x43
Read string from VP_STR
2
Addr3(MSB)
the VP_STR Address = 0x00000 ~ 0x01FFFF
3
Addr2
(each VP_STR = 128 bytes)
4
Addr1
(address value must be divisible by 128)
5
Addr0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x43
Command executed
3 rd
String data
data
String code
:
:
:
:
:
\0
0x00
‘‘ \0 ’(0x00): string end mark
:
Tail
0xCC
Communication packet tail
:
0x33
:
0xC3
:
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.4.13 STR_fill ( 0x46 )
Seq
Cmd-code / Par-data
Descriptions
1
0x46
Write string to VP_STR
2
Addr3(MSB)
he VP_STR Address = 0x00000 ~ 0x01FFFF
3
Addr2
(each VP_STR = 128 bytes)
4
Addr1
(address value must be divisible by 128)
5
Addr0(LSB)
6
Lengthh
the number of VP_STR (including the start address) to be filled
7
Lengthl
Length = 1 ~ 1024
8
data
String to write
:
:
Total no. of byte in string ≤ 128
:
:
:
‘ \0 ’
‘ \0 ’(0x00): string end mark
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.4.14 N16_write ( 0x3D )
Seq
Cmd-code / Par-data
Descriptions
1
0x3D
Write 16bit number to VP_N16
2
Addr3(MSB)
VP_N16 Address = 0x080000 ~ 0x08FFFF
3
Addr2
(each VP_N16 = 2 byte)
4
Addr1
(address value must be divisible by 2)
5
Addr0(LSB)
6
High Byte
The 16 bit value to write
7
Low Byte
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 18 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.15 N16_read ( 0x3E )
Seq
Cmd-code / Par-data
Descriptions
1
0x3E
Read 16bit number from VP_N16
2
Addr3(MSB)
VP_N16 Address = 0x080000 ~ 0x08FFFF
3
Addr2
(each VP_N16 = 2 byte)
4
Addr1
(address value must be divisible by 2)
5
Addr0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x3E
Command executed
3 rd
N16 value
Data1(MSB)
16 bit value
4 th
Data0(LSB)
5 th
Tail
0xCC
Communication packet tail
6 th
0x33
7 th
0xC3
8 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.4.16 N16_fill ( 0x3F )
Seq
Cmd-code / Par-data
Descriptions
1
0x3F
Fill 16bit number to the VP_N16
2
Addr3(MSB)
VP_N16 Address = 0x080000 ~ 0x08FFFF
3
Addr2
(each VP_N16 = 2 byte)
4
Addr1
(address value must be divisible by 2)
5
Addr0(LSB)
6
Lengthh
the number of VP_N16 (including the start address) to be filled
7
Lengthl
Length = 1 ~ 32768
8
High Byte
the 16 bit value to fill
9
Low Byte
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.4.17 N32_write ( 0x44 )
Seq
Cmd-code / Par-data
Descriptions
1
0x44
Write 32bit number to VP_N32
2
Addr3(MSB)
VP_N32 Address = 0x020000 ~ 0x02FFFF
3
Addr2
(each VP_N32 = 4 byte)
4
Addr1
(address value must be divisible by 4)
5
Addr0(LSB)
6
Data3(MSB)
the 32 bit no. value write.
7
Data2
8
Data1
9
Data0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 19 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.18 N32_read ( 0x45 )
Seq
Cmd-code / Par-data
Descriptions
1
0x45
Read 32bit number from VP_N32
2
Addr3(MSB)
VP_N32 Address = 0x020000 ~ 0x02FFFF
3
Addr2
(each VP_N32 = 4 byte)
4
Addr1
(address value must be divisible by 4)
5
Addr0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x45
Command executed
3 rd
N32 value
Data3(MSB)
32 bit value
4 th
Data2
5 th
Data1
6 th
Data0(LSB)
7 th
Tail
0xCC
Communication packet tail
8 th
0x33
9 th
0xC3
10 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.4.19 N32_fill ( 0x47 )
Seq
Cmd-code / Par-data
Descriptions
1
0x47
Fill 32bit number to the VP_N32
2
Addr3(MSB)
VP_N32 Address = 0x020000 ~ 0x02FFFF
3
Addr2
(each VP_N32 = 4 byte)
4
Addr1
(address value must be divisible by 4)
5
Addr0(LSB)
6
Lengthh
the number of VP_N32 (including the start address) to be filled
7
Lengthl
Length = 1 ~ 16384
8
Data3(MSB)
the 32 bit no. value to fill
9
Data2
10
Data1
11
Data0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
4.4.20 N64_write ( 0x48 )
Seq
Cmd-code / Par-data
Descriptions
1
0x48
Write 64bit number to VP_N64
2
Addr3(MSB)
VP_N64 Address= 0x030000 ~ 0x03FFFF
3
Addr2
(each VP_N64 = 8 byte)
4
Addr1
(address value must be divisible by 8)
5
Addr0(LSB)
6
Data7(MSB)
the 64bit no. value write.
7
Data6
:
:
:
:
12
Data1
13
Data0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 20 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
4.4.21 N64_read ( 0x49 )
Seq
Cmd-code / Par-data
Descriptions
1
0x49
Read 64bit number from VP_N64
2
Addr3(MSB)
VP_N64 Address= 0x030000 ~ 0x03FFFF
3
Addr2
(each VP_N64 = 8 byte)
4
Addr1
(address value must be divisible by 8)
5
Addr0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details
Response code:
Seq.
Content
Byte in Hex
Descriptions
1 st
Header
0xAA
Communication packet header
2 nd
Command
0x49
Command executed
3 rd
N64 value
Data7(MSB)
64 bit value
4 th
Data6
:
:
:
:
9 th
Data1
10 th
Data0(LSB)
11 th
Tail
0xCC
Communication packet tail
12 th
0x33
13 th
0xC3
14 th
0x3C
Note.
*1. The Response code with communication packet format (see Communication Packet Structure Section for details)
4.4.22 N64_fill ( 0x4A )
Seq
Cmd-code / Par-data
Descriptions
1
0x4A
Fill 64bit number to the VP_N64
2
Addr3(MSB)
VP_N64 Address= 0x030000 ~ 0x03FFFF
3
Addr2
(each VP_N64 = 8 byte)
4
Addr1
(address value must be divisible by 8)
5
Addr0(LSB)
6
Lengthh
the number of VP_N64 (including the start address) to be filled
7
Lengthl
Length = 1 ~ 8192
8
Data7(MSB)
the 64 bit no. value to fill
9
Data6
:
:
:
:
14
Data1
15
Data0(LSB)
Note.
*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 21 of 22
TOPWAY
SMART LCD Command Manual
Protocol V6.12
Appendix 1 ： CRC Calculate
uint16_t const CRC16[256]={
/* 16: 8005 reflected */
0x0000,0xc0c1,0xc181,0x0140,0xc301,0x03c0,0x0280,0xc241,0xc601,0x06c0,0x0780,0xc741,0x0500,0xc5c1,0xc
481,0x0440,
0xcc01,0x0cc0,0x0d80,0xcd41,0x0f00,0xcfc1,0xce81,0x0e40,0x0a00,0xcac1,0xcb81,0x0b40,0xc901,0x09c0,0x0
880,0xc841,
0xd801,0x18c0,0x1980,0xd941,0x1b00,0xdbc1,0xda81,0x1a40,0x1e00,0xdec1,0xdf81,0x1f40,0xdd01,0x1dc0,0x1
c80,0xdc41,
0x1400,0xd4c1,0xd581,0x1540,0xd701,0x17c0,0x1680,0xd641,0xd201,0x12c0,0x1380,0xd341,0x1100,0xd1c1,0xd
081,0x1040,
0xf001,0x30c0,0x3180,0xf141,0x3300,0xf3c1,0xf281,0x3240,0x3600,0xf6c1,0xf781,0x3740,0xf501,0x35c0,0x3
480,0xf441,
0x3c00,0xfcc1,0xfd81,0x3d40,0xff01,0x3fc0,0x3e80,0xfe41,0xfa01,0x3ac0,0x3b80,0xfb41,0x3900,0xf9c1,0xf
881,0x3840,
0x2800,0xe8c1,0xe981,0x2940,0xeb01,0x2bc0,0x2a80,0xea41,0xee01,0x2ec0,0x2f80,0xef41,0x2d00,0xedc1,0xe
c81,0x2c40,
0xe401,0x24c0,0x2580,0xe541,0x2700,0xe7c1,0xe681,0x2640,0x2200,0xe2c1,0xe381,0x2340,0xe101,0x21c0,0x2
080,0xe041,
0xa001,0x60c0,0x6180,0xa141,0x6300,0xa3c1,0xa281,0x6240,0x6600,0xa6c1,0xa781,0x6740,0xa501,0x65c0,0x6
480,0xa441,
0x6c00,0xacc1,0xad81,0x6d40,0xaf01,0x6fc0,0x6e80,0xae41,0xaa01,0x6ac0,0x6b80,0xab41,0x6900,0xa9c1,0xa
881,0x6840,
0x7800,0xb8c1,0xb981,0x7940,0xbb01,0x7bc0,0x7a80,0xba41,0xbe01,0x7ec0,0x7f80,0xbf41,0x7d00,0xbdc1,0xb
c81,0x7c40,
0xb401,0x74c0,0x7580,0xb541,0x7700,0xb7c1,0xb681,0x7640,0x7200,0xb2c1,0xb381,0x7340,0xb101,0x71c0,0x7
080,0xb041,
0x5000,0x90c1,0x9181,0x5140,0x9301,0x53c0,0x5280,0x9241,0x9601,0x56c0,0x5780,0x9741,0x5500,0x95c1,0x9
481,0x5440,
0x9c01,0x5cc0,0x5d80,0x9d41,0x5f00,0x9fc1,0x9e81,0x5e40,0x5a00,0x9ac1,0x9b81,0x5b40,0x9901,0x59c0,0x5
880,0x9841,
0x8801,0x48c0,0x4980,0x8941,0x4b00,0x8bc1,0x8a81,0x4a40,0x4e00,0x8ec1,0x8f81,0x4f40,0x8d01,0x4dc0,0x4
c80,0x8c41,
0x4400,0x84c1,0x8581,0x4540,0x8701,0x47c0,0x4680,0x8641,0x8201,0x42c0,0x4380,0x8341,0x4100,0x81c1,0x8
081,0x4040,
};
static __inline uint16_t rshiftu16(uint16_t value, int nb)
{
return (uint16_t)((value >> nb) & ~((( uint16_t) 0x8000) >> (nb-1)));
}
uint16_t crc16_calc(unsigned char *q, int len)
{
uint16_t crc = 0xffff;
while (len-- > 0)
crc=(rshiftu16(crc,8) ^ CRC16[(crc ^ *q++) & 0xff]);
return crc;
}
URL:
www.topwaydisplay.com
Document Name:SMART LCD Command v6.12 Manual Rev0.3.doc
Page: 22 of 22
