HMT080ATA-C

HMT080ATA-C

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

liu

Date: 2017-02-17

Date:

Rev. Descriptions

Release Date

0.1

- Preliminary Draft release

2017-02-17

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 1 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

Table of Content

Basic Specification ..................................................................................................................................... 3

1.1

General Specification ............................................................................................................................ 3

1.2

Block Diagram ...................................................................................................................................... 3

1.3

Terminal Function ................................................................................................................................. 4

Absolute Maximum Ratings....................................................................................................................... 4

Electrical Characteristics ........................................................................................................................... 5

3.1

DC Characteristics ................................................................................................................................ 5

3.2

AC Characteristics ................................................................................................................................ 5

Function Specifications ............................................................................................................................. 6

4.1

Basic Operation Function Descriptions ................................................................................................ 6

4.2

Quick Start Guide ................................................................................................................................. 7

4.3

Command Descriptions ........................................................................................................................ 7

Optical Characteristics ............................................................................................................................... 8

Precautions of using LCD Modules ........................................................................................................ 10

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 2 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

1 Basic Specification

TOPWAY HMT080ATA-C is a Smart TFT Module with 32bit MCU on board. Its graphics engine provides

numbers of outstanding features. It supports TOPWAY TML 3.0 for preload and pre-design display

interface that simplify the host operation and development time. Suitable for industry control,

instrumentation, medical electronics, power electric equipment applications.

1.1 General Specification

Screen Size(Diagonal) :

8”

Resolution :

800(RGB) x 600

Color Depth :

65k color (16bit)

Pixel Configuration :

RGB Stripe

Display Mode :

Transmissive / Normal White

Viewing Direction :

6H(*1)(gray-scale inverse)

12H(*2)

Outline Dimension :

196.0 x 143.9 x 17.2 (max)(mm)

(see attached drawing for details)

Active Area :

162.0 x 121.5 (mm)

Backlight :

LED

Command I/F:

RS-232C

Project Download:

by PC

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Note:

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations).

*2. For “color scales” display content.

*3. Color tone may slightly change by Temperature and Driving Condition.

1.2 Block Diagram

Touch Panel

8" TFT

800 x 600 pixels

RTS(BUSY)

TXD, RXD

Display Function Controller

VDD, GND

with RTC

D-, D+

Flash

Memory

RAM

VUSB, GND

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 3 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

1.3 Terminal Function

RS232 Interface Terminal (K1)

Pin No.

Pin Name

I/O Descriptions

1, 2

VDD

Power supply (12.0V)

RTS(BUSY)

Request To Send (could function as busy BUSY signal)

(eg. to PC’s RS232C pin8 <9pin D-connector> )

Data output

(eg. to PC’s RS232C pin2 <9pin D-connector>)

5,6

Data Input

(eg. to PC’s RS232C pin3 <9pin D-connector>)

7,8

GND

Ground, (0V)

Note.

*1. User data and commands transfer through this terminal.

*2. HOST using command hand shake during communication is suggested.

USB Interface Terminal (K2)

Pin No.

Pin Name

I/O Descriptions

VUSB

Power supply (5V)

D-

I/O

USB DATA negative signal

D+

I/O

USB DATA positive signal

No connection , leave open

GND

Ground, (0V)

Note.

*1. TML files and image files preload through this terminal

*2. Standard “USB-drive” functions provided

*3. During the files transfer, all others display functions will be suspended

2 Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit

Condition

Power Supply voltage

V dd

-0.3

15.6

Operating Temperature

T OP

-20

 C

No Condensation

Storage Temperature

T ST

-30

 C

No Condensation

Note:

*1. This rating applies to all parts of the module and should not be exceeded.

*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,

and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25 ℃

*3. Ambient temperature when the backlight is lit (reference value)

*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged

exposure to extreme conditions may affect device reliability.

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 4 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

3 Electrical Characteristics

3.1 DC Characteristics

GND=0V, VDD=12V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Operating Voltage

V DD

10.5

12.0

13.5

VDD

Rx Input MARK(1)

V RxM

-3.0

-15.0

Rx Input SPACE(0)

V R X S

+3.0

+15.0

Tx Output MARK(1)

V T X M

-3.0

-15.0

Tx Output SPACE(0)

V T X S

+3.0

+15.0

RTS Output High

V TXH

-3.0

-15.0

RTS(BUSY)

RTS Output Low

V TXL

+3.0

+15.0

RTS(BUSY)

Operating Current

I DD

205

VDD (*1)

Operating Current (USB)

I VUSB

160

VUSB

Battery Supply current

I BAT

(*2)

Note.

*1. Normal display condition.

*2. For Battery driving RTC application, RTC configuration should be enabled in the project global setting.

And after install/re-install the battery, it should be power-on once for correct RTC configurations.

3.2 AC Characteristics

Items

JP1,JP7=close,

JP1,JP8=close,

JP1,JP8= open,

JP1,JP7= open,

JP2,JP8=open

JP2,JP7=open

JP2,JP7= close

JP2,JP8= close

(factory default)

Start bit

Data bit

Parity bit

None

Even

Odd

Stop bit

Baud Rate(*1)

115200 bps

9600 bps

115200 bps

Items

JP3=close, JP4=open

JP3= open, JP4=close

(factory default)

Serial Data

busy

Xon/Xoff

Flow Control

Note.

*1.Baud Rate (1200bps ～ 115200bps) could be adjusted by software.

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 5 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

4 Function Specifications

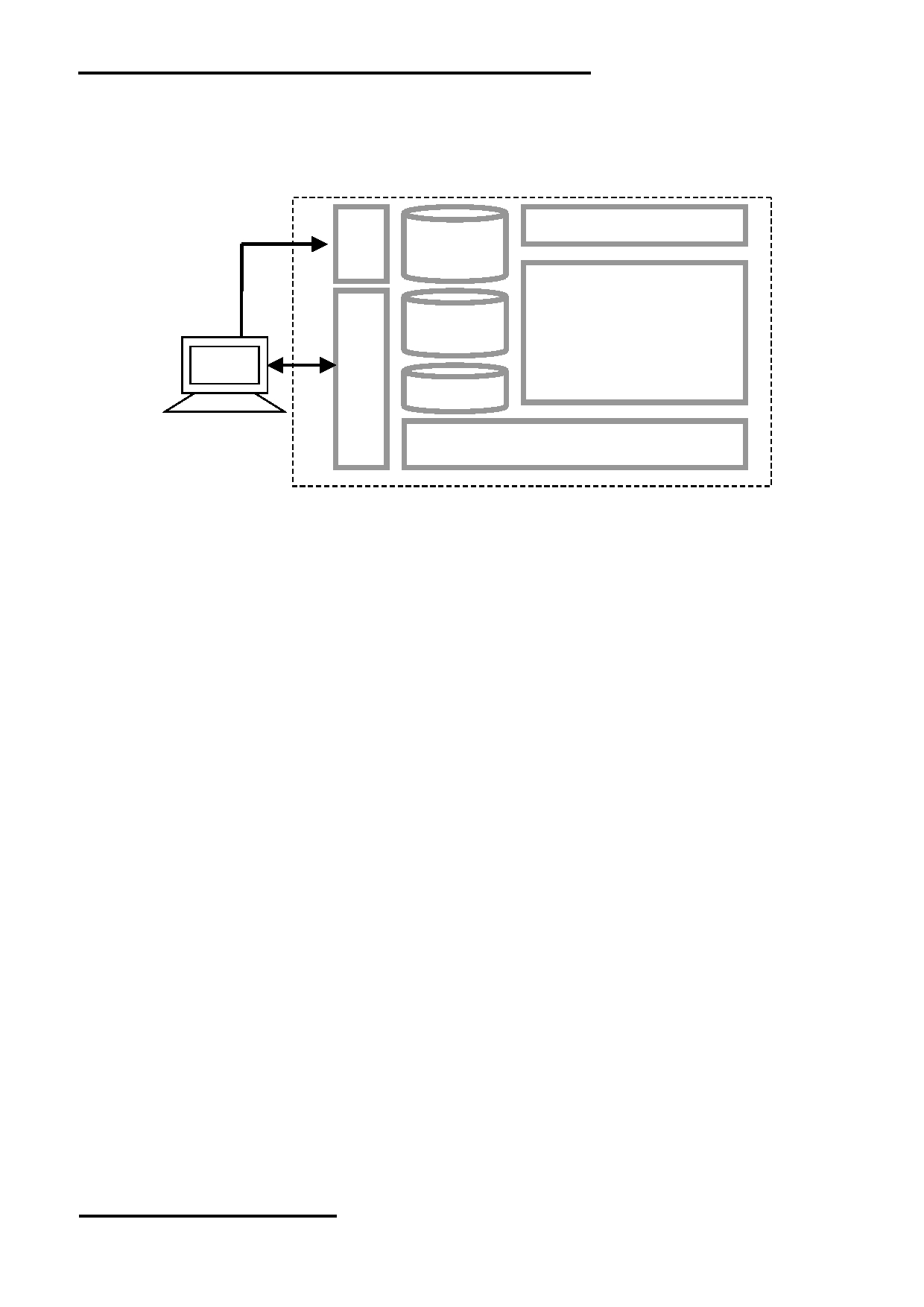

4.1 Basic Operation Function Descriptions

HMT080ATA-C

Touch Panel

TML files

Picture files

ICONS files

Custom

Memories

TFT Display

HOST

VP variables

Control and Draw Engine

- TML files, Picture files, ICON files are stored inside FLASH memory area.

They are preloaded to HMT080ATA-C for stand alone interface use.

- Those files are preloaded via USB interface as an USB drive.

- All the interface flow and the touch response are based on the preloaded TML files

- VP variables memory is inside RAM area,

it provides real time access via UART by the HOST or display onto the TFT by TML file.

- Custom Memories are inside FLASH memory area

It can be accessed via UART interface by the HOST.

- Control and Draw Engine executes HOST commands and response respectively

- It also reports the real time Touch Key number to the HOST

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 6 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

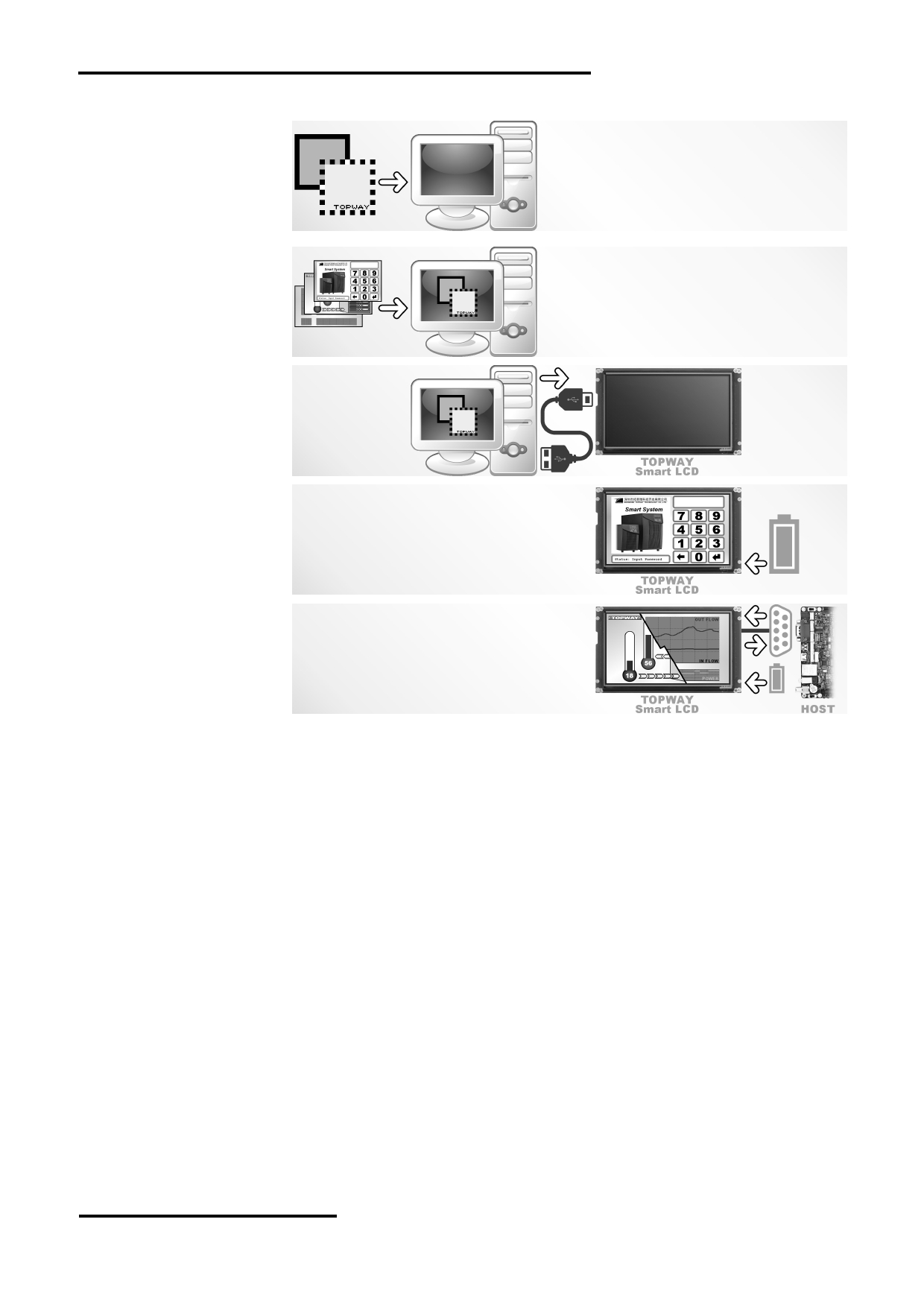

4.2 Quick Start Guide

Install TOPWAY

Graphics Editor

Import pictures

2. design UI flow

Download to

Smart LCD

4. power on &

display

Connect to

host Show

real time

data

4.3 Command Descriptions

Please refer to “SMART LCD Command Manual” .

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 7 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

5 Optical Characteristics

Item

Symbol Condition

Min

Typ

Max

Unit

Remark

θT

View Angles

θB

CR ≧ 10

Degree Note2,3

θL

θR

Contrast Ratio

θ=0°

700

900

Note 3

T ON

Response Time

25 ℃

Note 4

T OFF

0.255

0.305

0.355

White

Note 1,5

0.277

0.327

0.377

0.534

0.584

0.634

Red

Note 1,5

Chromaticity

Backlight is

0.300

0.350

0.400

0.290

0.340

0.390

Green

Note 1,5

0.543

0.593

0.643

0.102

0.152

0.202

Blue

Note 1,5

0.040

0.090

0.140

Uniformity

Note 6

NTSC

Note 5

Luminance

200

cd/ ㎡

Note 7

1.IF= 40 mA, and the ambient temperature is 25 ℃ .

2. The test systems refer to Note 1 and Note 2.

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 8 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

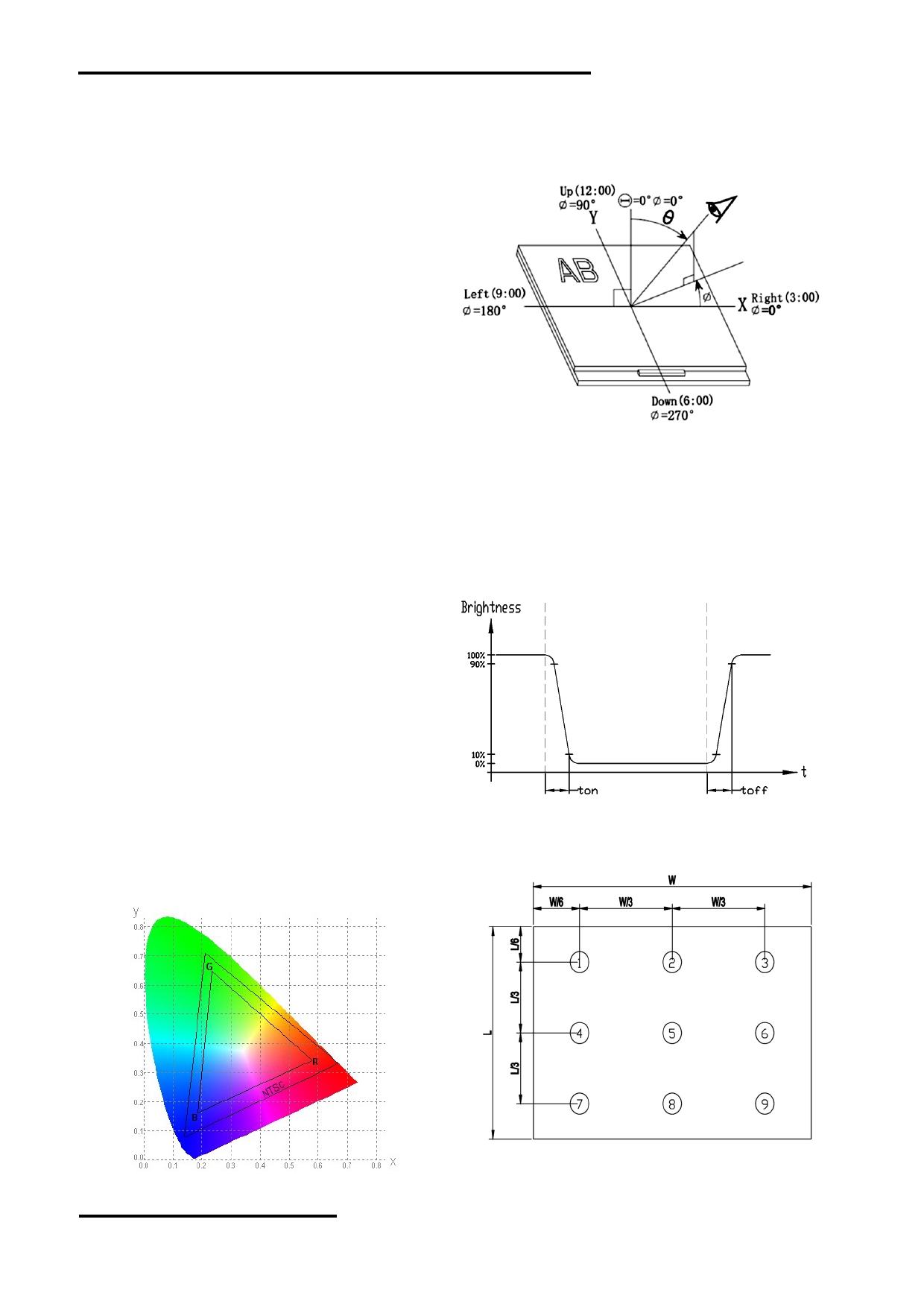

Note 1:

Note 2:

The data are measured after LEDs are turned on for 5 minutes.

The definition of viewing angle:

LCM displays full white. The brightness is the average value of 9 Refer to the graph below marked by θ and Ф

measured spots. Measurement equipment SR-3A (1°)

Measuring condition:

- Measuring surroundings: Dark room

- Measuring temperature: Ta=25 ℃ .

- Adjust operating voltage to get optimum contrast at

the center of the display.

Note 3:

The definition of contrast ratio (Test LCM using SR-3A (1°)):

Note 4:

Contrast

Luminance When LCD is at “White” state

Definition of Response time. (Test LCD using BM-7A(2°)):

Ratio(CR)

Luminance When LCD is at “Black” state

The output signals of photo detector are measured

(Contrast Ratio is measured in optimum common electrode

when the input signals are changed from

voltage)

“black” to “white”(falling time)

and from “white” to “black”(rising time), respectively.

The response time is defined as

the time interval between the 10% and 90% of amplitudes.Refer to

figure as below.

Note 5:

Note 6:

Definition of Color of CIE1931 Coordinate and NTSC Ratio.

The luminance uniformity is calculated by using following formula.

△ Bp = Bp (Min.) / Bp (Max.)×100 (%)

Color gamut:

Bp (Max.) = Maximum brightness in 9 measured spots

Area of RGB triangle

X100%

Bp (Min.) = Minimum brightness in 9 measured spots .

Area of NTSC triangle

Note 7:

Measured the luminance of white state at center point

URL: www.topwaydisplay.com

Document Name: HMT080ATA-C

Page: 9 of 10

TOPWAY

LCD Module User Manual

HMT080ATA-C

6 Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
