HMT090ATA-C

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

songmao

Date: 2019-07-23

Date:

Date:

Rev.

Descriptions

Release Date

0.1

- Preliminary Draft release

2017-02-17

0.2

- Preliminary Draft release

2019-07-23

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 1 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

Table of Content

1

Basic Specification ..................................................................................................................................... 3

1.1

General Specification ............................................................................................................................ 3

1.2

Block Diagram ...................................................................................................................................... 3

1.3

Terminal Function ................................................................................................................................. 4

1.3.1

RS232 Interface Terminal (K1) ......................................................................................................... 4

1.3.2

USB Interface Terminal (K2) ............................................................................................................. 4

2

Absolute Maximum Ratings ...................................................................................................................... 4

3

Electrical Characteristics ........................................................................................................................... 5

3.1

DC Characteristics ................................................................................................................................ 5

4

Function Specifications ............................................................................................................................. 5

4.1

Basic Operation Function Descriptions ................................................................................................ 5

4.2

Quick Start Guide ................................................................................................................................. 6

4.3

Command Descriptions ........................................................................................................................ 6

5

Optical Characteristics............................................................................................................................... 7

6

Touch panel Design Precautions .............................................................................................................. 9

7

Precautions of using LCD Modules ........................................................................................................ 10

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 2 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

1 Basic Specification

TOPWAY HMT090ATA-C is a Smart TFT Module with 32bit MCU on board. Its graphics engine provides

numbers of outstanding features. It supports TOPWAY TML 3.0 for preload and pre-design display

interface that simplify the host operation and development time. Suitable for industry control,

instrumentation, medical electronics, power electric equipment applications.

1.1 General Specification

Screen Size(Diagonal) :

9” inch

Resolution :

800(RGB) x 480

Color Depth :

65k color (16bit)

Pixel Configuration :

RGB Stripe

Display Mode :

Transmissive / Normal White

Viewing Direction :

6 o’clock( Gray scale Inversion )(*1)

12 o’clock(*2)

Outline Dimension :

226.9 x 150.5 x 22.4 (max)(mm)

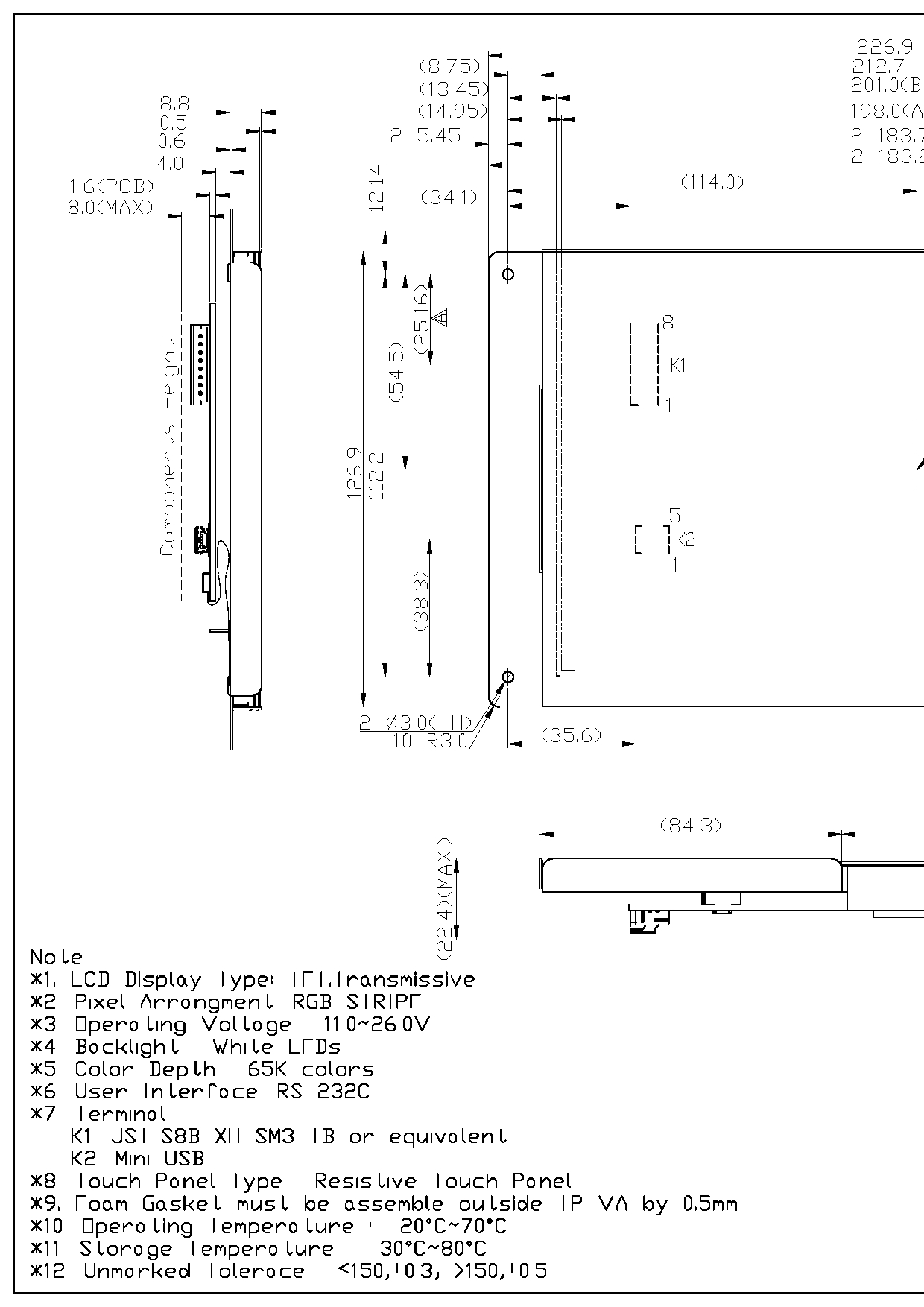

(see attached drawing for details)

Active Area :

198.0 x 111.69 (mm)

Touch Panel:

Resistive Touch Panel

Backlight :

White LED

Command I/F:

RS-232C( Default Baud Rate 115200 bps )

Project Download:

by PC or by U-Drive(with OTG cable)

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Note:

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations).

*2. For “color scales” display content.

*3. Color tone may slightly change by Temperature and Driving Condition.

1.2 Block Diagram

Touch Panel

9" TFT

800 x 480 pixels

K1

RTS(BUSY)

TX, RX

Display Function Controller

VDD, GND

with RTC

K2

ID, D-, D+

Flash

Memory

RAM

VUSB, GND

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 3 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

1.3 Terminal Function

1.3.1 RS232 Interface Terminal (K1)

Pin No.

Pin Name

I/O

Descriptions

1, 2

VDD

P

Power supply

3

RTS(BUSY)

O

Request To Send (could function as busy BUSY signal)

(eg. to PC’s RS232C pin8 <9pin D-connector> )

4

TX

O

Data output

(eg. to PC’s RS232C pin2 <9pin D-connector>)

5,6

RX

I

Data Input

(eg. to PC’s RS232C pin3 <9pin D-connector>)

7,8

GND

P

Ground, (0V)

Note1 ：

*1. User data and commands transfer through this terminal.

*2. HOST using command hand shake during communication is suggested.

Note2 ： I-Input, O-Output, P-Power/Ground

1.3.2 USB Interface Terminal (K2)

Pin No.

Pin Name

I/O

Descriptions

1

VUSB

P

Power supply (5V)

2

D-

I/O

USB DATA negative signal

3

D+

I/O

USB DATA positive signal

4

ID

I

USB_ID,1:Client,0:Host

5

GND

P

Ground, (0V)

Note.

*1. TML files and image files preload through this terminal

*2. Standard “USB-drive” functions provided

*3. During the files transfer, all others display functions will be suspended

2 Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit

Condition

Power Supply voltage

V dd

-0.3

26.0

V

Operating Temperature

T OP

-20

70

°C

No Condensation

Storage Temperature

T ST

-30

80

°C

No Condensation

Note:

*1. This rating applies to all parts of the module and should not be exceeded.

*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,

and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25 ℃

*3. Ambient temperature when the backlight is lit (reference value)

*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged

exposure to extreme conditions may affect device reliability.

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 4 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

3 Electrical Characteristics

3.1 DC Characteristics

GND=0V, VDD=12V, T OP =25 

C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Operating Voltage

V DD

11.0

12.0

26.0

V

VDD

Rx Input MARK(1)

V RxM

-3.0

-

-15.0

V

Rx

Rx Input SPACE(0)

V R X S

+3.0

-

+15.0

V

Rx

Tx Output MARK(1)

V T X M

-3.0

-

-15.0

V

Tx

Tx Output SPACE(0)

V T X S

+3.0

-

+15.0

V

Tx

RTS Output High

V TXH

-3.0

-

-15.0

V

RTS(BUSY)

RTS Output Low

V TXL

+3.0

-

+15.0

V

RTS(BUSY)

Operating Current

I DD

-

300

-

mA

VDD (*1)

Operating Current (USB)

I VUSB

-

240

-

mA

VUSB

Battery Supply current

I BAT

-

0.6

-

uA

Note.

*1. Normal display condition.

4 Function Specifications

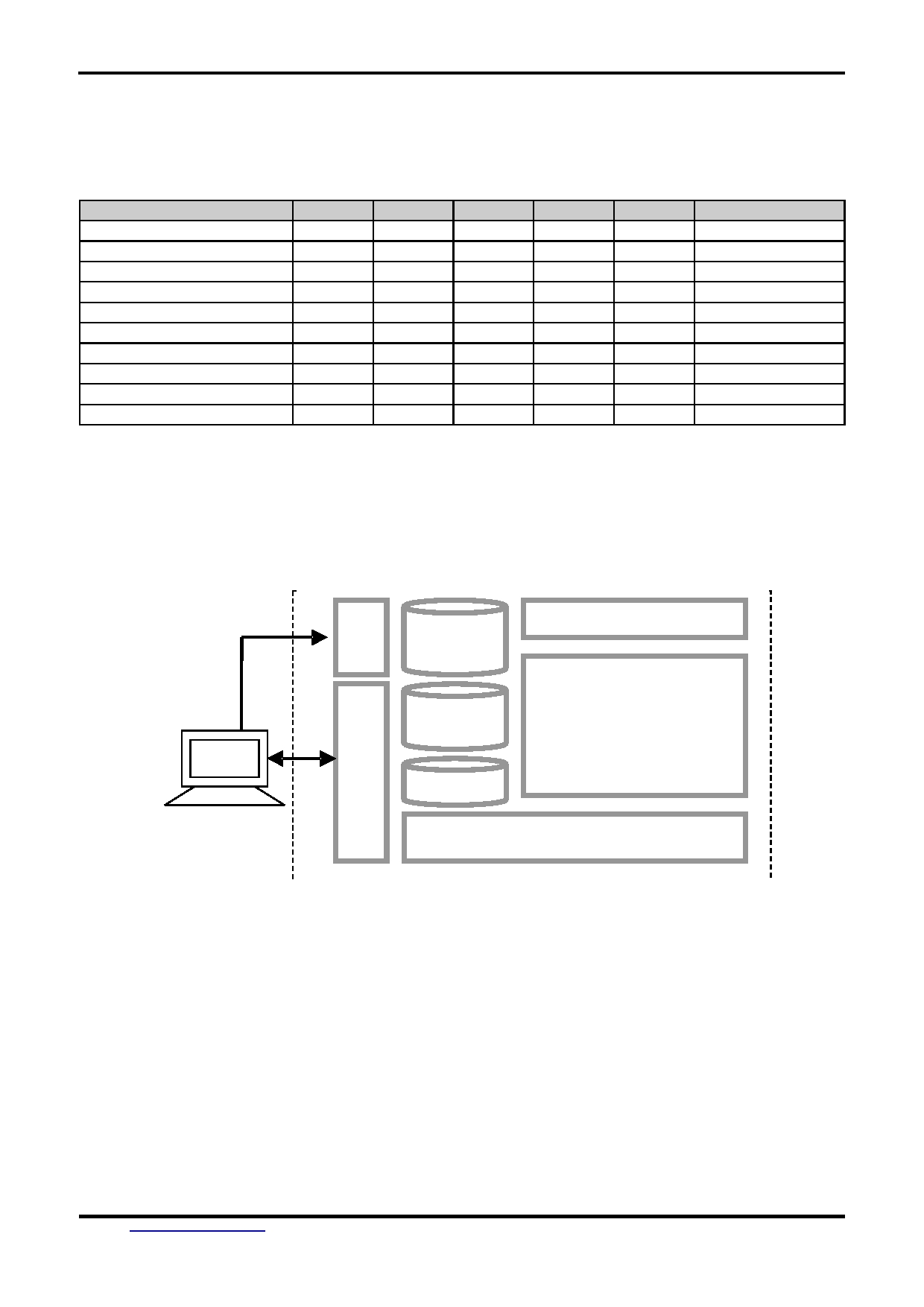

4.1 Basic Operation Function Descriptions

HMT090ATA-C

Touch Panel

TML files

Picture files

ICONS files

Custom

Memories

TFT Display

HOST

PC

VP variables

Control and Draw Engine

-

Display UI files, Picture files, ICON files are stored inside FLASH memory area.

They are preloaded to HMT090ATA-C for stand alone interface use.

-

Those files are preloaded via USB interface as an USB drive.

-

All the interface flow and the touch response are based on the preloaded files

-

VP variables memory is inside RAM area, it provides real time access via UART by the HOST or

display onto the TFT.

-

Custom Memories are inside FLASH memory area

It can be accessed via UART interface by the HOST.

-

Control and Draw Engine executes HOST commands and response respectively

-

It also reports the real time Touch Key number to the HOST

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 5 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

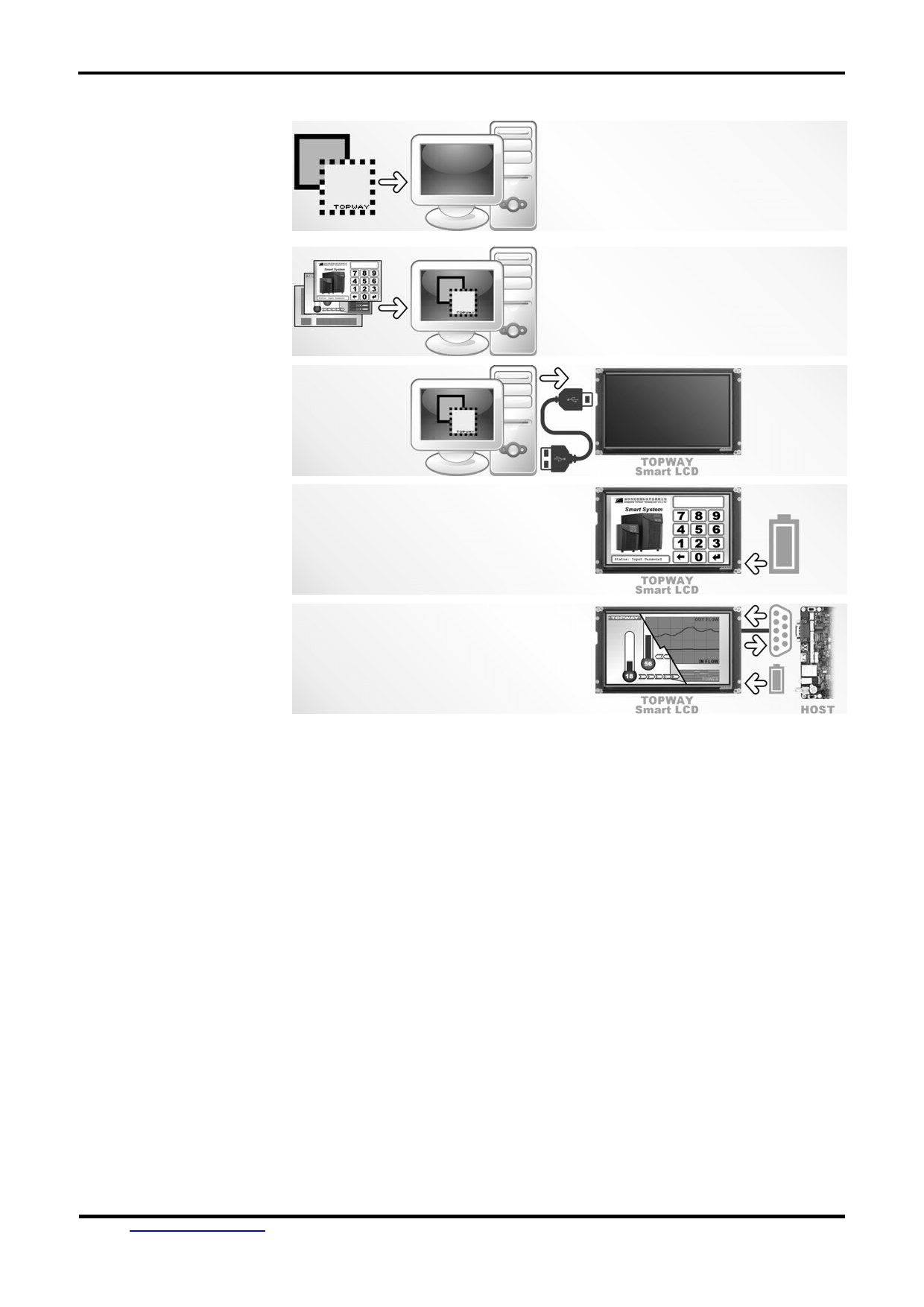

4.2 Quick Start Guide

1.

Install TOPWAY

Graphics Editor

Import pictures

2. design UI flow

3.

Download to

Smart LCD

4. power on &

display

Connect to

5.

host Show

real time

data

4.3 Command Descriptions

Please refer to “SMART LCD Command Manual” .

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 6 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

5 Optical Characteristics

Item

Symbol

Condition

Min

Typ

Max

Unit

Remark

θT

12 o’clock

40

50

-

View Angles

θB

6 o’clock

60

70

-

Degree

Note2,3

θL

9 o’clock

60

70

-

θR

3 o’clock

60

70

-

Contrast Ratio

CR

400

500

-

-

Note 3

T f

-

10

20

Response Time

ms

Note 4

T r

-

15

30

Wx

0.26

0.31

0.36

-

Color chromaticlty

Wy

Normal

0.28

0.33

0.38

-

Luminance

L

θ=0 o

200

250

-

cd/ ㎡ Note 7

Luminance Uniformity

Yu

70

75

-

%

1.IF= 40 mA, and the ambient temperature is 25 ℃ .

2. The test systems refer to Note 1 and Note 2.

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 7 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

Note 1:

Note 2:

The data are measured after LEDs are turned on for 5 minutes.

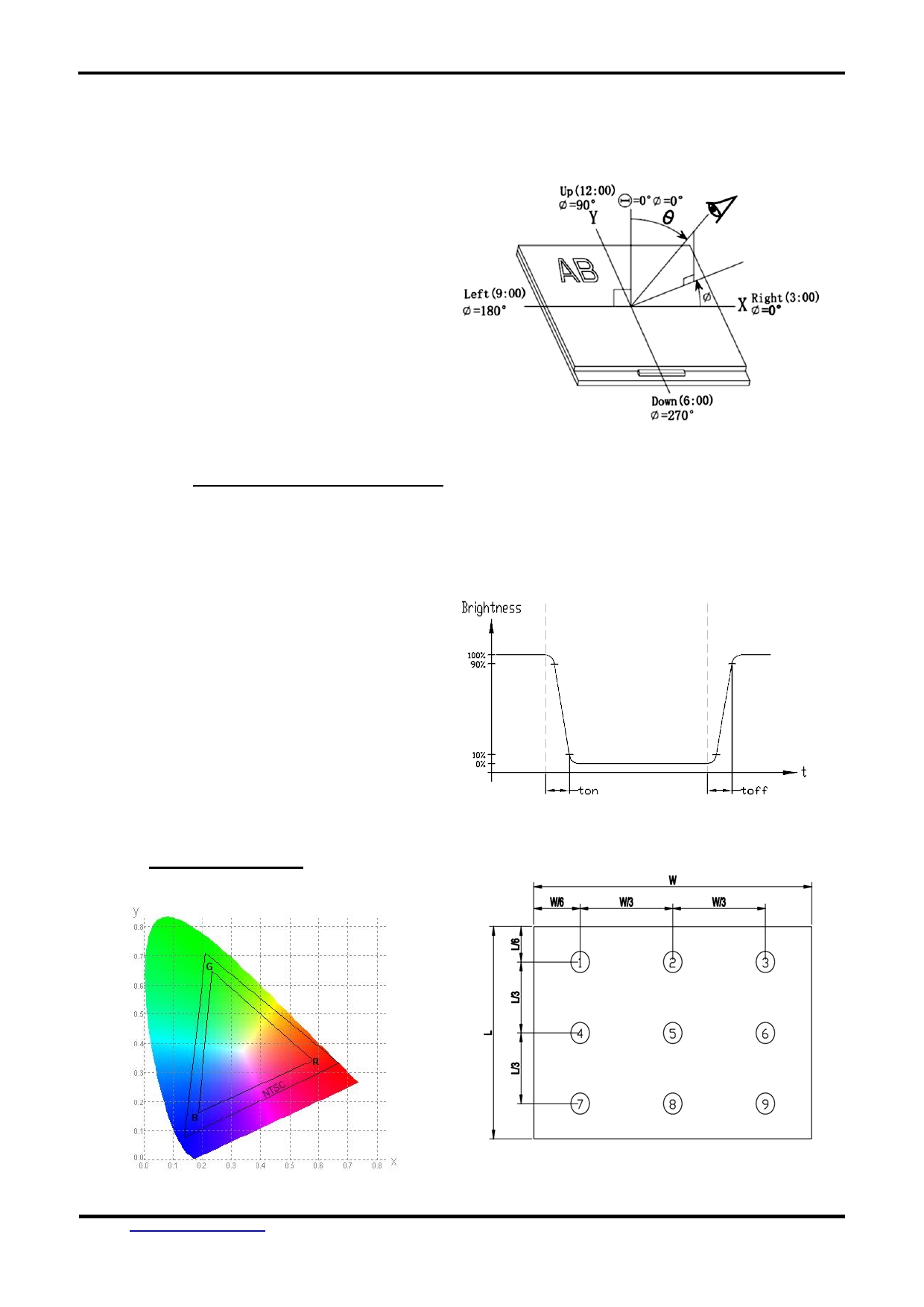

The definition of viewing angle:

LCM displays full white. The brightness is the average value of 9

Refer to the graph below marked by θ and Ф

measured spots. Measurement equipment SR-3A (1°)

Measuring condition:

- Measuring surroundings: Dark room

- Measuring temperature: Ta=25 ℃ .

- Adjust operating voltage to get optimum contrast at

the center of the display.

Note 3:

The definition of contrast ratio (Test LCM using SR-3A (1°)):

Note 4:

Contrast

Luminance When LCD is at “White” state

Definition of Response time. (Test LCD using BM-7A(2°)):

Ratio(CR)

=

Luminance When LCD is at “Black” state

The output signals of photo detector are measured

(Contrast Ratio is measured in optimum common electrode

when the input signals are changed from

voltage)

“black” to “white”(falling time)

and from “white” to “black”(rising time), respectively.

The response time is defined as

the time interval between the 10% and 90% of amplitudes.Refer to

figure as below.

Note 5:

Note 6:

Definition of Color of CIE1931 Coordinate and NTSC Ratio.

The luminance uniformity is calculated by using following formula.

△ Bp = Bp (Min.) / Bp (Max.)×100 (%)

Color gamut:

Bp (Max.) = Maximum brightness in 9 measured spots

Area of RGB triangle

S=

X100%

Bp (Min.) = Minimum brightness in 9 measured spots .

Area of NTSC triangle

Note 7:

Measured the luminance of white state at center point

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 8 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

6 Touch panel Design Precautions

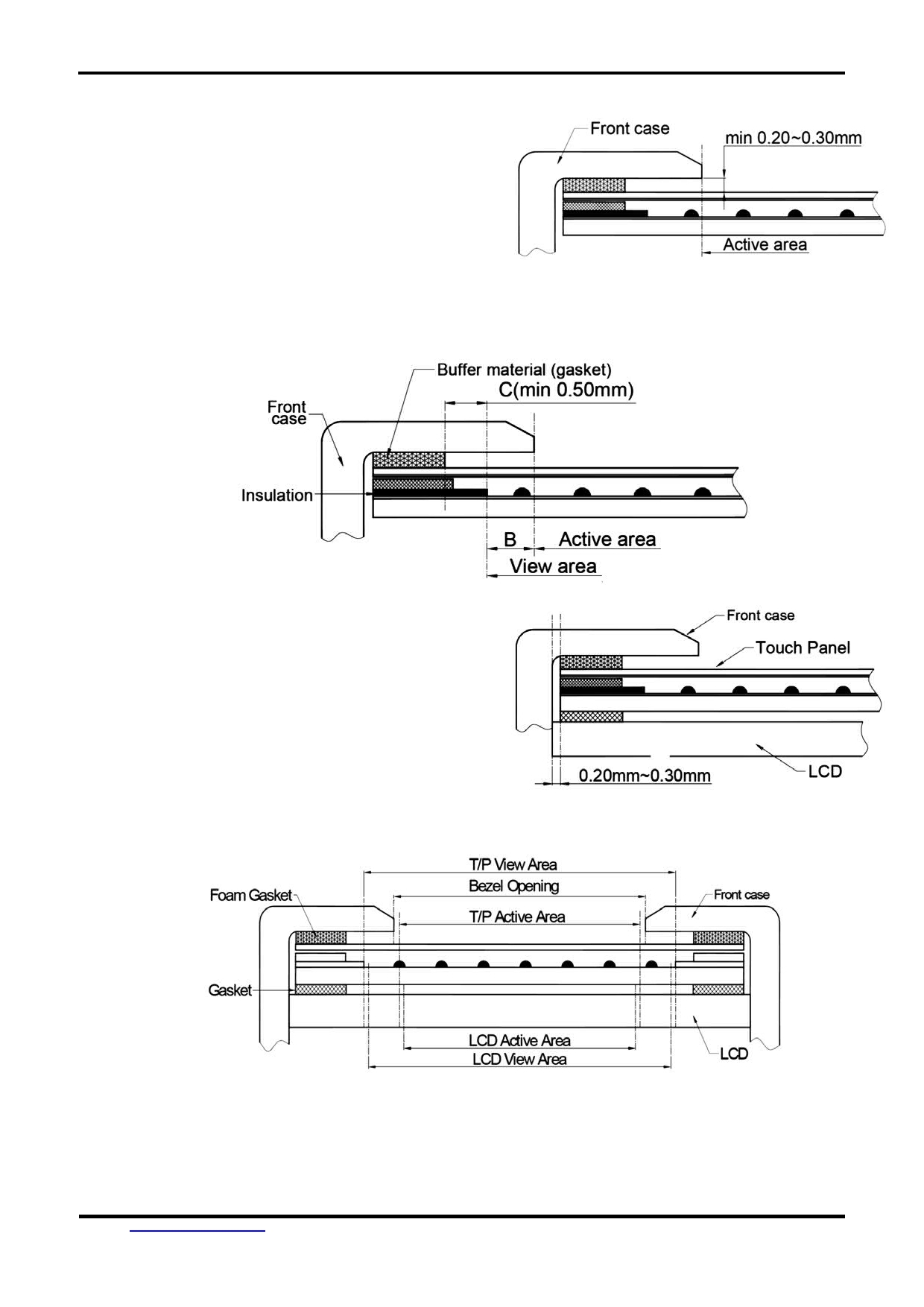

1. It should prevent front case touching the touch

panel Active Area (A.A.) to prevent abnormal

touch.

It should left gab (e.g. 0.2~0.3mm) in between.

2. Outer case design should take care about the area outside the A.A.

Those areas contain circuit wires which is having different thickness. Touching those areas could de-

form the ITO film. As a result case the ITO cold be damaged and shorten its lifetime.

It is suggested to protect those areas with gasket (between the front case and the touch panel).

The suggested figures are B≥0.50mm; C≥0.50mm 。

3. The front case side wall should keep space

(e.g. 0.2 ~ 0.3mm) from the touch panel.

4. I In general design,

touch panel V.A. should be bigger than the LCD V.A.

and touch panel A.A. should be bigger than the LCD A.A.

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 9 of

10

TOPWAY

LCD Module User Manual

HMT090ATA-C

7 Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL:

www.topwaydisplay.com

Document Name: HMT090ATA-C-Manual-Rev0.2.doc

Page: 10 of

10

SMART LCD

Command V5.04

Manual

Prepared by:

Checked by:

Approved by:

liu

Date: 2017-07-24

Date:

Date:

Rev.

Descriptions

Release Date

0.1

- Preliminary Draft release

2016-11-02

0.2

- Add a description of the 0xE8 command

2017-01-12

0.3

- 4.1, 0xE2, 0xE3 command name correction

2017-05-26

0.4

- Add a description of the 0xE7 command

2017-07-24

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 1 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

Table of Content

1

Basic Specifications ................................................................................................................................... 3

1.1

Hardware connection ............................................................................................................................ 3

2

Command Structure ................................................................................................................................... 3

2.1

Communication Packet Structure ......................................................................................................... 3

2.2

Packet Acknowledgment ...................................................................................................................... 3

3

Data arrangement ....................................................................................................................................... 4

3.1

Color Data Value Configuration ............................................................................................................ 4

3.2

Data / Address / Page_ID / Location Values Configuration .................................................................. 4

4

Command Descriptions ............................................................................................................................. 5

4.1

Command table .................................................................................................................................... 5

4.2

Config/ Status Function Commands Details ......................................................................................... 6

4.2.1

hand_shake ( 0x30 ) ..................................................................................................................... 6

4.2.2

read_version ( 0x31 ) .................................................................................................................... 6

4.2.3

read_pg_id ( 0x32 ) ....................................................................................................................... 7

4.2.4

touch_response ( 0x72/ 0x73/ 0x77/ 0x78/ 0x79 ) ........................................................................ 7

4.2.5

set_sys_config ( 0xE0 ) ................................................................................................................. 8

4.2.6

sel_project ( 0xE1 ) ....................................................................................................................... 9

4.2.7

touch_calib ( 0xE4 ) ...................................................................................................................... 9

4.2.8

screen_saver (0x5E) ..................................................................................................................... 9

4.2.9

backlight_ctrl ( 0x5F ) .................................................................................................................... 9

4.2.10

buzzer_touch_sound ( 0x79 ) ....................................................................................................... 9

4.2.11

buzzer_ ctrl ( 0x7A ) ...................................................................................................................... 9

4.2.12

Flash_write ( 0x90 ) .................................................................................................................... 10

4.2.13

Flash_read ( 0x91 ) ..................................................................................................................... 10

4.2.14

RTC_read ( 0x9B ) ...................................................................................................................... 10

4.2.15

RTC_set ( 0x9C ) ........................................................................................................................ 11

4.2.16

USR_bin_read ( 0x93 ) ............................................................................................................... 11

4.2.17

U_drv_format ( 0xE2 ) ................................................................................................................ 11

4.2.18

U_drv_unlock ( 0xE3 ) ................................................................................................................ 11

4.3

Display Control Function Commands Details ..................................................................................... 12

4.3.1

disp_page ( 0x70 ) ...................................................................................................................... 12

4.3.2

set_element_fg ( 0x7E ) .............................................................................................................. 12

4.3.3

set_element_bg ( 0x7F ) ............................................................................................................. 12

4.3.4

Set_codepage (0xE7) ................................................................................................................. 12

4.3.5

suspend_vp_refresh (0xE8) ........................................................................................................ 13

4.4

VP Function Commands Details ......................................................................................................... 13

4.4.1

Successive_write ( 0x82 ) ........................................................................................................... 13

4.4.2

Successive_read ( 0x83 ) ........................................................................................................... 13

4.4.3

BP1_write ( 0x4B ) ...................................................................................................................... 14

4.4.4

BP1_write_compress ( 0x4C ) .................................................................................................... 14

4.4.5

G16_write ( 0x4D ) ...................................................................................................................... 15

4.4.6

G16_write_rotate ( 0x4E ) ........................................................................................................... 15

4.4.7

System Register Write ( 0x3B ) .................................................................................................. 15

4.4.8

System Register Read ( 0x3C ) .................................................................................................. 16

4.4.9

STR_write ( 0x42 ) ...................................................................................................................... 16

4.4.10

STR_read ( 0x43 ) ...................................................................................................................... 16

4.4.11

STR_fill ( 0x46 ) .......................................................................................................................... 17

4.4.12

N16_write ( 0x3D ) ...................................................................................................................... 17

4.4.13

N16_read ( 0x3E ) ...................................................................................................................... 17

4.4.14

N16_fill ( 0x3F ) .......................................................................................................................... 17

4.4.15

N32_write ( 0x44 ) ...................................................................................................................... 18

4.4.16

N32_read ( 0x45 ) ....................................................................................................................... 18

4.4.17

N32_fill ( 0x47 ) ........................................................................................................................... 18

4.4.18

N64_write ( 0x48 ) ...................................................................................................................... 19

4.4.19

N64_read ( 0x49 ) ....................................................................................................................... 19

4.4.20

N64_fill ( 0x4A ) .......................................................................................................................... 19

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 2 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

1 Basic Specifications

TOPWAY Smart LCD serial command is for real-time control and access. Host machine get the data

which input through the Smart LCD interface or provide the data for display.

1.1 Hardware connection

Smart LCD serial UART interface are mainly base on RS232-C standard, by default, config as 8N1

115200bps.

2 Command Structure

2.1 Communication Packet Structure

Commands and Response Packet should be format as follow (host  module):

Seq

Code

Code type

Description

1

0xAA

Packet header

1byte

2

Cmd-code

Command

1byte

code

3

Par-data

Parameter or

(*1)

Data

:

:

-

-

:

:

-

-

:

:

-

-

N-3 th

0xCC

Packet tail

4byte

N-2 th

0x33

N-1 th

0xC3

N th

0x3C

Note.

*1. Unless otherwise specified,

all the multi-byte values, data, address’ byte sequence are MSB first, LSB last.

2.2 Packet Acknowledgment

Packet Acknowledgment is two byte in ASCII (module  host):

Response

code Description

Command (in packet) executed and

":>"

In ASCII

wait for next Command

(0x3a, 0x3e)

Command (in packet) error and

"!>"

In ASCII

wait for next Command

(0x21,0x3e)

15B15B15B15B

Note.

*1. Packet Acknowledgement response to a valid packet only.

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 3 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

3 Data arrangement

3.1 Color Data Value Configuration

16 bit Color value

16 bit color value

R4

R3

R2

R1

R0

G5

G4

G3

G2

G1

G0

B4

B3

B2

B1

B0

High byte (MSB)

Low byte (LSB)

D7

D6

D5

D4

D3

D2

D1

D0

D7

D6

D5

D4

D3

D2

D1

D0

3.2 Data / Address / Page_ID / Location Values Configuration

64bit value

64 bit number value

D63…D56 D55…D48 D47…D40 D39..D32 D31…D24 D23…D16 D15…D8

D7…D0

Byte7

Byte0

(MSB)

(LSB)

D7…D0

D7…D0

D7…D0

D7…D0

D7…D0

D7…D0

D7…D0

D7…D0

32bit value

32 bit number value

D31…D24

D23…D16

D15…D8

D7…D0

Byte3 (MSB)

Byte0 (LSB)

D7…D0

D7…D0

D7…D0

D7…D0

16bit value

16 bit number value

D15…D8

D7…D0

High Byte (MSB)

Low Byte (LSB)

D7…D0

D7…D0

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 4 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4 Command Descriptions

4.1 Command table

Functions

Name

Code

Description

Config/

hand_shake

0x30

Read a Hand Shake

Status

read_version

0x31

Read firmware version

Functions

read_pg_id

0x32

Read Current page ID

touch_response

0x72/0x73/

see also set_sys_config

0x77/0x78/

0x79

set_sys_config

0xE0

System parameter configuration and Baud Rate

sel_project

0xE1

Specify operating project folder

touch_calib

0xE4

Touch panel calibration

screen_saver

0x5E

Screen saver (backlight dim down time out)

backlight_ctrl

0x5F

backlight brightness control (64 levels)

buzzer_touch_sound

0x79

buzzer enable time length (in 10ms step)

buzzer_ctrl

0x7A

Buzzer control

Flash_write

0x90

Write data to the flash

Flash_read

0x91

Read data from the flash

RTC_read

0x9B

Read the RTC values

RTC_set

0x9C

Set the RTC

USR_bin_read

0x93

Read data from the USR_bin

U_drv_format

0xE2

Format the U_drv

U_drv_unlock

0xE3

Unlock the U_drv with pre-stored password

Display

disp_page

0x70

Display a pre-stored TML file (page)

Control

set_element_fg

0x7E

Set the foreground color of STR, N16, N32 or N64

Functions

set_element_bg

0x7F

Set the background color of STR, N16, N32 or N64

set_codepage

0xE7

Sets country character set and code-page character set

suspend_vp_fresh

0xE8

Set the screen to pause the refresh and deactivate the

touchkey or release the pause to refresh and enable

the touchkey

VP

Successive_write

0x82

Write successive value to VP_N16, VP_N32, VP_N64

Functions

Successive_read

0x83

Read successive value from VP_N16, VP_N32, VP_N64

BP1_write

0x4B

Write bit-map (1bpp) data to VP_BP1

BP1_write_comp

0x4C

Write compressed bit-map (1bpp) data to VP_BP1

G16_write

0x4D

Write 16bit (signed integer) graphic array to VP_G16

G16_write_rotate

0x4E

Rotate the VP_G16 array data inside the module and

write a 16bit (signed integer) value into end-of-array

System Register Write

0x3B

Write System Register

System Register Read

0x3C

Read System Register

STR_write

0x42

Write string to VP_STR

STR_read

0x43

Read string form VP_STR

STR_fill

0x46

Fill strings to the VP_STR

N16_write

0x3d

Write 16bit (signed integer) value to VP_N16

N16_read

0x3e

Read 16bit (signed integer) value from VP_N16

N16_fill

0x3f

Fill numbers to the VP_N16

N32_write

0x44

Write 32bit (signed integer) value to VP_N32

N32_read

0x45

Read 32bit (signed integer) value from VP_N32

N32_fill

0x47

Fill numbers to the VP_N32

N64_write

0x48

Write 64bit (signed integer) value to VP_N64

N64_read

0x49

Read 64bit (signed integer) value from VP_N64

N64_fill

0x4A

Fill numbers to the VP_N64

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 5 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.2 Config/ Status Function Commands Details

4.2.1 hand_shake ( 0x30 )

seq

Cmd-code / Par-data

Descriptions

1

0x30

Read a Hand Shake

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

nd

2

Command

0x30

Command executed

rd

3

“T”

0x54

“Topway HMT Ready\0” in ASCII

4

th

“o”

0x6f

5

th

“P”

0x70

6

th

“w”

0x77

7

th

“a”

0x61

8

th

“y”

0x79

9

th

“ “

0x20

10

th

“H”

0x48

11

th

“M”

0x4d

12

th

“T”

0x54

13

th

“ “

0x20

14

th

“R”

0x52

15

th

“e”

0x65

16

th

“a”

0x61

17

th

“d”

0x64

18

th

“y”

0x79

‘\0’(0x00): string end mark

19

th

\0

0x00

20

th

Tail

0xCC

Communication packet tail

st

21

0x33

22

nd

0xC3

23

rd

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.2.2 read_version ( 0x31 )

Seq

Cmd-code / Par-data

Descriptions

1

0x31

Read firmware version

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

nd

2

Command

0x31

Command executed

rd

3

“1”

0x31

“1.06\0” in ASCII

4

th

“.”

0x2e

Where firmware version is V1.06(example)

5

th

“0”

0x30

6

th

“6”

0x36

7

th

\0

0x00

‘\0’(0x00): string end mark

8

th

Tail

0xCC

Communication packet tail

9

th

0x33

10

th

0xC3

11

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 6 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.2.3 read_pg_id ( 0x32 )

Seq

Cmd-code / Par-data

Descriptions

1

0x32

Read Current page ID

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

nd

2

Command

0x32

Command executed

rd

3

Page ID

Page_IDh

Current Page ID in 16bit binary value

th

4

Page_IDl

5

th

Tail

0xCC

Communication packet tail

6

th

0x33

7

th

0xC3

8

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.2.4 touch_response ( 0x72/ 0x73/ 0x77/ 0x78/ 0x79 )

seq

Cmd-code / Par-data

Descriptions

1

--

Use set_sys_config to config the functions

Touch Release Coordinate Response code (0x72):

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x72

Touched release Coordinate

3

rd

X coordinate

Xh

Coordinate in 16bit binary value

4

th

Xl

X = horizontal coordinate

5

th

Y coordinate

Yh

Y = vertical coordinate

6

th

Yl

7

th

Tail

0xCC

Communication packet tail

8

th

0x33

9

th

0xC3

10

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

Touch Down Coordinate Response code ( 0x73 ):

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x73

Touched down Coordinate

3

rd

X coordinate

Xh

Coordinate in 16bit binary value

4

th

Xl

X = horizontal coordinate

5

th

Y coordinate

Yh

Y = vertical coordinate

6

th

Yl

7

th

Tail

0xCC

Communication packet tail

8

th

0x33

9

th

0xC3

10

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

Touch Key ID Response code ( 0x78 ):

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x78

Touched release Key_ID defined by TOPWAY TML Graphic

Editor will be response to host

3

rd

Page_ID

Page_IDh

Page_ID = the touch key in page(16bit binary value)

4

th

Page_IDl

5

th

Y coordinate

Key_ID

Key_ID (8bit binary value)

6

th

Tail

0xCC

Communication packet tail

7

th

0x33

8

th

0xC3

9

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 7 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

Touch Key ID Response code ( 0x79 ):

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x79

Touched down Key_ID defined by TOPWAY TML Graphic

Editor will be response to host

3

rd

Page_ID

Page_IDh

Page_ID = the touch key in page(16bit binary value)

4

th

Page_IDl

5

th

Y coordinate

Key_ID

Key_ID (8bit binary value)

6

th

Tail

0xCC

Communication packet tail

7

th

0x33

8

th

0xC3

9

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

Touch Key VP_ADD+VP_Value Response code ( 0x77 ):

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x77

Touch Key VP_ADD+VP_Value Response code

3

rd

VP_ADD

Addr3 （ MSB ） VP Address

4

th

Addr2

0x080000 ~ 0x08FFFF:VP_N16 Address

5

th

Addr1

0x020000 ~ 0x02FFFF:VP_N32 Address

6

th

Addr0(LSB)

0x030000 ~ 0x03FFFF:VP_N64 Address

0x000000 ~ 0x01FFFF:VP_STR Address

7

th

Data

:

No.of byte

:

:

VP_N16: 2byte

:

VP_N32: 4byte

:

VP_N64: 8byte

:

:

VP_STR: string (with end mark (‘‘\0’(0x00)))

:

Tail

0xCC

Communication packet tail

:

0x33

:

0xC3

:

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.2.5 set_sys_config ( 0xE0 )

seq

Cmd-code / Par-data

Descriptions

1

0xE0

Baud Rate and system parameter configuration

2

0x55

3

0xAA

4

0x5A

5

0xA5

6

Baud_Set

Baudrate Set:

0x00 = 1200bps

0x01 = 2400bps

0x02 = 4800bps

0x03 = 9600bps

0x04 = 19200bps

0x05 = 38400bps

0x06 = 57600bps

0x07 = 115200bps

7

sys_par1

Bit7 = 0: Touch panel function disable

Bit7 = 1: Touch panel functions enable (*3)(default)

Bit[1..0]: Touch actions configuration (*2, *3)

8

0x00

Reserved

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. Touch panel configuration:

Sys_par1

Sys_par1

Sys_par1

Response

Bit7

Bit1

Bit0

To host

Descriptions

0

0

0

Null

Not touch panel functions

1

0

1

Coordinates

Touch down Coordinate will be response to host

1

1

0

Coordinates

Touch release Coordinate will be response to host

1

1

1

Key ID

Touch Key_ID defined by TOPWAY TML Graphic Editor will be

response to host

*3. see set_touch section for response code

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 8 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.2.6 sel_project ( 0xE1 )

seq

Cmd-code / Par-data

Descriptions

1

0xE1

Select project folder

2

Prj_ID

0~9, project ID

0: System execute the default project “THMT”

1~9: System execute the project “THMT01”~“THMT09”

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.2.7 touch_calib ( 0xE4 )

seq

Cmd-code / Par-data

Descriptions

1

0xE4

Touch panel calibration

2

0x55

3

0xAA

4

0x5A

5

0xA5

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. Keep pressing the touch panel during power on, could also trigger the touch_calib function

4.2.8 screen_saver (0x5E)

seq

Cmd-code / Par-data

Descriptions

1

0x5E

Screen saver

2

Time1h

time out time in seconds, range: 0x0000 ~ 0xffff

3

Time1l

(0x0000: disable screen saver function) (*2)

4

PWM_LE

PWM_LE = 0 ~ 0x3F (default 0x19 in dim down),

the backlight dimmed level in screen saving mode (*2)

Screensavers brightness can not be greater than the backlight

brightness.

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. default value defined by TML graphic editor configuration

4.2.9 backlight_ctrl ( 0x5F )

seq

Cmd-code / Par-data

Descriptions

1

0x5F

backlight brightness control

2

PWM_LE

PWM_LE=0x00 ~ 0x3F

(*2)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. default value defined by TML graphic editor configuration

4.2.10 buzzer_touch_sound ( 0x79 )

seq

Cmd-code / Par-data

Descriptions

1

0x79

buzzer touch sound control

2

Time

Sounding time length (in 10ms), range 0x00~0x3F

0x00= disable (*2)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. default value defined by TML graphic editor configuration

4.2.11 buzzer_ ctrl ( 0x7A )

seq

Cmd-code / Par-data

Descriptions

1

0x7A

Buzzer control

2

Loop count

Loop count, Range: 0x01 ~ 0xFF.

0xFF = buzzer infinite loop

3

T1

Buzzer play time 1

Range: 0x00 ~ 0xFF (0~25.5s)(unit 100ms)

4

T2

Buzzer play time 2

Range: 0x00 ~ 0xFF (0~25.5s)(unit 100ms)

5

Freq1

T1 time Buzzer frequency, Unit 100 Hz

Ranges: 0x05 ~ 0x32 (500Hz ~ 5KHz)

0x00 = T1 time period buzzer turn off

6

Freq2

T2 time Buzzer frequency, Unit 100 Hz

Ranges: 0x05 ~ 0x32 (500Hz ~ 5KHz)

0x00 = T1 time period buzzer turn off

Note:

1. The buzzer sound time is (T1 + T2)*100ms

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 9 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.2.12 Flash_write ( 0x90 )

seq

Cmd-code / Par-data

Descriptions

1

0x90

Write data to the flash at specified address

2

Address3(MSB)

the specified start address to write

3

Address2

Address

range =0x00000 ~ 0x03FFFF

4

Address1

5

Address0(LSB)

6

Data_Lengthh

The no. of data byte to write.

7

Data_Lengthl

Length =0x0001 ~ 0x0400

8

Data

data to write.

:

:

:

:

:

:

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.2.13 Flash_read ( 0x91 )

seq

Cmd-code / Par-data

Descriptions

1

0x91

Read data from the flash at specified address

2

Address3(MSB)

the specified start address to write

3

Address2

Address

range =0x00000 ~ 0x03FFFF

4

Address1

5

Address0(LSB)

6

Data_Lengthh

The no. of data byte to read

7

Data_Lengthl

Length =0x0001 ~ 0x0400

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x91

Command executed

3

rd

Data

data

Read back data

:

:

:

:

:

Tail

0xCC

Communication packet tail

:

0x33

:

0xC3

:

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.2.14 RTC_read ( 0x9B )

seq

Cmd-code / Par-data

Descriptions

1

0x9B

Read the current RTC value

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x9B

Command executed

3

rd

Date

Year

Year: 00~99 (00=year 2000) (8bit binary value)

4

th

Month

Month: 01~12 (8bit binary value)

5

th

Day

Day: 01~31 (8bit binary value)

6

th

Time

Hour

Hour 00~23 (24hr format)(8bit binary value)

7

th

Minute

Minutes 00~59 (8bit binary value)

8

th

Second

Second 00~59 (8bit binary value)

9

th

Tail

0xCC

Communication packet tail

10

th

0x33

11

th

0xC3

12

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 10 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.2.15 RTC_set ( 0x9C )

seq

Cmd-code / Par-data

Descriptions

1

0x9C

Set the RTC

2

Year

Year

= 00~99(2000 ~ 2099)

3

Month

Month = 00~12

4

Date

Date

= 00~31

Hour

= 00~23

5

Hour

Minute = 00~59

6

Minute

Second = 00~59

7

Second

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.2.16 USR_bin_read ( 0x93 )

seq

Cmd-code / Par-data

Descriptions

1

0x93

Read USR_bin data from the flash at specified address

2

Address3(MSB)

the specified start address to write

3

Address2

Address

range = 0x00000 ~ 0x03FFFF

4

Address1

5

Address0(LSB)

6

Data_Lengthh

The no. of data byte to read

7

Data_Lengthl

Length = 0x0001 ~ 0x0400

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x93

Command executed

3

rd

Data

data

Read back data

:

:

:

:

:

Tail

0xCC

Communication packet tail

:

0x33

:

0xC3

:

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.2.17 U_drv_format ( 0xE2 )

seq

Cmd-code / Par-data

Descriptions

1

0xE2

Format the USB drive.

2

0x55

All the files (include the security lock file) will be erased.

3

0xAA

4

0x5A

5

0xA5

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.2.18 U_drv_unlock ( 0xE3 )

seq

Cmd-code / Par-data

Descriptions

1

0xE3

Unlock the USB drive of file read/write with pre-stored password.

2

PW

PW: password in ASCII

:

:

Length = 127max.

:

:

‘\0’(0x00): string end mark

:

‘\0’

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 11 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.3 Display Control Function Commands Details

4.3.1 disp_page ( 0x70 )

seq

Cmd-code / Par-data

Descriptions

1

0x70

Display a pre-stored TML file(page)

2

Page_IDh

Page_ID = 0~999

3

Page_IDl

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.3.2 set_element_fg ( 0x7E )

Seq

Cmd-code / Par-data

Descriptions

1

0x7E

Set foreground colors of the STR, N16, N32 or N64

2

Element

0x00 = STR; 0x01 = N16, N32, N64

3

Page_IDh

Page_ID = 0~999

4

Page_IDl

5

Element_ID

VP_STR = 0~127; N16, N32, N64 = 0~119

6

0x00

Reserve

7

FGh

Foreground color(0~0xffff)

8

FGl

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.3.3 set_element_bg ( 0x7F )

Seq

Cmd-code / Par-data

Descriptions

1

0x7F

Set background color of the STR, N16, N32 or N64

2

Element

0x00 = STR; 0x01 = N16, N32, N64

3

Page_IDh

Page_ID = 0~999

4

Page_IDl

5

Element_ID

VP_STR = 0~127, N16, N32, N64 = 0~119

6

Mode

0x00: non transparent; 0x01 : transparent

7

BGh

Background color(0 ~ 0xffff)

8

BGl

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.3.4 set_codepage (0xE7)

Seq

Cmd-code / Par-data

Descriptions

1

0xE7

Sets country character set and code-page character set

2

Country

1 ~ 11, country character set

3

Codepage

1 ~ 22, code-page character set

Note.

*1. Country and CodePage table

Country Code

Descriptions

Code Page

Descriptions

1

USA

1

437 (OEM – United States)

2

France

2

737 (OEM – Greek 437G)

3

Germany

3

852 (OEM – Latin II )

4

United Kingdom

4

860 (OEM – Portuguese)

5

Demark I

5

863 (OEM – Canadian French)

6

Demark II

6

865 (OEM – Nordic)

7

Sweden

7

866 (OEM – Russian)

8

Italy

8

874 (ANSI/OEM – Thai)

9

Spain

9

932 (ANSI/OEM – Japanese Shift-JIS)

10

Japan

10

1250 (ANSI - Central Europe)

11

Norway

11

1251 (ANSI – Cyrillic)

--

--

12

1252 (ANSI – Latin I )

--

--

13

1253 (ANSI – Greek)

--

--

14

1254 (ANSI – Turkish)

--

--

15

1255 (ANSI – Hebrew)

--

--

16

1256 (ANSI – Arabic)

--

--

17

1257 (ANSI – Baltic)

--

--

18

1258 (ANSI – Viet Nam)

--

--

19

GB2312

--

--

20

GBK

--

--

21

EUC_KR

--

--

22

Big5

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 12 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.3.5 suspend_vp_refresh (0xE8)

Seq

Cmd-code / Par-data

Descriptions

1

0xE8

Set the screen to pause the refresh and deactivate the touchkey or

2

55

release the pause to refresh and enable the touchkey

3

AA

4

5A

5

A5

6

Mode

0x00: r elease the pause to refresh and enable the touchkey

0x01: pause the refresh and deactivate the touchkey

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4 VP Function Commands Details

4.4.1 Successive_write ( 0x82 )

Seq

Cmd-code / Par-data

Descriptions

1

0x82

Write successive value to VP_N16, VP_N32, VP_N64

2

Addr3(MSB)

VP_N16 Address = 0x080000 ~ 0x08FFFF (should be aligned every 2

3

Addr2

byte)

4

Addr1

VP_N32 Address = 0x020000 ~ 0x02FFFF (should be aligned every 4

byte)

5

Addr0(LSB)

VP_N64 Address = 0x030000 ~ 0x03FFFF (should be aligned every 8

byte)

6

Length

The number of data to write (Length = 1~255)

7

Data 1(MSB)

the value to write

8

Data 2

No. of byte of Data:

9

Data 3

VP_N16 = Length *2,

:

:

VP_N32 = Length *4,

:

Data n(LSB)

VP_N64 = Length *8,

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4.2 Successive_read ( 0x83 )

Seq

Cmd-code / Par-data

Descriptions

1

0x83

Read successive value to VP_N16, VP_N32, VP_N64

2

Addr3(MSB)

VP_N16 Address = 0x080000 ~ 0x08FFFF (should be aligned every 2

3

Addr2

byte)

4

Addr1

VP_N32 Address = 0x020000 ~ 0x02FFFF (should be aligned every 4

5

Addr0(LSB)

byte)

VP_N64 Address = 0x030000 ~ 0x03FFFF (should be aligned every 8

byte)

6

Length

The number of data to write (Length = 1 ~ 255)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x83

Command executed

3

rd

VP_ADD

Addr3(MSB ） VP Address

4

th

Addr2

0x080000 ~ 0x08FFFF:VP_N16 Address

5

th

Addr1

0x020000 ~ 0x02FFFF:VP_N32 Address

6

th

Addr0(LSB)

0x030000 ~ 0x03FFFF:VP_N64 Address

7

rd

Length

NO.

No. of data

8

rd

Data

Data n(MSB)

No. of byte of Data:

:

:

VP_N16 = Length *2,

:

:

VP_N32 = Length *4,

th

(n-1)

Data1

VP_N64 = Length *8,

n

th

Data0(LSB)

(n+1)

th

Tail

0xCC

Communication packet tail

(n+2)

th

0x33

(n+3)

th

0xC3

(n+4)

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 13 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.4.3 BP1_write ( 0x4B )

Seq

Cmd-code / Par-data

Descriptions

1

0x4B

Write raw bit-map data to the VP_BP1

2

Addr3(MSB)

VP_BP1 Address = 0x040000 ~ 0x05FFFF

3

Addr2

4

Addr1

5

Addr0(LSB)

6

Length3(MSB)

the number of data

7

Length2

Length = 1 ~ 98304

8

Length1

9

Length0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. After the above command issued, it follow with the raw data byte with out communication packet structure.

*3. over all command flow

HOST

Flow

module

BP1_write Command



Instruct to wait for data….

(in communication packet structure)

Raw 1bpp image data



Store the data into VP_BP1

(without communication packet structure)



Response code “:>” in ASCII

(without communication packet structure)

4.4.4 BP1_write_compress ( 0x4C )

Seq

Cmd-code / Par-data

Descriptions

1

0x4C

Write compressed bit-map data to the VP_BP1

2

Addr3(MSB)

VP_BP1 Address = 0x040000 ~ 0x05FFFF

3

Addr2

4

Addr1

5

Addr0(LSB)

6

Length3(MSB)

the number of data

7

Length2

Length = 1 ~ 98304

8

Length1

9

Length0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. After the above command issued, it follow with the compressed data byte with out communication packet structure.

*3. over all command flow

HOST

Flow

module

BP1_write Command



Instruct to wait for data….

(in communication packet structure)

compressed 1bpp image data



Store the data into VP_BP1

(without communication packet structure)



Response code “:>” in ASCII

(without communication packet structure)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 14 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.4.5 G16_write ( 0x4D )

Seq

Cmd-code / Par-data

Descriptions

1

0x4D

Write graph values to the VP_G16 array

2

Addr1_H

VP_G16 Address = 0x060000 ~ 0x07FFFF

3

Addr1l

4

Addr2h

5

Addr2l

6

Sizeh

Array-size = 1 ~ 1024

7

Sizel

(*2, *3)

8

Data(MSB)

16 bit data array

9

Data(LSB)

(no. of byte = 2x array-size)

10

Data(MSB)

11

Data(LSB)

:

:

:

:

:

:

:

:

:

:

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. Array-size = no. of 16bit values

*3. Array-size suggest to be same at the size value defined in TML editor

4.4.6 G16_write_rotate ( 0x4E )

Seq

Cmd-code / Par-data

Descriptions

1

0x4E

Write graph values to the last position of VP_G16 array

with rotation effect

2

Addr1_H

VP_G16 Address = 0x060000 ~ 0x07FFFF

3

Addr1_L

4

Addr2_H

5

Addr2_L

6

Size_H

Array-size to be rotate = 1 ~ 65535

7

Size_L

(*2. *3)

8

Data(MSB)

16 bit data value to be add to the end-of-array

9

Data(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

*2. Array-size = no. of 16bit values

*3. Array-size suggest to be same at the value defined in TML editor

4.4.7 System Register Write ( 0x3B )

seq

Cmd-code / Par-data

Descriptions

1

0x3B

System Register Write Command

2

Addr3(MSB)

3

Addr2

Timer_Ctrl0 Address = 0xFFFF00

：

4

Addr1

Timer_Ctrl7 Address = 0xFFFF07

5

Addr0(LSB)

6

Data

the value to write

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 15 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.4.8 System Register Read ( 0x3C )

seq

Cmd-code / Par-data

Descriptions

1

0x3C

System Register Read Command

2

Addr3(MSB)

3

Addr2

Address = 0xFFFF00

：

4

Addr1

Address = 0xFFFFFF

5

Addr0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

st

1

Header

0xAA

Communication packet header

2

nd

Command

0x3C

Command executed

3

rd

Addr3(MSB)

4

th

Addr2

Address = 0xFFFF00

Address

：

5

th

Addr1

Address = 0xFFFFFF

6

th

Addr0(LSB)

7

th

Data

Data(1Byte)

the value of the register

8

th

0xCC

9

th

0x33

th

Tail

Communication packet tail

10

0xC3

th

11

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

*2. When Timer reach the 0x00000000 or 0x7FFFFFFF, a notification will be provided a 0x77 response code with the corresponding

Timer Address and Value.(See touch_response(0x77)for details)

4.4.9 STR_write ( 0x42 )

Seq

Cmd-code / Par-data

Descriptions

1

0x42

Write string to VP_STR

2

Addr3(MSB)

the VP_STR Address = 0x00000 ~ 0x01FFFF

3

Addr2

(each VP_STR = 128 bytes)

4

Addr1

(address value must be divisible by 128)

5

Addr0(LSB)

6

data

String to write

:

:

Total no. of byte in string ≤128

:

:

:

‘\0’

‘\0’(0x00): string end mark

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4.10 STR_read ( 0x43 )

Seq

Cmd-code / Par-data

Descriptions

1

0x43

Read string from VP_STR

2

Addr3(MSB)

the VP_STR Address = 0x00000 ~ 0x01FFFF

3

Addr2

(each VP_STR = 128 bytes)

4

Addr1

(address value must be divisible by 128)

5

Addr0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x43

Command executed

3

rd

String data

data

String code

:

:

:

:

:

\0

0x00

‘‘\0’(0x00): string end mark

:

Tail

0xCC

Communication packet tail

:

0x33

:

0xC3

:

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 16 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.4.11 STR_fill ( 0x46 )

Seq

Cmd-code / Par-data

Descriptions

1

0x46

Write string to VP_STR

2

Addr3(MSB)

he VP_STR Address = 0x00000 ~ 0x01FFFF

3

Addr2

(each VP_STR = 128 bytes)

4

Addr1

(address value must be divisible by 128)

5

Addr0(LSB)

6

Lengthh

the number of VP_STR (including the start address) to be filled

7

Lengthl

Length = 1 ~ 1024

8

data

String to write

:

:

Total no. of byte in string ≤128

:

:

:

‘\0’

‘\0’(0x00): string end mark

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4.12 N16_write ( 0x3D )

Seq

Cmd-code / Par-data

Descriptions

1

0x3D

Write 16bit number to VP_N16

2

Addr3(MSB)

VP_N16 Address = 0x080000 ~ 0x08FFFF

3

Addr2

(each VP_N16 = 2 byte)

4

Addr1

(address value must be divisible by 2)

5

Addr0(LSB)

6

High Byte

The 16 bit value to write

7

Low Byte

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4.13 N16_read ( 0x3E )

Seq

Cmd-code / Par-data

Descriptions

1

0x3E

Read 16bit number from VP_N16

2

Addr3(MSB)

VP_N16 Address = 0x080000 ~ 0x08FFFF

3

Addr2

(each VP_N16 = 2 byte)

4

Addr1

(address value must be divisible by 2)

5

Addr0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x3E

Command executed

3

rd

N16 value

Data1(MSB)

16 bit value

4

th

Data0(LSB)

5

th

Tail

0xCC

Communication packet tail

6

th

0x33

7

th

0xC3

8

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.4.14 N16_fill ( 0x3F )

Seq

Cmd-code / Par-data

Descriptions

1

0x3F

Fill 16bit number to the VP_N16

2

Addr3(MSB)

VP_N16 Address = 0x080000 ~ 0x08FFFF

3

Addr2

(each VP_N16 = 2 byte)

4

Addr1

(address value must be divisible by 2)

5

Addr0(LSB)

6

Lengthh

the number of VP_N16 (including the start address) to be filled

7

Lengthl

Length = 1 ~ 32768

8

High Byte

the 16 bit value to fill

9

Low Byte

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 17 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.4.15 N32_write ( 0x44 )

Seq

Cmd-code / Par-data

Descriptions

1

0x44

Write 32bit number to VP_N32

2

Addr3(MSB)

VP_N32 Address = 0x020000 ~ 0x02FFFF

3

Addr2

(each VP_N32 = 4 byte)

4

Addr1

(address value must be divisible by 4)

5

Addr0(LSB)

6

Data3(MSB)

the 32 bit no. value write.

7

Data2

8

Data1

9

Data0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4.16 N32_read ( 0x45 )

Seq

Cmd-code / Par-data

Descriptions

1

0x45

Read 32bit number from VP_N32

2

Addr3(MSB)

VP_N32 Address = 0x020000 ~ 0x02FFFF

3

Addr2

(each VP_N32 = 4 byte)

4

Addr1

(address value must be divisible by 4)

5

Addr0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x45

Command executed

3

rd

N32 value

Data3(MSB)

32 bit value

4

th

Data2

5

th

Data1

6

th

Data0(LSB)

7

th

Tail

0xCC

Communication packet tail

8

th

0x33

9

th

0xC3

10

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.4.17 N32_fill ( 0x47 )

Seq

Cmd-code / Par-data

Descriptions

1

0x47

Fill 32bit number to the VP_N32

2

Addr3(MSB)

VP_N32 Address = 0x020000 ~ 0x02FFFF

3

Addr2

(each VP_N32 = 4 byte)

4

Addr1

(address value must be divisible by 4)

5

Addr0(LSB)

6

Lengthh

the number of VP_N32 (including the start address) to be filled

7

Lengthl

Length = 1 ~ 16384

8

Data3(MSB)

the 32 bit no. value to fill

9

Data2

10

Data1

11

Data0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 18 of

19

TOPWAY

SMART LCD Command Manual

Protocol V5.04

4.4.18 N64_write ( 0x48 )

Seq

Cmd-code / Par-data

Descriptions

1

0x48

Write 64bit number to VP_N64

2

Addr3(MSB)

VP_N64 Address= 0x030000 ~ 0x03FFFF

3

Addr2

(each VP_N64 = 8 byte)

4

Addr1

(address value must be divisible by 8)

5

Addr0(LSB)

6

Data7(MSB)

the 64bit no. value write.

7

Data6

:

:

:

:

12

Data1

13

Data0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

4.4.19 N64_read ( 0x49 )

Seq

Cmd-code / Par-data

Descriptions

1

0x49

Read 64bit number from VP_N64

2

Addr3(MSB)

VP_N64 Address= 0x030000 ~ 0x03FFFF

3

Addr2

(each VP_N64 = 8 byte)

4

Addr1

(address value must be divisible by 8)

5

Addr0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details

Response code:

Seq.

Content

Byte in Hex

Descriptions

1

st

Header

0xAA

Communication packet header

2

nd

Command

0x49

Command executed

3

rd

N64 value

Data7(MSB)

64 bit value

4

th

Data6

:

:

:

:

9

th

Data1

10

th

Data0(LSB)

11

th

Tail

0xCC

Communication packet tail

12

th

0x33

13

th

0xC3

14

th

0x3C

Note.

*1. The Response code with communication packet format (see Communication Packet Structure Section for details)

4.4.20 N64_fill ( 0x4A )

Seq

Cmd-code / Par-data

Descriptions

1

0x4A

Fill 64bit number to the VP_N64

2

Addr3(MSB)

VP_N64 Address= 0x030000 ~ 0x03FFFF

3

Addr2

(each VP_N64 = 8 byte)

4

Addr1

(address value must be divisible by 8)

5

Addr0(LSB)

6

Lengthh

the number of VP_N64 (including the start address) to be filled

7

Lengthl

Length = 1 ~ 8192

8

Data7(MSB)

the 64 bit no. value to fill

9

Data6

:

:

:

:

14

Data1

15

Data0(LSB)

Note.

*1. Command should be transferred in communication packet structure (see Communication Packet Structure Section for details)

URL:

www.topwaydisplay.com

Document Name:SMART LCD Command v5.04 Manual Rev0.4.doc

Page: 19 of

19
