LM1076CCW
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Li Yinyang
Date: 2016-11-04
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2016-11-04
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 1 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
Table of Content
1. Basic Specifications ............................................................................................................... 3
1.1
Display Specifications ........................................................................................................ 3
1.2
Mechanical Specifications .................................................................................................. 3
1.3
Block Diagram ..................................................................................................................... 3
1.4
Terminal Functions ............................................................................................................. 4
1.5
Jumper Functions ............................................................................................................... 4
2. Absolute Maximum Ratings ................................................................................................... 5
3. Electrical Characteristics ....................................................................................................... 5
3.1
DC Characteristics .............................................................................................................. 5
3.2
LED Backlight Circuit Characteristics ............................................................................... 5
3.3
AC Characteristics .............................................................................................................. 6
4. Function specifications ........................................................................................................ 10
4.1
Adjusting the Display Contrast ........................................................................................ 10
4.2
Resetting the LCD module ................................................................................................ 10
4.3
Display Commands ........................................................................................................... 11
5. Design and Handling Precaution ......................................................................................... 15
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 2 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: FSTN, Positive, Transflective
2) Display Color
: Display Data = “1” : Dark Gray (*1)
: Display Data = “0” : Light Gray (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/128 duty, 1/12 bias
5) Backlight
: White LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result
1.2 Mechanical Specifications
1) Outline Dimension
: 79.5 x 64.0 x 10.1MAX (mm)
(See attached Outline Drawing for details)
1.3 Block Diagram
BLA
BLK
Backlight Circuit
LCD Panel
240 × 128Pixels
VDD
VSS
/WR,/RD,D0~D7
UC1698 or equivalent
/CS1, /RES, A0
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 3 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
1.4 Terminal Functions
Pin
Descriptions
No.
PIN
I/O
8-bit parallel
8-bit parallel
(K1)
Name
80mode
68mode
4Wire Serial
3Wire Serial
( default )
Register Select
1
A0
Input A0 = H, Transferring the Display Data
No use
A0 = L, Transferring the Control Data
/WR=H,
In read mode
/RD=L → H;
R/W=H,E=H;
2
/RD
Input Data or Status
Data or Status
No use
( E )
read form the
read form the
LCD module
LCD module
/WR=L → H,
InWrite mode
/RD=H;
R/W=L,E=H → L;
3
/WR
Input Data or Status
No use
(R/W)
Data or Status
read form the
read form the
LCD module
LCD module
Reset signal
4
/RES
Input /RES = L, Initialization is executed
/RES = H, Normal running.
Chip Select
5
/CS1
Input /CS1=L, enable access to the LCD module
/CS1=H, disable access to the LCD module
6
VSS
Power Negative power supply,0V
7
VSS
Power Negative power supply,0V
8
VDD
Power Positive power supply
9
D0
Bi-directional data bus.
No use
:
:
I/O
15
D6(SCK)
Serial clock input
16
D7(SDA)
Serial data input
17
BLA
Power Positive power for LED backlight
18
BLK
Power Negetive power for LED backlight
19
NC
/
NC
20
NC
/
NC
1.5 Jumper Functions
Interface selection is available by the jumper on the back side of the LCD module
JP1
JP2
JP3
JP4
Components
Interface Mode
OPEN
CLOSE OPEN
CLOSE
R20~R21=OPEN,C21 =0R
8080 Mode<default>
OPEN
CLOSE CLOSE
OPEN
R20~R21=OPEN,C21 =0R
6800 Mode
CLOSE
OPEN
OPEN
CLOSE
R7,R10,R11,R20,R21 =100R
4 Wire SPI
R8,R9, R12~R19
=OPEN
C10,C11,C14~C20
=0R
C9,C12,C13,C21
=100PF
CLOSE
OPEN
CLOSE
OPEN
R10,R11,R20,R21
=100R
R7,R8,R9,R12~R19
=OPEN
3 Wire SPI
C9,C10,C11,C14~C20 =0R
C12,C13,C21
=100PF
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 4 of 15
TOPWAY
LCD Module User Manual
LM1076CCW

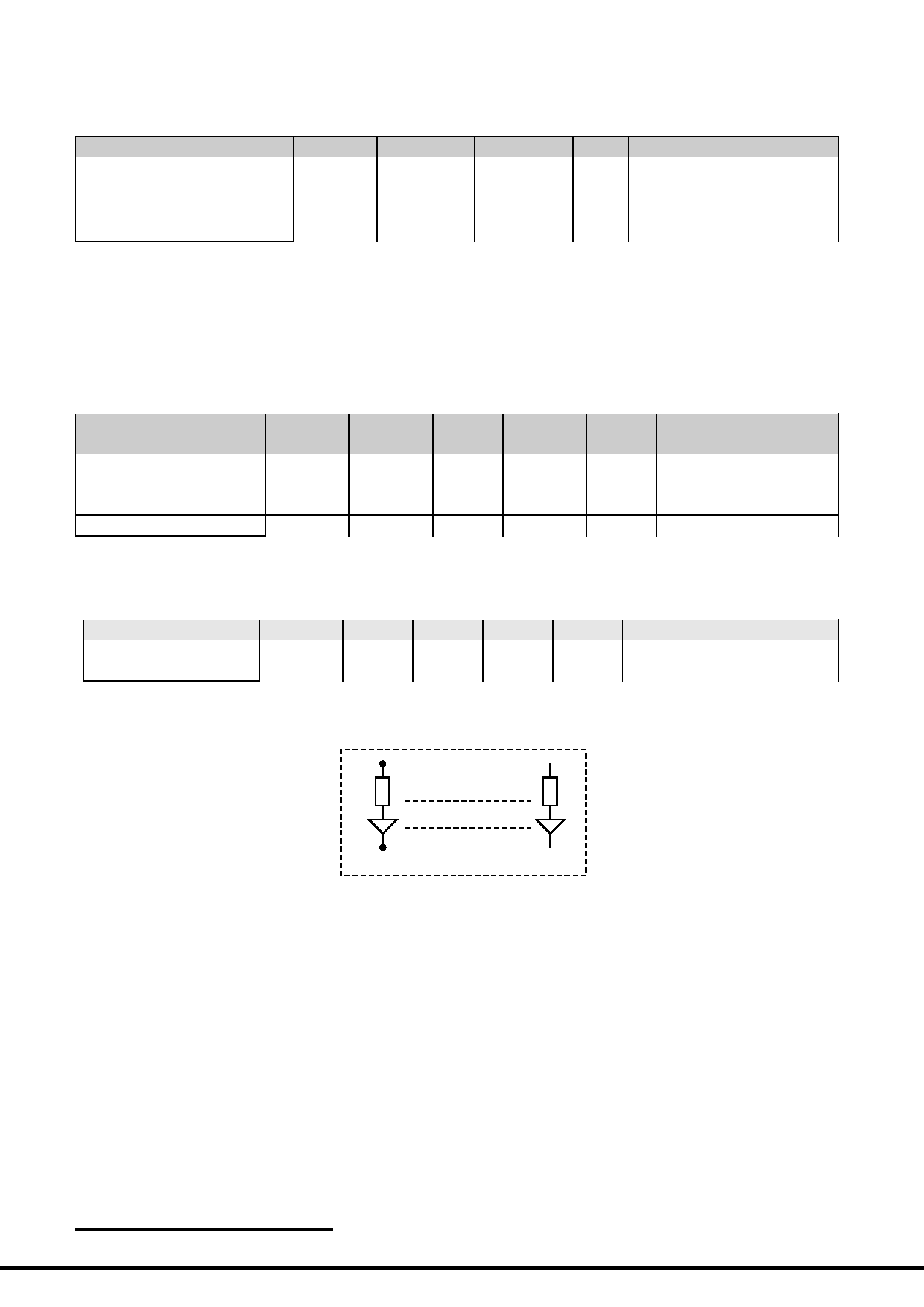

2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+3.6
V
V SS = 0V
Input Voltage
V IN
-0.3
V DD +0.3
V
V SS = 0V
Operating Temperature
T OP
-20
+70
C
No Condensation
Storage Temperature
T ST
-30
+80
C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
3. Electrical Characteristics
3.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25 C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Condition /
Application Pin
Operating Voltage
V DD
2.7
3.3
3.4
V
VDD
Input High Voltage
V IH
0.8xV DD
-
V DD
V
/RES, /CS1, A0,
Input Low Voltage
V IL
V SS
-
0.2xV DD
V
DB7~DB0, /RD, /WR
Operating Current
I DD
-
1.2
3
mA
VDD
3.2 LED Backlight Circuit Characteristics
BLK=0V, BLA=3.3V, T OP =25 C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
BLA
-
3.3
-
V
BLA
Forward Current
I BLA
-
85
100
mA
BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.
BLA
BLK
No. of LED = 5pcs
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 5 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
3.3 AC Characteristics

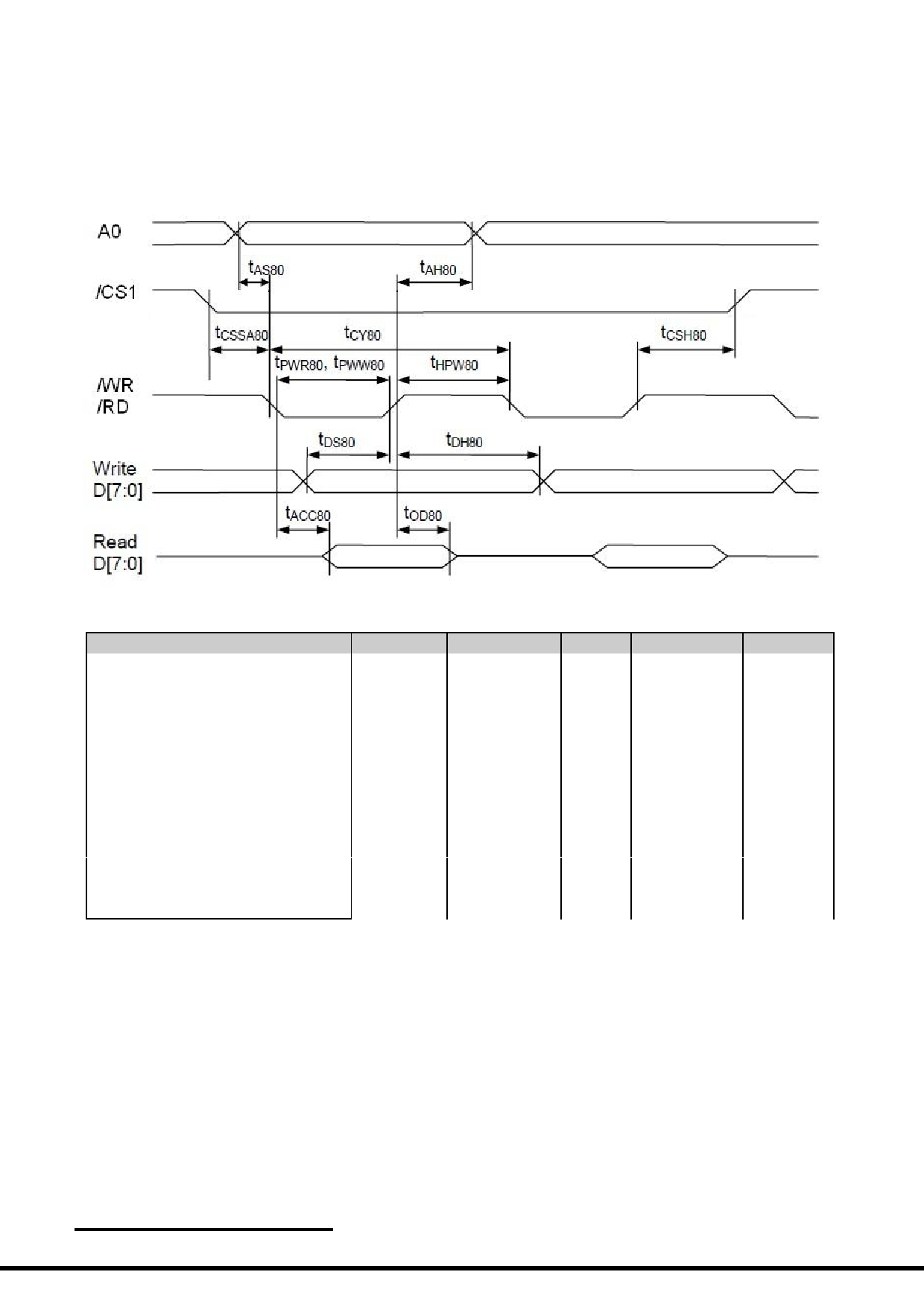

3.3.1 8080 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25 C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (A0)
tas80
5
-
-
ns
Address hold time (A0)
tah80
5
-
-
ns
System cycle time (8bit)
tcy80
156
-
-
ns
Read pulse width
tpwr80
58
-
-
ns
Write pulse width
tpww80
58
-
-
ns
High pulse width (read)
thpw80
58
-
-
ns
High pulse width (write)
thpw80
58
-
-
ns
Data setup time
tds80
38
-
-
ns
Data hold time
tdh80
5
-
-
ns
Data access time
tacc80
-
-
78
ns
Data output disable time
tod80
19
-
39
ns
Chip select setup time
tcssa80
7
-
-
ns
Chip select hold time
tcsh80
7
-
-
ns
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 6 of 15
TOPWAY
LCD Module User Manual
LM1076CCW

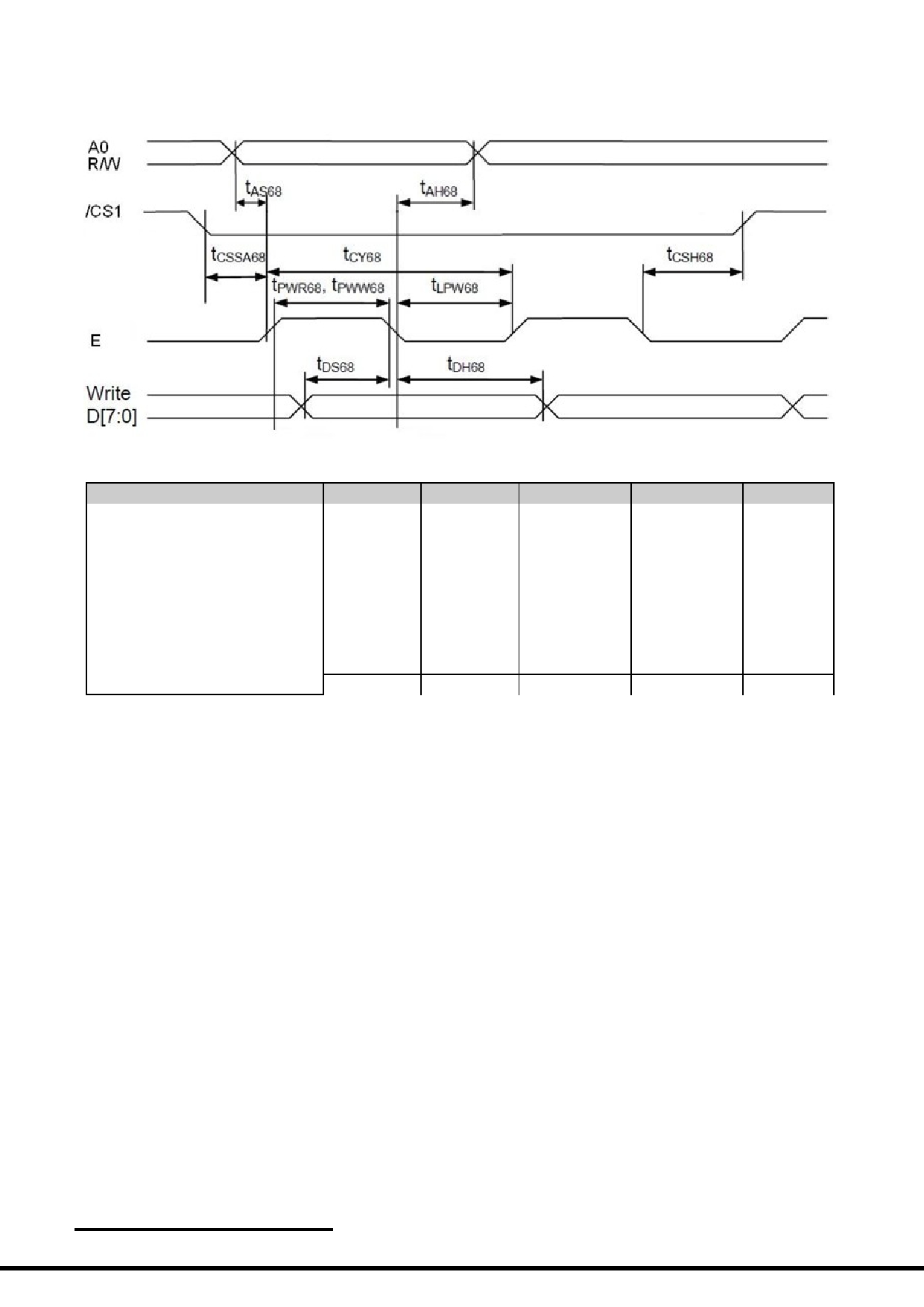

3.3.2 6800 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25 C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (A0)
tAS68
5
-
-
ns
Address hold time (A0)
tAH68
5
-
-
ns
System cycle time (8bit)
tCY68
156
-
-
ns
Pulse width
tPWW68
58
-
-
ns
Low pulse width
tLPW68
58
-
-
ns
Data setup time
tDS68
39
-
-
ns
Data hold time
tDH68
5
-
-
ns
Chip select setup time
tCSSA68
7
-
-
ns
tCSH68
7
-
-
ns
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 7 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
3.3.3 4-Write serial
V SS =0V, V DD =3.3V, T OP =25 C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (A0)
tass8
5
-
-
ns
Address hold time (A0)
tahs8
5
-
-
ns
System cycle time
tcys8
91
-
-
ns
SCLK low pulse width
tlpws8
26
-
-
ns
SCLK high pulse width
thpws8
26
-
-
ns
SDA data setup time
tdss8
20
-
-
ns
SDA data hold time
tdhs8
5
-
-
ns
Chip select setup time
tcssas8
7
-
-
ns
Chip select hold time
tcshs8
7
-
-
ns
`
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
3.3.4 3-Write serial
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 8 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
V SS =0V, V DD =3.3V, T OP =25 C
Item
Symbol
Min.
TYP.
Max.
Units
System cycle time
tCYS9
91
-
-
nS
Low pulse width
tLPWS9
26
-
-
nS
High pulse width
tHPWS9
26
-
-
nS
Data setup time
tDSS9
20
-
-
nS
Data hold time
tDHS9
5
Chip select setup time
tCSSAS9
7
-
nS
tCSHS9
7

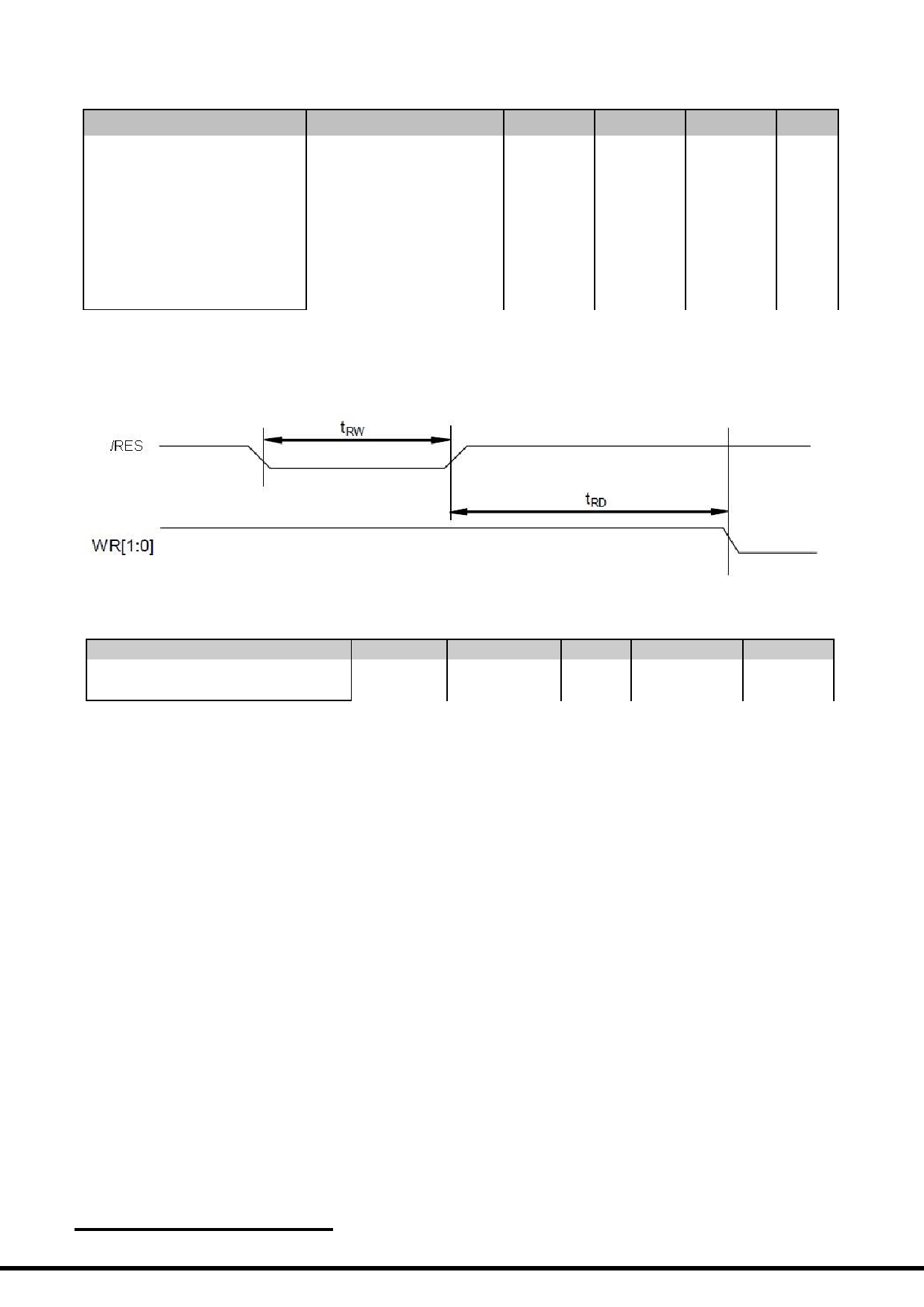

3.3.5 Reset Timing
V SS =0V, V DD =3.3V, T OP =25 C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset LOW pulse width
trw
4
-
-
ms
Reset to WR pulse delay
tRD
10
-
-
-
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 9 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
4. Function specifications
4.1 Adjusting the Display Contrast
This LCD module equipped with latest digital contrast adjustment function.
Its display contrast could be adjusted by MCU command.
(please see the command tables for details)
It is recommended to provide a contrast adjustment interface for end-user,
where the best display result could meet the individual preference in mass production.
4.2 Resetting the LCD module
The LCD module should be initialized by using /RST terminal.
While turning on the VDD and VSS power supply, maintain /RST terminal at LOW level. After the
power supply stabilized, release the reset terminal (/RST=HIGH)

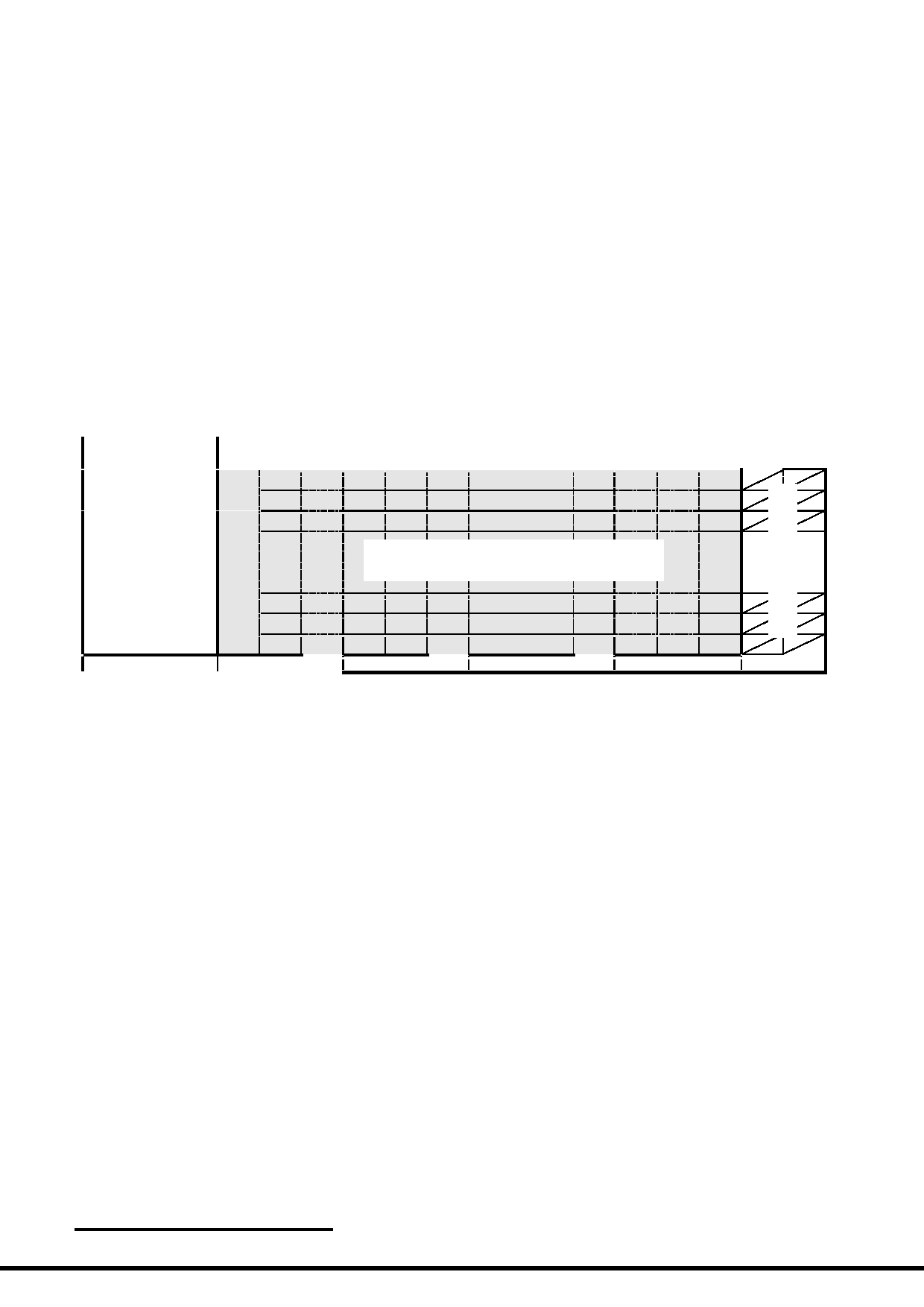

4.2.1 Display Memory Map
ROW
no.
LCD Display (front view)
1 st
2 nd
3 rd
:
240 x 128 pixels
126 th
127 th
128 th
Column Address
00h
01h
4fh
50h
Note:
*1. This mono LCM is driven by a color LCD driver.
Every three dots are being driven by R G B segment driver.
*2. The above is based on:
- 4R4G4B setting, each dot will be driven by 4bit; LC[7:6]=0:1, DC[4]=1
- Mirror Y direction; LC[2]=0
- Normal X direction; LC[1]=1
- Color Mapping as BGR; LC[5]=0
*3. For details please refer to UC1698 datasheet
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 10 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
4.3 Display Commands
The LCD module contains register, which control the operation. These register can be modified by commands.
The following table is a summary of the control registers, their meaning and their default value.

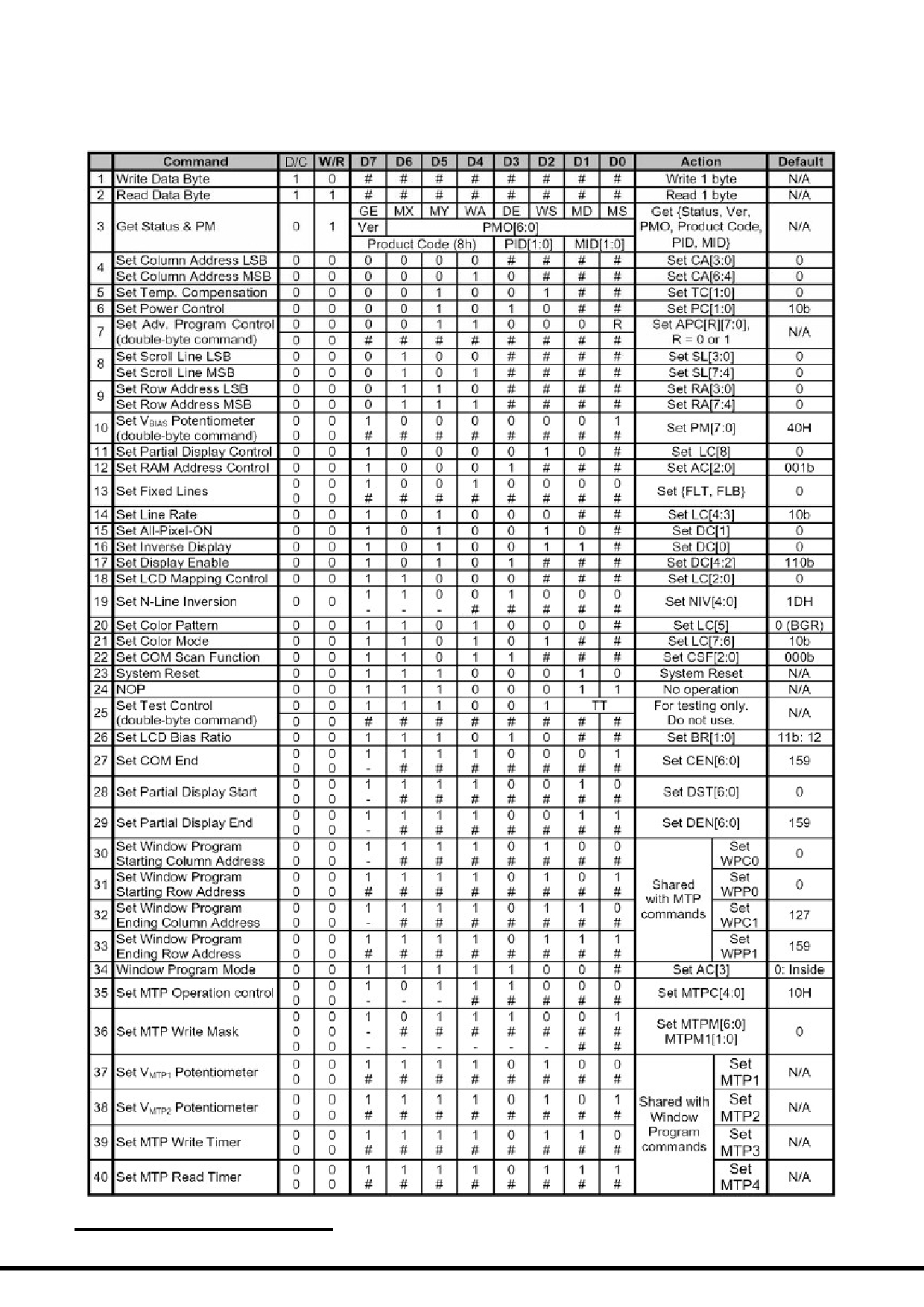

4.3.1 Register Table
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 11 of 15
TOPWAY
LCD Module User Manual
LM1076CCW

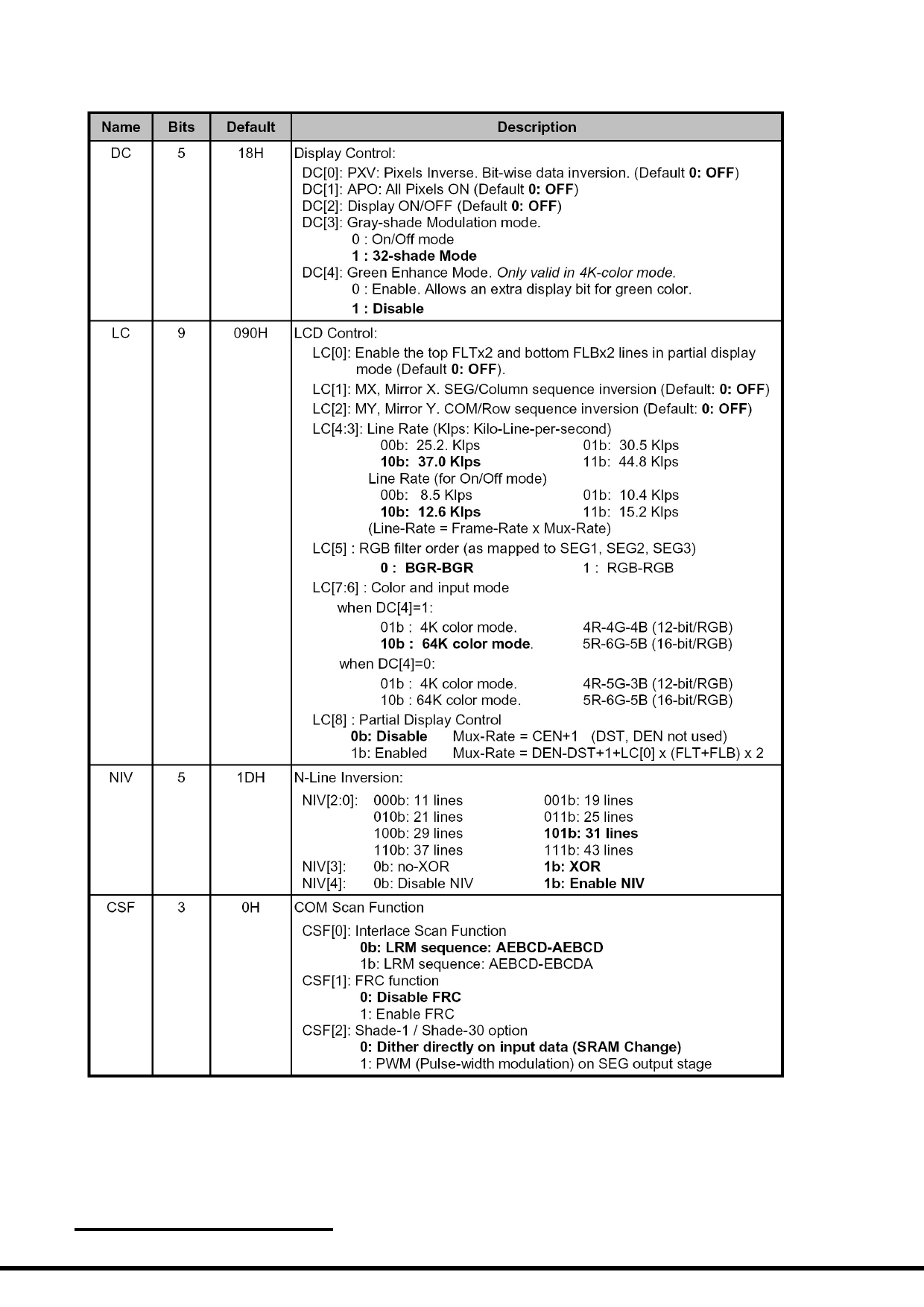

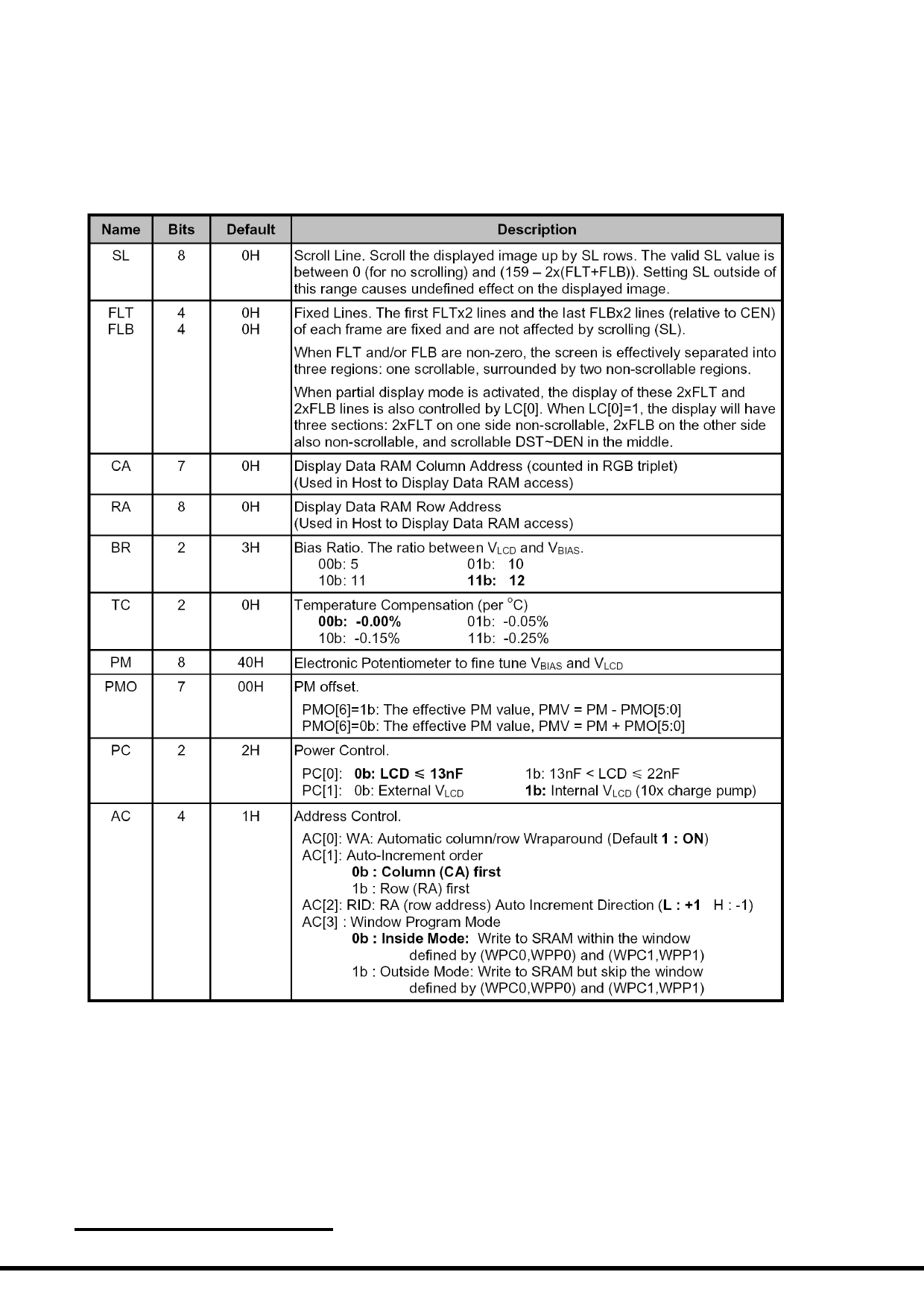

Register Table (continue)
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 12 of 15
TOPWAY
LCD Module User Manual
LM1076CCW

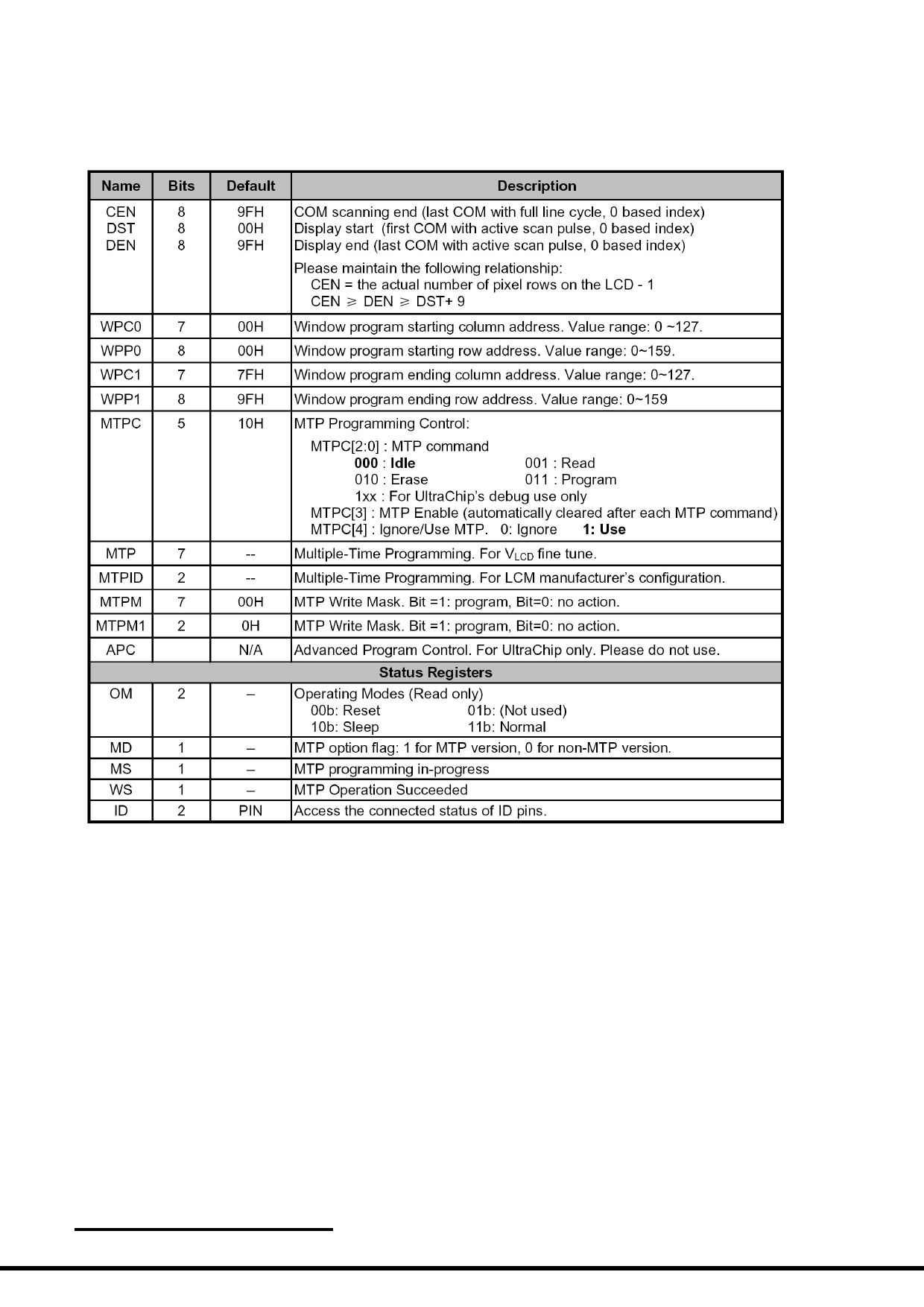

Register Table (continue)
Note: Please refer to UC1698 data sheet for details
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 13 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
4.3.2 Command Table
The following is the list of host command supported.
Note:
Please refer to UC1698 data sheet for details
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 14 of 15
TOPWAY
LCD Module User Manual
LM1076CCW
5. Design and Handling Precaution
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
URL: www.topwaydisplay.com
Document Name:LM1076CCW-Manual-Rev0.1
Page: 15 of 15
