LM13232ACW

LM13232ACW

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Caiwei

Date: 2022-06-29

Date:

Rev.

Descriptions

Release Date

0.1

Preliminary release

2010-03-03

0.2

Update Outline Dwg

2022-06-29

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 1 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

Table of Content

Basic Specifications...............................................................................................................3

1.1

Display Specifications……………………………………………………………………………………………………… 3

1.2

Mechanical Specifications……………………………………………………………………………………………….… 3

1.3

Block Diagram………………………………………………………………………………………………………………. 3

1.4

Terminal Functions…………………………………………………………………………………………………………. 4

Absolute Maximum Ratings...................................................................................................5

Electrical Characteristics.......................................................................................................5

3.1

DC Characteristics…………………………………………………………………………………………………………. 5

3.2

LED Backlight Circuit Characteristics……………………………………………………………………………………. 5

3.3

AC Characteristics…………………………………………………………………………………………………………. 6

Function specifications..........................................................................................................8

4.1

Basic Setting……………………………………………………………………………………………………………….. 8

4.2

Resetting the LCD module ………………………………………………………………………………………………. 8

4.3

Display Memory Map……………………………………………………………………………………………………… 8

4.4

Display Commands……………………………………………………………………………………………………..

4.5

Display Commands (continue)………………………………………………………………………………………….. 10

Design and Handling Precaution...........................................................................……………11

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 2 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

1. Basic Specifications

1.1 Display Specifications

1) LCD Display Mode

: FSTN, Positive, Transflective

2) Display Color

: Display Data = “0” : Light Gray (*1)

: Display Data = “1” : Dark Gray (*2)

3) Viewing Angle

: 6H

4) Driving Method

: 1/33 duty, 1/6 bias

5) Backlight

: White LED backlight

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

*2. The Color is defined as the inactive / background color

1.2 Mechanical Specifications

1) Outline Dimension

: 80.0 x 35.0 x 11.5MAX (mm)

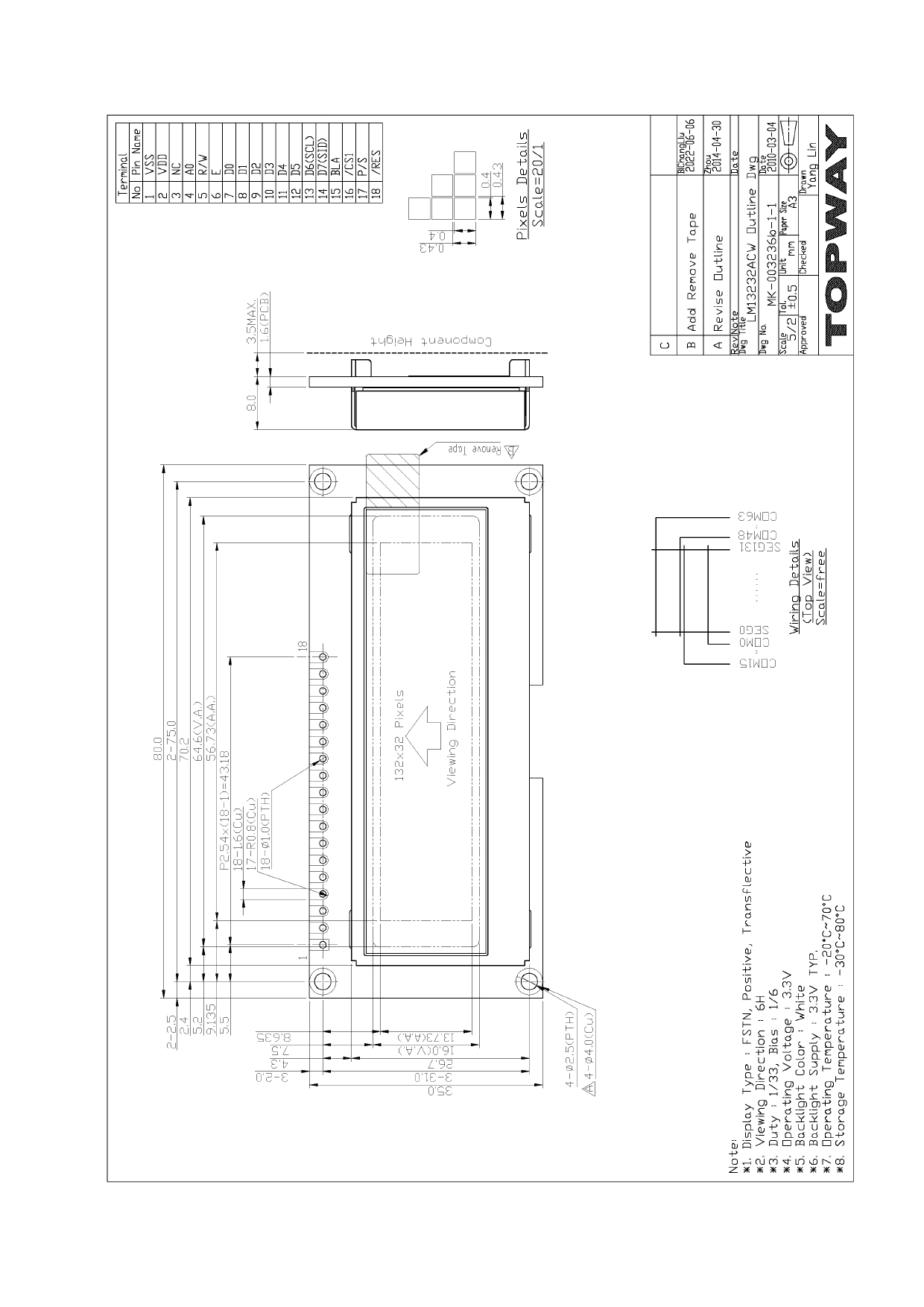

(See attached Outline Drawing for details)

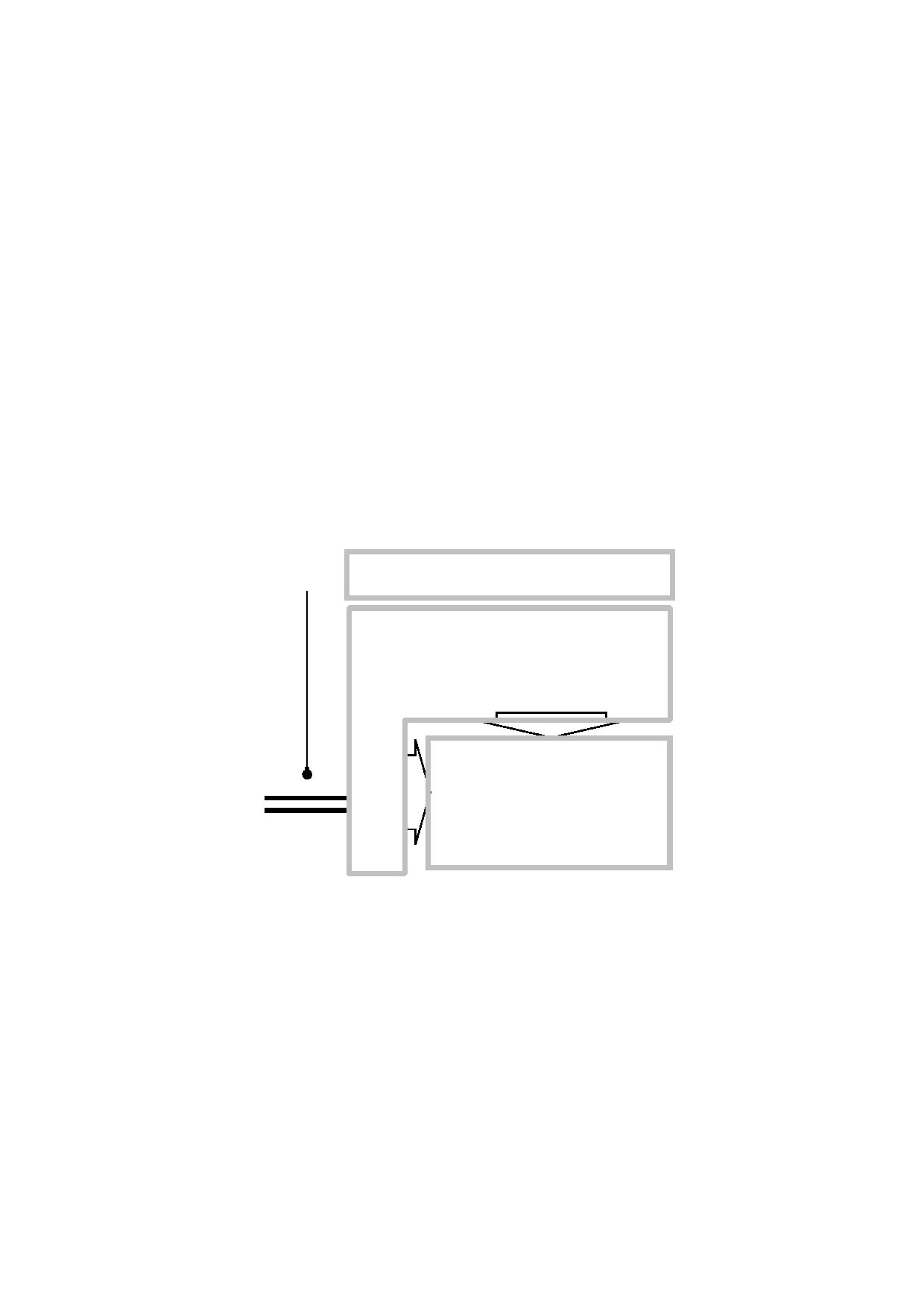

1.3 Block Diagram

BLA

Backlight Circuit

ST7565R or equivalent

VSS

VDD

LCD Panel

R/W,E,D0~D7

132×32Pixels

/CS1,P/S, /RES, A0

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 3 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

1.4 Terminal Functions

Descriptions

No.

Name

I/O

Parallel mode ， <default>

Serial mode

VSS

Power Negative power supply,0V

VDD

Power Positive power supply

No Connection, leave open

Input

A0 = H, Transferring the Display Data

A0 = L, Transferring the Control Data

Read write control

Not used, pull high or low

R/W

Input

R/W=H; data or status read

R/W=L; data or command write

Input

Enable trigger

Not used, pull high or low

Bi-directional data bus

Not used, leave open or pull high

I/O

Serial Clock Input

(SCLK)

(Input)

I/O

Serial Data Input

(SID)

(Input)

BLA

Power Positive power for LED backlight

Chip Select

/CS1

Input

/CS1=L, enable access to the LCD module

/CS1=H, disable access to the LCD module

Interface selection:

P/S

Input

P/S=H; 8 bit parallel bus mode

P/S=L; serial mode

Reset signal

/RES

Input

/RES = L, Initialization is executed

/RES = H, Normal running

Note:

It is write only, in serial mode

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 4 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

2. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+3.4

V SS = 0V

Input Voltage

V IN

-0.3

V DD +0.3

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

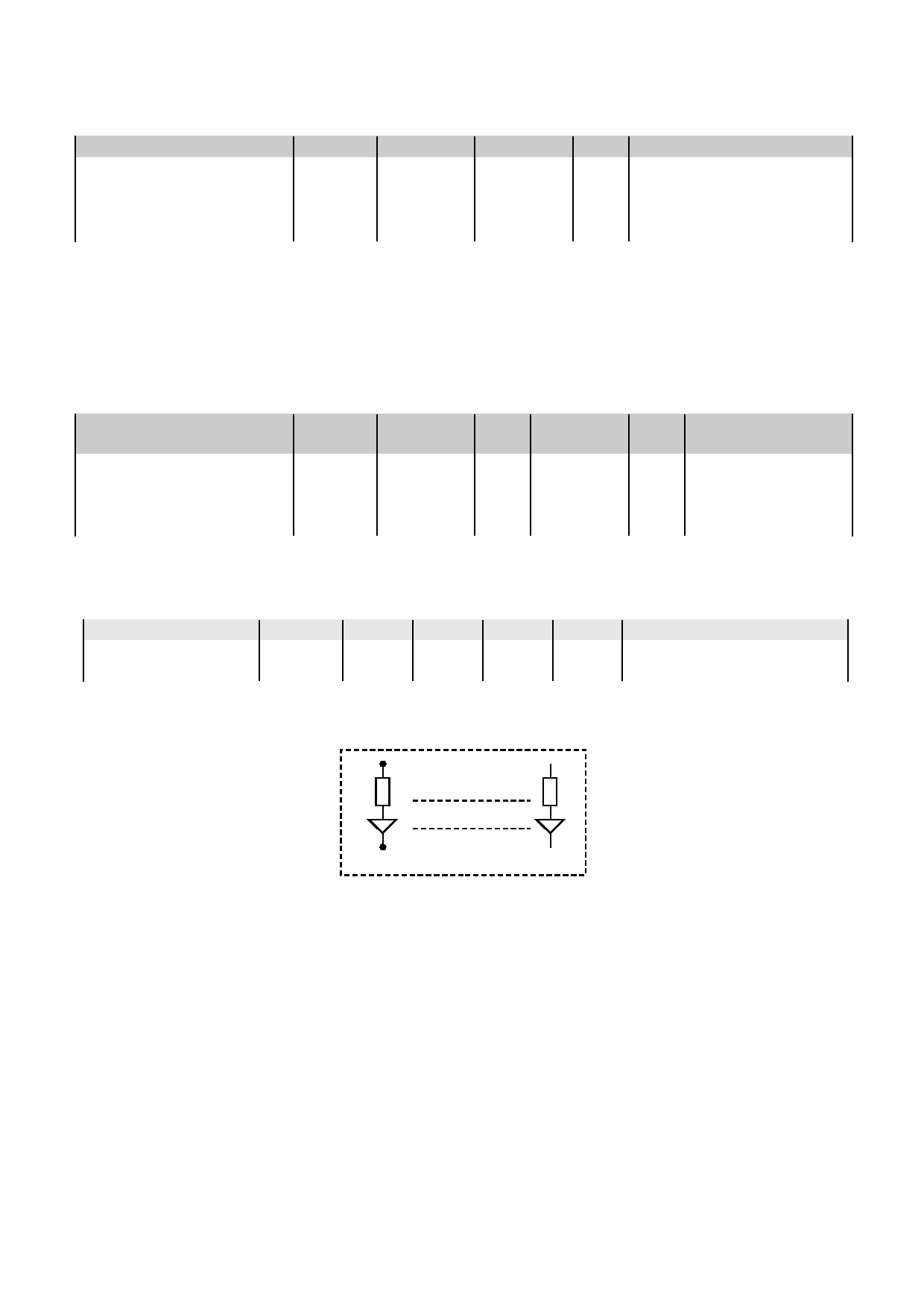

3. Electrical Characteristics

3.1 DC Characteristics

V SS =0V, V DD =3.3V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

2.9

3.3

3.4

VDD

Input High Voltage

V IH

0.8xV DD

V DD

R/W, E,/RES, /CS1,

Input Low Voltage

V IL

V SS

0.2xV DD

A0, P/S

Operating Current

I DD

0.15

0.6

VDD

3.2 LED Backlight Circuit Characteristics

VSS=0V, If BLA =70mA, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Forward Voltage

Vf BLA

3.3

BLA

Forward Current

If BLA

BLA

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

BLA

VSS

No. of LED = 4pcs

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 5 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

3.3 AC Characteristics

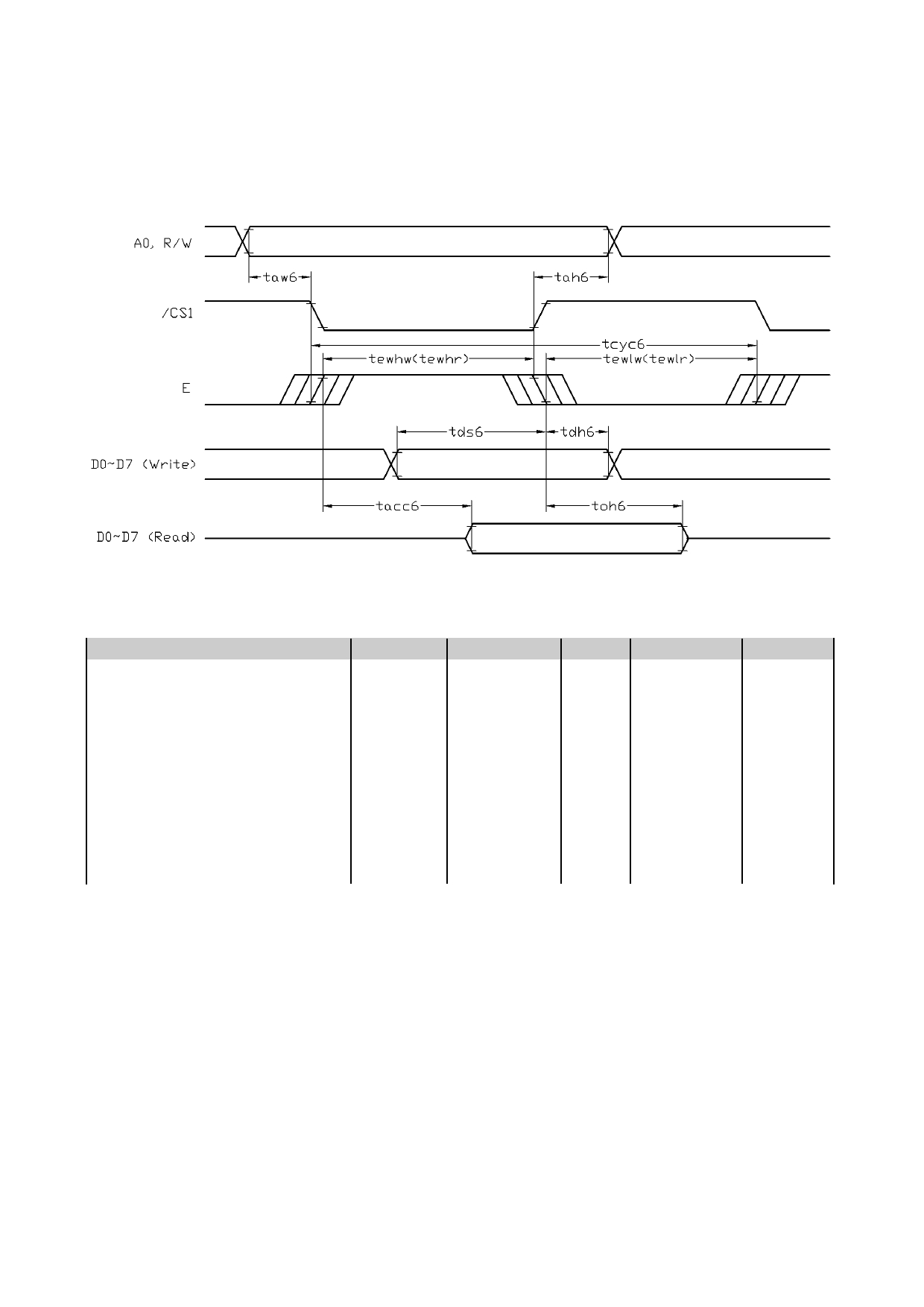

3.3.1 6800 Mode System Bus Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

System cycle time

tcyc6

500

Address setup time (A0)

taw6

Address hold time (A0)

tah6

Enable LOW pulse width (Read)

tewlr

275

Enable LOW pulse width (Write)

tewlw

275

Enable HIGH pulse width (Read)

tewhr

225

Enable HIGH pulse width (Write)

tewhw

225

Data setup time

tds6

Data hold time

tdh6

Read access time (*2)

tacc6

175

Output disable time (*2)

tch6

125

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 6 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

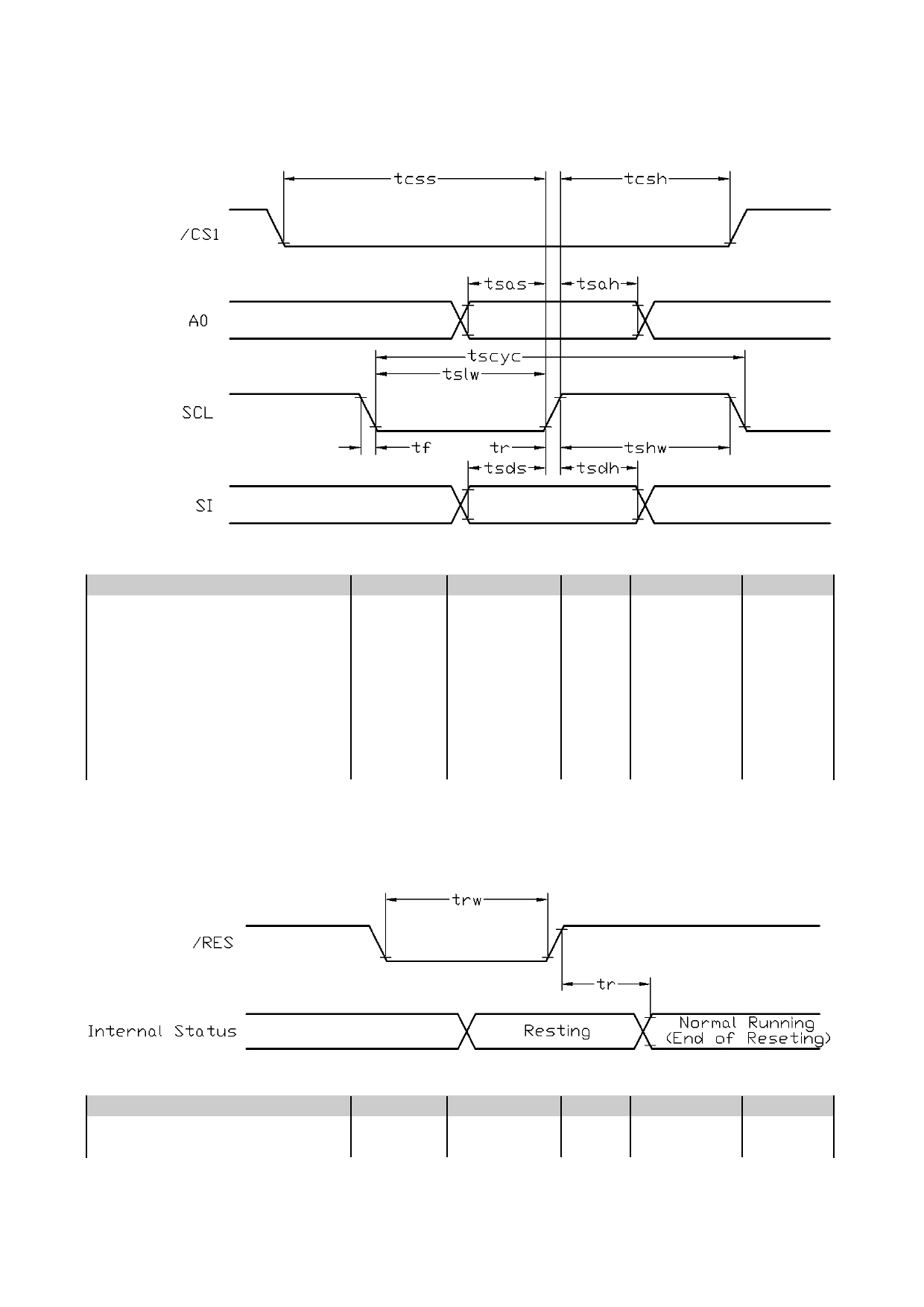

3.3.2 Serial Mode Interface

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Serial Clock Period

tscyc

125

Address setup time (A0)

tsas

Address hold time (A0)

tsah

SCL “H” pulse width

tshw

SCL “L” pulse width

tslw

Data setup time

tsds

Data hold time

tsdh

CS-SCL time

tcss

CS-SCL time

tcsh

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

3.3.3 Reset Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset time

2.5

μs

Reset LOW pulse width

trw

2.5

μs

Note:

*1.All timing is using 20% and 80% of VDD as the reference.

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 7 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

4. Function specifications

4.1 Basic Setting

To drive the LCD module correctly and provide normally display, please use the following setting

ADC = 0 (normal)

SHL select = 1 (reverse)

LCD Bias Select = 1/6

Initial Display Line = 0

Entire Display ON/OFF = OFF (normal)

Reverse Display ON/OFF = OFF (normal)

Set Power Control Set:

voltage follower = ON, voltage converter = ON, voltage regulator = ON

Display ON/OFF = ON

Note:

*1. These setting/commands should issue the LCD module while start up.

*2. See the Display Commands section for details.

4.2 Resetting the LCD module

The LCD module should be initialized by using /RES terminal.

While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the

power supply stabilized, release the reset terminal (/RES=HIGH)

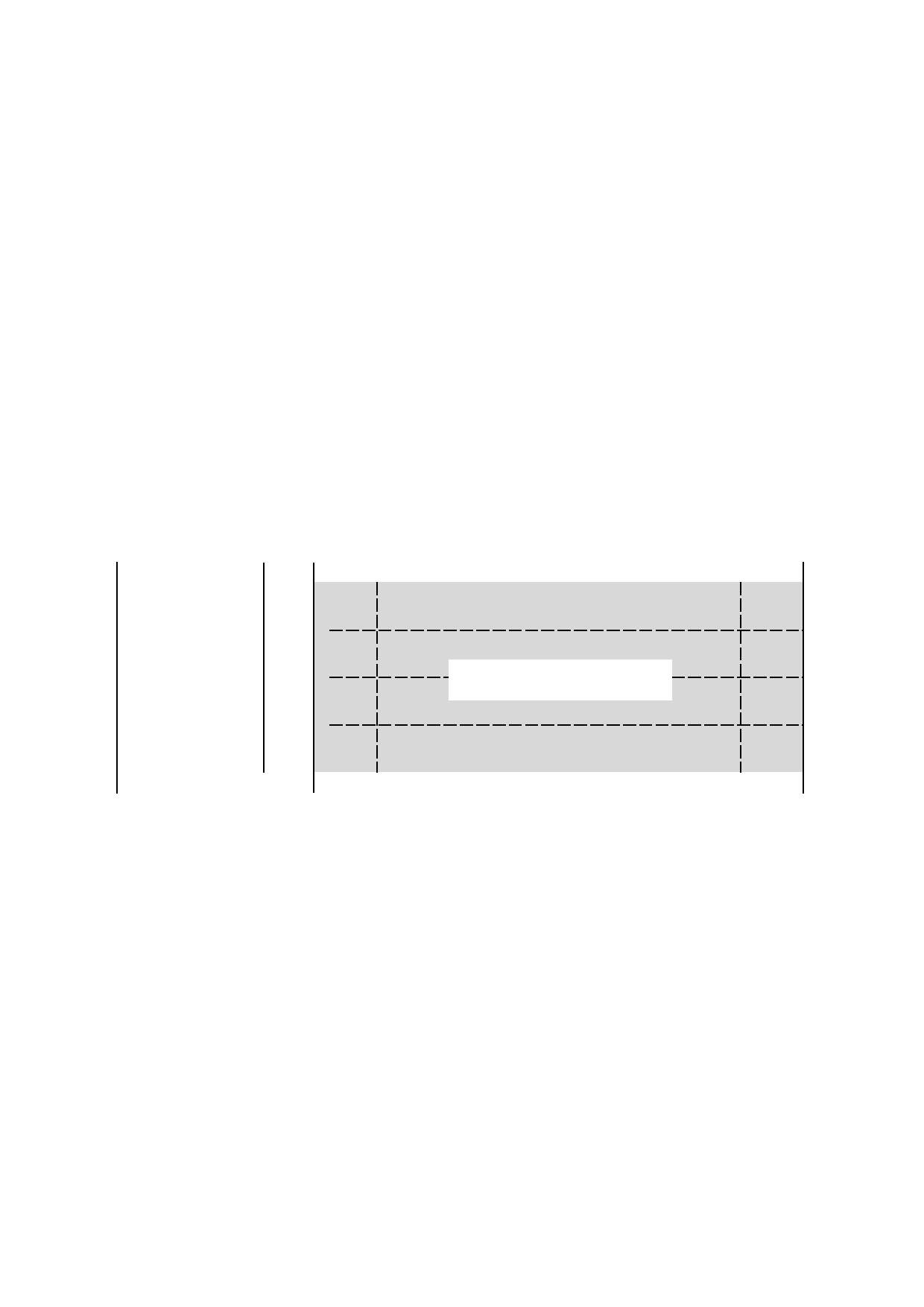

4.3 Display Memory Map

Page address

data

LCD Display (front view)

132x32 pixels

Column Address

00h



83h

Note:

*1. ADC = 0 (normal)

*2. SHL Selection = 1 (reverse)

*3. Initial Display Line = 0

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 8 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

4.4 Display Commands

Code

No. Instructions

Function

DON=0, display off

Display ON/OFF

0 1 0 1 0 1 0 1 1 1

DON=1, display on

Display start

Sets the display RAM display start line

Display start line set

0 1 0 0 1

address

Page

Set Page Address

0 1 0 1 0 1 1

Address

Set the display RAM page address

Set Column Address

0 1 0 0 0 0 1

Col. Add.

Upper

Set the upper-4-bit of column address counter

(Upper-4-bits)

Set Column Address

0 1 0 0 0 0 0

Col. Add.

Set the lower-4-bit of column address counter

(Lower-4-bits)

Lower

Read the status data

Read Status

0 0 1

Status

0 0 0 0

Write Display Data

1 1 0

Write Data

Write data into the display RAM

Read Display Data

1 0 1

Read Data

Read data form the display RAM

Sets the display RAM address SEG output

ADC Select

0 1 0 1 0 1 0 0 0 0

correspondence

ADC= 0,normal . ADC=1, reverse

REV=0, Normal display

Normal/Reverse Display

0 1 0 1 0 1 0 0 1 1

REV=1, Reverse display

EON=0, Normal display

Entire Display ON/OFF

0 1 0 1 0 1 0 0 1 0

EON=1, Entire display ON

Set the LCD driving voltage bias

Set LCD Bias

0 1 0 1 0 1 0 0 0 1

BIAS=0, 1/6 BIAS

BIAS=1, 1/5 BIAS

Enter the “Read-Modify-Write” mode

column address counter will increase in each

Set Read-Modify-Write

0 1 0 1 1 1 0 0 0 0 0 “Write Display Data”,

and will not increase in each “Read Display

Data command”

Reset Read-Modify-Write 0 1 0 1 1 1 0 1 1 1 0 Clear the “Read-Modify-Write” mode

Reset

0 1 0 1 1 1 0 0 0 1 0 Resets the LCD module

Set the COM scanning direction

SHL=0, Normal display

SHL Select

0 1 0 1 1 0 0

* * *

SHL=1, Flipped in y direction

* = don’t care terms

Set the power circuit operation mode

VF: LCD Supply Voltage Follower

Power Control Set

0 1 0 0 0 1 0 1

VR: LCD Supply Voltage Regulator

VC: LCD Supply Voltage Converter

(1=ON, 0=OFF)

Radio

Regulator Resistor Select 0 1 0 0 0 1 0 0

setting

Set the built-in resistor ratio (Rb/Ra)

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 9 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

4.5 Display Commands (continue)

Code

No.

Instructions

Function

Electronic volume mode set 0 1 0 1 0 0 0 0 0 0 1 Set reference voltage mode

Electronic volume register

Electronic

Set reference voltage register

set

0 1 0 * *

Control value

(Display contrast value)

0 1 0 1 0 1 0 1 1 0 S Sleep Mode (2 byte command)

Sleep Mode Set

0 1 0 0 0 0 0 0 0 0 0

S=0, sleep mode

S=1, normal mode

Booster Ratio Set

0 1 0 1 1 1 1 1 0 0 0 Booster Ratio (2 byte command)

Ratio=00, 2x, 3x, 4x

0 1 0 0 0 0 0 0 0 Ratio Ratio=01, 5x

Ratio=11, 6x

NOP

0 1 0 1 1 1 0 0 0 1 1 Non-operation command

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to ST7565R data sheet.

4.5.1 Power off the LCD Module

It recommends that enter Sleep Mode before power off the LCD module.

4.5.2 Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 10 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

5. Design and Handling Precaution

The LCD panel is made by glass. Any mechanical shock (eg. dropping form high place)

will damage the LCD module.

Do not add excessive force on the surface of the display, which may cause the Display

color change abnormally.

The polarizer on the LCD is easily get scratched. If possible, do not remove the LCD

protective film until the last step of installation.

Never attempt to disassemble or rework the LCD module.

Only Clean the LCD with Isopropyl Alcohol or Ethyl Alcohol. Other solvents (eg. water)

may damage the LCD.

When mounting the LCD module, make sure that it is free form twisting, warping and

distortion.

Ensure to provide enough space (with cushion) between case and LCD panel to prevent

external force adding on it, or it may cause damage to the LCD or degrade the display

result.

Only hold the LCD module by its side. Never hold LCD module by add force on the heat

seal or TAB.

Never add force to component of the LCD module. It may cause invisible damage or

degrade of the reliability.

10.

LCD module could be easily damaged by static electricity. Be careful to maintain an

optimum anti-static work environment to protect the LCD module.

11.

When peeling off the protective film from LCD, static charge may cause abnormal

display pattern. It is normal and will resume to normal in a short while.

12.

Take care and prevent get hurt by the LCD panel sharp edge.

13.

Never operate the LCD module exceed the absolute maximum ratings.

14.

Keep the signal line as short as possible to prevent noisy signal applying to LCD

module.

15.

Never apply signal to the LCD module without power supply.

16.

IC chip (eg. TAB or COG) is sensitive to the light. Strong lighting environment could

possibly cause malfunction. Light sealing structure casing is recommend.

17.

LCD module reliability may be reduced by temperature shock.

18.

When storing the LCD module, avoid exposure to the direct sunlight, high humidity, high

temperature or low temperature. They may damage or degrade the LCD module.

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 11 of 12

TOPWAY

LCD Module User Manual

LM13232ACW

URL:

www.topwaydisplay.com

Document Name: LM13232ACW-Manual-Rev0.2.DOC

Page: 12 of 12
