LM240120HFW
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Wei
Date: 2019-06-18
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2013-01-03
0.2
Update 1.4 Terminal Functions
2019-06-18
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 1 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
Table of Content
1. Basic Specifications .............................................................................................................. 3
1.1
Display Specifications ............................................................................................................................................ 3
1.2
Mechanical Specifications ...................................................................................................................................... 3
1.3
Block Diagram ........................................................................................................................................................ 3
1.4
Terminal Functions ................................................................................................................................................. 4
2. Absolute Maximum Ratings .................................................................................................. 5
3. Electrical Characteristics ...................................................................................................... 5
3.1
DC Characteristics ................................................................................................................................................. 5
3.2
LED Backlight Circuit Characteristics ..................................................................................................................... 5
3.3
AC Characteristics ................................................................................................................................................. 6
4. Function specifications ......................................................................................................... 9
4.1
Adjusting the Display Contrast ............................................................................................................................... 9
4.2
Resetting the LCD module ..................................................................................................................................... 9
4.3
Display Commands .............................................................................................................................................. 10
5. Design and Handling Precaution ........................................................................................ 12
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 2 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: STN-BLUE, Negative, Transmissive
2) Display Color
: Display Data = “1” : Light Gray(*1)
: Display Data = “0” : Dark Blue (*2)
3) Viewing Angle
: 12H
4) Driving Method
: 1/120 duty, 1/11 bias
5) Backlight
: White LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result
1.2 Mechanical Specifications
1) Outline Dimension
: 79.0 x 42.3 x 8.2MAX (mm)
(See attached Outline Drawing for details)

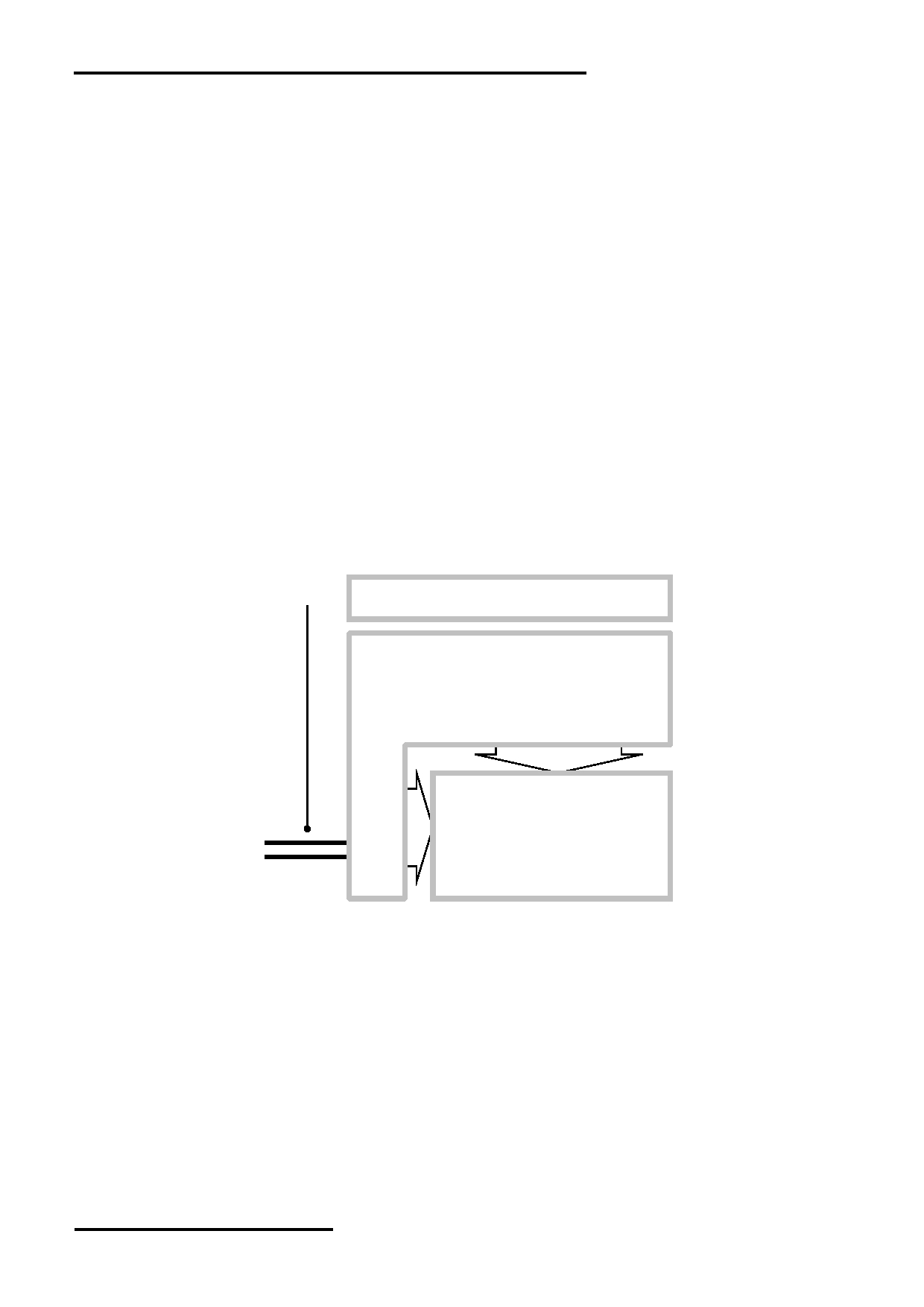

1.3 Block Diagram
BLA
Backlight Circuit
UC1618 or equivalent
VDD
LCD Panel
VSS
DB0~DB7
240 × 120Pixels
CS, /RST, D/C, /WR, /RD
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 3 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
1.4 Terminal Functions
PIN
Descriptions
Pin No.
Name
I/O
8080 mode
6800 mode 4-Wire SPI 3-Wire SPI
1
VSS
Supply
Negative power supply,0V
2
VDD
Supply
Positive power supply
3
DB7
I/O
8-bit Data bus;
4
DB6
Three state I/O terminal for display data
Connect to VSS
5
DB5
or instruction data when
6
DB4
/CS=H,DB0~DB7=High Impedance
7
DB3
(SDA)
Serial data input
8
DB2
Connect to VSS
9
DB1
10
DB0
(SCK)
Serial clock input
11
/RD
Input
/WR=H, /RD=L;
R/W=H,E=H;
(E)
Data or Status read
Data or Status
Connect to VSS
form the LCD module read form the
12
Input
/WR=L  H, /RD=H;
LCD module
Data or Instruction
R/W=L,E=H → L;
/WR
latch into the LCD
(R/D)
Data or Status
Connect to VSS
module
latch into the
LCD module
13
Input
Register Select
Connect to VSS
D/C
D/C = H, Transferring the Display Data
D/C = L, Transferring the Control Data
14
Input
Reset signal
/RST
/RST = L, Initialization is executed
/RST = H, Normal running.
15
Input
Chip Select
CS
CS=H, enable access to the LCD module
CS=L, disable access to the LCD module
16
BLA
Supply
Positive power for LED backlight
Note:
1. About lnterface setting ,please refer to UC1618 datasheet for more detail.
lnterface setting:
interface selection is available by the jumper on the back side of the lcd module.
JP1
JP2
JP3
JP4
Interface mode
OPEN
CLOSE
OPEN
CLOSE
8080 Mode(default)
OPEN
CLOSE
CLOSE
OPEN
6800 Mode
CLOSE
OPEN
OPEN
CLOSE
4 Wire SPI
CLOSE
OPEN
CLOSE
OPEN
3 Wire SPI
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 4 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+4.0
V
V SS = 0V
Input Voltage
V IN
-0.3
V DD +0.3
V
V SS = 0V
Operating Temperature
T OP
-30
+70
 C
No Condensation
Storage Temperature
T ST
-40
+85
 C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
3. Electrical Characteristics
3.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Un Condition /
it Application Pin
Operating Voltage
V DD
3.3
3.3
3.6
V VDD
Input High Voltage
V IH
0.8xV DD
-
V DD
V /RST, CS, D/C,
Input Low Voltage
V IL
V SS
-
0.2xV DD
V DB0~DB7, /RD, /WR
Operating Current
I DD
-
0.8
2.5
mA VDD
3.2 LED Backlight Circuit Characteristics
VSS=0V, If BLA =68mA, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
Vf BLA
-
3.3
-
V
BLA
Forward Current
If BLA
-
68
80
mA
BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.
BLA
VSS
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 5 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
3.3 AC Characteristics

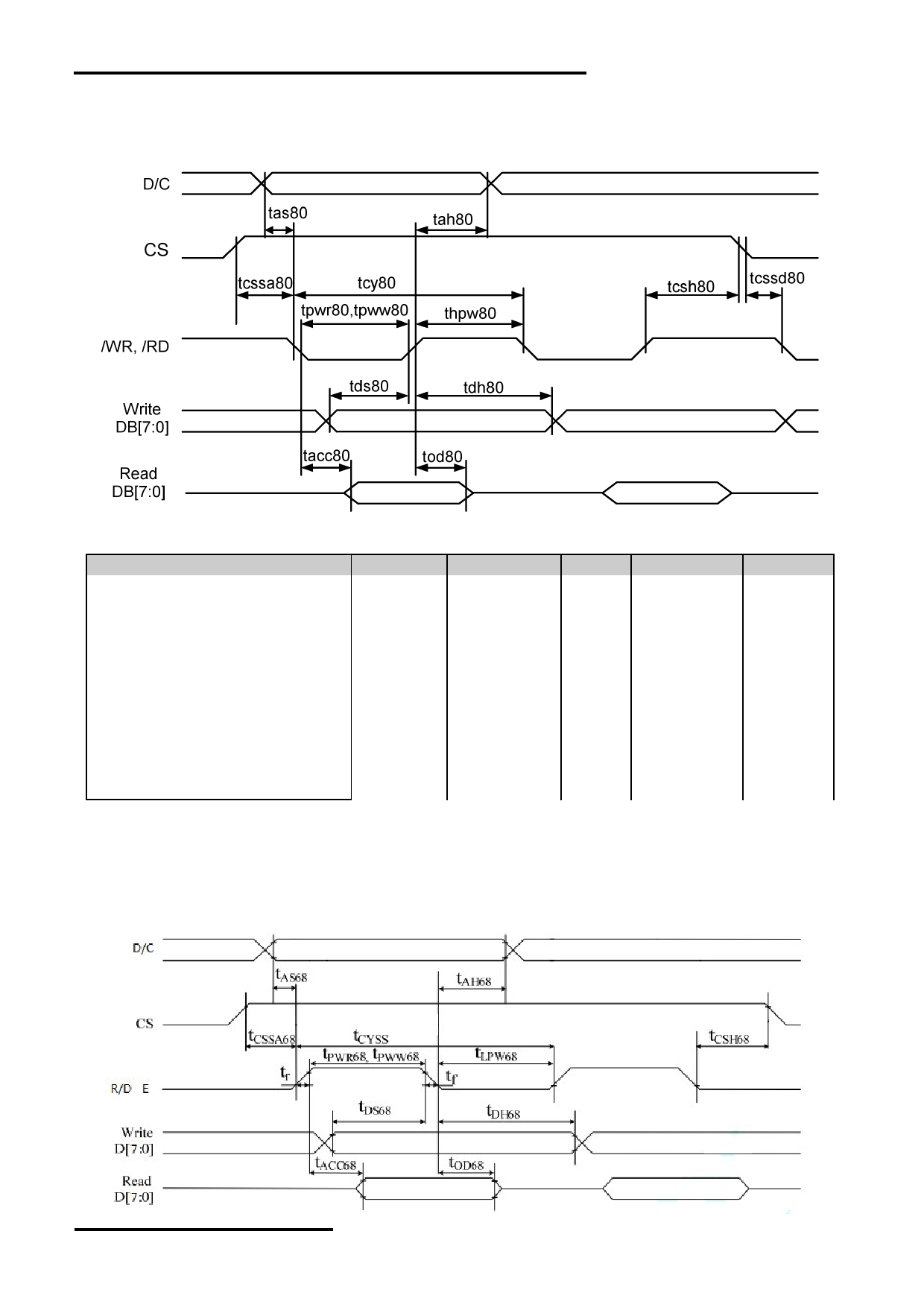

3.3.1 8080 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (D/C)
tas80
5
-
-
ns
Address hold time (D/C)
tah80
25
-
-
ns
System cycle time
tcy80
280
-
-
ns
Read pulse width
tpwr80
87
-
-
ns
Write pulse width
tpww80
87
-
-
ns
High pulse width (read)
thpw80
100
-
-
ns
High pulse width (write)
thpw80
75
-
-
ns
Data setup time
tds80
38
-
-
ns
Data hold time
tdh80
25
-
-
ns
Data access time
tacc80
-
-
75
ns
Data output disable time
tod80
131
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
3.3.2 6800 Mode System Bus Timing
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 6 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (D/C)
Tas68
5
-
-
ns
Address hold time (D/C)
Tah68
25
-
-
ns
System cycle time
Tcy68
280
-
-
ns
Read pulse width
tpwr68
100
-
-
ns
Write pulse width
Tpww68
65
-
-
ns
High pulse width (read)
Thpw68
100
-
-
ns
High pulse width (write)
Thpw68
65
-
-
ns
Data setup time
Tds68
45
-
-
ns
Data hold time
Tdh68
10
-
-
ns
Data access time
Tacc68
-
-
150
ns
Data output disable time
tod68
120
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.

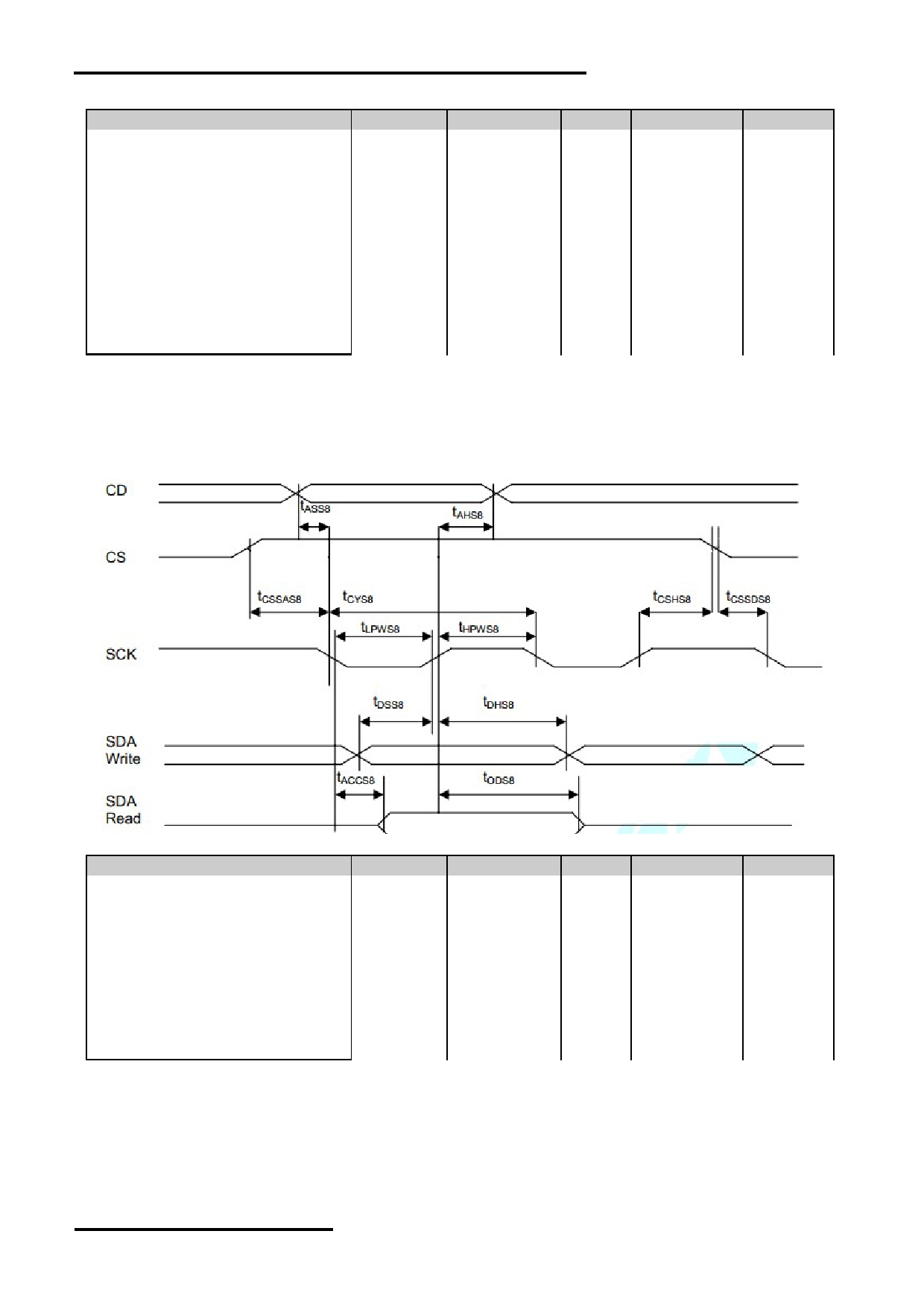

3.3.3 4-Wire SPI Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (D/C)
Tas8
5
-
-
ns
Address hold time (D/C)
Tah8
15
-
-
ns
Chip select setup time
Tcssa8
5
-
-
ns
Chip select hold time
Tcshs8
15
-
-
ns
System cycle time
Tcy8
250
-
-
ns
Data setup time
tdss8
20
-
-
ns
Data hold time
Tdhs8
25
-
-
ns
Read access time
Taccs8
-
-
110
ns
Output disable time
Tods8
80
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 7 of 12
TOPWAY
LCD Module User Manual
LM240120HFW

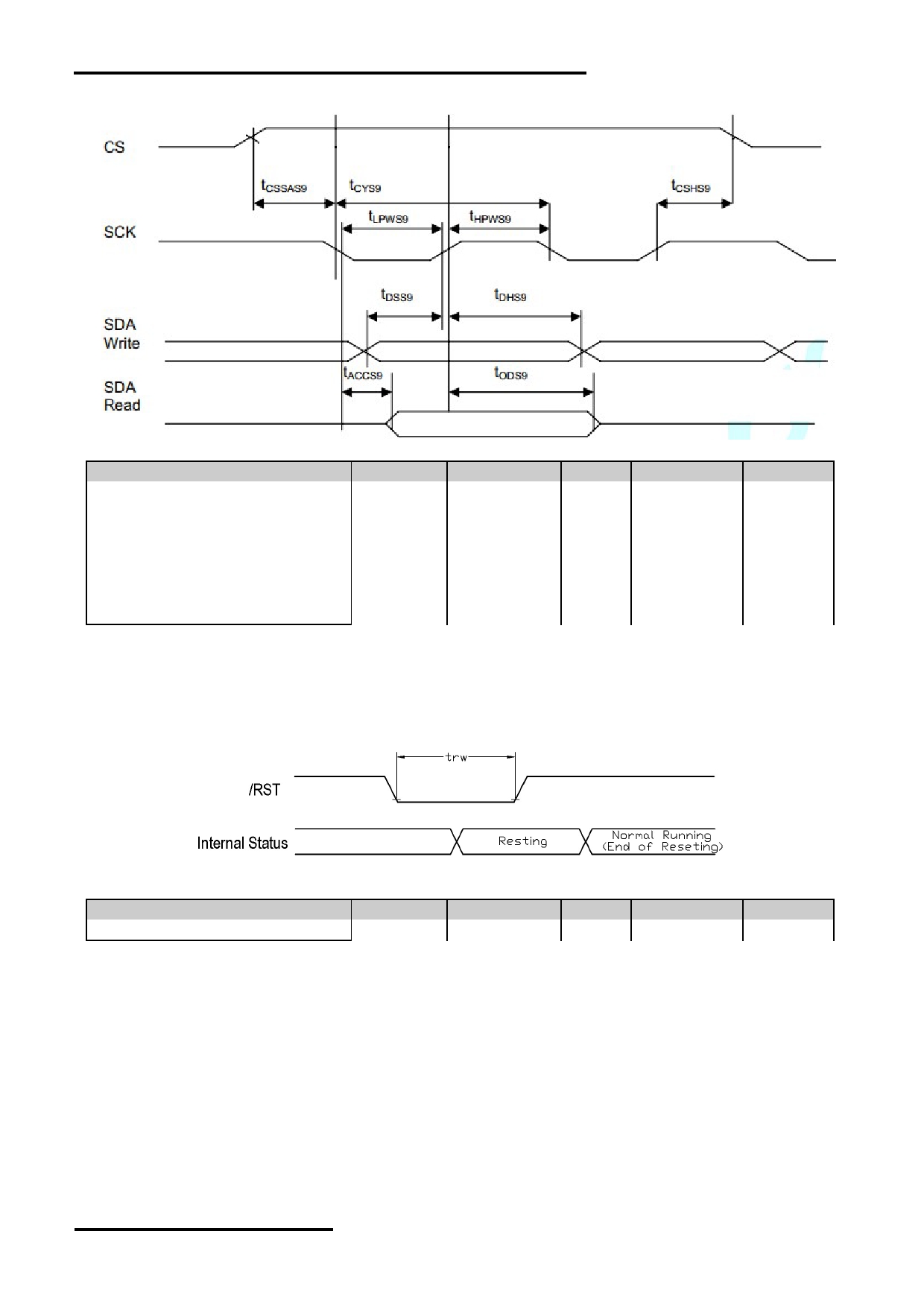

3.3.4 3-Wire SPI Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (D/C)
Tas9
5
-
-
ns
Address hold time (D/C)
Tah9
15
-
-
ns
System cycle time
Tcy9
250
-
-
ns
Data setup time
Tdss9
20
-
-
ns
Data hold time
Tdhs9
25
-
-
ns
Read access time
Taccs9
-
-
110
ns
Output disable time
Tods9
80
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
3.3.5 Reset Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset LOW pulse width
trw
1.3
-
-
μs
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 8 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
4. Function specifications
4.1 Adjusting the Display Contrast
- This LCD module equipped with latest digital contrast adjustment function.
- Its display contrast could be adjusted by MCU command. (please see the command tables for
details)
- It is recommended to provide a contrast adjustment interface for end-user, where the best
display result could meet the individual preference in mass production.
4.2 Resetting the LCD module
The LCD module should be initialized by using /RST terminal.
While turning on the VDD and VSS power supply, maintain /RST terminal at LOW level. After the
power supply stabilized, release the reset terminal (/RST=HIGH)
4.2.1 Display Memory Map
Page address
data
LCD Display (front view)
DB0
0
:
DB7
DB0
1
:
DB7
DB0
2
:
DB7
DB0
:
:
DB7
:
DB0
240x120 pixels
:
DB7
DB0
12
:
DB7
DB0
13
:
DB7
DB0
14
:
DB7
Column Address
0Fh
FEh
Note:
*1. MUX Rate, duty =1/120,Bias=1/11;
*2. SEG mirror, MX=0 (normal X direction)
*3. COM mirror, MY=1 (mirror Y direction)
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 9 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
4.3 Display Commands
The LCD module contains register, which control the operation. These register can be modified by commands.
The following table is a summary of the control registers, their meaning and their default value.

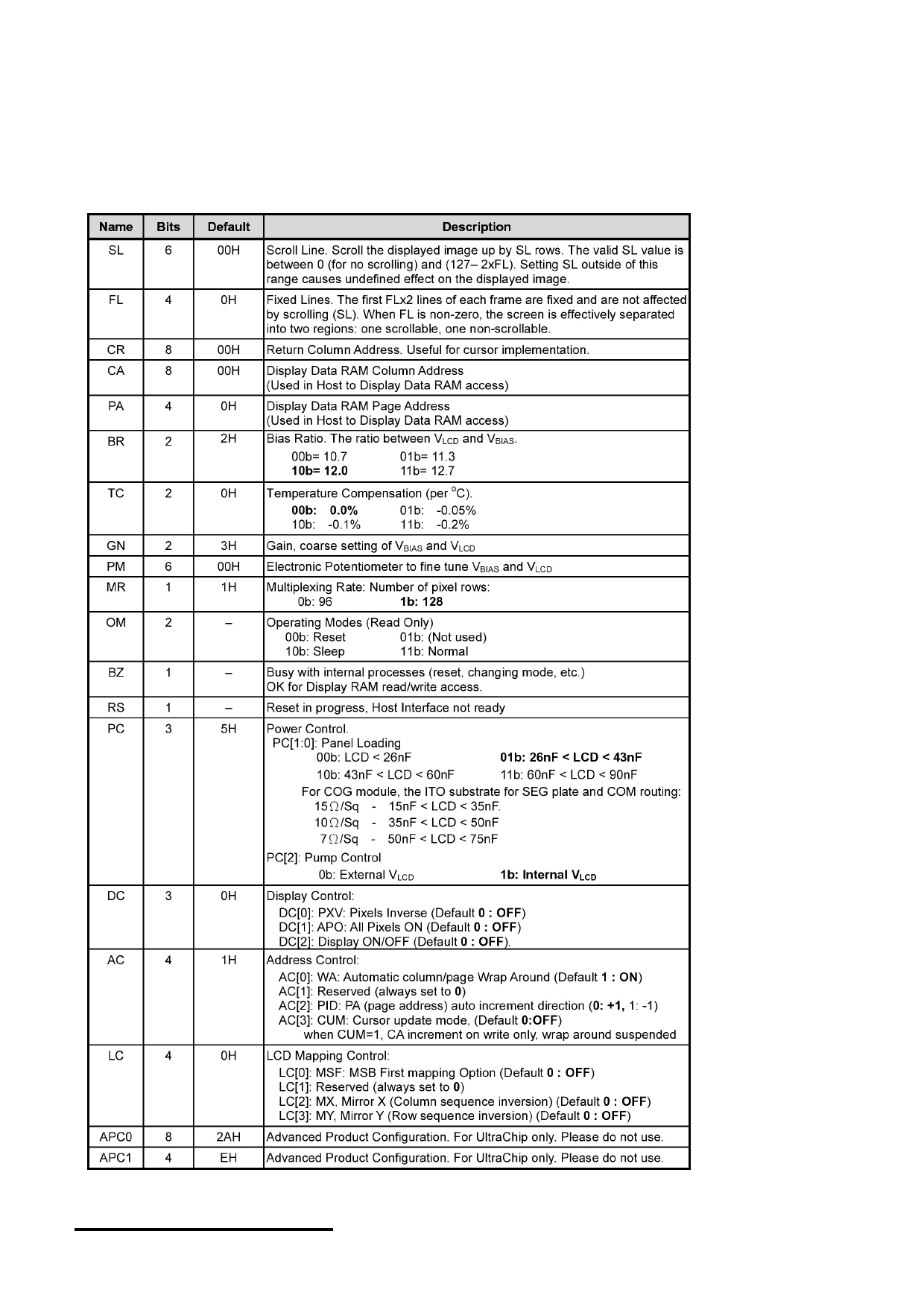

4.3.1 Register Table
Note: Please refer to UC1618 data sheet for details
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 10 of 12
TOPWAY
LCD Module User Manual
LM240120HFW

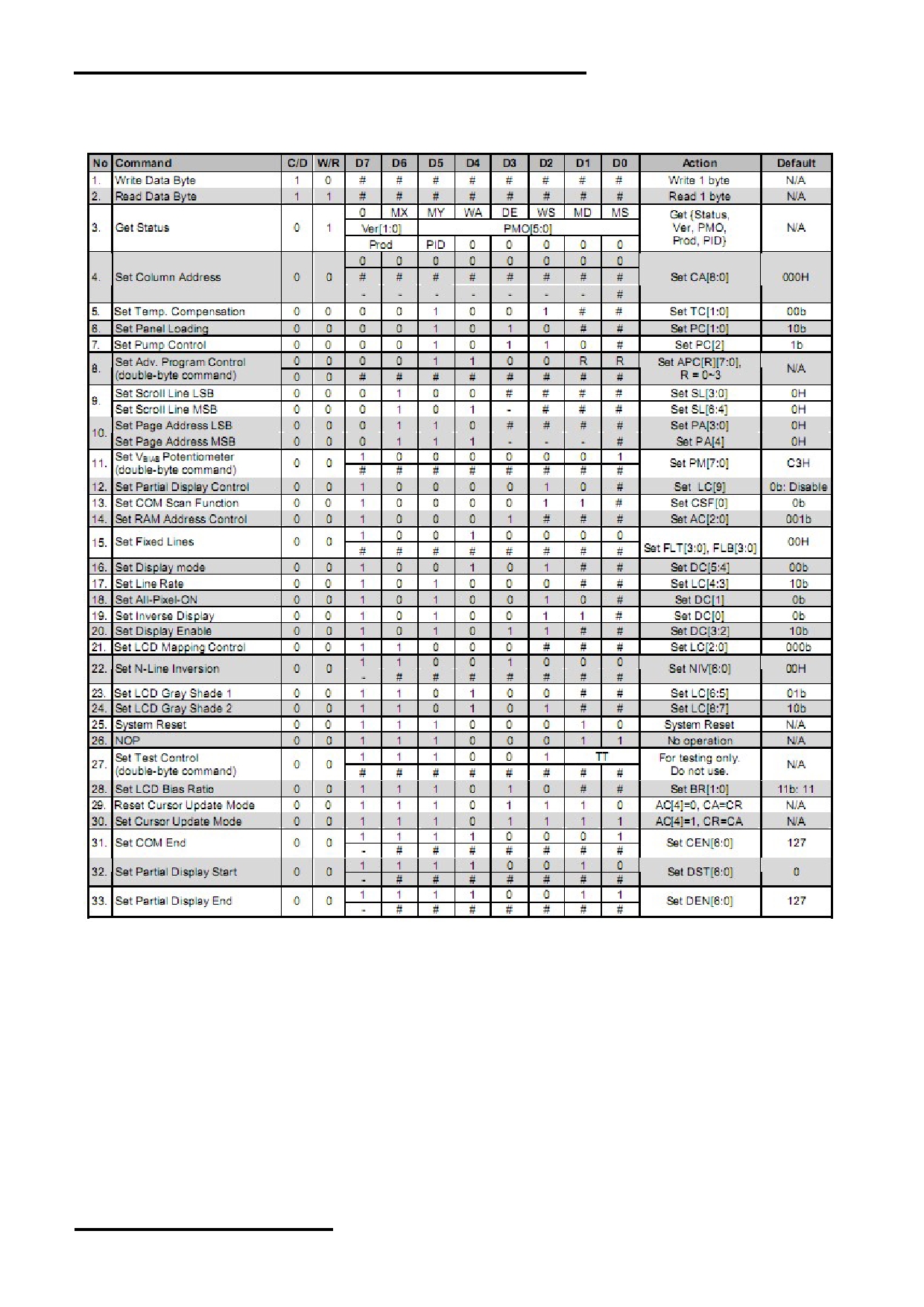

4.3.2 Command Table
The following is the list of host command supported.
Note:
Please refer to UC1618 data sheet for details
R/W=0 means it is a write function, R/W=1 means it is a read function
D/C=0 means it is a control data, D/C=1 means it is a display data
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 11 of 12
TOPWAY
LCD Module User Manual
LM240120HFW
5. Design and Handling Precaution
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
URL: www.topwaydisplay.com
Document Name: LM240120HFW-Manual-Rev0.2
Page: 12 of 12
