LM240128CFW
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Dong
Date: 2018-02-26
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2011-06-15
0.2
Update Display Memory Map
2012-08-15
0.3
Revise Operating Temperature & Storage Temperature
2018-02-26
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 1 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
Table of Content
1. Basic Specifications ............................................................................................................... 3
1.1
Display Specifications ........................................................................................................ 3
1.2
Mechanical Specifications .................................................................................................. 3
1.3
Block Diagram ..................................................................................................................... 3
1.4
Terminal Functions ............................................................................................................. 4
2. Absolute Maximum Ratings ................................................................................................... 5
3. Electrical Characteristics ....................................................................................................... 5
3.1
DC Characteristics .............................................................................................................. 5
3.2
LED Backlight Circuit Characteristics ............................................................................... 5
3.3
AC Characteristics .............................................................................................................. 6
4. Function specifications .......................................................................................................... 7
4.1
Adjusting the Display Contrast .......................................................................................... 7
4.2
Resetting the LCD module .................................................................................................. 7
4.3
Display Commands ............................................................................................................. 8
5. Design and Handling Precaution ......................................................................................... 12
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 2 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: STN, Negative, Transmissive
2) Display Color
: Display Data = “1” : Light Gray(*1)
: Display Data = “0” : Dark Blue (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/128 duty, 1/12 bias
5) Backlight
: White LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result
1.2 Mechanical Specifications
1) Outline Dimension
: 131.5 x 91.5 x 11.2MAX (mm)
(See attached Outline Drawing for details)
1.3 Block Diagram
BLA
BLK
Backlight Circuit
LCD Panel
240 × 128Pixels
VDD
VSS
DB0~DB7
UC1698 or equivalent
/CS0, /RST, CD, /WR, /RD
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 3 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
1.4 Terminal Functions
PIN
Pin No.
Name
I/O
Descriptions
1
VDD
Supply Positive power supply
2
VSS
Supply Negative power supply,0V
3
Input
Chip Select
/CS0
/CS0=L, enable access to the LCD module
/CS0=H, disable access to the LCD module
4
CD
Input
Register Select
CD = H, Transferring the Display Data
CD = L, Transferring the Control Data
5
/RD
Input
/WR=H, /RD=L;
Data or Status read form the LCD module
6
/WR
Input
/WR=L  H, /RD=H;
Data or Instruction latch into the LCD module
7
Input
Reset signal
/RST
/RST = L, Initialization is executed
/RST = H, Normal running.
8
DB0
I/O
8-bit Data bus;
:
:
Three state I/O terminal for display data or instruction data
15
when /CS0=H,
DB7
DB0~DB7=High Impedance
16
BLA
Supply Positive power for LED backlight
17
NC
-
No connection, leave open
18
BLK
Supply Negative power for LED backlight
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 4 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+3.6
V
V SS = 0V
Input Voltage
V IN
-0.3
V DD +0.3
V
V SS = 0V
Operating Temperature
T OP
-20
+70
 C
No Condensation
Storage Temperature
T ST
-30
+80
 C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
3. Electrical Characteristics
3.1 DC Characteristics
V SS =0V, V DD =3.0V, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Condition /
Application Pin
Operating Voltage
V DD
2.7
3.0
3.3
V
VDD
Input High Voltage
V IH
0.8xV DD
-
V DD
V
/RST, CS, D/C,
Input Low Voltage
V IL
V SS
-
0.2xV DD
V
DB0~DB7, /RD, WR
Operating Current
I DD
-
1.6
13.3
mA
VDD

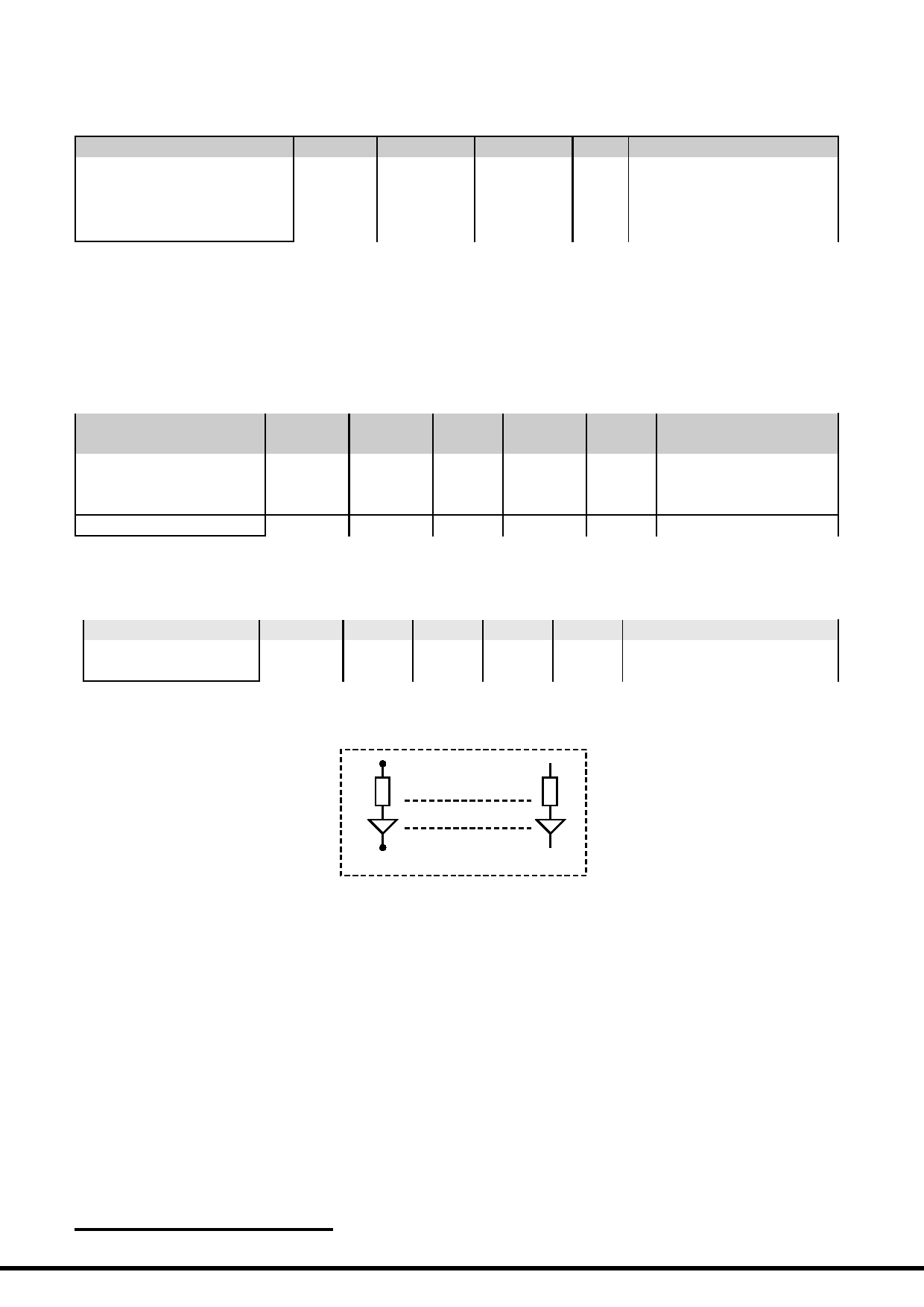

3.2 LED Backlight Circuit Characteristics
BLK=0V, BLA=3.3V, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
BLA
-
3.3
-
V
BLA
Forward Current
I BLA
-
102
120
mA
BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.
BLA
BLK
No. of LED = 6pcs
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 5 of 12
TOPWAY
LCD Module User Manual
LM240128CFW

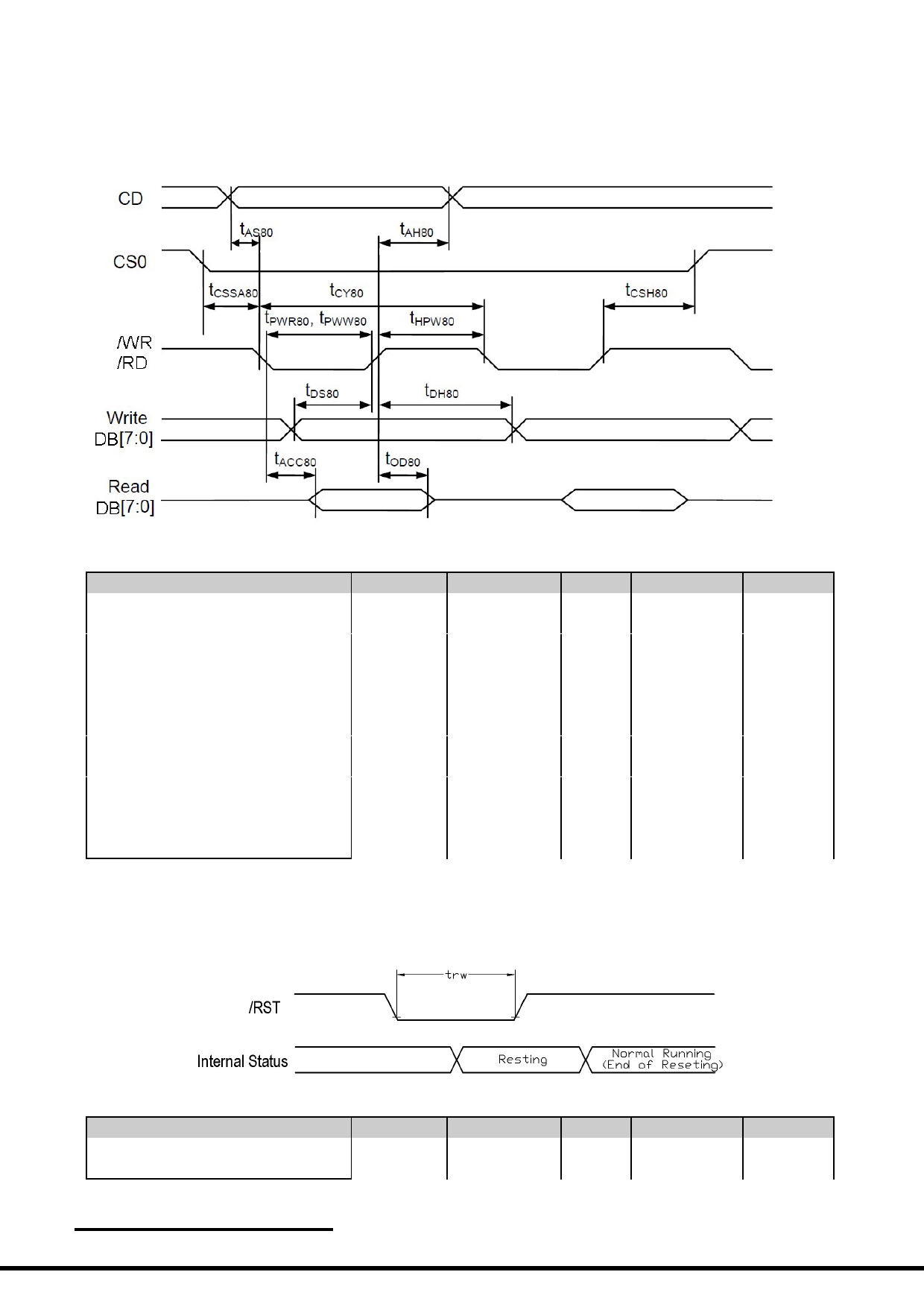

3.3 AC Characteristics
3.3.1 8080 Mode System Bus Timing
V SS =0V, V DD =3.0V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Address setup time (CD)
tas80
5
-
-
ns
Address hold time (CD)
tah80
5
-
-
ns
System cycle time (8bit)
tcy80
145
-
-
ns
Read pulse width
tpwr80
107
-
-
ns
Write pulse width
tpww80
65
-
-
ns
High pulse width (read)
thpw80
63
-
-
ns
High pulse width (write)
thpw80
67
-
-
ns
Data setup time
tds80
38
-
-
ns
Data hold time
tdh80
5
-
-
ns
Data access time
tacc80
-
-
75
ns
Data output disable time
tod80
15
-
38
ns
Chip select setup time
tcssa80
7
-
-
ns
Chip select hold time
tcsh80
7
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
3.3.2 Reset Timing
V SS =0V, V DD =3.0V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset LOW pulse width
trw
4
-
-
Internal Resetting time
trd
13
ms
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 6 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
4. Function specifications
4.1 Adjusting the Display Contrast
This LCD module equipped with latest digital contrast adjustment function.
Its display contrast could be adjusted by MCU command.
(please see the command tables for details)
It is recommended to provide a contrast adjustment interface for end-user,
where the best display result could meet the individual preference in mass production.
4.2 Resetting the LCD module
The LCD module should be initialized by using /RST terminal.
While turning on the VDD and VSS power supply, maintain /RST terminal at LOW level. After the
power supply stabilized, release the reset terminal (/RST=HIGH)
4.2.1 Display Memory Map
ROW
no.
LCD Display (front view)
1 st
2 nd
3 rd
:
240 x 128 pixels
126 th
127 th
128 th
Column no.
1 st
2 nd
3 rd
4 th
5 th
6 th
238 th 239 th 240 th 241 th 242 th
Column Address
00h
01h
4Fh
50h
Note:
*1. This mono LCM is driven by a color LCD driver.
Every three dots are being driven by R G B segment driver.
*2. The above is based on:
- 4R4G4B setting, each dot will be driven by 4bit; LC[7:6]=0:1, DC[4]=1
- Mirror Y direction; LC[2]=1
- Normal X direction; LC[1]=0
- Color Mapping as RGB; LC[5]=1
*3. For details please refer to UC1698 datasheet
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 7 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
4.3 Display Commands
The LCD module contains register, which control the operation. These register can be modified by commands.
The following table is a summary of the control registers, their meaning and their default value.

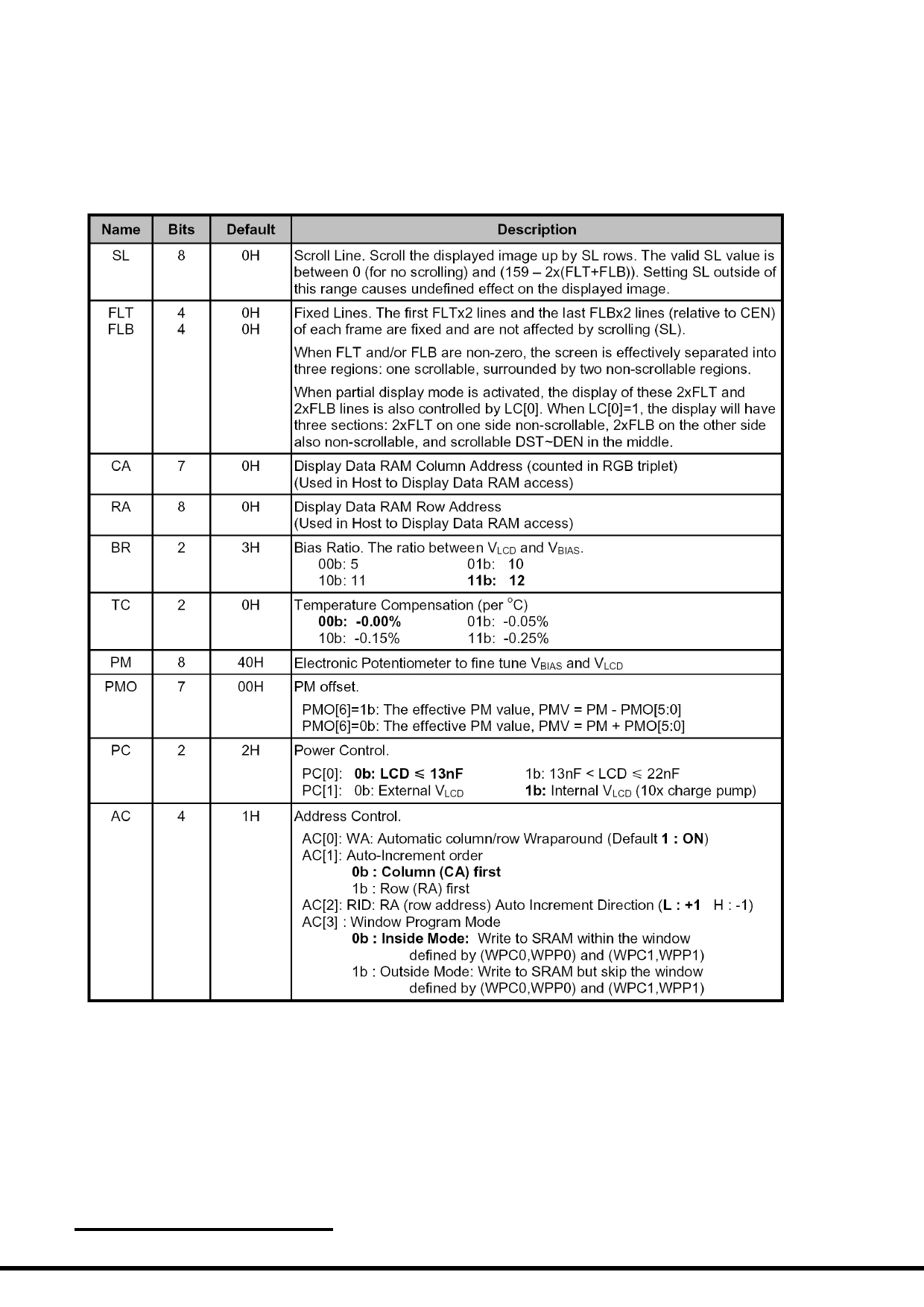

4.3.1 Register Table
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 8 of 12
TOPWAY
LCD Module User Manual
LM240128CFW

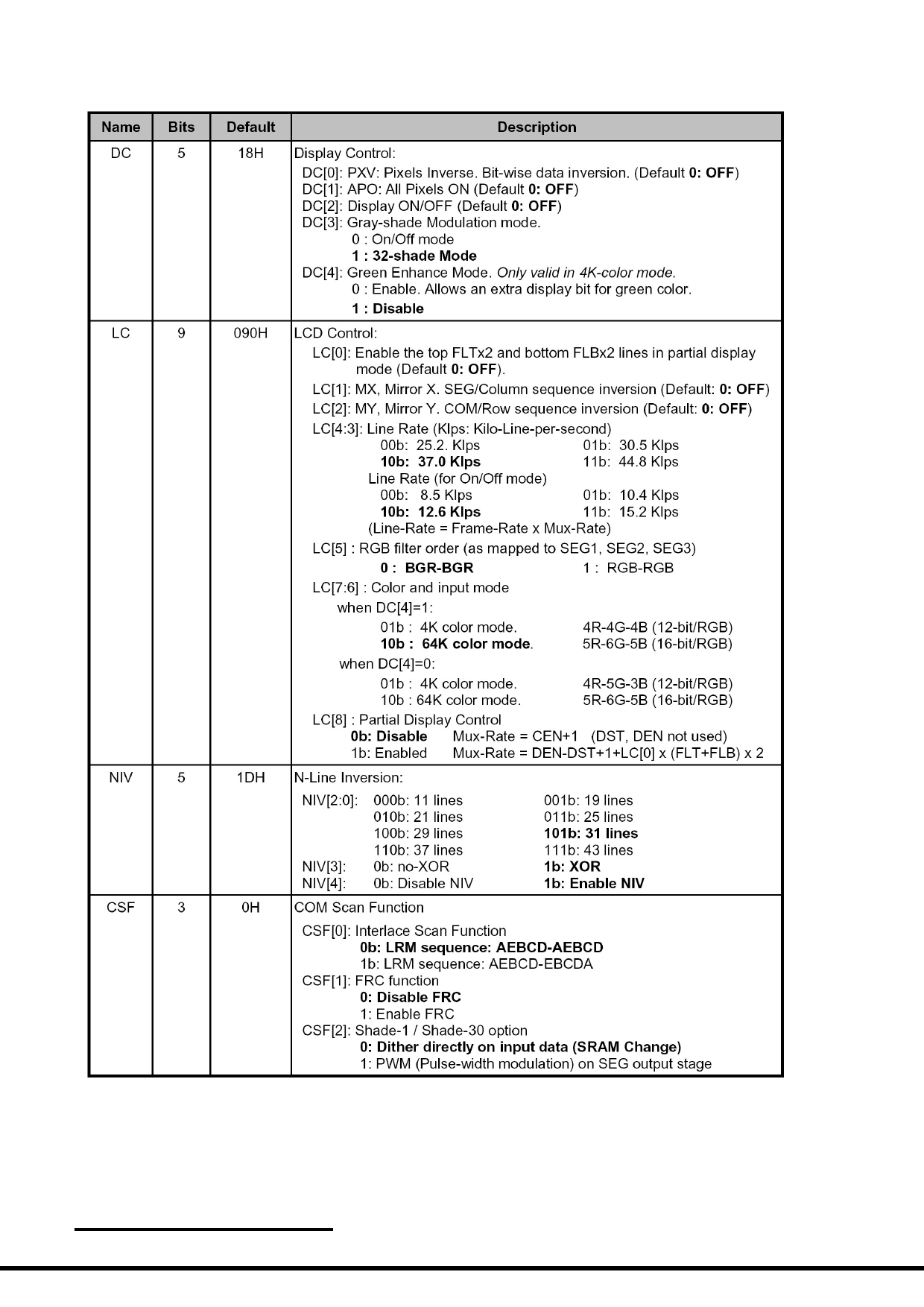

Register Table (continue)
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 9 of 12
TOPWAY
LCD Module User Manual
LM240128CFW

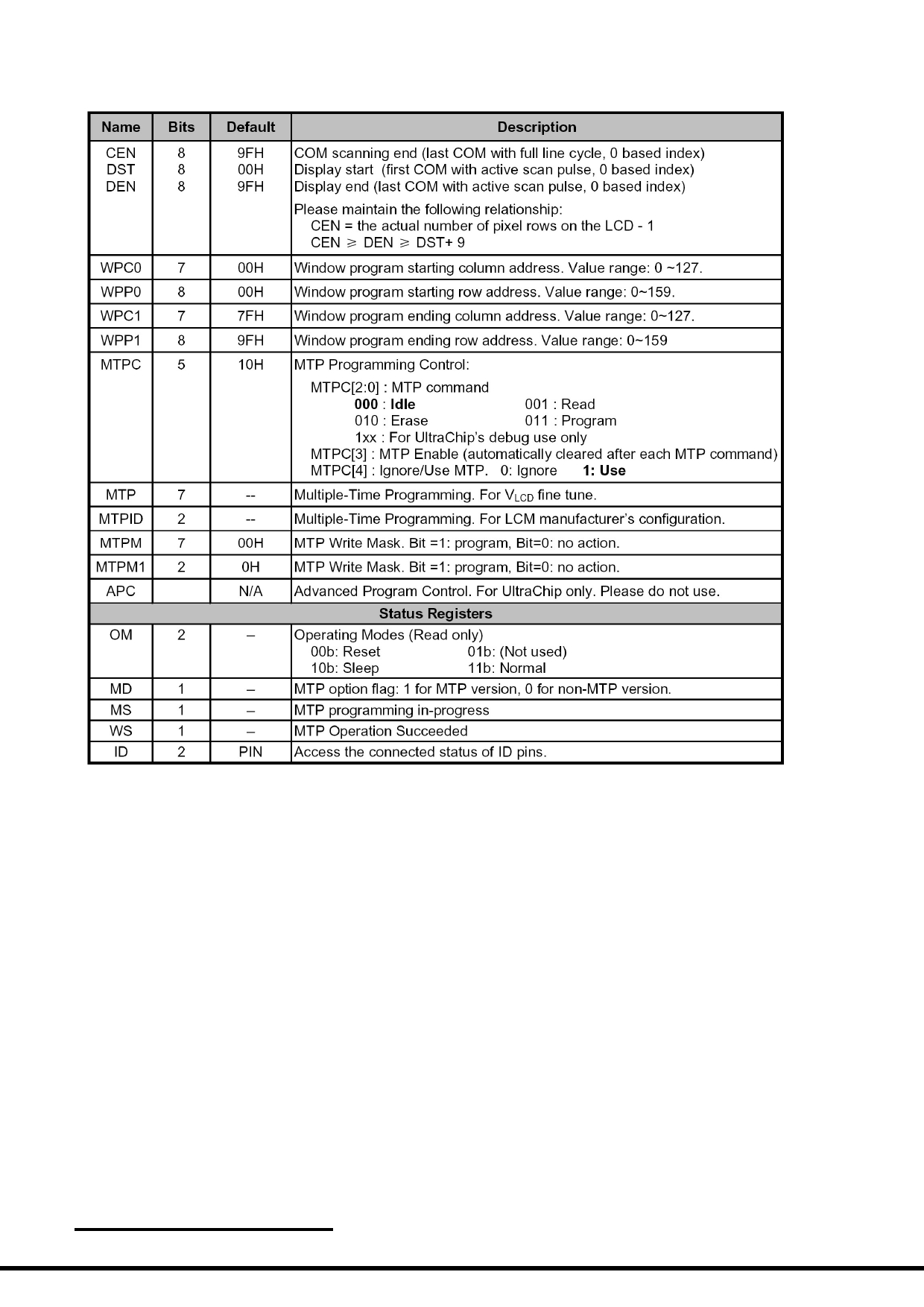

Register Table (continue)
Note: Please refer to UC1698 data sheet for details
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 10 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
4.3.2 Command Table
The following is the list of host command supported.
Note:
Please refer to UC1698 data sheet for details
URL: www.topwaydisplay.com
Document Name: LM240128CFW-Manual-Rev0.3
Page: 11 of 12
TOPWAY
LCD Module User Manual
LM240128CFW
5. Design and Handling Precaution
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
