LM240160YCW
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Li KeKe
Date: 2020-09-19
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2020-05-25
0.2
Update outline drawing
2020-09-19
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 1 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
Table of Content
1. Basic Specifications ................................................................................................................................ 3
1.1 Display Specifications ..................................................................................................................................................................... 3
1.2 Mechanical Specifications .............................................................................................................................................................. 3
1.3 Block Diagram .................................................................................................................................................................................. 3
1.4 Terminal Functions .......................................................................................................................................................................... 4
2. Absolute Maximum Ratings ................................................................................................................... 5
3. Electrical Characteristics ....................................................................................................................... 5
3.1 DC Characteristics .......................................................................................................................................................................... 5
3.2 LED Backlight Circuit Characteristics ........................................................................................................................................... 5
3.3 AC Characteristics ........................................................................................................................................................................... 6
4. Function specifications ........................................................................................................................ 11

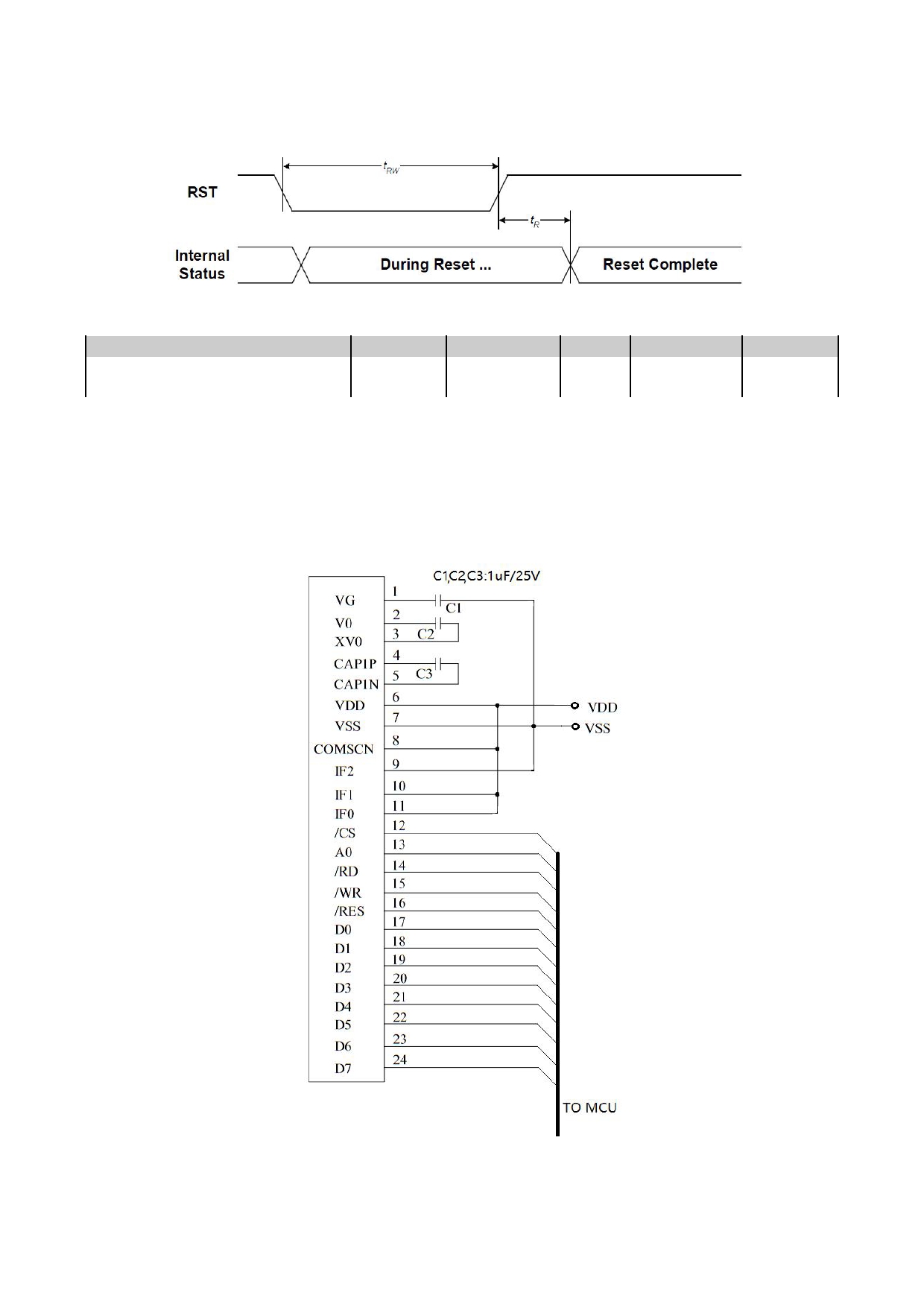

4.1 Application circuit 8080 mode (example) .................................................................................................................................. 11
4.2 Adjusting the Display Contrast ..................................................................................................................................................... 12
4.3 Basic Setting ................................................................................................................................................................................... 12
4.4 Resetting the LCD module ........................................................................................................................................................... 12
4.5 Display Memory Map .................................................................................................................................................................... 12

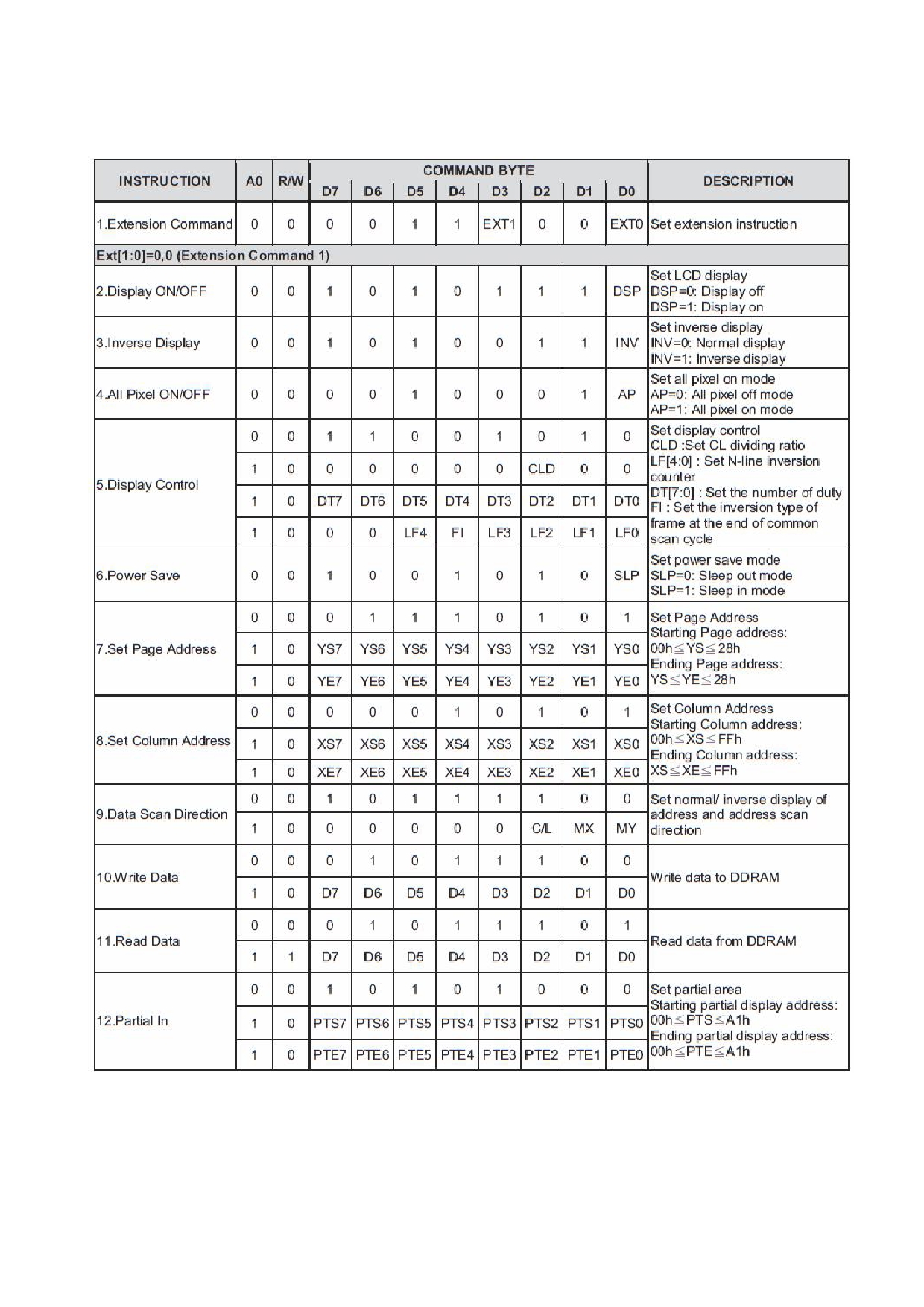

4.6 Display Commands ....................................................................................................................................................................... 13
4.7 DisplayCommands (continue) ...................................................................................................................................................... 14

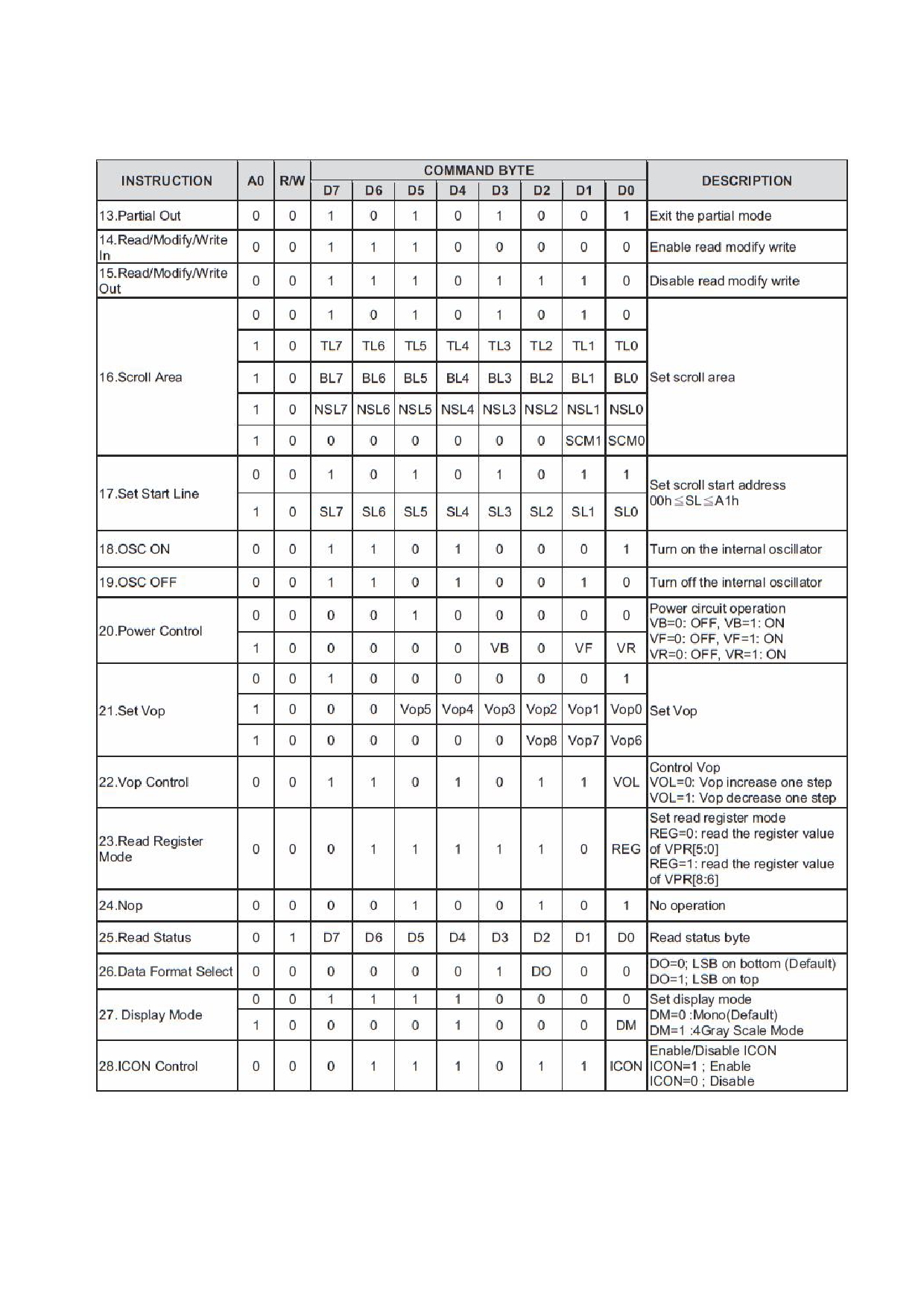

4.8 DisplayCommands (continue) ...................................................................................................................................................... 15
4.9 DisplayCommands (continue) ...................................................................................................................................................... 16
5. Design and Handling Precaution ....................................................................................................... 17
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 2 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: FSTN, Positive, Transflective
2) Display Color
: Display Data = “1” : Dark Gray (*1)
: Display Data = “0” : Light Gray (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/160 duty, 1/13 bias
5) Backlight
: White LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color.
*3. Fine Contrast adjustment function is necessary in the application design for optimal display result.
1.2 Mechanical Specifications
1) Outline Dimension
: 76.9 x 63.9 x 7 (mm)(Exclude FPC Length)

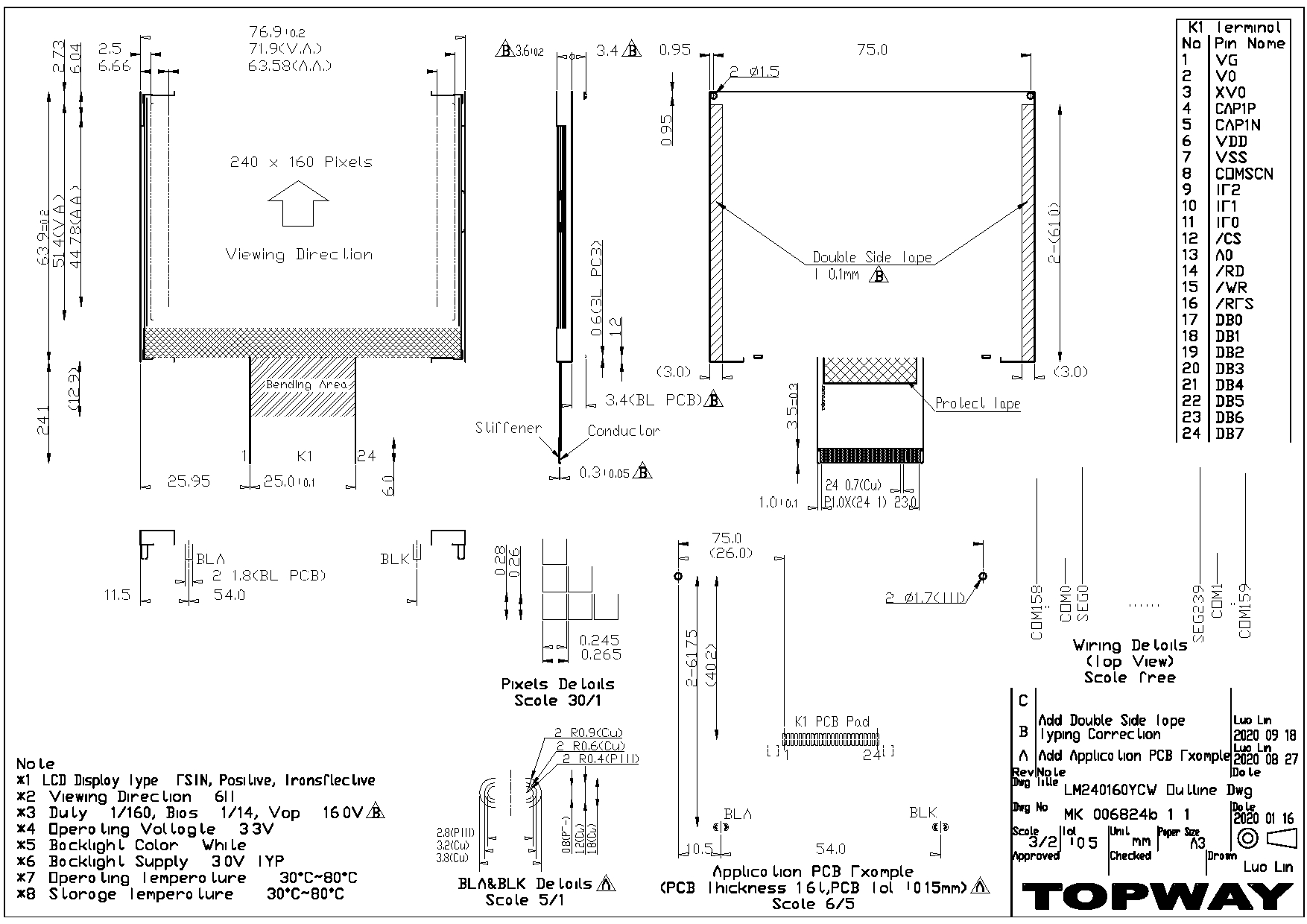

(See attached Outline Drawing for details)
1.3 Block Diagram
BLA
Backlight Circuit
BLK
ST75256 or equivalent
VSS
VDD
/CS, A0, /RD, /WR,/RES
DB0~DB7
LCD Panel
VG,V0,XV0,CAP1P,CAP1N,COMSCN
240 × 160Pixels
IF0,IF1,IF2
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 3 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
1.4 Terminal Functions
Descriptions
Pin
PIN
I/ 8080 mode
6800 mode
4-line 3-line I2C mode
No. Name O (default )
1
VG
VG is the power of SEG-drivers.
2
V0
Negative operating voltage of COM-drivers.
3
XV0
XV0 is the output of the negative Vop generator.
4
CAP1P P DC/DC voltage converter.
5
CAP1N
Connect a capacitor between CA1P and CA1N.
6
VDD
Positive power supply.
7
VSS
Negative power supply,0V
Set scan direction of COM.
COMSCN= “ L ” ; COM0--COMX ;
8
COMS
CN
I
COMSCN= “ H ” ; COMX — COM0;
Note: COMX is determined by the DUTY setting.
IF2
IF1
IF0
MPU interface type
9
IF2
L
L
L
4-line serial interface
L
L
H
I2C serial interface
10
IF1
I
L
H
L
8-bit 6800 parallel interface
L
H
H
8-bit 8080 parallel interface
11
IF0
H
L
L
9-bit 3-line serial interface
12
/CS
I
/CS = L ,Chip is active.
/CS = H ,Chip is non-active.
Connected to VSS.
13
A0
I
A0 = H, Transferring the Display Data.
A0 = L, Transferring the Control Data.
Connected to VDD.
When /RD is
R/W = "H":When E is "H"
/RD
“ L ”, data
data bus is in output status.
14
R/W = "L":The data are
( E )
I bus is in
Connected to VDD.
output status.
latched at the falling edge
of the E signal.
The data are
Read / Write control input
latched at the
pin
15
/WR
(R/W)
I
rising edge of
R/W = “ H ” : read
Connected to VDD.
the /WR signa R/W = “ L ” : write
16
/RES
I Reset input pin. When RST is “L”, internal initialization procedure is executed.
17
DB0
serial input clock (SCL).
18
DB1
serial
SDA_IN, serial
input/output
input data.
19
DB2
data (SDA).
SDA_OUT,
D1 to D3 must D1 to D3 must be
be connected
20
DB3
connected
I/
together
together (SDA).
O
8 bit bi-directional data bus
(SDA).
21
DB4
Connected to
Connected to
22
DB5
VDD.
VDD.
23
DB6
SA[0], connected
to VDD or VSS.
24
DB7
SA[1], connected
to VDD or VSS.
LED Backlight
1
BLA
P Positive power for LED backlight.
2
BLK
P Negative power for LED backlight,0V
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 4 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+4.0
V
V SS = 0V
Input Voltage
V IN
-0.3
+4.0
V
V SS = 0V
Operating Temperature
T OP
-30
+80
C
No Condensation
Storage Temperature
T ST
-30
+80
C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
3. Electrical Characteristics
3.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25 C
Items
Symbol
MIN.
TYP.
MAX.
Unit Condition /
Application Pin
Operating Voltage
V DD
3.0
3.3
3.6
V
VDD
Input High Voltage
V IH
0.8xV DD
-
V DD
V
/CS, A0, /RD, /WR,
Input Low Voltage
V IL
V SS
-
0.2xV DD
V
/RES
DB0~DB7
COMSCN
Operating Current
I DD
-
1.4
3.5
mA
VDD
3.2 LED Backlight Circuit Characteristics
BLK=0V, BLA=3.0V, T OP =25 C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
V BLA
-
3.0
-
V
BLA
Forward Current
I BLA
-
60
100
mA
BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.
BLA
BLK
No. of LED = 5pcs
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 5 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
3.3 AC Characteristics

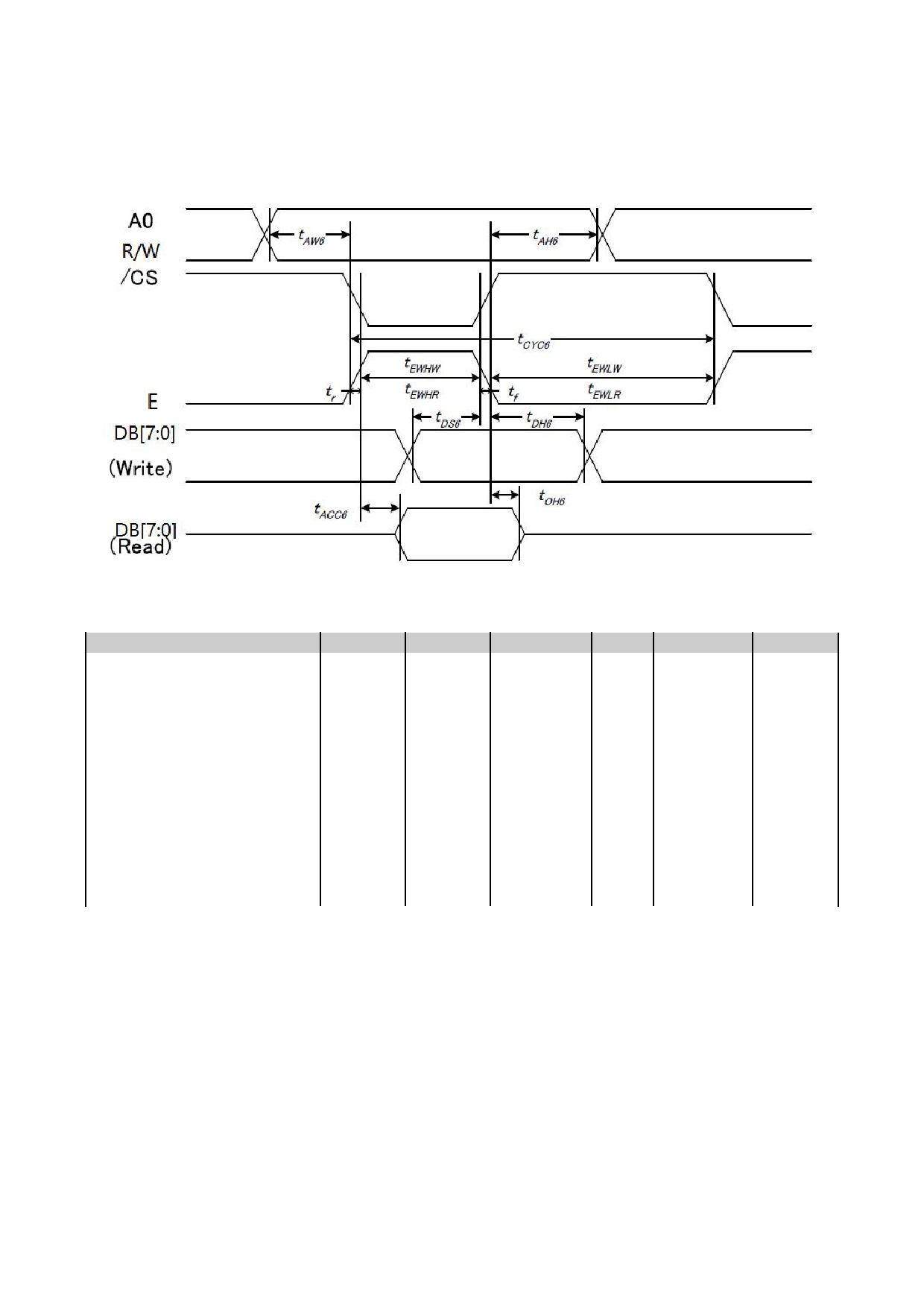

3.3.1 6800 Mode Interface
V SS =0V, V DD =3.3V, T OP =25 C
Item
Signal
Symbol
Condition
MIN.
MAX.
Unit
Address setup time
taw6
A0
20
-
Address hold time
tah6
0
-
System cycle time (WRITE)
tcyc6
160
-
Enable L pulse width (WRITE)
tewlw
70
-
Enable H pulse width (WRITE)
E
tewhw
70
-
System cycle time (READ)
tcyc6
400
-
Enable L pulse width (READ)
tewlr
180
-
ns
Enable H pulse width (READ)
tewhr
180
-
Write data setup time
tds6
15
-
Write data hold time
DB[7:0]
tdh6
15
-
Read data access time
tacc6
CL = 30 pF
-
100
Read data output disable time
toh6
CL = 30 pF
10
110
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 6 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
3.3.2 8080 Mode Interface
V SS =0V, V DD =3.3V, T OP =25 ℃
Item
Signal
Symbol
Condition
MIN.
MAX.
Unit
Address setup time
taw8
20
-
A0
Address hold time
tah8
0
-
System cycle time (WRITE)
tcyc8
160
-
/WR L pulse width (WRITE)
/WR
tcclw
70
-
/WR H pulse width (WRITE)
tcchw
70
-
System cycle time (READ)
tcyc8
400
-
/RD L pulse width (READ)
ns
/RD
tcclr
180
-
/RD H pulse width (READ)
tcchr
180
-
WRITE Data setup time
tds8
15
-
WRITE Data hold time
tdh8
15
-
READ access time
DB[7:0]
tacc8
CL = 30 pF
-
100
READ Output disable time
toh8
CL = 30 pF
10
110
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 7 of 17
TOPWAY
LCD Module User Manual
LM240160YCW

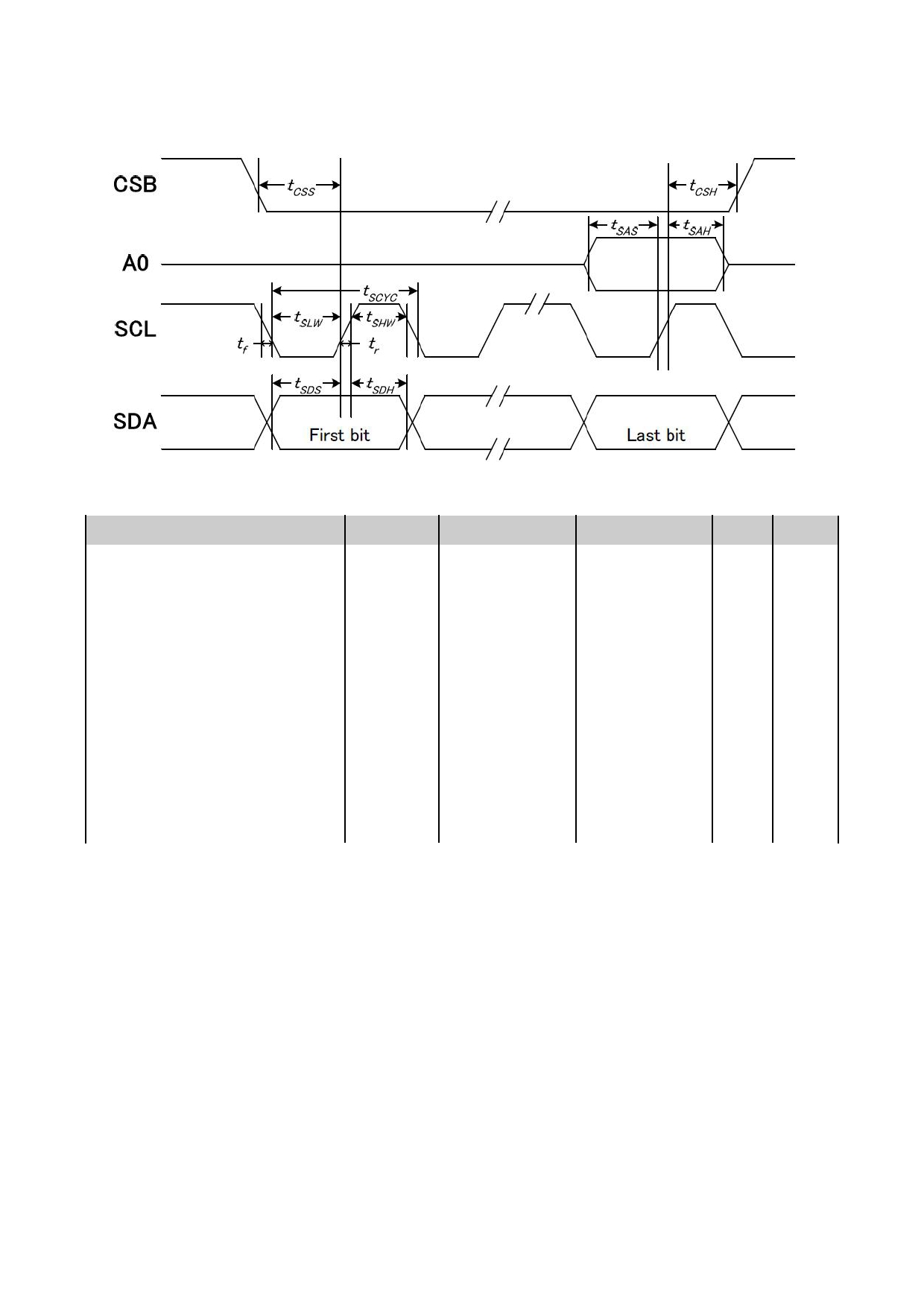

3.3.3 4-Line SPI Mode Interface
V SS =0V, V DD =3.3V, T OP =25 ℃
Item
Signal
Symbol
MIN.
MAX. Unit
Serial clock period
tscyc
80
-
SCLK “H” pulse width
SCLK
tshw
30
-
SCLK “L” pulse width
tslw
30
-
Address setup time
tsas
20
-
A0
Address hold time
tsah
20
-
ns
Data setup time
tsds
20
-
SDA
Data hold time
tsdh
20
-
CSB-SCLK time
tcss
20
-
CSB-SCLK time
CSB
tcsh
20
-
CS “H” pulse width
tchw
0
-
Note:
1. The input signal rise and fall time (tr, tf) are specified at 15 ns or less.
2. All timing is specified using 20% and 80% of VDD as the standard.
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 8 of 17
TOPWAY
LCD Module User Manual
LM240160YCW

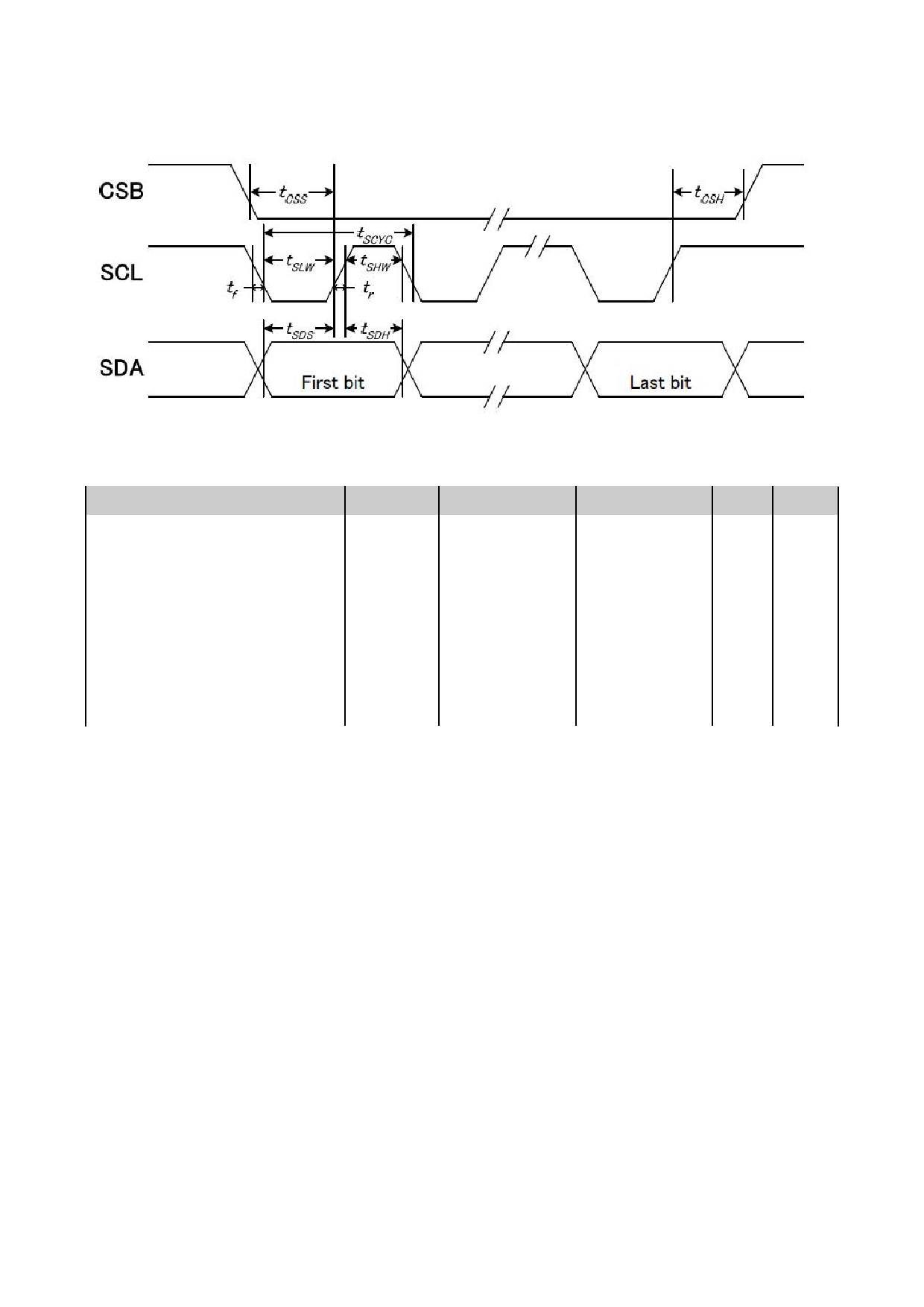

3.3.4 3-Line SPI Mode Interface
V SS =0V, V DD =3.3V, T OP =25 ℃
Item
Signal
Symbol
MIN.
MAX. Unit
Serial clock period
tscyc
80
-
SCL “H” pulse width
SCL
tshw
30
-
SCL “L” pulse width
tslw
30
-
Data setup time
tsds
20
-
ns
SDA
Data hold time
tsdh
20
-
CSB-SCL time
tcss
20
-
CSB
CSB-SCL time
tcsh
20
-
Note:
1. The input signal rise and fall time (tr, tf) are specified at 15 ns or less.
2. All timing is specified using 20% and 80% of VDD as the standard.
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 9 of 17
TOPWAY
LCD Module User Manual
LM240160YCW

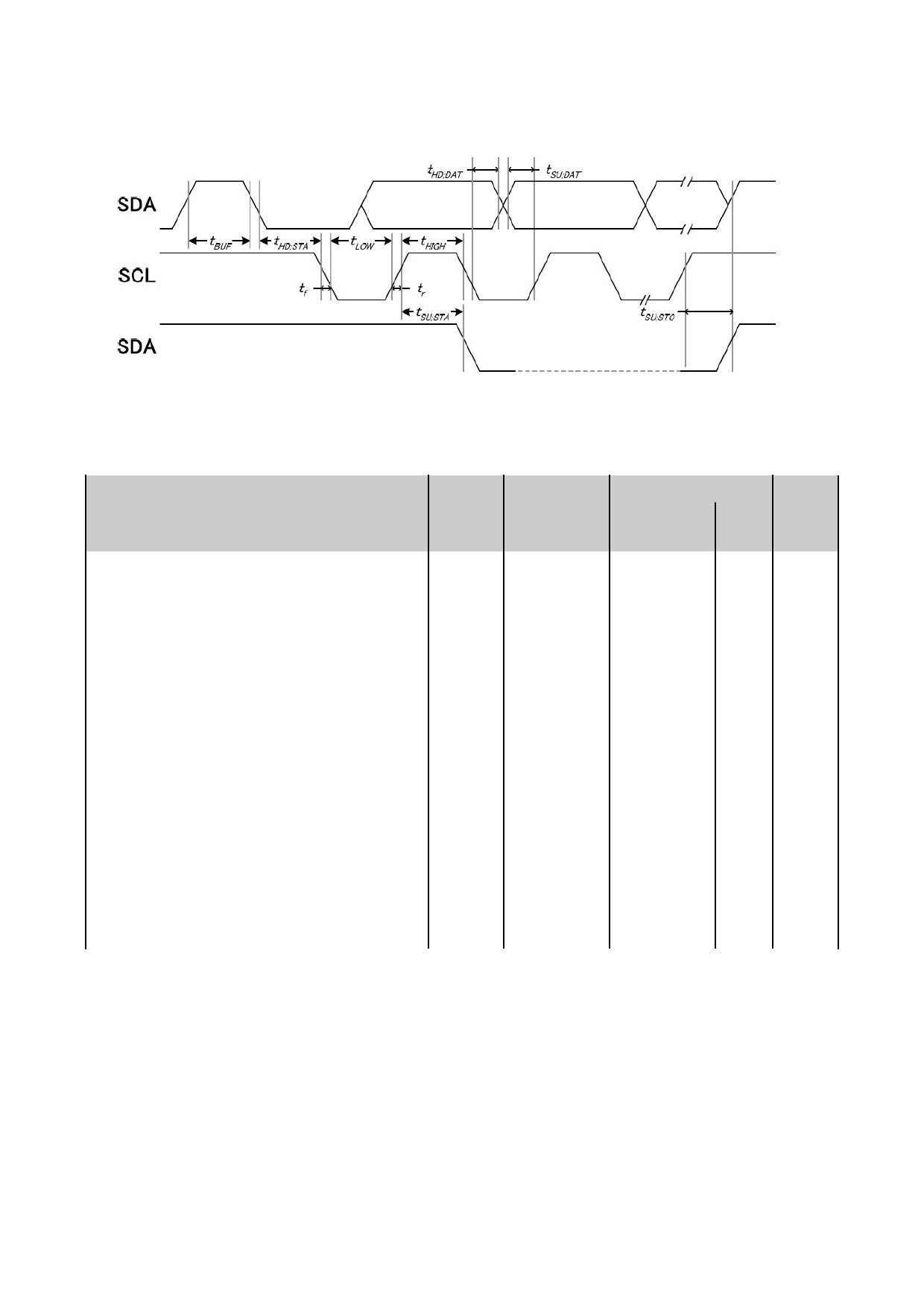

3.3.5 I 2 C Mode Interface
V SS =0V, V DD =3.3V, T OP =25 C
Rating
Item
Signal
Symbol
Unit
MIN.
MAX
.
SCL clock frequency
fscl
-
400
KHZ
SCL clock low period
SCL
tlow
1.3
-
SCL clock high period
thigh
0.6
-
Data set-up time
tsu;data
0.1
-
Data hold time
thd;data
0
0.9
us
Setup time for a repeated START condition
SDA
tsu;sta
0.6
-
Start condition hold time
thd;sta
0.6
-
Setup time for STOP condition
tsu;sto
0.6
-
Bus free time between a STOP and START
tbuf
0.1
-
Signal rise time
tr
20+0.1Cb
300
ns
Signal fall time
tf
20+0.1Cb
300
SCL
Capacitive load represented by each bus line
SDA
cd
-
400
pF
Tolerable spike width on bus
tsw
-
50
ns
Note:
1. All timing is specified using 20% and 80% of VDD as the standard.
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 10 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
3.3.6 Reset Timing
V SS =0V, V DD =3.3V, T OP =25 C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset time
tr
-
-
1
ms
Reset LOW pulse width
trw
1
-
-
ms
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
4. Function specifications
4.1 Application circuit 8080 mode (example)
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 11 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
4.2 Adjusting the Display Contrast
- This LCD module equipped with latest digital contrast adjustment function.
- Its display contrast could be adjusted by MCU command. (please see the command tables for
details)
- It is recommended to provide a contrast adjustment interface for end-user, where the best
display result could meet the individual preference in mass production.
4.3 Basic Setting
To drive the LCD module correctly and provide normally display, please use the following setting
- Set Bias 1/13
- Set Duty 1/160
- MX = 0, MY =1
- AP=0 , INV=0 (Normal display)
- Analog SET
- EV control
- Power control
- Display ON
Note:
*1. These setting/commands should issue the LCD module while start up.
*2. See the Display Commands section for details.
4.4 Resetting the LCD module
The LCD module should be initialized by using /RES terminal.
While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the
power supply stabilized, release the reset terminal (/RES=HIGH)
4.5 Display Memory Map
Page address
data
LCD Display (front view)
D0
:
0
D7
D0
:
1
D7
D0
:
2
D7
D0
:
3
D7
D0
4
:
D7
240x160 pixels
D0
5
:
D7
:
:
D0
159
:
D7
Column Address
00h
EFh
Note:
*1.MY=1
*2.MX=0
*3.Initial Display Line=0
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 12 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
4.6 Display Commands
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 13 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
4.7 DisplayCommands (continue)
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 14 of 17
TOPWAY
LCD Module User Manual
LM240160YCW

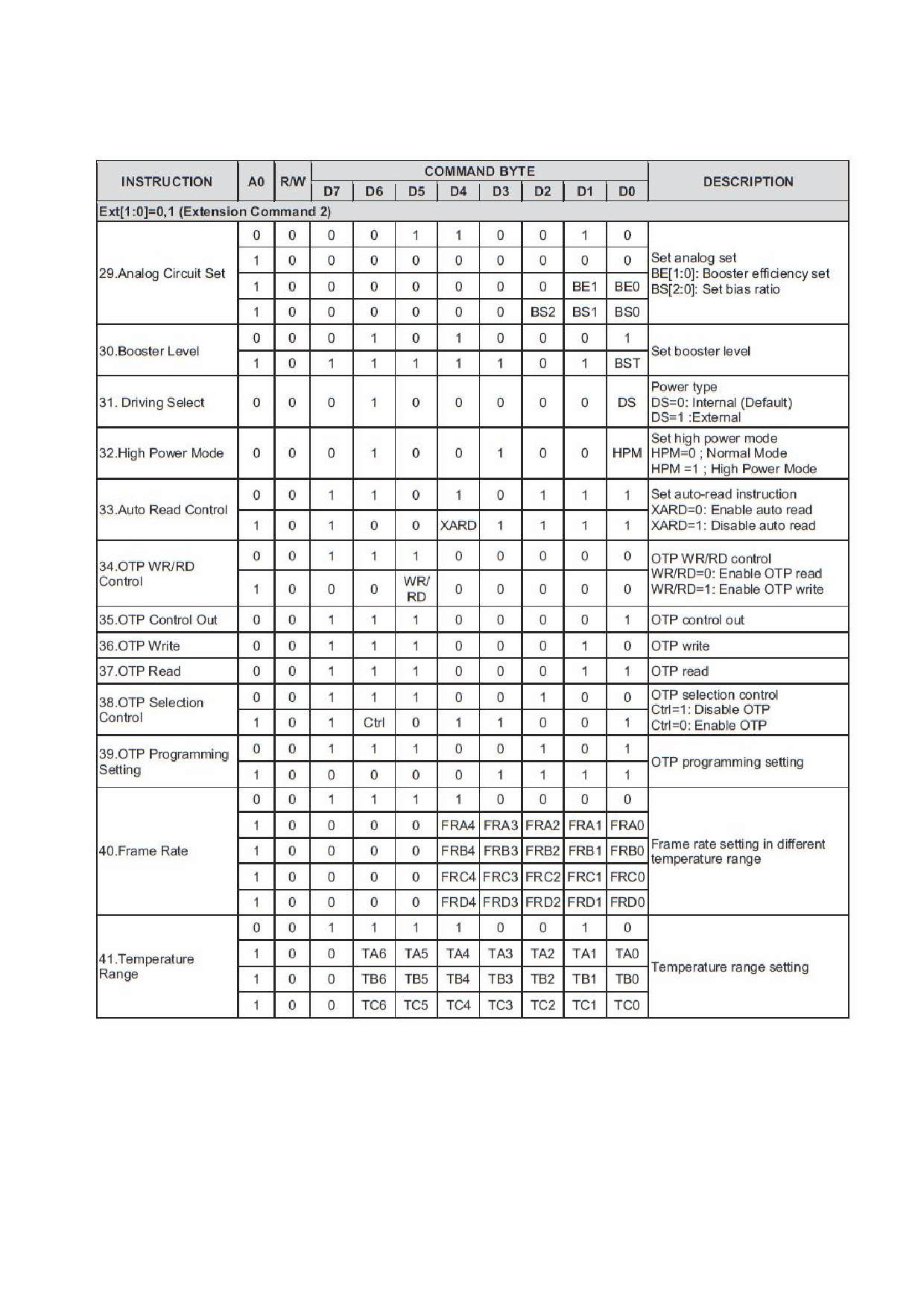

4.8 DisplayCommands (continue)
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 15 of 17
TOPWAY
LCD Module User Manual
LM240160YCW

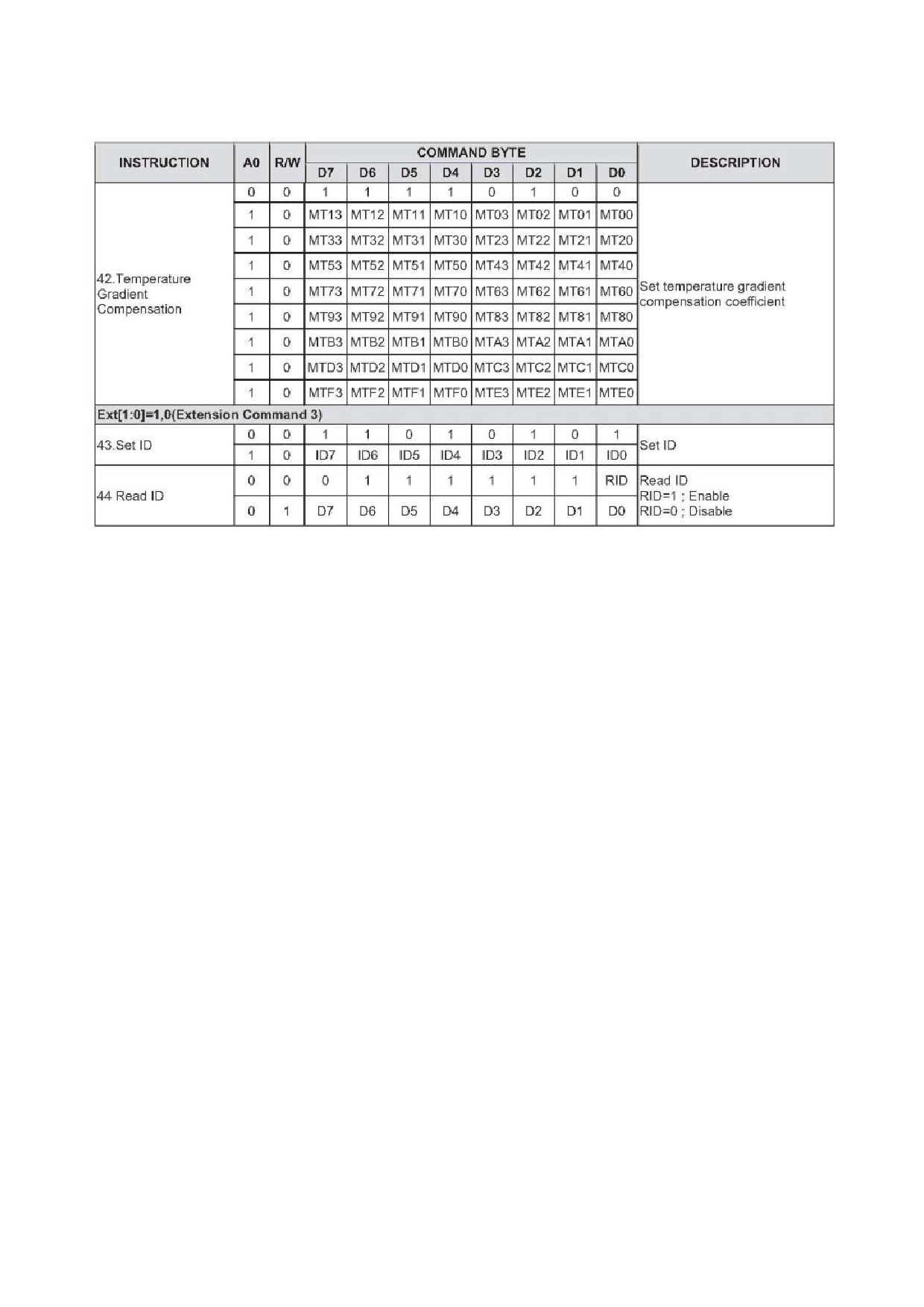

4.9 DisplayCommands (continue)
Note:
*1. Do not use any other command not listed, or the system malfunction may result.
*2. For the details of the Display Commands, please refer to ST75256 data sheet.
*3. “--” = Disabled bit. It can be either logic 0 or 1.
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 16 of 17
TOPWAY
LCD Module User Manual
LM240160YCW
5. Design and Handling Precaution
1.
The LCD panel is made by glass. Any mechanical shock (eg. dropping form high place)
will damage the LCD module.
2.
Do not add excessive force on the surface of the display, which may cause the Display
color change abnormally.
3.
The polarizer on the LCD is easily get scratched. If possible, do not remove the LCD
protective film until the last step of installation.
4.
Never attempt to disassemble or rework the LCD module.
5.
Only Clean the LCD with Isopropyl Alcohol or Ethyl Alcohol. Other solvents (eg. water)
may damage the LCD.
6.
When mounting the LCD module, make sure that it is free form twisting, warping and
distortion.
7.
Ensure to provide enough space (with cushion) between case and LCD panel to
prevent external force adding on it, or it may cause damage to the LCD or degrade the
display result.
8.
Only hold the LCD module by its side. Never hold LCD module by add force on the heat
seal or TAB.
9.
Never add force to component of the LCD module. It may cause invisible damage or
degrade of the reliability.
10.
LCD module could be easily damaged by static electricity. Be careful to maintain an
optimum anti-static work environment to protect the LCD module.
11.
When peeling off the protective film from LCD, static charge may cause abnormal
display pattern. It is normal and will resume to normal in a short while.
12.
Take care and prevent get hurt by the LCD panel sharp edge.
13.
Never operate the LCD module exceed the absolute maximum ratings.
14.
Keep the signal line as short as possible to prevent noisy signal applying to LCD
module.
15.
Never apply signal to the LCD module without power supply.
16.
IC chip (eg. TAB or COG) is sensitive to the light. Strong lighting environment could
possibly cause malfunction. Light sealing structure casing is recommend.
17.
LCD module reliability may be reduced by temperature shock.
18.
When storing the LCD module, avoid exposure to the direct sunlight, high humidity, high
temperature or low temperature. They may damage or degrade the LCD module
URL: www.topwaydisplay.com
Document Name: LM240160YCW-Manual-Rev0.2.DOC
Page: 17 of 17
