1. Basic Specifications

1.1 Display Specifications

1) LCD Display Mode

: FSTN,Positive, Transflective

2) Display Color

: Display Data = “1” : Dark Gray (*1)

: Display Data = “0” : Light Gray (*2)

3) Viewing Angle

: 6H

4) Driving Method

: 1/65 duty, 1/9 bias

5) Backlight

: White LED backlight

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

*2. The Color is defined as the inactive / background color

*3. Fine Contrast adjustment function is necessary in application design for optimal display result

1.2 Mechanical Specifications

1) Outline Dimension

: 59.2 x 44.2 x 8.3MAX (exclude FPC terminal)

(See attached Outline Drawing for details)

1.3 Block Diagram

BLA

Backlight Circuit

BLK

LCD Panel

128 × 64Pixels

VDD

VSS

/WR,/RD,DB0~DB7,RS,/RES,/CS1,P/S

ST7565 or equivalent

V0~V4,VOUT

CAP1+,CAP1-,CAP2+,CAP2-,CAP3+

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 3 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

1.4 Terminal Functions

Descriptions

Pin No.

PIN Name

I/O

8080 mode

4-line SPI

NO connection

This pin configures the interface to be parallel mode or serial mode.

P/S

Input

P/S = “H”: Parallel data input/output.

P/S = “L”: Serial data input.

Power

LCD driving voltage supply terminals

CAP2-

Output

CAP2+

Output

CAP1+

Output

Power booster circuit capacitance terminals

CAP1-

Output

CAP3+

Output

VOUT

Output

Power booster output for V0

VSS

Power

Negative power supply,0V

VDD

Power

Positive power supply

DB7(SI)

This is an 8-bit bi-directional

When the serial interface (SPI-4) is

DB6(SCL)

data bus that connects to an 8-

selected (P/S = “L”) :

bit standard MPU data bus.

DB7 : serial data input (SI) ; DB6 :

I/O

When the chip select is not

the serial clock input (SCL).

active, DB0 to DB7 are set to

DB0 to DB5 should be connected

DB0

high impedance.

to VDD or floating. When the chip

select is not active, DB0 to DB7 are

set to high impedance.

/RD

Input

Read enable input, active LOW

Connected to VDD

/WR

Input

Write enable input, active LOW

Connected to VDD

Input

RS = H, Transferring the Display Data

RS = L, Transferring the Control Data

Reset signal

/RES

Input

/RES = L, Initialization is executed

/RES = H, Normal running.

Chip Select

/CS1

Input

/CS1=L, enable access to the LCD module

/CS1=H, disable access to the LCD module

NO connection

Backlight Functions

Pin No.

PIN Name

I/O

Descriptions

BLA

Power

Positive power for LED backlight

BLk

Power

Negetive power for LED backlight

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 4 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

2. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+3.4

V SS = 0V

Input Voltage

V IN

-0.3

V DD +0.3

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

3. Electrical Characteristics

3.1 DC Characteristics

V SS =0V, V DD =3.0V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

2.9

3.0

3.3

VDD

Input High Voltage

V IH

0.8xV DD

V DD

/RES, /CS1, RS,

Input Low Voltage

V IL

V SS

0.2xV DD

P/S,DB0~DB7,/WR,/RD

Operating Current

I DD

0.22

0.6

mA VDD

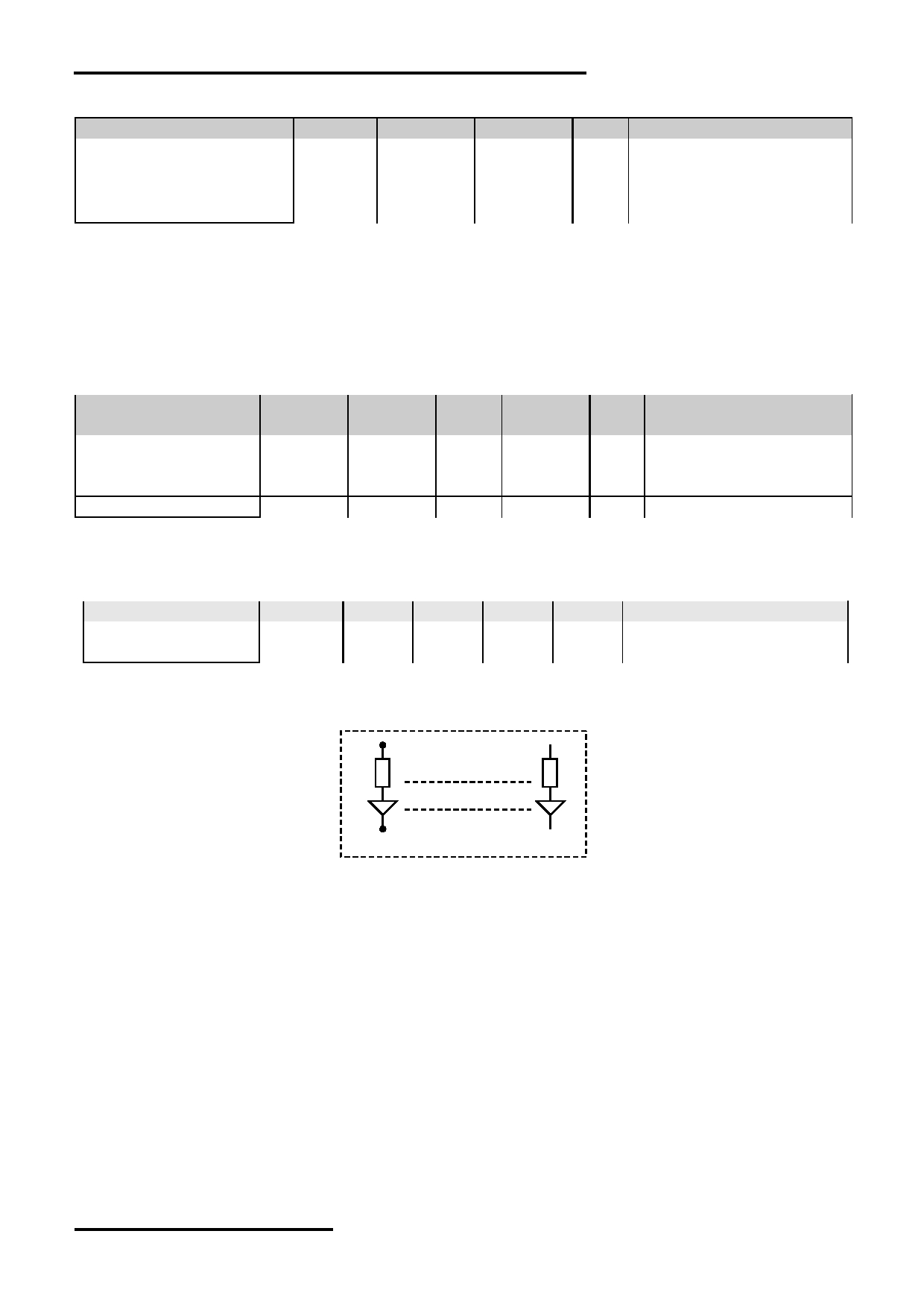

3.2 LED Backlight Circuit Characteristics

BLK=0V, BLA=3.3V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Forward Voltage

BLA

3.3

BLA

Forward Current

I BLA

BLA

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

BLA

BLK

No. of LED = 3pcs

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 5 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

3.3 AC Characteristics

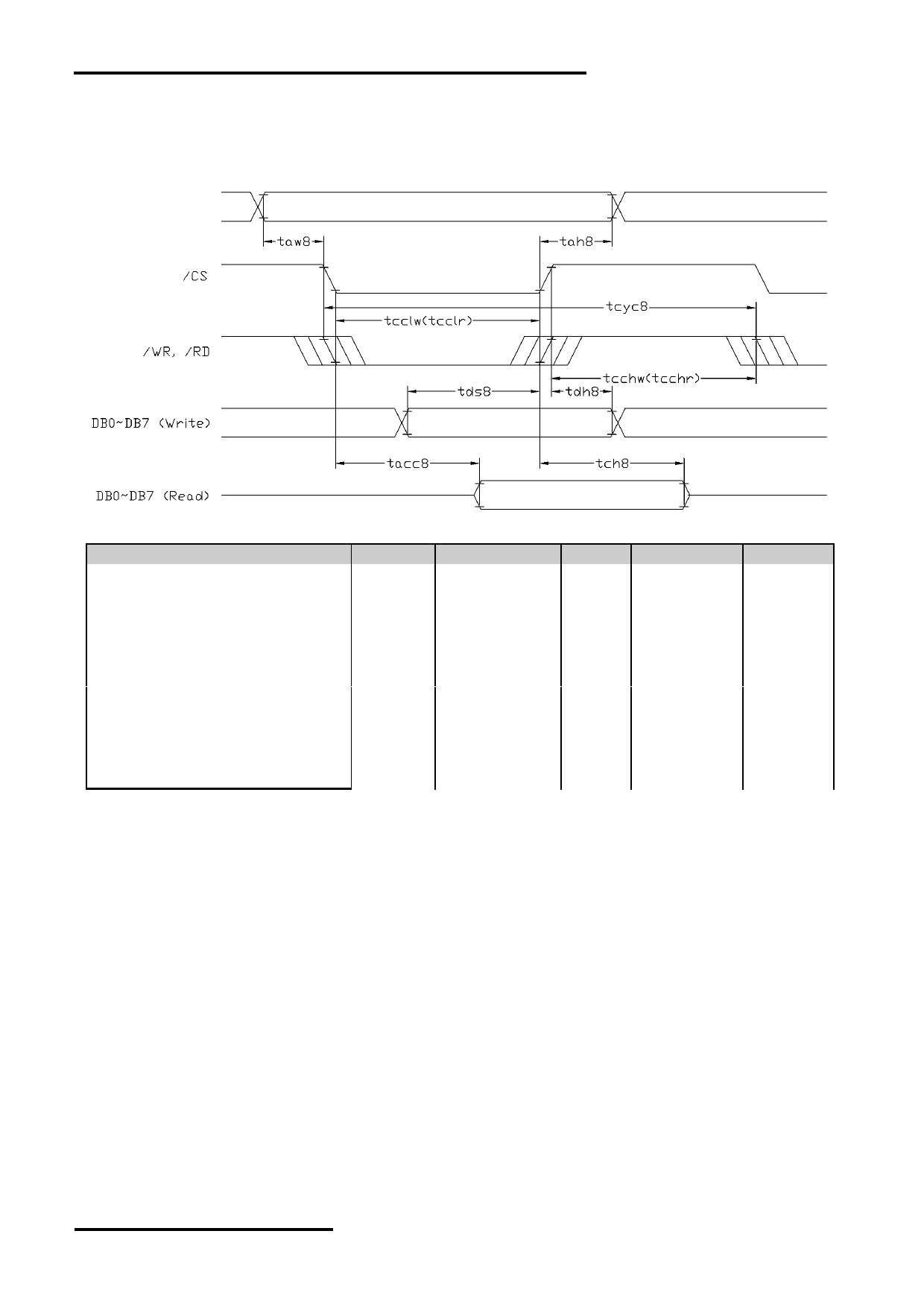

3.3.1 8080 Mode System Bus Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

System cycle time

tcyc8

312

Address setup time (RS)

taw8

Address hold time (RS)

tah8

Control LOW pulse width (/WR)

tcclw

104

Control LOW pulse width (/RD)

tcclr

182

Control HIGH pulse width (/WR)

tcchw

104

Control HIGH pulse width (/RD)

tcchr

104

Data setup time

tds8

Data hold time

tdh8

/RD access time (*2)

tacc8

Output disable time (*2)

tch8

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 6 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

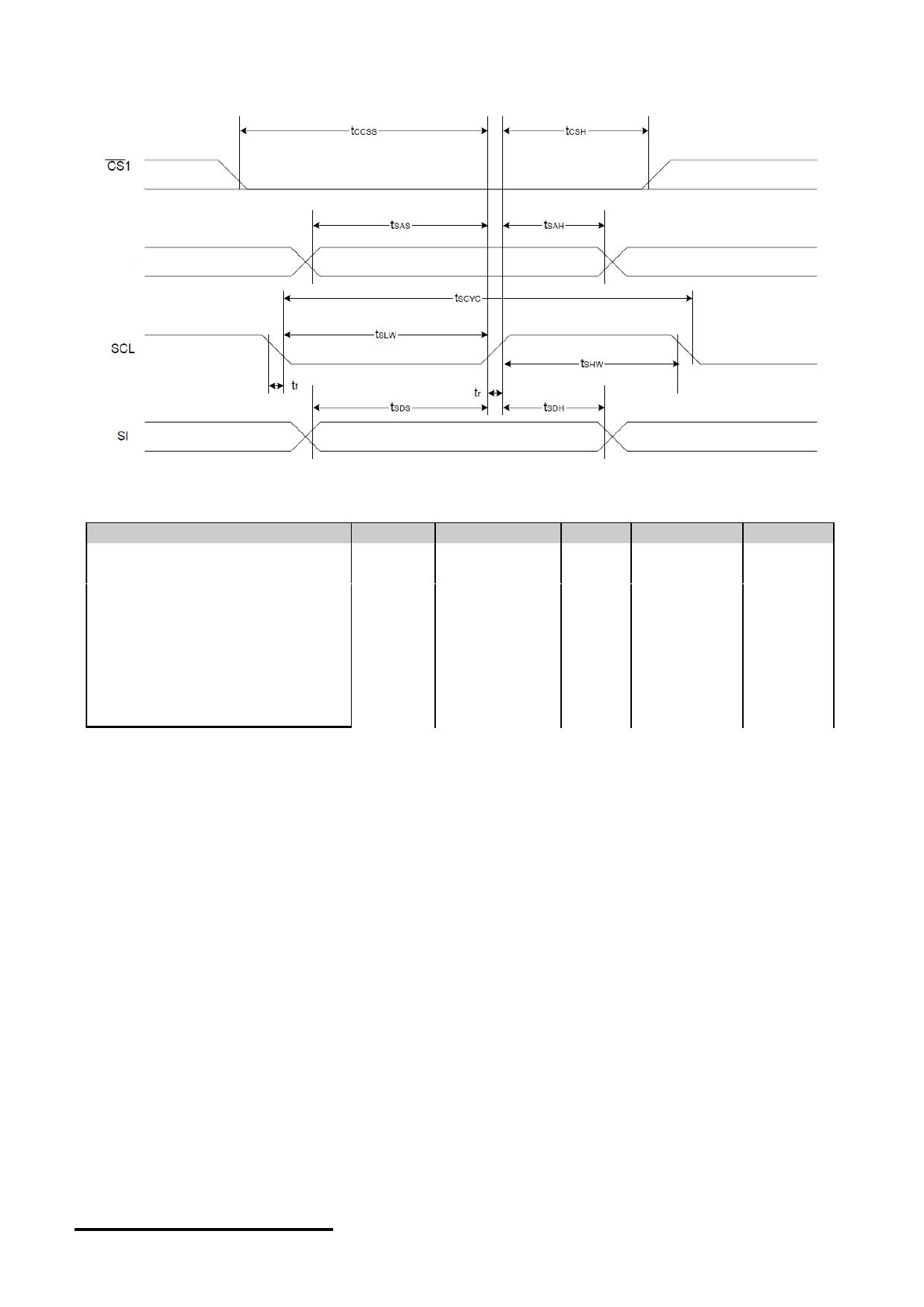

3.3.2 4-line SPI Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

CS setup time

tccss

CS hold time

tcsh

Clock Period

tscyc

SCL “L” pulse width

tslw

SCL “H” pulse width

tshw

Data setup time

tsds

Data hold time

tsdh

Address setup time

tsas

Address hold time

tsah

Note:

*1 The input signal rise and fall time ( t r, t f) are specified at 15 ns or less.

*2 All timing is specified using 20% and 80% of V DD as the standard.

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 7 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

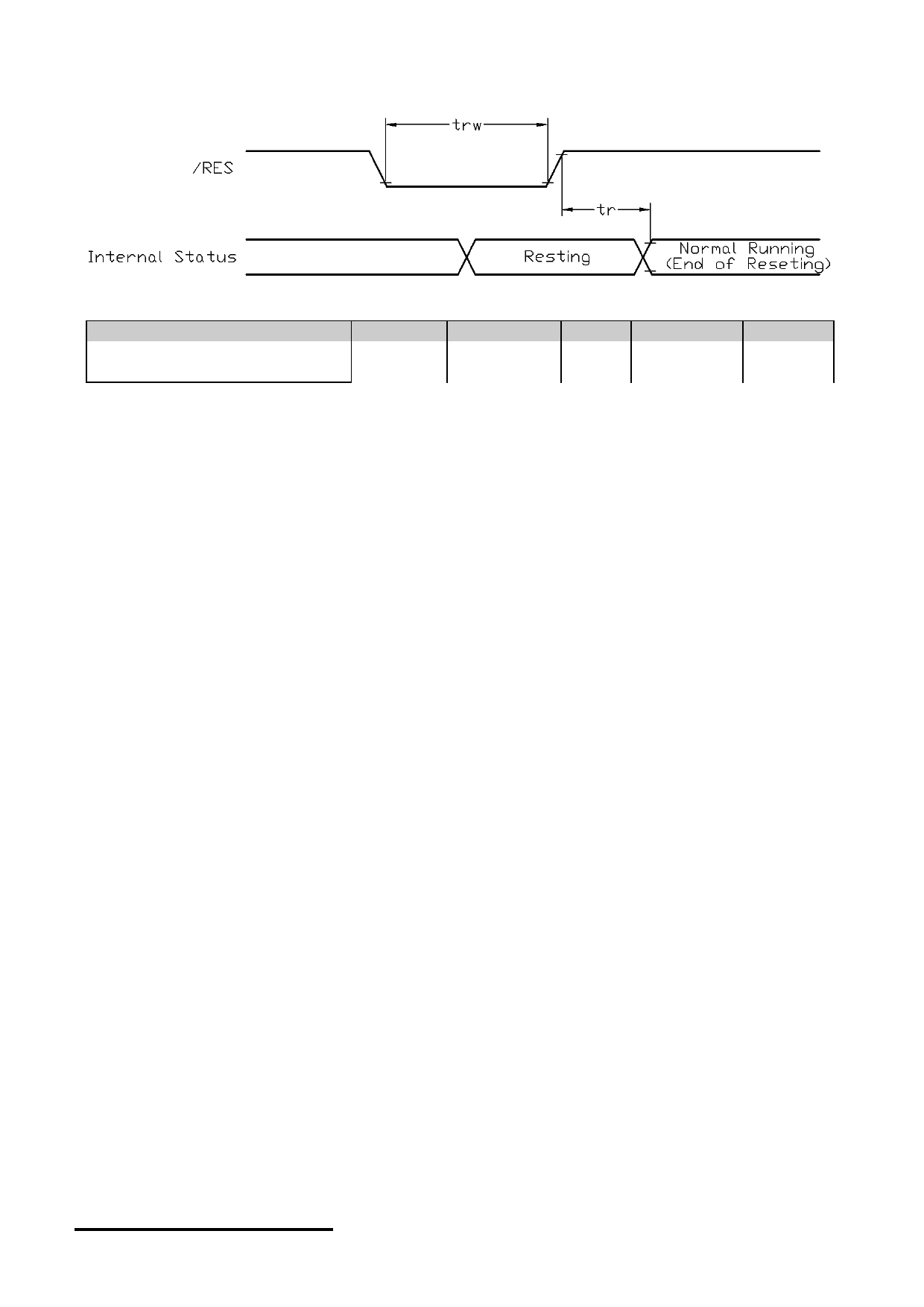

3.3.3 Reset Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset time

2.5

μs

Reset LOW pulse width

trw

2.5

μs

Note:

*1.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 8 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

4. Function specifications

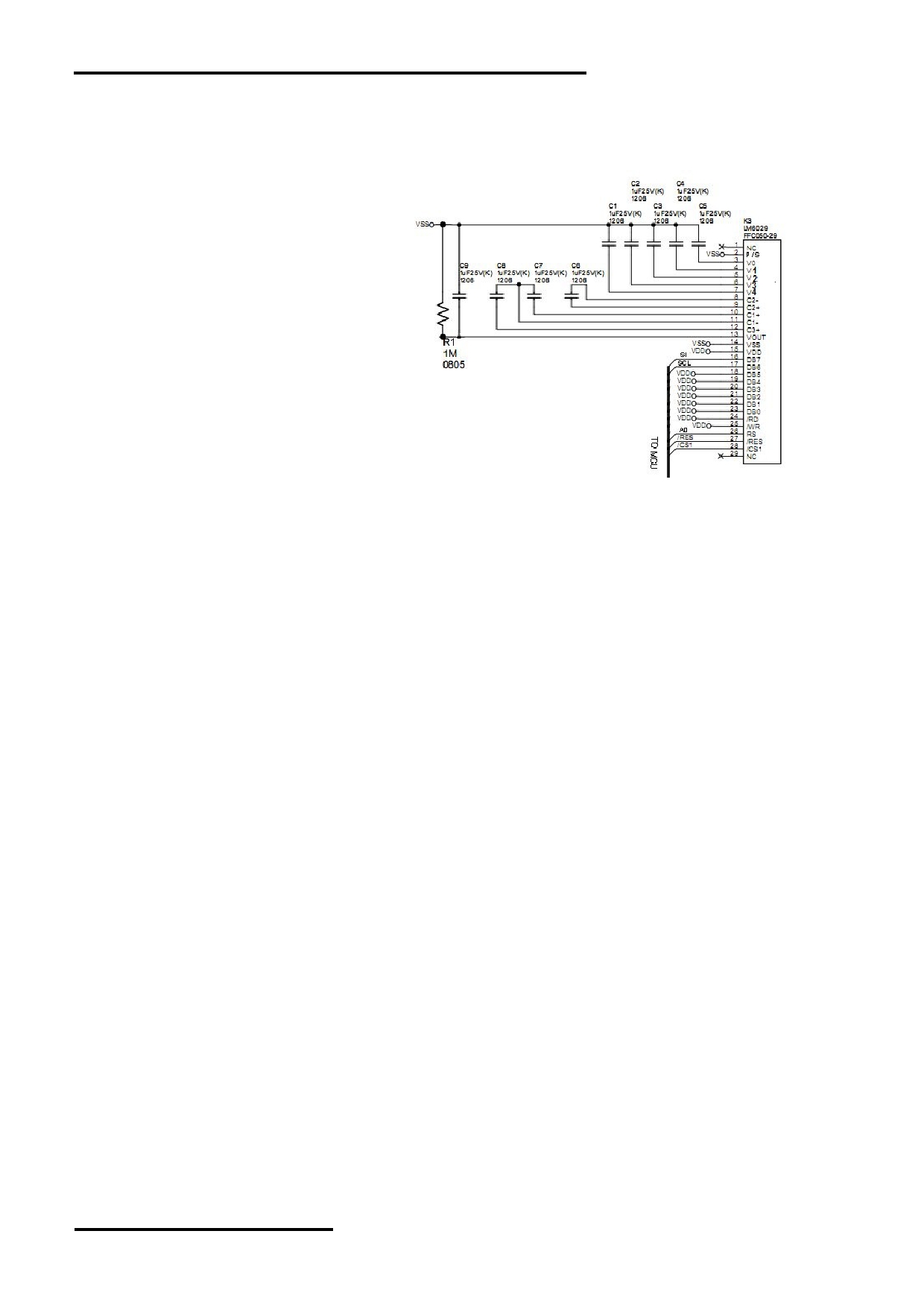

4.1 Application circuit(example)

- 3×boosting

- Serial mode

- Using internal ref resistor

- C1~C9=1.0uF(25V)

- R1=1M

4.2 Basic Setting

To drive the LCD module correctly and

provide normally display, please use the

following setting

- ADC = 0 (normal)

- SHL select = 1 (reverse)

- LCD Bias Select = 1/9

- Initial Display Line = 0

- Entire Display ON/OFF = OFF

(normal)

- Reverse Display ON/OFF = OFF (normal)

- Set Power Control Set:

voltage follower = ON, voltage converter = ON, voltage regulator = ON

- Display ON/OFF = ON

Note:

*1. These setting/commands should issue the LCD module while start up.

*2. See the Display Commands section for details.

4.3 Resetting the LCD module

The LCD module should be initialized by using /RES terminal.

While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the

power supply stabilized, release the reset terminal (/RES=HIGH)

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 9 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

4.4 Display Memory Map

Page address

data

LCD Display (front view)

128x64 pixels

Column Address

00h



7Fh

Note:

*1. ADC = 0 (normal)

*2. SHL Selection = 1 (reverse)

*3. Initial Display Line = 0

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 10 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

4.5 Display Commands

Code

No. Instructions

Function

DON=0, display off

Display ON/OFF

0 1 0 1 0 1 0 1 1 1

DON=1, display on

Display start

Sets the display RAM display start line

Display start line set

0 1 0 0 1

address

Page

Set Page Address

0 1 0 1 0 1 1

Address

Set the display RAM page address

Set Column Address

0 1 0 0 0 0 1

Col. Add.

Set the upper-4-bit of column address counter

(Upper-4-bits)

Upper

Set Column Address

0 1 0 0 0 0 0

Col. Add.

Set the lower-4-bit of column address counter

(Lower-4-bits)

Lower

Read the status data

Read Status

0 0 1

Status

0 0 0 0

Write Display Data

1 1 0

Write Data

Write data into the display RAM

Read Display Data

1 0 1

Read Data

Read data form the display RAM

Sets the display RAM address SEG output

ADC Select

0 1 0 1 0 1 0 0 0 0

correspondence

ADC= 0,normal . ADC=1, reverse

REV=0, Normal display

Normal/Reverse Display 0 1 0 1 0 1 0 0 1 1

REV=1, Reverse display

EON=0, Normal display

Entire Display ON/OFF

0 1 0 1 0 1 0 0 1 0

EON=1, Entire display ON

Set the LCD driving voltage bias

Set LCD Bias

0 1 0 1 0 1 0 0 0 1

BIAS=0, 1/9 BIAS

BIAS=1, 1/7 BIAS

Enter the “Read-Modify-Write” mode

column address counter will increase in each

Set Read-Modify-Write

0 1 0 1 1 1 0 0 0 0 0 “Write Display Data”,

and will not increase in each “Read Display

Data command”

Reset Read-Modify-Write 0 1 0 1 1 1 0 1 1 1 0 Clear the “Read-Modify-Write” mode

Reset

0 1 0 1 1 1 0 0 0 1 0 Resets the LCD module

Set the COM scanning direction

SHL=0, Normal display

SHL Select

0 1 0 1 1 0 0

* * *

SHL=1, Flipped in y direction

* = don’t care terms

Set the power circuit operation mode

VF: LCD Supply Voltage Follower

Power Control Set

0 1 0 0 0 1 0 1

VR: LCD Supply Voltage Regulator

VC: LCD Supply Voltage Converter

(1=ON, 0=OFF)

Radio

Regulator Resistor Select 0 1 0 0 0 1 0 0

setting

Set the built-in resistor ratio (Rb/Ra)

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 11 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

4.6 Display Commands (continue)

Code

No. Instructions

Function

Electronic volume mode set 0 1 0 1 0 0 0 0 0 0 1 Set reference voltage mode

Electronic volume register

Electronic

Set reference voltage register

set

0 1 0 * *

Control value (Display contrast value)

0 1 0 1 0 1 0 1 1 0 S Sleep Mode (2 byte command)

Sleep Mode Set

0 1 0 0 0 0 0 0 0 0 0

S=0, sleep mode

S=1, normal mode

Booster Ratio Set

0 1 0 1 1 1 1 1 0 0 0 Booster Ratio (2 byte command)

Ratio=00, 2x, 3x, 4x

0 1 0 0 0 0 0 0 0

Rati

Ratio=01, 5x

Ratio=11, 6x

NOP

0 1 0 1 1 1 0 0 0 1 1 Non-operation command

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to ST7565R data sheet.

4.6.1 Power off the LCD Module

It recommends that enter Sleep Mode before power off the LCD module.

4.6.2 Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 12 of 13

TOPWAY

LCD Module User Manual

LM6029BCW

5. Design and Handling Precaution

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LM6029BCW-Manual-Rev0.1

Page: 13 of 13
