LM6059BCW

LM6059BCW

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Lin

Date: 2010-3-26

Date:

Rev. Descriptions

Release Date

0.1

Preliminary release

2007-09-20

0.2

Update Operating Current

2007-11-15

0.3

Typing Correction in “1.4 Terminal Function”

2007-12-20

0.4

Update terminal function (E & R/W pull hi in serial mode)

2010-02-02

0.5

Update LED Backlight Circuit

2010-3-26

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 1 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

Table of Content

1. Basic Specifications .............................................................................................................. 3

1.1

Display Specifications ............................................................................................................................................ 3

1.2

Mechanical Specifications ...................................................................................................................................... 3

1.3

Block Diagram ........................................................................................................................................................ 3

1.4

Terminal Functions ................................................................................................................................................. 4

1.5

Jumper Functions ................................................................................................................................................... 4

2. Absolute Maximum Ratings .................................................................................................. 5

3. Electrical Characteristics ...................................................................................................... 5

3.1

DC Characteristics ................................................................................................................................................. 5

3.2

LED Backlight Circuit Characteristics ..................................................................................................................... 5

3.3

AC Characteristics ................................................................................................................................................ 6

4. Function specifications ......................................................................................................... 8

4.1

The Serial Interface ................................................................................................................................................ 8

4.2

Basic Setting .......................................................................................................................................................... 8

4.3

Resetting the LCD module ..................................................................................................................................... 9

4.4

Display Memory Map.............................................................................................................................................. 9

4.5

Display Commands .............................................................................................................................................. 10

4.6

Display Commands (continue) ............................................................................................................................. 11

4.7

Basic Operating Sequence (example) .................................................................................................................. 12

5. Design and Handling Precaution ........................................................................................ 13

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 2 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

1. Basic Specifications

1.1 Display Specifications

1) LCD Display Mode

: FSTN, Positive, Transflective

2) Display Color

: Display Data = “1” : Dark Gray(*1)

: Display Data = “0” : Light Gray (*2)

3) Viewing Angle

: 6H

4) Driving Method

: 1/65 duty, 1/9 bias

5) Backlight

: White LED backlight

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

*2. The Color is defined as the inactive / background color

1.2 Mechanical Specifications

1) Outline Dimension

: 50.9 x 40.9 x 10.0MAX (mm)

(See attached Outline Drawing for details)

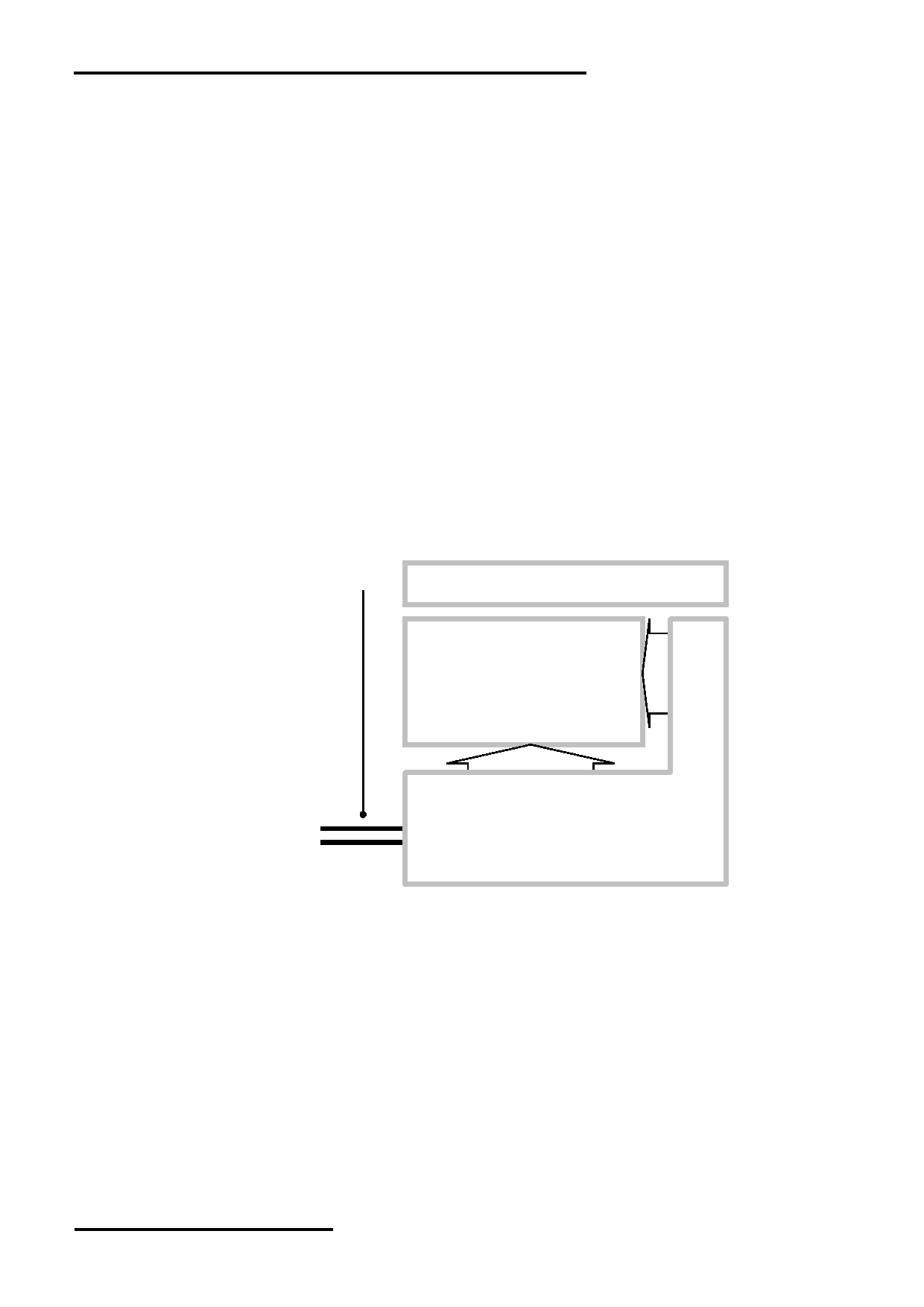

1.3 Block Diagram

BLA

Backlight Circuit

COM63

LCD Panel

128 × 64Pixels

COM0

VDD

VSS

D0~D7

/CS1, R/W, E, A0, /RES

ST7565P or equivalent

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 3 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

1.4 Terminal Functions

PIN NO PIN Name

I/O

Descriptions

6800 mode

Serial mode

/CS1

Input

Chip Select

/CS1=L, enable access to the LCD module

/CS1=H, disable access to the LCD module

/RES

Input

Reset signal

/RES = L, Initialization is executed

/RES = H, Normal running.

Input

A0 = H, Transferring the Display Data

A0 = L, Transferring the Control Data

R/W

Input

R/W=H,E=H;

Not used, pull Hi

Input

Data or Status read from the LCD module

R/W=L,E=H  L;

Data or Status latch into the LCD module

I/O

8-bit Data bus;

Not used,

I/O

Three state I/O terminal for display data or Leave open

I/O

instruction data

D6(SCL)

I/O

when /CS=H,

Serial clock input

D7(SI)

I/O

D0~D7=High Impedance

Serial data input

VDD

Supply

Positive power supply

VSS

Supply

Negative power supply,0V

BLA

Supply

Positive power for LED backlight

No Connection, leave open

1.5 Jumper Functions

Interface selection is available by the jumper on the back side of the LCD module

JP1

JP2

Interface Mode

OPEN

6800 Mode (default)

OPEN

Serial Mode

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 4 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

2. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+3.3

V SS = 0V

Input Voltage

V IN

-0.3

V DD +0.3

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

3. Electrical Characteristics

3.1 DC Characteristics

V SS =0V, V DD =3.0V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

2.8

3.3

VDD

Input High Voltage

V IH

0.8xV DD

V DD

/RES, /CS1, A0,

Input Low Voltage

V IL

V SS

0.2xV DD

/WR, /RD, D0~D7

Output High Voltage

V OH

0.75xV DD

V DD

D0~D7

Output Low Voltage

V OL

V SS

0.25xV DD

D0~D7

Operating Current

I DD

0.4

1.5

mA VDD

3.2 LED Backlight Circuit Characteristics

V SS =0V, If=34mA, T OP =25  C

Items

Symbol

MIN

TYP

MAX

Unit Applicable Pin

Forword Voltage

Vf BLA

3.3

BLA

Forword Current

If BLA

mA BLA

BLA

VSS

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 5 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

3.3 AC Characteristics

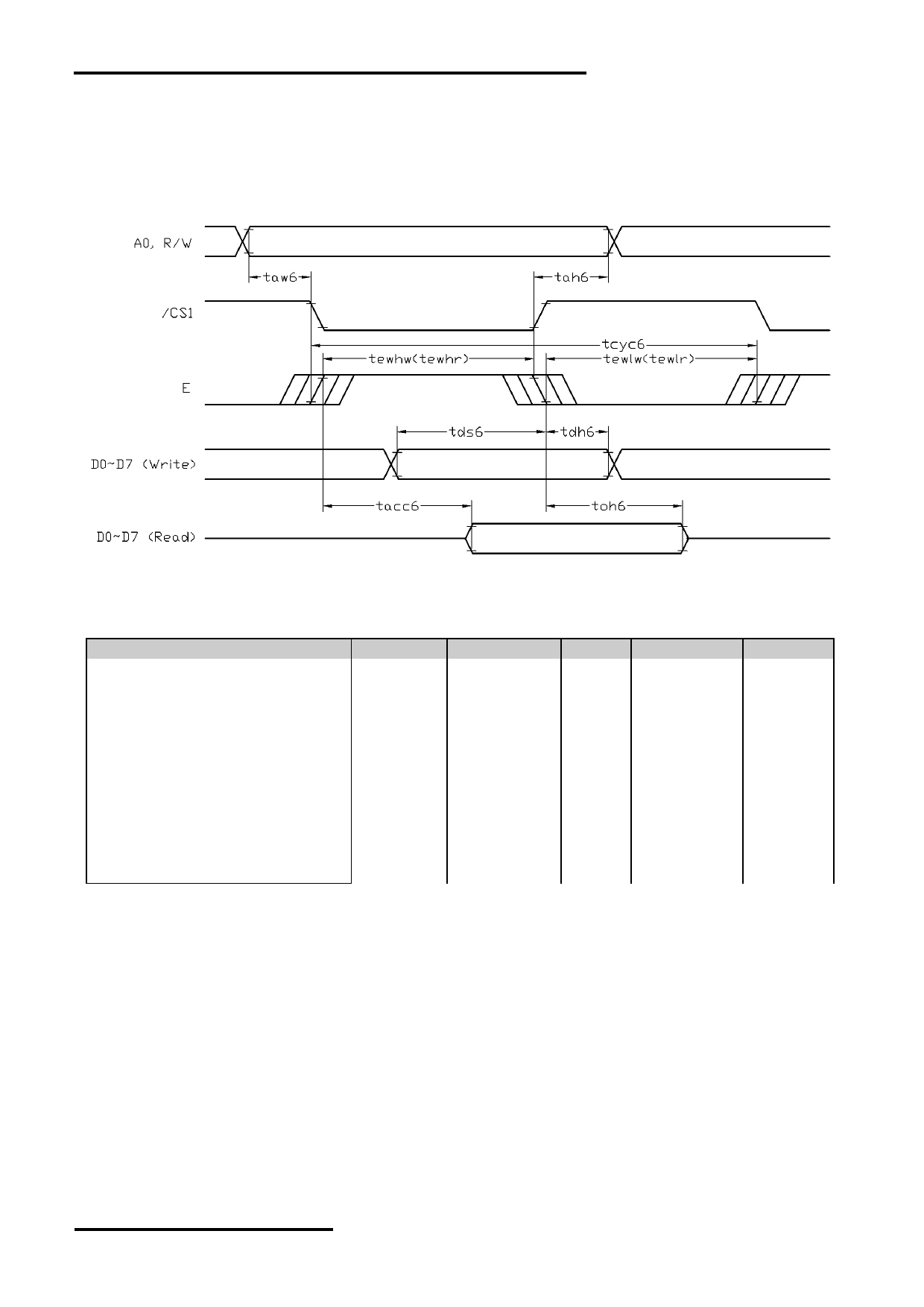

3.3.1 6800 Mode System Bus Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

System cycle time

tcyc6

500

Address setup time (A0)

taw6

Address hold time (A0)

tah6

Control LOW pulse width (/RD)

tewlr

275

Control LOW pulse width (/WR)

tewlw

275

Control HIGH pulse width (/RD)

tewhr

225

Control HIGH pulse width (/WR)

tewhw

225

Data setup time

tds6

Data hold time

tdh6

/RD access time (*2)

tacc6

175

Output disable time (*2)

tch6

125

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 6 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

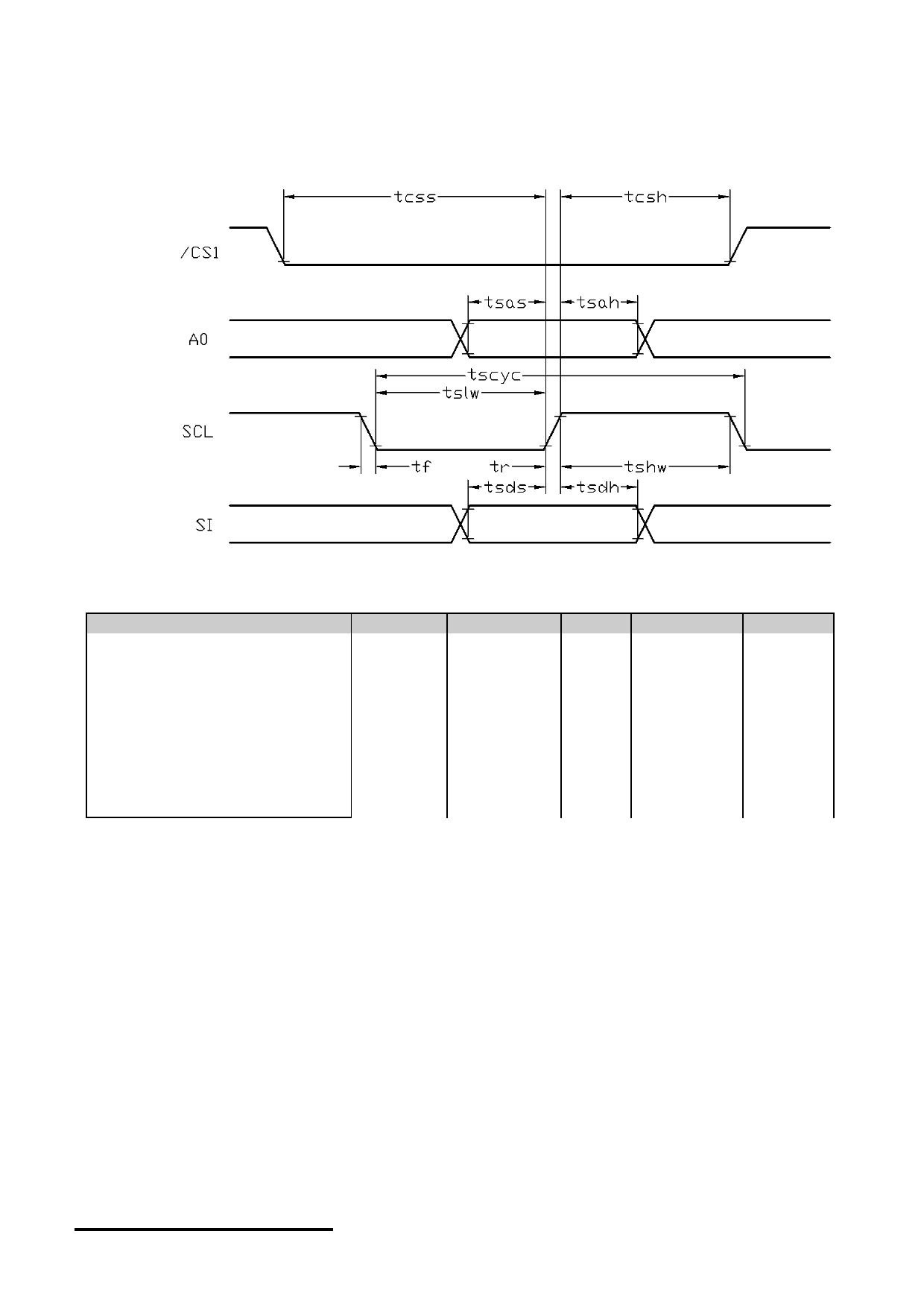

3.3.2 Serial Mode Interface

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Serial Clock Period

tscyc

125

Address setup time (A0)

tsas

Address hold time (A0)

tsah

SCL “H” pulse width

tshw

SCL “L” pulse width

tslw

Data setup time

tsds

Data hold time

tsdh

CS-SCL time

tcss

CS-SCL time

tcsh

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 7 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

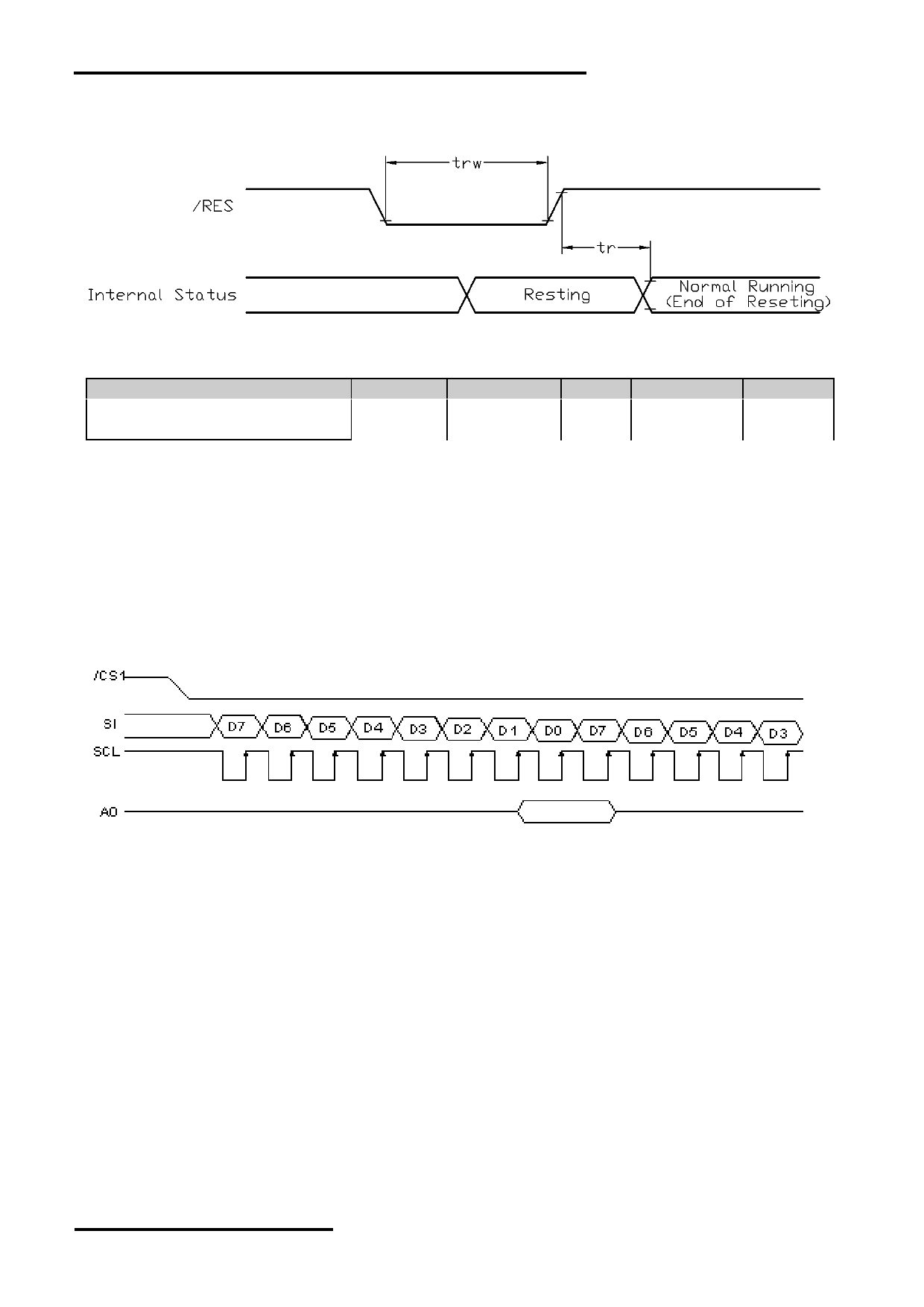

3.3.3 Reset Timing

V SS =0V, V DD =3.0V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset time

2.5

μs

Reset LOW pulse width

trw

2.5

μs

Note:

*1.All timing is using 20% and 80% of VDD as the reference.

4. Function specifications

4.1 The Serial Interface

When the serial interface has been selected then when the chip is in active state the serial data

input(SI) and the serial clock(SCL) can be received. The serial data is read from the serial data

input pin in the rising edge of the serial clock . When “A0”=“H”, the data is display data, and when

“A0”=“L”, the data is command.

4.2 Basic Setting

To drive the LCD module correctly and provide normally display, please use the following setting

- ADC = 0 (normal)

- SHL select = 1 (reverse)

- LCD Bias Select = 1/9

- Initial Display Line = 0

- Entire Display ON/OFF = OFF (normal)

- Reverse Display ON/OFF = OFF (normal)

- Set Power Control Set:

voltage follower = ON, voltage converter = ON, voltage regulator = ON

- Display ON/OFF = ON

Note:

*1. These setting/commands should issue the LCD module while start up.

*2. See the Display Commands section for details.

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 8 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

4.3 Resetting the LCD module

The LCD module should be initialized by using /RES terminal.

While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the

power supply stabilized, release the reset terminal (/RES=HIGH)

4.4 Display Memory Map

Page address

data

LCD Display (front view)

128x64 pixels

Column Address

00h



7Fh

Note:

*1. ADC = 0 (normal)

*2. SHL Selection = 1 (reverse)

*3. Initial Display Line = 0

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 9 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

4.5 Display Commands

Code

No. Instructions

Function

DON=0, display off

Display ON/OFF

0 1 0 1 0 1 0 1 1 1

DON=1, display oin

Display start

Sets the display RAM display start line

Display start line set

0 1 0 0 1

address

Page

Set Page Address

0 1 0 1 0 1 1

Address

Set the display RAM page address

Set Column Address

0 1 0 0 0 0 1

Col. Add.

Set the upper-4-bit of column address counter

(Upper-4-bits)

Upper

Set Column Address

0 1 0 0 0 0 0

Col. Add.

Set the lower-4-bit of column address counter

(Lower-4-bits)

Lower

Read the status data

Read Status

0 0 1 Status

0 0 0 0

Write Display Data

1 1 0

Write Data

Write data into the display RAM

Read Display Data

1 0 1

Read Data

Read data form the display RAM

Sets the display RAM address SEG output

ADC Select

0 1 0 1 0 1 0 0 0 0

correspondence

ADC= 0,normal . ADC=1, reverse

REV=0, Normal display

Normal/Reverse Display 0 1 0 1 0 1 0 0 1 1

REV=1, Reverse display

EON=0, Normal display

Entire Display ON/OFF

0 1 0 1 0 1 0 0 1 0

EON=1, Entire display ON

Set the LCD driving voltage bias

Set LCD Bias

0 1 0 1 0 1 0 0 0 1

BIAS=0, 1/9 BIAS

BIAS=1, 1/7 BIAS

Enter the “Read-Modify-Write” mode

column address counter will increase in each

Set Read-Modify-Write

0 1 0 1 1 1 0 0 0 0 0 “Write Display Data”,

and will not increase in each “Read Display

Data command”

Reset Read-Modify-Write 0 1 0 1 1 1 0 1 1 1 0 Clear the “Read-Modify-Write” mode

Reset

0 1 0 1 1 1 0 0 0 1 0 Resets the LCD module

Set the COM scanning direction

SHL=0, Normal display

SHL Select

0 1 0 1 1 0 0

* * *

SHL=1, Flipped in y direction

* = don’t care terms

Set the power circuit operation mode

VF: LCD Supply Voltage Follower

Power Control Set

0 1 0 0 0 1 0 1

VR: LCD Supply Voltage Regulator

VC: LCD Supply Voltage Converter

(1=ON, 0=OFF)

Radio

Regulator Resistor Select 0 1 0 0 0 1 0 0

setting

Set the built-in resistor ratio (Rb/Ra)

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to ST7565P data sheet.

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 10 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

4.6 Display Commands (continue)

Code

No. Instructions

Function

Electronic volume mode set 0 1 0 1 0 0 0 0 0 0 1 Set reference voltage mode

Electronic volume register

Electronic

Set reference voltage register

set

0 1 0 * *

Control value (Display contrast value)

Compound Instruction:

Power Save

- - - - - - - - - - -

Display OFF + Entire Display ON

NOP

0 1 0 1 1 1 0 0 0 1 1 Non-operation command

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to ST7565P data sheet.

4.6.1 Power off the LCD Module

It recommends that enter Power Save mode before power off the LCD module.

4.6.2 Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 11 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

4.7 Basic Operating Sequence (example)

4.7.1 Initialization Sequence

Code Function

hex

Note

Turn on Power Supply VDD & VSS

While maintaining /RES at LOW

- - - - - - - - -

↓

Wait until power supply is stabilized

- - - - - - - - -

↓

Release the /RES Reset Signal

See AC Characteristics section

(/RES = HIGH)

- - - - - - - - -

for timing details

↓

LCD bias = 1/9

0 1 0 1 0 0 0 1 0

A2h

LCD panel Characteristic

↓

ADC = normal

0 1 0 1 0 0 0 0 0

A0h

No flip on x-direction (SEG)

↓

SHL = reverse

0 1 1 0 0 1 0 0 0

C8h

Flip on y-direction (COM)

↓

Initial Display Line=0

0 0 1 0 0 0 0 0 0

40h

i.e. Display RAM “page 0 - D0”

Matched to top line of the LCD

↓

Power Control

Voltage Follower = OFF

Turn on the internal Voltage

Voltage Regulator = OFF

0 0 0 1 0 1 1 0 0

2Ch

Converter and wait until VOUT

Voltage Converter = ON

stable.

Delay 50ms

- - - - - - - - -

↓

Power Control

Voltage Follower = OFF

Turn on the Internal Voltage

Voltage Regulator = ON

0 0 0 1 0 1 1 1 0

2Eh

Regulator and wait until VOUT

Voltage Converter = ON

stable.

Delay 50ms

- - - - - - - - -

↓

Power Control

Turn on the internal Voltage

Voltage Follower = ON

Follower and wait until VOUT

Voltage Regulator = ON

0 0 0 1 0 1 1 1 1

2Fh

stable

Voltage Converter = ON

Delay 50ms

- - - - - - - - -

↓

Regulator Resistor Select

0 0 0 1 0 0 1 1 0

26h

Set the built-in resistor ratio

↓

Set to the middle of the range

Set Reference Voltage Mode

0 1 0 0 0 0 0 0 1

81h

It may be adjusted for achieving

the best display contrast

Set Reference Voltage Resistor

0 0 0 0 1 1 0 1 0

1Ah

↓

Display ON

0 1 0 1 0 1 1 1 1

AFh

Turn on the LCD display

↓

Set Page Address = 0

0 1 0 1 1 0 0 0 0

B0h

Specify the Display Data RAM

page address to 00h

↓

Set Column Address (Upper-4bit=0)

0 0 0 0 1 0 0 0 0

10h

Specify the Display Data RAM

Set Column Address (Lower-4bit=0)

0 0 0 0 0 0 0 0 0

00h

column address to 00h

↓

Write data to Display Data RAM.

Write Display Data

Display Data

After write, the internal Column

Address Counter will be

increased by 1 automatically

↓

Write Other Display Data …

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 12 of 13

TOPWAY

LCD Module User Manual

LM6059BCW

5. Design and Handling Precaution

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LM6059BCW-Manual-Rev0.5

Page: 13 of 13
