LM6063HFW
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Lin
Date:2010-6-4
Date:
Date:
Rev. Descriptions
Release Date
0.1
Preliminary release
2009-10-29
0.2
Add Terminal Definition and Interface setting
2010-6-4
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 1 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
Table of Content
1. Basic Specifications ................................................................................................................ 3
1.1 Display Specifications ................................................................................................................................................... 3
1.2 Mechanical Specifications ............................................................................................................................................. 3
1.3 Block Diagram ............................................................................................................................................................... 3
1.4
Terminal Functions ................................................................................................................................................. 4
2. Absolute Maximum Ratings .................................................................................................... 5
3. Electrical Characteristics ........................................................................................................ 5
3.1 DC Characteristics ........................................................................................................................................................ 5
3.2 LED Backlight Circuit Characteristics ............................................................................................................................ 5
3.3 AC Characteristics ........................................................................................................................................................ 6
4. Function specifications ........................................................................................................... 9
4.1 Basic Setting ................................................................................................................................................................. 9
4.2 Resetting the LCD module ............................................................................................................................................ 9
4.3 Display Memory Map .................................................................................................................................................. 10
4.4 Display Commands ..................................................................................................................................................... 11
4.5 Display Commands (continue) .................................................................................................................................... 12
5. Design and Handling Precaution .......................................................................................... 13
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 2 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
1. Basic Specifications
1.1 Display Specifications
1) LCD Display Mode
: STN, Negative, Transmissive
2) Display Color
: Display Data = “0” : Dark Blue(*1)
: Display Data = “1” : Light Gray (*2)
3) Viewing Angle
: 6H
4) Driving Method
: 1/65 duty, 1/9 bias
5) Backlight
: White LED backlight
Note:
*1. Color tone may slightly change by Temperature and Driving Condition.
*2. The Color is defined as the inactive / background color
1.2 Mechanical Specifications
1) Outline Dimension
: 93.0 x 70.0 x 10.1MAX (mm)
(See attached Outline Drawing for details)

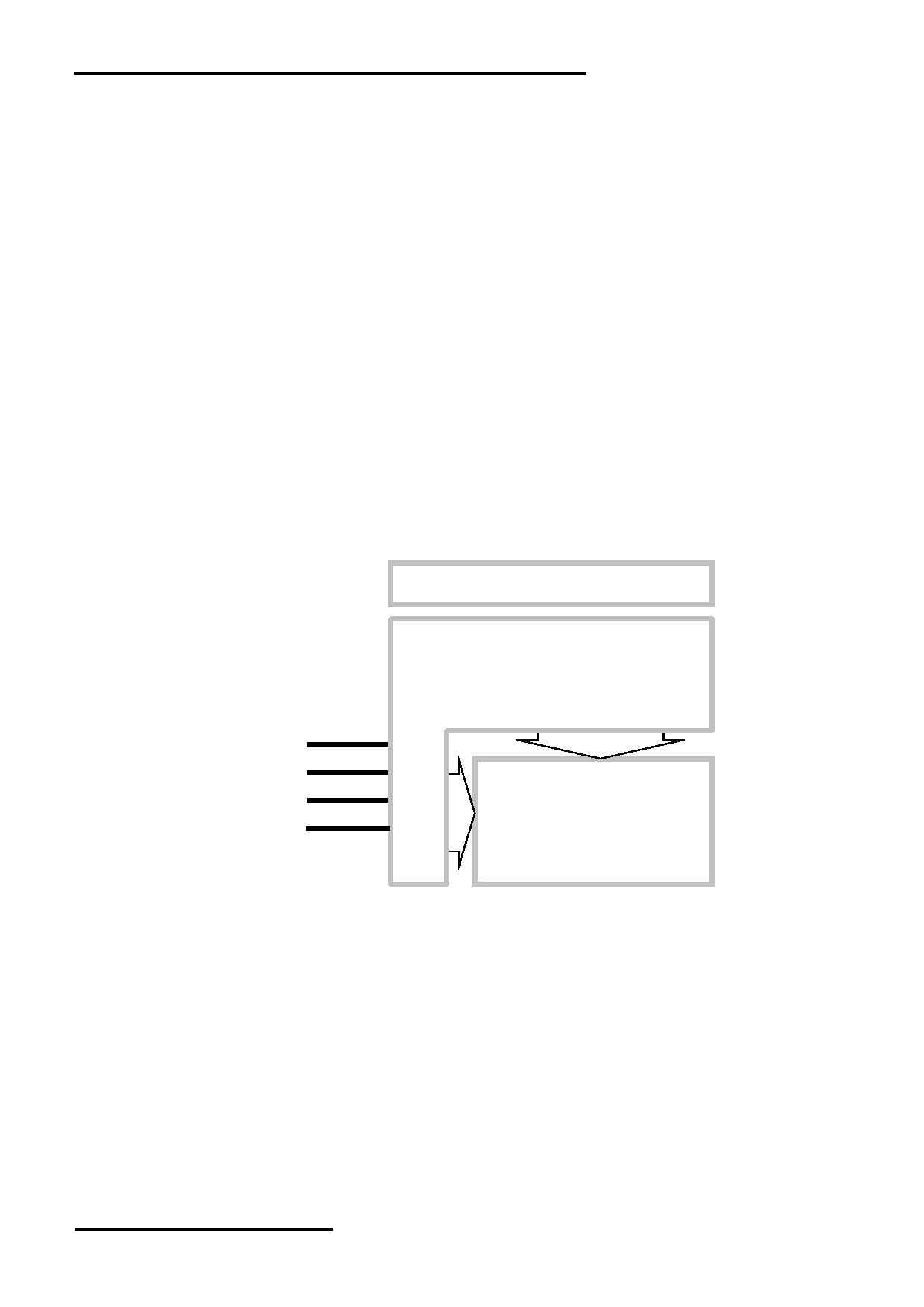

1.3 Block Diagram
BLA
BLK
Backlight Circuit
ST7565 or equivalent
VDD
GND
DB0-DB5
DB6(SCLK), DB7(SID)
COM0
RESET, PSB
LCD Panel
:
/CS1, /WR(R/W), /RD(E), RS
128 × 64Pixels
COM63
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 3 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
1.4 Terminal Functions
K3
K1
PIN
Descriptions(PSB=H)
Descriptions(PSB=L)
Pin No. Pin No.
Name
I/O
8080 mode
6800 mode
SPI mode
1
1
VSS
Power
Negative power supply,0V
10
2
VDD
Power
Positive power supply
3
3
NC
/
/
Register Select
6
4
RS
Input
RS = H, Transferring the Display Data
RS = L, Transferring the Control Data
/WR=L  H, /RD=H;
R/W=H,E=H;
Not used,
/
5
/WR(R/W)
Input
Data or Instruction latch Data or Status connect to VDD
into the LCD module
read from the LCD
6
Input
/WR=H, /RD=L;
module
Data or Status read
R/W=L,E=H  L;
/
/RD(E)
form the LCD module
Data or Status
latch into the LCD
module
/
7
DB0
I/O
8-bit Data bus;
DB5-DB0 connect to
/
:
:
:
Three state I/O terminal for display data or
VDD
/
12
DB5
I/O
instruction data
2
13
DB6(SCL)
I/O
when /CS=H, DB0~DB7=High Impedance
Serial clock input
5
14
DB7(SI)
I/O
Serial data input
Parallel or SPI setting
/
15
PSB
Input
PSB=H, Parallel(8080 or 6800) mode
PSB=L, SPI mode(Default)
Chip Select
7
16
/CS
Input
/CS=L, enable access to the LCD module
/CS=H, disable access to the LCD module
Reset signal
8
17
/RESET
Input
/RESET = L, Initialization is executed
/RESET = H, Normal running.
9
18
NC
/
/
4
19
BLA
Power
Positive power for LED backlight
/
20
BLK
Power
Negative power for LED backlight
Interface setting:
Setting
8080 mode
6800 mode
SPI mode(Default)*
JP1
OPEN
CLOSE
OPEN
JP2
CLOSE
CLOSE
OPEN
JP4
CLOSE
OPEN
CLOSE
JP5
OPEN
OPEN
CLOSE
*Note: SPI Interface Setting on K1 Terminal: PSB=L, use SPI Interface.
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 4 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit Condition
Supply Voltage
V DD
-0.3
+3.4
V
V SS = 0V
Input Voltage
V IN
-0.3
V DD +0.3
V
V SS = 0V
Operating Temperature
T OP
-20
+70
 C
No Condensation
Storage Temperature
T ST
-30
+80
 C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional
operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure
to extreme conditions may affect device reliability.
3. Electrical Characteristics
3.1 DC Characteristics
V SS =0V, V DD =3.3V, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit Condition /
Application Pin
Operating Voltage
V DD
2.9
3.3
3.4
V
VDD
Input High Voltage
V IH
0.8xV DD
-
V DD
V
/RES, /CS1, A0, SI,
Input Low Voltage
V IL
V SS
-
0.2xV DD
V
SCL
Operating Current
I DD
-
0.36
1.8
mA
VDD

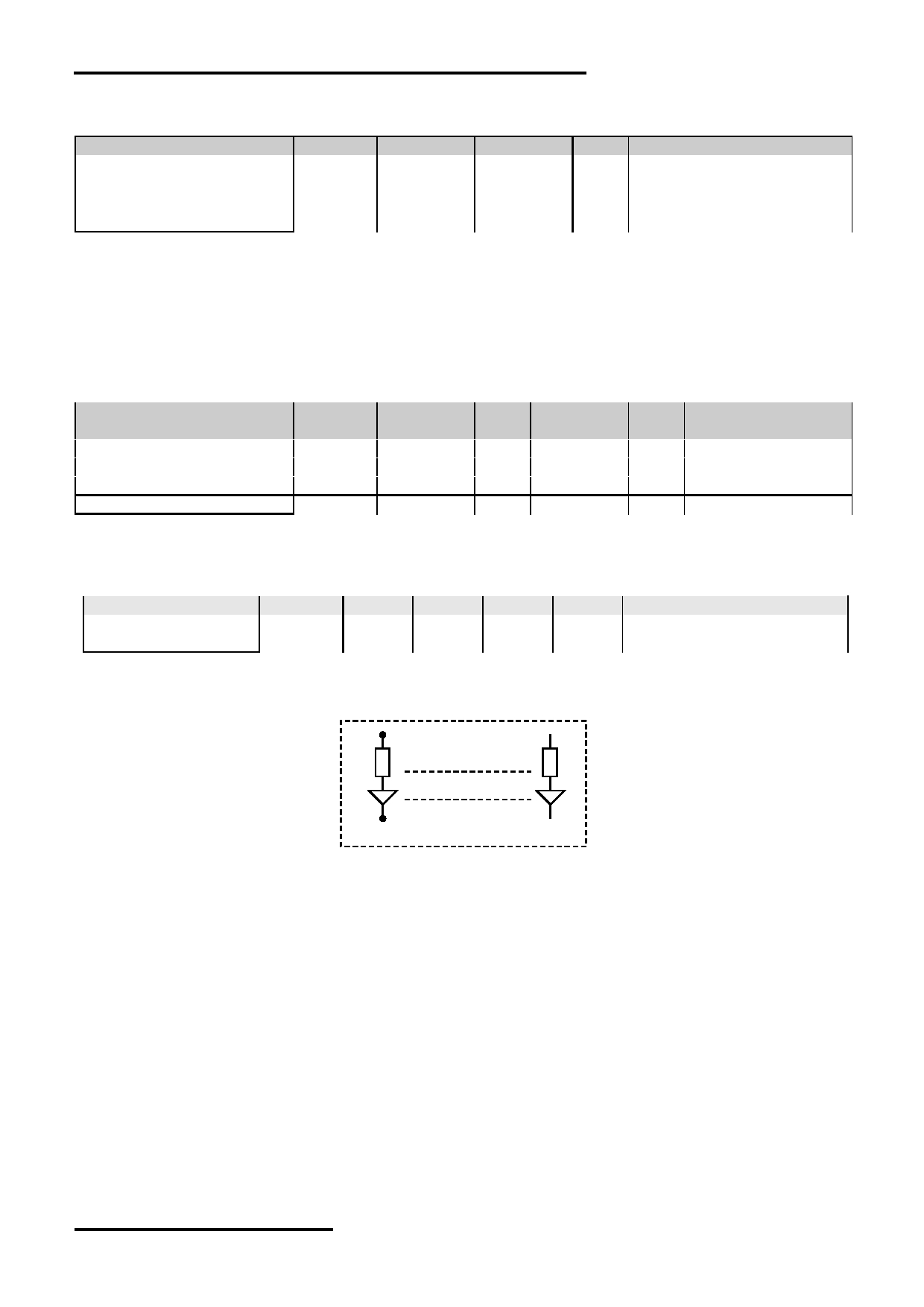

3.2 LED Backlight Circuit Characteristics
VSS=0V, If BLA =85mA, T OP =25  C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
Vf BLA
-
3.3
-
V
BLA
Forward Current
If BLA
-
85
100
mA
BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.
BLA
VSS
No. of LED = 5pcs
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 5 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
3.3 AC Characteristics
3.3.1 8080 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
System cycle time
tcyc8
342
-
-
ns
Address setup time (RS)
taw8
10
-
-
ns
Address hold time (RS)
tah8
10
-
-
ns
Control LOW pulse width (/WR)
tcclw
114
-
-
ns
Control LOW pulse width (/RD)
tcclr
200
-
-
ns
Control HIGH pulse width (/WR)
tcchw
114
-
-
ns
Control HIGH pulse width (/RD)
tcchr
114
-
-
ns
Data setup time
tds8
57
-
-
ns
Data hold time
tdh8
10
-
-
ns
/RD access time (*2)
tacc8
-
-
100
ns
Output disable time (*2)
tch8
7
-
71
ns
Note:
*1. Input signal rise/fall time should be less than 15ns
*2. CL=100pF
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 6 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
3.3.2 6800 Mode System Bus Timing
V SS =0V, V DD =3.3V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
System cycle time
tcyc6
342
-
-
ns
Address setup time (RS)
taw6
10
-
-
ns
Address hold time (RS)
tah6
10
-
-
ns
Control LOW pulse width (E)
tewlr
114
-
-
ns
Control LOW pulse width (R/W)
tewlw
114
-
-
ns
Control HIGH pulse width (E)
tewhr
200
-
-
ns
Control HIGH pulse width (R/W)
tewhw
114
-
-
ns
Data setup time
tds6
57
-
-
ns
Data hold time
tdh6
10
-
-
ns
/RD access time (*2)
tacc6
-
-
100
ns
Output disable time (*2)
toh6
7
-
71
ns
Note:
*1. Input signal rise/fall time should be less than 15ns
*2. CL=100pF
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 7 of 13
TOPWAY
LCD Module User Manual
LM6063HFW

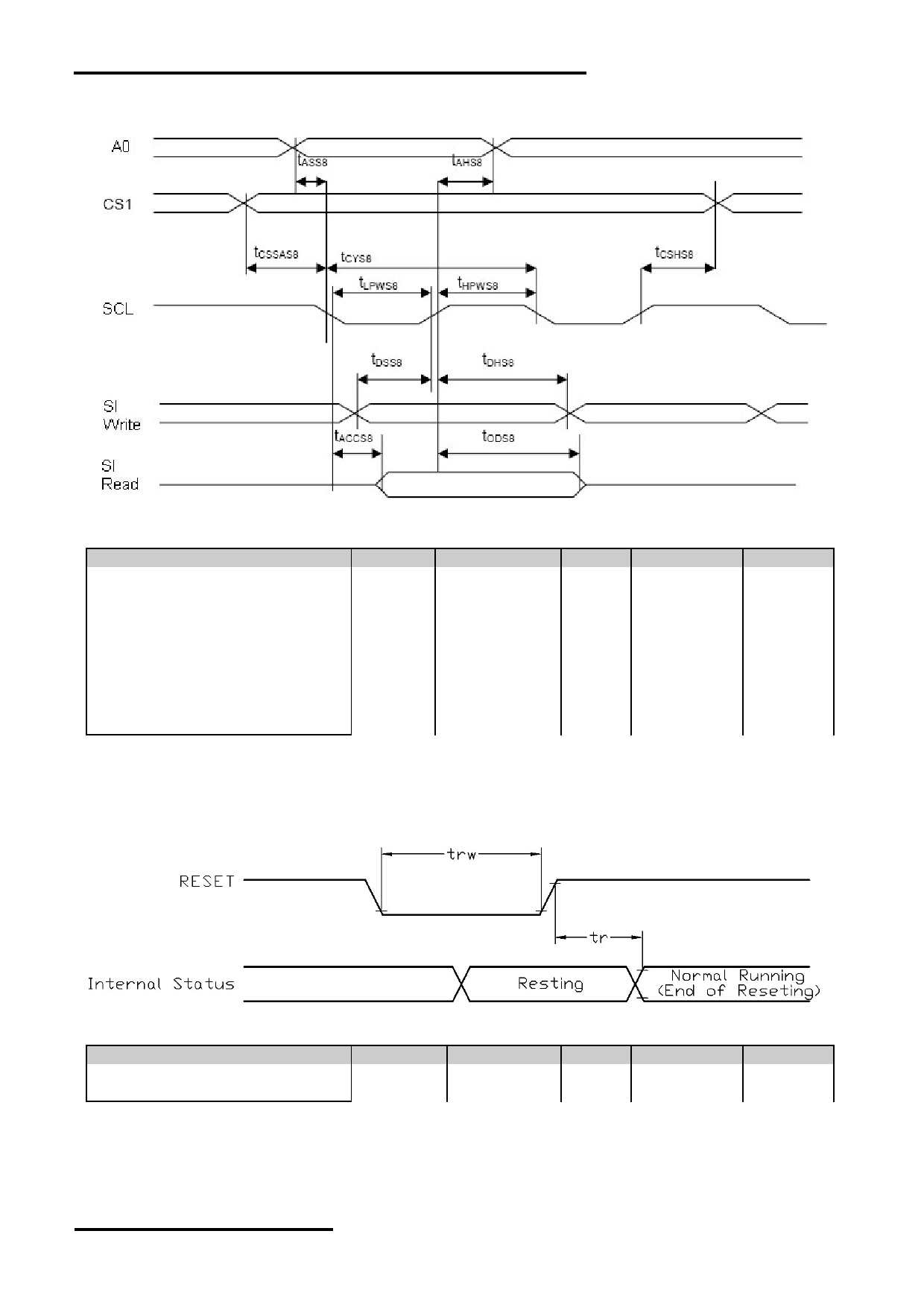

3.3.3 SPI Mode System Bus Timing
V SS =0V, V DD =3.0V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
System cycle time
tcys8
36
-
-
ns
Address setup time (A0)
tass8
0
-
-
ns
Address hold time (A0)
tahs8
0
-
-
ns
Control LOW pulse width (SCL)
tlpws8
20
-
-
ns
Control HIGH pulse width (SCL)
thpwh8
20
-
-
ns
Data setup time
tdss8
20
-
-
ns
Data hold time
tdhs8
0
-
-
ns
Read access time (*2)
taccs8
-
-
60
ns
Output disable time (*2)
tods8
15
-
-
ns
Note:
*1. Input signal rise/fall time should be less than 15ns .
*2. CL=100pF
*3.All timing is using 20% and 80% of VDD as the reference.
3.3.2 Reset Timing
V SS =0V, V DD =3.0V, T OP =25  C
Item
Symbol
MIN.
TYP.
MAX.
Unit
Reset time
tr
10
-
-
ms
Reset LOW pulse width
trw
3
-
-
μs
Note:
*1.All timing is using 20% and 80% of VDD as the reference.
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 8 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
4. Function specifications
4.1 Basic Setting
To drive the LCD module correctly and provide normally display, please use the following setting
- ADC = 1 (reverse)
- SHL select = 0 (normal)
- LCD Bias Select = 1/9
- Initial Display Line = 0
- Entire Display ON/OFF = OFF (normal)
- Reverse Display ON/OFF = OFF (normal)
- Set Power Control Set:
voltage follower = ON, voltage converter = ON, voltage regulator = ON
- Display ON/OFF = ON
Note:
*1. These setting/commands should issue the LCD module while start up.
*2. See the Display Commands section for details.
4.2 Resetting the LCD module
The LCD module should be initialized by using /RESET terminal.
While turning on the VDD and VSS power supply, maintain /RESET terminal at LOW level. After the power
supply stabilized, release the reset terminal (RESET=HIGH)
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 9 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
4.3 Display Memory Map
Page address
data
LCD Display (front view)
D0
0
:
D7
D0
1
:
D7
D0
2
:
D7
D0
3
:
D7
D0
4
:
128x64 pixels
D7
D0
5
:
D7
D0
6
:
D7
D0
7
:
D7
Column Address
00h
7Fh
Note:
*1. ADC = 1 (reverse)
*2. SHL Selection = 0 (normal)
*3. Initial Display Line = 0
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 10 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
4.4 Display Commands
Code
No. Instructions
Function
DON=0, display off
1
Display ON/OFF
0 1 0 1 0 1 0 1 1 1
DON=1, display on
Display start
Sets the display RAM display start line
2
Display start line set
0 1 0 0 1
address
address
Page
3
Set Page Address
0 1 0 1 0 1 1
Address
Set the display RAM page address
Set Column Address
0 1 0 0 0 0 1
Col. Add.
Set the upper-4-bit of column address counter
(Upper-4-bits)
Upper
4
Set Column Address
0 1 0 0 0 0 0
Col. Add.
Set the lower-4-bit of column address counter
(Lower-4-bits)
Lower
Read the status data
5
Read Status
0 0 1 Status
0 0 0 0
6
Write Display Data
1 1 0
Write Data
Write data into the display RAM
7
Read Display Data
1 0 1
Read Data
Read data form the display RAM
Sets the display RAM address SEG output
8
ADC Select
0 1 0 1 0 1 0 0 0 0
correspondence
ADC= 0,normal . ADC=1, reverse
REV=0, Normal display
9
Normal/Reverse Display 0 1 0 1 0 1 0 0 1 1
REV=1, Reverse display
EON=0, Normal display
10
Entire Display ON/OFF
0 1 0 1 0 1 0 0 1 0
EON=1, Entire display ON
Set the LCD driving voltage bias
11
Set LCD Bias
0 1 0 1 0 1 0 0 0 1
BIAS=0, 1/9 BIAS
BIAS=1, 1/7 BIAS
Enter the “Read-Modify-Write” mode
column address counter will increase in each
12
Set Read-Modify-Write
0 1 0 1 1 1 0 0 0 0 0 “Write Display Data”,
and will not increase in each “Read Display
Data command”
13
Reset Read-Modify-Write 0 1 0 1 1 1 0 1 1 1 0 Clear the “Read-Modify-Write” mode
14
Reset
0 1 0 1 1 1 0 0 0 1 0 Resets the LCD module
Set the COM scanning direction
SHL=0, Normal display
15
SHL Select
0 1 0 1 1 0 0
* * *
SHL=1, Flipped in y direction
* = don’t care terms
Set the power circuit operation mode
VF: LCD Supply Voltage Follower
16
Power Control Set
0 1 0 0 0 1 0 1
VR: LCD Supply Voltage Regulator
VC: LCD Supply Voltage Converter
(1=ON, 0=OFF)
Radio
17
Regulator Resistor Select 0 1 0 0 0 1 0 0
setting
Set the built-in resistor ratio (Rb/Ra)
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 11 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
4.5 Display Commands (continue)
Code
No. Instructions
Function
18
Electronic volume mode set 0 1 0 1 0 0 0 0 0 0 1 Set reference voltage mode
Electronic volume register
Electronic
Set reference voltage register
set
0 1 0 * *
Control value (Display contrast value)
19
0 1 0 1 0 1 0 1 1 0 S Sleep Mode (2 byte command)
Sleep Mode Set
0 1 0 0 0 0 0 0 0 0 0
S=0, sleep mode
S=1, normal mode
Booster Ratio Set
0 1 0 1 1 1 1 1 0 0 0 Booster Ratio (2 byte command)
Ratio=00, 2x, 3x, 4x
20
0 1 0 0 0 0 0 0 0 Ratio Ratio=01, 5x
Ratio=11, 6x
21
NOP
0 1 0 1 1 1 0 0 0 1 1 Non-operation command
Note:
*1. Do not use any other command not listed, or the system malfunction may result.
*2. For the details of the Display Commands, please refer to ST7565R data sheet.
4.5.1 Power off the LCD Module
It recommends that enter Sleep Mode before power off the LCD module.
4.5.2 Refreshing The LCD Module
It recommends that the operating modes and display contents be refreshed periodically to prevent
the effect of unexpected noise.
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 12 of 13
TOPWAY
LCD Module User Manual
LM6063HFW
5. Design and Handling Precaution
Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
URL: www.topwaydisplay.com
Document Name: LM6063HFW-Manual-Rev0.2
Page: 13 of 13
