1. Basic Specifications

1.1 Display Specifications

1) LCD Display Mode

: FSTN, Positive, Transflective

2) Display Color

: Display Data = “1” : Dark Gray (*1)

: Display Data = “0” : Light Gray (*2)

3) Viewing Angle

: 12H

4) Driving Method

: 1/65 duty, 1/9 bias

5) Backlight

: While LED backlight

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

*2. The Color is defined as the inactive / background color

*3. Fine Contrast adjustment function is necessary in the application design for optimal display result

1.2 Mechanical Specifications

1) Outline Dimension

: 114.0 x 48.0 x 10.8MAX (mm)

(See attached Outline Drawing for details)

1.3 Block Diagram

BLA

BLK

Back light

LCD Panel

192 × 64Pixels

VSS

VDD

A0,/CS1, /RES

IST3020 or equivalent

SCL,SID

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 3 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

1.4 Terminal Functions

PIN

PIN

NO.

Name

I/O

Descriptions

1

NC

-

:

:

:

Not used, pull high or low

6

NC

-

7

SCL

I/O

Serial Clock Input

(Input)

8

SID

I/O

Serial Data Input

(Input)

9

NC

-

No connection (leave open)

10

NC

-

Register Select

11

A0

Input

RS = H, Transferring the Display Data

RS = L, Transferring the Control Data

12

NC

-

No connection (leave open)

13

VDD

Power Positive power supply

14

VSS

Power Negative power supply,0V

Chip Select

15

/CS1

Input

/CS1=L, enable access to the LCD module

/CS1=H, disable access to the LCD module

16

NC

-

No connection (leave open)

17

NC

-

Reset signal

18

/RES

Input

/RES = L, Initialization is executed

/RES = H, Normal running.

19

BLA

Power Positive Power Supply for LED backlight

20

BLK

Power Negative Power Supply for LED backlight

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 4 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

2. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+3.6

V

V SS = 0V

Input Voltage

V IN

-0.2

V DD +0.2

V

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

3. Electrical Characteristics

3.1 DC Characteristics

V SS =0V, V DD =3.3V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

3.0

3.3

3.6

V

VDD

Input High Voltage

V IH

0.8xV DD

-

V DD

V

/CS1,/RES,

Input Low Voltage

V IL

V SS

-

0.2xV DD

V

A0

SCL,SID

Operating Current

I DD

-

0.38

2.5

mA VDD

3.2 LED Backlight Circuit Characteristics

BLA=5.0V,BLK=0V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Forward Voltage

V BLA

-

5.0

-

V

BLA

Forward Current

I BLA-

-

75

100

mA

BLA

BLA

BLK

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 5 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

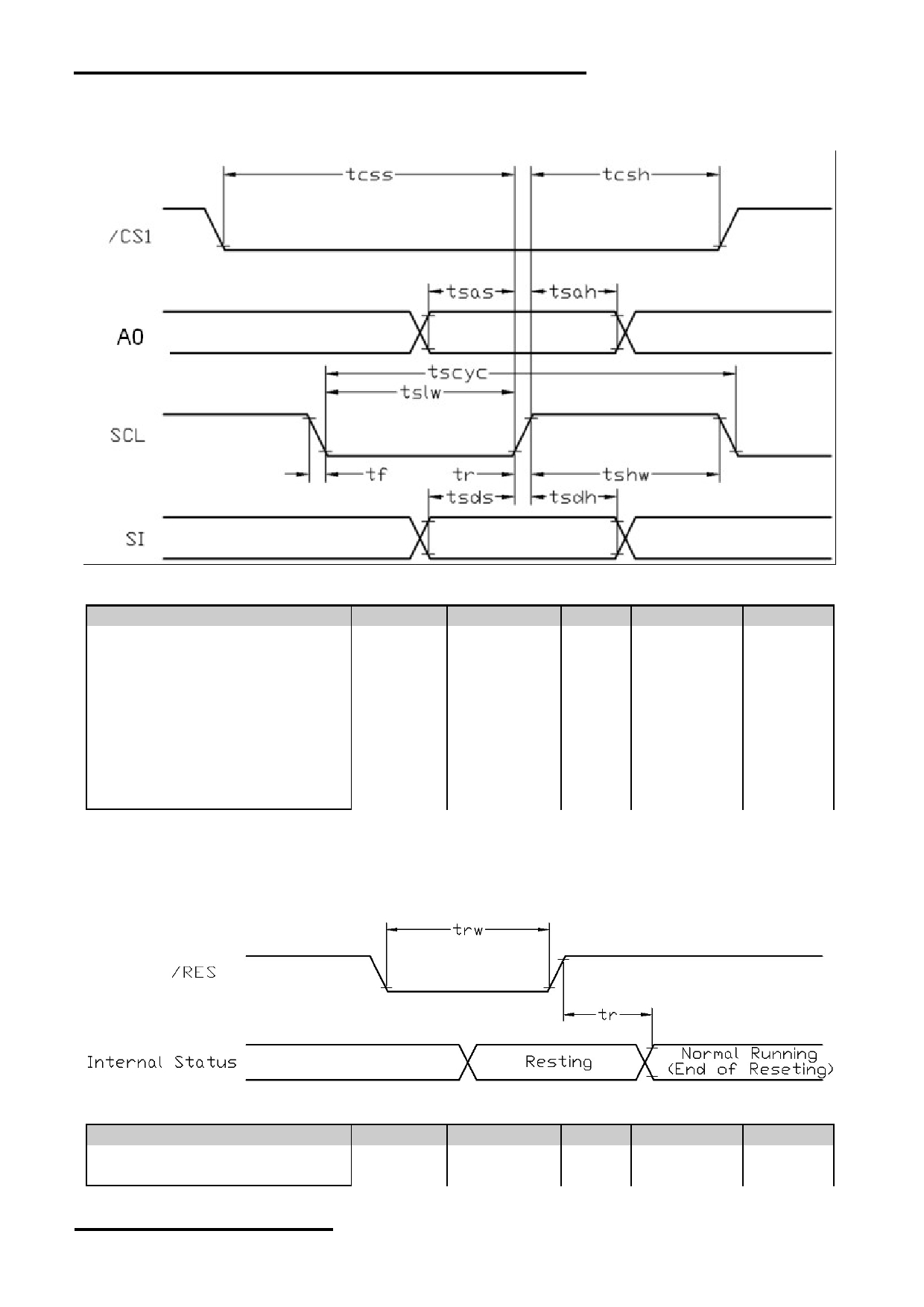

3.3 AC Characteristics

3.3.1 Serial Mode Interface

V SS =0V, V DD =3.3V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Serial Clock Period

tscyc

325

-

-

ns

Address setup time (A0)

tsas

195

-

-

ns

Address hold time (A0)

tsah

195

-

-

ns

SCL “H” pulse width

tshw

130

-

-

ns

SCL “L” pulse width

tslw

130

-

-

ns

Data setup time

tsds

130

-

-

ns

Data hold time

tsdh

130

-

-

ns

CS1-SCL time

tcss

195

-

-

ns

CS1-SCL time

tcsh

195

-

-

ns

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

3.4 Reset Timing

V SS =0V, V DD =3.3V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset time

tr

-

-

1.5

μs

Reset LOW pulse width

trw

1.5

-

-

μs

Note:

*1.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 6 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

4. Function specifications

4.1 Adjusting the Display Contrast

This LCD module equipped with latest digital contrast adjustment function.

Its display contrast could be adjusted by MCU command.

(Please see the command tables for details)

It is recommended to provide a contrast adjustment interface for end-user,

where the best display result could meet the individual preference in mass production.

4.2 Basic Setting

Basic Setting

To drive the LCD module correctly and provide normally display, please use the following setting

- ADC = 0 (normal)

- SHL select = 1 (reverse)

- LCD Bias Select = 1/9

- Initial Display Line = 0

- Entire Display ON/OFF = OFF (normal)

- Reverse Display ON/OFF = OFF (normal)

- Set Power Control Set:

voltage follower = ON, voltage converter = ON, voltage regulator = ON

- Built-in OSC = ON

- Display ON/OFF = ON

Note:

*1. These setting/commands should issue the LCD module while start up.

*2. See the Display Commands section for details.

4.3 Resetting the LCD module

The LCD module should be initialized by using /RES terminal.

While turning on the VDD and VSS power supply, maintain /RES terminal at LOW level. After the

power supply stabilized, release the reset terminal (/RES=HIGH)

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 7 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

4.4 Display Memory Map

Page address

data

LCD Display (front view)

D0

0

:

D7

D0

1

:

D7

D0

2

:

D7

D0

3

:

D7

D0

4

:

192x64 pixels

D7

D0

5

:

D7

D0

6

:

D7

D0

7

:

D7

Column Address

00H



BFH

Note:

*1. ADC = 0 (normal)

*2. SHL Selection = 0 (reverse)

*3. Initial Display Line = 0

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 8 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

4.5 Display Commands

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to IST3020 data sheet.

URL: www.topwaydisplay.com

Document Name: LM6071DCW-Manual-Rev0.2

Page: 9 of 11

TOPWAY

LCD Module User Manual

LM6071DCW

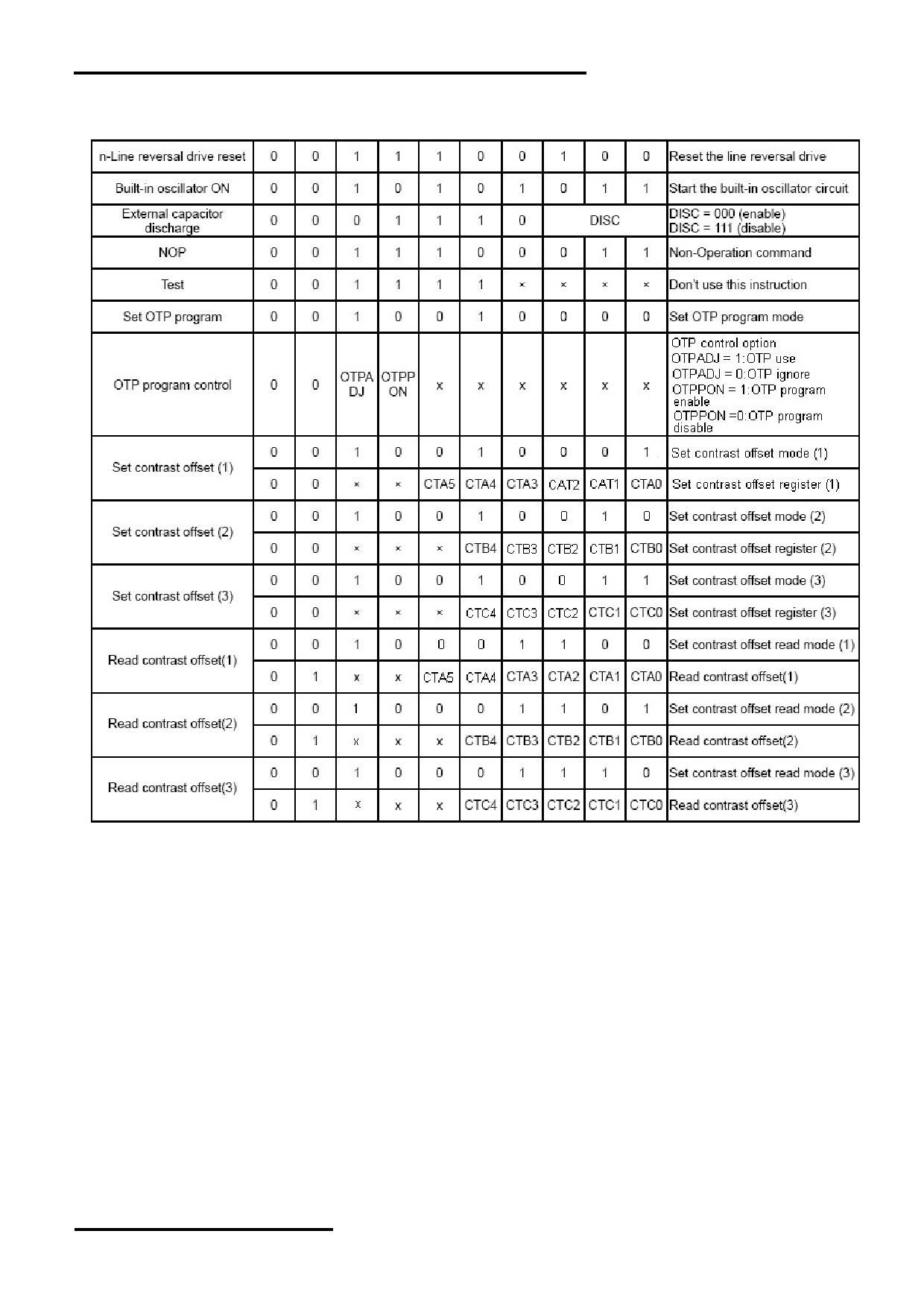

4.6 Display Commands (continue)

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to IST3020 data sheet.

4.6.1 Power off the LCD Module

It recommends that enter Power Save mode before power off the LCD module.

4.6.2 Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.
