LM6072AFW

LM6072AFW

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Luolailiang

Date:2012-04-11

Date:

Rev. Descriptions

Release Date

0.1

Preliminary release

2012-04-11

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 1 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

Table of Content

1. Basic Specifications .............................................................................................................. 3

1.1

Display Specifications ............................................................................................................................................ 3

1.2

Mechanical Specifications ...................................................................................................................................... 3

1.3

Block Diagram ........................................................................................................................................................ 3

2. Terminal Functions ................................................................................................................ 4

3. Absolute Maximum Ratings .................................................................................................. 5

4. Electrical Characteristics ...................................................................................................... 5

4.1

DC Characteristics ................................................................................................................................................. 5

4.2

LED Backlight Circuit Characteristics ..................................................................................................................... 5

4.3

AC Characteristics ................................................................................................................................................. 6

4.4

Reset Timing .......................................................................................................................................................... 6

5. Function specifications ......................................................................................................... 7

5.1

Adjusting the Display Contrast ............................................................................................................................... 7

5.2

Basic Setting .......................................................................................................................................................... 7

5.3

Resetting the LCD module ..................................................................................................................................... 7

5.4

Display Memory Map.............................................................................................................................................. 7

5.5

Display Commands ................................................................................................................................................ 8

5.6

Display Commands (continue) ............................................................................................................................... 9

6. Design and Handling Precaution ........................................................................................ 10

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 2 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

1. Basic Specifications

1.1 Display Specifications

1) LCD Display Mode

: STN-Blue, Negative, Transmissive

2) Display Color

: Display Data = “1” : Dark Gray (*1)

: Display Data = “0” : Light Gray (*2)

3) Viewing Angle

: 6H

4) Driving Method

: 1/65 duty, 1/9 bias

5) Backlight

: White LED Backlight

Note:

*1. Color tone may slightly change by Temperature and Driving Condition.

*2. The Color is defined as the inactive / background color

*3. Fine Contrast adjustment function is necessary in the application design for optimal display result

1.2 Mechanical Specifications

1) Outline Dimension

: 130.0x 65.0 x 11.5MAX (mm)

(See attached Outline Drawing for details)

1.3 Block Diagram

BLA

Back light

LCD Panel

192 × 64Pixels

VSS

VDD

/CS, /RST, RS,R/W,E

IST3020 or equivalent

DB0~DB7

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 3 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

2. Terminal Functions

Descriptions

NO.

Name

I/O

Parallel mode

68 mode <default>

80 mode

Serial mode

VSS

Power

Negative power supply,0V

VDD

Power

Positive power supply

No connection (leave open)

Input

RS = H, Transferring the Display Data

RS = L, Transferring the Control Data

In read mode

Write enable

Not used, pull

R/W = H;Data read form the

input, active

high or low

LCD module, data appears at

LOW

R/W(/WR)

Input

DB0 – DB7 and can be read by

the host while, E = H and the

device is being selected

In write mode

Read enable

R/W = L;Data write to the LCD

input, active

module, data appears at DB0 –

E(/RD)

Input

LOW

DB7 will be written into the LCD

module at E = H  L and device

is being selected

DB0

I/O

DB1

I/O

8-bit bi-directional data bus

DB6(SCLK)

I/O

Serial Clock

Input

DB7(SID)

I/O

Serial Data

Input

Chip Select

/CS

Input

/CS=L, enable access to the LCD module

/CS=H, disable access to the LCD module

Reset signal

/RST

Input

/RST = L, Initialization is executed

/RST = H, Normal running.

No connection (leave open)

BLA

Power

Positive Power Supply for LED backlight

Interface setting:

Setting

6800 mode(Default)

8080 mode

SPI mode

JP1

OPEN

JP2

OPEN

JP5

OPEN

JP6

OPEN

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 4 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

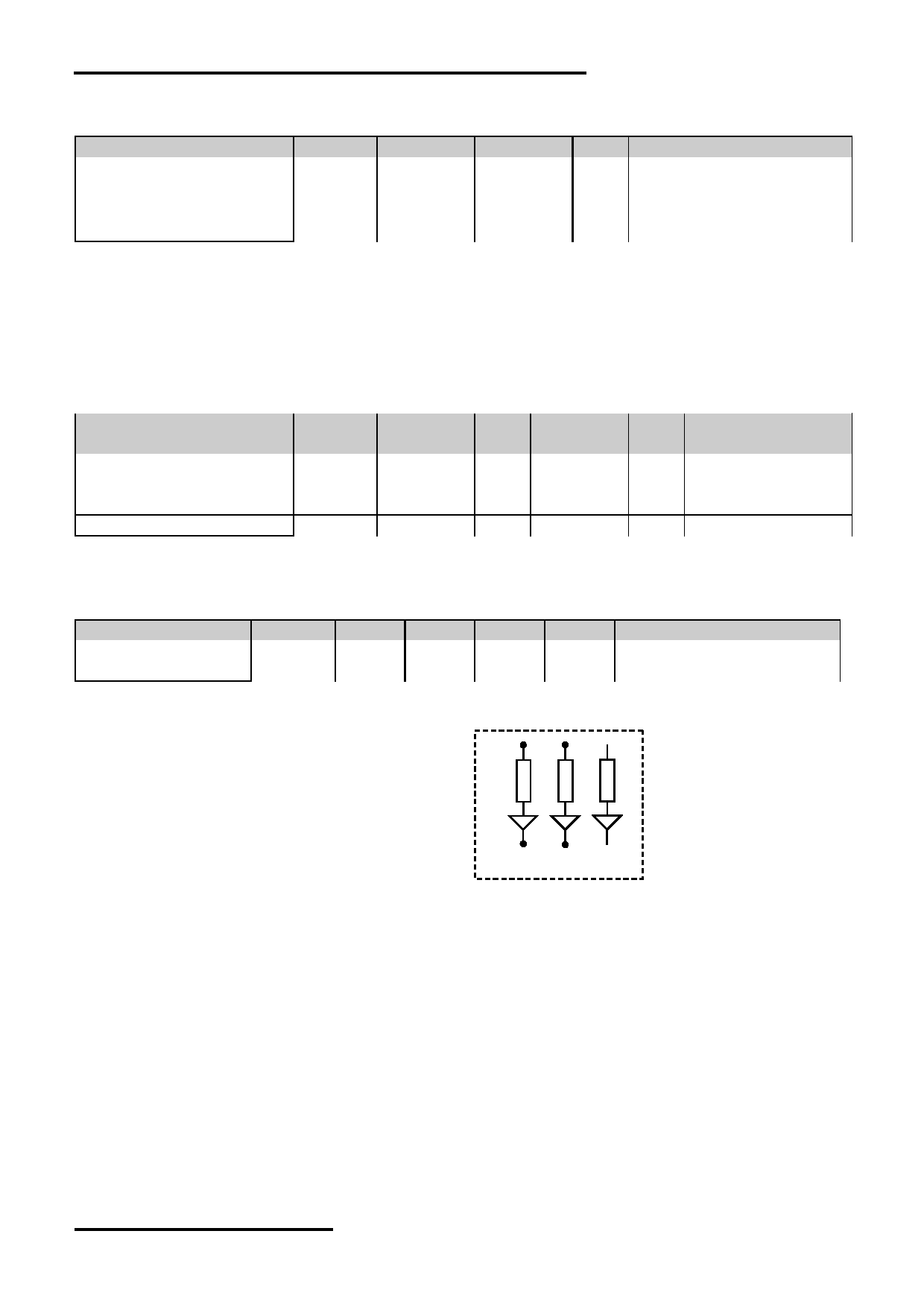

3. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+3.6

V SS = 0V

Input Voltage

V IN

-0.2

V DD +0.2

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

4. Electrical Characteristics

4.1 DC Characteristics

V SS =0V, V DD =3.3V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

3.0

3.6

VDD

Input High Voltage

V IH

0.85xV DD

V DD

/RST, /CS, RS

Input Low Voltage

V IL

V SS

0.15xV DD

DB0~DB7

Operating Current

I DD

0.33

1.7

mA VDD

4.2 LED Backlight Circuit Characteristics

V ss =0V, If BLA =51mA, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Forward Voltage

Vf BLA

3.3

BLA

Forward Current

If BLA

BLA

VSS

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 5 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

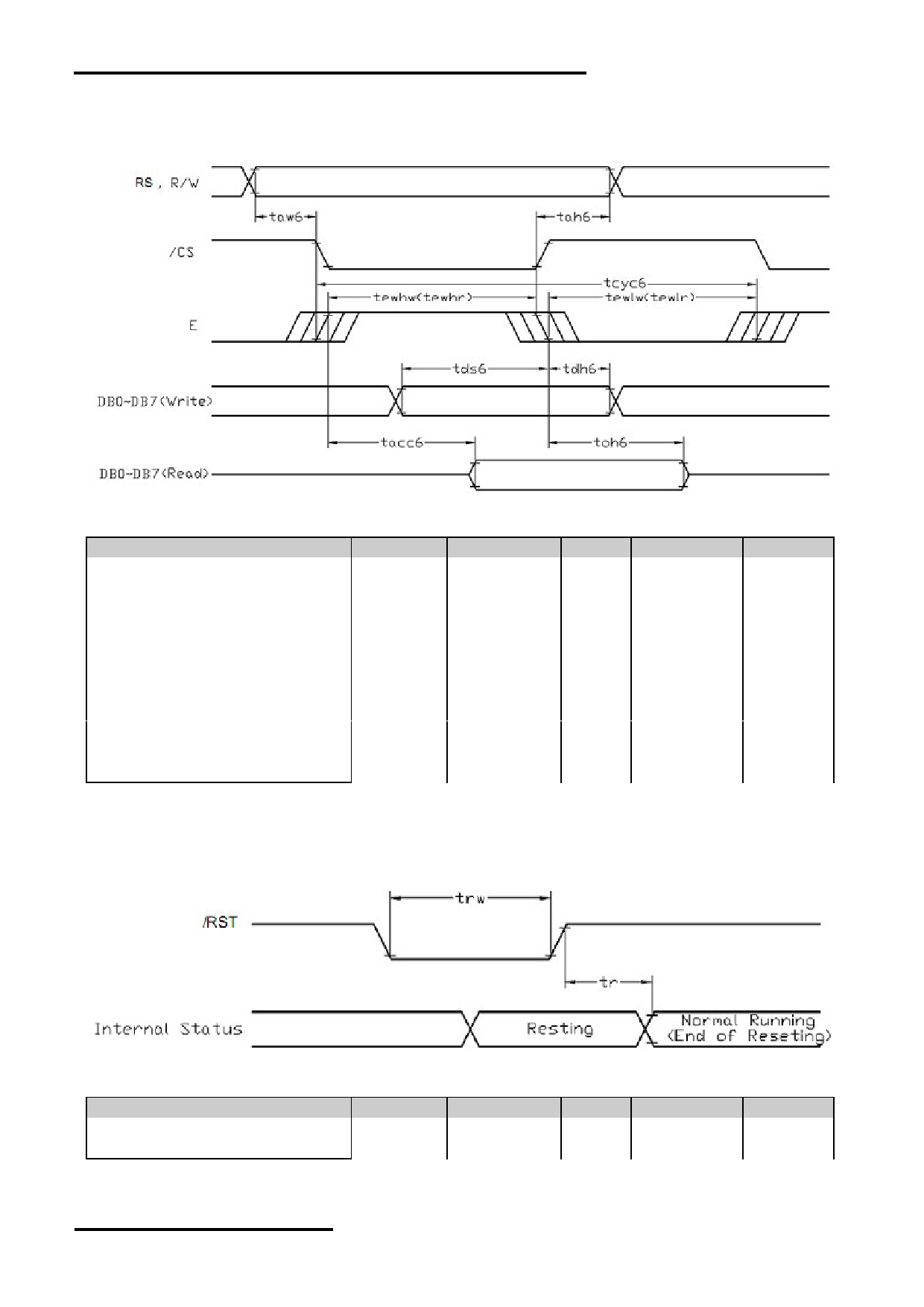

4.3 AC Characteristics

4.3.1 6800 Mode System Bus Timing

V SS =0V, V DD =3.3V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

System cycle time

tcyc6

430

Address setup time (RS)

taw6

Address hold time (RS)

tah6

Control LOW pulse width (R/W)

tewlr

Control LOW pulse width (R/W)

tewlw

Control HIGH pulse width (E)

tewhr

Control HIGH pulse width (R/W)

tewhw

Data setup time

tds6

Data hold time

tdh6

E access time (*2)

tacc6

200

Output disable time (*2)

toh6

143

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. CL=100pF

*3.All timing is using 20% and 80% of VDD as the reference.

4.4 Reset Timing

V SS =0V, V DD =3.3V, T OP =25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset time

1.5

μs

Reset LOW pulse width

trw

1.5

μs

Note:

*1.All timing is using 20% and 80% of VDD as the reference.

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 6 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

5. Function specifications

5.1 Adjusting the Display Contrast

- This LCD module equipped with latest digital contrast adjustment function.

- Its display contrast could be adjusted by MCU command. (please see the command tables for

details)

- It is recommended to provide a contrast adjustment interface for end-user, where the best

display result could meet the individual preference in mass production.

5.2 Basic Setting

To drive the LCD module correctly and provide normally display, please use the following setting

- ADC = 1 (reverse)

- SHL select = 0 (normal)

- LCD Bias Select = 1/9

- Initial Display Line = 0

- Entire Display ON/OFF = OFF (normal)

- Reverse Display ON/OFF = OFF (normal)

- Set Power Control Set:

voltage follower = ON, voltage converter = ON, voltage regulator = ON

- Built-in OSC = ON

- Display ON/OFF = ON

Note:

*1. These setting/commands should issue the LCD module while start up.

*2. See the Display Commands section for details.

5.3 Resetting the LCD module

The LCD module should be initialized by using /RST terminal.

While turning on the VDD and VSS power supply, maintain /RST terminal at LOW level. After the

power supply stabilized, release the reset terminal (/RST=HIGH)

5.4 Display Memory Map

Page address

data

LCD Display (front view)

DB0

DB7

DB0

DB7

DB0

DB7

DB0

DB7

DB0

192x64 pixels

DB7

DB0

DB7

DB0

DB7

DB0

DB7

Column Address

40H



FFH

Note:

*1. ADC = 1 (normal)

*2. SHL Selection = 0 (reverse)

*3. Initial Display Line = 0

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 7 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

5.5 Display Commands

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to IST3020 data sheet.

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 8 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

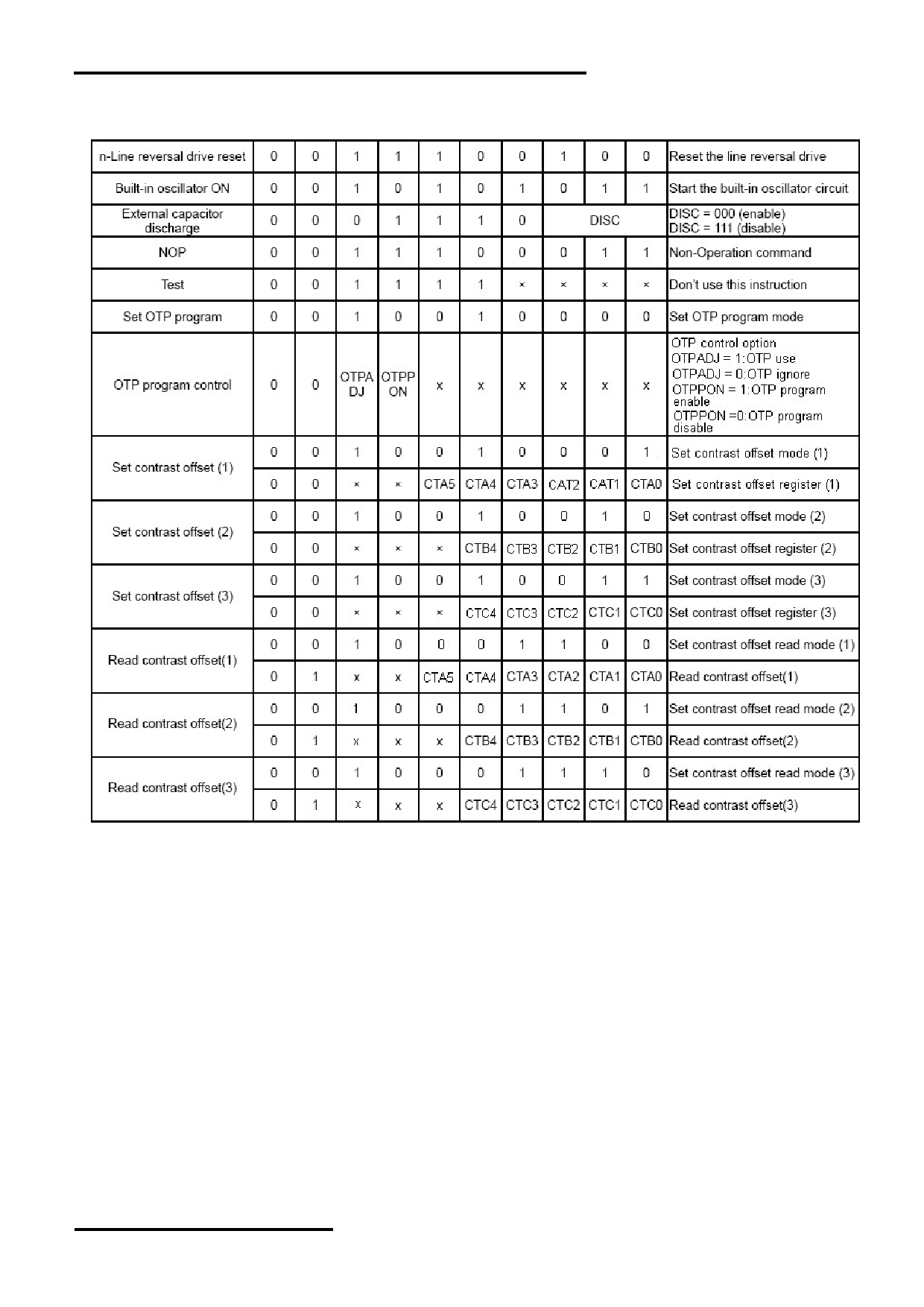

5.6 Display Commands (continue)

Note:

*1. Do not use any other command not listed, or the system malfunction may result.

*2. For the details of the Display Commands, please refer to IST3020 data sheet.

5.6.1 Power off the LCD Module

It recommends that enter Power Save mode before power off the LCD module.

5.6.2 Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.

URL: www.topwaydisplay.com

Document Name: LM6072AFW-Manual-Rev0.1

Page: 9 of 10

TOPWAY

LCD Module User Manual

LM6072AFW

6. Design and Handling Precaution

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".
