LMK070DNCFWD-NNA

Document Name: LMK070DNCFWD-NNA Engineering Sample-Manual-Rev0.1

LCD Module User Manual

1. Applications ................................................................................................................................................ 3

2. General Specification ............................................................................................................................... 3

3. Block Diagram ............................................................................................................................................ 3

4. Terminal Function ..................................................................................................................................... 4

4.1 TFT Input Terminal ........................................................................................................................................................................... 4

4.2 Touch Panel Terminal Functions ................................................................................................................................................... 5

5. Absolute Maximum Ratings .................................................................................................................... 5

6. Electrical Characteristics ........................................................................................................................ 5

6.1 DC Characteristics ........................................................................................................................................................................... 5

6.2 Current Consumption ....................................................................................................................................................................... 6

6.3 LED Backlight Circuit Characteristics ............................................................................................................................................ 6

6.4 Touch Panel Characteristics ........................................................................................................................................................... 6

6.5 Power Sequence .............................................................................................................................................................................. 7

7. AC Characteristics .................................................................................................................................... 8

7.1 Timing Characteristics ..................................................................................................................................................................... 8

7.2 Input Clock and Data Timing Diagram .......................................................................................................................................... 8

7.3 Timing ................................................................................................................................................................................................. 9

7.4 Data Input Format .......................................................................................................................................................................... 10

7.5 Optical Characteristics ................................................................................................................................................................... 11

8. Assemble Precaution ............................................................................................................................. 12

9. LCD Module Design and Handling Precautions .............................................................................. 13

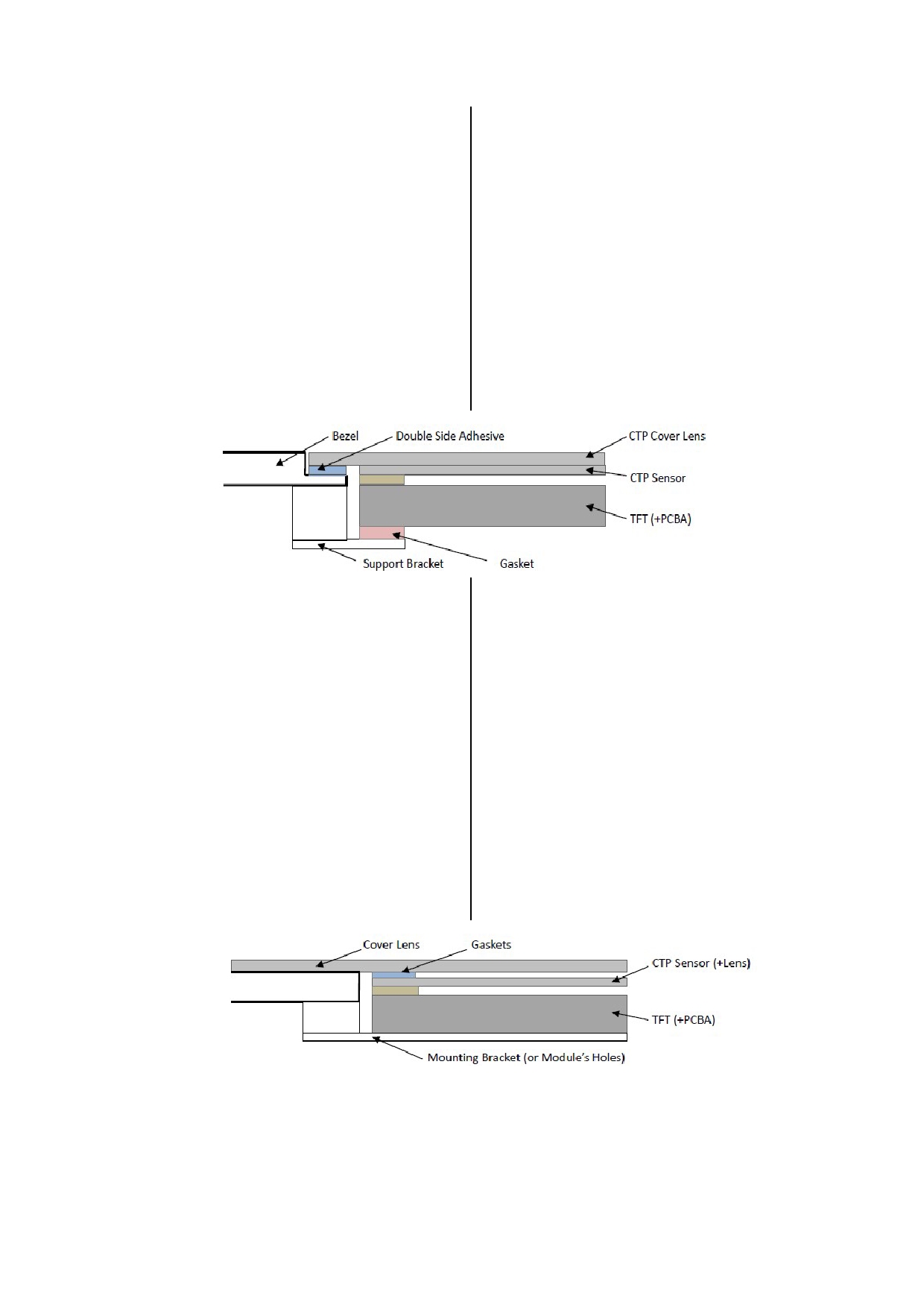

10. CTP Mounting Instructions ................................................................................................................. 14

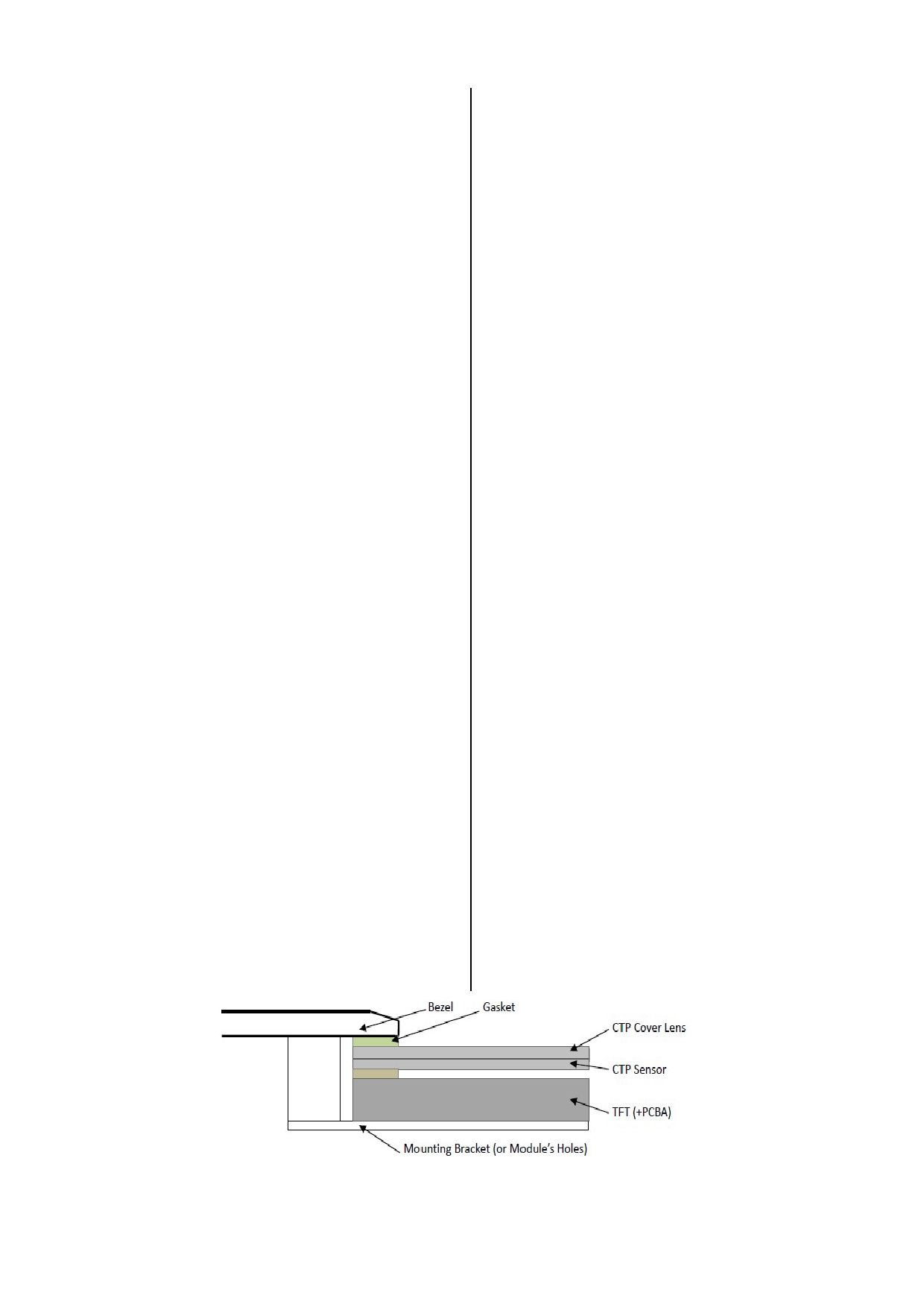

10.1 Bezel Mounting (Figure 1) .......................................................................................................................................................... 14

10.2 Surface Mounting (Figure 2) ....................................................................................................................................................... 15

10.3 Additional Cover Lens Mounting (Figure 3) ............................................................................................................................. 15

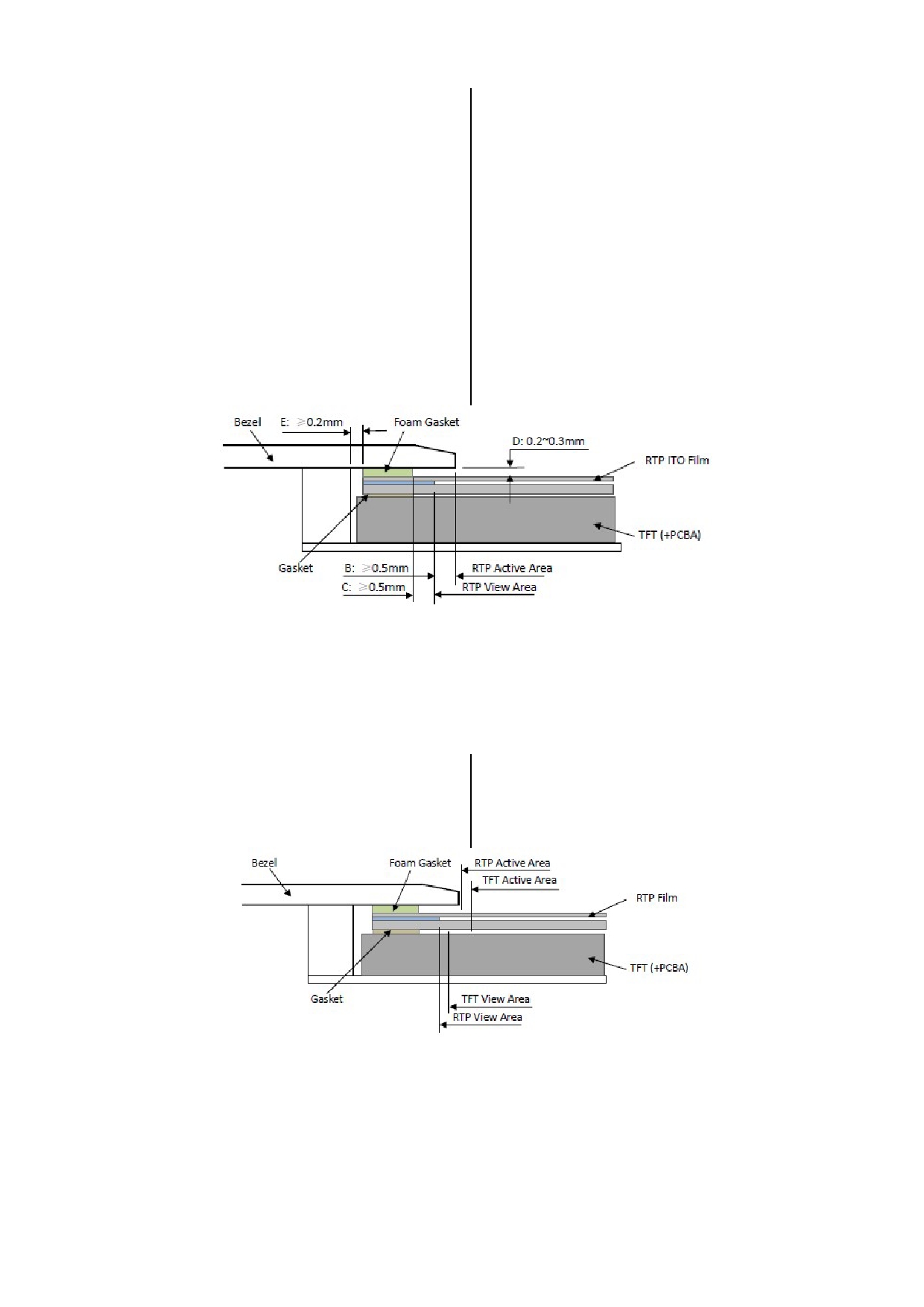

11. RTP Mounting Instructions ................................................................................................................. 16

Warranty ......................................................................................................................................................... 17

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

This Module is designed for portable DVD, GPS car TV & PMP(portable multimedia player)

application which require high quality flat panel displays. It is also a good substitute for many

outmoded CSTN module in the industrial application.

This product is composed of a TFT-LCD panel, driver ICs, FPC and LED backlight unit.

2. General Specification

Display Technology :

a-Si TFT active matrix

TN Type Full Color / Transmissive / Normal White

Screen Size(Diagonal) :

204.0 x 150.0 x 32.0 (mm)

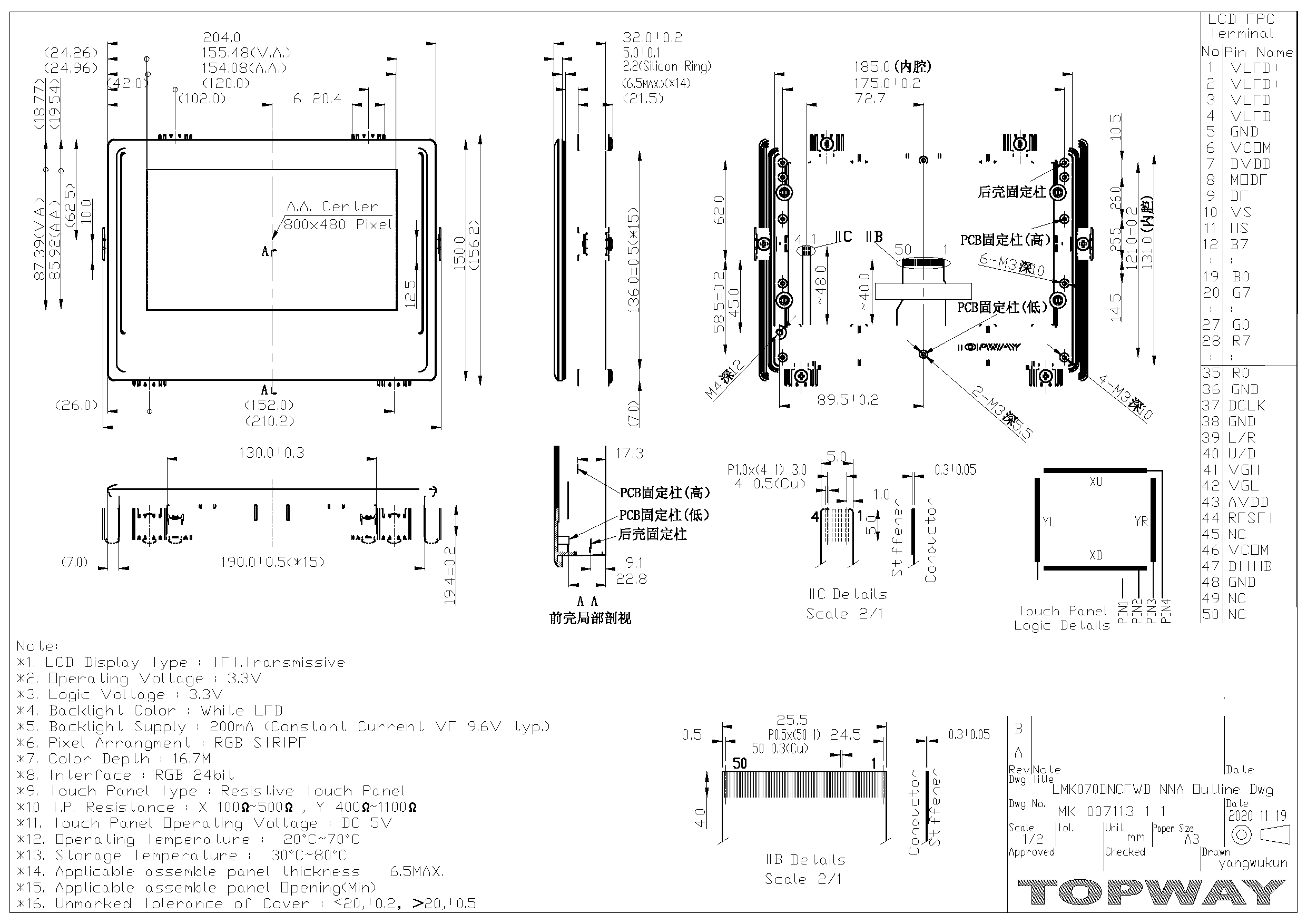

(see attached drawing for details)

0.1926 (H) x 0.1790(V)(mm)

Pixel Configuration :

Touch Panel Surface Treatment: Anti-Glare

6 o’clock(Gray scale Inversion) (*1)

Operating Temperature :

Storage Temperature :

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors-combinations).

*2. For “color scales” display content.

*3. Color tone may slightly change by temperature and driving condition.

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

4. Terminal Function

4.1 TFT Input Terminal

Positive Backlight Power Supply

Negative Backlight Power Supply

Power for Digital Circuit

DE/SYNC mode select (*1)

Horizontal Sync Input

Left / right selection (*3)

Up/down selection (*3)

Power for Analog Circuit

Global reset pin (*4)

Dithering function (*5)

* 1: DE/SYNC mode select. Normally pull high.

When select DE mode, MODE=”1”, VS and HS must pull high.

When select SYNC mode, MODE= “0”, DE must be grounded.

* 2: Data shall be latched at the falling edge of DCLK.

* 3: Selection of scanning mode

Setting of scan control input

Up to down, left to right

Down to up, right to left

Up to down, right to left

Down to up, left to right

*4: Global reset pin. Active low to enter reset state. Suggest to connect with an RC reset circuit for stability. Normally pull high.

*5: Dithering function enable control, normally pull high.

When DITHB= ” 1 ” ,Disable internal dithering function,

When DITHB= ” 0 ” ,Enable internal dithering function,

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

4.2 Touch Panel Terminal Functions

Left Side sense Terminal

Down Side sense Terminal

Right Side sense Terminal

Up Side sense Terminal

5. Absolute Maximum Ratings

Operating Temperature

*1. This rating applies to all parts of the module. And should not be exceeded.

*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,

and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25.

*3. Ambient temperature when the backlight is lit (reference value)

*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged

exposure to extreme conditions may affect device reliability.

6. Electrical Characteristics

6.1 DC Characteristics

Input signal voltage

Input logic high voltage

Input logic low voltage

*1.Be sure to apply DVDD and VGL to the LCD first, and then apply VGH.

*2: DVDD setting should match the signals output voltage (refer to Note 3) of customer’s system board.

*3: DCLK,HS,VS,RESET,U/D, L/R,DE,R0~R7,G0~G7,B0~B7,MODE,DITHB.

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

6.2 Current Consumption

6.3 LED Backlight Circuit Characteristics

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

6.4 Touch Panel Characteristics

Exceeding the recommended Condition could cause substantial damage to the touch panel and

shorten its life time.

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

7. AC Characteristics

7.1 Timing Characteristics

DV DD Power On Slew rate

Note: For the details of the timing, please see the Driver IC data sheet.

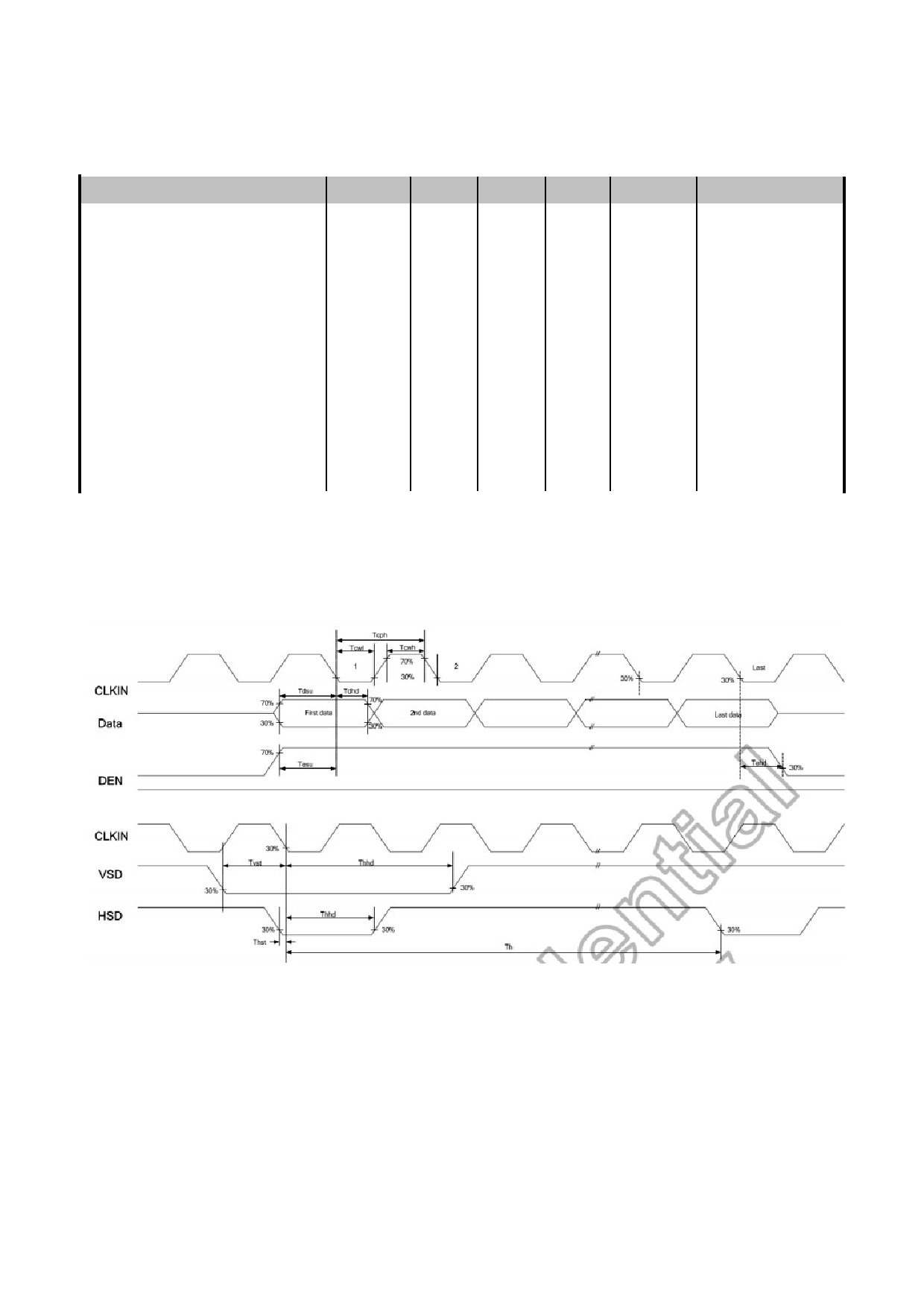

7.2 Input Clock and Data Timing Diagram

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

Horizontal Display Area

Vertical Display Area

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

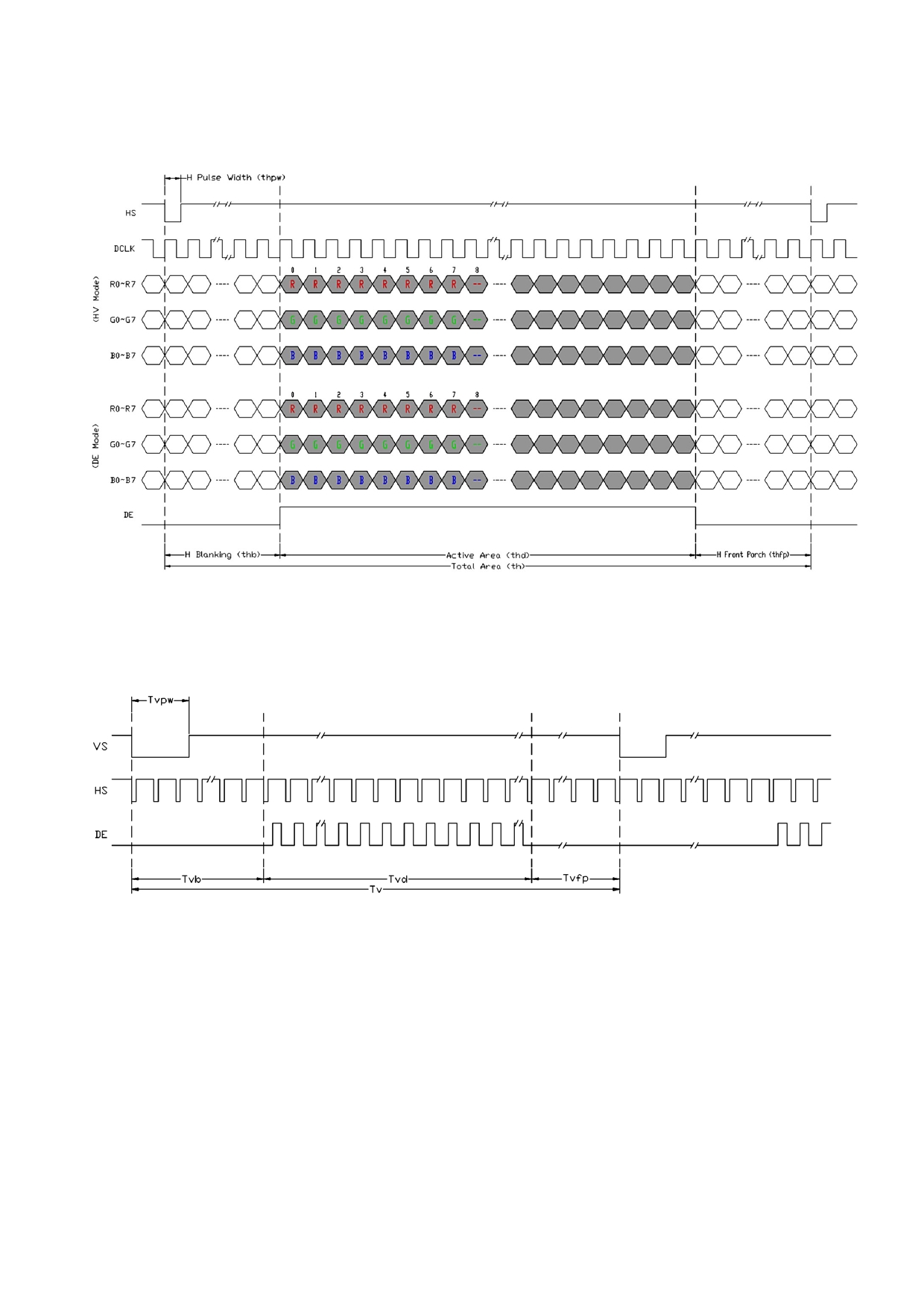

7.4 Data Input Format

Figure 6-2-1 Horizontal input timing diagram.

Figure 6-2-2 Vertical input timing diagram.

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

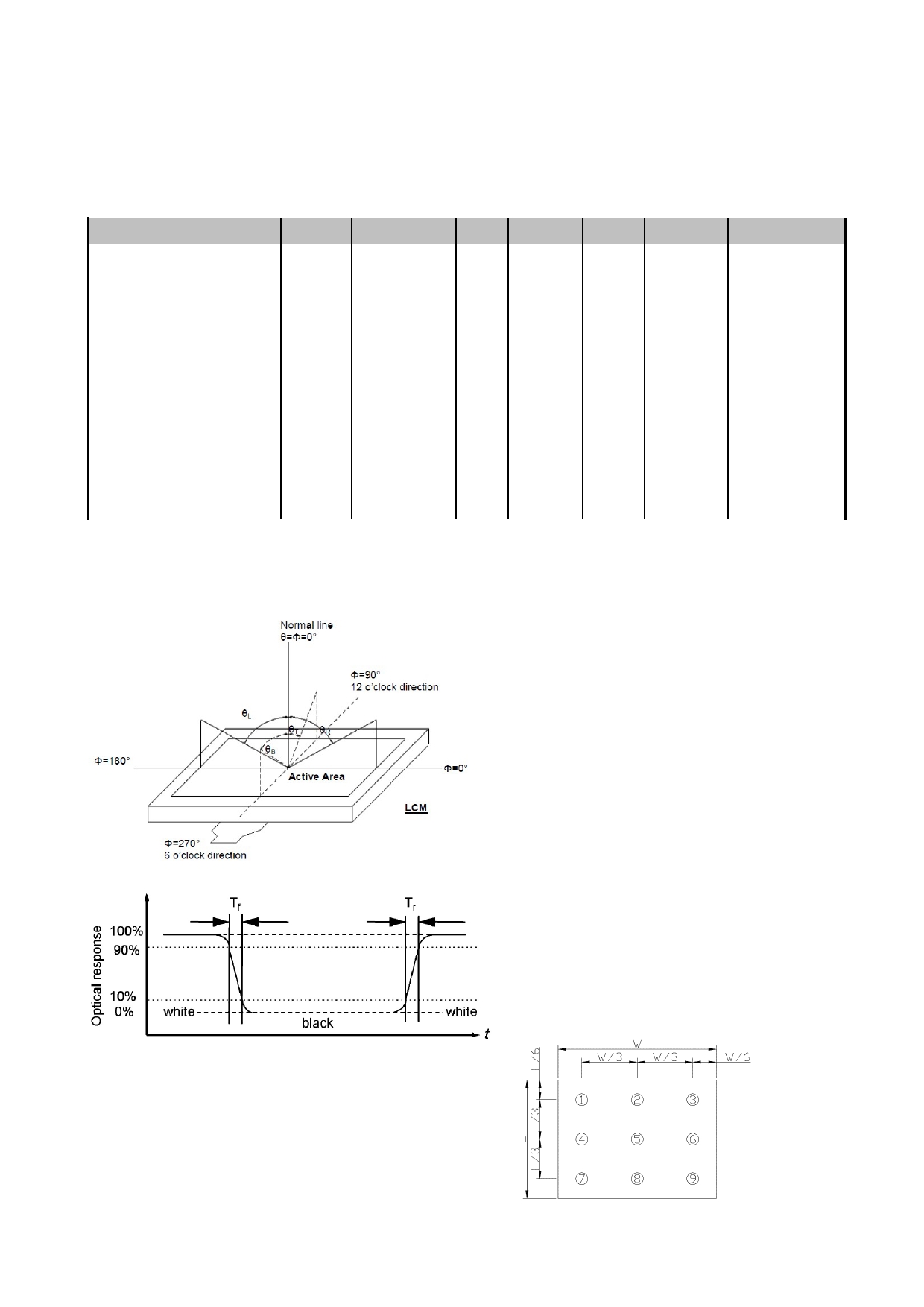

7.5 Optical Characteristics

1. VCC=3.3V, Vf BLA =9.6V , the ambient temperature is 25 ℃ .

2. Exclude Touch Panel.

Luminance uniformity

*1. Definition of Contrast Ratio

The contrast ratio could be calculate by the following expression:

Contrast Ratio (CR) = Luminanc with all pixels white / Luminance with all pixels black

*2 Definition of Viewing Angle

*3 Definition of response time

*4 Definition of Luminance Uniformity

Luminance uniformity (Lu)=

Min. Luminance form pt1~pt9 / Max Luminance form Pt1~pt9

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

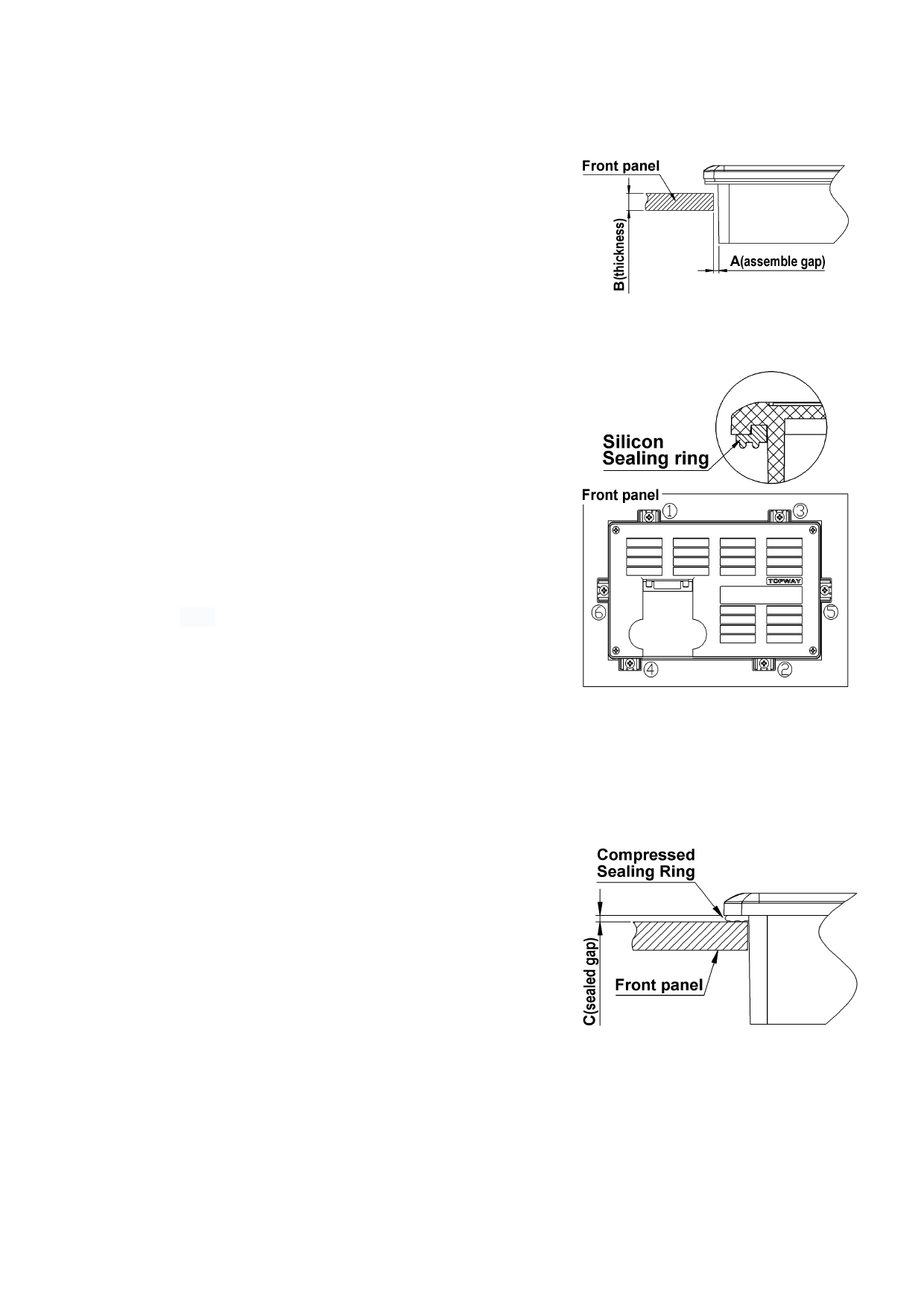

8. Assemble Precaution

1. Customer front panel opening and thickness for TOPWAY

display module should be fit for its assembling and sealing.

 The suggested assemble gap(A) should be about

0.3~0.5mm on each side.

 The suggested front panel thickness(B) should be

客户面板开窗及厚度应适合 TOPWAY 显示模块的安装及密

建议每边安装间隙 (A) 约为 0.3 ~0.5mm.

建议面板厚度 (B) 约为 1.5~4.0mm.

2. A silicon sealing ring ships with TOPWAY display module.

It should be in place before assembling to the front panel.

TOPWAY 显示模块上的硅胶密封圈在安装时确保嵌入到位 .

3. It should fix the TOPWAY display module into the front

panel with two steps.

 Pre-fixing: Slightly tighten the screws on beam clamp in

sequence as picture on the right side.

 Final-fixing: Tighten the fixing screws on beam clamp in

sequence as well with twist torque about 6~8kg.cm

(*1) . and put the beam clamp straight.

*1. Over tightening might damage the shell and cause bad sealing

应分两步将 TOPWAY 显示模块固定在面板上 .

预紧 : 将卡扣螺钉按右图所示顺序稍加预紧 .

紧定 : 再次按顺序用 6~8kg.cm 扭力拧紧卡扣螺钉 (* 1),

并注意卡扣置正无歪斜 .

*1. 过度拧紧可能会损坏外壳和影响密封效果 .

4. It is strongly suggested to check the seal balancing of the

four-side of the TOPWAY display module.

 The suggested after assemble sealed gap(C) should be

需注意检查 TOPWAY 显示模块四周在安装后保证平衡密封 .

建议组装后的密封间隙 (C) 约为 1.0 ~1.5 mm.

 Never hot plug the device! Power off the device before connect or disconnect the

 Don't forget to remove the cover protective film for normal operation.

视频线禁止带电插拔！在连接或断开显示模块之前先关闭设备电源 .

使用前请揭去保护膜 .

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

9. LCD Module Design and

9. 液晶显示模块设计和使用须知

Handling Precautions

- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块在不同

module get the best contrast ratio under different

的使用温度下以及在不同的视角和位置观察模块显

temperatures, view angles and positions.

示，均能达到最佳对比度，请务必将应用电路上设置

- Normally display quality should be judged under the

为对比度可调。

best contrast ratio within viewable area. Unexpected

- 请注意液晶显示模块的显示品质判定是指在正常对比

display pattern may com out under abnormal contrast

度下以及视窗(V.A)范围内进行的，非正常对比度下液

晶可能会出现非预期的显示不良，应注意区分。

- Never operate the LCD module exceed the absolute

- 请勿在最大额定值以外使用液晶显示模块。

- Never apply signal to the LCD module without power

- 请勿在没有接通电源的条件下，给液晶显示模块输送

- Keep signal line as short as possible to reduce external - 请尽可能缩短信号线的连接，以避免对液晶显示模块

- IC chip (e.g. TAB or COG) is sensitive to light. Strong

- 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为敏

light might cause malfunction. Light sealing structure

感，强光环境下可能会引起液晶显示模块功能失效，

casing is recommended.

故应采用不透光的外壳。

- Make sure there is enough space (with cushion)

- 请在液晶显示模块与外壳之间保留足够的空间(可使用

between case and LCD panel, to prevent external force

衬垫)，以缓冲外力对液晶显示模块的损坏或因受力不

passed on to the panel; otherwise that may cause

均而产生的显示不匀等异常现象。

damage to the LCD and degrade its display result.

- Avoid showing a display pattern on screen for a long

- 避免液晶显示屏在某一画面下长时间点亮，否则有出

time (continuous ON segment).

现残影的风险；请通过软件每隔一段时间改变一次画

- LCD module reliability may be reduced by temperature

- 液晶显示模块的可靠性可能因温度冲击而降低。

- When storing and operating LCD module, avoids - 请勿在阳光直射、高湿、高温或低温下储存和使用液

exposure to direct sunlight, high humidity, high or low

晶显示模块，这将造成液晶显示模块的损坏或失效。

temperature. They may damage or degrade the LCD

- Never leave LCD module in extreme condition

- 请勿在极限环境(最大/最小存储/工作温度)下使用或

(max./min storage/operate temperature) for more than

放置液晶显示模块超过 48 小时以上。

- 液晶显示模块建议存储条件为: 0 C~40 C <80%RH 。

- Recommend LCD module storage conditions is - 请勿让液晶显示模块存储于带有酸性, 碱性, 有害气

- LCD module should be stored in the room without acid,

- 在运输过程中, 请勿让液晶显示模块跌落与猛烈震动,

alkali and harmful gas.

- Avoid dropping & violent shocking during

同时避免异常挤压, 高湿度, 与阳光照射.

transportation, and no excessive pressure press,

- 液晶显示模块极易受静电损坏，请务必保证液晶显示

moisture and sunlight.

模块在防静电的工作环境中使用或保存。(如: 烙铁正

- LCD module can be easily damaged by static

electricity. Please maintain an optimum anti-static

- 拿取液晶显示模块时需注意操作人员的接地情况。

working environment to protect the LCD module. (eg.

- 请手持液晶显示模块的边沿取放模块，防止热压纸或

ground the soldering irons properly)

- Be sure to ground the body when handling LCD

- 焊接液晶模块时，请注意控制烙铁的温度、焊接时

- Only hold LCD module by its sides. Never hold LCD

间，以免烫坏导光板或偏光片，导致显示不匀等不良

module by applying force on the heat seal or TAB.

- When soldering, control the temperature and duration

- 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐

avoid damaging the backlight guide or diffuser which

蚀导光板或模块电路。

might degrade the display result such as uneven

- Never let LCD module contact with corrosive liquids,

- 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏表

which might cause damage to the backlight guide or

面，其他任何溶剂(如:水)都有可能损坏液晶模块。

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

the electric circuit of LCD module.

- 请勿挤压液晶显示模块上的元器件，以避免产生潜在

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol

的损坏或失效而影响产品可靠性。

or Ethyl Alcohol. Other solvents (e.g. water) may

- 装配液晶显示模块时，请务必注意避免液晶显示模块

- Never add force to components of LCD module. It may

的扭曲或变形。

cause invisible damage or degrade the module's

- 请勿挤压液晶显示屏表面，这将导致显示颜色的异

- When mounting LCD module, please make sure it is - 液晶屏由玻璃制作而成，任何机械碰撞(如从高处跌

free from twisting, warping and bending.

落)均有可能损坏液晶显示模块。

- Do not add excessive force on surface of LCD, which

may cause the display color change abnormally.

- LCD panel is made with glass. Any mechanical shock

(e.g. dropping from high place) will damage the LCD

- Protective film is attached on LCD screen. Be careful - 液晶屏表面带有保护膜, 揭除保护膜时需要注意可能

when peeling off this protective film, since static

electricity may be generated.

- 因液晶显示屏表面的偏光片极易划伤，安装完成之前

- Polarizer on LCD gets scratched easily. If possible, do

请尽量不要揭下保护膜。

not remove LCD protective film until the last step of - 请缓慢揭除保护膜，在此过程中液晶显示屏上可能会

产生静电线，此为正常情况，可在短时间内消失。

- When peeling off protective film from LCD, static

charge may cause abnormal display pattern. The - 请注意避免被液晶显示屏的边缘割伤。

symptom is normal, and it will turn back to normal in a - 请不要试图拆卸或改造液晶显示模块。

- 当液晶显示屏出现破裂, 内部液晶液体可能流出; 相

- LCD panel has sharp edges, please handle with care.

关液体不可吞吃, 绝对不可接触嘴巴, 如接触到皮肤

- Never attempt to disassemble or rework LCD module.

或衣服, 请使用肥皂与清水彻底清洗.

- If display panel is damaged and liquid crystal

substance leaks out, be sure not to get any in your

mouth, if the substance comes into contact with your 10. 电容触摸屏安装指导

skin or clothes promptly wash it off using soap and 10.1 面框安装（附图 1）

- 客户面框窗口应大于 CTP 动作区域，各边离动作区应

10. CTP Mounting Instructions

- 面框与 CTP 面板间应垫有胶垫，其最终间隙约为 0.5～

10.1 Bezel Mounting (Figure 1)

- 建议必要时在背面提供附加支架(例如无安装结构的薄

- The bezel window should be bigger than the CTP

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

active area. It should be ≥ 0.5mm each side.

- Gasket should be installed between the bezel and the

- 安装结构应具有足够的强度，以防止外部不均匀力或

扭曲力作用到模块上.

The final gap should be about 0.5~1.0mm.

- It is recommended to provide an additional support

bracket for backside support when necessary (e.g. slim

type TFT module without mounding structure). They

should only provide appropriate support and keep the

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

10.2 嵌入安装（附图 2）

10.2 Surface Mounting (Figure 2)

- 客户面框应具有使用双面胶粘贴 CTP 的结构沉台面，

- As the CTP assembling on the countersink area with

其粘贴面要求平整且洁净无污以保证粘贴牢靠.

The countersink area should be flat and clean to

ensure the double side adhesive installation result.

- 考虑到制作误差，建议面框与 CTP 盖板之间四周留有

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each

side) around the cover lens for tolerance.

- 建议必要时在背面提供垫有胶垫附加支架(例如无安装

- It is recommended to provide an additional support

结构的 TFT 模块)，应仅利用适当支撑以保持模块位

bracket with gasket for backside support when

TFT module without mounding

structure). They should only provide appropriate

- 安装结构应具有足够的强度，以防止外部不均匀力或

support and keep the module in place.

扭曲力作用到模块上。

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

10.3 覆加盖板（附图 3）

10.3 Additional Cover Lens Mounting

- 需要覆加玻璃盖板的安装，为确保其功能，有必要查

看产品规格书中有关盖板材料和厚度的说明.

- For the case of additional cover Lens mounting, it is

necessary to recheck with the CTP specification about

- 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间隙.

the material and thickness to ensure the functionality.

- It should keep a 0.2~0.3mm gap between the cover

- 玻璃盖板视窗应大于 CTP 动作区域，各边离动作区应

lens and the CTP surface..

- The cover lens window should be bigger than the

- 建议必要时在背面提供附加支架(例如无安装结构的薄

active area of the CTP.It should be ≥ 0.5mm each side.

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

- It is recommended to provide an additional support

bracket for backside support when necessary (e.g. slim

type TFT module without mounding structure). They

- 安装结构应具有足够的强度，以防止外部不均匀力或

should only provide appropriate support and keep the

扭曲力作用到模块上.

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

11. RTP Mounting Instructions

11. 电阻触摸屏安装指导

- It should bezel touching the RTP Active Area (A.A.) to

- 为避免面框直接压在动作区(A.A.)上造成误动作，面框

prevent abnormal touch.It should left gab

与电阻触摸屏(RTP)之间应留有一定的空隙

D=0.2~0.3mm in between. (Figure 4)

D=0.2~0.3mm 之间.(附图 4)

- Outer bezel design should take care about the area

- 设计面框时，要注意用面框保护触摸屏四周的非保证操

outside the A.A. Those areas contain circuit wires

作区域，因为布线区域在此处形成一台阶，在此区域

which is having different thickness. Touching those

附近操作时 ITO Film 变形较大，容易导致 ITO 损坏而

areas could de-form the ITO film. As a result bezel the

降低寿命。为保护 RTP 和避免误操作，在 RTP 与面框

ITO film be damaged and shorten its lifetime.

之间垫缓冲物（Gasket），我们建议设计面框应覆盖

It is suggested to protect those areas with gasket

动作区的边缘，面框边缘到 V.A.区的距离 B≥0.50mm;

(between the bezel and RTP).The suggested figures

垫圈内边缘到 V.A.区的距离 C≥0.50mm. (附图 4)

are B≥0.50mm; C≥0.50mm. (Figure 4)

- The bezel side wall should keep space E= 0.2 ~ 0.3mm - 在设计面框与 RTP 组装时，应考虑到面框内侧与 RTP 外

from the RTP. (Figure 4)

侧的间距 E≥0.2mm. (附图 4)

- In general design,

- 通常设计时：

RTP V.A. should be bigger than the TFT V.A.

RTP 的可视区 V.A. 应不小于 TFT 的可视区 V.A.

and RTP A.A. should be bigger than the TFT A.A.

及 RTP 的动作区 A.A. 应不小于 TFT 的动作区 A.A.

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1

LCD Module User Manual

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from

general electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power

control equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct

risk to human life and where extremely high levels of reliability are required. If the product is to be used in any of the

above applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of

our product to our assembly with exception to those issues relating directly to the structure or method of

manufacturing of our product.

URL: www.topwaydisplay.com

Document Name: LMK070DDCFWD-NNA Manual-Rev0.2.DOC1
