LMT018DNBFWD-1

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Deng Junjie

Date: 2014-07-14

Date:

Date:

Rev. Descriptions

Release Date

0.1

Preliminary New release

2014-07-14

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 1 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

Table of Content

1. Basic Specifications .............................................................................................................. 3

1.1

Block Diagram ......................................................................................................................................................... 3

1.2

Terminal Functions .................................................................................................................................................. 4

2. Absolute Maximum Ratings .................................................................................................. 5

3. Electrical Characteristics ...................................................................................................... 5

3.1

DC Characteristics ................................................................................................................................................... 5

3.2

LED Backlight Circuit Characteristics ...................................................................................................................... 5

3.3

AC Characteristics ................................................................................................................................................... 6

4. Optical Characteristics .......................................................................................................... 7

5. Functions ............................................................................................................................... 9

5.1

Display Commands ................................................................................................................................................. 9

5.2

Power off the LCD Module .................................................................................................................................... 12

5.3

Refreshing The LCD Module ................................................................................................................................. 12

6. Design and Handling Precaution ........................................................................................ 13

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 2 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

1. Basic Specifications

Screen Size(Diagonal) :

1.8”

Color Depth:

65k / 262k color

Number of dots :

128 x 160

Active Area :

28.03x35.04 mm

Dot Pitch :

0.219x0.219 mm

Display Technology :

a-Si TFT active matrix

Display Mode :

Transmissive / Positive

Pixel Configuration :

RGB Stripe

Viewing Direction :

6H (*1) (gray scale inverse)

12H (*2)

Polarizer Surface Treatment:

Glare

Backlight Type:

LEDs

Outline Dimension :

34.0 x 52.33 x 4.7 mm

(exclude FPC , see dwg for details)

Operating Temperature :

-20 ~ +70°C (No Condensation)

Storage Temperature :

-30 ~ +80°C (No Condensation)

Note:

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors-combinations).

*2. For “color scales” display content.

*3. Color tone may slightly change by temperature and driving condition.

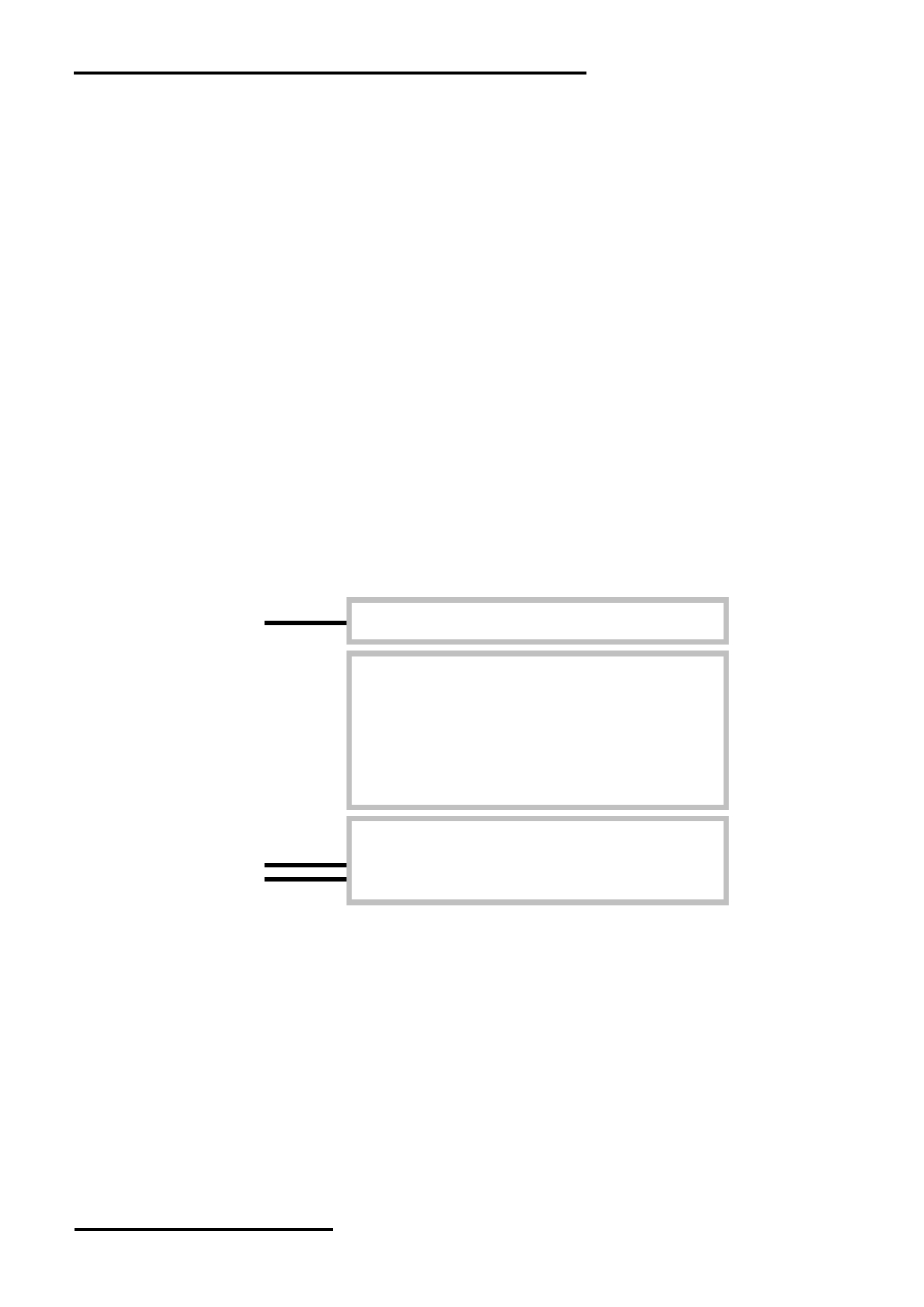

Block Diagram

BLA, BLK

Backlight Circuit

TFT Panel

128(RGB) × 160

VDD

VSS

/WR,/RD,DB0~DB7

ILI9163C or equivalent

/CS, /RES, D/C

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 3 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

Terminal Functions

PIN

Pin No.

Name

I/O

Descriptions

1

BLK

Power Negative power for LED backlight

2

BLA

Power Positive power for LED backlight

3

VSS

Power Negative power supply,0V

4

VDD

Power Positive power supply

5

NC

-

No connection leave open

6

NC

-

No connection leave open

7

/CS

Input Chip Select

/CS=L, enable access to the LCD module

/CS=H, disable access to the LCD module

8

/RES

Input Reset signal

/RES = L, Initialization is executed

/RES = H, Normal running.

9

D/C

Input Register Select

D/C = H, Transferring the Display Data

D/C = L, Transferring the Control Data

10

/WR

Input Write enable input, active LOW

11

/RD

Input Read enable input, active LOW

12

DB7

IO

Bi-directional tri-state Data bus

:

:

:

19

DB0

IO

20

VSS

Power Negative power supply,0V

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 4 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

2. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit Condition

Supply Voltage

V DD

-0.3

+4.6

V

V SS = 0V

Input Voltage

V IN

-0.3

+4.6

V

V SS = 0V

Operating Temperature

T OP

-20

+70

 C

No Condensation

Storage Temperature

T ST

-30

+80

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

3. Electrical Characteristics

DC Characteristics

V SS =0V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit Condition /

Application Pin

Operating Voltage

V DD

2.6

2.8

3.3

V

VDD

Input High Voltage

V IH

0.8xV DD

-

V DD

V

/RES, /CS, D/C,

Input Low Voltage

V IL

V SS

-

0.2xV DD

V

DB0~DB7,/WR,/RD

Operating Current

I DD

-

0.6

2.5

mA VDD (*1)

Note: *1. V DD =2.8V

LED Backlight Circuit Characteristics

BLK=0V, If BLA =30mA, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Forward Voltage

Vf BLA

-

3.2

-

V

BLA

Forward Current

If BLA

-

30

-

mA

BLA

Color Coordinate

X

0.270

-

0.315

-

(White)

Y

0.270

-

0.315

-

Uniformity

∆Bp

80%

-

-

-

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

BLA

BLK

No. of LEDs = 2pcs

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 5 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

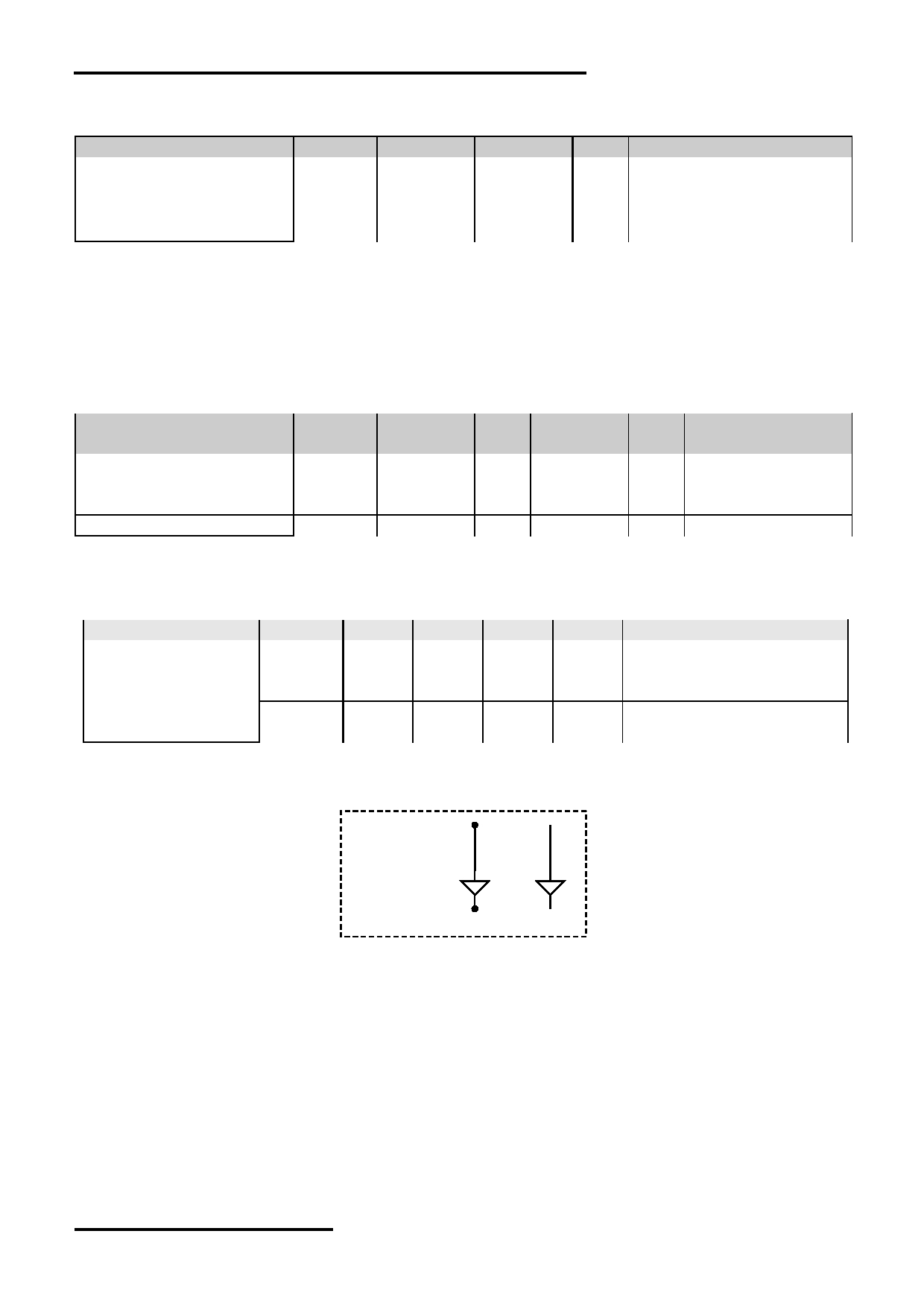

AC Characteristics

8080 Mode System Bus Timing

Note:

*1. Input signal rise/fall time should be less than 15ns .

*2. All timing is using 20% and 80% of VDD as the reference.

*3. Please refer to ILI9163B datasheet for details

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 6 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

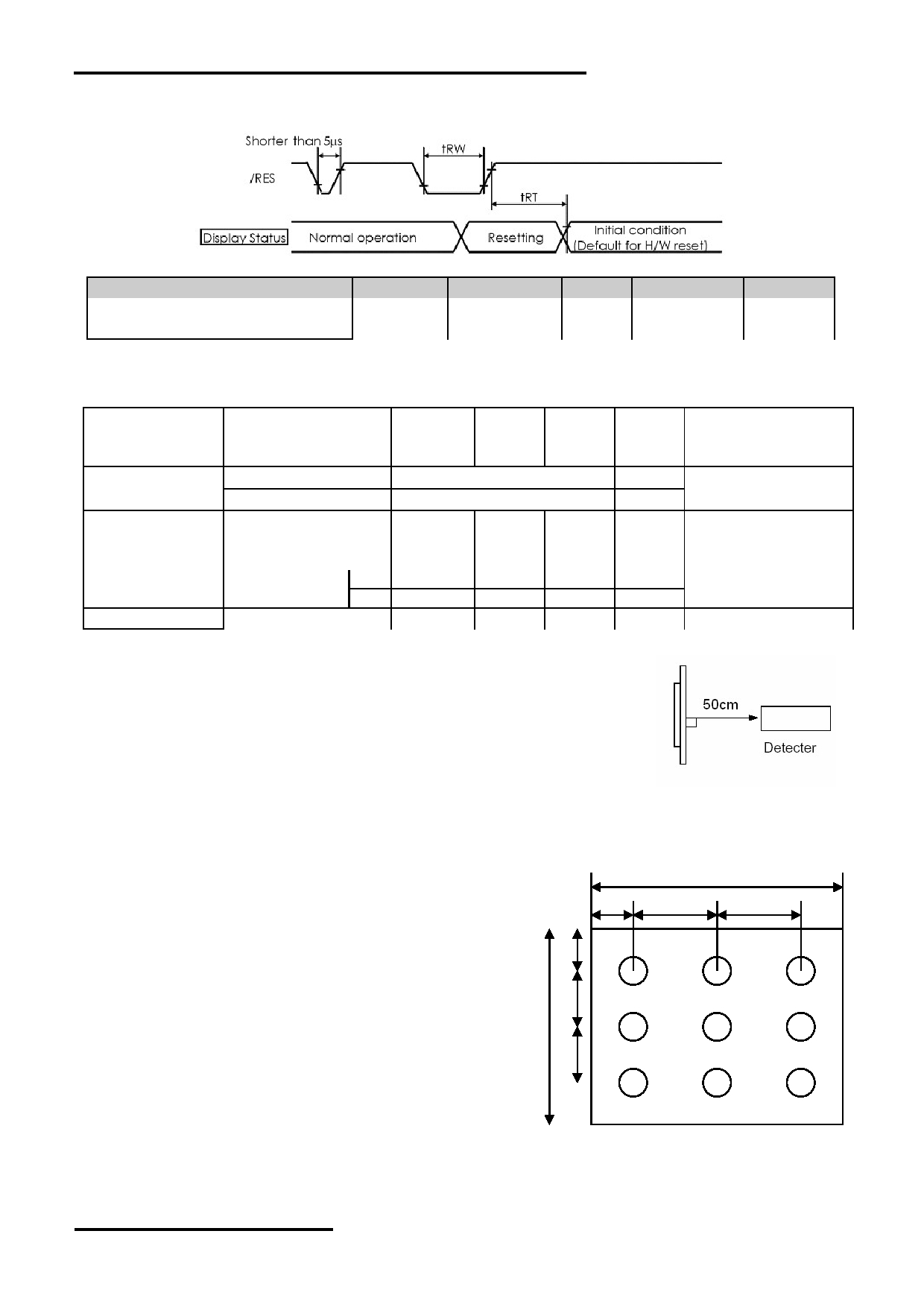

Reset Timing

Item

Symbol

MIN.

TYP.

MAX.

Unit

Reset LOW pulse width

t RW

1.0

-

-

us

Reset time

T RT

-

-

120

ms

4. Optical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Note/ Condition

Brightness

Bp

190

-

-

Cd/m 2

θ =0°, Φ =0° (*1,*2)

Uniformity

△ Bp

80%

-

-

-

Viewing Angle

θ 1( Ф =90°or 270°)

-50 ～ +40

Deg

(*3)

θ 2( Ф =0° or 180°)

-50 ～ +50

deg

Contrast

Cr

-

-

350

-

θ =0°, Φ =0° (*4)

Ratio

Response Time

T r+ +T f

-

30

-

Ms

θ =0°, Φ =0° (*5)

Color of CIE

W

X

0.246

0.296

0.346

θ =0°, Φ =0° (*1, *6)

Coordinate

Y

0.265

0.315

0.365

NTSC Ratio

S

42%

-

-

-

θ =0°, Φ =0° (*1, *6)

Note:

*1. Measurement

The data are measured after LEDs are turned on for 5 minutes. LCM

displays full white. The brightness is the average value of 9 measured

spots.

Measurement equipment PR-705 (Φ8mm)

Measuring condition:

- Measuring surroundings: Dark room.

- Measuring temperature: Ta=25 ℃ .

- Adjust operating voltage to get optimum contrast at the center of the display.

Measured value at the center point of LCD panel after more than 5 minutes while backlight turning on.

*2. The luminance uniformity

W

It is calculated by using following formula.

2W

3W

3W

△ Bp = Bp (Min.) / Bp (Max.)×100 (%)

Bp (Max.) = Maximum brightness in 9 measured spots

Bp (Min.) = Minimum brightness in 9 measured spots.

Measurement equipment PR-705 (Φ8mm)

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 7 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

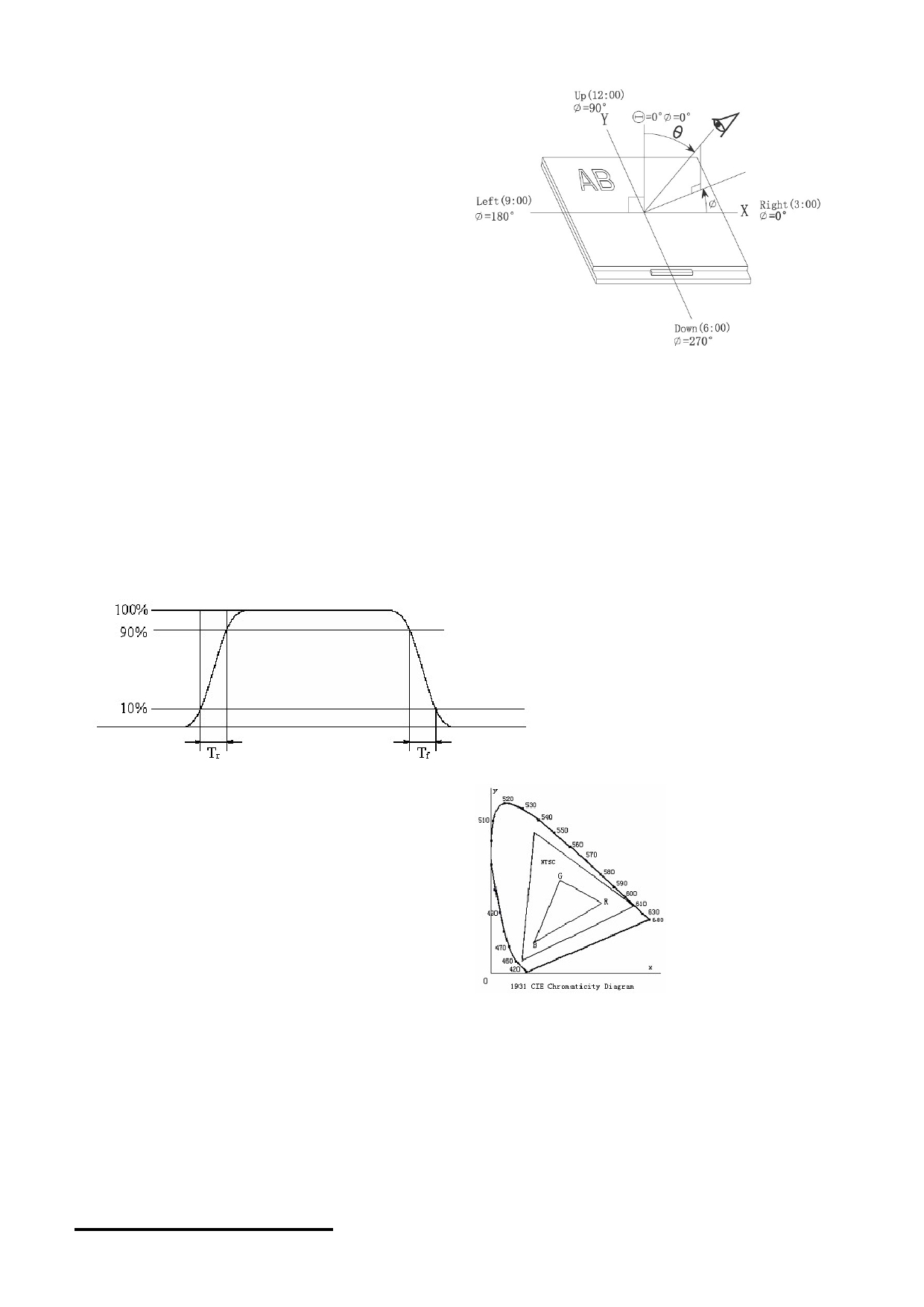

*3. The definition of viewing angle:

Refer to the graph below marked by θ and Ф

*4. The definition of contrast ratio (Test LCM using PR-705):

Contrast Ratio(CR)=

Luminance When LCD is at “White” state

Luminance When LCD is at “Black” state

(Contrast Ratio is measured in optimum common electrode voltage)

*5. Definition of Response time.(Test LCD using DMS501):

The output signals of photo detector are measured when the input signals are changed

from “black” to “white”(falling time) and from “white” to “black”(rising time), respectively.

The response time is defined as the time interval between the 10% and 90% of

amplitudes. Refer to figure as below.

*6: Definition of Color of CIE Coordinate and

NTSC Ratio.

S=

area of RGB triangle

area of NTSC triangle

x100%

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 8 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

5. Functions

Display Commands

Code Command

D17-D8

D7

D6

D5

D4

D3

D2

D1

D0

hex

00H

NOP (No Operation)

X

0

0

0

0

0

0

0

0

00h

01H

SoftwareReset

X

0

0

0

0

0

0

0

1

01h

04H

Read Display Id. Info

x

0

0

0

0

0

1

0

0

04h

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

ID17

ID16

ID15

ID14

ID13

ID12

ID11

ID10

54h

3 Parameter

rd

x

ID27

ID26

ID25

ID24

ID23

ID22

ID21

ID20

80h

4 Parameter

th

x

ID37

ID36

ID35

ID34

ID33

ID32

ID31

ID30

66h

09H

Read Display Status

x

0

0

0

0

1

0

0

1

09h

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

BOTSON

MY

MX

MV

ML

RGB

MH

ST24

00h

3 Parameter

rd

x

ST23

IFPF2

IFPF1

IFPF0

IDMON PTLON SLOUT NORON

61h

4 Parameter

th

x

VSSON

ST14

INVON

ST12

ST11

DISON

TEON

GCS2

00h

5 Parameter

th

x

GCS1

GCS0

TELOM

HSON

VSON

PCKON

DEON

ST0

00h

0AH

Read Display Power Mode

x

0

0

0

0

1

0

1

0

0Ah

1 Parameter

st

x

x

x

x

x

x

x

x

x

X

2

nd

Parameter

x

BSTON IDMON PLTON SLPOUT NORON DISON

D1

D0

08h

0BH

Read Display MADCTL

x

0

0

0

0

1

0

1

1

0Bh

1 Parameter

st

x

x

x

x

x

x

x

x

x

X

2

nd

Parameter

x

MY

MX

MV

ML

RGB

MH

D1

D0

00h

0CH

Read Display Pixel Format

x

0

0

0

0

1

1

0

0

0Ch

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

VIPF3

VIPF2

VIPF1

VIPF0

D3

IFPF2

IFPF1

IFPF0

06h

0DH

Read Display Image Mode

x

0

0

0

0

1

1

0

1

0Dh

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

VSSON

D6

INVON

D4

D3

GCS2

GCS1

GCS0

00h

0EH

Read Display

x

0

0

0

0

1

1

1

0

0Eh

Signal Mode

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

D7

D6

HSON

VSON

PCKON DEON

D1

D0

00h

0FH

Read Display

x

0

0

0

0

1

1

1

1

0Fh

Signal Mode

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

RELD

FUND

D5

D4

D3

D2

D1

D0

00h

10H

Sleep In

x

0

0

0

1

0

0

0

0

10h

11H

Sleep Out

x

0

0

0

1

0

0

0

1

11h

12H

Partial Mode On

x

0

0

0

1

0

0

1

0

12h

13H

Normal Display Mode On

x

0

0

0

1

0

0

1

1

13h

20H

Display Inversion Off

x

0

0

1

0

0

0

0

0

20h

21H

Display Inversion On

x

0

0

1

0

0

0

0

1

21h

26H

Gamma Set

x

0

0

1

0

0

1

1

0

26h

1 Parameter

st

x

GC7

GC6

GC5

GC4

GC3

GC2

GC1

GC0

01h

28H

Display Off

0

0

1

0

1

0

0

0

28h

29H

Display On

x

0

0

1

0

1

0

0

1

29h

2AH

Column Address Set

x

0

0

1

0

1

0

1

0

2Ah

1 Parameter

st

x

XS15

XS14

XS13

XS12

XS11

XS10

XS9

XS8

-

2

nd

Parameter

x

XS7

XS6

XS5

XS4

XS3

XS2

XS1

XS0

-

3 Parameter

rd

x

XE15

XE14

XE13

XE12

XE11

XE10

XE9

XE8

-

4 Parameter

th

x

XE7

XE6

XE5

XE4

XE3

XE2

XE1

XE0

-

2BH Page Address Set

x

0

0

1

0

1

0

1

1

2Bh

1 Parameter

st

x

YS15

YS14

YS13

YS12

YS11

YS10

YS9

YS8

-

2

nd

Parameter

x

YS7

YS6

YS5

YS4

YS3

YS2

YS1

YS0

-

3 Parameter

rd

x

YE15

YE14

YE13

YE12

YE11

YE10

YE9

YE8

-

4 Parameter

th

x

YE7

YE6

YE5

YE4

YE3

YE2

YE1

YE0

-

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 9 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

Code Command

D17-D8

D7

D6

D5

D4

D3

D2

D1

D0

hex

2CH

Memory Write

x

0

0

1

0

1

1

0

0

2Ch

1 Parameter

st

D17-8

D7

D6

D5

D4

D3

D2

D1

D0

-

:

x

:

:

:

:

:

:

:

:

:

N Parameter

th

D17-8

D7

D6

D5

D4

D3

D2

D1

D0

-

2DH

Color Setting for 4K,

x

0

0

1

0

1

1

0

1

2Dh

65Kand 262K

1 Parameter

st

x

x

x

R005

R004

R003

R002

R001

R000

-

:

x

x

x

Rnn5

Rnn4

Rnn3

Rnn2

Rnn1

Rnn0

-

32

nd

parameter

x

x

x

R315

R314

R313

R312

R311

R310

-

33 Parameter

rd

x

x

x

G005

G004

G003

G002

G001

G000

-

:

x

x

x

Gnn5

Gnn4

Gnn3

Gnn2

Gnn1

Gnn0

-

96 Parameter

th

x

x

x

G635

G634

G633

G632

G631

G630

-

97 Parameter

th

x

x

x

B005

B004

B003

B002

B001

B000

:

x

x

x

Bnn5

Bnn4

Bnn3

Bnn2

Bnn1

Bnn0

-

128 Parameter

th

x

x

x

B315

B314

B313

B312

B311

B310

-

2EH

Memory Read

x

0

0

1

0

1

1

1

0

2Eh

1 Parameter

st

x

x

x

x

x

x

x

x

x

-

2

nd

Parameter

x

D17

D16

D15

D14

D13

D12

D11

D10

-

:

x

-

N Parameter

th

x

Dn7

Dn6

Dn5

Dn4

Dn3

Dn2

Dn1

Dn0

-

30H

Partial Area

x

0

0

1

1

0

0

0

0

30h

1 Parameter

st

x

PSL15

PSL14

PSL13

PSL12

PSL11

PSL10

PSL9

PSL8

-

2

nd

Parameter

x

PSL7

PSL6

PSL5

PSL4

PSL3

PSL2

PSL1

PSL0

-

3 Parameter

rd

x

PEL15

PEL14

PEL13

PEL12

PEL11

PEL10

PEL9

PEL8

-

4 Parameter

th

x

PEL7

PEL6

PEL5

PEL4

PEL3

PEL2

PEL1

PEL0

-

33H

Vertical Scrolling

x

0

0

1

1

0

0

1

1

33h

Definition

1 Parameter

st

x

TFA15

TFA14

TFA13

TFA12

TFA11

TFA10

TFA9

TFA8

-

2

nd

Parameter

x

TFA7

TFA6

TFA5

TFA4

TFA3

TFA2

TFA1

TFA0

-

3 Parameter

rd

x

VSA15

VSA14

VSA13

VSA12

VSA11

VSA10

VSA9

VSA8

-

4 Parameter

th

x

VSA7

VSA6

VSA5

VSA4

VSA3

VSA2

VSA1

VSA0

-

5 Parameter

th

x

BFA15

BFA14

BFA13

BFA12

BFA11

BFA10

BFA9

BFA8

-

6 Parameter

th

x

BFA7

BFA6

BFA5

BFA4

BFA3

BFA2

BFA1

BFA0

-

34H

Tearing EffectLine Off

x

0

0

1

1

0

1

0

0

34h

35H

Tearing EffectLine On

x

0

0

1

1

0

1

0

1

35h

1 Parameter

st

x

x

x

x

x

x

x

x

M

00h

36H

Memory Access Control

x

0

0

1

1

0

1

1

0

36h

1 Parameter

st

x

MY

MX

MV

ML

RGB

MH

x

x

00h

37H

VerticalScrolling

x

0

0

1

1

0

1

1

1

37h

StartAddress

1 Parameter

st

x

SSA15

SSA14

SSA13

SSA12

SSA11

SSA10

SSA9

SSA8

00h

2

nd

Parameter

x

SSA7

SSA6

SSA5

SSA4

SSA3

SSA2

SSA1

SSA0

00h

38H

Idle Mode Off

x

0

0

1

1

1

0

0

0

38h

39H

Idle Mode On

x

0

0

1

1

1

0

0

1

39h

3AH

Interface PixelFormat

x

0

0

1

1

1

0

1

0

3Ah

1 Parameter

st

x

VIPF3

VIPF2

VIPF1

VIPF0

D3

IFPF2

IFPF1

IFPF0

66h

B1H

Frame Rate Control

1

0

1

1

0

0

0

1

B1h

(In normal mode/Full

colors)

1 Parameter

st

x

x

x

DIVA4

DIVA3

DIVA2

DIVA1

DIVA0

x

2

nd

Parameter

x

x

VPA5

VPA4

VPA3

VPA2

VPA1

VPA0

x

B2H

Frame Rate Control

1

0

1

1

0

0

1

0

B2h

(In Idle mode/8-colors)

1 Parameter

st

x

x

x

DIVB4

DIVB3

DIVB2

DIVB1

DIVB0

x

2

nd

Parameter

x

x

VPB5

VPB4

VPB3

VPB2

VPB1

VPB0

x

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 10 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

Code Command

D17-D8

D7

D6

D5

D4

D3

D2

D1

D0

hex

B3H Frame Rate Control

1

0

1

1

0

0

1

1

B3h

(In Partial mode/full colors)

1 Parameter

st

x

x

x

DIVC4

DIVC3

DIVC2

DIVC1

DIVC0

x

2

nd

Parameter

x

x

VPC5

VPC4

VPC3

VPC2

VPC1

VPC0

x

B4H Display Inversion Control

x

1

0

1

1

0

1

0

0

B4h

1 Parameter

st

x

0

0

0

0

0

NLA

NLB

NLC

02H

B5H RGB Interface Blanking

x

1

0

1

1

0

1

0

1

B5h

Porch setting

1 Parameter

st

x

x

x

HBP5

HBP4

HBP3

HBP2

HBP1

HBP0

08h

2

nd

Parameter

x

VBP7

VBP6

VBP5

VBP4

VBP3

VBP2

VBP1

VBP0

03h

3 Parameter

rd

x

x

x

x

x

x

x

VBP9

VBP8

00h

B6H Display Function Set

x

1

0

1

1

0

1

1

0

B6h

1 Parameter

st

x

x

NO1

NO0

SDT1

SDT0

EQ1

EQ2

06h

2

nd

Parameter

x

x

x

X

x

PTG0

PT1

PT0

02h

B7H Source Driver Direction

x

1

0

1

1

0

1

1

1

B7h

Control

1 Parameter

st

x

0

0

0

0

0

0

0

CRL

00h

B8H Gate Driver Direction

x

1

0

1

1

1

0

0

0

B8h

Control

1 Parameter

st

x

0

0

0

0

0

0

0

CTB

00h

C0H Power_ Control1

x

1

1

0

0

0

0

0

0

C0h

1 Parameter

st

x

0

0

0

VRH4

VRH3

VRH2

VRH1

VRH0

x

2

nd

Parameter

x

0

0

0

0

0

VC2

VC1

VC0

02h

C1H Power_ Control2

x

1

1

0

0

0

0

0

1

C1h

1 Parameter

st

x

0

0

0

0

0

BT2

BT1

BT0

07h

C2H Power_ Control3

x

1

1

0

0

0

0

1

0

C2h

1 Parameter

st

x

0

0

0

0

0

APA2

APA1

APA0

00h

C3H Power_ Control4

x

1

1

0

0

0

0

1

1

C3h

1 Parameter

st

x

0

0

0

0

0

APB2

APB1

APB0

00h

C4H Power_ Control 5

x

1

1

0

0

0

1

0

0

C4h

1 Parameter

st

x

0

0

0

0

0

APC2

APC1

APC1

01h

C5H VCOM_ Control 1

x

1

1

0

0

0

1

0

1

C5h

1 Parameter

st

x

x

VMH6

VMH5

VMH4

VMH3

VMH2

VMH1

VMH0

-

2

nd

Parameter

x

0

VML6

VML5

VML4

VML3

VML2

VML1

VML0

-

C6H VCOM_ Control 2

x

1

1

0

0

0

1

1

0

C6h

1 Parameter

st

x

0

0

VMA5

VMA4

VMA3

VMA2

VMA1

VMA0

13h/06h

C7H VCOM OffsetControl

x

1

1

0

0

0

1

1

1

C7h

1 Parameter

st

0

nVM*

VMF6

VMF5

VMF4

VMF3

VMF2

VMF1

VMF0

40h

D3H Write ID4Value

x

1

1

0

1

0

0

1

1

D3h

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

ID417

ID416

ID415

ID414

ID413

ID412

ID411

ID410

91h

3 Parameter

rd

x

ID427

ID426

ID425

ID424

ID423

ID422

ID421

ID420

63h

4 Parameter

th

x

x

x

x

x

ID433

ID432

ID431

ID430

00h

5 Parameter

th

x

x

x

x

x

x

x

x

x

x

D5H NV Memory Function

x

1

1

0

1

1

0

1

0

D5h

Controller(1)

1 Parameter

st

x

ID33

ID32

ID31

ID30

ID23

ID22

ID21

ID20

00h

2

nd

Parameter

x

OTP_ BS

0

0

0

OTP_

OTP_

OTP_

OTP_

00h

VMF3

VMF2

VMF1

VMF0

D6H NV Memory Function

x

1

1

0

1

1

0

1

0

D6h

Controller(2)

1 Parameter

st

x

OTP_D[7 OTP_

OTP_

OTP_

OTP_

OTP_

OTP_

OTP_

00h

]

D[6]

D[5]

D[4]

D[3]

D[2]

D[1]

D[0]

2

nd

Parameter

x

0

0

0

0

0

0

OTP_

OTP_

00h

TP[1]

TP[0]

D7H NV Memory Function

x

1

1

0

1

1

0

1

0

D7h

Controller(3)

1 Parameter

st

x

0

1

0

1

0

1

0

1

55h

2

nd

Parameter

x

1

0

1

0

1

0

1

0

AAh

3 Parameter

rd

x

0

1

1

0

0

1

1

0

66h

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 11 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

Code Command

D17-D8

D7

D6

D5

D4

D3

D2

D1

D0

hex

DAH Read ID1

x

1

1

0

1

1

0

1

0

DAh

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

ID17

ID16

ID15

ID14

ID13

ID12

ID11

ID10

54h

DBH Read ID2

x

1

1

0

1

1

0

1

1

DBh

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

1

ID26

ID25

ID24

ID23

ID22

ID21

ID20

80h

DCH Read ID3

x

1

1

0

1

1

1

0

0

DCh

1 Parameter

st

x

x

x

x

x

x

x

x

x

x

2

nd

Parameter

x

ID37

ID36

ID35

ID34

ID33

ID32

ID31

ID30

66h

E0H Positive Gamma

1

1

1

0

0

0

0

0

E0h

Correction Setting

1 Parameter

st

x

x

VP0[5:0]

-

2

nd

Parameter

x

x

VP1[5:0]

-

3 Parameter

rd

x

x

VP2[5:0]

-

4 Parameter

th

x

x

VP4[5:0]

-

5 Parameter

th

x

x

VP6[5:0]

-

6 Parameter

th

x

x

x

VP13[4:0]

-

7 Parameter

th

x

VP20[6:0]

-

8 Parameter

th

VP36[3:0]

VP27[3:0]

-

9 Parameter

th

x

VP43[6:0]

-

10 Parameter

th

x

VP50[5:0]

-

11 Parameter

st

x

x

VP57[5:0]

-

12

nd

arameter

x

x

VP59[5:0]

-

13 Parameter

rd

x

x

VP61[5:0]

-

14 Parameter

th

x

x

VP62[5:0]

-

15 Parameter

th

x

x

VP63[5:0]

-

E1H Negative Gamma

1

1

1

0

0

0

0

1

E1h

Correction Setting

1 Parameter

st

x

x

VN63[5:0]

-

2

nd

Parameter

x

x

VN62[5:0]

-

3 Parameter

rd

x

x

VN61[5:0]

-

4 Parameter

th

x

x

V59[5:0]

-

5 Parameter

th

x

x

VN57[5:0]

-

6 Parameter

th

x

x

x

VN50[4:0]

7 Parameter

th

x

x

VN43[6:0]

-

8 Parameter

th

VN27[3:0]

VN36[3:0]

-

9 Parameter

th

x

VN20[6:0]

-

10 Parameter

th

x

x

VN13[5:0]

-

11 Parameter

st

x

x

VN6[5:0]

-

12

nd

arameter

x

x

VN4[5:0]

-

13 Parameter

rd

x

x

VN2[5:0]

-

14 Parameter

th

x

x

VN1[5:0]

-

15 Parameter

th

x

x

VN0[5:0]

-

F2H GAM_R_SEL

1

1

1

1

0

0

1

0

F2h

1 Parameter

st

x

x

x

x

x

x

x

GAM_R_ Write

SEL

Notes:

1. There will be no abnormal visible effects on the display when S/W or H/W Reset are applied.

2. After Powered-On Reset finishes within 10%s after both VDD & VDDI are applied.

3. Mode 1 means Tearing Effect Output Line consists of V-Blanking Information only.

4.

Please refer to ILI9163C datasheet for details

Power off the LCD Module

It recommends that enter Sleep Mode before power off the LCD module.

Refreshing The LCD Module

It recommends that the operating modes and display contents be refreshed periodically to prevent

the effect of unexpected noise.

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 12 of 13

TOPWAY

LCD Module User Manual

LMT018DNBFWD-1

6. Design and Handling Precaution

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LMT018DNBFWD-1-Manual-Rev0.1

Page: 13 of 13
