LMT033XDHG01

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

1. 1. Basic Specifications .............................................................................................................................. 3

1.1 Block Diagram .................................................................................................................................................................................... 3

1.2 Terminal Functions ............................................................................................................................................................................ 4

3. Electrical Characteristics ......................................................................................................................... 5

3.1 DC Characteristics ............................................................................................................................................................................ 5

3.2 LED Backlight Circuit Characteristics ............................................................................................................................................ 5

4. AC Characteristics ..................................................................................................................................... 6

4.1 DHigh Speed Mode-Clock Channel Timing ................................................................................................................................... 6

4.2 Power ON/OFF Sequence ............................................................................................................................................................... 7

4.3 Reset timing ....................................................................................................................................................................................... 8

5 . Optical Characteristics ............................................................................................................................. 8

6. LCD Module Design and Handling Precautions ...................................................................................................................... 11

7. CTP Mounting Instructions ............................................................................................................................................................ 12

8. RTP Mounting Instructions ............................................................................................................................................................ 13

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

1. 1. Basic Specifications

Screen Size(Diagonal) :

Display Technology :

a-Si TFT active matrix

Transmissive With Normally white

Pixel Configuration :

6H (*1) (gray scale inverse)

Polarizer Surface Treatment:

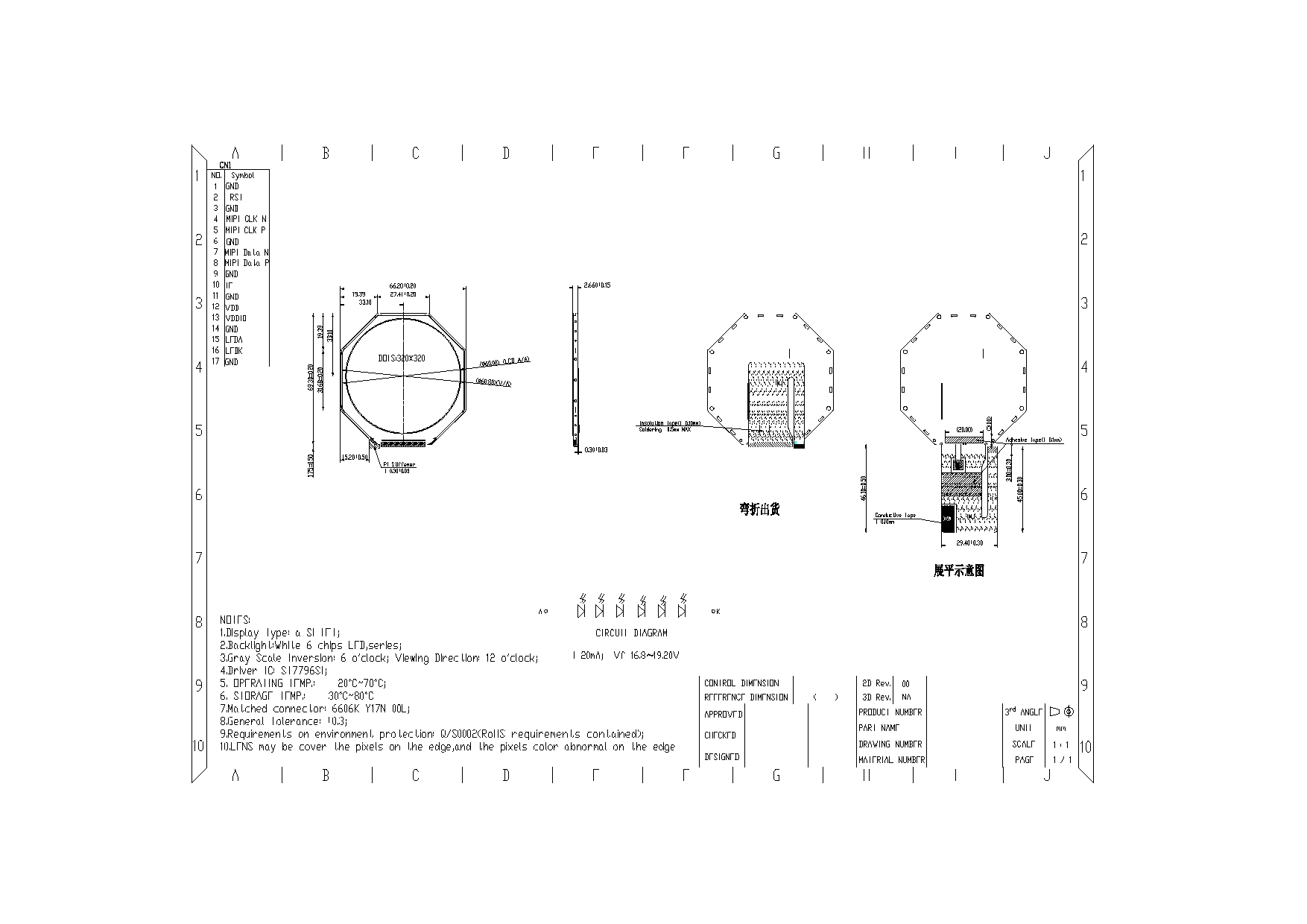

66.2x 69.30 x 2.66 mm

(exclude FPC , see dwg for details)

Operating Temperature :

-20 ~ +70°C (No Condensation)

Storage Temperature :

-30 ~ +80°C (No Condensation)

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors-combinations).

*2. For “color scales” display content.

*3. Color tone may slightly change by temperature and driving condition.

MIPI_Data-N,MIPI_Data-P

ST7796SI or equivalent

MIPI_CLK-N,MIPI_CLK-P

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

1.2 Terminal Functions

Power NegAtive power supply,0V

/RST = L, Initialization is executed

/RST = H, Normal running.

Power NegAtive power supply,0V

Output a frame head pulse signal

If no used, please open this pin

Power NegAtive power supply,0V

Power Positive power supply

Power IO Positive Power

Power NegAtive power supply,0V

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

2. Absolute Maximum Ratings

Operating Temperature

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

3. Electrical Characteristics

3.1 DC Characteristics

V SS =0V, T OP =25  C

N,MIPI_Data-P,MIPI_CLK-

3.2 LED Backlight Circuit Characteristics

BLK=0V, I BLA =20mA, T OP =25  C

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

4. AC Characteristics

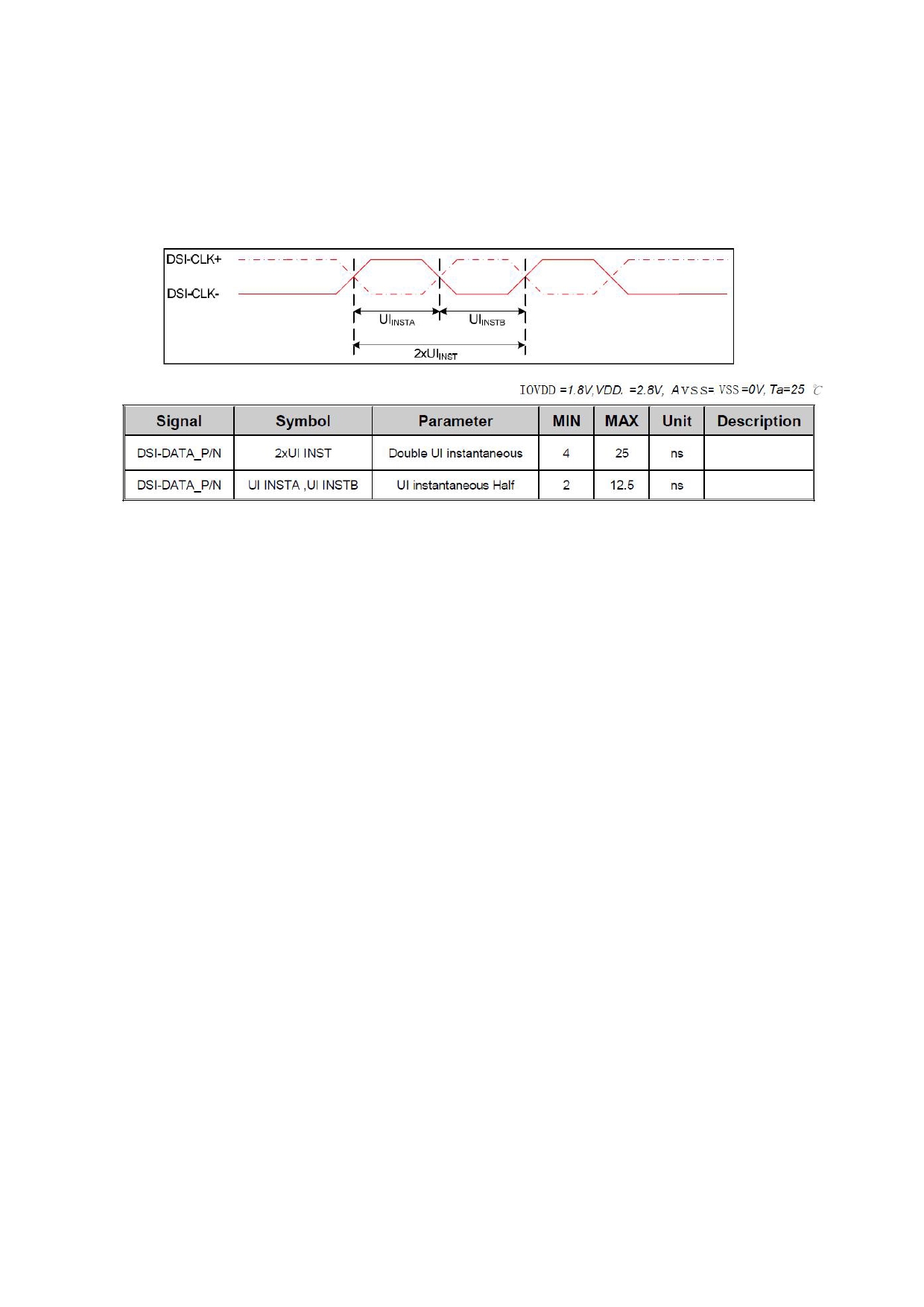

4.1 DHigh Speed Mode-Clock Channel Timing

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

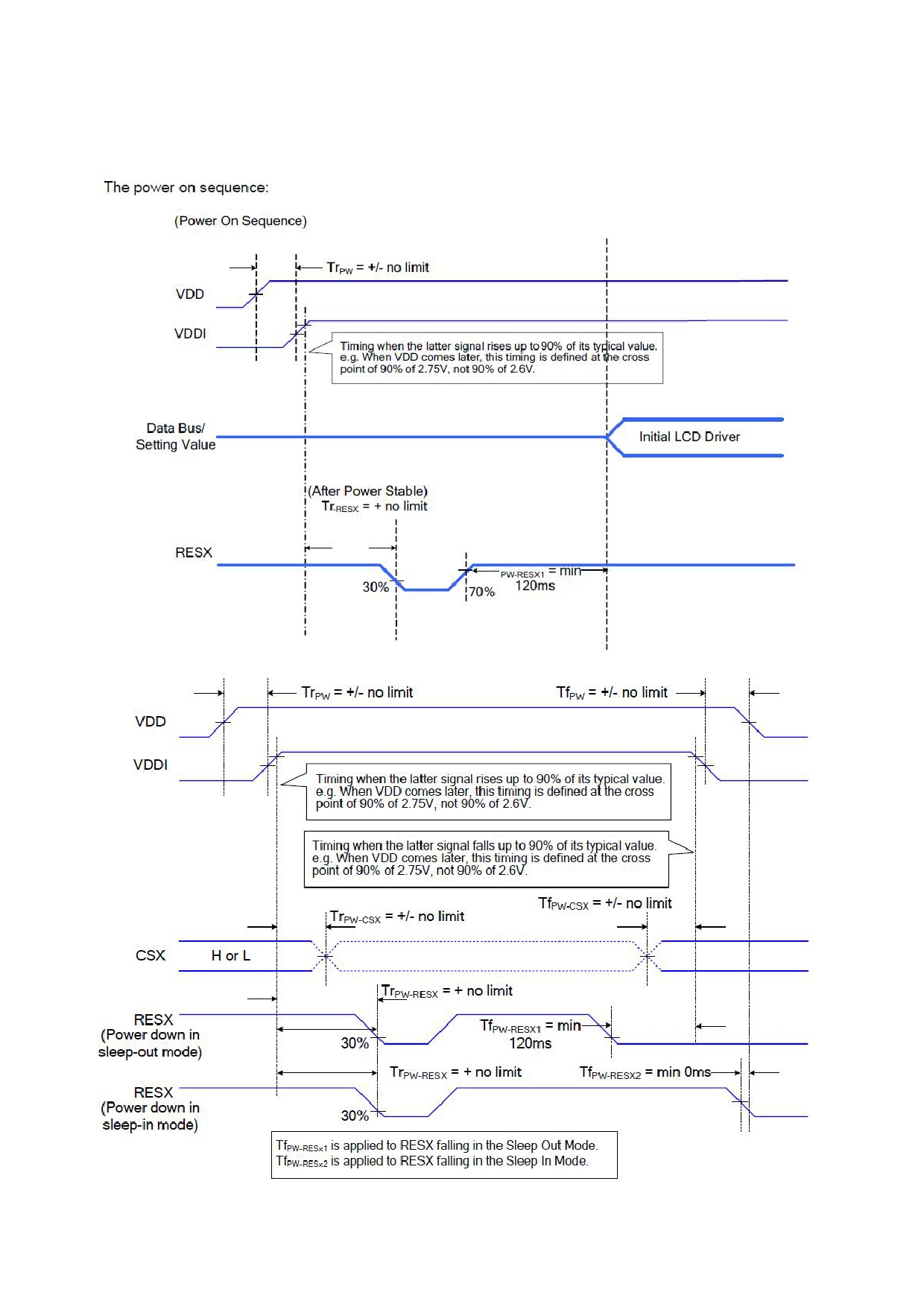

4.2 Power ON/OFF Sequence

Note: Please refer to ST7796SI data sheet for more details.ST7796SI INTERFACE PROTOCOL

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

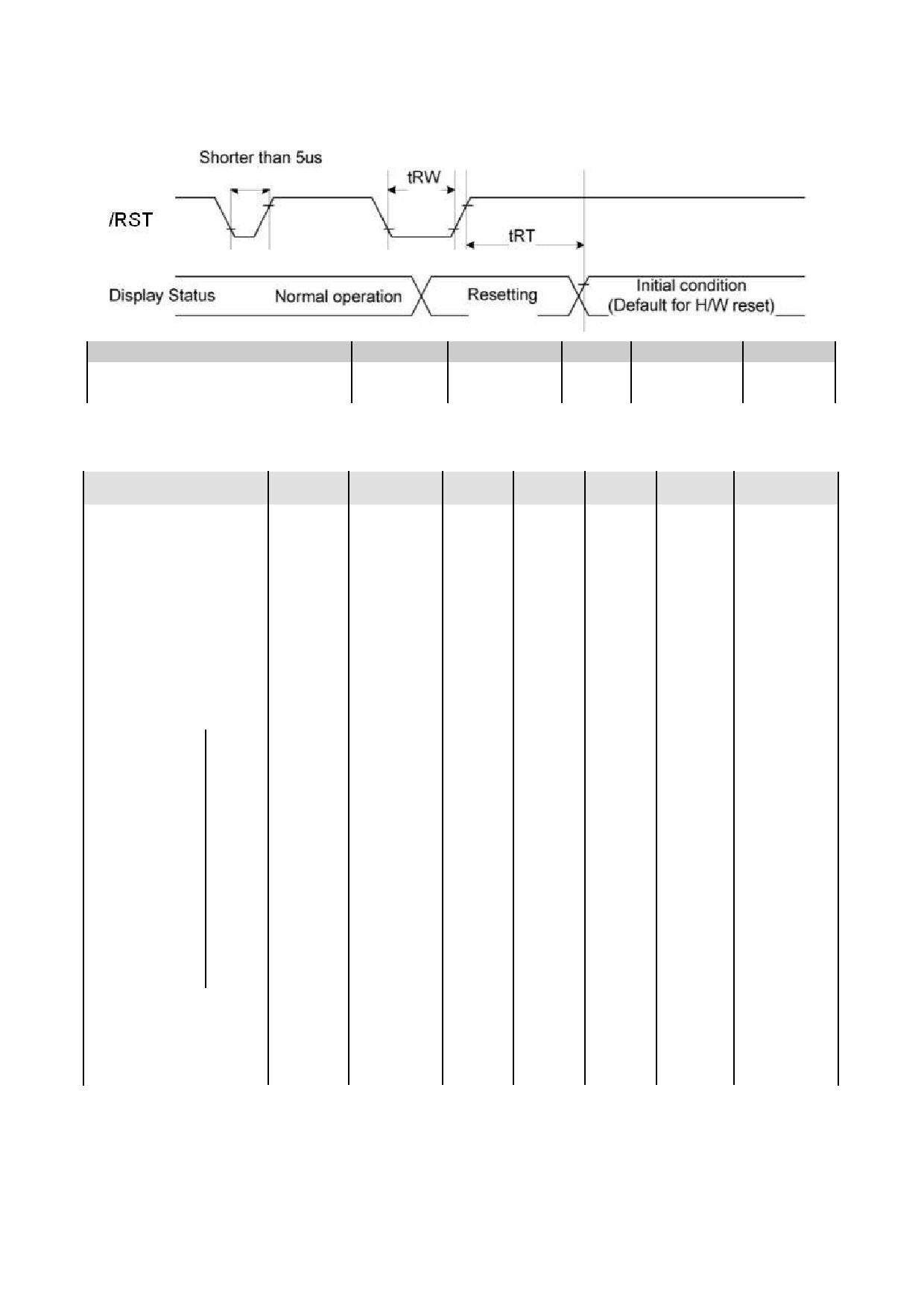

Reset LOW pulse width

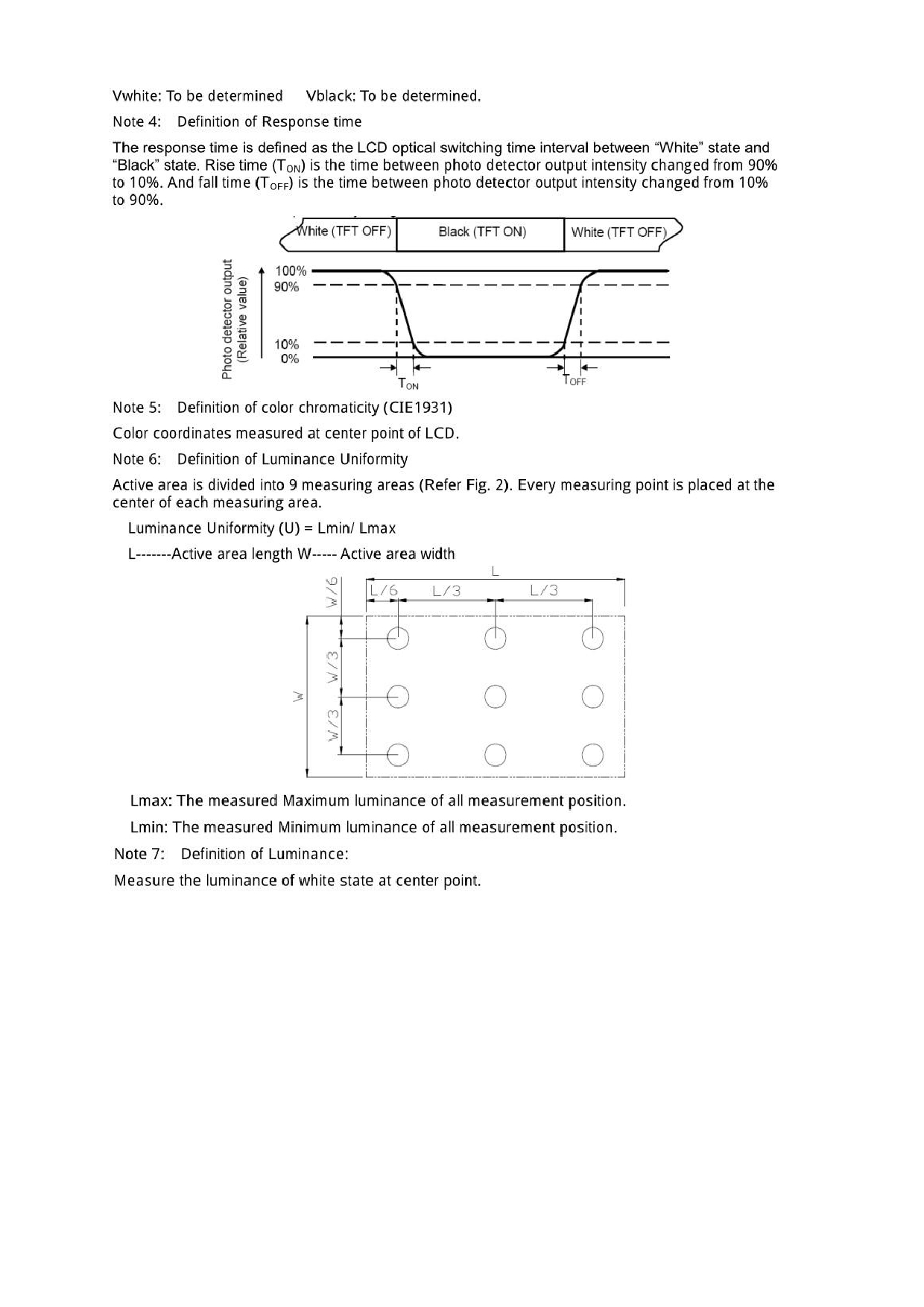

5 . Optical Characteristics

1.IF= 20 mA, and the ambient temperature is 25 ℃ .

2. The test systems refer to Note 1 and Note 2.

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

6. LCD Module Design and Handling Precautions

6. 液晶显示模块设计和使用须知

- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块

module get the best contrast ratio under different

在不同的使用温度下以及在不同的视角和位置观

temperatures, view angles and positions.

察模块显示，均能达到最佳对比度，请务必将应

用电路上设置为对比度可调。

- Normally display quality should be judged under the best - 请注意液晶显示模块的显示品质判定是指在正常

contrast ratio within viewable area. Unexpected display

对比度下以及视窗(V.A)范围内进行的，非正常

pattern may come out under abnormal contrast ratio.

对比度下液晶可能会出现非预期的显示不良，应

- Never operate the LCD module exceed the absolute

- 请勿在最大额定值以外使用液晶显示模块。

- Never apply signal to the LCD module without power supply.

- 请勿在没有接通电源的条件下，给液晶显示模块

- Keep signal line as short as possible to reduce external

- 请尽可能缩短信号线的连接，以避免对液晶显示

- IC chip (e.g. TAB or COG) is sensitive to light. Strong light

模块的信号干扰。

might cause malfunction. Light sealing structure casing is - 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为

敏感，强光环境下可能会引起液晶显示模块功能

失效，故应采用不透光的外壳。

- Make sure there is enough space (with cushion) between - 请在液晶显示模块与外壳之间保留足够的空间

case and LCD panel, to prevent external force passed on to

(可使用衬垫)，以缓冲外力对液晶显示模块的损

the panel; otherwise that may cause damage to the LCD and

坏或因受力不均而产生的显示不匀等异常现象。

degrade its display result.

- Avoid showing a display pattern on screen for a long time - 避免液晶显示屏在某一画面下长时间点亮，否则

(continuous ON segment).

有出现残影的风险；请通过软件每隔一段时间改

- LCD module reliability may be reduced by temperature - 液晶显示模块的可靠性可能因温度冲击而降低。

- 请勿在阳光直射、高湿、高温或低温下储存和使

- When storing and operating LCD module, avoids exposure

用液晶显示模块，这将造成液晶显示模块的损坏

to direct sunlight, high humidity, high or low temperature.

They may damage or degrade the LCD module.

- Never leave LCD module in extreme condition (max./min - 请勿在极限环境(最大/最小存储/工作温度)下使

storage/operate temperature) for more than 48hr.

用或放置液晶显示模块超过 48 小时以上。

- Recommend LCD module storage conditions is 0 C~40 C - 液晶显示模块建议存储条件为 : 0 C~40 C

- LCD module should be stored in the room without acid, alkali - 请勿让液晶显示模块存储于带有酸性, 碱性,

有害气体环境之中。

- Avoid dropping & violent shocking during transportation, and - 在运输过程中, 请勿让液晶显示模块跌落与猛烈

no excessive pressure press, moisture and sunlight.

震动, 同时避免异常挤压, 高湿度, 与阳光照

- LCD module can be easily damaged by static electricity.

Please maintain an optimum anti-static working environment - 液晶显示模块极易受静电损坏，请务必保证液晶

to protect the LCD module. (eg. ground the soldering irons

显示模块在防静电的工作环境中使用或保存。

(如: 烙铁正确接地,等)

- Be sure to ground the body when handling LCD module.

- 拿取液晶显示模块时需注意操作人员的接地情

- Only hold LCD module by its sides. Never hold LCD module

by applying force on the heat seal or TAB.

- 请手持液晶显示模块的边沿取放模块，防止热压

- When soldering, control the temperature and duration avoid

纸或 TAB 部位受力。

damaging the backlight guide or diffuser which might - 焊接液晶模块时，请注意控制烙铁的温度、焊接

degrade the display result such as uneven display.

时间，以免烫坏导光板或偏光片，导致显示不匀

- Never let LCD module contact with corrosive liquids, which

等不良现象发生。

might cause damage to the backlight guide or the electric - 请勿使用洗板水等腐蚀性液体接触液晶模块，以

circuit of LCD module.

免腐蚀导光板或模块电路。

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol or

Ethyl Alcohol. Other solvents (e.g. water) may damage the - 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏

表面，其他任何溶剂(如:水)都有可能损坏液晶

- Never add force to components of LCD module. It may

cause invisible damage or degrade the module's reliability.

- 请勿挤压液晶显示模块上的元器件，以避免产生

- When mounting LCD module, please make sure it is free

潜在的损坏或失效而影响产品可靠性。

from twisting, warping and bending.

- 装配液晶显示模块时，请务必注意避免液晶显示

- Do not add excessive force on surface of LCD, which may

模块的扭曲或变形。

cause the display color change abnormally.

- 请勿挤压液晶显示屏表面，这将导致显示颜色的

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

- LCD panel is made with glass. Any mechanical shock (e.g.

dropping from high place) will damage the LCD module.

- 液晶屏由玻璃制作而成，任何机械碰撞(如从高

处跌落)均有可能损坏液晶显示模块。

- Protective film is attached on LCD screen. Be careful when - 液晶屏表面带有保护膜, 揭除保护膜时需要注意

peeling off this protective film, since static electricity may be

可能产生的静电。

- 因液晶显示屏表面的偏光片极易划伤，安装完成

- Polarizer on LCD gets scratched easily. If possible, do not

之前请尽量不要揭下保护膜。

remove LCD protective film until the last step of installation.

- 请缓慢揭除保护膜，在此过程中液晶显示屏上可

- When peeling off protective film from LCD, static charge may

能会产生静电线，此为正常情况，可在短时间内

cause abnormal display pattern. The symptom is normal,

and it will turn back to normal in a short while.

- LCD panel has sharp edges, please handle with care.

- 请注意避免被液晶显示屏的边缘割伤。

- Never attempt to disassemble or rework LCD module.

- 请不要试图拆卸或改造液晶显示模块。

- If display panel is damaged and liquid crystal substance - 当液晶显示屏出现破裂, 内部液晶液体可能流

leaks out, be sure not to get any in your mouth, if the

出; 相关液体不可吞吃, 绝对不可接触嘴巴, 如

substance comes into contact with your skin or clothes

接触到皮肤或衣服, 请使用肥皂与清水彻底清

promptly wash it off using soap and water.

7. CTP Mounting Instructions

7. 电容触摸屏安装指导

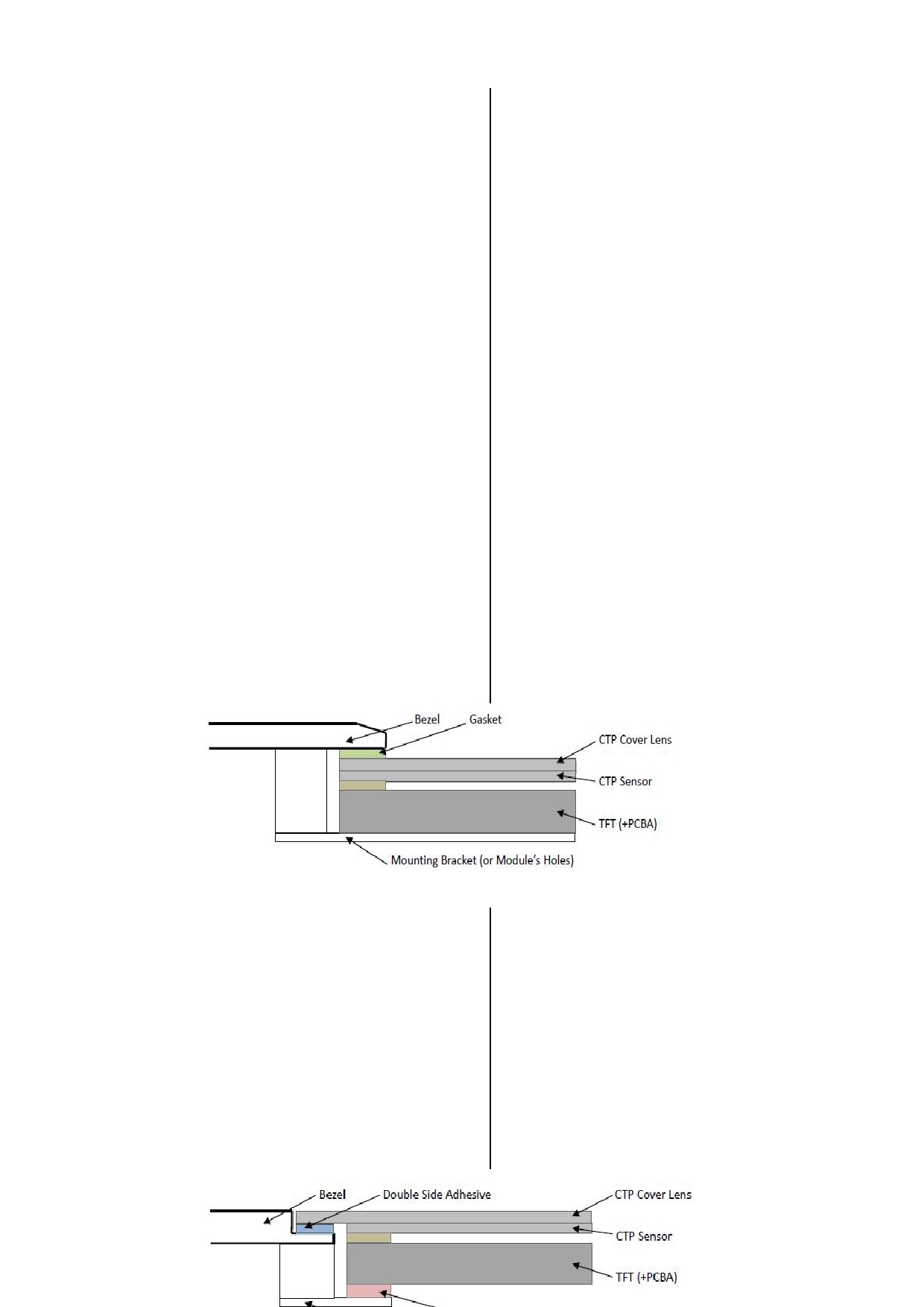

7.1 Bezel Mounting (Figure 1)

7.1 面框安装（附图 1）

- The bezel window should be bigger than the CTP active - 客户面框窗口应大于 CTP 动作区域，各边离动作

area. It should be ≥ 0.5mm each side.

- Gasket should be installed between the bezel and the CTP - 面框与 CTP 面板间应垫有胶垫，其最终间隙约为

The final gap should be about 0.5~1.0mm.

- 建议必要时在背面提供附加支架(例如无安装结

- It is recommended to provide an additional support bracket

构的薄型 TFT 模块)，应仅利用适当支撑以保持

for backside support when necessary (e.g. slim type TFT

module without mounding structure). They should only

provide appropriate support and keep the module in place.

- The mounting structure should be strong enough to prevent - 安装结构应具有足够的强度，以防止外部不均匀

external uneven force or twist act onto the module.

力或扭曲力作用到模块上.

7.2 Surface Mounting (Figure 2)

7.2 嵌入安装（附图 2）

- As the CTP assembling on the countersink area with double - 客户面框应具有使用双面胶粘贴 CTP 的结构沉台

面，其粘贴面要求平整且洁净无污以保证粘贴牢

The countersink area should be flat and clean to ensure the

double side adhesive installation result.

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each

side) around the cover lens for tolerance.

- 考虑到制作误差，建议面框与 CTP 盖板之间四周

- It is recommended to provide an additional support bracket

留有≥0.3mm 间隙.

with gasket for backside support when necessary (e.g. TFT - 建议必要时在背面提供垫有胶垫附加支架(例如

module without mounding structure). They should only

无安装结构的 TFT 模块)，应仅利用适当支撑以

provide appropriate support and keep the module in place.

- The mounting structure should be strong enough to prevent

external uneven force or twist act onto the module

- 安装结构应具有足够的强度，以防止外部不均匀

力或扭曲力作用到模块上。

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

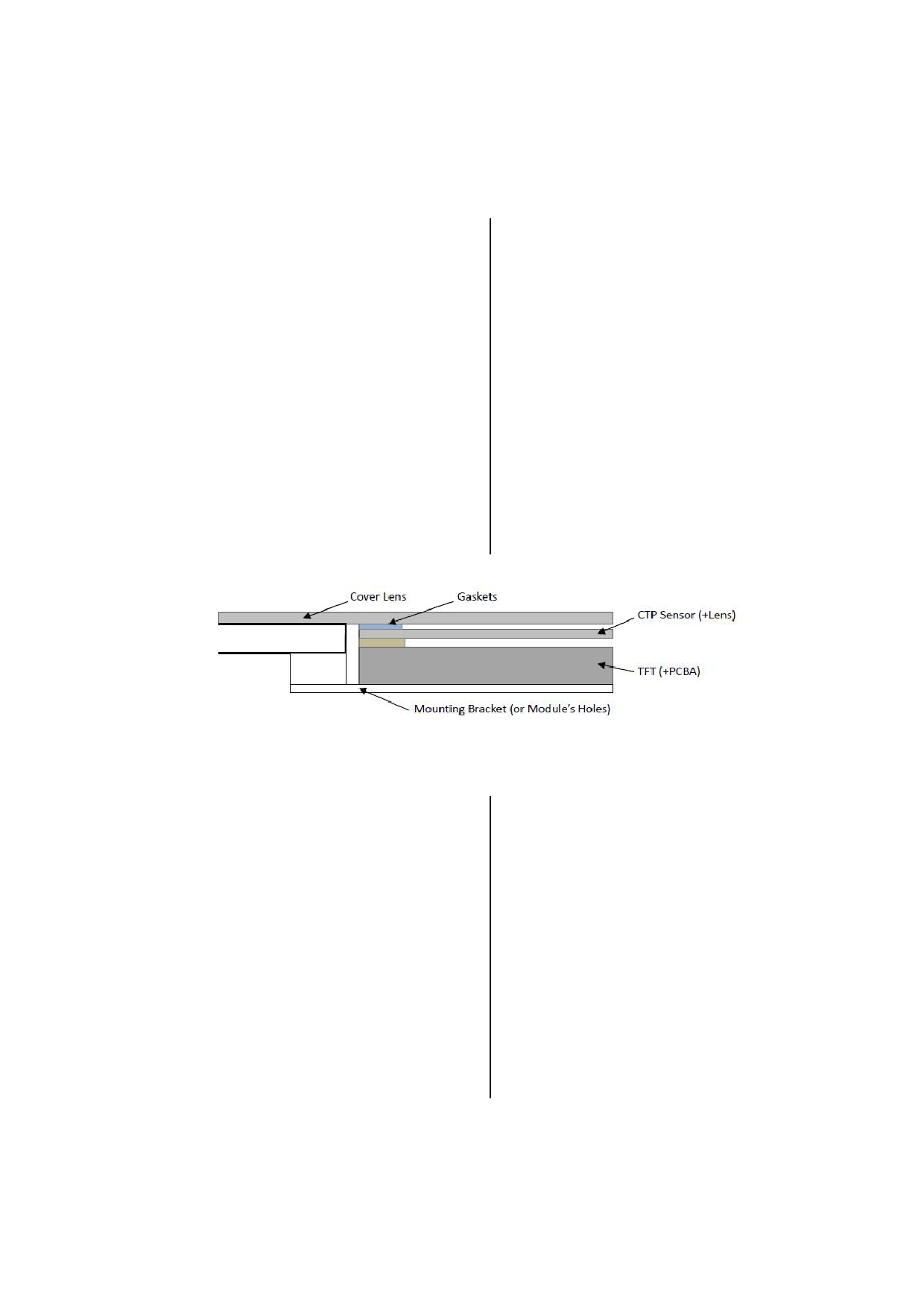

7.3 Additional Cover Lens Mounting (Figure 3)

7.3 覆加盖板（附图 3）

- For the case of additional cover Lens mounting, it is - 需要覆加玻璃盖板的安装，为确保其功能，有必

necessary to recheck with the CTP specification about the

要查看产品规格书中有关盖板材料和厚度的说

material and thickness to ensure the functionality.

- It should keep a 0.2~0.3mm gap between the cover lens and

- 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间

- The cover lens window should be bigger than the active area

of the CTP.It should be ≥ 0.5mm each side.

- It is recommended to provide an additional support bracket - 玻璃盖板视窗应大于 CTP 动作区域，各边离动作

for backside support when necessary (e.g. slim type TFT

module without mounding structure). They should only - 建议必要时在背面提供附加支架(例如无安装结

provide appropriate support and keep the module in place.

构的薄型 TFT 模块)，应仅利用适当支撑以保持

- The mounting structure should be strong enough to prevent

external uneven force or twist act onto the module.

- 安装结构应具有足够的强度，以防止外部不均匀

力或扭曲力作用到模块上.

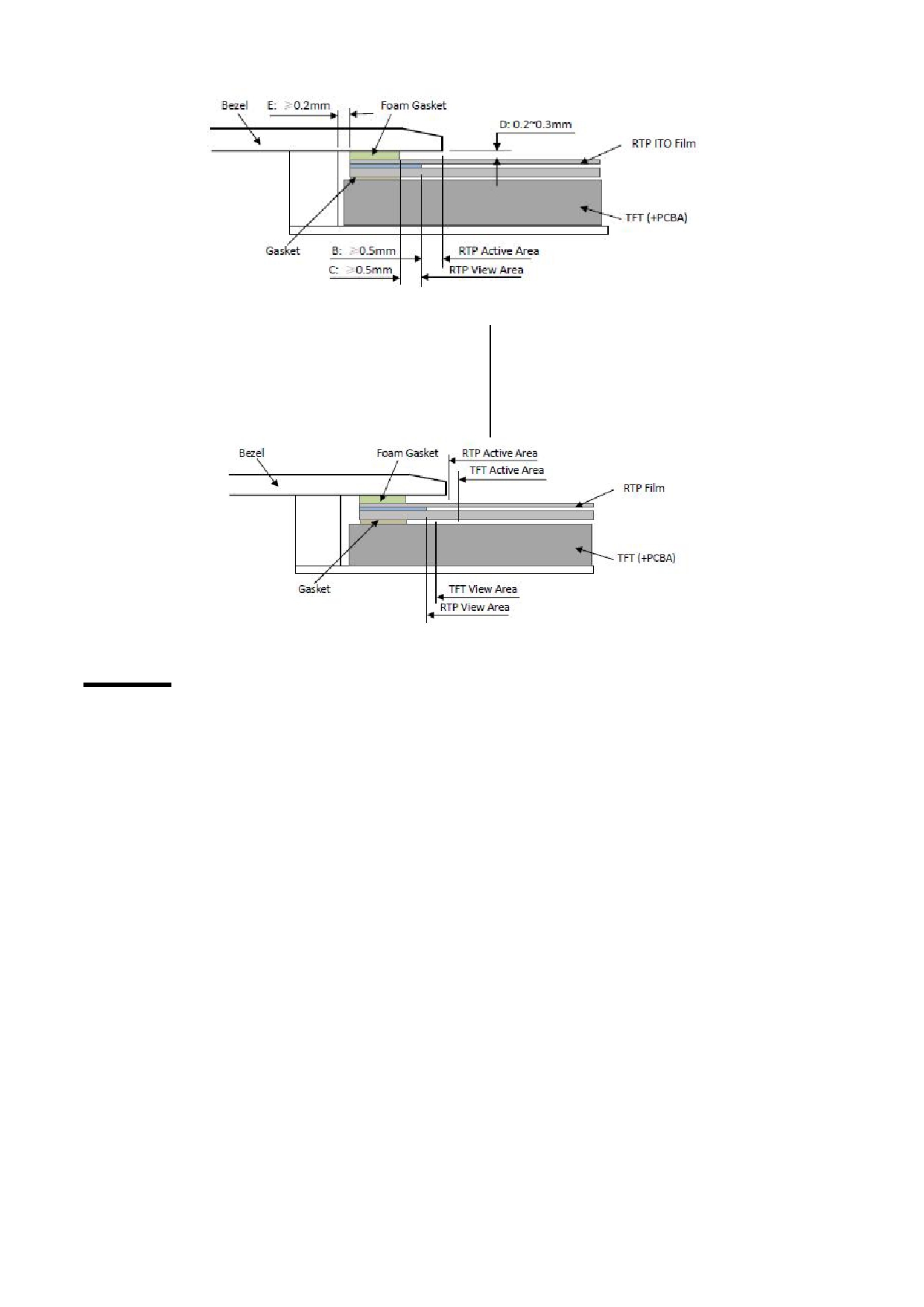

8. RTP Mounting Instructions

8. 电阻触摸屏安装指导

- It should bezel touching the RTP Active Area (A.A.) to

- 为避免面框直接压在动作区(A.A.)上造成误动

prevent abnormal touch.It should left gab D=0.2~0.3mm in

作，面框与电阻触摸屏(RTP)之间应留有一定的

空隙 D=0.2~0.3mm 之间.(附图 4)

- Outer bezel design should take care about the area outside

- 设计面框时，要注意用面框保护触摸屏四周的非

the A.A. Those areas contain circuit wires which is having

保证操作区域，因为布线区域在此处形成一台

different thickness. Touching those areas could de-form the

阶，在此区域附近操作时 ITO Film 变形较大，

ITO film. As a result bezel the ITO film be damaged and

容易导致 ITO 损坏而降低寿命。为保护 RTP 和避

shorten its lifetime.

免误操作，在 RTP 与面框之间垫缓冲物

It is suggested to protect those areas with gasket (between

（Gasket），我们建议设计面框应覆盖动作区的

the bezel and RTP).The suggested figures are B≥0.50mm;

边缘，面框边缘到 V.A.区的距离 B≥0.50mm; 垫

C≥0.50mm. (Figure 4)

圈内边缘到 V.A.区的距离 C≥0.50mm. (附图 4)

- The bezel side wall should keep space E= 0.2 ~ 0.3mm from - 在设计面框与 RTP 组装时，应考虑到面框内侧与

RTP 外侧的间距 E≥0.2mm. (附图 4)

URL: www.topwaydisplay.com

Document Name: LMT033XDHG01-Manual-Rev0.1.doc

LCD Module User Manual

- In general design,

- 通常设计时：

RTP V.A. should be bigger than the TFT V.A.

RTP 的可视区 V.A. 应不小于 TFT 的可视区

and RTP A.A. should be bigger than the TFT A.A.

及 RTP 的动作区 A.A. 应不小于 TFT 的动作区

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general

electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control

equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to

human life and where extremely high levels of reliability are required. If the product is to be used in any of the above

applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our

product to our assembly with exception to those issues relating directly to the structure or method of manufacturing of
