LMT035ENAFWA-NND
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
Li KeKe
Date: 2020-08-25
Date:
Date:
Rev. Descriptions
Release Date
0.1
- Preliminary Draft release
2020-08-25
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 1 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
Table of Contents
1 .General Specifications .............................................................................................................................................................. 3
2 .Input/Output Terminals ............................................................................................................................................................. 4
2.1 TFT LCD Panel ........................................................................................................................................................................ 4
2.2 K2 Interface ............................................................................................................................................................................. 4
2.3 K2 I2C Interface Descriptions .............................................................................................................................................. 5
3 .Absolute Maximum Ratings ..................................................................................................................................................... 6
3.1 Driving TFT LCD Panel .......................................................................................................................................................... 6
4 .Electrical Characteristics(CTP) ............................................................................................................................................... 6
4.1 Driving TFT LCD Panel .......................................................................................................................................................... 6
5 .Electrical Characteristics(FTF) ................................................................................................................................................ 6
5.1 Driving TFT LCD Panel .......................................................................................................................................................... 6
5.2 Backlight Unit ........................................................................................................................................................................... 7
5.3 Block Diagram .......................................................................................................................................................................... 7
6 .Timing Chart ............................................................................................................................................................................... 8
6.1 System Bus Timing for RGB Interface ................................................................................................................................. 8
6.2 RGB Interface .......................................................................................................................................................................... 9
6.3 SYNC-DE Mode .................................................................................................................................................................... 10
6.4 DE Mode ................................................................................................................................................................................. 11
6.5 Parallel 24-bit RGB Input Timing Table ............................................................................................................................. 12
7 .Optical Characteristics ............................................................................................................................................................ 12
8 .Environmental / Reliability Tests ........................................................................................................................................... 15
9. LCD Module Design and Handling Precautions ................................................................................................................. 16
10. CTP Mounting Instructions .................................................................................................................................................. 17
11. RTP Mounting Instructions .................................................................................................................................................. 18
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 2 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
1 .General Specifications
Feature
Spec
Size
3.5 inch
Resolution
320(RGB)x240
Interface
RGB 24 bit
Color Depth
16.7M
Technology Type
a-Si
Display Spec.
Pixel pitch(mm)
0.219x0.219
Pixel Configuration
R.G.B Vertical Stripe
Surface Treatment
Glare
Viewing Direction
Full View
LCM (W x H x D) (mm)
76.9x64.2x5.3
Active Area(mm)
70.08x52.56
Mechanical
Driver IC
ST7272-G4
Characteristics
With /Without TSP
Without TSP
LED Numbers
6LEDs
Note 1:Requirements on Environmental Protection: RoHS
Note 2: The main FPC and plastic frame can fulfill UL94-V0
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 3 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
2 .Input/Output Terminals
2.1 TFT LCD Panel
No
Symbol
I/O
Description
Comment
1~2
VBL-
P
CATHODE OF BACKLIGHT LED
3~4
VBL+
P
ANODE OF BACKLIGHT LED
5
NC
-
NC
6
/RESET
I
SYSTEM Reset pin.internal pull high
7
CSB
I
Chip select pin of serial interface.internal pull high
8
SCL
I
Clock pin of serial interface 。 Internal pull high
9~10
SDA
I/O
Serial communication data input and output.
11~18
B7~B0
I/O
BLUE DATA
19~26
G7~G0
I/O
GREEN DATA
27~34
R7~R0
I/O
RED DATA
35
DCLK
I
Dot-clock signal and oscillator source.
36
HSYNC
I
Line synchronization siganl
37
VSYNC
I
Frame synchronization siganl
38
ENB
I
Diaplay enable pin from controller
39~40 VDD(ANALOG)
P
Power supply for analog circuit.
Power supply for digital I/O pins.
41~42
NC
-
NC
43
NC(YU)
-
NC(Touch panel Y up line)
44
NC(XR)
-
NC(Touch panel X right line)
45
NC(XD)
-
NC(Touch panel Y down line)
46
NC(XL)
-
NC(Touch panel X left line)
Dicplay shut down pin to put the drive into sleep mode.
A sharp falling edge must be provided to such pin when
47
SHUT
I
IC power on. Internal pull low
-Connect to VDDIO for sleep mode.
-Connect to VSS for normal operating mode.
48
NC
-
NC
49~50
VSS
P
System ground pin of the IC
Note 1: I——Input ， O——Output ， P——Power/Ground,
2.2 K2 Interface
Pin No.
Pin Name
I/O
Descriptions
1
VDD
P
Positive Power Supply
2
GND
P
Power Ground (0V)
3
I2C RST
I
Interrupt Signal
4
TP_SCL
I
Serial Input Clock
5
TP_SDA
I
Serial Input Data
6
Global RST
I
Reset Signal
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 4 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
2.3 K2 I2C Interface Descriptions
I2C Timing Diagram
Explain:
This touch screen using chip ST1633i, About, absolute maximum ratings, electrical characteristics, clock and date
input timing diagram, chip ST1633i command descriptions, Please reference chip ST1633i material document .
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 5 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
3 .Absolute Maximum Ratings
3.1 Driving TFT LCD Panel
Ta =25 ℃
Item
Symbol
MIN
MAX
Unit Remark
Power Voltage
VDD
--
4.0
V
Back Light Forward
Current
ILED
--
25
mA
For each LED
Back Light Forward
Current Voltage
VLED
--
18.6
V
Operating
℃
Temperature
Top
-20
70
Storage Temperature Tst
-30
80
℃
Relative Humidity
Note1
RH
--
90
%
Note2
Absolute Humidity
AH
--
≤70
g/m³ Ta ＞ 70 ℃
Note1: Ta means the ambient temperature.
It is necessary to limit the relative humidity to the specified temperature range.
Condensation .on the module is not allowed.
Note2: Ta 60 C ： 90% RH MAX （ 96HRS MAX ）
Ta 60 C ： ABSOLUTE HUMIDITY MUST BE LOWER THANTHE HUMIDITY OF 90%RH AT
60 C （ 96HRS MAX ）
4 .Electrical Characteristics(CTP)
4.1 Driving TFT LCD Panel
GND=0V, T OP =25 C
Items
Symb
TYP
ol
MIN.
.
MAX.
Unit Applicable Pin
Operating Voltage
V DD
2.8
3.3
3.6
V
VCC
Input High Voltage
V IH
0.85*VDD
-
-
V
Input pins
Input Low Voltage
V IL
-
-
0.15*VDD
V
Input pins
Normal Current
I cc
-
16.1
24
mA
VDD
Idle Current
I IDLE
-
8.1
12.2
mA
VDD
Power Down Current
V IPD
-
-
20
uA
VDD
5 .Electrical Characteristics(FTF)
5.1 Driving TFT LCD Panel
GND=0V ， Ta=25 ℃
Item
Symbol
MIN
TYP
MAX
Unit
Remark
Supply Voltage
VDD
3.0
3.3
3.6
V
Logic Signal Voltage
VDD
3.0
3.3
3.6
V
Low Level
VIL
--
—
0.3* VDD
V
Input Signal
V
Voltage
High Level
VIH
0.7* VCC
—
--
V
Low Level
Output
(VOL)
IOL=+1.0mA
DGND
—
DGND+0.4
V
Signal
Voltage
High Level
(VOH)
IOH=-1.0mA
VDDI-0.4
—
VDDI
V
Analog
Displon on
operating
IDD
-
20
30
mA Static VDD=3.3V
operating
current
Without Backlight
current
Digital
Displon on Static
operating
ICC
-
1
2
mA Vcc=3.3V
current
Without Backlight
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 6 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND

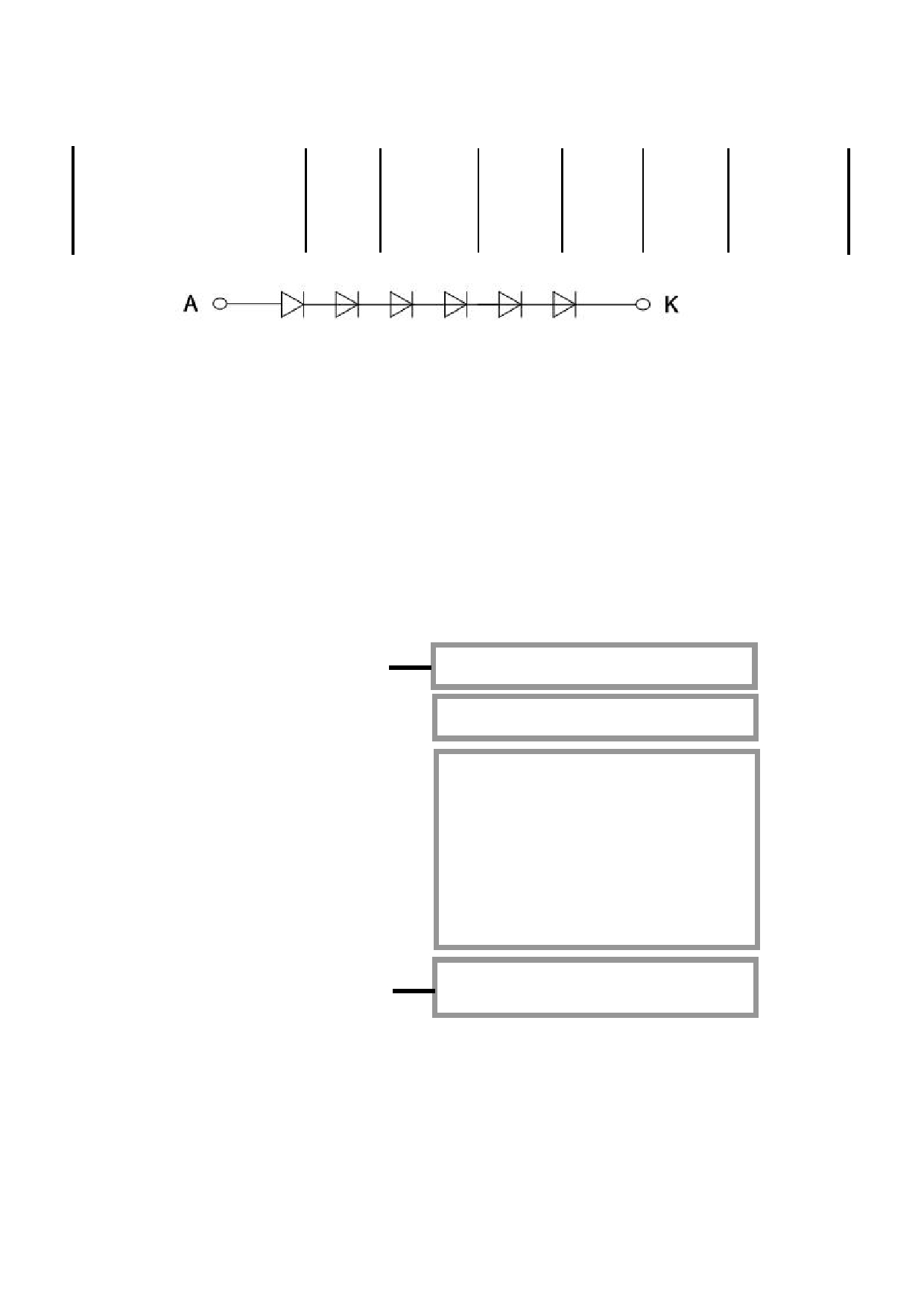

5.2 Backlight Unit
Ta=25 ℃
Item
Symbol MIN
TYP
MAX
Unit
Remark
Forward Current
IF
—
20
25
mA
Note 4
Forward Current Voltage
VF
—
18
18.6
V
Note 1,2
Backlight Power Consumption WBL
—
360
465
mW
For total LEDs
LED lifetime
L
30000
40000
—
Hours
Note1,2,3,4
Note1: The LED driving condition is defined for each LED module (1 LED Serial,1 LED Parallel).
Note2: Under LCM operating, the stable forward current should be inputted. And forward voltage is for reference only.
Note3:Optical performance should be evaluated at Ta=25 ℃ onlyIf LED is driven by high current, high ambient
temperature & humidity condition. The life time of LED will be reduced.Operating life means brightness goes down to
50% initial brightness. Typical operating life time is estimated data.At the same time the luminance of Backlight would
decrease under the hight temperature.
Note4:The LED driving condition is defined for each LED module.
5.3 Block Diagram
LCD module diagram
VDD,GND,I2C RST,TP_SCL,TP_SDA,Global RST
CTP ST1633i or equivalent
VBL-, VBL+
Backlight Circuit
320(RGB) x 240 pixels
TFT Panel
R0~R7, G0~G7, B0~B7
TFT Driver
VDD,VDD(ANALOG) GND
ST7272-G4 or equivalent
/RESET,DCLK, HSYNC, VSYNC, ENB,CSB,SCL,SDA,
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 7 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
6 .Timing Chart
INTERFACE TIMING
Note:Pleasereferto ST7272A datasheetformoredetails.

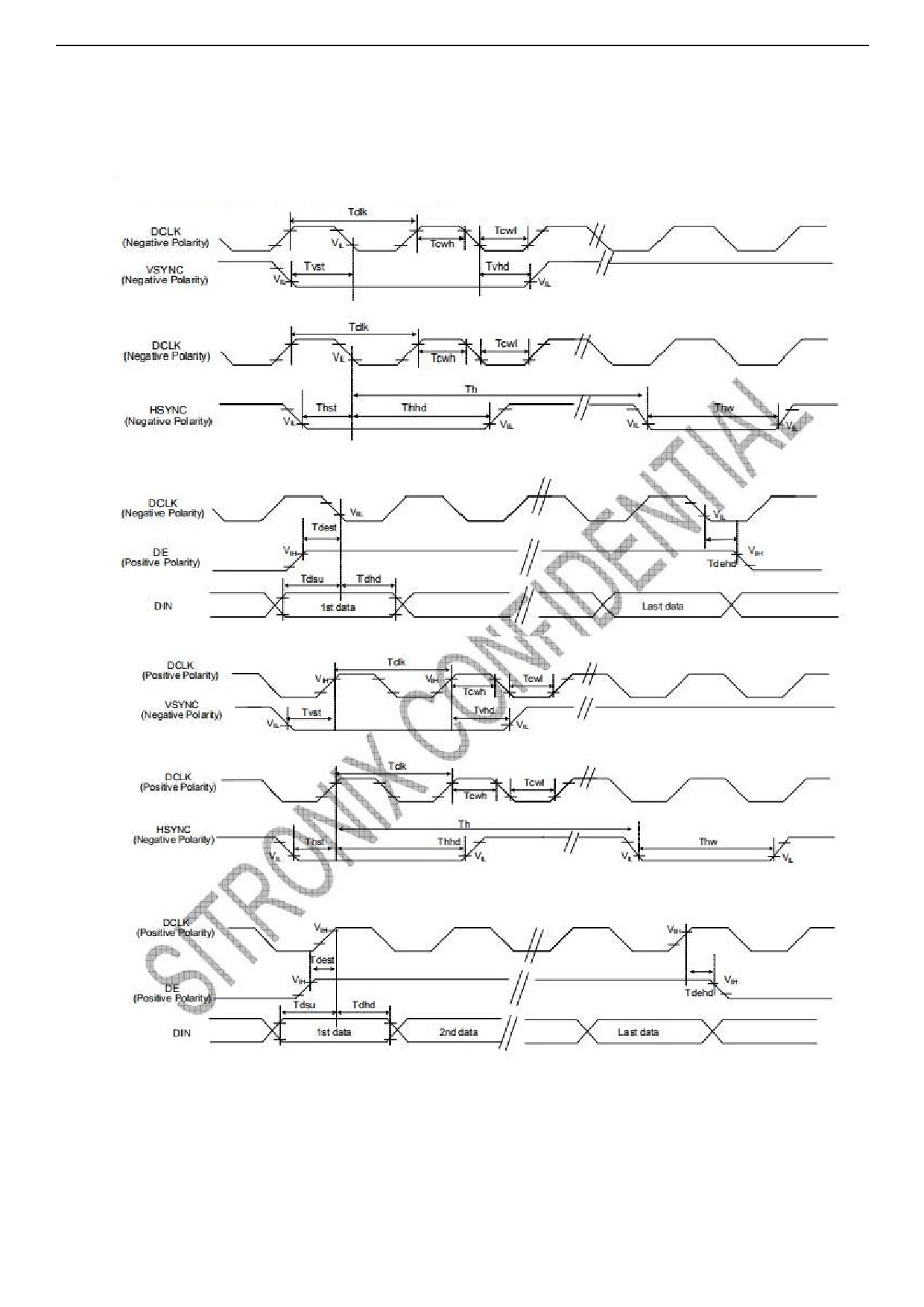

6.1 System Bus Timing for RGB Interface
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 8 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
6.2 RGB Interface
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 9 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND

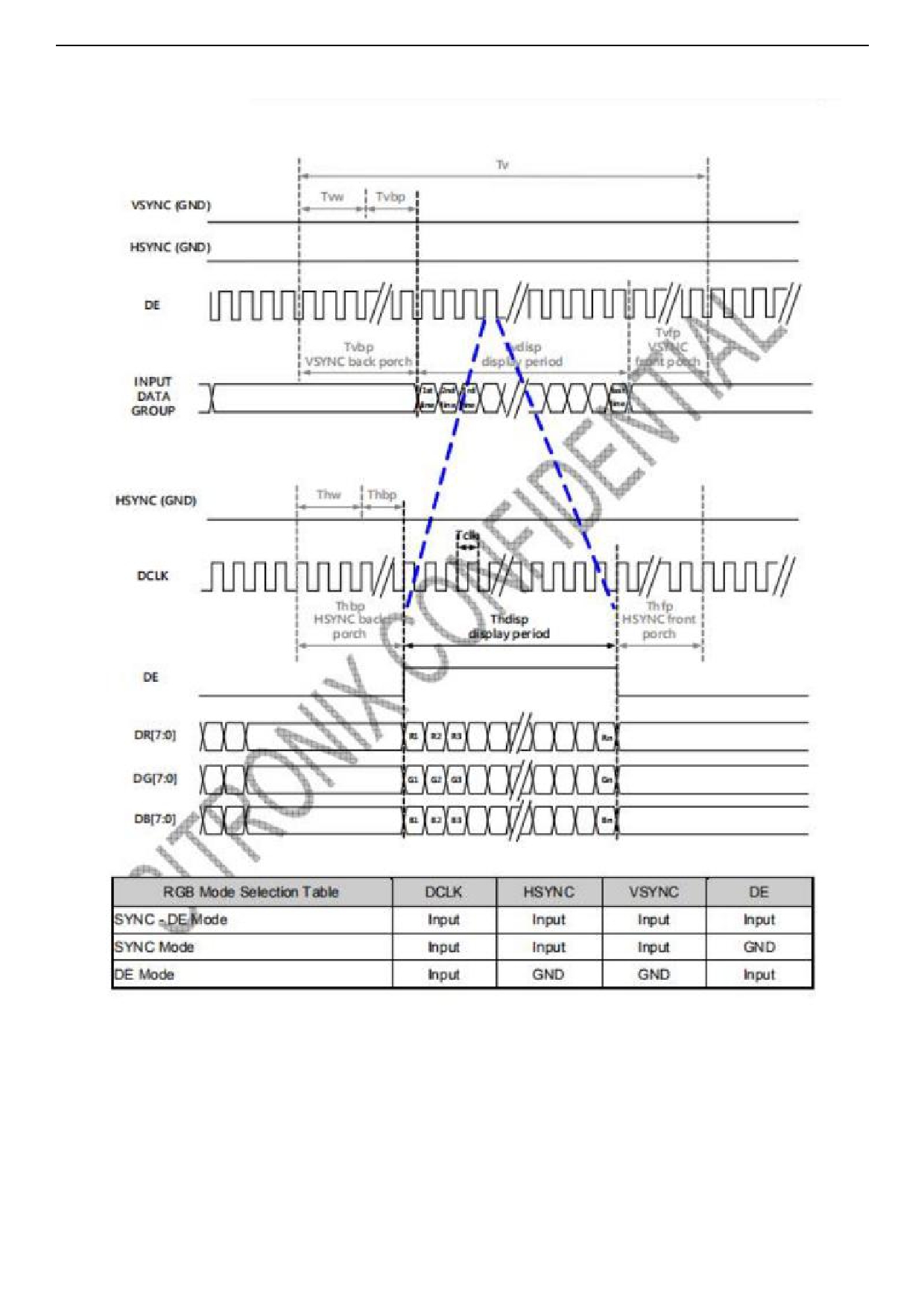

6.3
SYNC-DE Mode
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 10 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
6.4 DE Mode
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 11 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND

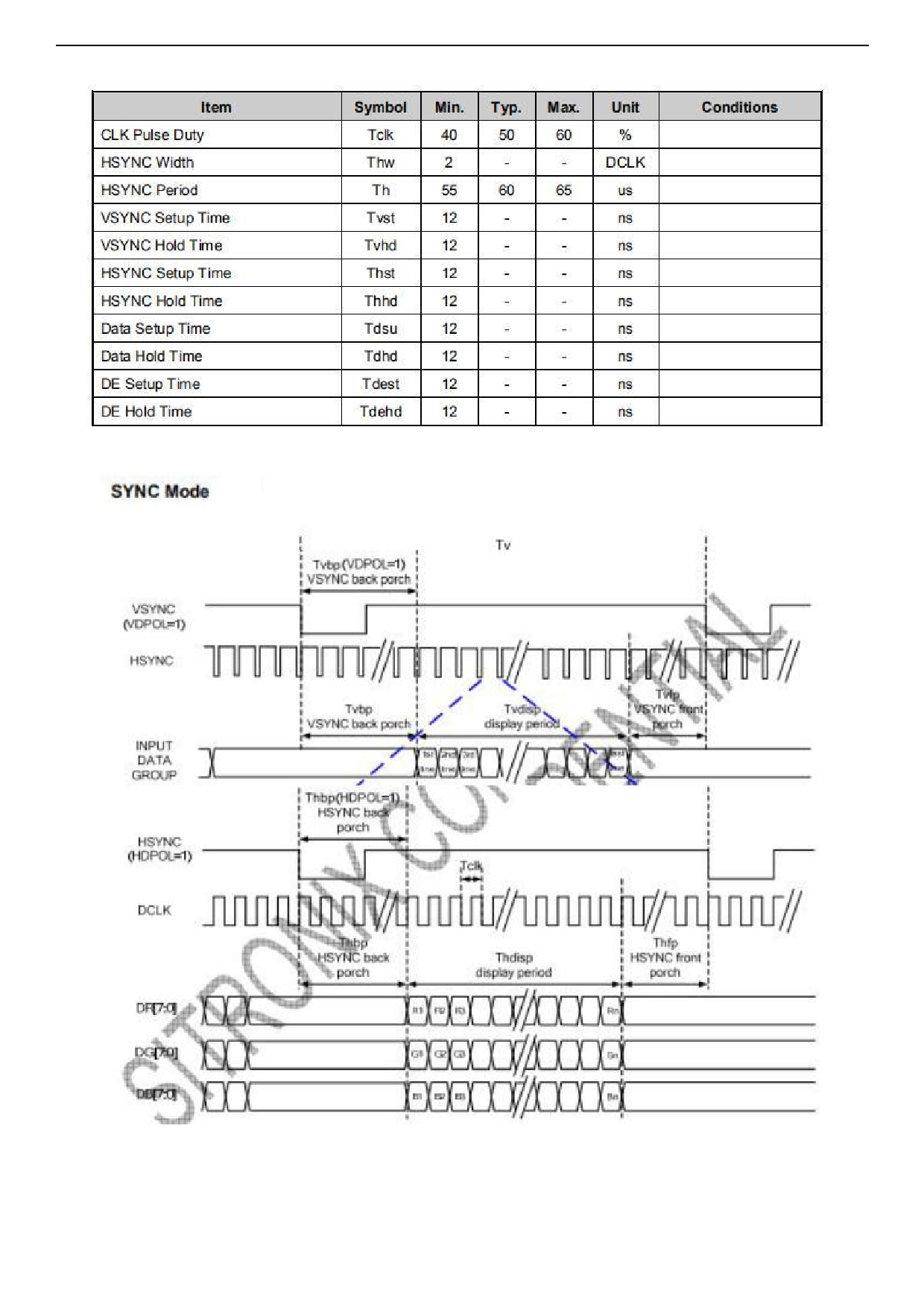

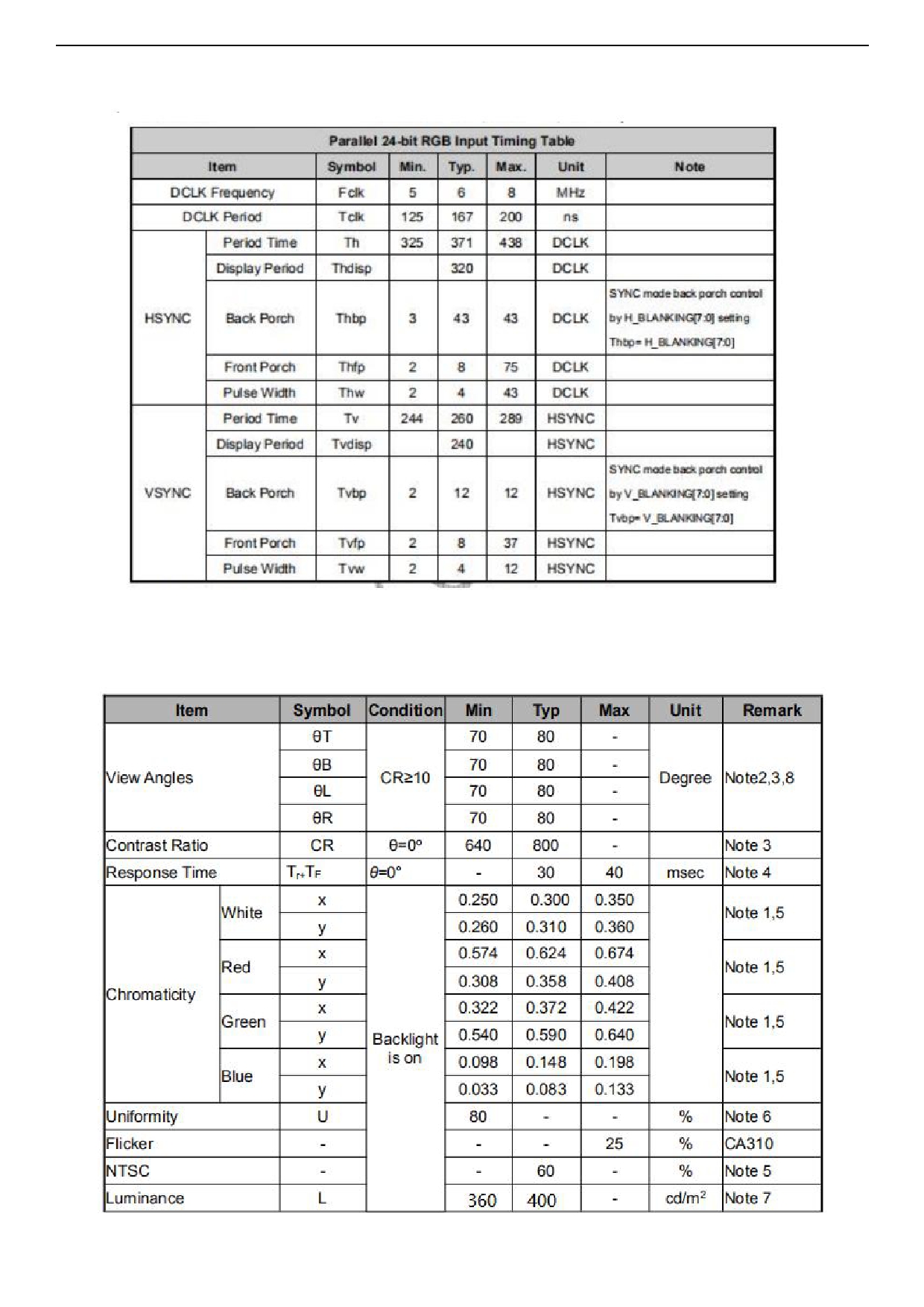

6.5 Parallel 24-bit RGB Input Timing Table
(GND=0V,TA=25 ℃ )
7 .Optical Characteristics
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 12 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
Test Conditions:
1. I F = 20mA, and the ambient temperature is 25 ℃ .
2. The test systems refer to Note 1 and Note 2.
3. Note 1:Definition of optical measurement system.
The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical
properties are measured at the center point of the LCD screen. All input terminals LCD panel must
be ground when measuring the center area of the panel.
Note 2: Definition of viewing angle range and measurement system.
viewing angle is measured at the center point of the LCD 。
Note 3: Definition of contrast ratio
“White state “: The state is that the LCD should drive by Vwhite.
“Black state”: The state is that the LCD should drive by Vblack.
Vwhite: TBD V
Vblack: TBD V.
Note 4: Definition of Response time
The response time is defined as the LCD optical switching time interval between “White” state and
“Black” state. Rise time (T ON ) is the time between photo detector output intensity changed from 90%
to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from 10% to
90%.
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 13 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
Note 5: Definition of color chromaticity (CIE1931)
Color coordinates measured at center point of
LCD. Note 6: Definition of Luminance Uniformity

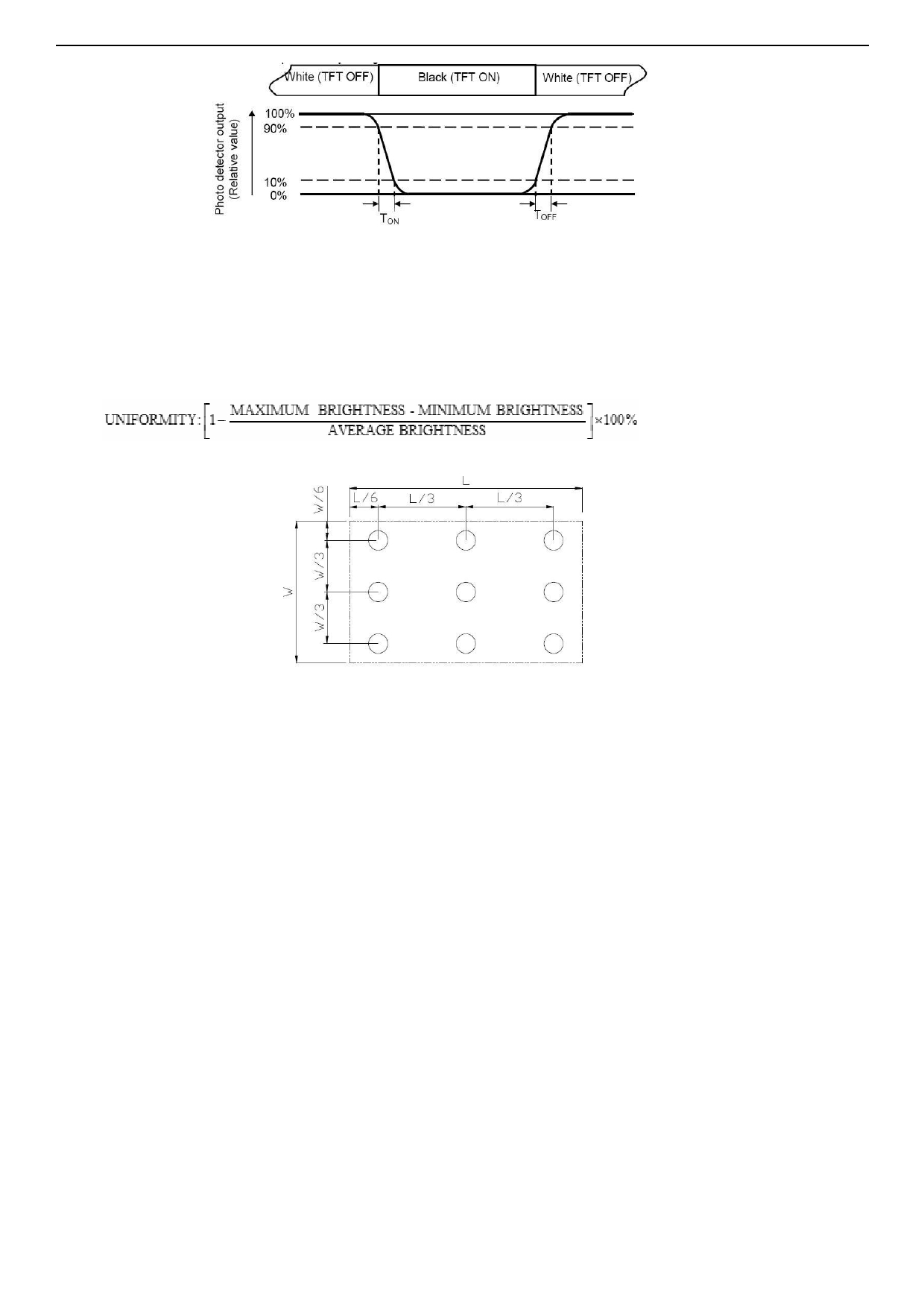

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at
the center of each measuring area.
Luminance Uniformity (U) :
L-------Active area length W----- Active area width
Fig. 2
Note 7: Definition of Luminance:
Measure the luminance of white state at center point.
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 14 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
8 .Environmental / Reliability Tests
No
Test Item
Condition
Remarks
1
High Temperature
Ts=+70 ℃ , 240hrs
Note1
Operation
IEC60068-2-1,GB2423.2
2
Low Temperature
Ta=-20 ℃ , 240hrs
IEC60068-2-1
Operation
GB2423.1
3
High Temperature
Ta=+80 ℃ , 240hrs
IEC60068-2-1
Storage
GB2423.2
4
Low Temperature
Ta=-30 ℃ , 240hrs
IEC60068-2-1
Storage
GB2423.1
High Temperature
Ta=+60 ℃ , 90% RH
Note2
5 & High Humidity
IEC60068-2-78
Storage
240 hours
GB/T2423.3

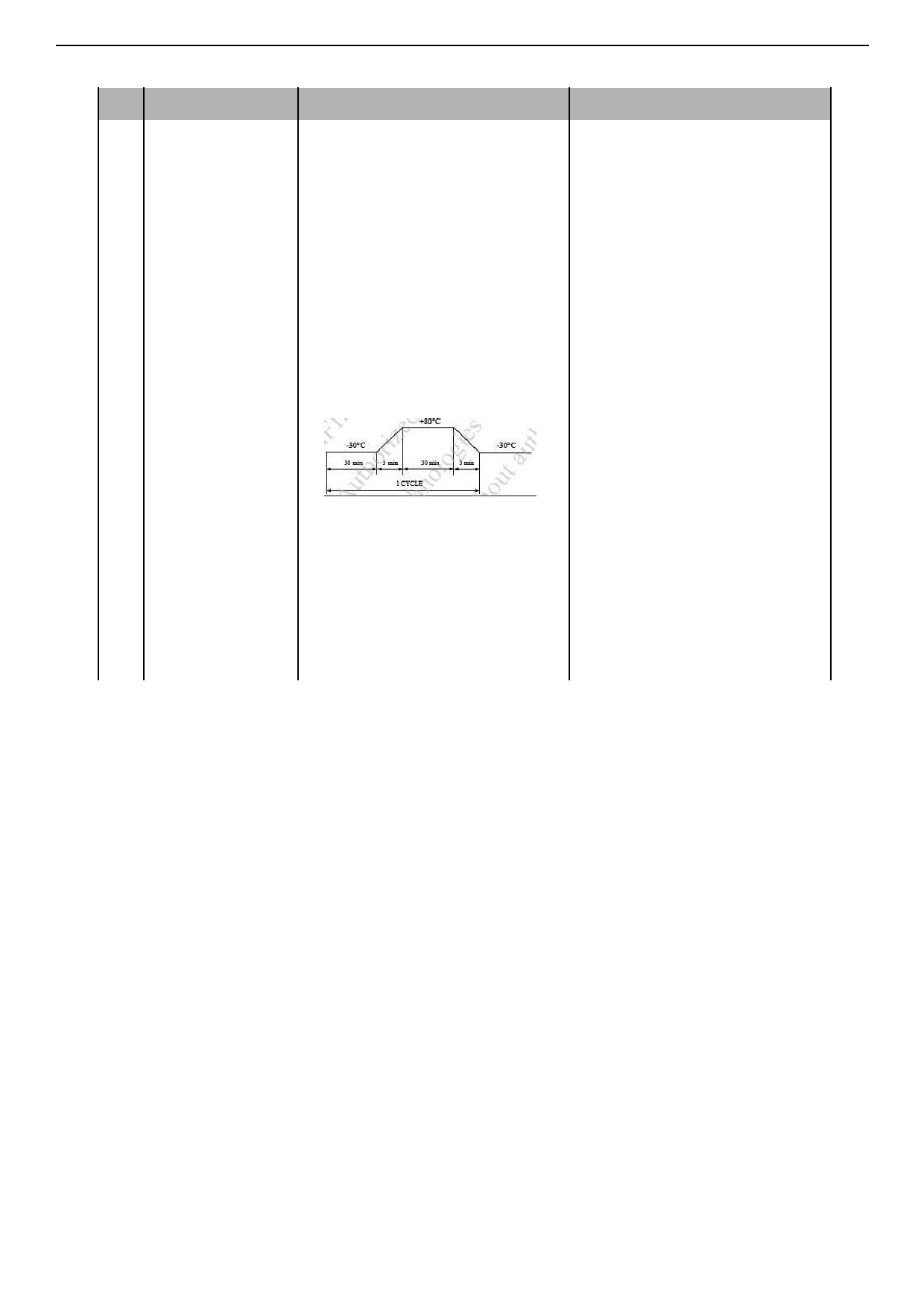

-30 ℃ 30 min~+80 ℃ 30 min,, 10
Cycles
Start with cold temperature,
6
Thermal Shock
(Non-operation)
End with high temperature,
IEC60068-2-14,GB2423.22
Electro Static
C=150pF, R=330Ω ， l
7 Discharge
Air:±12KV,
IEC61000-4-2
(NOT OPERATED) Contact:±8KV,
GB/T17626.2
Height:80 cm,
8
Package
IEC60068-2-32
Drop Test
1 corner, 3 edges, 6 surfaces
GB/T2423.8
Note1: Ts is the temperature of panel’s surface.
Note2: Ta is the ambient temperature of sample.
Note3: Before cosmetic and function test, the product must have enough recovery time, at least 2
hours at room temperature.
Note 4: In the standard condition, there shall be no practical problem that may affect thedisplay
function. After the reliability test, the product only guarantees operation,but don’t guarantee all of the
cosmetic specification.
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 15 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
9. LCD Module Design and Handling Precautions
9. 液晶显示模块设计和使用须知
- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块
module get the best contrast ratio under different
在不同的使用温度下以及在不同的视角和位置观
temperatures, view angles and positions.
察模块显示，均能达到最佳对比度，请务必将应
用电路上设置为对比度可调。
- Normally display quality should be judged under the best - 请注意液晶显示模块的显示品质判定是指在正常
contrast ratio within viewable area. Unexpected display
对比度下以及视窗(V.A)范围内进行的，非正常
pattern may com out under abnormal contrast ratio.
对比度下液晶可能会出现非预期的显示不良，应
- Never operate the LCD module exceed the absolute
注意区分。
maximum ratings.
- 请勿在最大额定值以外使用液晶显示模块。
- Never apply signal to the LCD module without power supply.
- 请勿在没有接通电源的条件下，给液晶显示模块
- Keep signal line as short as possible to reduce external
输送信号。
noise interference.
- 请尽可能缩短信号线的连接，以避免对液晶显示
- IC chip (e.g. TAB or COG) is sensitive to light. Strong light
模块的信号干扰。
might cause malfunction. Light sealing structure casing is - 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为
recommended.
敏感，强光环境下可能会引起液晶显示模块功能
失效，故应采用不透光的外壳。
- Make sure there is enough space (with cushion) between - 请在液晶显示模块与外壳之间保留足够的空间
case and LCD panel, to prevent external force passed on to
(可使用衬垫)，以缓冲外力对液晶显示模块的损
the panel; otherwise that may cause damage to the LCD and
坏或因受力不均而产生的显示不匀等异常现象。
degrade its display result.
- Avoid showing a display pattern on screen for a long time - 避免液晶显示屏在某一画面下长时间点亮，否则
(continuous ON segment).
有出现残影的风险；请通过软件每隔一段时间改
变一次画面。
- LCD module reliability may be reduced by temperature - 液晶显示模块的可靠性可能因温度冲击而降低。
shock.
- 请勿在阳光直射、高湿、高温或低温下储存和使
- When storing and operating LCD module, avoids exposure
用液晶显示模块，这将造成液晶显示模块的损坏
to direct sunlight, high humidity, high or low temperature.
或失效。
They may damage or degrade the LCD module.
- Never leave LCD module in extreme condition (max./min - 请勿在极限环境(最大/最小存储/工作温度)下使
storage/operate temperature) for more than 48hr.
用或放置液晶显示模块超过 48 小时以上。
- Recommend LCD module storage conditions is 0 C~40 C - 液 晶 显 示 模 块 建 议 存 储 条 件 为 : 0 C~40 C
<80%RH.
<80%RH 。
- LCD module should be stored in the room without acid, alkali - 请勿让液晶显示模块存储于带有 酸性, 碱性,
and harmful gas.
有害气体环境之中。
- Avoid dropping & violent shocking during transportation, and - 在运输过程中, 请勿让液晶显示模块跌落与猛烈
no excessive pressure press, moisture and sunlight.
震动, 同时避免 异常挤压, 高湿度, 与阳光照
- LCD module can be easily damaged by static electricity.
射.
Please maintain an optimum anti-static working environment - 液晶显示模块极易受静电损坏，请务必保证液晶
to protect the LCD module. (eg. ground the soldering irons
显示模块在防静电的工作环境中使用或保存。
properly)
(如: 烙铁正确接地,等)
- Be sure to ground the body when handling LCD module.
- 拿取液晶显示模块时需注意操作人员的接地情
- Only hold LCD module by its sides. Never hold LCD module
况。
by applying force on the heat seal or TAB.
- 请手持液晶显示模块的边沿取放模块，防止热压
- When soldering, control the temperature and duration avoid
纸或 TAB 部位受力。
damaging the backlight guide or diffuser which might - 焊接液晶模块时，请注意控制烙铁的温度、焊接
degrade the display result such as uneven display.
时间，以免烫坏导光板或偏光片，导致显示不匀
- Never let LCD module contact with corrosive liquids, which
等不良现象发生。
might cause damage to the backlight guide or the electric - 请勿使用洗板水等腐蚀性液体接触液晶模块，以
circuit of LCD module.
免腐蚀导光板或模块电路。
- Only clean LCD with a soft dry cloth, Isopropyl Alcohol or
Ethyl Alcohol. Other solvents (e.g. water) may damage the - 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏
LCD.
表面，其他任何溶剂(如:水)都有可能损坏液晶
- Never add force to components of LCD module. It may
模块。
cause invisible damage or degrade the module's reliability.
- 请勿挤压液晶显示模块上的元器件，以避免产生
- When mounting LCD module, please make sure it is free
潜在的损坏或失效而影响产品可靠性。
from twisting, warping and bending.
- 装配液晶显示模块时，请务必注意避免液晶显示
- Do not add excessive force on surface of LCD, which may
模块的扭曲或变形。
cause the display color change abnormally.
- 请勿挤压液晶显示屏表面，这将导致显示颜色的
- LCD panel is made with glass. Any mechanical shock (e.g.
异常。
dropping from high place) will damage the LCD module.
- 液晶屏由玻璃制作而成，任何机械碰撞(如从高
处跌落)均有可能损坏液晶显示模块。
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 16 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
- Protective film is attached on LCD screen. Be careful when - 液晶屏表面带有保护膜, 揭除保护膜时需要注意
peeling off this protective film, since static electricity may be
可能产生的静电。
generated.
- 因液晶显示屏表面的偏光片极易划伤，安装完成
- Polarizer on LCD gets scratched easily. If possible, do not
之前请尽量不要揭下保护膜。
remove LCD protective film until the last step of installation.
- 请缓慢揭除保护膜，在此过程中液晶显示屏上可
- When peeling off protective film from LCD, static charge may
能会产生静电线，此为正常情况，可在短时间内
cause abnormal display pattern. The symptom is normal,
消失。
and it will turn back to normal in a short while.
- LCD panel has sharp edges, please handle with care.
- 请注意避免被液晶显示屏的边缘割伤。
- Never attempt to disassemble or rework LCD module.
- 请不要试图拆卸或改造液晶显示模块。
- If display panel is damaged and liquid crystal substance - 当液晶显示屏出现破裂, 内部液晶液体可能流
leaks out, be sure not to get any in your mouth, if the
出; 相关液体不可吞吃, 绝对不可接触嘴巴, 如
substance comes into contact with your skin or clothes
接触到皮肤或衣服, 请使用肥皂与清水彻底清
promptly wash it off using soap and water.
洗.
10. CTP Mounting Instructions
10.1 Bezel Mounting (Figure 1)
10. 电容触摸屏安装指导
- The bezel window should be bigger than the CTP active
10.1 面框安装（附图 1）
area. It should be≥0.5mm each side.
- 客户面框窗口应大于 CTP 动作区域，各边离动作
- Gasket should be installed between the bezel and the CTP
区应 ≥ 0.5mm.
surface.
- 面框与 CTP 面板间应垫有胶垫，其最终间隙约为
The final gap should be about 0.5~1.0mm.
0.5～1.0mm.
- It is recommended to provide an additional support bracket
- 建议必要时在背面提供附加支架(例如无安装结
for backside support when necessary (e.g. slim type TFT
构的薄型 TFT 模块)，应仅利用适当支撑以保持
module without mounding structure). They should only
模块位置.
provide appropriate support and keep the module in place.
- The mounting structure should be strong enough to prevent
external uneven force or twist act onto the module.
- 安装结构应具有足够的强度，以防止外部不均匀
力或扭曲力作用到模块上.
10

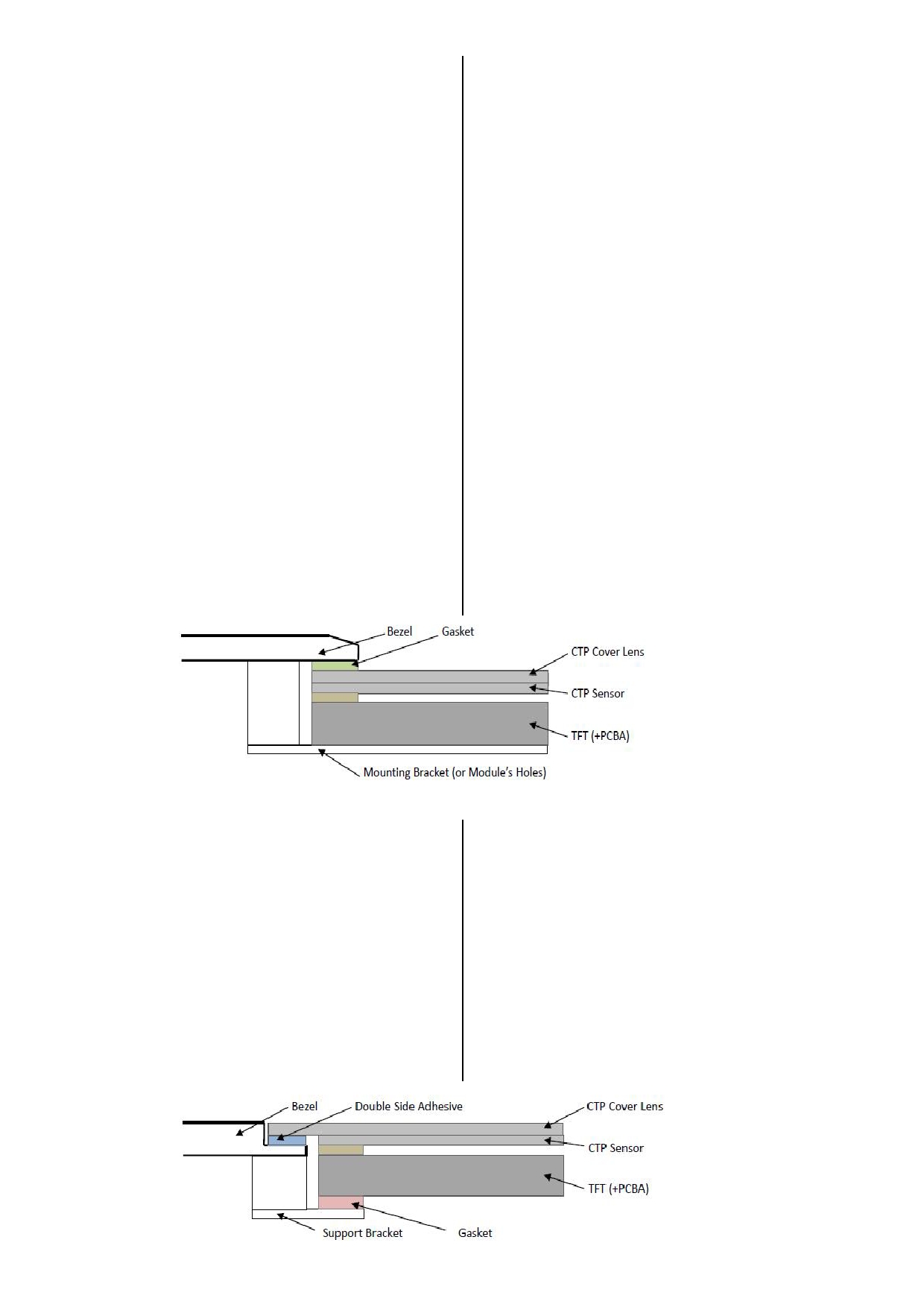

Figure 1
10.2 Surface Mounting (Figure 2)
10.2 嵌入安装（附图 2）
- As the CTP assembling on the countersink area with double - 客户面框应具有使用双面胶粘贴 CTP 的结构沉台
side adhesive.
面，其粘贴面要求平整且洁净无污以保证粘贴牢
The countersink area should be flat and clean to ensure the
靠.
double side adhesive installation result.
- The Bezel is recommend to keep a gap (≥0.3mm each side)
around the cover lens for tolerance.
- 考虑到制作误差，建议面框与 CTP 盖板之间四周
- It is recommended to provide an additional support bracket
留有 ≥ 0.3mm 间隙.
with gasket for backside support when necessary (e.g. TFT - 建议必要时在背面提供垫有胶垫附加支架(例如
module without mounding structure). They should only
无安装结构的 TFT 模块)，应仅利用适当支撑以
provide appropriate support and keep the module in place.
保持模块位置.
- The mounting structure should be strong enough to prevent
external uneven force or twist act onto the module
- 安装结构应具有足够的强度，以防止外部不均匀
力或扭曲力作用到模块上。
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 17 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
Figure 2
10.3 Additional Cover Lens Mounting (Figure 3)
10.3 覆加盖板（附图 3）
- For the case of additional cover Lens mounting, it is - 需要覆加玻璃盖板的安装，为确保其功能，有必
necessary to recheck with the CTP specification about the
要查看产品规格书中有关盖板材料和厚度的说
material and thickness to ensure the functionality.
明.
- It should keep a 0.2~0.3mm gap between the cover lens and - 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间
the CTP surface..
隙.
- The cover lens window should be bigger than the active area - 玻璃盖板视窗应大于 CTP 动作区域，各边离动作
of the CTP.It should be≥0.5mm each side.
区应 ≥ 0.5mm。
- It is recommended to provide an additional support bracket - 建议必要时在背面提供附加支架(例如无安装结
for backside support when necessary (e.g. slim type TFT
构的薄型 TFT 模块)，应仅利用适当支撑以保持
module without mounding structure). They should only
模块位置.
provide appropriate support and keep the module in place.
- The mounting structure should be strong enough to prevent - 安装结构应具有足够的强度，以防止外部不均匀
external uneven force or twist act onto the module.
力或扭曲力作用到模块上.
Figure 3
11. RTP Mounting Instructions
11. 电阻触摸屏安装指导
- It should bezel touching the RTP Active Area (A.A.) to
- 为避免面框直接压在动作区(A.A.)上造成误动
prevent abnormal touch.It should left gab D=0.2~0.3mm in
作，面框与电阻触摸屏(RTP)之间应留有一定的
between. (Figure 4)
空隙 D=0.2~0.3mm 之间.(附图 4)
- Outer bezel design should take care about the area outside
- 设计面框时，要注意用面框保护触摸屏四周的非
the A.A. Those areas contain circuit wires which is having
保证操作区域，因为布线区域在此处形成一台
different thickness. Touching those areas could de-form the
阶，在此区域附近操作时 ITO Film 变形较大，
ITO film. As a result bezel the ITO film be damaged and
容易导致 ITO 损坏而降低寿命。为保护 RTP 和避
shorten its lifetime.
免误操作，在 RTP 与面框之间垫缓冲物
It is suggested to protect those areas with gasket (between
（Gasket），我们建议设计面框应覆盖动作区的
the bezel and RTP).The suggested figures are B≥0.50mm;
边缘，面框边缘到 V.A.区的距离 B≥0.50mm; 垫
C≥0.50mm. (Figure 4)
圈内边缘到 V.A.区的距离 C≥0.50mm. (附图 4)
- The bezel side wall should keep space E= 0.2 ~ 0.3mm from - 在设计面框与 RTP 组装时，应考虑到面框内侧与
the RTP. (Figure 4)
RTP 外侧的间距 E≥0.2mm. (附图 4)
Figure 4
- In general design,
- 通常设计时：
RTP V.A. should be bigger than the TFT V.A.
RTP 的可视区 V.A. 应不小于 TFT 的可视区
and RTP A.A. should be bigger than the TFT A.A.
V.A.

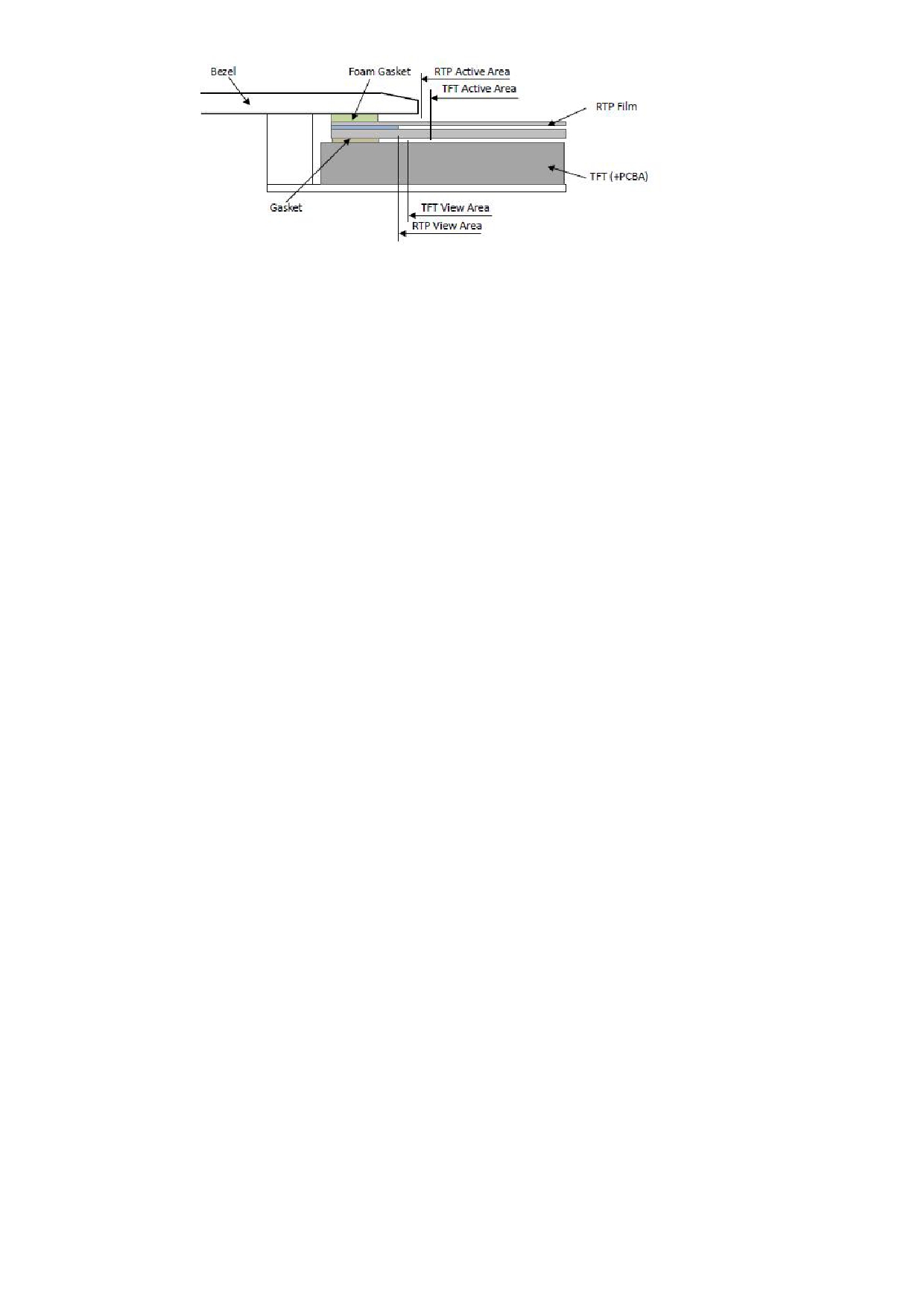

(Figure 5)
及 RTP 的动作区 A.A. 应不小于 TFT 的动作区
A.A.
(附图 5)
URL: www.topwaydisplay.com
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 18 of 19
-
TOPWAY
LCD Module User Manual
LMT035ENAFWA-NND
Figure 5
Warranty
This product has been manufactured to our company’s specifications as a part for use in your company’s general electronic
products. It is guaranteed to perform according to delivery specifications. For any other use apart from general electronic
equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control equipment, aerospace
equipment, fire and security systems, or any other applications in which there is a direct risk to human life and where extremely
high levels of reliability are required. If the product is to be used in any of the above applications, we will need to enter into a
separate product liability agreement.
- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product (including
disassembly and reassembly), after product delivery.
- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the product.
- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the product has
passed our company’s acceptance inspection procedures.
- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the inverter
used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may arise.
- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our product
to our assembly with exception to those issues relating directly to the structure or method of manufacturing of our product.
Document Name: LMT035ENAFWA-NND-Manual-Rev0.1.docx
Page: 19 of 19
（
）
R GBR GB
R GBR GB
R GBR GB
A K
