LMT035KDH03-NHA

LMT035KDH03-NHA

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Liu sanyong

Date: 2018-03-19

Date:

Rev. Descriptions

Release Date

0.1

New release

2015-11-09

0.2

Update Section 2.1

2018-03-19

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 1 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

Table of Content

1. General Specification ............................................................................................................ 3

2. Block Diagram ........................................................................................................................ 3

2.1

Terminal Functions ............................................................................................................... 4

3. Absolute Maximum Ratings .................................................................................................. 4

4. Electrical Characteristics ...................................................................................................... 5

4.1

DC Characteristics ............................................................................................................... 5

4.2

AC Characteristics ................................................................................................................ 5

4.2.1

8080 Mode Timing ..................................................................................................... 5

4.2.2

SPI Mode Timing ....................................................................................................... 6

4.2.3

Reset Timing ............................................................................................................. 8

5. Optical Characteristics .......................................................................................................... 9

6. Function Specifications ....................................................................................................... 11

6.1

Command Summary .......................................................................................................... 11

7. Precautions of using LCD Modules .................................................................................... 13

Appendix A Inspection items and criteria for appearance defects ......................................... 14

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 2 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

1. General Specification

Screen Size(Diagonal) :

3.5 inch

Resolution :

320(RGB) x 240

Interface :

8bit MCU Interface / SPI Interface

Color Depth :

16.7M color (24bit)

Dot Pitch :

0.219 x 0.219 (mm)

Pixel Configuration :

RGB Stripe

Display Mode :

Transmissive / Positive

Surface Treatment :

Anti-Glare Treatment

Viewing Direction :

6 o’clock

Outline Dimension :

92.7 x 72.0 x 10.25 (mm)

Active Area :

70.08 x 52.56 (mm)

Weight :

Approx 68g

Backlight :

LED, White

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Note: Backlight color may slightly change over temperature and driving voltage.

2. Block Diagram

/TP_SS

TP_SCLK

AD7843

Touch Panel

TP_MOSI

Touch Controller

TP_MISO

PENIRQ

Driver Config

D0 ~ D7

Serial I/F

320(x3) x 240 pixels

Driver Display

TFT Panel

Signal

/RES, /CS

S1D13L01

LCD Controller

/WR, /RD

SPI_EN

TFT Driver

BL_ADJ

VDD

Power Circuit

Backlight Supply

Backlight Circuit

VSS

Figure 1

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 3 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

2.1 Terminal Functions

Terminal (K1)

8bit MCU Mode (Default)

SPI Mode

No.

Name

I/O

Description

VSS

Power Input

Power Supply GND (0V)

VDD

Power Input

Positive Power Supply

Access Mode

Input

A0=High: Accessing Data

Keep open

A0=Low: Accessing Address

/CS

Input

Chip Select

/CS=Low: Data IO is enabled

Reset

/RES

Input

/RES=Low: Reset

/RES=High: Normal operation

D0(SI)

Serial input

D1(SO)

Serial output

Bi-directional I/O 8-bit Bi-directional data bus

Keep open

Output

TE Signal

/RD

Input

Read Enable, active Low

Keep open

/WR(SCK)

Input

Write Enable, active Low

Serial clock

BL_ADJ

Input

Backlight Driver enable signal, active High, PWM(*3) can be possible

SPI_EN

Input

Keep open

SPI Enable, active high

/TP_SS

Input

Touch Panel Serial Select

/TP_SS=Low: Data IO is enabled

TP_SCLK

Input

Touch Panel Serial Clock

TP_MOSI

Input

Touch Panel Master output Slave input

TP_MISO

Output

Touch Panel Master input Slave output

Note :

1. By default, Pin21 to Pin24 are just for Module with Touch Panel using, and PENIRQ of Touch Panel

will feedback to the GPIO3 of S1D13L01 LCD controller, PENIRQ enable is LOW.

2. The Origin of Touch Panel in the lower left corner.

3. The PWM frequency is between 200Hz and 500Hz.

For more information and details of Touch please refer to Touch controller (AD7843) datasheet.

3. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit

Condition

Supply Voltage

V DD

-0.2

3.7

V SS = 0V

Input Voltage

V IN

-0.2

3.7

V SS = 0V

Operating Temperature

T OP

-20

+70

℃

No Condensation

Storage Temperature

T ST

-30

+80

℃

No Condensation

Caution:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 4 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

4. Electrical Characteristics

4.1 DC Characteristics

V SS =0V, V DD =3.3V, T OP =25 ℃

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Operating Voltage

V DD

2.8

3.3

3.6

VDD

Input High Voltage

V IH

VDD

Input pins, Bi-direction pins

Input Low Voltage

V IL

VSS

Input pins, Bi-direction pins

Output High Voltage

V OH

2.6

Bi-direction pins (*1)

Output Low Voltage

V OL

0.6

Bi-direction pins (*2)

Operating Current

I DD

145

200

On Backlight Power on status

4.2 AC Characteristics

4.2.1 8080 Mode Timing

/CS Control

/CS

/WR

/RD

/RD,WR/ Control

/CS

/WR

/RD

Figure 2

3.3 Volt

Symbol

Parameter

Units

Min

Max

A0 setup time to /CS (/WR, /RD)

/WR, /RD (/CS) setup time to /CS (/WR, /RD)

DB[7:0] setup time to /CS (/WR) rising edge: write cycle

DB[7:0] hold time from /CS (/WR) rising edge: write cycle

t5w

/WR (/CS) hold time from /CS (/WR) rising edge: write cycle

t5r

/RD (/CS) hold time from /CS (/RD) rising edge: read cycle

A0 hold time from /CS (/WR, /RD) rising edge

/CS (/RD) falling edge to DB[7:0] driven: read cycle

/CS (/RD) falling edge to valid Data: read cycle

4xT mclk +17

DB[7:0] hold time from /CS (/RD) rising edge: read cycle

t10w

End of write to next read/write

t10r

End of read to next read/write

T mclk +9

t11w

/CS (/WR) pulse width for write cycle

t12w

/CS (/WR) rise to next /CS (/WR) rise: write cycle

3xT mclk +6

Note: T mclk = period of internal MCLK clock signal.

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 5 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

Indirect 8-bit Function Select:

/WR

/RD

Comments

Command Write (register address)

Data (Parameter) Write

inhibit

Data (Parameter) Read

4.2.2 SPI Mode Timing

/CS

Figure 3

3.3 Volt

Symbol

Parameter

Units

Min

Max

Chip select setup time

SI Data setup time

SI Data hold time

Serial clock pulse width low (high)

Serial clock pulse width high (low)

Serial clock period

Chip select hold time

Chip select de-assert to reassert

SCK falling edge to SO hold time

SPI Function Select:

Command

Comments

10000000

8-bit Write

11000000

8-bit Read

10001000

16-bit Write

11001000

16-bit Read

the other

reserved

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 6 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

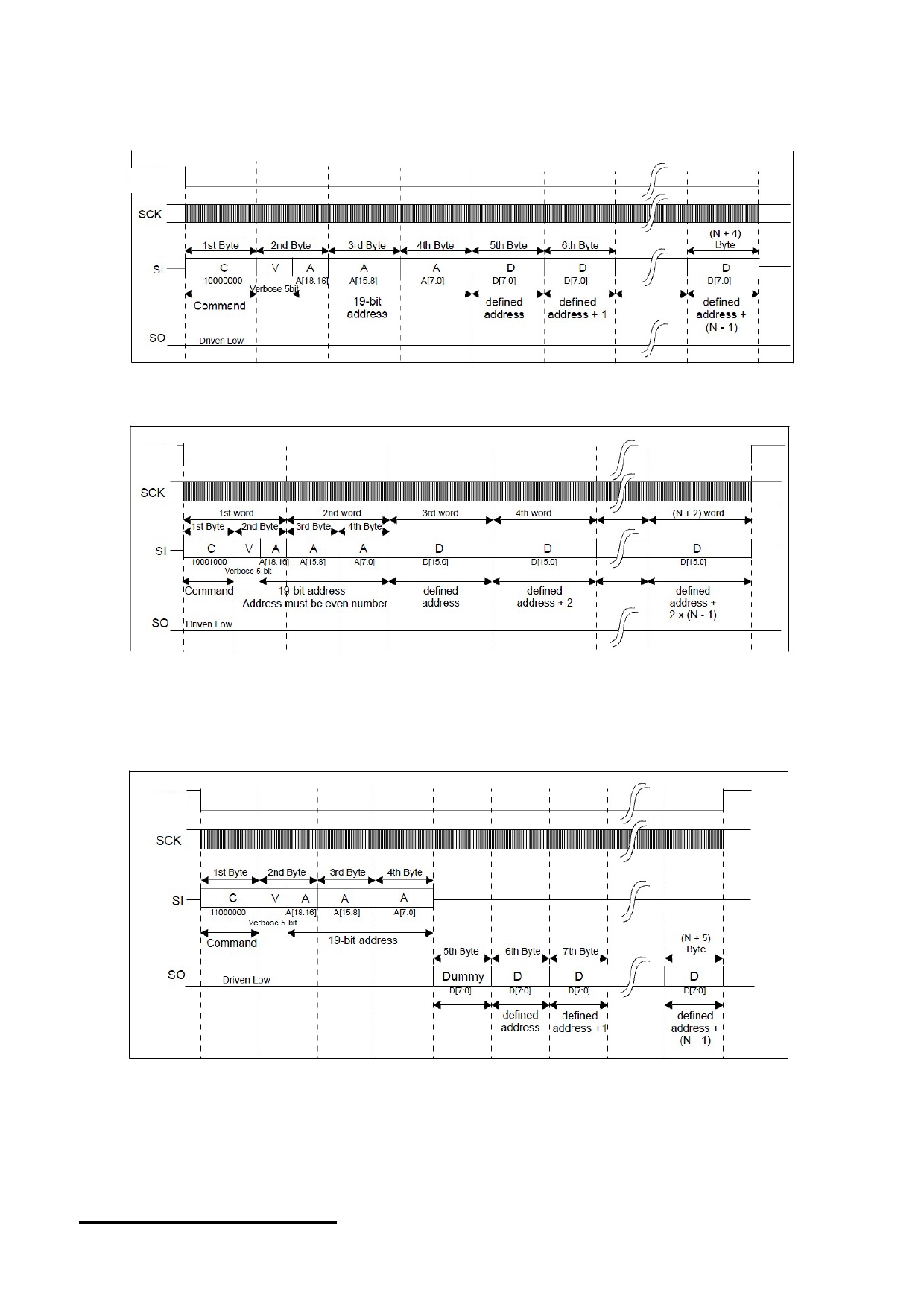

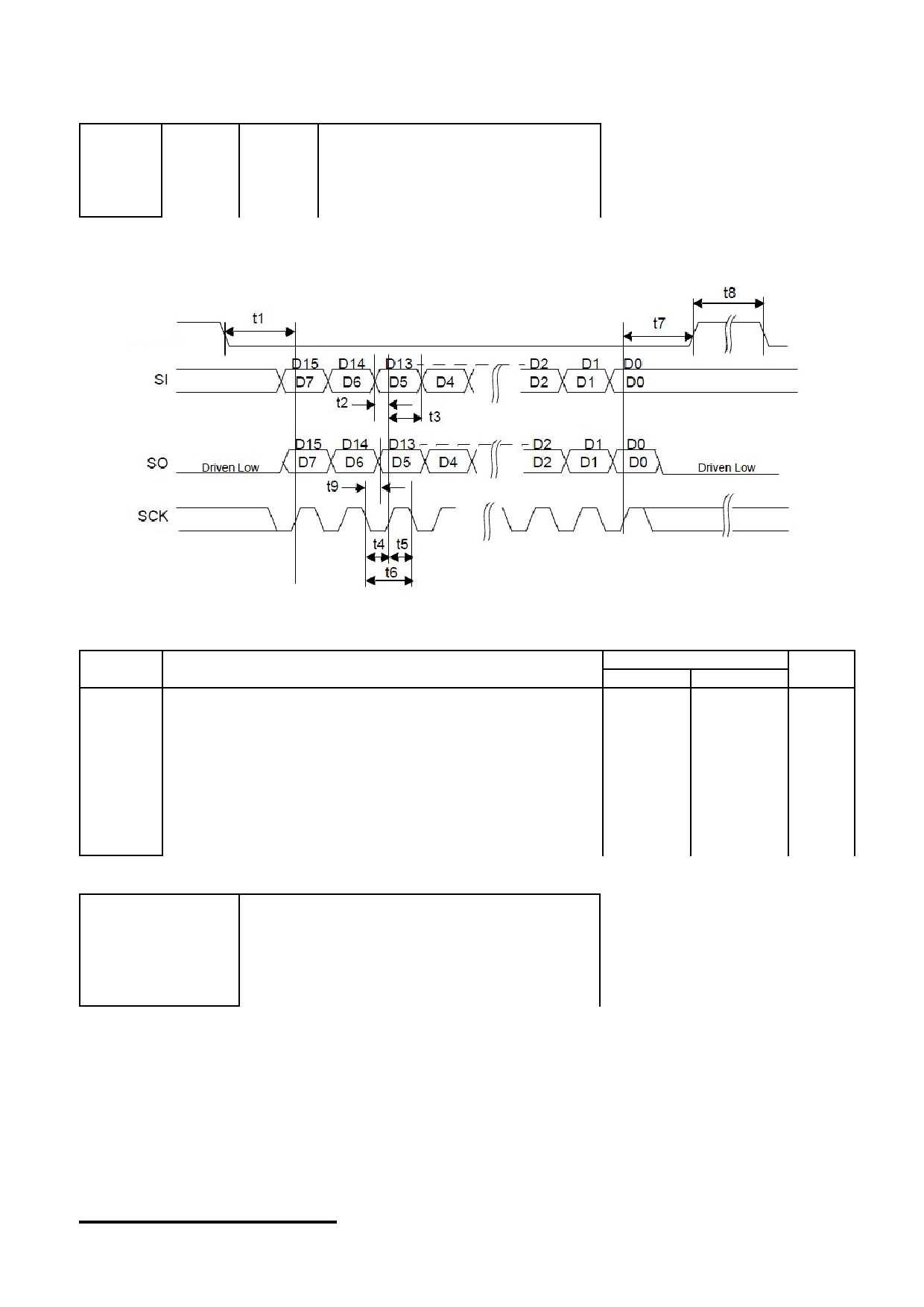

Write Procedure:

SPI 8bit Write Sequence:

/CS

Figure 4

SPI 16bit Write Sequence:

/CS

Figure 5

Read Procedure:

SPI 8bit Read Sequence:

/CS

Figure 6

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 7 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

SPI 16bit Read Sequence:

/CS

Figure 7

4.2.3 Reset Timing

/RES

Figure 8

Symbol

Parameter

Min

Max

Units

Reset Pulse Width is ignored

Active Reset Pulse Width (see Note)

150

Note: The Reset input should be held low for longer than 150ns to guarantee reset.

For more information and details please refer to LCD controller (S1D13L01) datasheet.

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 8 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

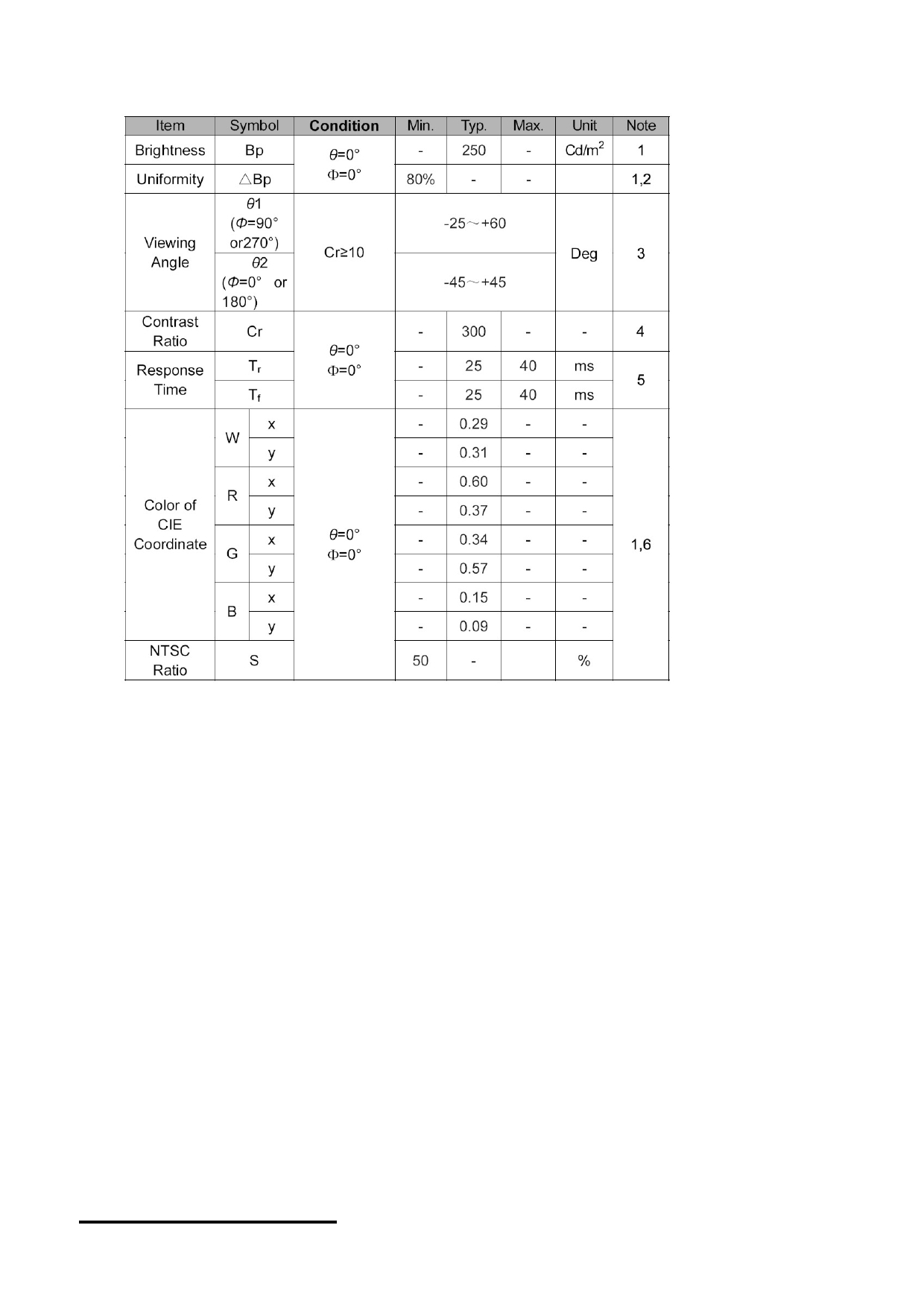

5. Optical Characteristics

Note ： The parameter may slightly change over temperature, driving voltage and materials.

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 9 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

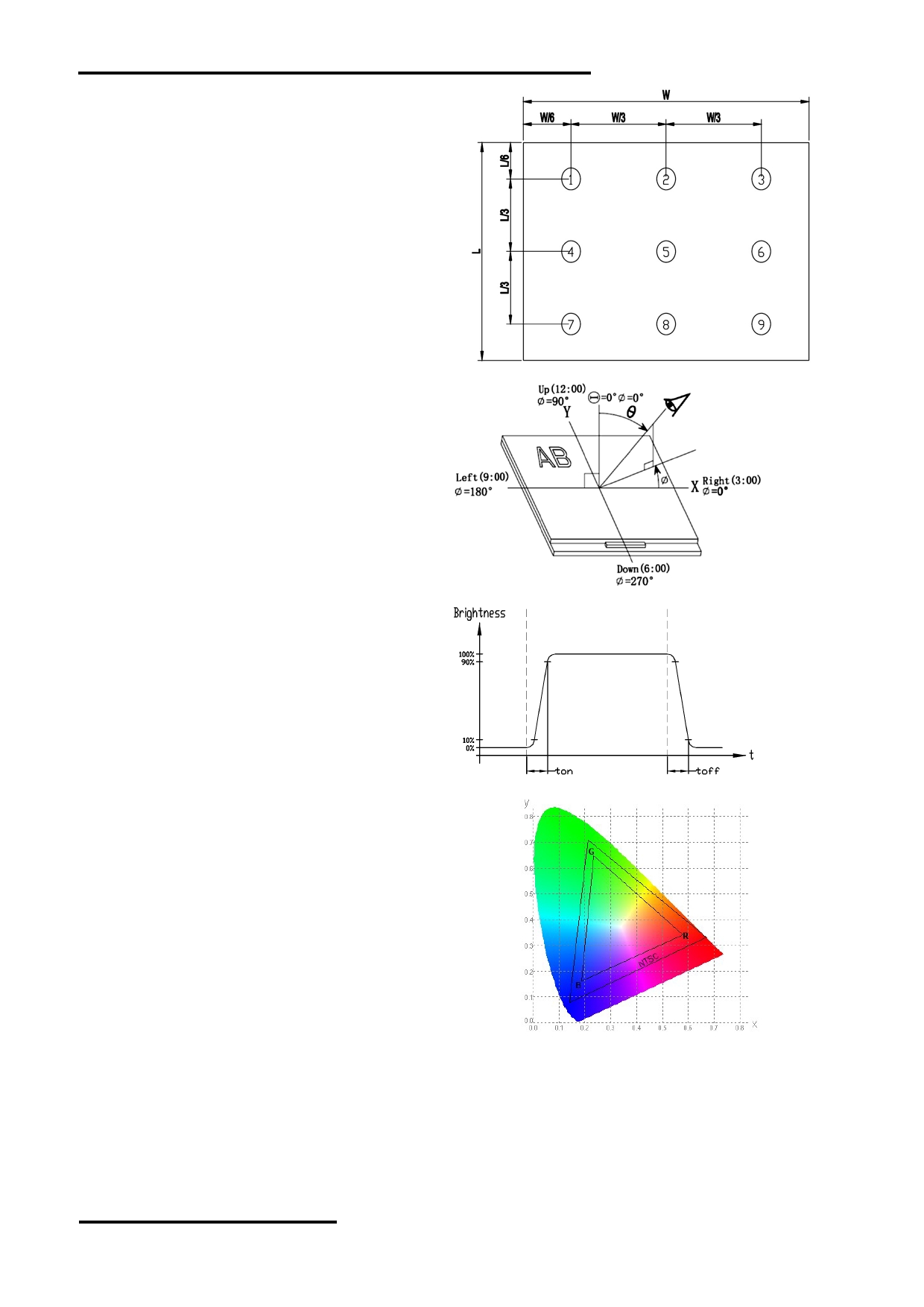

Note 1:

The data are measured after LEDs are turned on for 5

minutes. LCM displays full white. The brightness is the

average value of 9 measured spots. Measurement

equipment PR-705 (Φ8mm)

Measuring condition:

- Measuring surroundings: Dark room

- Measuring temperature: Ta=25 ℃ .

- Adjust operating voltage to get optimum

contrast at the center of the display.

Measured value at the center point of LCD panel after more

than 5 minutes while backlight turning on.

Note 2: reference Figure5

The luminance uniformity is calculated by using following

formula.

△ Bp = Bp (Min.) / Bp (Max.)×100 (%)

Bp (Max.) = Maximum brightness in 9 measured

Figure 9

spots

Bp (Min.) = Minimum brightness in 9 measured spots .

Note 3: reference Figure6

The definition of viewing angle:

Refer to the graph below marked by θ and Ф

Note 4:

The definition of contrast ratio (Test LCM using PR-705):

Figure 10

Contrast Luminance When LCD is at “White” state

Ratio(CR)= Luminance When LCD is at “Black” state

(Contrast Ratio is measured in optimum common electrode

voltage)

Note 5: reference Figure7

Definition of Response time. (Test LCD using DMS501):

The output signals of photo detector are measured

when the input signals are changed from

Figure 11

“black” to “white”(falling time)

and from “white” to “black”(rising time), respectively.

The response time is defined as

the time interval between the 10% and 90% of

amplitudes.Refer to figure as below.

Note 6: reference Figure8

Definition of Color of CIE Coordinate and NTSC Ratio.

Color gamut:

Area of RGB triangle

X100%

Area of NTSC triangle

Figure 12

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 10 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

6. Function Specifications

6.1 Command Summary

Command

Para-

meter

HEX

Descriptions

Power Save

P1 60804 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Power Save Configuration Register

D[7:0]

1 0 0 n/a n/a n/a n/a n/a n/a Power Save Bit[1:0] = 00 , PSM0 mode

P2 D[15:8]

Bit[1:0] = 01 , PSM1 mode

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

Bit[1:0] = 1x , NMM mode

Software

P1 60806 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Software Reset Register(Write Only)

Reset

D[7:0]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

D[15:8]

Softw Bit[8] = 0 , no effect in hardware

1 0 0 n/a n/a n/a n/a n/a n/a n/a are Bit[8] = 1 , all registers are reset to default values

Reset

PLL Setting 0 P1 60810 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PLL Setting Register 0

D[7:0]

PLL PLL Bit[0] = 0 , the PLL is disabled

1 0 0 n/a n/a n/a n/a n/a n/a Bypa Enabl Bit[0] = 1 , the PLL enabled

Bit[1] = 0 , PLL is selected

D[15:8]

PLL

Bit[1] = 1 , CLKI is selected

1 0 0 Lock n/a n/a n/a n/a n/a n/a n/a Bit[15] = 0 , the PLL output is not stable

(RO)

Bit[15] = 1 , the PLL output is stable

PLL Setting 1 P1 60812 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PLL Setting Register 1

D[7:0]

1 0 0

M-Divider

Bit[9:0] 000h,001h … … 019h,020h : 1:1 ,2:1 … … 33:1(M-Divide Ratio).

P2 D[15:8]

021h to 13Fh: Reserved, PFDCLK = CLKI ÷ (M-Divider + 1)

1 0 0 n/a n/a

N-Counter

M-Divider

Bit[13:10] , must be set to 0000

PLL Setting 2 P1 60814 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PLL Setting Register 2

D[7:0]

1 0 0

L-Counter

Bit[9:0] , must be set between 010h ~ 041h. , and get the M-Divide Ratio

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a L-Counter from 17:1 to 66:1. POCLK = (L-Counter + 1) x (N-Counter + 1) x PFDCLK

Internal Clock P1 60816 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Internal Clock Configuration Register

Configuration

D[7:0]

1 0 0 n/a n/a n/a n/a n/a PCLK Divide Select Bit[3:0] = 0000b,0001b … … 1110b,1111b : 1:1 ,2:1 … … 16:1(MCLK to

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a PCLK Frequency Ratio)

Panel Setting P1 60820 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Panel Setting Miscellaneous Register

Miscellaneous

D[7:0]

Panel

Panel Bit[0] = 0 , TFT panel is disable

PCLK

Data Panel Data Port Bit[0] = 1 , TFT panel is enable

1 0 0 DE Polarity Polari n/a

Enabl

Width

Enabl Bit[2:1] = 01 , TFT 16-bit

Bit[2:1] = 10 , TFT 18-bit

D[15:8]

Bit[2:1] = 11 , TFT 24-bit

Bit[3] = 0 , panel data is disable

Bit[3] = 1 , panel data is enable

Bit[5] = 0, the LCD data outputs transition on the rising edge of PCLK

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a Bit[5] = 1 , the LCD data outputs transition on the falling edge of PCLK

Bit[7:6] = 00 , DE Polarity Low active

Bit[7:6] = 01 , DE Polarity High active

Bit[7:6] = 10 , DE Polarity Fixed to Low

Bit[7:6] = 11 , DE Polarity Fixed to High

Display

P1 60822 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Display Settings Register

Settings

D[7:0]

Displ

Panel Bit[0] = 0 , HS, VS, DE and PCLK are fixed to H or L and the display pipes

Displ

SW Interf are disabled

Statu

1 0 0

TE Function ay

n/a Blank Video ace Bit[0] = 1 , enable the panel output and display pipes

Blank

Polari Invert Enabl Bit[1] = 0 , video data is normal

(RO)

es Bit[1] = 1 , video data is inverted

D[15:8]

Bit[2] = 0 , the display blank function operates normally

Bit[2] = 1 , the display blank function switches polarity

Bit[4] = 0 , the LCD data is masked

Bit[4] = 1 , all applicable LCD data outputs are forced to zero or one

Bit[6:5] = 00b , TE output is disabled and the pin output is low

Bit[6:5] = 01b , TE output is high (1) when the display is in the Vertical

Outp

Non-Display Period (VNDP) and low (0) when the display is in Vertical

1 0 0 n/a n/a n/a n/a n/a n/a n/a ut Pin

Display Period (VDISP)

Disab

Bit[6:5] = 10b , Line Count

Bit[6:5] = 11b , Reserved

Bit[7] = 0 , the selected condition in not occurring

Bit[7] = 1 , the selected condition in not occurring

Bit[8] = 0 , TE is output

Bit[8] = 1 , TE is not output

HDISP

P1 60824 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Horizontal Display Width Register (HDISP)

D[7:0]

Horizontal Display Width

1 0 0 n/a

Bit[6:0] = horizontal display width in pixels ÷ 8

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

HNDP

P1 60826 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Horizontal Non-Display Period Register (HNDP)

D[7:0]

1 0 0 n/a

Horizontal Non-Display Period

Bit[6:0] = horizontal non-display period in PCLK’s

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

VDISP

P1 60828 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Vertical Display Height Register (VDISP)

D[7:0]

1 0 0

Vertical Display Height

D[15:8]

Vertical

Bit[9:0] = vertical display height in lines

1 0 0 n/a n/a n/a n/a n/a n/a

Display

Height

VNDP

P1 6082A 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Vertical Non-Display Period Register (VNDP)

D[7:0]

1 0 0

Vertical Non-Display Period

Bit[7:0] = vertical non-display period in lines

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 11 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

Command

Para-

meter

HEX

Descriptions

HSW

P1 6082C 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

HS Pulse Width Register (HSW)

D[7:0]

Pulse

1 0 0

HS Pulse Width

Bit[6:0] = HS pulse width in PCLK’s

Polari

Bit[7] = 0 , the horizontal sync signal is active low

Bit[7] = 1 , the horizontal sync signal is active high

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

HPS

P1 6082E 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

HS Pulse Start Position Register (HPS)

D[7:0]

HS Pulse Start Position

1 0 0 n/a

Bit[6:0] = HS pulse start position in PCLK’s

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

VSW

P1 60830 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

VS Pulse Width Register (VSW)

D[7:0]

Pulse

1 0 0

n/a

VS Pulse Width

Bit[5:0] = VS pulse width in lines

Polari

Bit[7] = 0 , the vertical sync signal is active low

Bit[7] = 1 , the vertical sync signal is active high

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

VPS

P1 60832 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

VS Pulse Start Position Register (VPS)

D[7:0]

VS Pulse Start Position

1 0 0

Bit[7:0] = VS pulse start position in lines

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

TE Line Count P1 60834 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

TE Line Count Register

D[7:0]

1 0 0

TE Line Count

These bits specify the line count value that is compared with the internal

P2 D[15:8]

TE Line

1 0 0 n/a n/a n/a n/a n/a n/a

vertical line counter

Count

Main Layer

P1 60840 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Main Layer Setting Register

Setting

D[7:0]

Main Layer

Main Layer Color

1 0 0 n/a n/a n/a

Rotation

Depth

Bit[2:0] = 000b, RGB 8:8:8 (default)

Select

Bit[2:0] = 001b, RGB 5:6:5

D[15:8]

Multi-

Bit[2:0] = 010b/011b/111b, Reserved

Byte

Bit[2:0] = 100b, 24 bpp + LUT1

Layer

Bit[2:0] = 101b, 16 bpp + LUT1

Regis

Bit[2:0] = 110b, 8 bpp + LUT1

ters

Bit[4:3] = 00b, 0° (Normal)

Sync

1 0 0 n/a n/a n/a n/a n/a n/a n/a

Bit[4:3] = 01b, 90°

hrono

Bit[4:3] = 10b, 180°

Bit[4:3] = 11b, 270°

Latch

Bit[8] = 0, Synchronous latching of multi-byte layer registers is enabled

ing

Bit[8] = 1, Synchronous latching of multi-byte layer registers is disabled

Disab

Main Layer

P1 60842 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Main Layer Start Address Register 0

Start Address

D[7:0]

1 0 0

Main Layer Start Address

Bit[15:0] is Bit[15:0] of Main Layer Start Address ,but Bit[1:0] must be set

D[15:8]

1 0 0

Main Layer Start Address

to 00b

Main Layer

P1 60844 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Main Layer Start Address Register 1

Start Address

D[7:0]

Main Layer Start

1 0 0 n/a

n/a

Address

Bit[2:0] is Bit[18:16] of Main Layer Start Address

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

Main Layer

P1 60846 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Main Layer Width Register

Width

D[7:0]

1 0 0

Main Layer Width

P2 D[15:8]

Main Layer Read Only

1 0 0 n/a n/a n/a n/a n/a n/a

Width

Main Layer

P1 60848 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Main Layer Height Register

Height

D[7:0]

1 0 0

Main Layer Height

P2 D[15:8]

Main Layer Read Only

1 0 0 n/a n/a n/a n/a n/a n/a

Height

PIP Layer

P1 60850 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer Setting Register

Setting

D[7:0]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a Bit[2:0] = 000b, RGB 8:8:8 (default)

D[15:8]

Bit[2:0] = 001b, RGB 5:6:5

Bit[2:0] = 010b/011b/111b, Reserved

Bit[2:0] = 100b, 24 bpp + LUT1

PIP Layer

Bit[2:0] = 101b, 16 bpp + LUT1

PIP Layer Color

1 0 0 n/a n/a n/a

Rotation

Bit[2:0] = 110b, 8 bpp + LUT1

Depth

Select

Bit[4:3] = 00b, 0° (Normal)

Bit[4:3] = 01b, 90°

Bit[4:3] = 10b, 180°

Bit[4:3] = 11b, 270°

PIP Layer

P1 60852 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer Start Address Register 0

Start Address

D[7:0]

1 0 0

PIP Layer Start Address

Bit[15:0] is Bit[15:0] of Main Layer Start Address ,but Bit[1:0] must be set

D[15:8]

1 0 0

PIP Layer Start Address

to 00b

PIP Layer

P1 60854 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer Start Address Register 1

Start Address

D[7:0]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

P2 D[15:8]

PIP Layer Start

Bit[2:0] is Bit[18:16] of Main Layer Start Address

1 0 0 n/a n/a n/a n/a n/a

Address

PIP Layer

P1 60856 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer Width Register

Width

D[7:0]

1 0 0

PIP Layer Width

Bit[9:] = PIP Layer Horizontal Display Period in number of pixels PIP

P2 D[15:8]

PIP Layer

1 0 0 n/a n/a n/a n/a n/a n/a

Layer Horizontal Display Period in number of pixels

Width

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 12 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

Command

Para-

meter

HEX

Descriptions

PIP Layer

P1 60858 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer Height Register

Height

D[7:0]

1 0 0

PIP Layer Height

P2 D[15:8]

PIP Layer Bit[9:] = PIP Layer Vertical Display Period in number of lines

1 0 0 n/a n/a n/a n/a n/a n/a

Height

PIP Layer X

P1 6085A 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer X Start Position Register

Start Position

D[7:0]

1 0 0

PIP Layer X Start Position

D[15:8]

PIP Layer X

These bits specify X start position of the PIP Layer on the panel, in lines

1 0 0 n/a n/a n/a n/a n/a n/a

Start

Position

PIP Layer Y

P1 6085C 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Layer Y Start Position Register

Start Position

D[7:0]

1 0 0

PIP Layer Y Start Position

D[15:8]

PIP Layer Y

These bits specify Y start position of the PIP Layer on the panel, in lines

1 0 0 n/a n/a n/a n/a n/a n/a

Start

Position

PIP Enable

P1 60860 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

PIP Enable Register

D[7:0]

Blink/

Bit[2:0] = 000b, Blank

Fade

Bit[2:0] = 001b, Normal

1 0 0 n/a n/a n/a n/a

Blink/Fade Effect

Status

Bit[2:0] = 010b, Blink 1

(RO)

Bit[2:0] = 011b, Blink 2

D[15:8]

Bit[2:0] = 100b, Fade Out

Bit[2:0] = 101b, Fade In

Bit[2:0] = 110b, Fade In/Out Continuous

1 0 0

Blink/Fade Period

n/a Bit[2:0] = 111b, Reserved

Bit[3] = 0b, the PIP layer is not blinking or fading

Bit[3] = 1b, the PIP layer is in the process of blinking or fading

Bit[15:9] = blink/fade period in frames – 1

Alpha

P1 60862 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Alpha Blending Register

Blending

D[7:0]

1 0 0 n/a

Alpha Blending Ratio

Bit[6:0] = 0000000b,0000001b… …0111111b,1000000b :

D[15:8]

64:0 (no PIP),63:1 … … 1:63,0:64(full PIP) ;

1000001b ~ 1111111b : Reserved

Alpha

Bit[9:8] = 00b, 1

1 0 0 n/a n/a n/a n/a n/a n/a

Blending

Bit[9:8] = 01b, 2

Step

Bit[9:8] = 10b, 4

Bit[9:8] = 11b, 8

Transparency P1 60864 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Transparency Register

D[7:0]

Transp

1 0 0 n/a n/a n/a n/a n/a n/a n/a arency Bit[0] = 0b, transparency is disabled

Enable Bit[0] = 1b, transparency is enabled

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

Transparency P1 60866 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Transparency Key Color Register 0

Key Color 0

D[7:0]

Key Color Blue

Bit[15:8] is Key Color Green bits [7:0]

1 0 0

D[15:8]

1 0 0

Key Color Green

Bit[7:0] is Key Color Blue bits [7:0]

Transparency P1 60868 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

Transparency Key Color Register 1

Key Color 1

D[7:0]

Key Color Red

1 0 0

Bit[7:0] is Key Color Red bits [7:0]

D[15:8]

1 0 0 n/a n/a n/a n/a n/a n/a n/a n/a

GPIO

P1 608D0 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

GPIO Configuration Register

Configuration

D[7:0]

Bit[15:0] = 0b (default), the corresponding GPIO pin is configured as an

1 0 0 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1 GPIO0

Config

Config input pin

D[15:8]

Bit[15:0] = 1b , the corresponding GPIO pin is configured as an output pin

1 0 0 GPIO15 GPIO14 GPIO13 GPIO12 GPIO11 GPIO10 GPIO9 GPIO8

Config

GPIO Status P1 608D2 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

GPIO Status and Control Register

and Control

D[7:0]

1 0 0 GPIO7 GPIO6 GPIO5 GPIO4 GPIO3 GPIO2 GPIO1 GPIO0 When GPIOx is configured as an output:

Status

Status Status

Status

Bit[15:0] = 0b, GPIOx low

D[15:8]

1 0 0 GPIO15 GPIO14 GPIO13 GPIO12 GPIO11 GPIO10 GPIO9 GPIO8 Bit[15:0] = 1b, GPIOx high

Status

GPIO Pull-

P1 608D4 0 0 0

A[7:0]-> A[15:8] -> A[18:16]

GPIO Pull-Down Control Register

Down Control

D[7:0]

GPIO7

GPIO6

GPIO5

GPIO4

GPIO3

GPIO 2

GPIO1

GPIO0

1 0 0 Pull- Pull- Pull- Pull- Pull- Pull- Pull- Pull-

down

Bit[15:0] = 0b, the pull-down resistor for the associated GPIO pin is

Control

inactive.

D[15:8]

GPIO15 GPIO14 GPIO13 GPIO12 GPIO11 GPIO10 GPIO9

GPIO8

Bit[15:0] = 1b, the pull-down resistor for the associated GPIO pin is active.

1 0 0 Pull- Pull- Pull- Pull- Pull- Pull- Pull- Pull-

down

Control

Note: Access of PLL Setting 0, PLL Setting 1, PLL Setting 2 and Internal Clock Configuration is only possible

in Power Save Mode PSM0.

For more information and details please refer to S1D13L01 datasheet.

7. Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 13 of 15

TOPWAY

LCD Module User Manual

LMT035KDH03-NHA

8. Appendix A Inspection items and criteria for appearance defects

Items

Criteria

Open Segment or Common

Not permitted

Short

Not permitted

Wrong Viewing Angle

Not permitted

Decliners

Not permitted

Contrast Ration Uneven

According to the limit specimen

Crosstalk

According to the limit specimen

White spots

X>1 pixel

A-area

Not permitted

Max 6 spots

B-area

Max. 1 allowed

1/2 pixel<X≤1 pixel

A-area

Not permitted

allowed

B-area

Max. 2 allowed

X≤1/2 pixel

A-area

Max. 1 allowed

B-area

Max. 4 allowed

Black Sport

X>1 pixel

A-area

Not permitted

B-area

Max. 2 allowed

X≤1/2 pixel

A-area

Max. 1 allowed

B-area

Max. 4 allowed

Line Defect

Apparent vertical horizontal line defects are not permitted

Notes:

4. On Pixel includes 3 dots (RedDot + GreenDot + BlueDot)

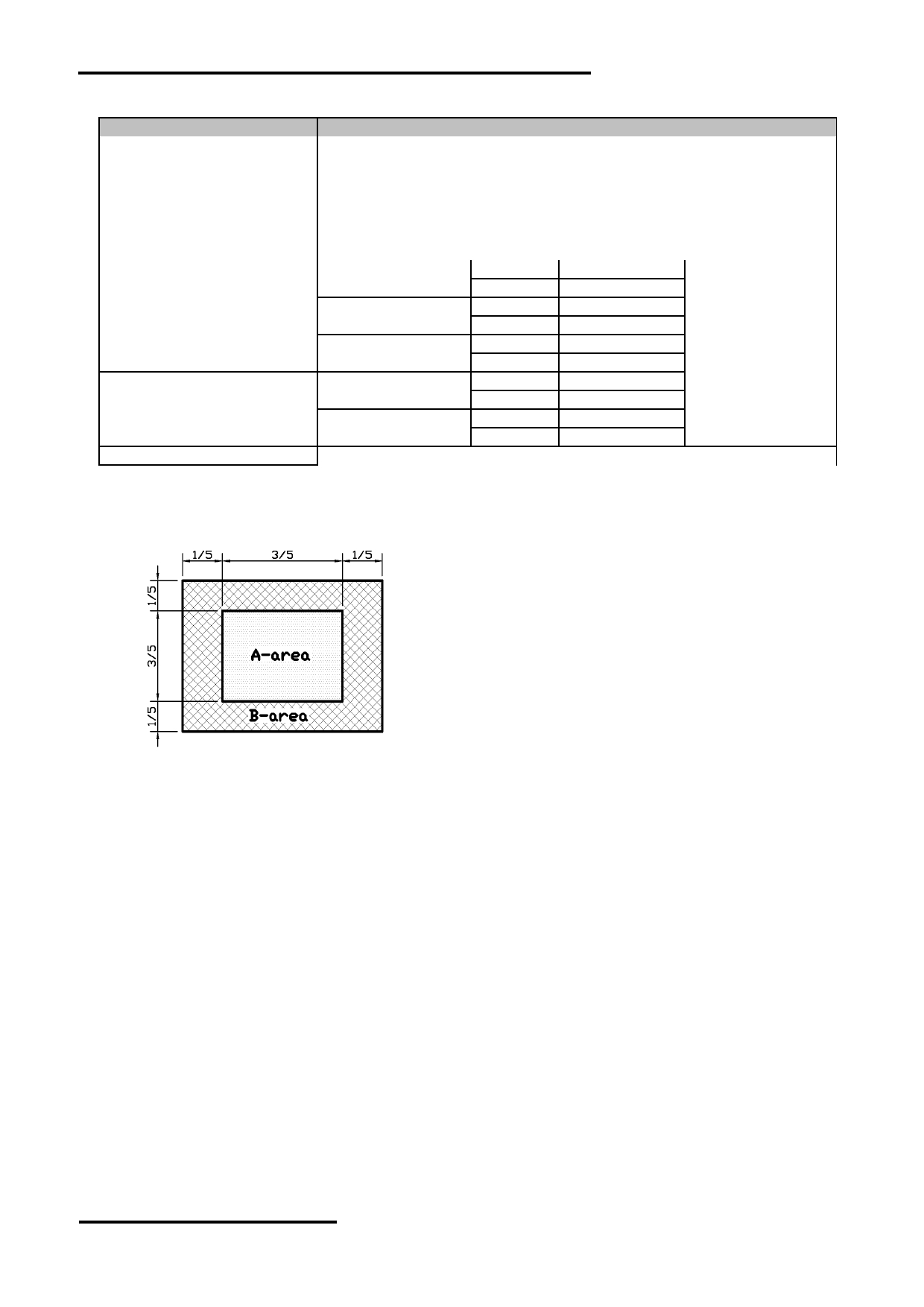

5. Definition of Panel “A-area” and “B-area”

URL: www.topwaydisplay.com

Document Name: LMT035KDH03-NHA-Manual-Rev0.2

Page: 14 of 15
