LMT050DNCFWU-1

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Liusanyong

Date: 2019-01-27

Date:

Date:

Rev. Descriptions

Release Date

0.1

Preliminary

2019-01-27

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 1 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

Table of Content

1. General Specification ............................................................................................................ 3

2. Block Diagram ........................................................................................................................ 3

3. Terminal Functions ................................................................................................................ 4

3.1

Interface ............................................................................................................................... 4

4. Absolute Maximum Ratings .................................................................................................. 5

5. Electrical Characteristics ...................................................................................................... 5

5.1

DC Characteristics (MCU terminal)....................................................................................... 5

5.2

LED Backlight Circuit Characteristics ................................................................................... 5

5.3

Power ON/OFF Sequence .................................................................................................... 6

6. AC Characteristics ................................................................................................................. 7

6.1

AC Timing ............................................................................................................................ 7

6.2

Data Input format .................................................................................................................. 8

7. Optical Characteristics .......................................................................................................... 9

8. Precautions of using LCD Modules .................................................................................... 11

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 2 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

1. General Specification

Screen Size(Diagonal) :

5.0 inch

Resolution :

800(RGB) x 480

Signal Interface :

24bit parallel interface

Color Depth :

16.7M color (24bit)

Pixel Pitch :

0.36 x 0.36 (mm)

Pixel Configuration :

RGB Stripe

Display Mode :

Transmissive / normal white

Surface Treatment :

Anti-Glare Treatment

Viewing Direction :

6H (*1) (gray scale inverse)

12H (*2)

Outline Dimension :

120.7 x 75.8 x 3.1 (mm)

(exclude FPC, see attached drawing for details)

Active Area :

108 x 64.8 (mm)

Backlight :

2x7 LEDs

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Note:

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations).

*2. For “color scales” display content.

*3. Color tone may slightly change by Temperature and Driving Condition.

2. Block Diagram

VLED-, VLED+

Backlight Circuit

800(x3) x 480 pixels

TFT Panel

R0~R7, G0~G7, B0~B7

VDD, GND

TFT Driver

CLKIN, HSD, VSD, DEN,STBYB

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 3 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

3. Terminal Functions

3.1 Interface

Pin Pin

No. Name

I/O

Descriptions

1

VLED-

P

Backlight LED Cathode supply

2

VLED+

P

Backlight LED Anode supply

3

GND

P

Power Ground (0V)

4

VDD

P

Positive Power Supply

5

R0

I

Red color data input

:

:

12

R7

13

G0

I

Green color data input

:

:

20

G7

21

B0

I

Blue color data input

:

:

28

B7

29

GND

P

Power Ground (0V)

30

CLKIN

I

Clock for input data. Data latched at falling edge of this signal.

Standby mode.

31

STBYB

I

STBYB=“1”: Normally operation.

STBYB=“0”: Standby mode .Timing controller, source driver

will turn off, all output are High-Z.

32

HSD

I

Horizontal Sync signal input

33

VSD

I

Vertical Sync Signal Input

34

DEN

I

Data input enable. Effective only in DE mode.

35

NC

-

No connection, leave open

36

GND

P

Power Ground (0V)

37

NC

-

No connection, leave open

38

NC

39

NC

40

NC

Note:

Interface: HS, VS mode (default)

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 4 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

4. Absolute Maximum Ratings

Items

Symbol

Min.

Max.

Unit

Condition

Supply Voltage

V DD

-0.3

+4.0

V

GND = 0V

Operating Temperature

T OP

-20

+70

℃

No Condensation

Storage Temperature

T ST

-30

+80

℃

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure

to extreme conditions may affect device reliability.

5. Electrical Characteristics

5.1 DC Characteristics (MCU terminal)

GND=0V, V DD =3.3V, T OP =25 ℃

Items

Symbol

MIN.

TYP.

MAX.

Unit Applicable Pin

Operating Voltage

VDD

3.0

3.3

3.6

V

VDD

Input High Voltage

V IH

0.7VDD

-

VDD

V

Input pins

Input Low Voltage

V IL

GND

-

0.3VDD

V

Input pins

Output Signal Low Voltage

V oH

-

-

GND+0.4

V

Output Signal High Voltage

V IL

VDD-0.4

-

-

V

Operating Current (*1)

I DD

-

90

-

mA

All black

Note.

*1. For different LCM, the value may have a bit of difference.

*2. To test the current dissipation, use “all Black Pattern”.

5.2 LED Backlight Circuit Characteristics

If VLED+ =40mA, T OP =25 ℃

Items

Symbol

MIN.

TYP.

MAX.

Unit Note

Forward Voltage

Vf

17.5

21.7

24.7

V

Forward Current

If VLED+

-

40

50

mA

Life Time

-

10,000

(20,000)

-

hr

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

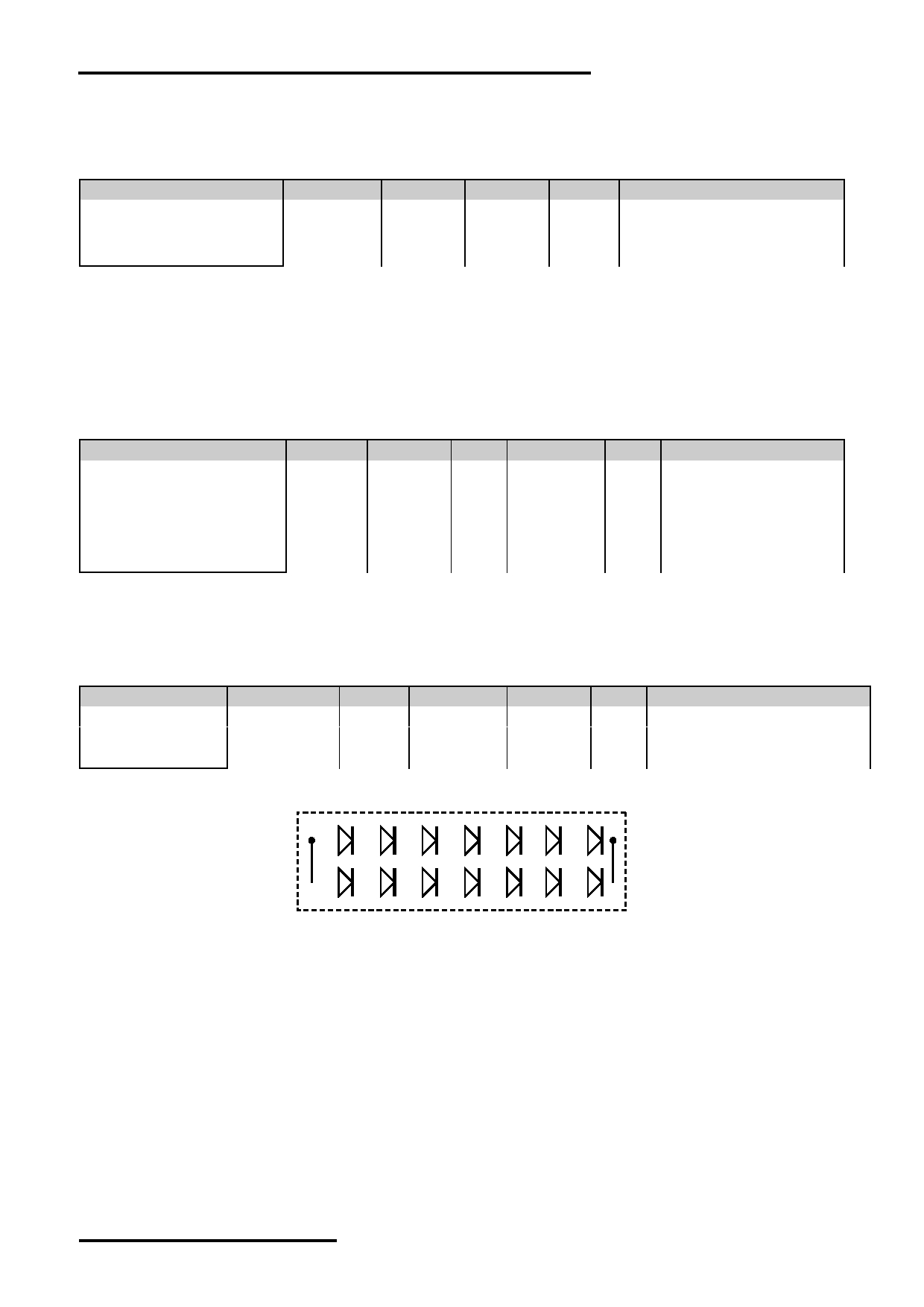

VLED+

VLED-

No. of LEDs = 2x7 pcs

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 5 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

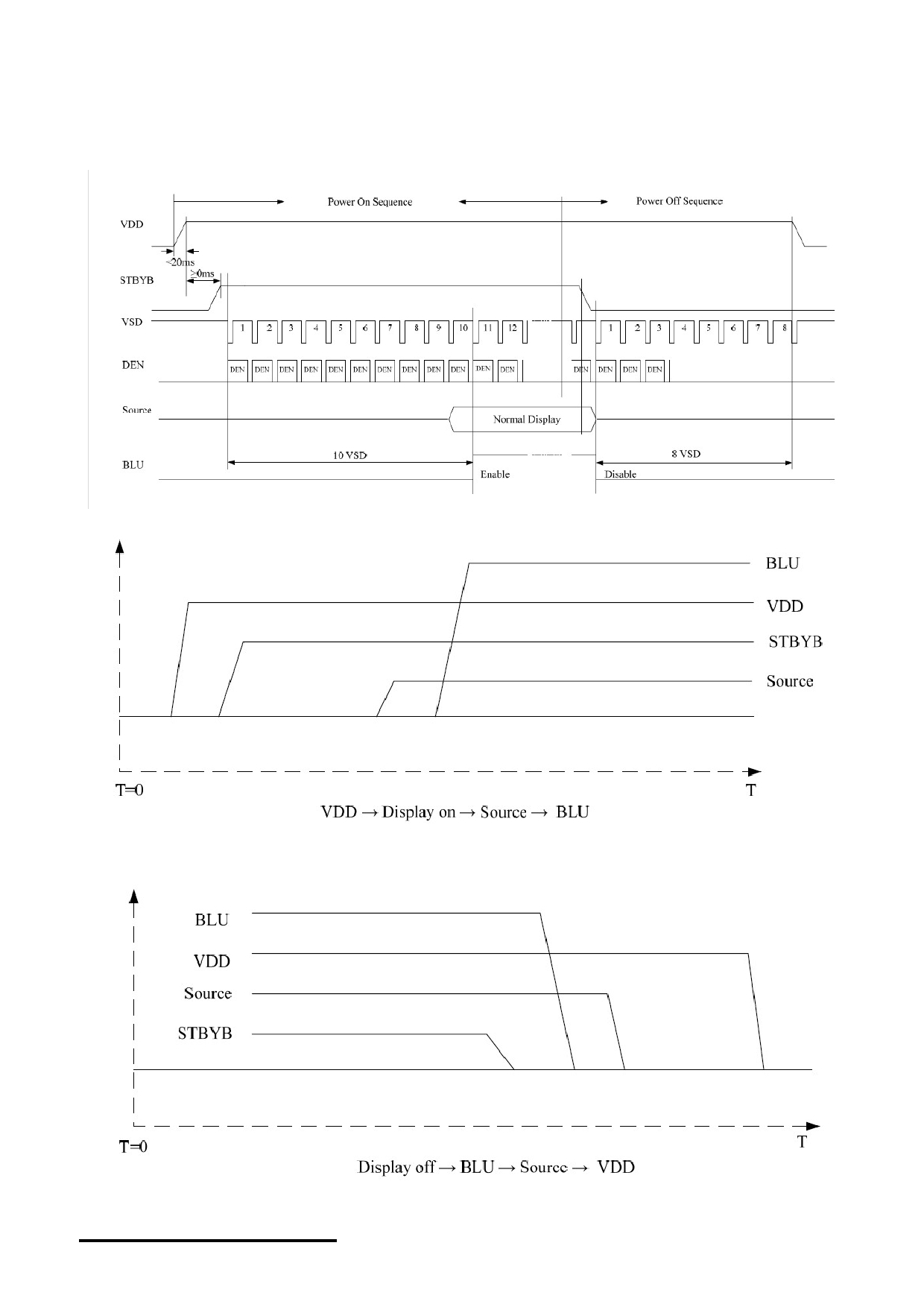

5.3 Power ON/OFF Sequence

Power On/Off Sequence

Power On Sequence

Power OFF Sequence

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 6 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

6. AC Characteristics

6.1 AC Timing

GND=0V, V DD =3.3V, T OP =25 ℃

Item

Symbol

MIN.

TYP.

MAX.

Unit

Remark

HS setup time

Thst

8

-

-

ns

HS hold time

Thhd

8

-

-

ns

VS setup time

Tvst

8

-

-

ns

VS hold time

Tvhd

8

-

-

ns

Data setup time

Tdsu

8

-

-

ns

Data hole time

Tdhd

8

-

-

ns

DE setup time

Tesu

8

-

-

ns

DVDD Power On Slew rate

Tpor

-

-

20

ms

CLKIN cycle time

Tcph

20

-

-

ns

CLKIN pulse duty

Tcwh

40

50

60

%

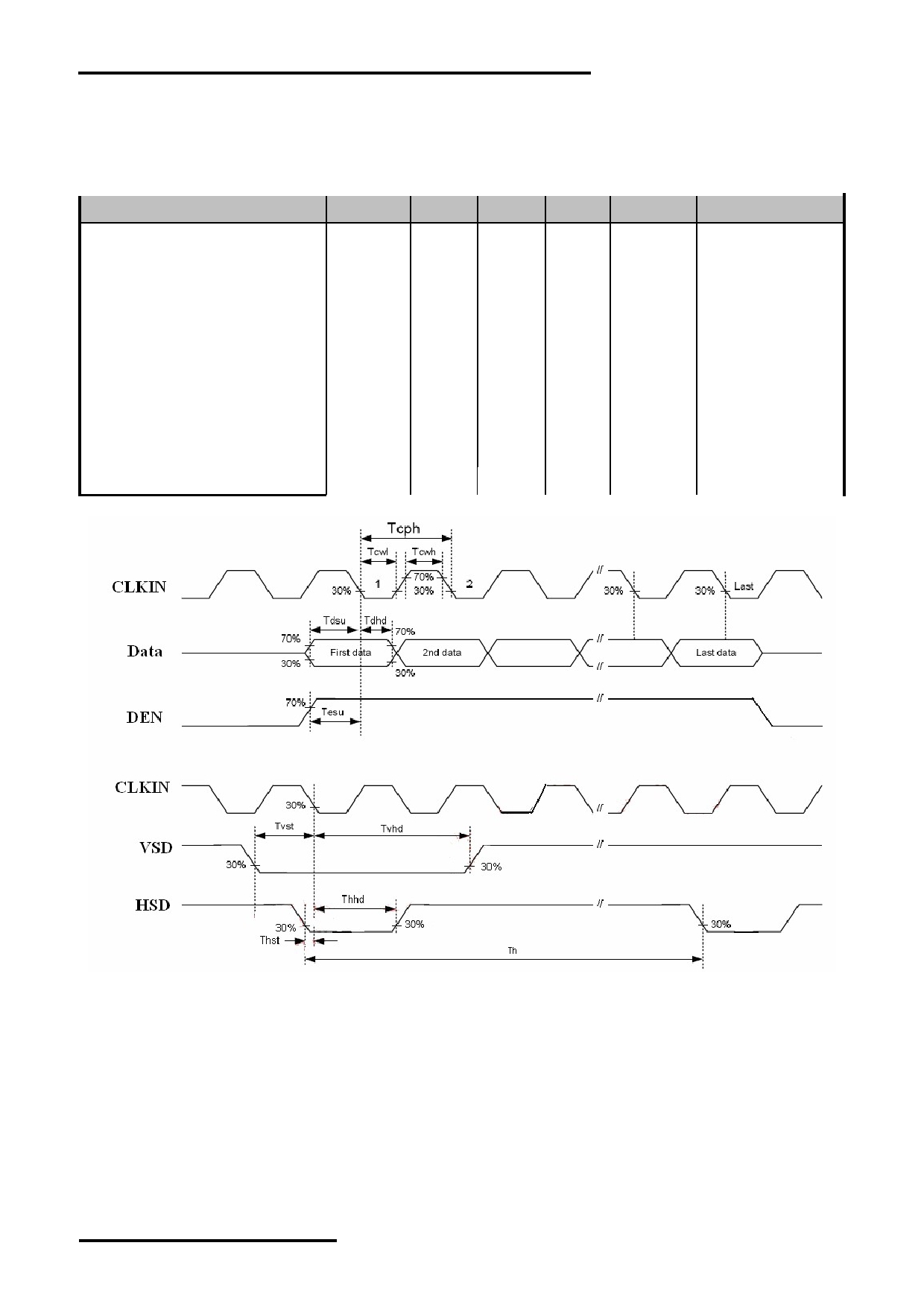

Input Clock and Data Timing Diagram

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 7 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

6.2 Data Input format

Item

Symbol

MIN.

TYP.

MAX.

Unit

Remark

Horizontal Display Area

thd

800

DCLK

CLKIN Frequency

fclk

-

30

50

MHz

One Horizontal Line

th

889

928

1143

CLKIN

HSD pulse width

thpw

1

48

255

CLKIN

HSD Blanking

thb

88

CLKIN

HSD Front Porch

thfp

1

40

255

CLKIN

Vertical Display Area

tvd

480

TH

VSD period time

tv

513

525

767

TH

VSD pulse width

tvpw

3

3

255

TH

VSD Blanking

tvb

32

TH

VSD Front Porch

tvfp

1

13

255

TH

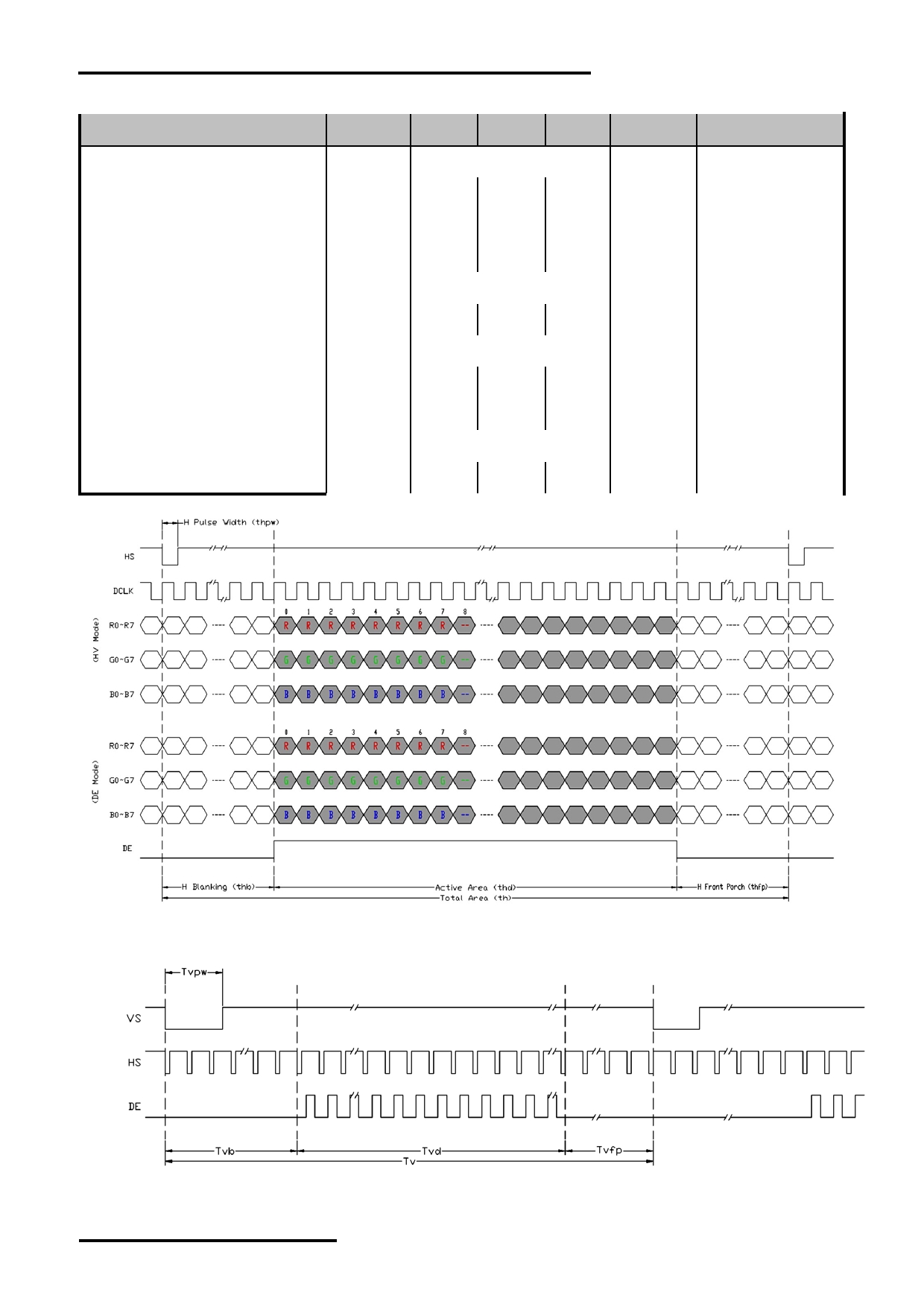

Horizontal input timing diagram

Vertical input timing diagram

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 8 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

7. Optical Characteristics

Item

Symbol

Condition

MIN.

TYP.

MAX.

UNIT

Note.

θ T

40

50

-

Viewing angle

θ B

60

70

-

(CR ≥ 10)

degree

Note 2

θ L

60

70

-

θ R

60

70

-

Contrast ratio

CR

θ=0 o

500

600

-

-

Note 1,3

T on

msec

Response Time

25 ℃

-

20

30

Note 1,4

T off

msec

X

0.260 0.310 0.360

White

Y

0.280 0.330 0.380

X

0.540 0.590 0.640

Red

Y

Backlight

0.300 0.350 0.400

Chromaticlty

is on

Note 1,5

X

0.298 0.348 0.398

Green

Y

0.520 0.570 0.620

X

0.095 0.145 0.195

Blue

Y

0.060 0.110 0.160

Luminance

L

200

250

-

cd/m 2

Note 1,6

NTSC

-

50

%

Note 5

Luminance uniformity

U

75

80

-

%

Note 1,7

Test Conditions:

1. IF= 40mA, VF=21.7V, and the ambient temperature is 25. ℃

2. The test systems refer to Note 1 and Note 2.

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 9 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

Note 1:

Note 2:

The data are measured after LEDs are turned on for 5 minutes.

The definition of viewing angle:

LCM displays full white. The brightness is the average value of 9 Refer to the graph below marked by θ and Ф

measured spots. Measurement equipment SR-3A (1°)

Measuring condition:

- Measuring surroundings: Dark room

- Measuring temperature: Ta=25 ℃ .

- Adjust operating voltage to get optimum contrast at

the center of the display.

Note 3:

The definition of contrast ratio (Test LCM using SR-3A (1°)):

Note 4:

Contrast

Luminance When LCD is at “White” state

Definition of Response time. (Test LCD using BM-7A(2°)):

Ratio(CR)

=

Luminance When LCD is at “Black” state

The output signals of photo detector are measured

(Contrast Ratio is measured in optimum common electrode

when the input signals are changed from

voltage)

“black” to “white”(falling time)

and from “white” to “black”(rising time), respectively.

The response time is defined as

the time interval between the 10% and 90% of amplitudes.Refer to

figure as below.

Note 5:

Note 6:

Definition of Color of CIE1931 Coordinate and NTSC Ratio.

The luminance uniformity is calculated by using following formula.

△ Bp = Bp (Min.) / Bp (Max.)×100 (%)

Color gamut:

Bp (Max.) = Maximum brightness in 9 measured spots

Area of RGB triangle

S=

X100%

Bp (Min.) = Minimum brightness in 9 measured spots .

Area of NTSC triangle

Note 7:

Measured the luminance of white state at center point

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 10 of 11

TOPWAY

LCD Module User Manual

LMT050DNCFWU-1

8. Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LMT050DNCFWU-1 Manual-Rev0.1

Page: 11 of 11
