LMT070DNCFWD-30
LCD Module User Manual
Prepared by:
Checked by:
Approved by:
LuoLin
Date: 2026-08-28
Date:
Date:
Rev. Descriptions
Edit
Release Date
0.1
Preliminary release
LuoLin
2026-08-28
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 1 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
Table of Content
1. Applications......................................................................................................................................3
2. General Specification...................................................................................................................... 3
3. Block Diagram.................................................................................................................................. 3
4. Terminal Function (Input Terminal)............................................................................................... 3
5. Absolute Maximum Ratings............................................................................................................5
6. Electrical Characteristics................................................................................................................ 5
6.1 DC Characteristics.............................................................................................................................................................5
6.2 LED Backlight Circuit Characteristics................................................................................................................................6
6.3 Power ON/OFF Sequence.................................................................................................................................................6
7. AC Characteristics........................................................................................................................... 7
7.1 Timing Characteristics.......................................................................................................................................................7
7.2 Input Clock and Data Timing Diagram...............................................................................................................................7
7.3 Timing................................................................................................................................................................................8
7.4 Data Input Format..............................................................................................................................................................8
7.5 Optical Characteristics.......................................................................................................................................................9
8. LCD Module Design and Handling Precautions.........................................................................10
9. TFT QA Standard............................................................................................................................12
9.1 INSPECTION CONDITION 检验条件 ..............................................................................................................................12
9.2 Display Pattern 显示缺陷 .................................................................................................................................................12
9.3 Quality Level and Sampling 抽样方法 ..............................................................................................................................13
9.4 Handling Precaution 使用注意事项 ..................................................................................................................................13
Warranty ............................................................................................................................................................ 14
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 2 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
1. Applications
This is a 7.0 inch a-Si TFT-LCD module with normal-black technology. lt is composed of a
TFT-LCD panel,a driver circuit, FPC, Bezel, and Backlight unit.

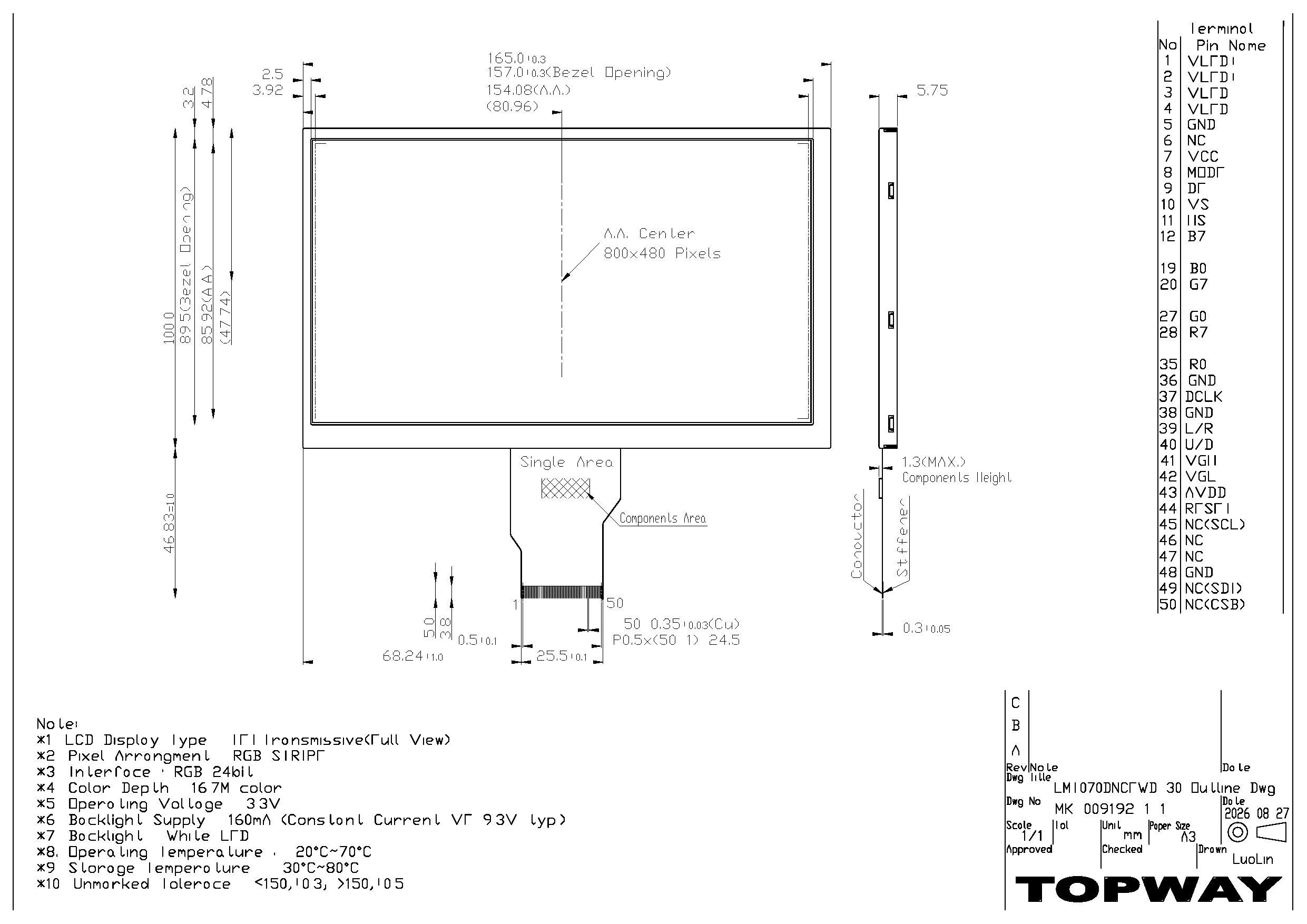

2. General Specification
Screen Size(Diagonal) :
7.0”
Active Area :
154.08 x 85.92 (mm)
Number of dots :
800 (RGB) x 480
Pixel Pitch ：
0.1926x0.1790(mm)
Color Depth:
16.7M colors
Display Technology :
a-Si TFT active matrix
Display Mode :
Normal Black, Transmissive
Display Interface :
RGB
Viewing Direction :
Full
Surface Treatment :
Anti-Glare
Operating Temperature :
-20 ~ +70°C
Storage Temperature :
-30 ~ +80°C
Note:
*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors-combinations).
*2. For “color scales” display content.

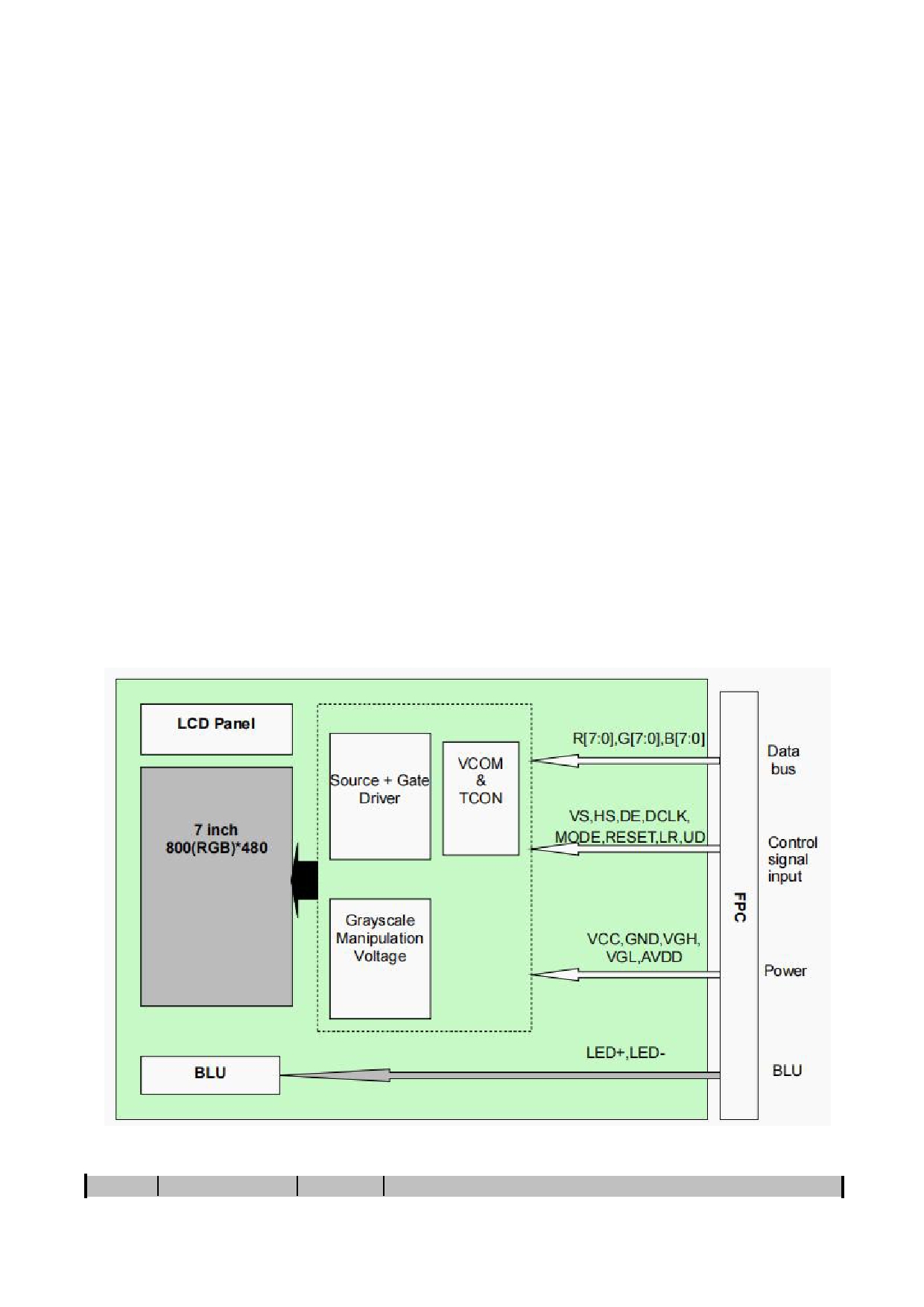

3. Block Diagram
4. Terminal Function (Input Terminal)
Pin No.
Pin Name
I/O
Descriptions
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 3 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
1
VLED+
2
VLED+
Power
Positive Backlight Power Supply
3
VLED-
4
VLED-
Power
Negative Backlight Power Supply
5
GND
Power
Power GND (0V)
6
NC
-
No connection
7
VCC
Power
Power for Digital Circuit
8
MODE
Input
DE/SYNC mode select (*1)
9
DE
Input
Data input enable
10
VS
Input
Vertical Sync Input
11
HS
Input
Horizontal Sync Input
12
B7
:
:
Input
8bit Data for Blue
19
B0
20
G7
:
:
Input
8bit Data for Green
27
G0
28
R7
:
:
Input
8bit Data for Red
35
R0
36
GND
Power
Power GND (0V)
37
DCLK
Input
Sample clock(*2)
38
GND
Power
Power GND (0V)
39
L/R
Input
Left / right selection (*3)
40
U/D
Input
Up/down selection (*3)
41
VGH
Power
Gate ON Voltage
42
VGL
Power
Gate OFF Voltage
43
AVDD
Power
Power for Analog Circuit
44
RESET
Input
Global reset pin (*4)
45
NC(SCL)
-
No connection(Serial interface clock input for SPl interface.)
46
NC
Input
No connection
47
NC
Input
No connection
48
GND
Power
Power GND (0V)
49
NC(SDI)
-
No connection(Serial interface address and data
input/output for SPl interface.)
50
NC(CSB)
-
No connection(Serial interface chip enable siqnal for SPl
interface)
Note:
* 1: DE/SYNC mode select. Normally pull high.
When select DE mode, MODE=”1”, VS and HS must pull low.
When select SYNC mode, MODE= “0”, DE must pull low.
* 2: Data shall be latched at the falling edge of DCLK.
* 3: Selection of scanning mode
Setting of scan control input
Scanning direction
U/D
L/R
GND
DVDD
Up to down, left to right
DVDD
GND
Down to up, right to left
*4: Global reset pin. Active low to enter reset state. Suggest to connect with an RC reset circuit for stability. Normally pull high.
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 4 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-

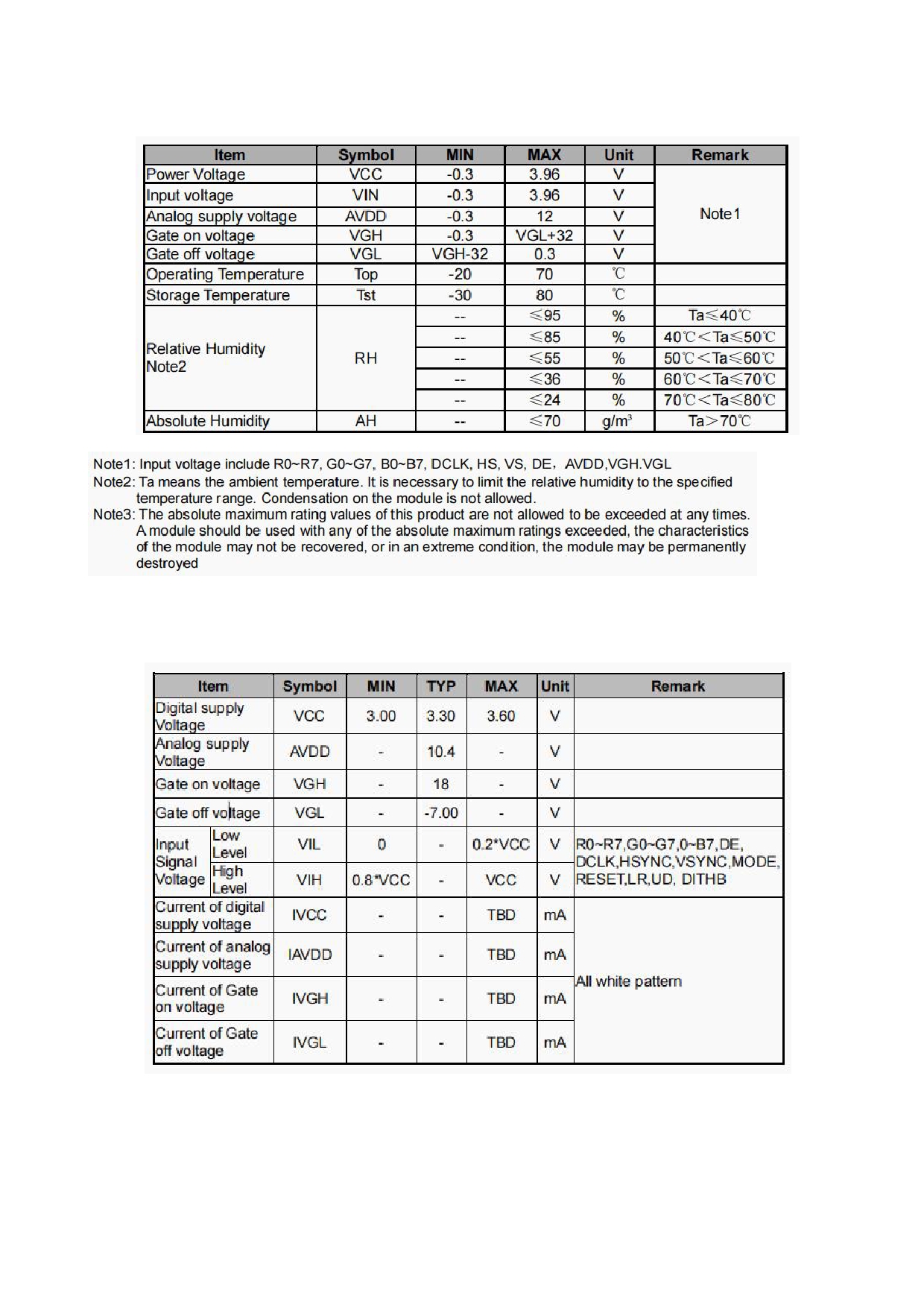

5. Absolute Maximum Ratings
6. Electrical Characteristics
6.1 DC Characteristics
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 5 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
6.2 LED Backlight Circuit Characteristics
Top=25 ℃
Items
Symbol
MIN.
TYP.
MAX. Unit Note
Forward Voltage
Vf BLA
8.4
9.3
10.2
V
If=160mA
Forward Current
If BLA
-
160.0
-
mA
Backlight Operating Life Time
-
20000
-
-
Hrs
*1
Cautions:
*1. Optical performance should be evaluated at Ta=25 ℃ . Only If LED is driven by high current, high ambient temperature
& humidity condition. The life time of LED will be reduced. Operating life means brightness goes down to 50% of initial
brightness. Typical operating life time is an estimated data.

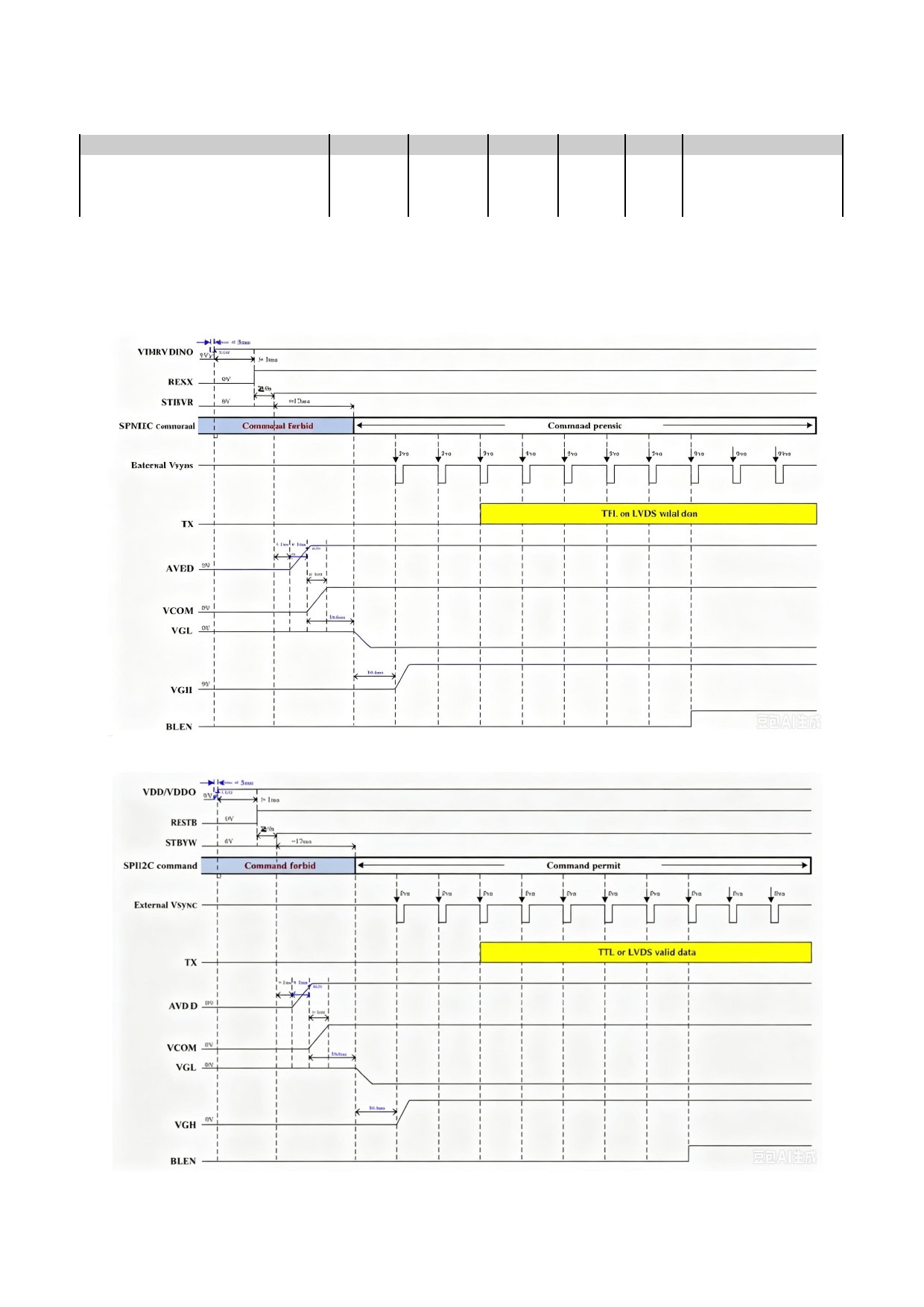

6.3 Power ON/OFF Sequence
Power On Sequence
Power Off Sequence
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 6 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
7. AC Characteristics

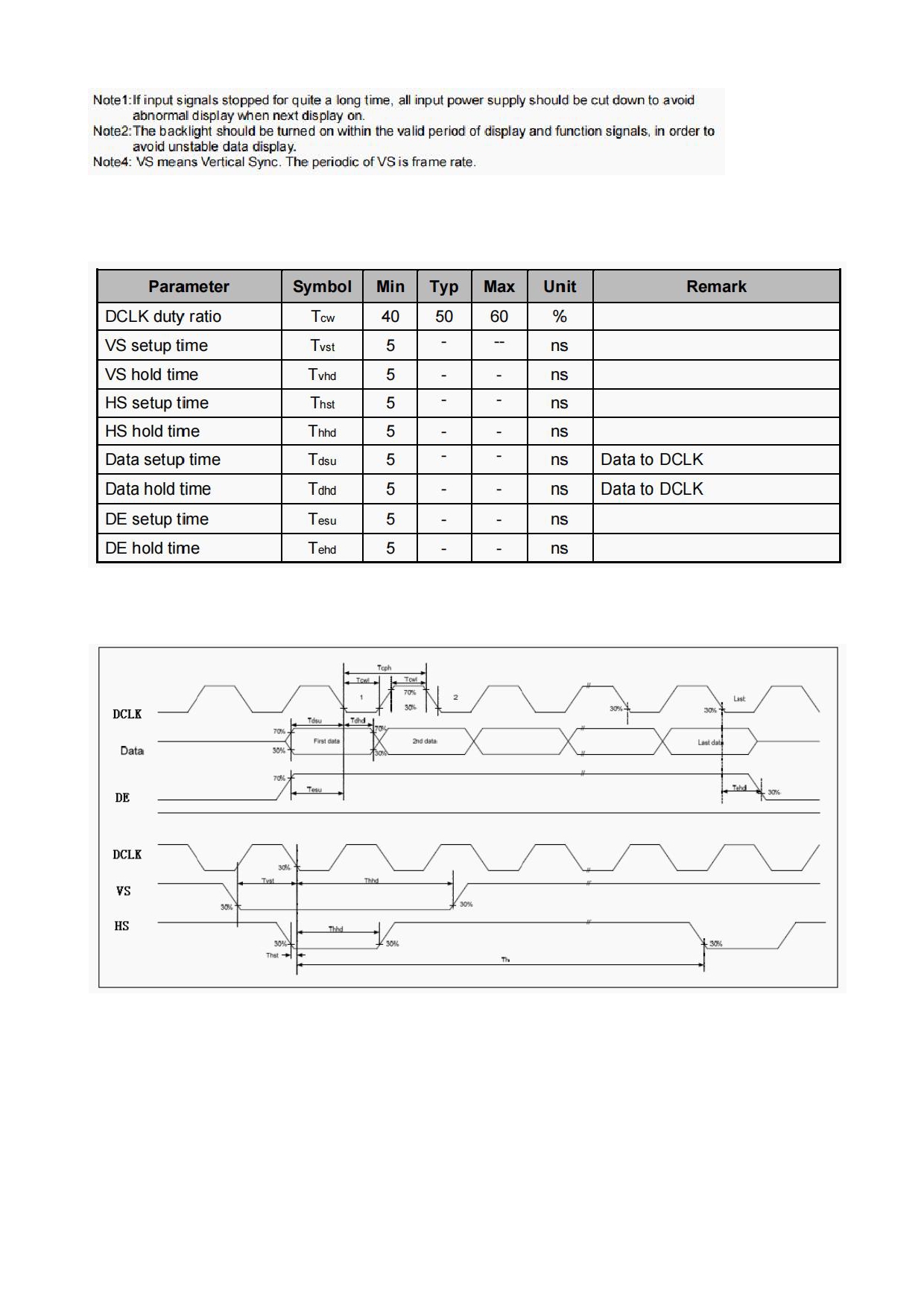

7.1 Timing Characteristics
Note: For the details of the timing, please see the Driver IC data sheet.
7.2 Input Clock and Data Timing Diagram
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 7 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-

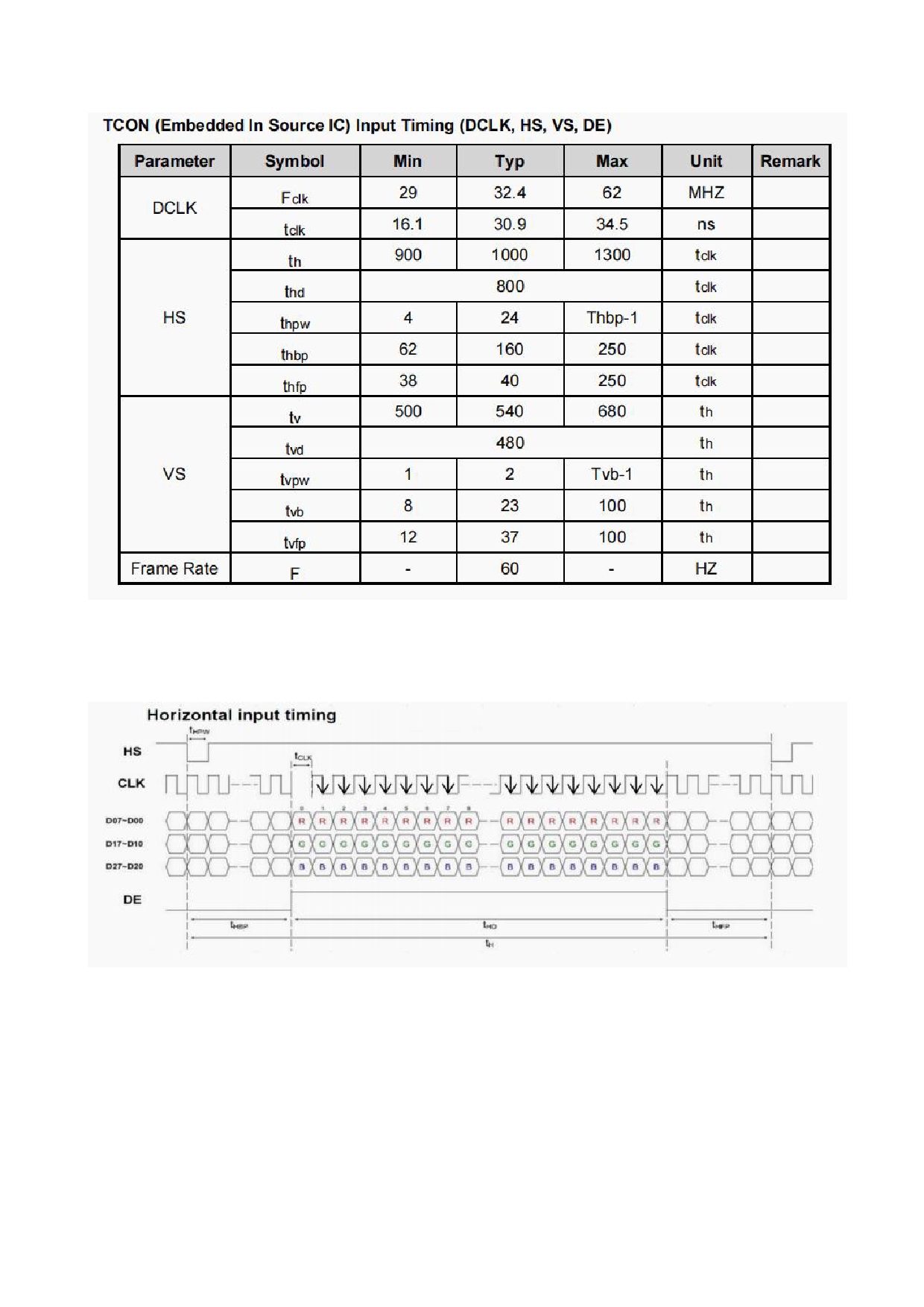

7.3 Timing
Note 1:DE timing refer to HS,VS input timing
7.4 Data Input Format
Figure 6-2-1 TCON Horizontal input timing diagram.
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 8 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-

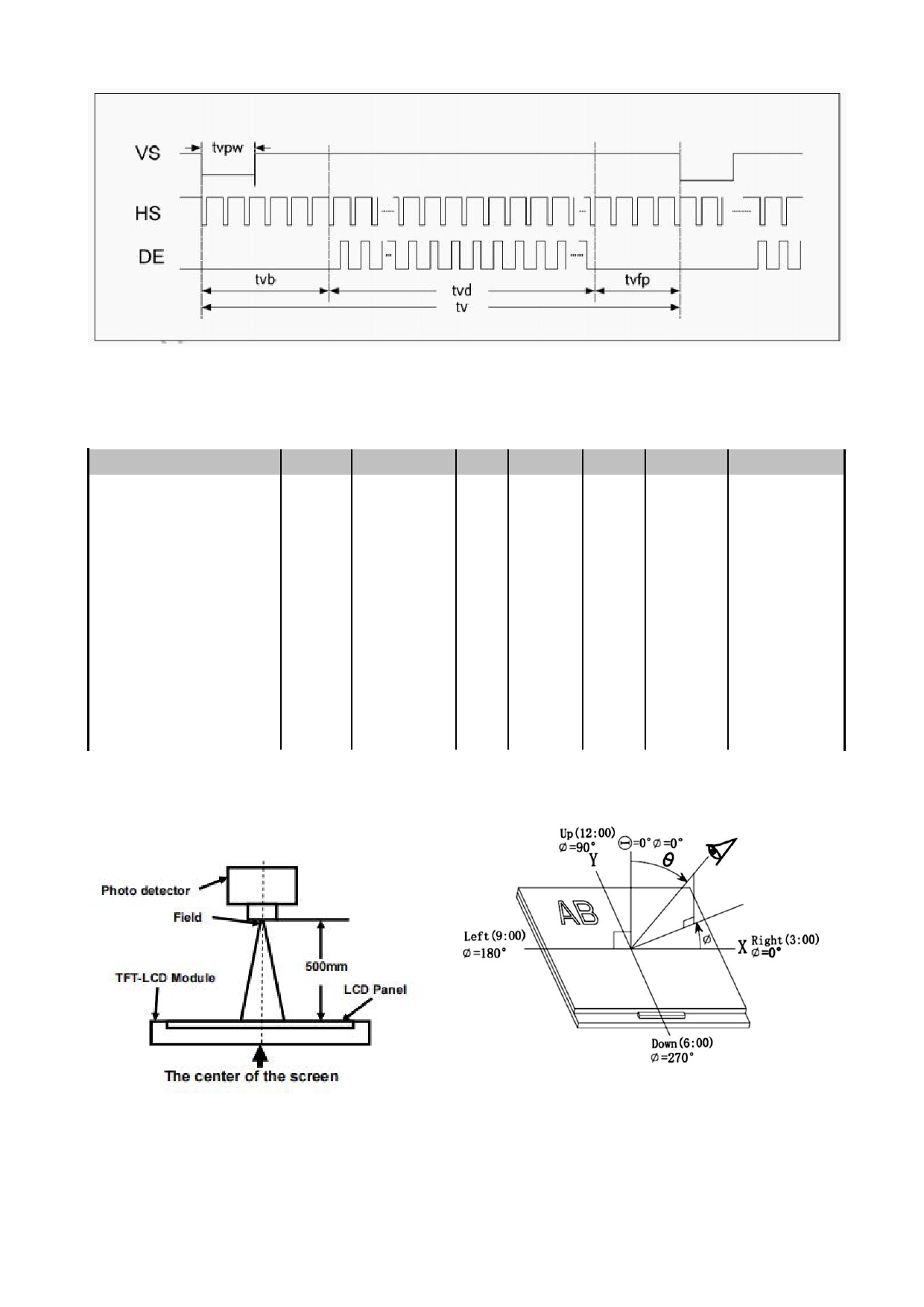

Figure 6-2-2 TCON Vertical input timing diagram HV.
7.5 Optical Characteristics
Item
Symbol
Condition
MIN.
TYP.
MAX.
UNIT
Note.
θ L
9 o’clock
80
88
-
Viewing angle
θ R
3 o’clock
80
88
-
(CR ≥ 10)
degree
*2
θ T
12 o’clock
80
88
-
θ B
6 o’clock
80
88
-
T f
msec
Response Time
-
35
45
*3
T r
msec
Contrast ratio
CR
800
1000
-
-
Normal
W X
-
TBD
-
-
*1
Color chromaticlty
θ=0 o
W Y
-
TBD
-
-
Luminance
L
350
400
-
cd/m 2
*4
Luminance uniformity
Y U
70
80
-
%
*4
Note 1:
Note 2:
Definition of optical measurement system.
The definition of viewing angle:
The optical characteristics should be measured in dark room.
Refer to the graph below marked by θ and Ф
After 5 Minutes operation, the optical characteristics
are measured at the center point of the LCD screen.
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 9 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
Note 3:
The definition of contrast ratio (Test LCM using SR-3A (1°)):
Note 4:
Contrast
Luminance When LCD is at “White” state

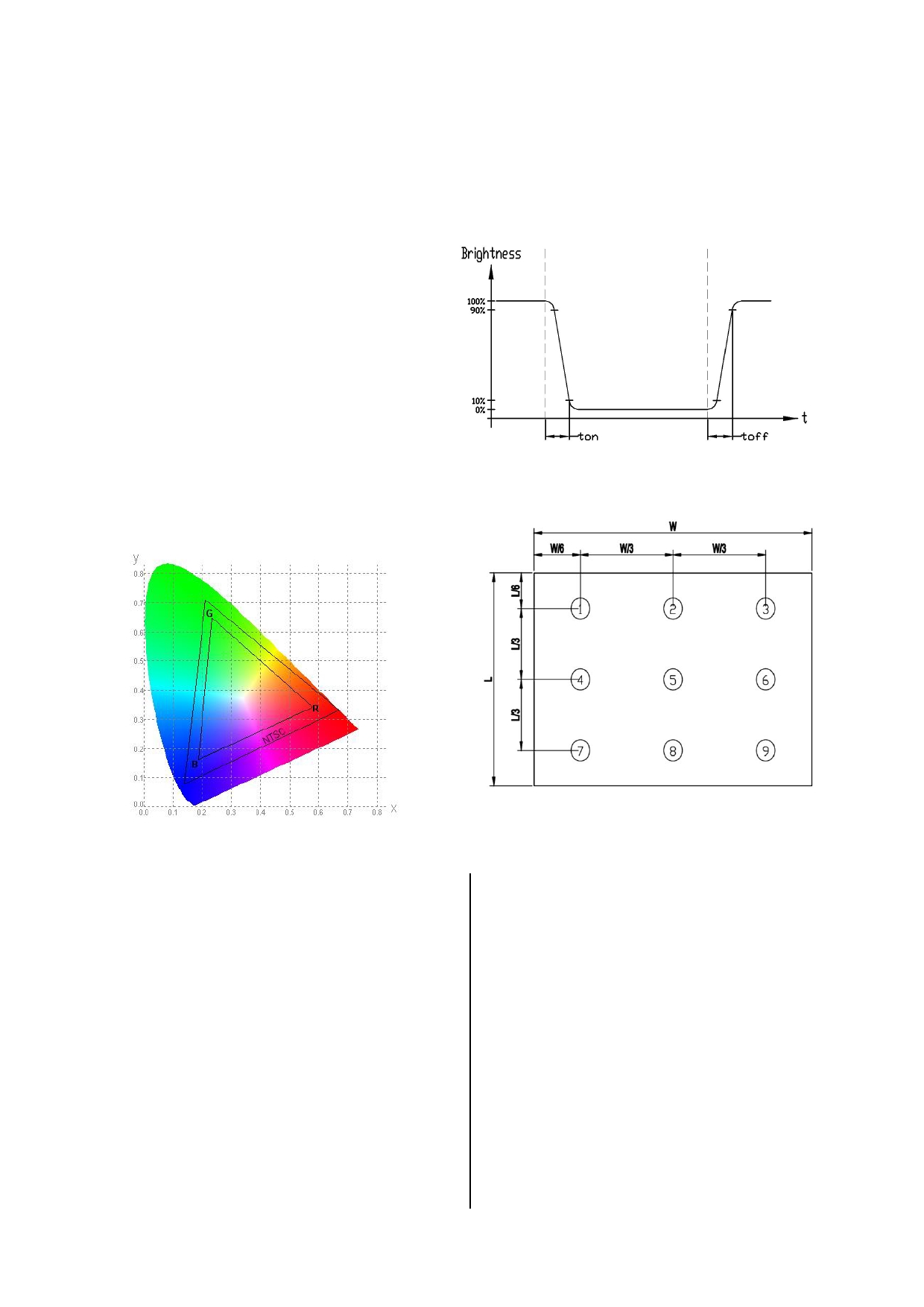

Definition of Response time. (Test LCD using BM-7A(2°)):
Ratio(CR)
=
Luminance When LCD is at “Black” state
The output signals of photo detector are measured
(Contrast Ratio is measured in optimum common electrode
when the input signals are changed from
voltage)
“black” to “white”(falling time)
and from “white” to “black”(rising time), respectively.
The response time is defined as
the time interval between the 10% and 90% of amplitudes.Refer to
figure as below.
Note 5:
Note 6:
Definition of Color of CIE1931 Coordinate and NTSC Ratio.
The luminance uniformity is calculated by using following formula.
△ Bp = Bp (Min.) / Bp (Max.)×100 (%)
Color gamut:
Bp (Max.) = Maximum brightness in 9 measured spots
Area of RGB triangle
S=
X100%
Bp (Min.) = Minimum brightness in 9 measured spots .
Area of NTSC triangle
Note 7:
Measured the luminance of white state at center point
8. LCD Module Design and
8. 液晶显示模块设计和使用须知
Handling Precautions
- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块在不同
module get the best contrast ratio under different
的使用温度下以及在不同的视角和位置观察模块显
temperatures, view angles and positions.
示，均能达到最佳对比度，请务必将应用电路上设置
- Normally display quality should be judged under the
为对比度可调。
best contrast ratio within viewable area. Unexpected - 请注意液晶显示模块的显示品质判定是指在正常对比
display pattern may com out under abnormal contrast
度下以及视窗(V.A)范围内进行的，非正常对比度下液
ratio.
晶可能会出现非预期的显示不良，应注意区分。
- Never operate the LCD module exceed the absolute
- 请勿在最大额定值以外使用液晶显示模块。
maximum ratings.
- Never apply signal to the LCD module without power
supply.
- 请勿在没有接通电源的条件下，给液晶显示模块输送
信号。
- Keep signal line as short as possible to reduce external - 请尽可能缩短信号线的连接，以避免对液晶显示模块
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 10 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
noise interference.
的信号干扰。
- IC chip (e.g. TAB or COG) is sensitive to light. Strong
- 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为敏
light might cause malfunction. Light sealing structure
感，强光环境下可能会引起液晶显示模块功能失效，
casing is recommended.
故应采用不透光的外壳。
- Make sure there is enough space (with cushion) - 请在液晶显示模块与外壳之间保留足够的空间(可使用
between case and LCD panel, to prevent external force
衬垫)，以缓冲外力对液晶显示模块的损坏或因受力不
passed on to the panel; otherwise that may cause
均而产生的显示不匀等异常现象。
damage to the LCD and degrade its display result.
- Avoid showing a display pattern on screen for a long
- 避免液晶显示屏在某一画面下长时间点亮，否则有出
time (continuous ON segment).
现残影的风险；请通过软件每隔一段时间改变一次画
- LCD module reliability may be reduced by temperature
面。
shock.
- 液晶显示模块的可靠性可能因温度冲击而降低。
- When storing and operating LCD module, avoids - 请勿在阳光直射、高湿、高温或低温下储存和使用液
exposure to direct sunlight, high humidity, high or low
晶显示模块，这将造成液晶显示模块的损坏或失效。
temperature. They may damage or degrade the LCD
module.
- Never leave LCD module in extreme condition
- 请勿在极限环境(最大/最小存储/工作温度)下使用或
(max./min storage/operate temperature) for more than
放置液晶显示模块超过 48 小时以上。
48hr.
- 液晶显示模块建议存储条件为: 0 C~40 C <80%RH 。
- Recommend LCD module storage conditions is - 请勿让液晶显示模块存储于带有 酸性, 碱性, 有害气
0 C~40 C <80%RH.
体环境之中。
- LCD module should be stored in the room without acid,
- 在运输过程中, 请勿让液晶显示模块跌落与猛烈震动,
alkali and harmful gas.
- Avoid dropping & violent shocking during
同时避免 异常挤压, 高湿度, 与阳光照射.
transportation, and no excessive pressure press, - 液晶显示模块极易受静电损坏，请务必保证液晶显示
moisture and sunlight.
模块在防静电的工作环境中使用或保存。(如: 烙铁正
- LCD module can be easily damaged by static
确接地,等)
electricity. Please maintain an optimum anti-static - 拿取液晶显示模块时需注意操作人员的接地情况。
working environment to protect the LCD module. (eg.
- 请手持液晶显示模块的边沿取放模块，防止热压纸或
ground the soldering irons properly)
- Be sure to ground the body when handling LCD
TAB 部位受力。
module.
- 焊接液晶模块时，请注意控制烙铁的温度、焊接时
- Only hold LCD module by its sides. Never hold LCD
间，以免烫坏导光板或偏光片，导致显示不匀等不良
module by applying force on the heat seal or TAB.
现象发生。
- When soldering, control the temperature and duration
- 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐
avoid damaging the backlight guide or diffuser which
蚀导光板或模块电路。
might degrade the display result such as uneven
display.
- Never let LCD module contact with corrosive liquids, - 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏表
which might cause damage to the backlight guide or
面，其他任何溶剂(如:水)都有可能损坏液晶模块。
the electric circuit of LCD module.
- 请勿挤压液晶显示模块上的元器件，以避免产生潜在
- Only clean LCD with a soft dry cloth, Isopropyl Alcohol
的损坏或失效而影响产品可靠性。
or Ethyl Alcohol. Other solvents (e.g. water) may
- 装配液晶显示模块时，请务必注意避免液晶显示模块
damage the LCD.
- Never add force to components of LCD module. It may
的扭曲或变形。
cause invisible damage or degrade the module's - 请勿挤压液晶显示屏表面，这将导致显示颜色的异
reliability.
常。
- When mounting LCD module, please make sure it is - 液晶屏由玻璃制作而成，任何机械碰撞(如从高处跌
free from twisting, warping and bending.
落)均有可能损坏液晶显示模块。
- Do not add excessive force on surface of LCD, which
may cause the display color change abnormally.
- LCD panel is made with glass. Any mechanical shock
(e.g. dropping from high place) will damage the LCD
module.
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 11 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
9. TFT QA Standard
9.1 INSPECTION CONDITION 检验条件
Unless otherwise stated ， all the inspections are carryout under the following condition
除非有特别的规定，检验条件按以下执行。
The following standards only apply to the visible area. As long as function good non-visual area
appearance can be ignored. Available deerskin with petroleum ether, a clean stains do not apply to
the exterior standard. If debris in a certain direction is perpendicular to the direction of three times
the length of that line debris; the insulation as granular debris; the silver carbon glue as a rejection of
defects.
以下标准只适用于可视区。只要功能良好非可视区的外观可忽略。可用鹿皮沾石油醚，擦干净的
污渍不适用于该外观标准。如 果杂物某方向的长度是垂直方向的 3 倍则认为是线状杂物；多出的绝缘
点看作粒状杂物；多出的 银碳胶视为拒收缺陷。
No. Items 项目
Conditions 条件
1
Lighting
Illumination: Appearance300~700Lux
照明
环境亮度在 300~700LUX
2
Inspection Distance
30-40cm form the test sample ， within normal viewing angle
检验距离
眼睛距显示器表面 30~40cm
3
Temperature
Room Temperature (25 ºC), no condensation
环境温度
室温（ 25 度 ±5% ），无凝水
4
Viewing Angle
U/D: 45º/45º, L/R: 45º/45º
视角
前后 45 度角范围内，左右 45 度角范围内
5
Inspection Time
15 seconds
检验时间
15 秒内
6
Defect Allowance
5 max
缺陷总数
允许 5 个

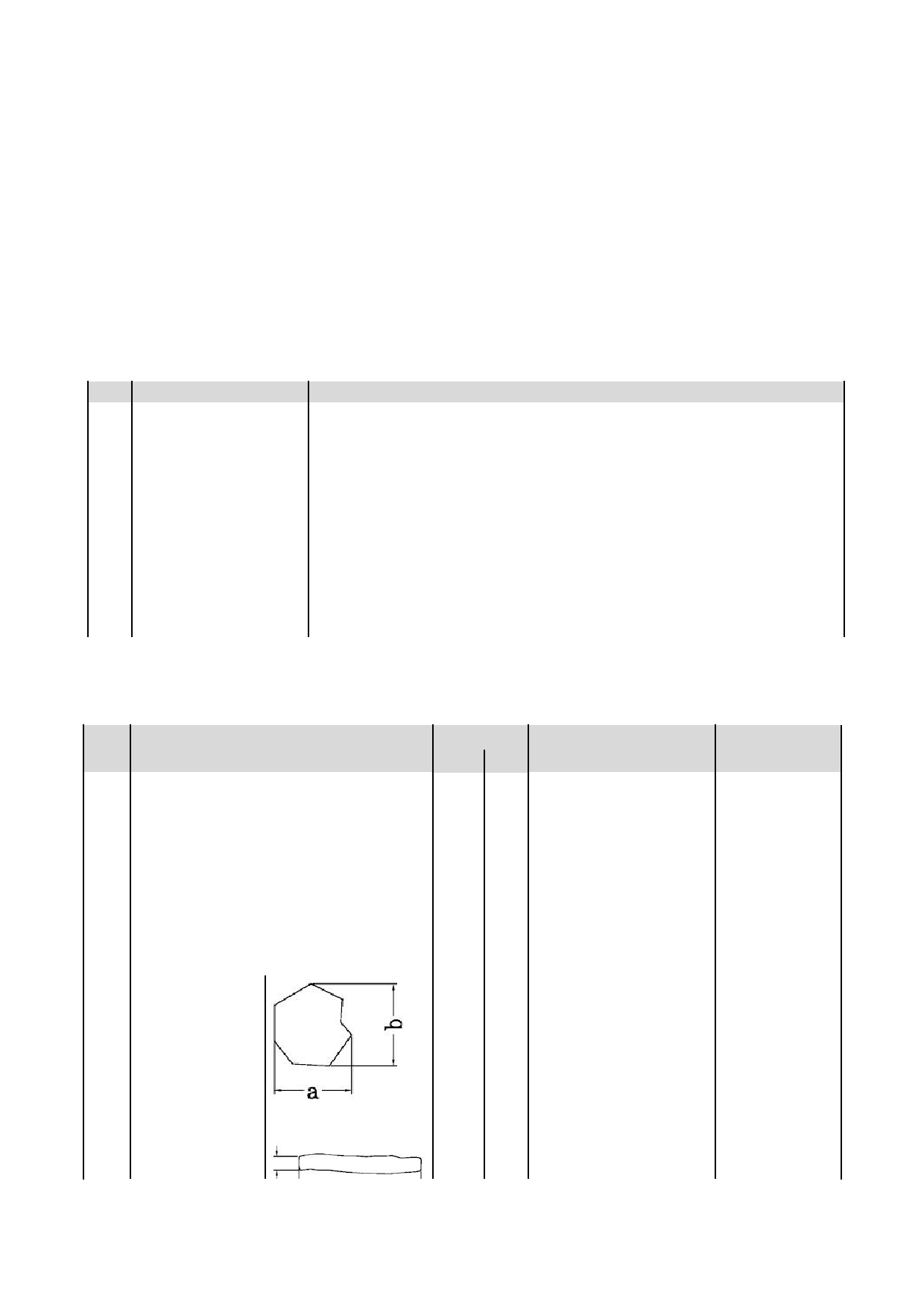

9.2 Di splay Pattern 显示缺陷
Type 类别
No. Items /Contents 检查项目
MA
MI Standard 标准
Judgment 判定
1
No Display
√
--
Not Allowed
无显示
不允许
2
Line defect
√
--
Not Allowed
缺少行或列
不允许
3
Display abnormally
√
--
Not Allowed
错误的显示
不允许
4
Function Defective
√
--
Not Allowed
缺少功能
不允许
5
Glass Crack
√
--
Not Allowed
玻璃破碎
不允许
Spot Defect
√
(a+b)/2≤0.25
Allowed
6
Including:
允许
Black spot,
White spot
0.25<(a+b)/2≤0.5
4 max.
Foreign particle,
允许 4 个
Polarizer dirt,
Cell particle
(a+b)/2 ＞ 0.5
Not Allowed
黑点 / 白点
不允许
7
Line Defect
√
a≤0.1
Allowed
允许
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 12 of 14
TOPWAY
LMT070DNCFWD-30
-
LCD Module User Manual

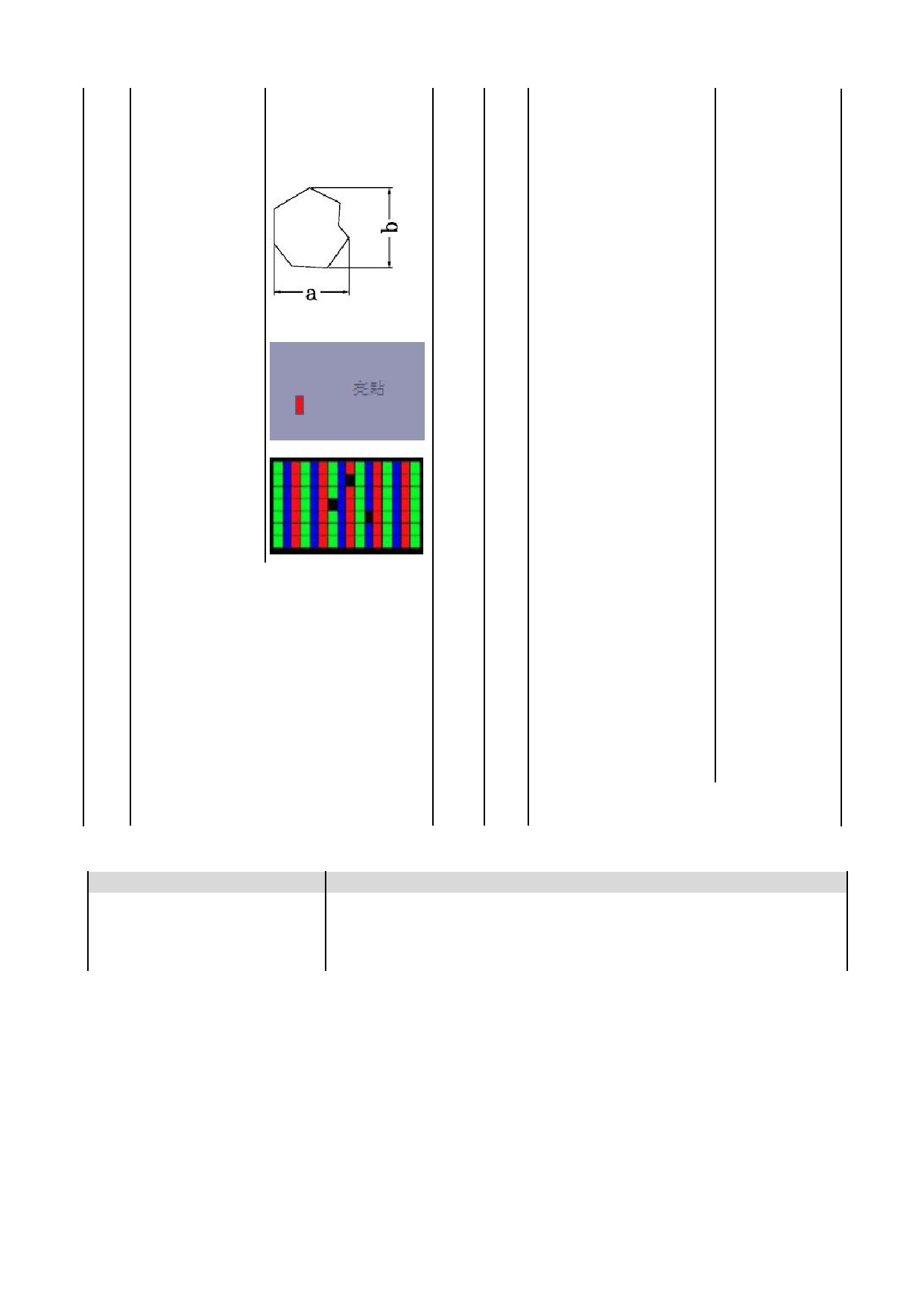

Including:
0.1<a≤0.2and b≤5.0
4max.
Black line,
允许 4 个
White line,
a ＞ 0.2 or b ＞ 5.0
Not Allowed
Scratch
不允许
线
8
Polarizer
√
(a+b)/2≤0.3
Allowed
Dent/Bubble
允许
偏光片气泡
0.3< (a+b)/2≤0.6
3 max.
允许 3 个
(a+b)/2>0.6
Not Allowed
不允许
9
Bright dot
√
Random
2 max.
defect
允许 2 个
3 consecutive dots
Not Allowed
亮点
3 个或以上连续的点
不允许
( 在全黑屏下多像
素点）
10
Dark dot defect
√
Random
4 max.
允许 4 个
暗点
5consecutive dots
Not Allowed
（在全红或全绿或
5 个或以上连续的点
不允许
全蓝屏下缺像素
点）
13
Bright dot defect + Dark dot defect
√
--
5max.
亮点 + 暗点
允许 5 个
14
FPC or FFC
√
Broken
Not Allowed
FPC/FFC
损坏
不允许
√
naked wire 、 hole
Not Allowed
裸线、孔洞
不允许
√
FPC kink 、 indentation
Lgnore
Top wound 、 scratch
忽略
FPC 折痕、顶伤
15
PCBA defect
--
--
Refer to IPC-A-610
--
PCBA 缺陷
按照 IPC-A-610
16
Bezel scratches,pits,bumps,Don’t try dirt
√
Do not affect dispiay,assembly,ignore
外框划痕，凹点，凸点，赃物
不影响显示，组装则忽略
9.3 Quality Level and Sampling 抽样方法
Items 项目
Standard 标准
Sampling Standard 引用标准
MIL-STD-105E
Sampling Level 抽样等级
Ⅱ
AQL level 合格判定水平
MA: AQL=0.65
MI: AQL=1.0
9.4 Handling Precaution 使用注意事项
1. Never attempt to disassemble or rework LCD module
禁止拆卸或改造显示模块
2. Never let LCD module contact with liquids
禁止液体接触
3. LCD module can be easily damaged by electrostatic charge.
Please maintain an optimum anti-static working environment.
请在静电防护环境下打开包装使用
4. LCD panel is made with glass.
Any mechanical shock (eg. Vibration, distortion, extrusion, impact ， drop) will damage the LCD module.
振动、扭曲、挤压、碰撞、跌落等会造成损失或破裂
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 13 of 14
TOPWAY
LCD Module User Manual
LMT070DNCFWD-30
-
5. Avoid showing a display pattern on screen for a long time (continuous ON segment)
长时间画面停留会造成影像残留
6. The color and evenness of the display may slightly vary with the temperature
显示颜色和显示均匀度会因外界温度而有所变化
7. Signal and Power supply excess the operation range may damage the LCD module
错误的输入电压（电流）或电信号会造成电路或元器件烧坏
8. Avoid touching the LCD surface to prevent any scratch on its surface
避免手指和其他物品接触液晶屏表面
Warranty
This product has been manufactured to our company’s specifications as a part for use in your company’s general
electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general
electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control
equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to
human life and where extremely high levels of reliability are required. If the product is to be used in any of the above
applications, we will need to enter into a separate product liability agreement.
- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product
(including disassembly and reassembly), after product delivery.
- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the
product.
- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the
product has passed our company’s acceptance inspection procedures.
- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the
inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may
arise.
- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our
product to our assembly with exception to those issues relating directly to the structure or method of manufacturing of
our product.
URL: www.topwaydisplay.com
Document Name: LMT070DNCFWD-30-Manual-Rev0.1.DOC
Page: 14 of 14
