LMT080DIEFWU-AAA

LMT080DIEFWU-AAA

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Zhang Yu

Date: 2014-11-19

Date:

Rev. Descriptions

Release Date

0.1

Preliminary release

2013-10-18

0.2

Revise General Specification & Terminal Function & Electrical Characteristics &

2014-11-19

AC Characteristics

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 1 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

Table of Content

1. General Specification ............................................................................................................... 3

2. Block Diagram ........................................................................................................................... 3

3. Terminal Function ..................................................................................................................... 4

3.1 LVDS Terminal (K2) ...................................................................................................................................................... 4

3.2 Backlight Input Terminal (K3) ........................................................................................................................................ 4

3.3 Touch Panel Terminal Functions ................................................................................................................................... 4

4. Absolute Maximum Ratings ..................................................................................................... 5

5. Electrical Characteristics ......................................................................................................... 5

5.1 Driving TFT LCD Panel ................................................................................................................................................. 5

5.2 LED Backlight Circuit Characteristics ............................................................................................................................ 5

5.3 Touch Panel Characteristics ......................................................................................................................................... 6

6. AC Characteristics .................................................................................................................... 7

6.1 Timing Conditions.......................................................................................................................................................... 7

6.2 LVDS Timing Diagram ................................................................................................................................................... 8

6.3 Data Input Format ......................................................................................................................................................... 8

6.4 Data Input Format ......................................................................................................................................................... 9

7. Optical Characteristics ........................................................................................................... 10

8. Precautions of using LCD Modules ....................................................................................... 11

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 2 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

1. General Specification

Signal Interface :

LVDS (18 bit)

Display Technology :

a-Si TFT active matrix

Display Mode :

Transmissive / Normal White

Screen Size(Diagonal) :

8.0”

Outline Dimension :

196.0 x 143.9 x14.2 (mm)

(see attached drawing for details)

Active Area :

162.0 x 121.5 (mm)

Number of dots :

800 x 600

Pixel Pitch :

0.2025 x 0.2025 (mm)

Pixel Configuration :

RGB Stripe

Backlight :

LEDs

Viewing Direction :

6 o’clock(Gray scale Inversion)(*1)

12 o’clock(*2)

Touch Panel:

4-wire resistive

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Surface Treatment :

Anti-Glare Surface

note:

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue, or pure-colors-combinations)

*2. For "color scales" display content

*3. Color tone may slightly change by Temperature and Driving Condition.

2. Block Diagram

XR,YU,XL,YD

Touch Panel

BL_VDD, GND

BL_EN, BL_ADJ

LED Backlight

800×600 pixels

Source Driver

RX0+, RX0-, RX1+, RX1-

RX2+, RX2-

RXC+, RXC-

LVDS Interface

Power Circuit

VCC_IN, GND

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 3 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

3. Terminal Function

3.1 LVDS Terminal (K2)

Pin No.

Pin Name

I/O

Descriptions

VCC_IN

Power

Positive Power Supply (3.3V)

VCC_IN

Power

Positive Power Supply (3.3V)

NO connection

RX0-

Input

LVDS receiver negative signal channel 0

RX0+

Input

LVDS receiver positive signal channel 0

GND

Power

Power Supply GND (0V)

RX1-

Input

LVDS receiver negative signal channel 1

RX1+

Input

LVDS receiver positive signal channel 1

GND

Power

Power Supply GND (0V)

RX2-

Input

LVDS receiver negative signal channel 2

RX2+

Input

LVDS receiver positive signal channel 2

GND

Power

Power Supply GND (0V)

RXC-

Input

LVDS receiver negative signal clock

RXC+

Input

LVDS receiver positive signal clock

GND

Power

Power Supply GND (0V)

NO connection

3.2 Backlight Input Terminal (K3)

Pin No.

Pin Name

I/O

Descriptions

GND

Power

Power Supply GND (0V)

BL_ADJ

Input

Backlight dimming control (*1, *2)

PWM may be used to adjust the output brightness

BL_VDD

Power

Positive Power Supply(5V)

Backlight driver enable (*1)

BL_EN

Input

BLON=Hi, Backlight Driving Booster enable

BLON=Lo, Backlight Driving Booster disable

Note:

*1. With built in pull up resistor, it could leave open

*2. Recommended PWM Freq. = 3kHz (active high)

3.3 Touch Panel Terminal Functions

Pin No.

Pin Name

I/O

Descriptions

Passive

Right Side sense Terminal

Passive

Up Side sense Terminal

Passive

Left Side sense Terminal

Passive

Down Side sense Terminal

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 4 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

4. Absolute Maximum Ratings

Items

Symbol

Min.

TYP. Max.

Unit

Condition

Power Supply Voltage

VCC_IN

-0.3

3.3

3.6

GND = 0V

Backlight Supply Voltage

BL_VDD

-0.3

5.0

6.0

GND = 0V

Operating Temperature

T OP

-20

 C

No Condensation

Storage Temperature

T ST

-30

 C

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the

device. Functional operation of this device at other conditions beyond those listed in the

specification is not implied and prolonged exposure to extreme conditions may affect device

reliability.

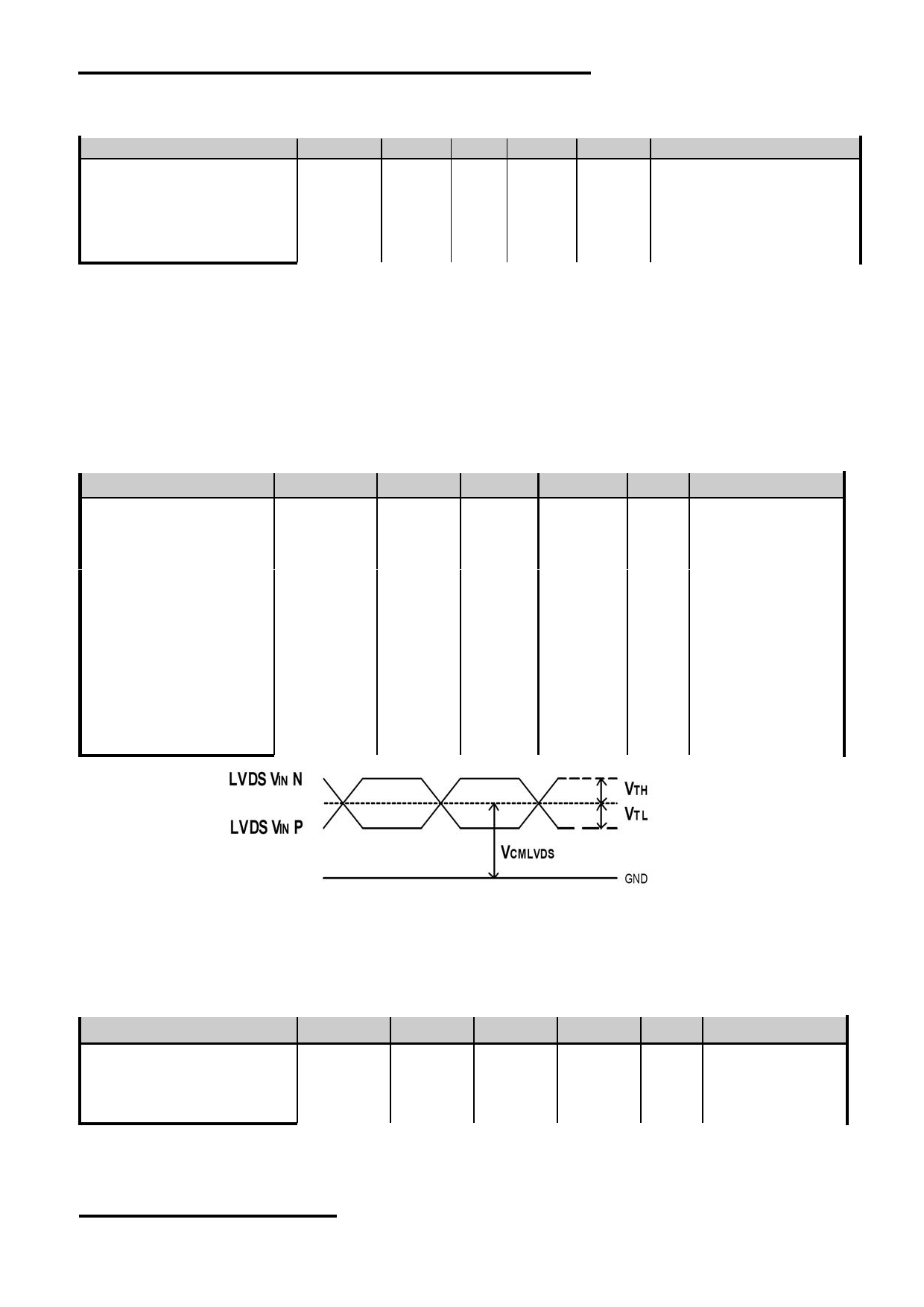

5. Electrical Characteristics

5.1 Driving TFT LCD Panel

GND=0V, VCC_IN=3.3V, T OP =25  C

Items

Symbol

MIN.

TYP.

MAX.

Unit

Note

Supply Voltage

VCC_IN

3.0

3.3

3.5

Common Electrode

V CMLVDS

Note1

Driving Signal

1.2

Differential Input High

V TH

100

Threshold

Differential Input Low

V TL

-100

Threshold

Sync Frequency

FVD

VCC_IN Power

I VCC_IN

150

Consumption

LVDS DC timing diagram

Note1: The value may be different for different LCM.

5.2 LED Backlight Circuit Characteristics

GND=0V, T OP =25  C

Parameter

Symbol

MIN.

TYP.

MAX.

Unit Note

Operating Voltage

BL_VDD

4.5

5.0

5.5

Input High Voltage

V IH

3.0

BL_VDD

BL_ADJ,BL_EN

Input Low Voltage

V IL

GND

0.3

BL_ADJ,BL_EN

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

Note:

*1: BL_ADJ=Hi, BL_EN =Hi.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 5 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

*2. Recommended BL_ADJ PWM Freq. is 3kHz .

5.3 Touch Panel Characteristics

T OP =25  C

Items

MIN.

TYP.

MAX.

Unit

Note

Operating Voltage

5.0

Operating Force

100

Life Time

1,000,000

times -

X Resistance

100

840

Ω

Y Resistance

260

1240

Ω

Cautions:

Exceeding the recommended Condition could cause substantial damage to the touch panel and

shorten its life time.

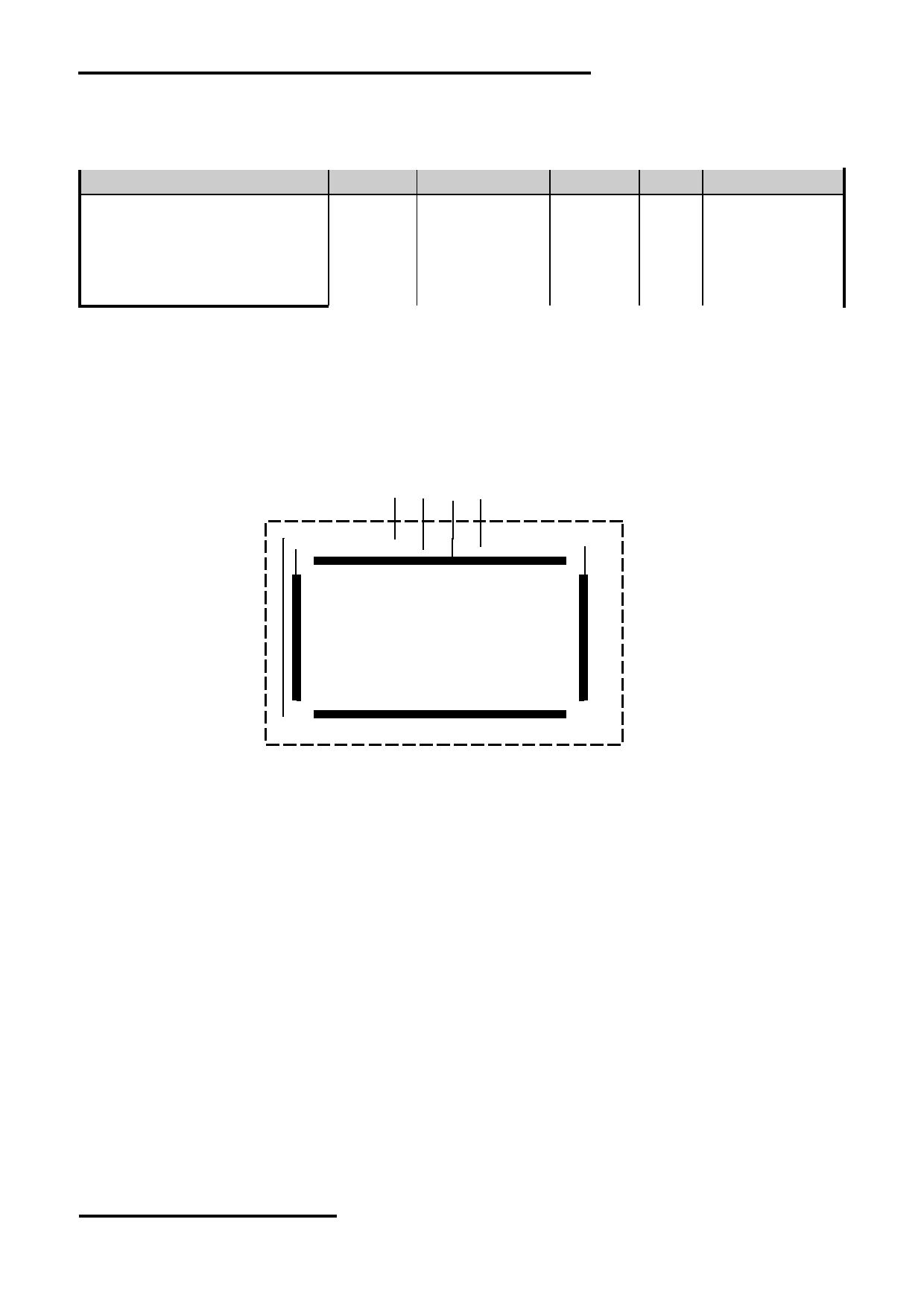

Touch Panel Logic Details

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 6 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

6. AC Characteristics

6.1 Timing Conditions

Item

Symbol

MIN.

TYP.

MAX.

Unit

Condition

Input CLK period

t RI CLK

8.9

Input Data Position 0

t RI 0

-0.3

+0.3

( t RI CLK = 8.9ns )

Input Data Position 1

t RI 1

t RI CLK/7-0.3

t RI CLK/7

t RI CLK/7+0.3

(t RI CLK = 8.9ns )

Input Data Position 2

t RI2

2t RI CLK/7-0.3

2t RI CLK/7

2t RI CLK/7+0.3

(t RI CLK = 8.9ns )

Input Data Position 3

t RI3

3t RI CLK/7-0.3

3t RI CLK/7

3t RI CLK/7+0.3

(t RI CLK = 8.9ns )

Input Data Position 4

t RI4

4t RI CLK/7-0.3

4t RI CLK/7

4t RI CLK/7+0.3

(t RI CLK = 8.9ns )

Input Data Position 5

t RI5

5t RI CLK/7-0.3

5t RI CLK/7

5t RI CLK/7+0.3

(t RI CLK = 8.9ns )

Input Data Position 6

t RI6

6t RI CLK/7-0.3

6t RI CLK/7

6t RI CLK/7+0.3

(t RI CLK = 8.9ns )

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 7 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

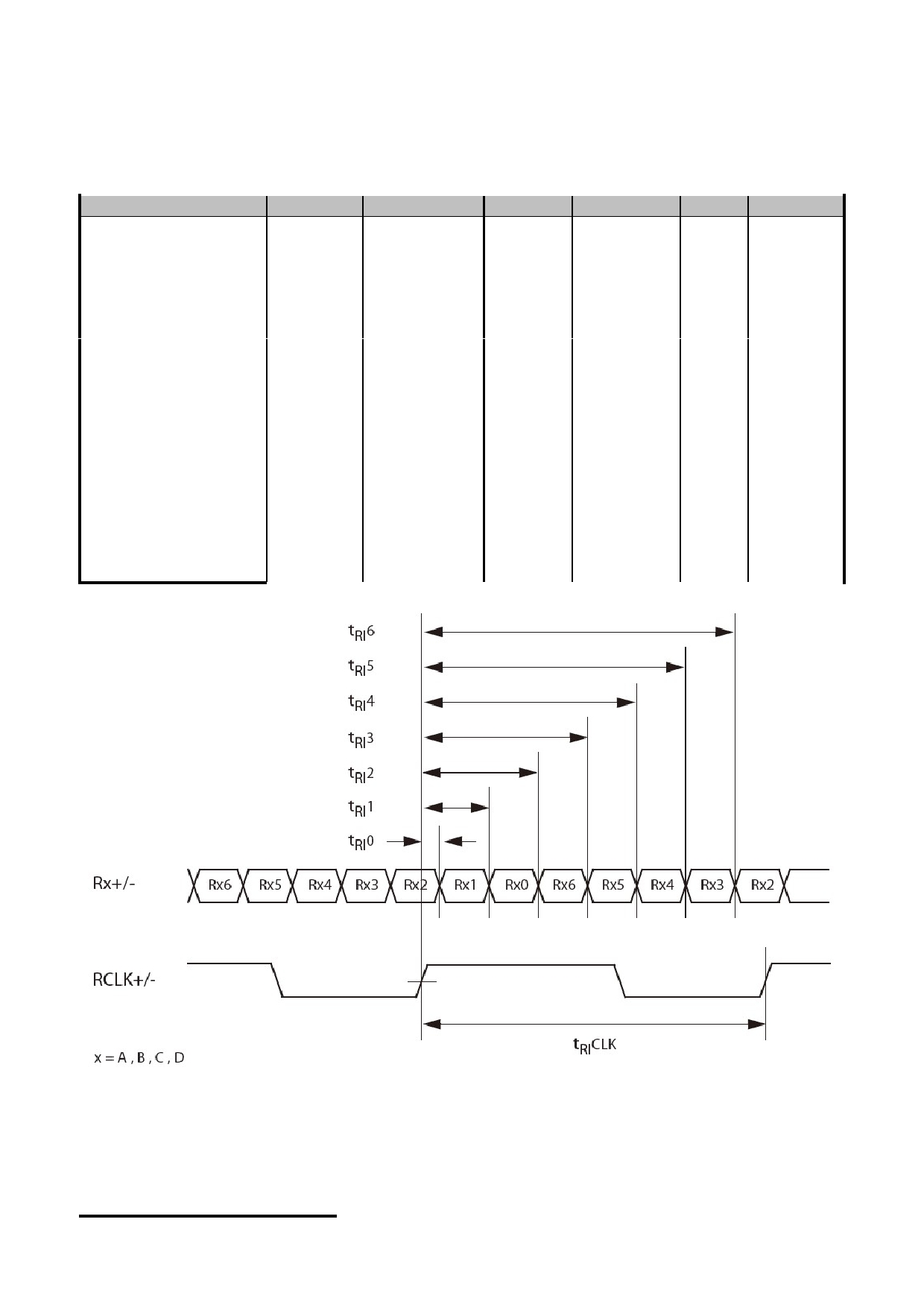

6.2 LVDS Timing Diagram

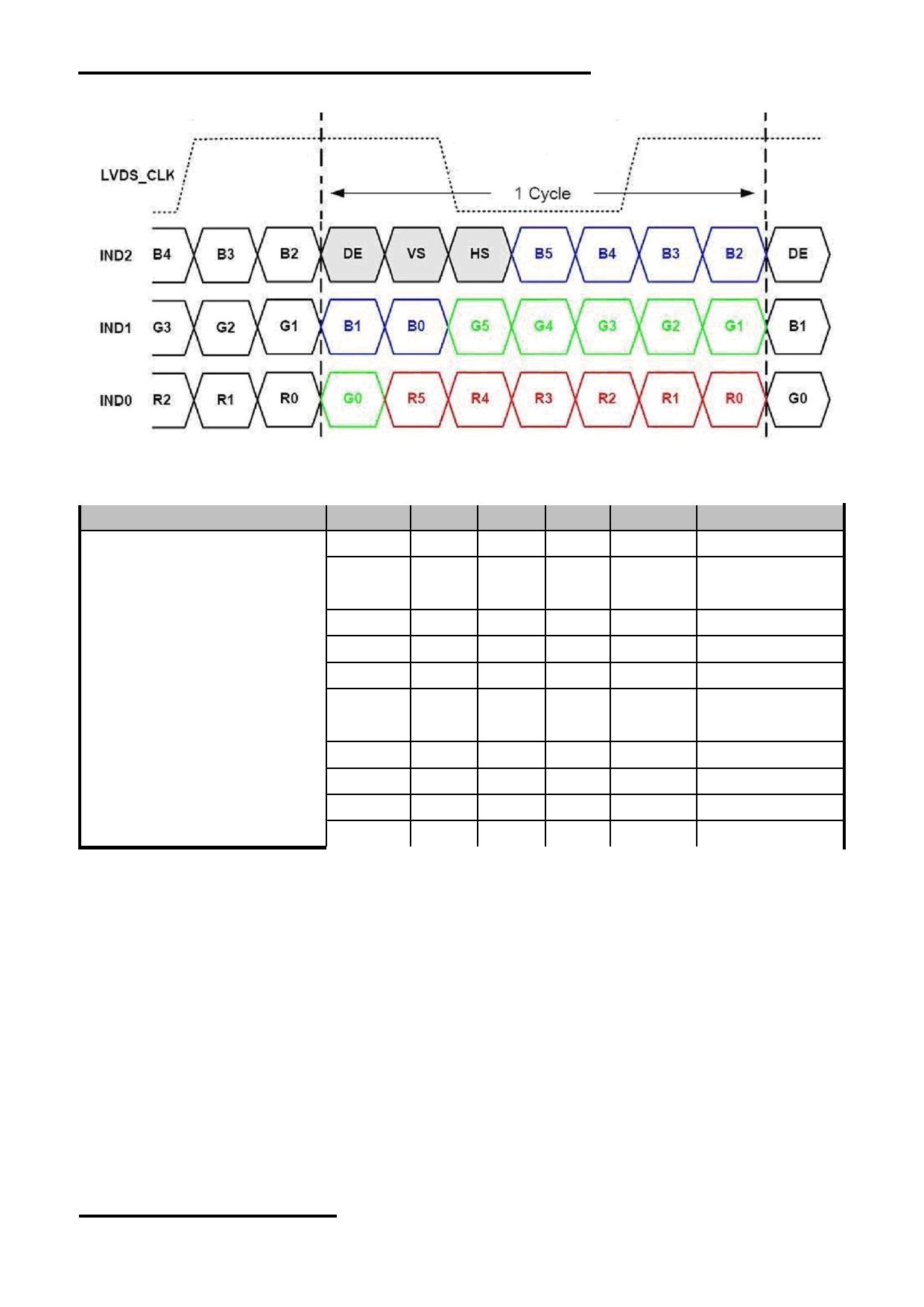

6.3 Data Input Format

Item

Symbol

MIN.

TYP.

MAX.

Unit

Remark

F clk

MHZ

DCLK

t clk

t h

1000

t clk

t hd

800

t clk

HSD

t hpw

t clk

t hb

t clk

t hfp

112

t clk

t v

660

t h

t vd

600

t h

VSD

t vpw

t h

t vb

t h

t vfp

t h

Note: DE timing refer to HSD, VSD input timing.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 8 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

6.4 Data Input Format

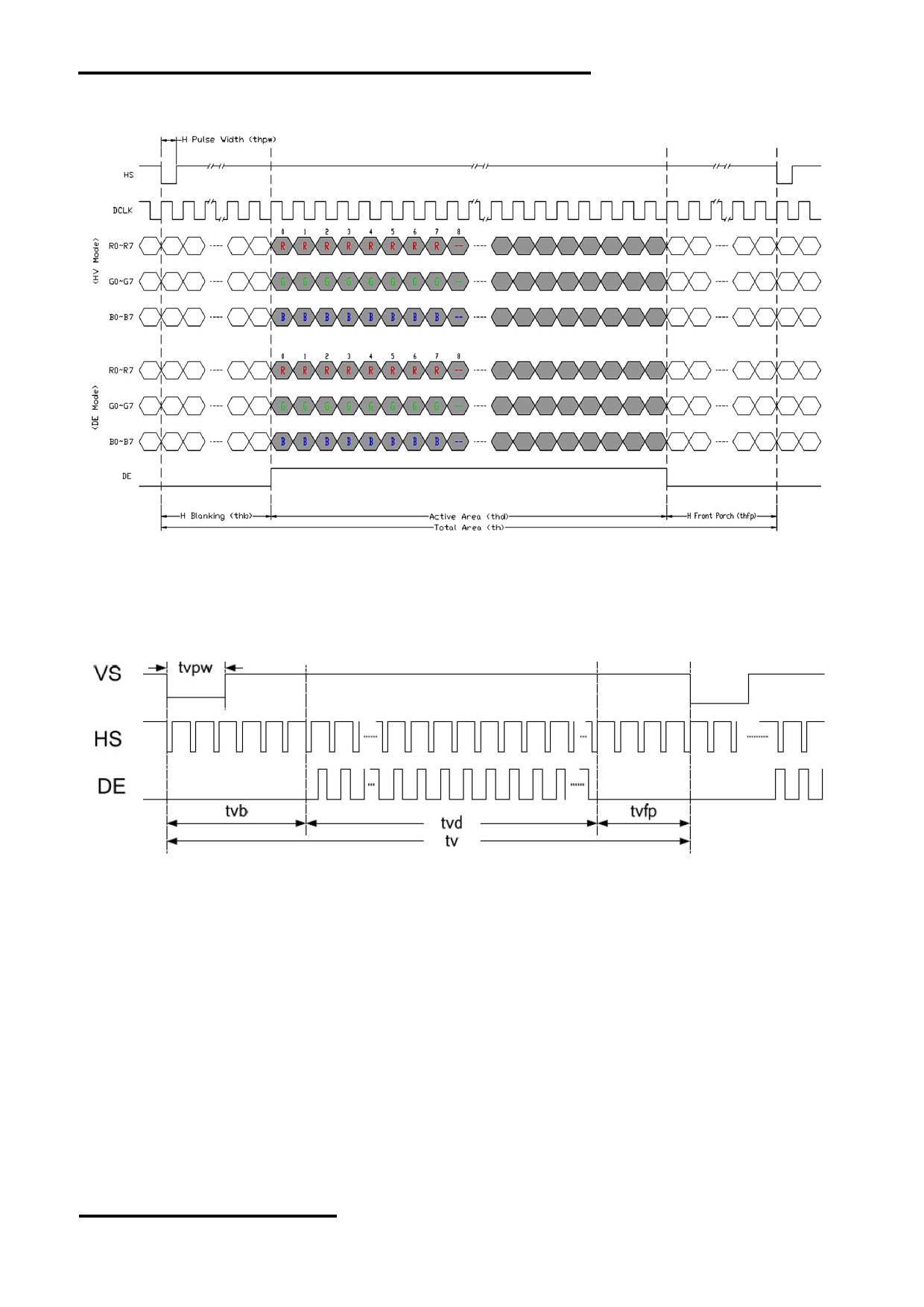

Horizontal input timing Diagram

Vertical input timing Diagram

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 9 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

7. Optical Characteristics

Test Conditions:

1. I F = 180mA, V F =9.6V, and the ambient temperature is 25 ℃ , without Touch Panel.

2. The test systems refer to Note 1 and Note 2.

Item

Symbol

Condition

MIN.

TYP.

MAX.

UNIT

Note.

θ L

9 o’clock

Viewing angle

θ R

3 o’clock

(CR ≥ 10)

degree

Note 2

θ T

12 o’clock

θ B

6 o’clock

T f

msec

Response Time

25 ℃

Note 1

T r

msec

Note 4

Contrast ratio

θ=0 o

400

500

Note 1,3

0.260

0.310

0.360

White

0.280

0.330

0.380

0.541

0.591

0.641

Red

Color

Backlight 0.300 0.350

0.400

Note 1

chromaticlty

is on

0.299

0.349

0.399

Note 5

Green

0.520

0.570

0.620

0.101

0.151

0.201

Blue

0.047

0.097

0.147

Luminance

210

cd/m 2

Note 1,6

Luminance uniformity

Y U

Note 1,7

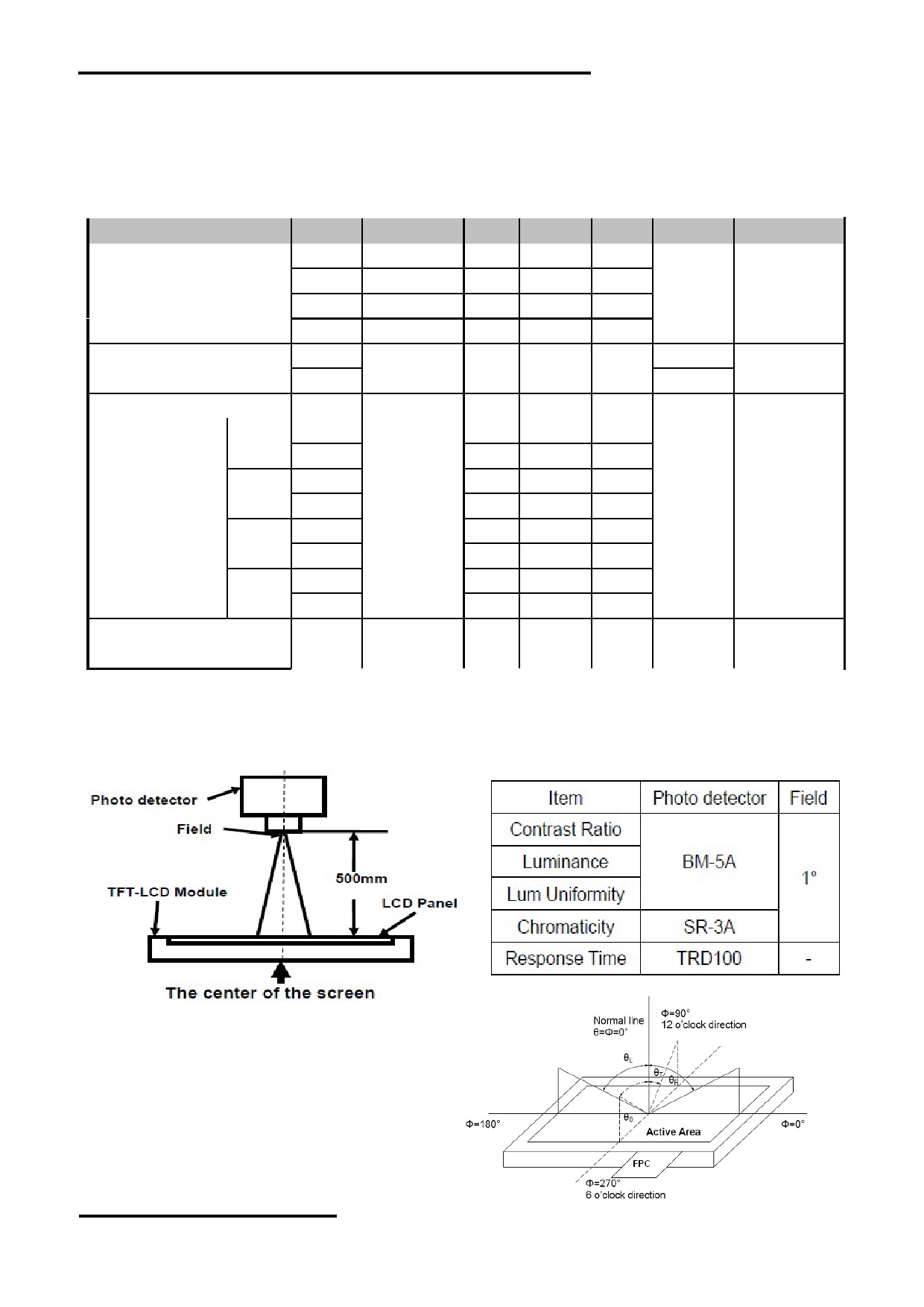

Note 1: Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

Note 2: Definition of viewing angle range

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 10 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAA

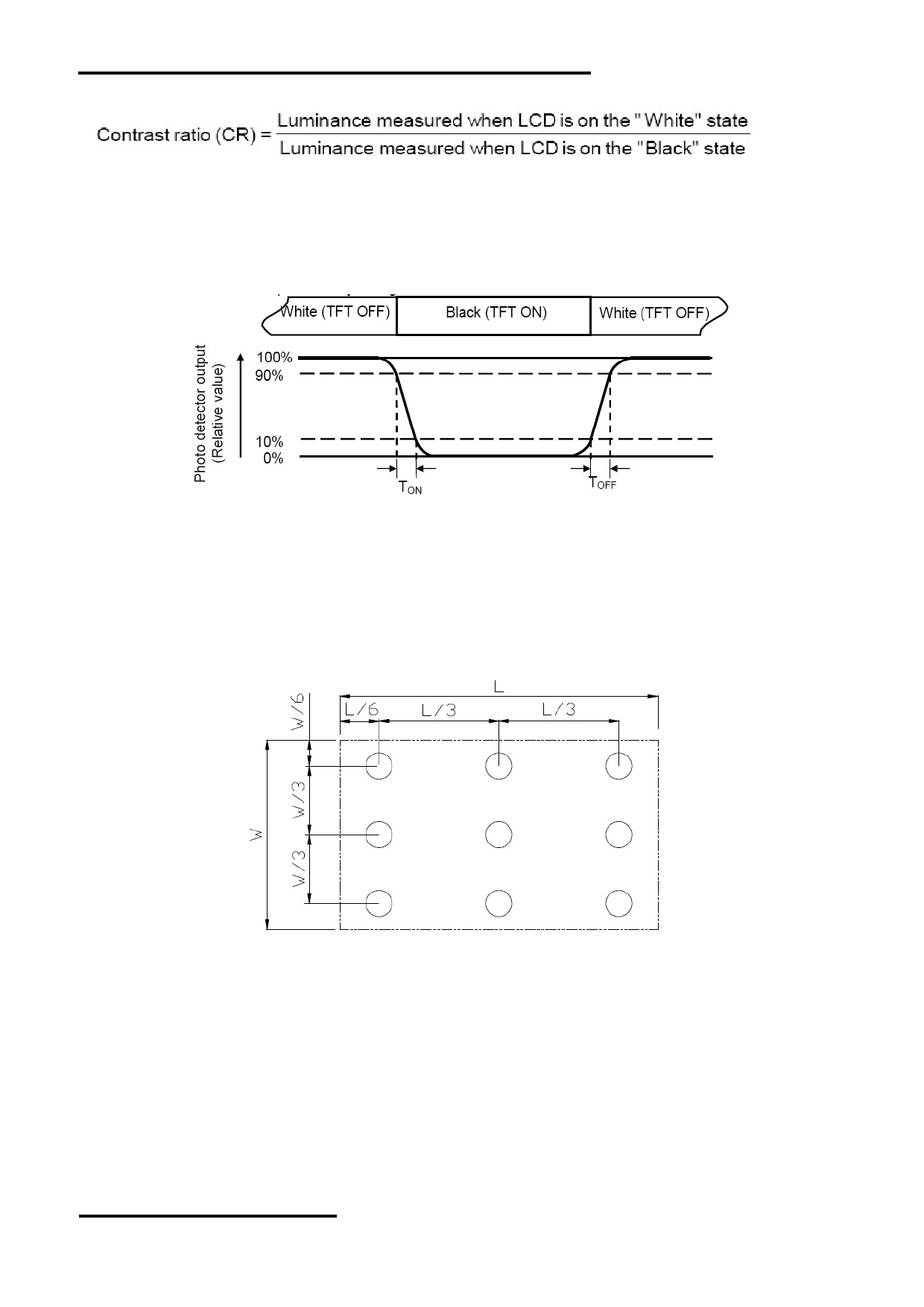

Note 3: Definition of contrast ratio

Note 4: Definition of Response time

The response time is defined as the LCD optical switching time interval between “ White ” state

and

“ Black ” state. Rise time (T ON ) is the time between photo detector output intensity changed from

90% to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from

10% to 90%.

Note 5: Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

Note 6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

Luminance Uniformity (U) = Lmin/ Lmax

L-------Active area length W----- Active area width

Lmax: The measured Maximum luminance of all measurement position.

Lmin: The measured Minimum luminance of all measurement position.

Note 7: Definition of Luminance:

Measure the luminance of white state at center point.

8. Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAA-Manual-Rev0.2

Page: 11 of 11
