LMT080DIEFWU-AAN

LMT080DIEFWU-AAN

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Liu sanyong

Date: 2017-12-07

Date:

Rev. Descriptions

Release

Date

0.1

Preliminary release

2013-07-25

0.2

Typing correction on section 3.2

2013-08-03

0.3

Update K3 definition

2013-08-15

0.4

Update 6.3 Data Input Format , 7 Optical Characteristics

2017-08-08

0.5

Update section 1~3,5 and 6.1

2017-12-07

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 1 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

Table of Content

1. General Specification ............................................................................................................ 3

2. Block Diagram ........................................................................................................................ 3

3. Terminal Function .................................................................................................................. 4

3.1

LVDS Terminal (K2) ............................................................................................................................................... 4

3.2

Backlight Input Terminal (K3) ................................................................................................................................. 4

4. Absolute Maximum Ratings .................................................................................................. 5

5. Electrical Characteristics ...................................................................................................... 5

5.1

DC Characteristics ................................................................................................................................................. 5

5.2

LVDS Receiver DC Characteristics ........................................................................................................................ 5

5.3

LED Backlight Circuit Characteristics ..................................................................................................................... 5

6. AC Characteristics ................................................................................................................. 6

6.1

Timing Conditions .................................................................................................................................................. 6

6.2

LVDS Timing Diagram ........................................................................................................................................... 7

6.3

Data Input Format .................................................................................................................................................. 7

7. Optical Characteristics .......................................................................................................... 9

8. Precautions of using LCD Modules .................................................................................... 10

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 2 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

1. General Specification

Signal Interface :

LVDS (VESA 18 bit)

Display Technology :

a-Si TFT active matrix

Display Mode :

Transmissive / Normal White

Screen Size(Diagonal) :

8.0”

Outline Dimension :

196.0 x 143.9 x12.2 (mm)

(see attached drawing for details)

Active Area :

162.0 x 121.5 (mm)

Number of dots :

800 x 3 (RGB) x 600

Pixel Pitch :

0.2025 x 0.2025 (mm)

Pixel Configuration :

RGB Stripe

Backlight :

LEDs

Surface Treatment :

Anti-Glare Surface

Viewing Direction :

6 o’clock(Gray scale Inversion)

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

2. Block Diagram

BL_VDD, GND

Backlight Circuit

BL_ADJ, BL_EN

800(x3) x 600 pixels

TFT Panel

RX0+/-~RX2+/-

LVDS

Source Driver

RXC+/-

Receiver

VCC, GND

Power Circuit

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 3 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

3. Terminal Function

3.1 LVDS Terminal (K2)

Pin Pin

No. Name

I/O

Descriptions

VCC

Power

Positive Power Supply (3.3V)

VCC

Power

Positive Power Supply (3.3V)

NO connection

RX0-

Input

LVDS receiver negative signal channel 0

RX0+

Input

LVDS receiver positive signal channel 0

GND

Power

Power Supply GND (0V)

RX1-

Input

LVDS receiver negative signal channel 1

RX1+

Input

LVDS receiver positive signal channel 1

GND

Power

Power Supply GND (0V)

RX2-

Input

LVDS receiver negative signal channel 2

RX2+

Input

LVDS receiver positive signal channel 2

GND

Power

Power Supply GND (0V)

RXC-

Input

LVDS receiver negative signal clock

RXC+

Input

LVDS receiver positive signal clock

GND

Power

Power Supply GND (0V)

NO connection

3.2 Backlight Input Terminal (K3)

Pin Pin

No. Name

I/O

Descriptions

GND

Power

Power Supply GND (0V)

BL_ADJ

Input

Backlight dimming control (*1, *2)

PWM may be used to adjust the output brightness

BL_VDD

Power

Positive Power Supply(5V)

Backlight driver enable (*1)

BL_EN

Input

BLON=Hi, Backlight Driving Booster enable

BLON=Lo, Backlight Driving Booster disable

Note:

*1. With built in pull up resistor, it could leave open

*2. Recommended PWM Freq. = 3kHz (active high)

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 4 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

4. Absolute Maximum Ratings

Items

Symbol

Min.

TYP. Max.

Unit

Condition

Power Supply Voltage

V CC

-0.3

3.3

3.6

GND = 0V

Backlight Supply Voltage

BL_VDD

-0.3

5.0

6.0

GND = 0V

Operating Temperature

T OP

-20

℃

No Condensation

Storage Temperature

T ST

-30

℃

No Condensation

Cautions:

Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the

device. Functional operation of this device at other conditions beyond those listed in the

specification is not implied and prolonged exposure to extreme conditions may affect device

reliability.

5. Electrical Characteristics

5.1 DC Characteristics

GND=0V, Vcc =3.3V, T OP =25 ℃

Items

Symbol

MIN.

TYP.

MAX.

Unit

Applicable Pin

Operating Voltage

Vcc

3.0

3.3

3.6

Vcc

Operating Current

I Vcc

180

200

350

Vcc

5.2 LVDS Receiver DC Characteristics

GND=0V, Vcc =3.3V, T OP =25 ℃

Items

Symbol

MIN.

TYP.

MAX.

Unit

Note

Differential Input High Threshold

V TH

100

V IC =+1.2V

Differential Input Low Threshold

V TL

-100

RL=100 Ω

Input Current

I IN

+/-30

V IN =+2.4V/0V

LVDS V cc =3.6V

5.3 LED Backlight Circuit Characteristics

GND=0V, T OP =25 ℃

Parameter

Symbol

MIN.

TYP.

MAX.

Unit Note

Operating Voltage

BL_VDD

4.5

5.0

5.5

Operating Current

I BL_VDD

320

360

600

Input High Voltage

V IH

3.0

BL_VDD

BL_ADJ,BL_EN

Input Low Voltage

V IL

GND

0.3

BL_ADJ,BL_EN

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

Note:

*1: BL_ADJ=Hi, BL_EN =Hi.

*2. Recommended BL_ADJ PWM Freq. is 3kHz.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 5 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

6. AC Characteristics

6.1 Timing Conditions

GND=0V, Vcc =3.3V, T OP =25 ℃

Symbol

Parameter

MIN.

TYP.

MAX.

Unit

t RCP

RCLK and CLKOUT Transition Time

8.92

125

LVDS Receiver Skew

PCLK=65MHZ

-0.55

0.55

t SK

Margin

PCLK=112MHZ

-0.25

0.25

t RIP1

LVDS Input Data Position 0

-t SK

0.0

+t SK

t RIP0

LVDS Input Data Position 1

T/7-t SK

T/7

T/7+t SK

t RIP6

LVDS Input Data Position 2

2T/7-t SK

2T/7

2T/7+t SK

t RIP5

LVDS Input Data Position 3

3T/7-t SK

3T/7

3T/7+t SK

t RIP4

LVDS Input Data Position 4

4T/7-t SK

4T/7

4T/7+t SK

t RIP3

LVDS Input Data Position 5

5T/7-t SK

5T/7

5T/7+t SK

t RIP2

LVDS Input Data Position 6

6T/7-t SK

6T/7

6T/7+t SK

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 6 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

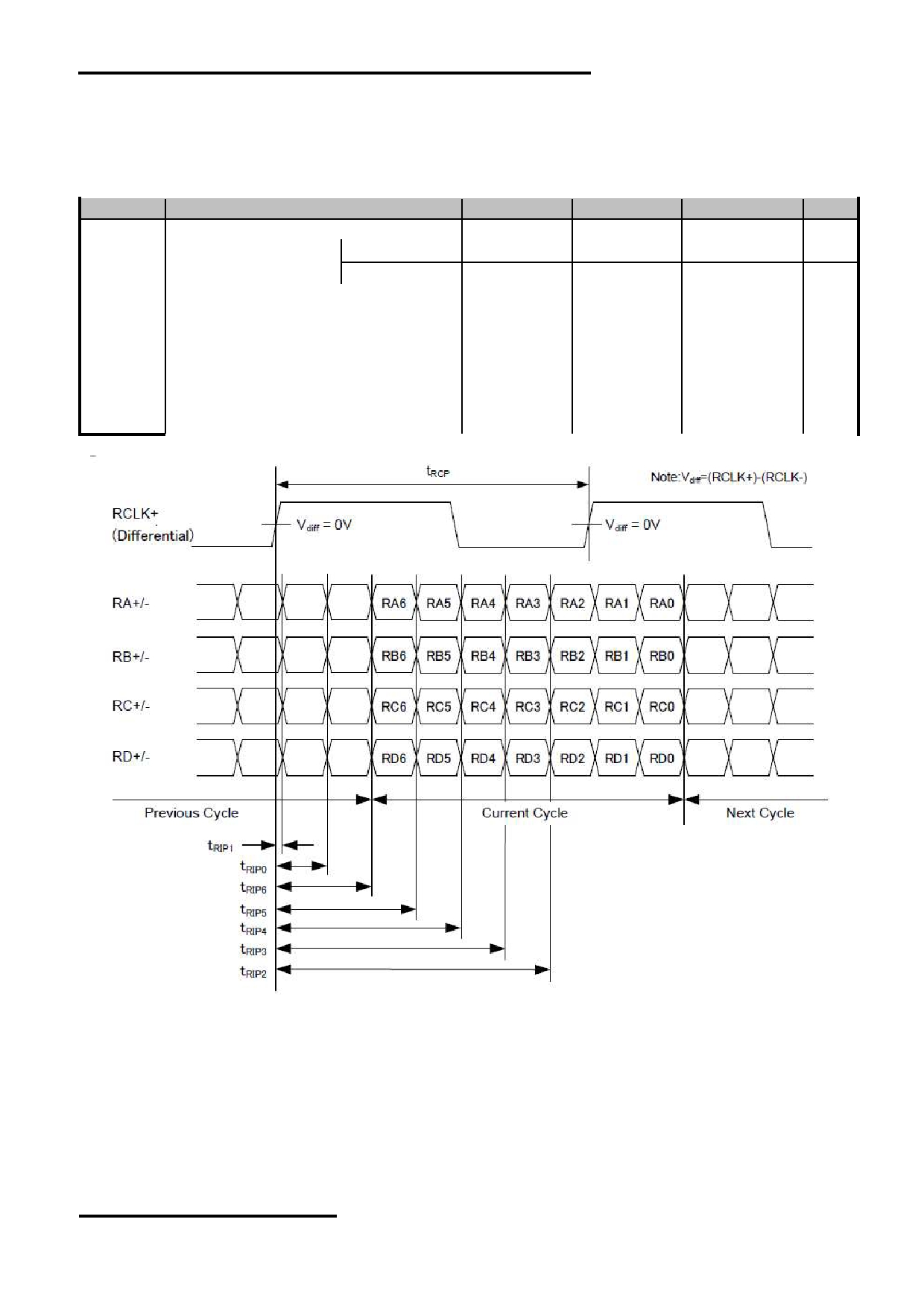

6.2 LVDS Timing Diagram

6.3 Data Input Format

Item

Symbol

MIN.

TYP.

MAX.

Unit

Remark

F clk

34.5

39.6

50.4

MHZ

DCLK

t clk

25.3

t h

900

1000

1200

t clk

t hd

800

t clk

HSD

t hpw

t clk

t hb

t clk

t hfp

112

312

t clk

t v

640

660

700

t h

t vd

600

t h

VSD

t vpw

t h

t vb

t h

t vfp

t h

Note:

*1. LVDS signal should carry SYNC mode signals .

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 7 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

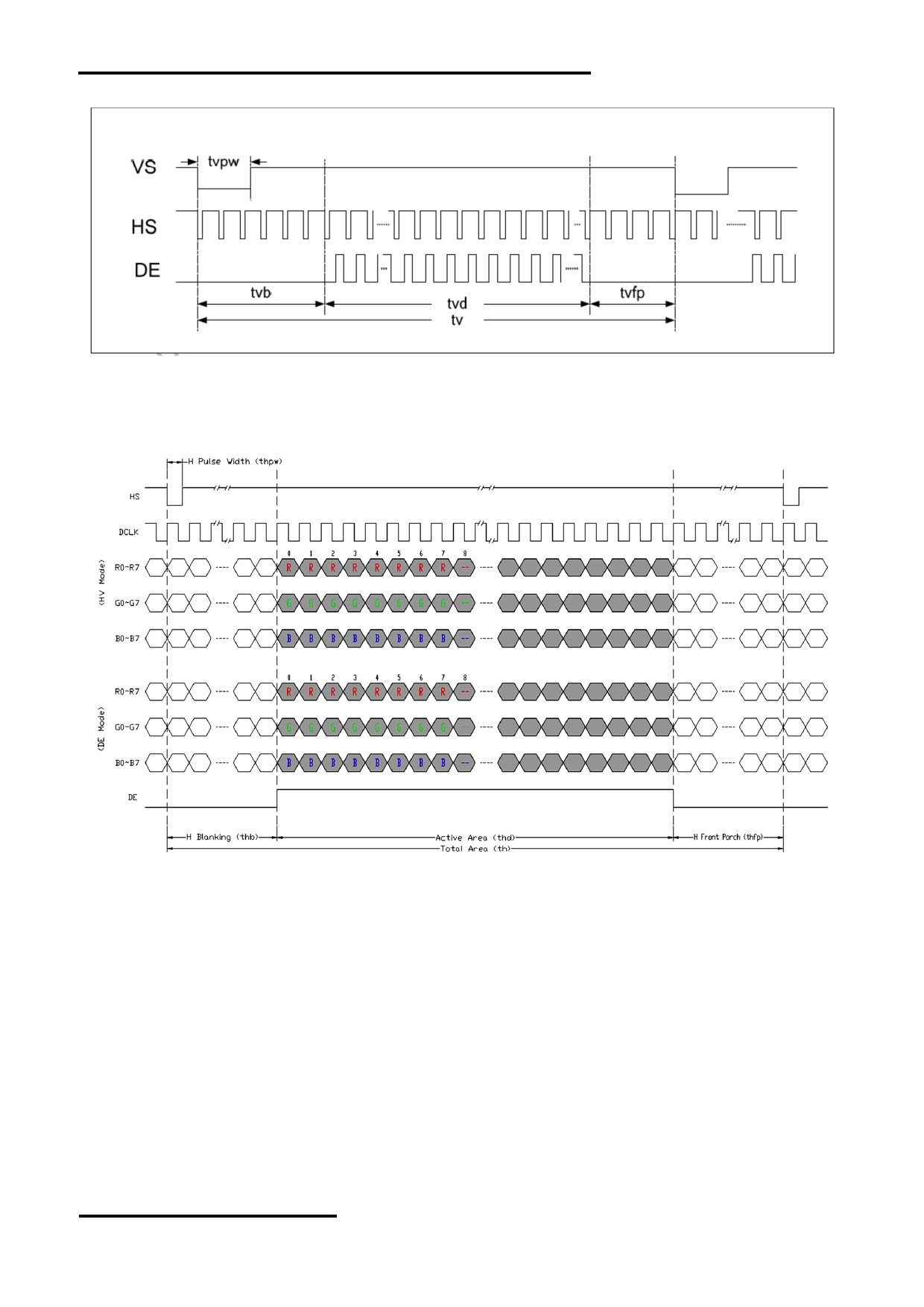

Vertical input timing Diagram

Horizontal input timing Diagram

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 8 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

7. Optical Characteristics

Test Conditions:

1. The test systems refer to Note 1 and Note 2.

GND=0V, Vcc =3.3V, T OP =25 ℃

Item

Symbol

Condition

MIN.

TYP.

MAX.

UNIT

Note.

θ L

9 o’clock

Viewing angle

θ R

3 o’clock

(CR ≥ 10)

degree

Note 2

θ T

12 o’clock

θ B

6 o’clock

T f

msec

Response Time

25 ℃

Note 1

T r

msec

Note 4

Contrast ratio

θ=0 o

600

800

Note 1,3

0.253

0.303

0.353

White

0.257

0.307

0.357

0.525

0.575

0.625

Red

Color

Backlight 0.296 0.346

0.396

Note 1

chromaticlty

is on

0.298

0.348

0.398

Note 5

Green

0.527

0.577

0.627

0.101

0.151

0.201

Blue

0.031

0.081

0.131

Luminance

200

250

cd/m 2

Note 1,6

Luminance uniformity

Y U

Note 1,7

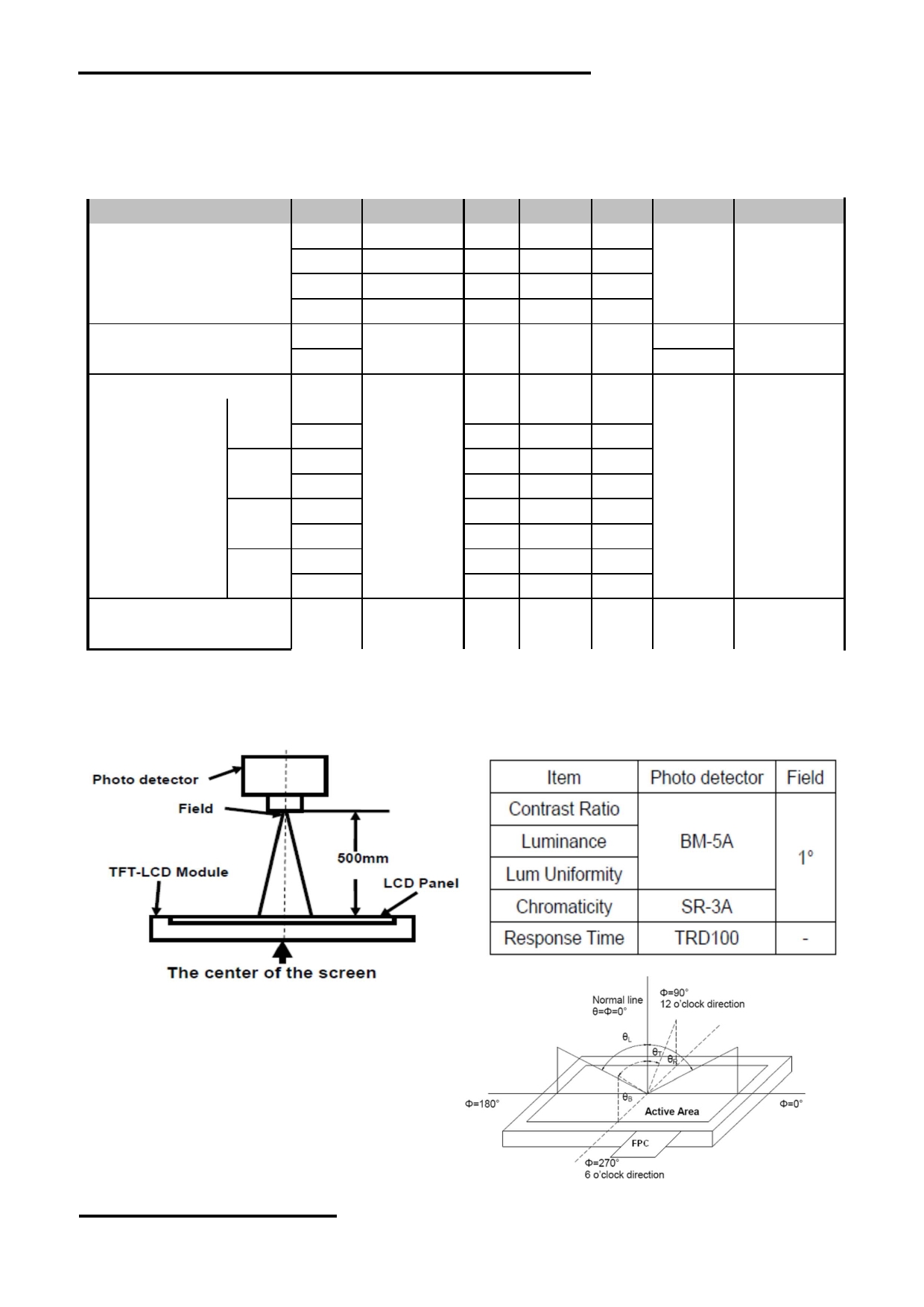

Note 1: Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

Note 2: Definition of viewing angle range

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 9 of 10

TOPWAY

LCD Module User Manual

LMT080DIEFWU-AAN

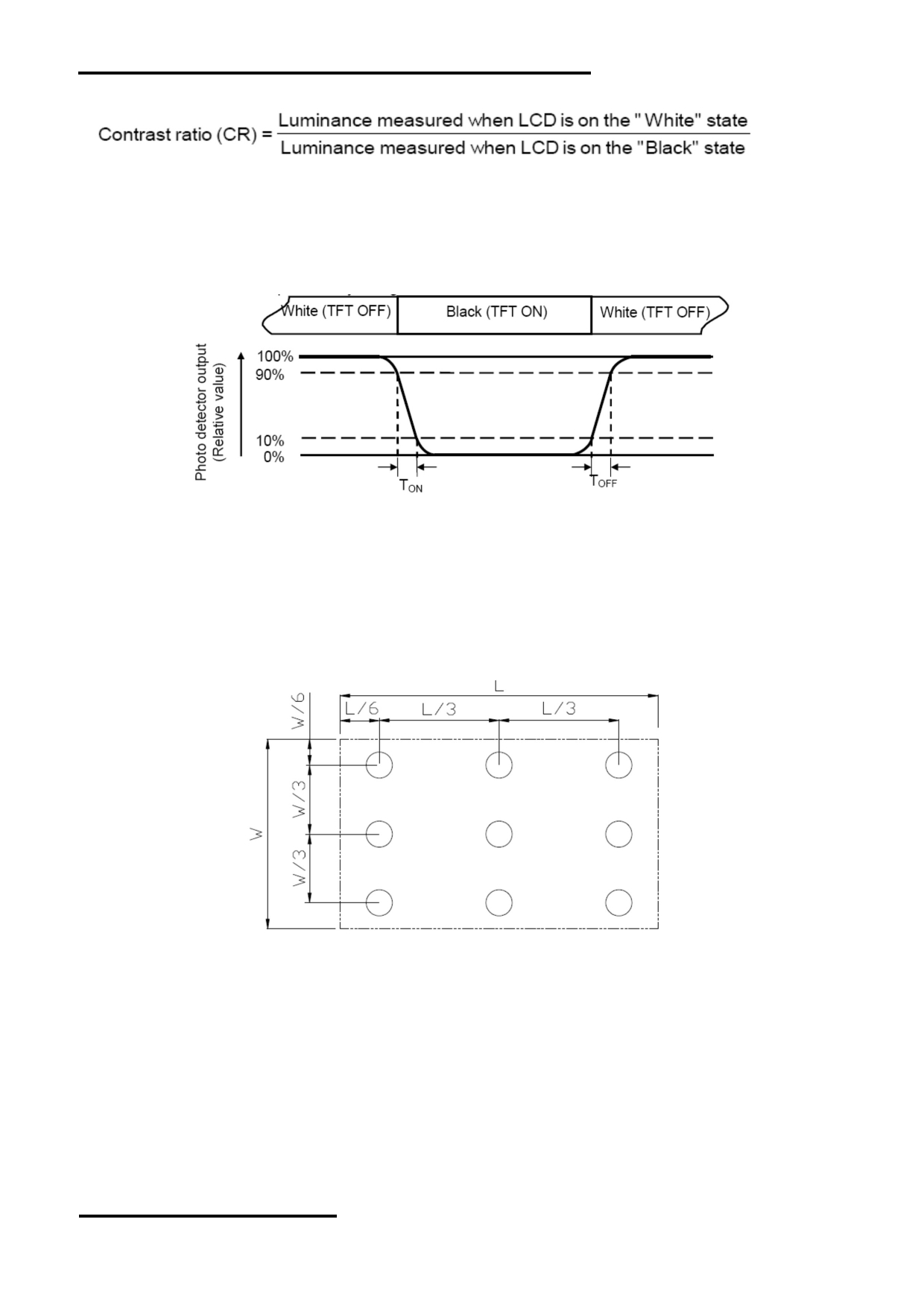

Note 3: Definition of contrast ratio

Note 4: Definition of Response time

The response time is defined as the LCD optical switching time interval between “ White ” state

and

“ Black ” state. Rise time (T ON ) is the time between photo detector output intensity changed from

90% to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from

10% to 90%.

Note 5: Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

Note 6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

Luminance Uniformity (U) = Lmin/ Lmax

L-------Active area length W----- Active area width

Lmax: The measured Maximum luminance of all measurement position.

Lmin: The measured Minimum luminance of all measurement position.

Note 7: Definition of Luminance:

Measure the luminance of white state at center point.

8. Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-AAN-Manual-Rev0.5

Page: 10 of 10
