LMT080DIEFWU-NNA

LMT080DIEFWU-NNA

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Linli

Date: 2017-08-17

Date:

Rev. Descriptions

Release Date

0.1

Preliminary release

2012-04-28

0.2

Update TFT parameters

2012-05-03

0.3

Typing correction

2016-4-5

0.4

Update TFT parameters

2017-08-17

0.5

Update section 1

2018-10-18

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 1 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

Table of Content

1. General Specification ............................................................................................................ 3

2. Block Diagram ........................................................................................................................ 3

3. Terminal Function .................................................................................................................. 4

3.1

K1 TFT Input Terminal ........................................................................................................................................... 4

3.2

K2 (Backlight connector) ........................................................................................................................................ 5

3.3

Touch Panel Terminal Functions............................................................................................................................ 5

4. Absolute Maximum Ratings .................................................................................................. 5

5. Electrical Characteristics ...................................................................................................... 6

5.1

DC Characteristics ................................................................................................................................................. 6

5.2

Current Consumption ............................................................................................................................................. 6

5.3

LED Backlight Circuit Characteristics ..................................................................................................................... 6

5.4

Touch Panel Characteristics .................................................................................................................................. 6

5.5

Power on/off Sequence .......................................................................................................................................... 7

6. AC Characteristics ................................................................................................................. 8

6.1

Timing Characteristics ............................................................................................................................................ 8

6.2

Input Clock and Data Timing Diagram ................................................................................................................... 8

6.3

Recommended Timing Setting Of TCON ............................................................................................................... 9

6.4

Horizontal input timing Diagram ............................................................................................................................. 9

7. Optical Characteristics ........................................................................................................ 10

8. Precautions of using LCD Modules .................................................................................... 11

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 2 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

1. General Specification

Signal Interface :

Digital 24-bits RGB

Display Technology :

a-Si TFT active matrix

Display Mode :

Transmissive / Normal White

Screen Size(Diagonal) :

8.0”

Outline Dimension :

183.0 x 141.0 x 7.1 (mm)

(see attached drawing for details)

Active Area :

162.0 x 121.5 (mm)

Number of dots :

800 x 3 (RGB) x 600

Pixel Pitch :

0.2025 x 0.2025 (mm)

Pixel Configuration :

RGB Stripe

Backlight :

LEDs

Touch Panel type:

4 wire Resistive

Surface Treatment :

Anti-Glare Treatment

Viewing Direction :

6 o’clock(Gray scale Invesion) （ *1 ）

12 o’clock (*2)

Operating Temperature :

-20 ~ +70°C

Storage Temperature :

-30 ~ +80°C

Note:

*1. For saturated color display content (eg. pure-red, pure-green, pure-blue or pure-colors -combinations).

*2. For “ color scales ” display content.

*3. Color tone may slightly change by temperature and driving condition.

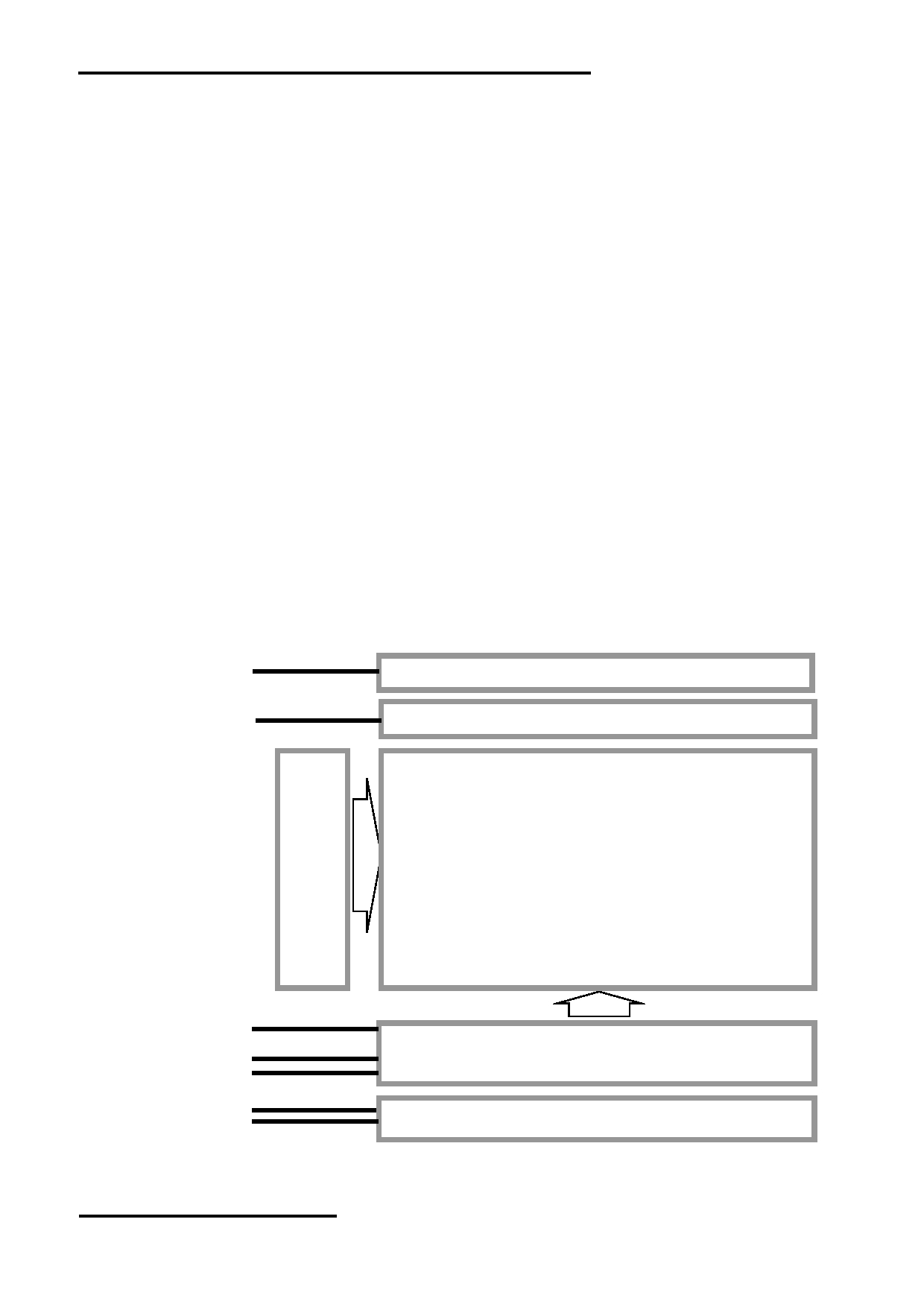

2. Block Diagram

XL,XR,YU,YD

Touch Panel

BLA, BLK

Backlight

800(x3) x 600 pixels

TFT Panel

R0~R7, B0~B7, G0~G7

DCLK, DE, VS, HS

Source Driver

MODE, RESET, DITHB

L/R, U/D

Vcc, GND, V COM, AV DD

V GL, V GH

Power Circuit

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 3 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

3. Terminal Function

3.1 K1 TFT Input Terminal

Pin No.

Pin Name

I/O

Descriptions

：

No Connection

GND

Power

Power GND (0V)

V COM

Input

Common voltage

Vcc

Power

Power for Digital Circuit

MODE

Input

DE/SYNC mode select (*1)

Input

Data input enable

Input

Vertical Sync Input

Input

Horizontal Sync Input

Input

8bit Data for Blue

Input

8bit Data for Green

Input

8bit Data for Red

GND

Power

Power GND (0V)

DCLK

Input

Sample clock(*2)

GND

Power

Power GND (0V)

L/R

Input

Left / right selection (*3)

U/D

Input

Up/down selection (*3)

V GH

Power

Gate ON Voltage

V GL

Power

Gate OFF Voltage

AV DD

Power

Power for Analog Circuit

RESET

Input

Global reset pin (*4)

No connection

V COM

Input

Common Voltage

Dithering function (*5)

DITHB

Input

DITHB=0,Disable internal dithering function.

DITHB=1,Enable internal dithering function

GND

Power

Power GND (0V)

No connection

Note:

* 1: When select DE mode, MODE=”1”.

When select SYNC mode, MODE= “0”.

* 2: Data shall be latched at the falling edge of DCLK.

* 3: Selection of scanning mode

Setting of scan control input

Scanning direction

U/D

L/R

GND

Vcc

Up to down, left to right

Vcc

GND

Down to up, right to left

GND

Up to down, right to left

Vcc

Down to up, left to right

*4: Global reset pin. Active low to enter reset state. Suggest to connect with an RC reset circuit for stability. Normally pull high.

*5: Dithering function enable control, normally pull high.

When DITHB= ” 1 ” , Disable internal dithering function. For 18bit RGB interface, connect two LSB bits of all the R/G/B data

buses to GND.

When DITHB= ” 0 ” , Enable internal dithering function, For TTL 24 bits parallel RGB image data input.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 4 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

3.2

K2 (Backlight connector)

Pin No. Pin Name

Descriptions

Wire Color

BLA

Power

LED driving anode (high voltage)

Red

BLK

Power

LED driving cathode (low voltage)

White

3.3 Touch Panel Terminal Functions

Pin No. Pin Name

I/O

Descriptions

Passive

Right Side sense Terminal

Passive

Up Side sense Terminal

Passive

Left Side sense Terminal

Passive

Down Side sense Terminal

4. Absolute Maximum Ratings

AGND= GND=0V, Ta = 25 ℃

Items

Symbol

Min.

Max.

Unit

Condition

Vcc

-0.5

3.96

Power voltage

AV DD

-0.5

14.85

V GH

-0.3

+42

V GL

V GH -42

+0.3

Operating Temperature

T OP

-20

 C

No Condensation

Storage Temperature

T ST

-30

 C

No Condensation

Note:

*1. This rating applies to all parts of the module. And should not be exceeded.

*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,

and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25.

*3. Ambient temperature when the backlight is lit (reference value)

*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged

exposure to extreme conditions may affect device reliability.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 5 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

5. Electrical Characteristics

5.1 DC Characteristics

T OP =25  C

Items

Symbol

Min.

Typ.

Max.

Unit

Remark

Vcc

2.8

3.3

3.6

AV DD

12.4

12.6

12.8

Power voltage

V GH

20 ． 0

22.0

24.0

V GL

-7.4

-6.9

-6.4

Input signal voltage

V COM

4.05

4.1

4.15

Input logic high voltage

V IH

0.7Vcc

Vcc

Input logic low voltage

V IL

0.3Vcc

Note:

*1.Be sure to apply VCC and VGL to the LCD first, and then apply VGH.

*2: VCC setting should match the signals output voltage (refer to Note 3) of customer’s system board.

*3: DCLK,HS,VS,RESET,U/D, L/R,DE,R0~R7,G0~G7,B0~B7,MODE,DITHB.

5.2 Current Consumption

Items

Symbol

Min.

Typ.

Max.

Unit

Remark

I GH

0.28

0.4

V GH = 22.0V

Current for Driver

I GL

0.29

0.4

V GL = -6.9V

I CC

3.39

V DD =3.3V

I AV DD

17.8

AV DD =12.6V

5.3 LED Backlight Circuit Characteristics

Top=25 ℃

Items

Symbol

MIN.

TYP.

MAX.

Unit

Note

Forward Voltage

Vf BLA

9.0

9.6

10.3

If=180mA

Forward Current

If BLA

180.0

225.0

Backlight Life Time

20,000 25,000

If=180mA

Cautions:

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

5.4 Touch Panel Characteristics

T OP =25  C

Items

Symbo Min

Typ.

Max.

Unit Applicable Pin

Operating Force

Fop

100

160

Operating Voltage

Vop

Life Time

1,000,000

times

Cautions:

Exceeding the recommended Condition could cause substantial damage to the touch panel and

shorten its life time.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 6 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

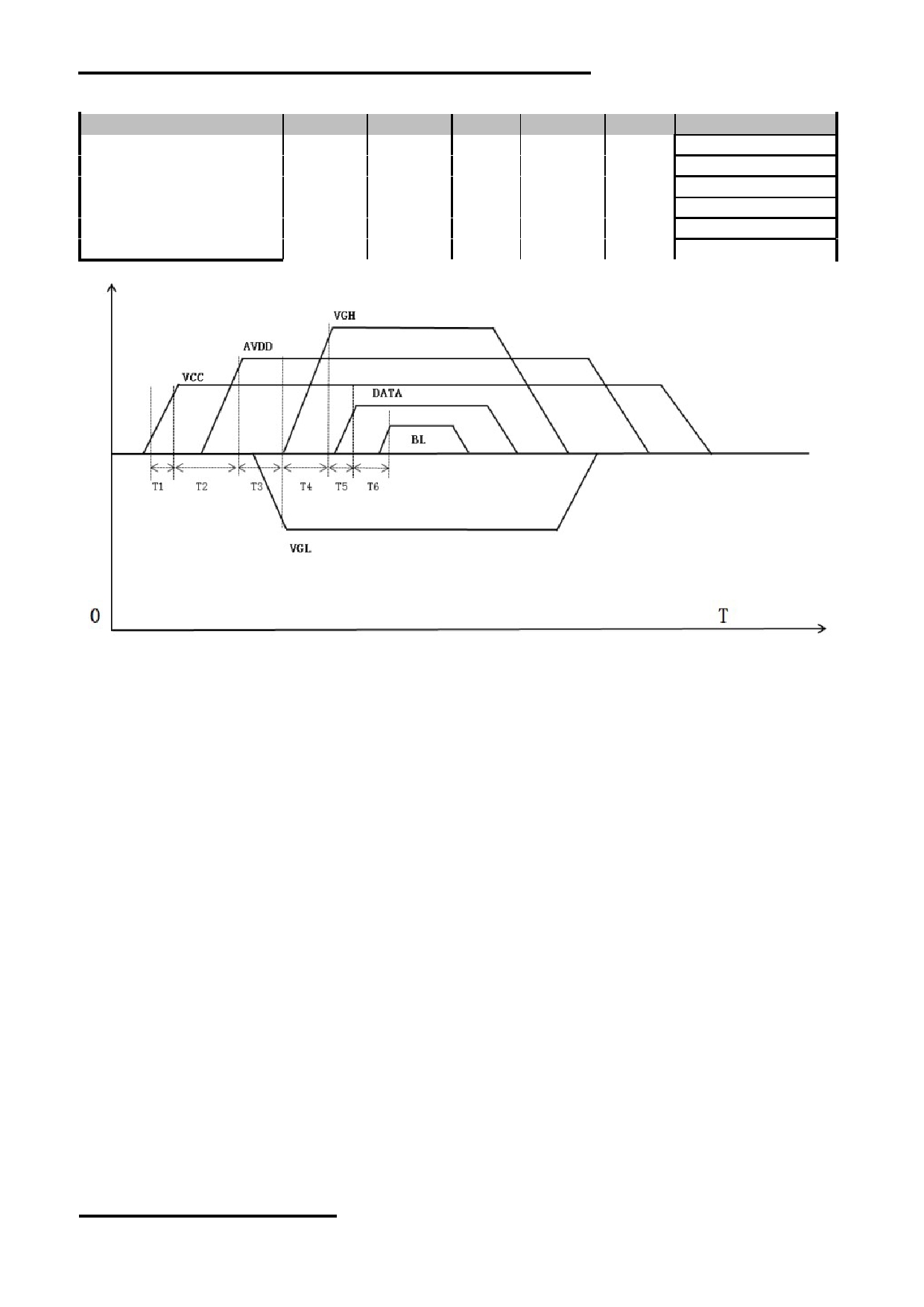

5.5 Power on/off Sequence

Item

Symbol Min

Typ

Max

Unit

Remark

VCC 3.3V rising time

VCC to AVDD on time

16.7

AVDD to VGL on time

VGL to VGH on time

VGH to DATA on time

DATA to BL on time

Note:

*1. Power on sequence: VCC  AVDD  VGL  VGH  DATA ON  BACKLIGHT ON

*2. Power off sequence: BACKLIGHT OFF  DATA OFF  VGH  VGL  AVDD  VCC

*3. When VCC turned on, the rising time T1 should less than 20ms.

*4. AVDD stable to VCC stable time T2 should better longer than 1 frame time.

*5. The power off sequence can be set according to power on settings.

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 7 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

6. AC Characteristics

6.1 Timing Characteristics

VCC=3.3V,AVDD=12.6V,AGND=GND=0V,Ta=25  C

Item

Symbol

MIN.

TYP.

MAX.

Unit

Remark

VDD Power On Slew rate

T POR

From 0V to 90% VDD

GRB pulse width

T GRB

DCLK=65MHz

DCLK Cycle Time

Tcph

DCLK Pulse Width

Tcw

VSD Setup Time

Tvst

VSD Hold Time

Tvhd

HSD Setup Time

Thst

HSD Hold Time

Thhd

Data Setup Time

Tdsu

Data to DCLK

Data Hold Time

Tdhd

Data to DCLK

DE Setup Time

Tesu

DE Hold Time

Tehd

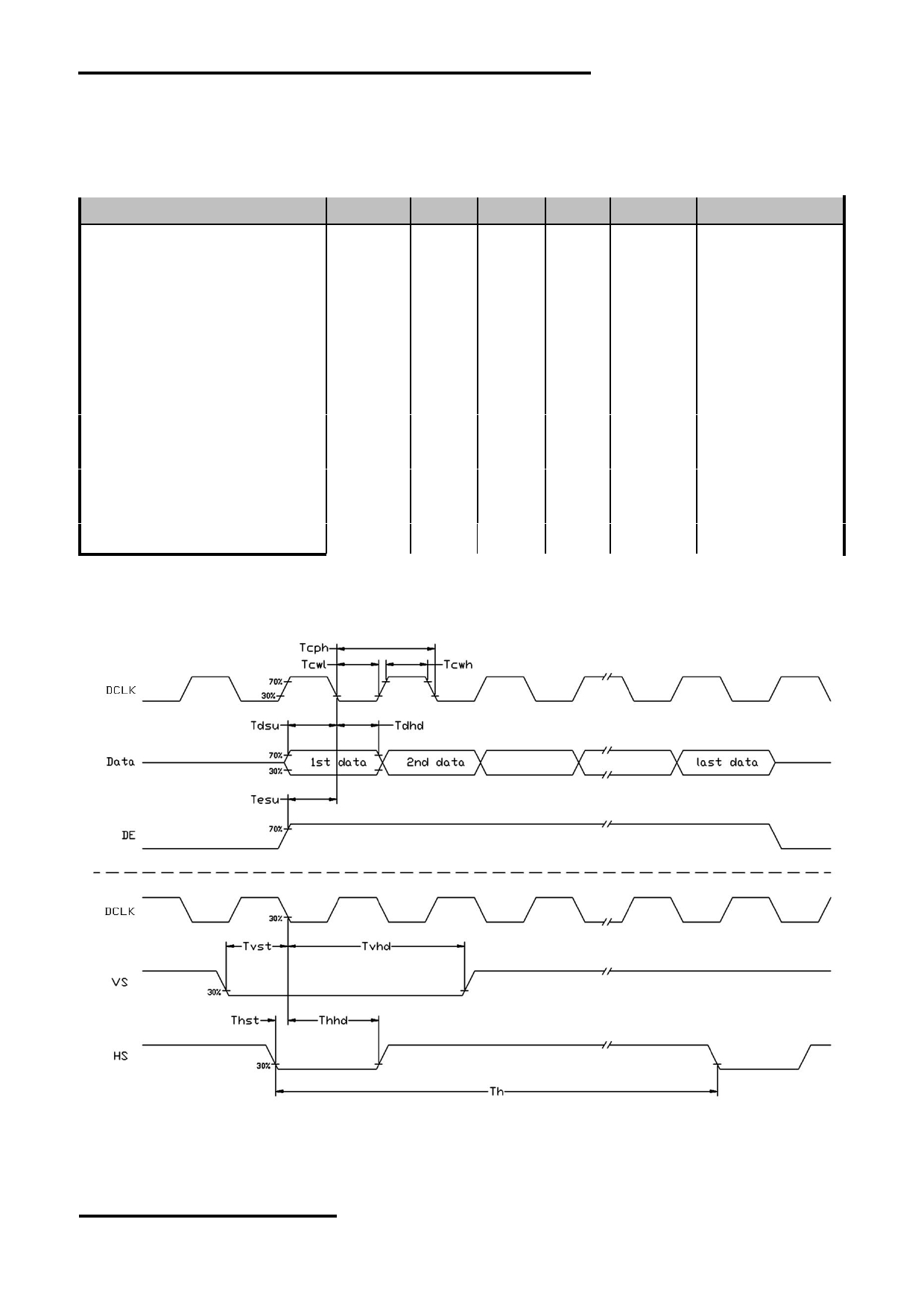

6.2 Input Clock and Data Timing Diagram

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 8 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

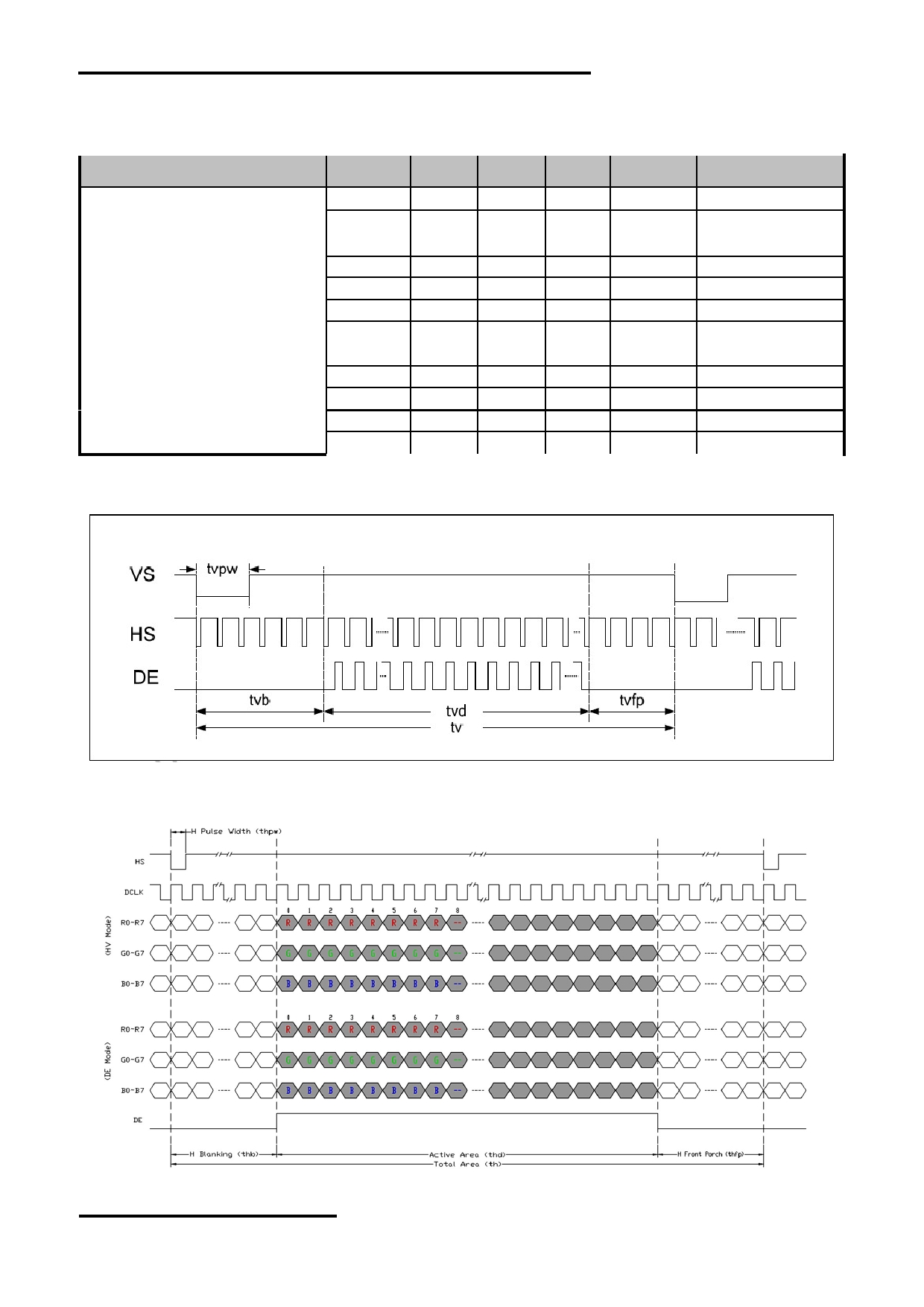

6.3 Recommended Timing Setting Of TCON

TCON (Embedded In Source IC) Input Timing (DCLK, HSD, VSD, DE)

VCC=3.3V, AVDD=12.5V, AGND=GND=0V, Ta=25 ℃

Item

Symbol

MIN.

TYP.

MAX.

Unit

Remark

F clk

34.5

39.6

50.4

MHZ

DCLK

t clk

25.3

t h

900

1000

1200

t clk

t hd

800

t clk

HSD

t hpw

t clk

t hb

t clk

t hfp

112

312

t clk

t v

640

660

700

t h

t vd

600

t h

VSD

t vpw

t h

t vb

t h

t vfp

t h

Note: DE timing refer to HSD, VSD input timing.

Vertical input timing Diagram:

Vertical input timing Diagram

6.4 Horizontal input timing Diagram

Horizontal input timing diagram

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 9 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

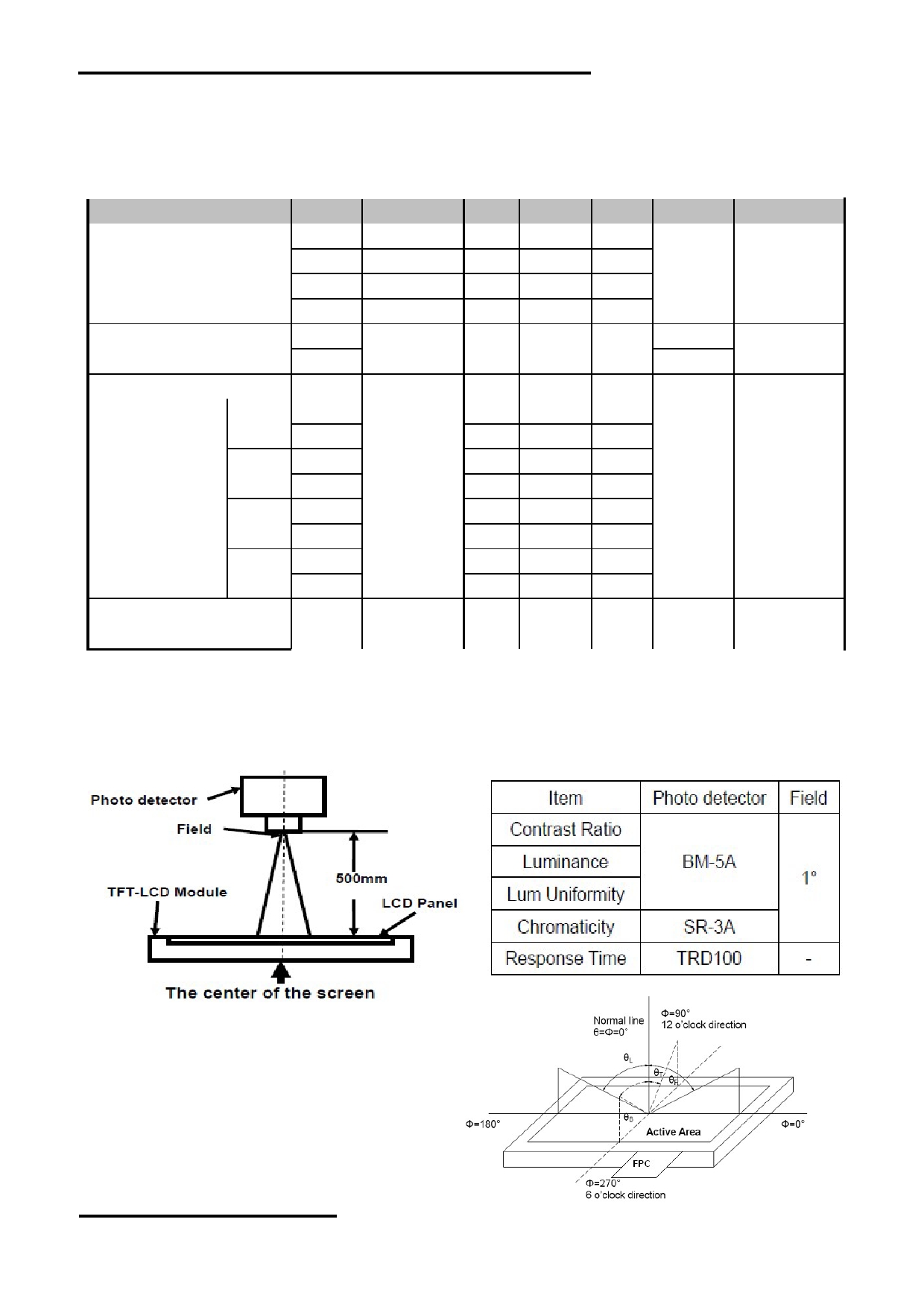

7. Optical Characteristics

Test Conditions:

1. I F = 20mA, V F =9.6V, and the ambient temperature is 25 ℃ .

2. The test systems refer to Note 1 and Note 2.

Item

Symbol

Condition

MIN.

TYP.

MAX.

UNIT

Note.

θ L

9 o’clock

Viewing angle

θ R

3 o’clock

(CR ≥ 10)

degree

Note 2

θ T

12 o’clock

θ B

6 o’clock

T f

msec

Response Time

25 ℃

Note 1

T r

msec

Note 4

Contrast ratio

θ=0 o

400

500

Note 1,3

0.260

0.310

0.360

White

0.280

0.330

0.380

0.541

0.591

0.641

Red

Color

Backlight 0.300 0.350

0.400

Note 1

chromaticlty

is on

0.299

0.349

0.399

Note 5

Green

0.520

0.570

0.620

0.101

0.151

0.201

Blue

0.047

0.097

0.147

Luminance

200

cd/m 2

Note 1,6

Luminance uniformity

Y U

Note 1,7

Note

*1: Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

*2: Definition of viewing angle range

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 10 of 11

TOPWAY

LCD Module User Manual

LMT080DIEFWU-NNA

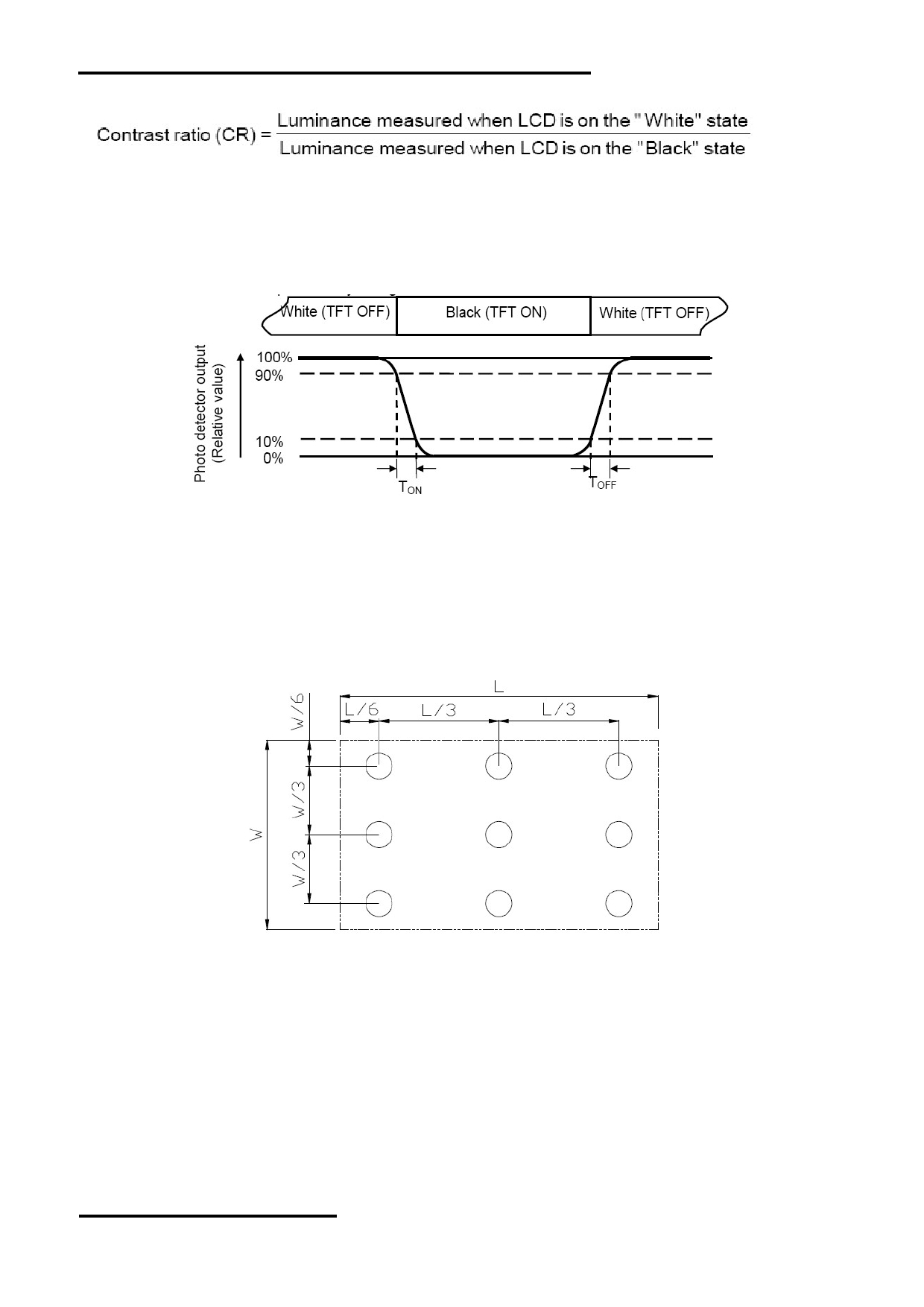

*3: Definition of contrast ratio

* 4: Definition of Response time

The response time is defined as the LCD optical switching time interval between “ White ” state

and

“ Black ” state. Rise time (T ON ) is the time between photo detector output intensity changed from

90% to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from

10% to 90%.

* 5: Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

* 6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

Luminance Uniformity (U) = Lmin/ Lmax

L-------Active area length W----- Active area width

Lmax: The measured Maximum luminance of all measurement position.

Lmin: The measured Minimum luminance of all measurement position.

* 7: Definition of Luminance:

Measure the luminance of white state at center point.

8. Precautions of using LCD Modules

Please refer to "LCD-Module-Design-Handling-Precaution.pdf".

URL: www.topwaydisplay.com

Document Name: LMT080DIEFWU-NNA-Manual-Rev0.5

Page: 11 of 11
