LMT080TDGP01.pdf

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

1. Applications ................................................................................................................................................... 3

2. General Specification .................................................................................................................................. 3

3. Block Diagram ............................................................................................................................................... 3

4. Terminal Function (Input Terminal) ......................................................................................................... 4

5. Absolute Maximum Ratings ...................................................................................................................... 5

6. Electrical Characteristics ........................................................................................................................... 5

6.1 DC Characteristics ............................................................................................................................................................................... 5

6.2 Current Consumption .......................................................................................................................................................................... 5

6.3 LED Backlight Circuit Characteristics ............................................................................................................................................... 5

6.4 Power ON/OFF Sequence ................................................................................................................................................................. 6

7. Timing Chart .................................................................................................................................................. 7

7.1 LVDS mode DC electrical characteristics ........................................................................................................................................ 7

7.2 Data input format ................................................................................................................................................................................. 8

7.3 Optical Characteristics ........................................................................................................................................................................ 9

8. LCD Module Design and Handling Precautions ................................................................................ 11

9. CTP Mounting Instructions ..................................................................................................................... 12

9.1 Bezel Mounting (Figure 1) ................................................................................................................................................................ 12

9.2 Surface Mounting (Figure 2) ............................................................................................................................................................ 13

9.3 Additional Cover Lens Mounting (Figure 3) ................................................................................................................................... 13

10. RTP Mounting Instructions ................................................................................................................... 14

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

This Module is designed for portable DVD, GPS car TV & PMP(portable multimedia player)

application which require high quality flat panel displays. It is also a good substitute for many

outmoded CSTN module in the industrial application.

This product is composed of a TFT-LCD panel, driver ICs, FPC and LED backlight unit.

2. General Specification

LVDS 18bit/24bit(VESA)

Display Technology :

a-Si TFT active matrix

Screen Size(Diagonal) :

183.43x138.35x3.75 (mm)

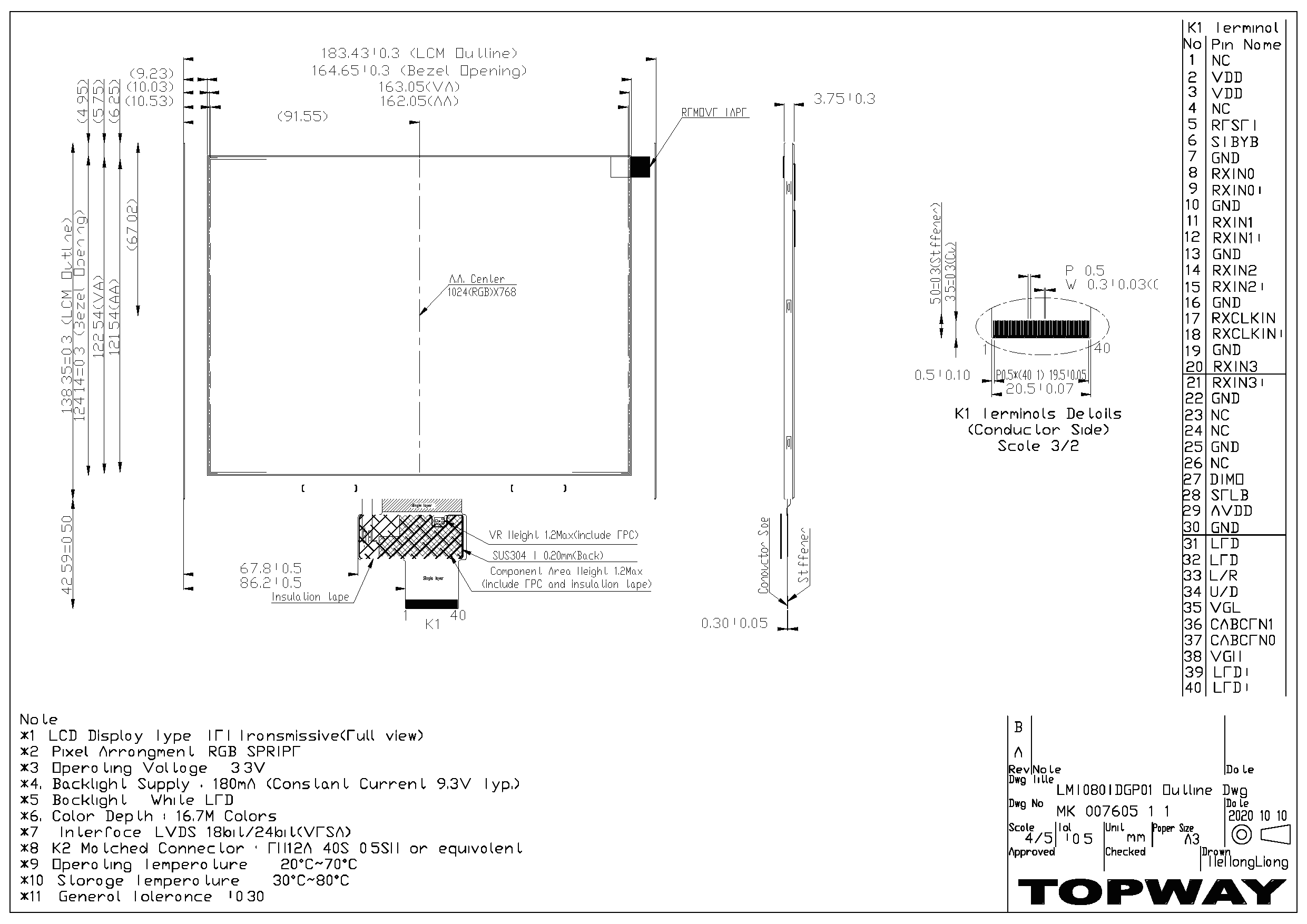

(see attached drawing for details)

Pixel Configuration :

Operating Temperature :

Storage Temperature :

*1.Color tone may slightly change by temperature and driving condition.

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

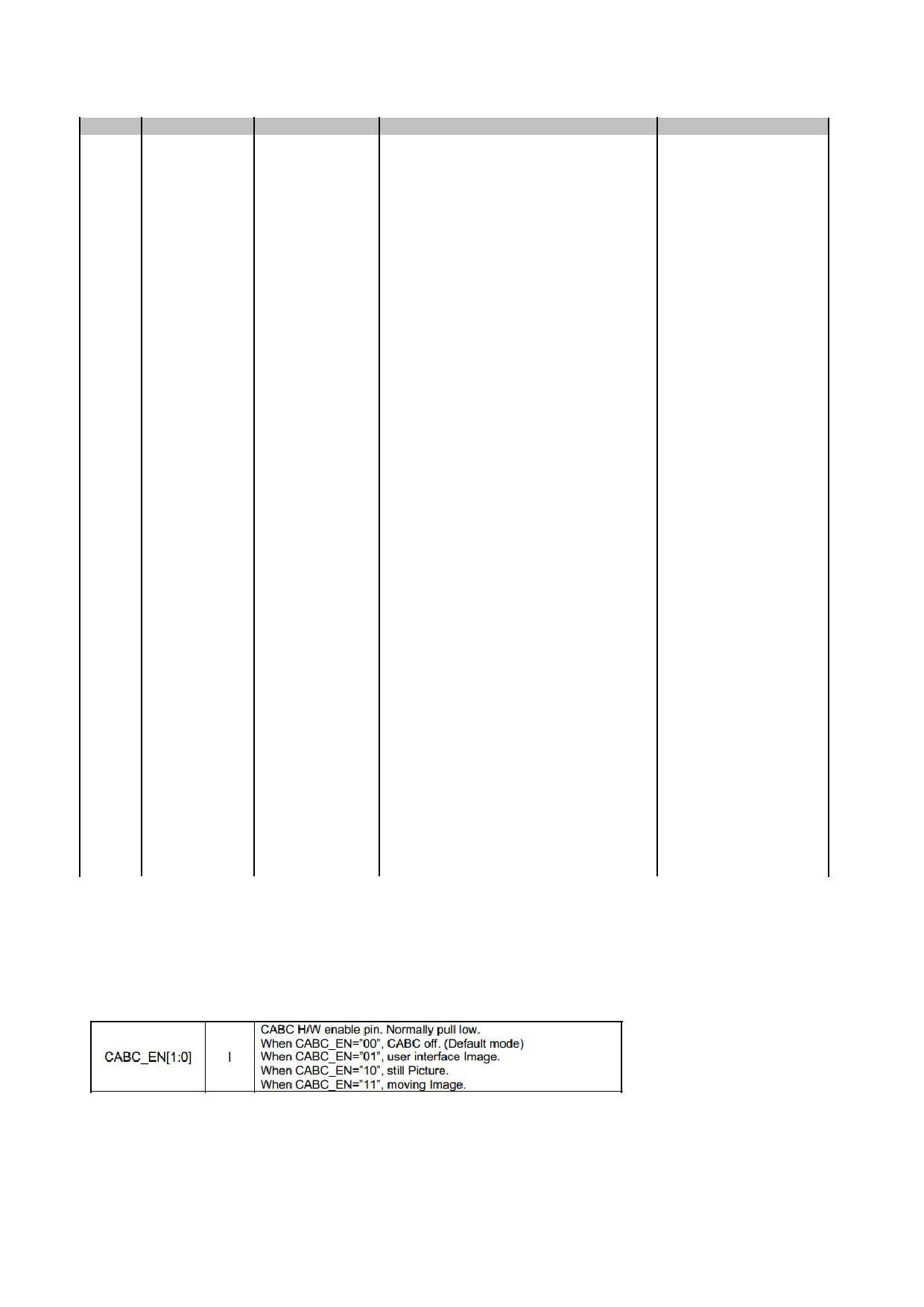

4. Terminal Function (Input Terminal)

Standby mode, Normally pulled high

STBYB = “ 1 ” , normal operation

STBYB = “ 0 ” , timing controller, source

driver will turn off, all output are GND

-LVDS differential data input

+LVDS differential data input

-LVDS differential data input

+LVDS differential data input

-LVDS differential data input

+LVDS differential data input

-LVDS differential clock input

+LVDS differential clock input

-LVDS differential data input

R6,R7,G6,G7,B6,B7(Co

+LVDS differential data input

Backlight CABC controller signal output

6bit/8bit mode select Pin

Power for Analog Circuit

Horizontal Scanning direction setting

Vertical Scanning direction setting

I/O----definition, I----Input, O----Output, P----Power, No used I/O pin please fix to GND level .

Note1: PWM output after CABC function;

Note2: LVDS mode 6bits/8bits input select pin,If LVDS input data in 6 bits,SELB must be set to high,If LVDS input data in

8 bits,SELB must be set to low .

Note3: When L/R="0",set right to left scan direction, L/R="1" set left to right scan direction, source IC@6 o’clock . When

U/D="0",set top to bottom scan direction, U/D="1" set bottom to top scan direction source IC@6 o’clock .

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

5. Absolute Maximum Ratings

Operating Temperature

*1. This rating applies to all parts of the module. And should not be exceeded.

*2. The operating temperature only guarantees operation of the circuit. The contrast, response speed,

and the other specification related to electro-optical display quality is determined at the room temperature, T OP =25.

*3. Ambient temperature when the backlight is lit (reference value)

*4. Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the device. Functional

operation of this device at other conditions beyond those listed in the specification is not implied and prolonged

exposure to extreme conditions may affect device reliability.

6. Electrical Characteristics

6.1 DC Characteristics

Input logic high voltage

Input logic low voltage

*1.VDD setting should match the signals output voltage of customer’s system board.

6.2 Current Consumption

6.3 LED Backlight Circuit Characteristics

Exceeding the recommended driving current could cause substantial damage to the backlight and shorten its lifetime.

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

6.4 Power ON/OFF Sequence

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

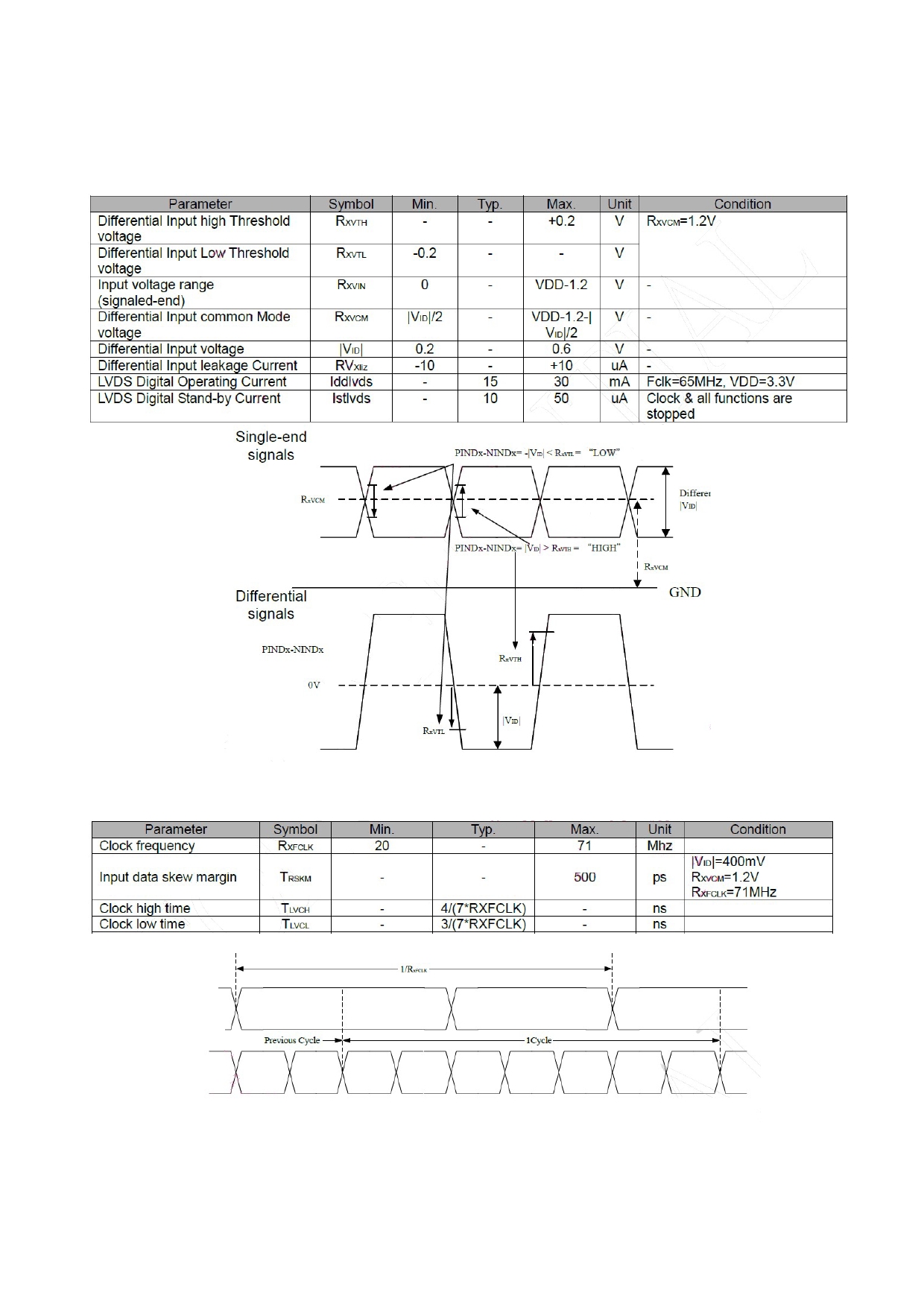

7.1 LVDS mode DC electrical characteristics

5.2 LVDS mode AC electrical characteristics

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

7.2 Data input format

7.2.1 LVDS data mapping

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

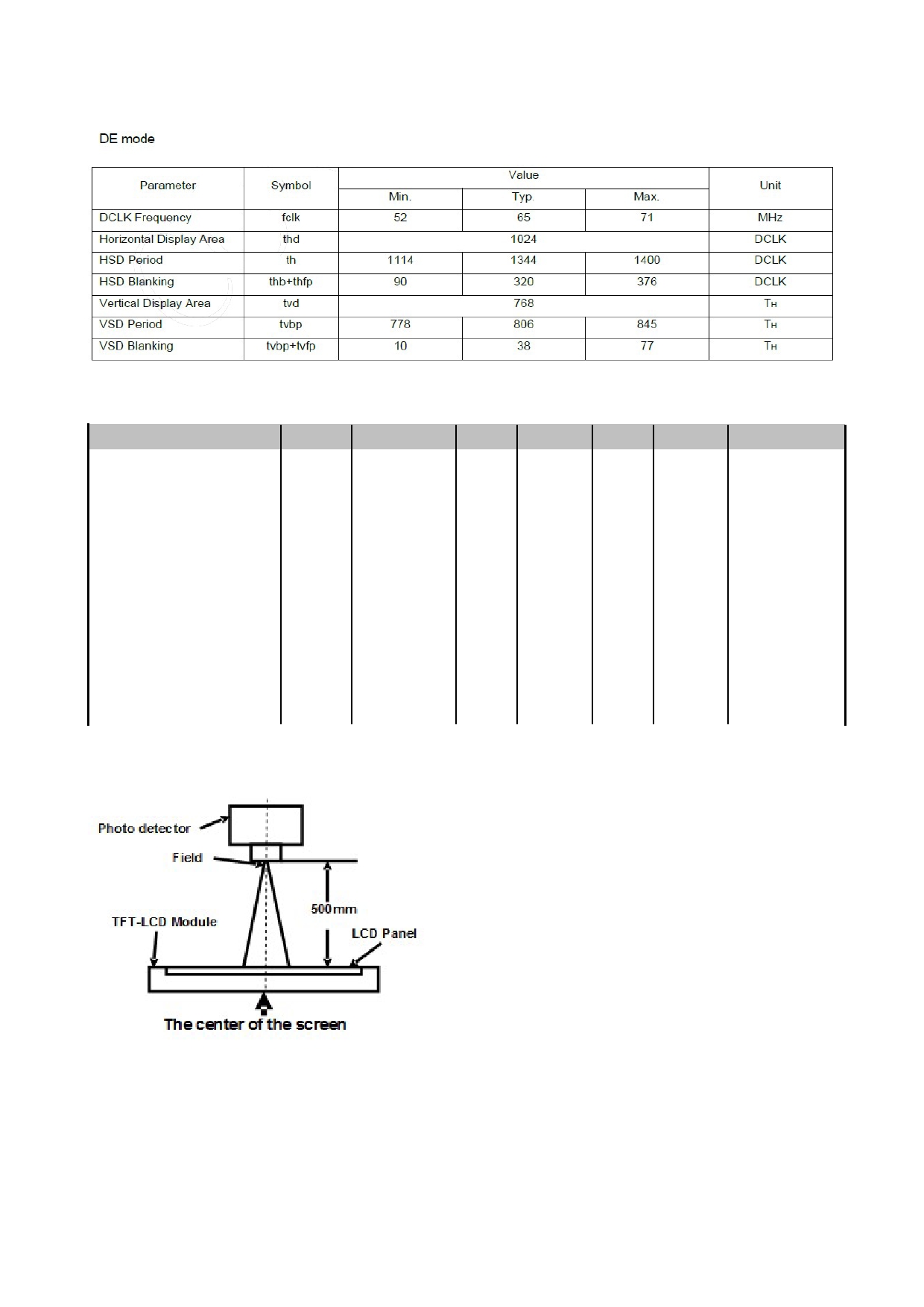

7.2.2 Parallel RGB input timing table

7.3 Optical Characteristics

Luminance uniformity

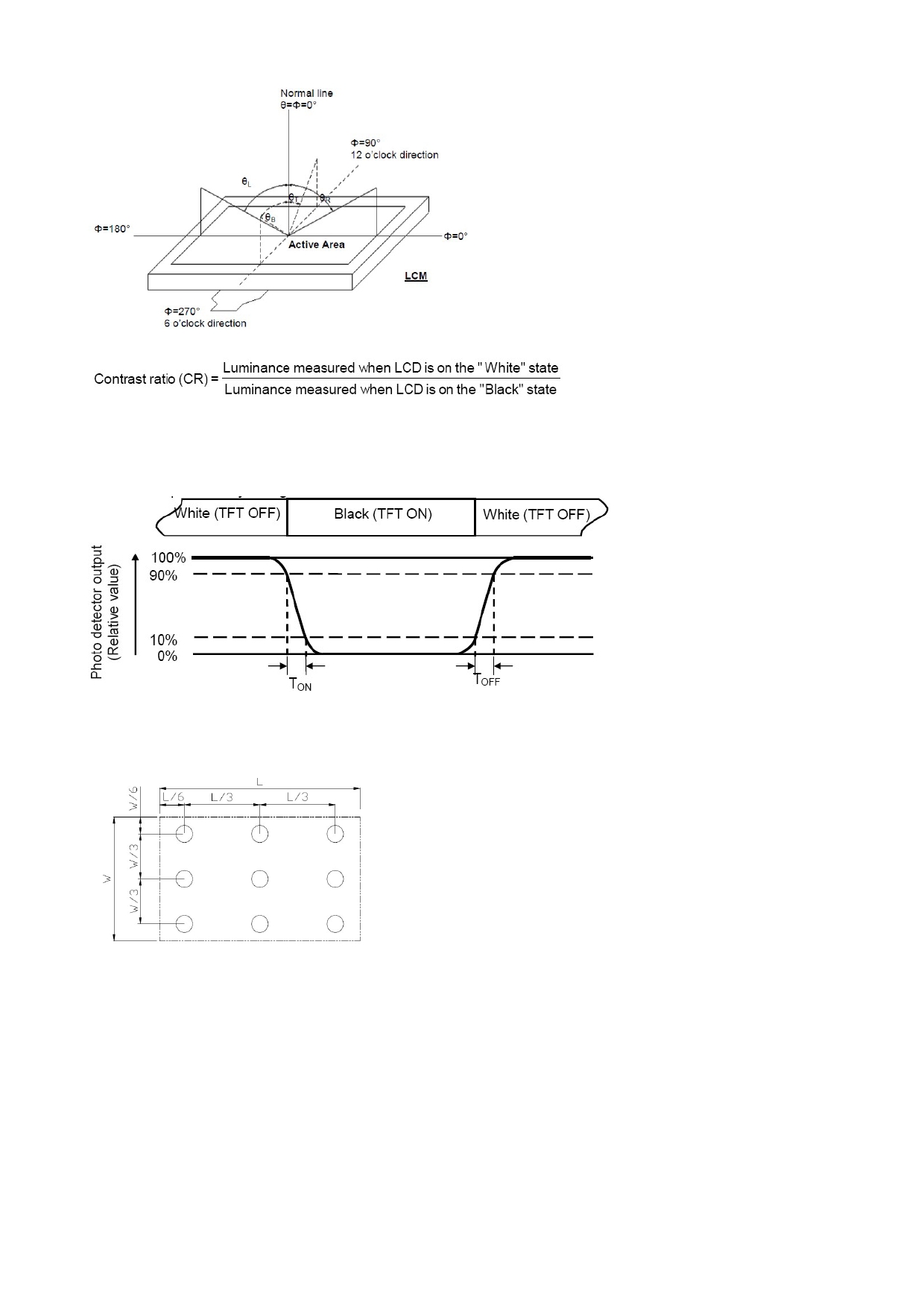

*1. Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical properties are measured at the center

point of the LCD screen. All input terminals LCD panel must be ground when measuring the center area of the panel.

*2.Definition of viewing angle range and measurement system.viewing angle is measured at the center point of the LCD

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

*3.Definition of contrast ratio.

“White state”: The state is that the LCD should drive by Vwhite.

“Black state”: The state is that the LCD should drive by Vblack.

Vwhite: To be determined Vblack: To be determined.

*4.Definition of Response tim

The response time is defined as the LCD optical switching time interval between “White” state and “Black” state. Rise time (T on ) is the time

between photo detector output intensity changed from 90% to 10%. And fall time (T off ) is the time between photo detector output intensity

changed from 10% to 90%.

*5.Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

*6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the center of each measuring area.

Luminance Uniformity (U) = Lmin/ Lmax

L-------Active area length W----- Active area width

Lmax: The measured Maximum luminance of all measurement position.

Lmin: The measured Minimum luminance of all measurement position.

* 7: Definition of Luminance:

Measure the luminance of white state at center point.

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

8. LCD Module Design and

8. 液晶显示模块设计和使用须知

Handling Precautions

- Please ensure V0, VCOM is adjustable, to enable LCD - 请注意 V0, VCOM 的设定, 以确保液晶显示模块在不同

module get the best contrast ratio under different

的使用温度下以及在不同的视角和位置观察模块显

temperatures, view angles and positions.

示，均能达到最佳对比度，请务必将应用电路上设置

- Normally display quality should be judged under the

为对比度可调。

best contrast ratio within viewable area. Unexpected

- 请注意液晶显示模块的显示品质判定是指在正常对比

display pattern may come out under abnormal contrast

度下以及视窗(V.A)范围内进行的，非正常对比度下液

晶可能会出现非预期的显示不良，应注意区分。

- Never operate the LCD module exceed the absolute

- 请勿在最大额定值以外使用液晶显示模块。

- Never apply signal to the LCD module without power

- 请勿在没有接通电源的条件下，给液晶显示模块输送

- Keep signal line as short as possible to reduce external - 请尽可能缩短信号线的连接，以避免对液晶显示模块

- IC chip (e.g. TAB or COG) is sensitive to light. Strong

- 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为敏

light might cause malfunction. Light sealing structure

感，强光环境下可能会引起液晶显示模块功能失效，

casing is recommended.

故应采用不透光的外壳。

- Make sure there is enough space (with cushion)

- 请在液晶显示模块与外壳之间保留足够的空间(可使用

between case and LCD panel, to prevent external force

衬垫)，以缓冲外力对液晶显示模块的损坏或因受力不

passed on to the panel; otherwise that may cause

均而产生的显示不匀等异常现象。

damage to the LCD and degrade its display result.

- Avoid showing a display pattern on screen for a long

- 避免液晶显示屏在某一画面下长时间点亮，否则有出

time (continuous ON segment).

现残影的风险；请通过软件每隔一段时间改变一次画

- LCD module reliability may be reduced by temperature

- 液晶显示模块的可靠性可能因温度冲击而降低。

- When storing and operating LCD module, avoids - 请勿在阳光直射、高湿、高温或低温下储存和使用液

exposure to direct sunlight, high humidity, high or low

晶显示模块，这将造成液晶显示模块的损坏或失效。

temperature. They may damage or degrade the LCD

- Never leave LCD module in extreme condition

- 请勿在极限环境(最大/最小存储/工作温度)下使用或

(max./min storage/operate temperature) for more than

放置液晶显示模块超过 48 小时以上。

- 液晶显示模块建议存储条件为: 0 C~40 C <80%RH 。

- Recommend LCD module storage conditions is - 请勿让液晶显示模块存储于带有酸性, 碱性, 有害气

- LCD module should be stored in the room without acid,

- 在运输过程中, 请勿让液晶显示模块跌落与猛烈震动,

alkali and harmful gas.

- Avoid dropping & violent shocking during

同时避免异常挤压, 高湿度, 与阳光照射.

transportation, and no excessive pressure press,

- 液晶显示模块极易受静电损坏，请务必保证液晶显示

moisture and sunlight.

模块在防静电的工作环境中使用或保存。(如: 烙铁正

- LCD module can be easily damaged by static

electricity. Please maintain an optimum anti-static

- 拿取液晶显示模块时需注意操作人员的接地情况。

working environment to protect the LCD module. (eg.

- 请手持液晶显示模块的边沿取放模块，防止热压纸或

ground the soldering irons properly)

- Be sure to ground the body when handling LCD

- 焊接液晶模块时，请注意控制烙铁的温度、焊接时

- Only hold LCD module by its sides. Never hold LCD

间，以免烫坏导光板或偏光片，导致显示不匀等不良

module by applying force on the heat seal or TAB.

- When soldering, control the temperature and duration

- 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐

avoid damaging the backlight guide or diffuser which

蚀导光板或模块电路。

might degrade the display result such as uneven

- Never let LCD module contact with corrosive liquids,

- 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏表

which might cause damage to the backlight guide or

面，其他任何溶剂(如:水)都有可能损坏液晶模块。

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

the electric circuit of LCD module.

- 请勿挤压液晶显示模块上的元器件，以避免产生潜在

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol

的损坏或失效而影响产品可靠性。

or Ethyl Alcohol. Other solvents (e.g. water) may

- 装配液晶显示模块时，请务必注意避免液晶显示模块

- Never add force to components of LCD module. It may

的扭曲或变形。

cause invisible damage or degrade the module's

- 请勿挤压液晶显示屏表面，这将导致显示颜色的异

- When mounting LCD module, please make sure it is - 液晶屏由玻璃制作而成，任何机械碰撞(如从高处跌

free from twisting, warping and bending.

落)均有可能损坏液晶显示模块。

- Do not add excessive force on surface of LCD, which

may cause the display color change abnormally.

- LCD panel is made with glass. Any mechanical shock

(e.g. dropping from high place) will damage the LCD

- Protective film is attached on LCD screen. Be careful - 液晶屏表面带有保护膜, 揭除保护膜时需要注意可能

when peeling off this protective film, since static

electricity may be generated.

- 因液晶显示屏表面的偏光片极易划伤，安装完成之前

- Polarizer on LCD gets scratched easily. If possible, do

请尽量不要揭下保护膜。

not remove LCD protective film until the last step of - 请缓慢揭除保护膜，在此过程中液晶显示屏上可能会

产生静电线，此为正常情况，可在短时间内消失。

- When peeling off protective film from LCD, static

charge may cause abnormal display pattern. The - 请注意避免被液晶显示屏的边缘割伤。

symptom is normal, and it will turn back to normal in a - 请不要试图拆卸或改造液晶显示模块。

- 当液晶显示屏出现破裂, 内部液晶液体可能流出; 相

- LCD panel has sharp edges, please handle with care.

关液体不可吞吃, 绝对不可接触嘴巴, 如接触到皮肤

- Never attempt to disassemble or rework LCD module.

或衣服, 请使用肥皂与清水彻底清洗.

- If display panel is damaged and liquid crystal

substance leaks out, be sure not to get any in your

mouth, if the substance comes into contact with your 9. 电容触摸屏安装指导

skin or clothes promptly wash it off using soap and 9.1 面框安装（附图 1）

- 客户面框窗口应大于 CTP 动作区域，各边离动作区应

9. CTP Mounting Instructions

- 面框与 CTP 面板间应垫有胶垫，其最终间隙约为 0.5～

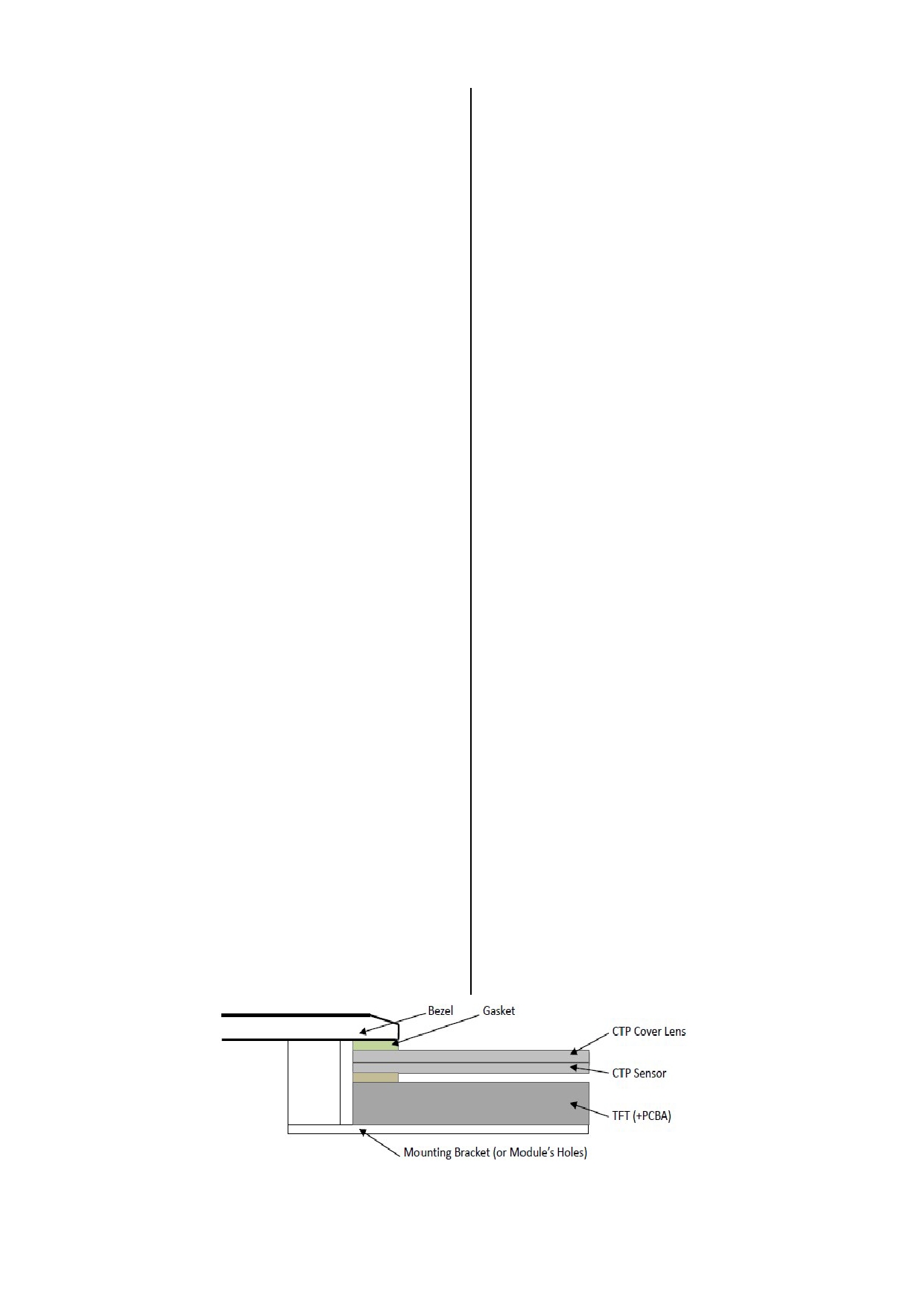

9.1 Bezel Mounting (Figure 1)

- 建议必要时在背面提供附加支架(例如无安装结构的薄

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

- The bezel window should be bigger than the CTP

active area. It should be ≥ 0.5mm each side.

- Gasket should be installed between the bezel and the

- 安装结构应具有足够的强度，以防止外部不均匀力或

扭曲力作用到模块上.

The final gap should be about 0.5~1.0mm.

- It is recommended to provide an additional support

bracket for backside support when necessary (e.g. slim

type TFT module without mounding structure). They

should only provide appropriate support and keep the

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

9.2 嵌入安装（附图 2）

9.2 Surface Mounting (Figure 2)

- 客户面框应具有使用双面胶粘贴 CTP 的结构沉台面，

- As the CTP assembling on the countersink area with

其粘贴面要求平整且洁净无污以保证粘贴牢靠.

double side adhesive.

The countersink area should be flat and clean to

ensure the double side adhesive installation result.

- 考虑到制作误差，建议面框与 CTP 盖板之间四周留有

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each

side) around the cover lens for tolerance.

- 建议必要时在背面提供垫有胶垫附加支架(例如无安装

- It is recommended to provide an additional support

结构的 TFT 模块)，应仅利用适当支撑以保持模块位

bracket with gasket for backside support when

TFT module without mounding

structure). They should only provide appropriate

- 安装结构应具有足够的强度，以防止外部不均匀力或

support and keep the module in place.

扭曲力作用到模块上。

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

9.3 覆加盖板（附图 3）

Additional Cover Lens Mounting (Figure 3)

- 需要覆加玻璃盖板的安装，为确保其功能，有必要查

- For the case of additional cover Lens mounting, it is

看产品规格书中有关盖板材料和厚度的说明.

necessary to recheck with the CTP specification about

the material and thickness to ensure the functionality.

- 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间隙.

- It should keep a 0.2~0.3mm gap between the cover

lens and the CTP surface..

- 玻璃盖板视窗应大于 CTP 动作区域，各边离动作区应

- The cover lens window should be bigger than the

active area of the CTP.It should be ≥ 0.5mm each side. - 建议必要时在背面提供附加支架(例如无安装结构的薄

- It is recommended to provide an additional support

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

bracket for backside support when necessary (e.g. slim

type TFT module without mounding structure). They

should only provide appropriate support and keep the - 安装结构应具有足够的强度，以防止外部不均匀力或

扭曲力作用到模块上.

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

10. RTP Mounting Instructions

10. 电阻触摸屏安装指导

- 为避免面框直接压在动作区(A.A.)上造成误动作，面框

- It should bezel touching the RTP Active Area (A.A.) to

与电阻触摸屏(RTP)之间应留有一定的空隙

prevent abnormal touch.It should left gab

D=0.2~0.3mm 之间.(附图 4)

D=0.2~0.3mm in between. (Figure 4)

- Outer bezel design should take care about the area

- 设计面框时，要注意用面框保护触摸屏四周的非保证操

outside the A.A. Those areas contain circuit wires

作区域，因为布线区域在此处形成一台阶，在此区域

which is having different thickness. Touching those

附近操作时 ITO Film 变形较大，容易导致 ITO 损坏而

areas could de-form the ITO film. As a result bezel the

降低寿命。为保护 RTP 和避免误操作，在 RTP 与面框

ITO film be damaged and shorten its lifetime.

之间垫缓冲物（Gasket），我们建议设计面框应覆盖

It is suggested to protect those areas with gasket

动作区的边缘，面框边缘到 V.A.区的距离 B≥0.50mm;

(between the bezel and RTP).The suggested figures

垫圈内边缘到 V.A.区的距离 C≥0.50mm. (附图 4)

are B≥0.50mm; C≥0.50mm. (Figure 4)

- The bezel side wall should keep space E= 0.2 ~ 0.3mm - 在设计面框与 RTP 组装时，应考虑到面框内侧与 RTP 外

from the RTP. (Figure 4)

侧的间距 E≥0.2mm. (附图 4)

- In general design,

- 通常设计时：

RTP V.A. should be bigger than the TFT V.A.

RTP 的可视区 V.A. 应不小于 TFT 的可视区 V.A.

and RTP A.A. should be bigger than the TFT A.A.

及 RTP 的动作区 A.A. 应不小于 TFT 的动作区 A.A.

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1

LCD Module User Manual

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general

electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control

equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to

human life and where extremely high levels of reliability are required. If the product is to be used in any of the above

applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of our

product to our assembly with exception to those issues relating directly to the structure or method of manufacturing of

URL: www.topwaydisplay.com

Document Name:LMT080TDGP01-Manual-Rev0.1
