LMT101DNLFWD-NND-1

LMT101DNLFWD-NND-1

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Raoyao

Date: 2020-03-25

Date:

Rev. Descriptions

Editor

Release Date

0.1

Preliminary release

2019-09-12

0.2

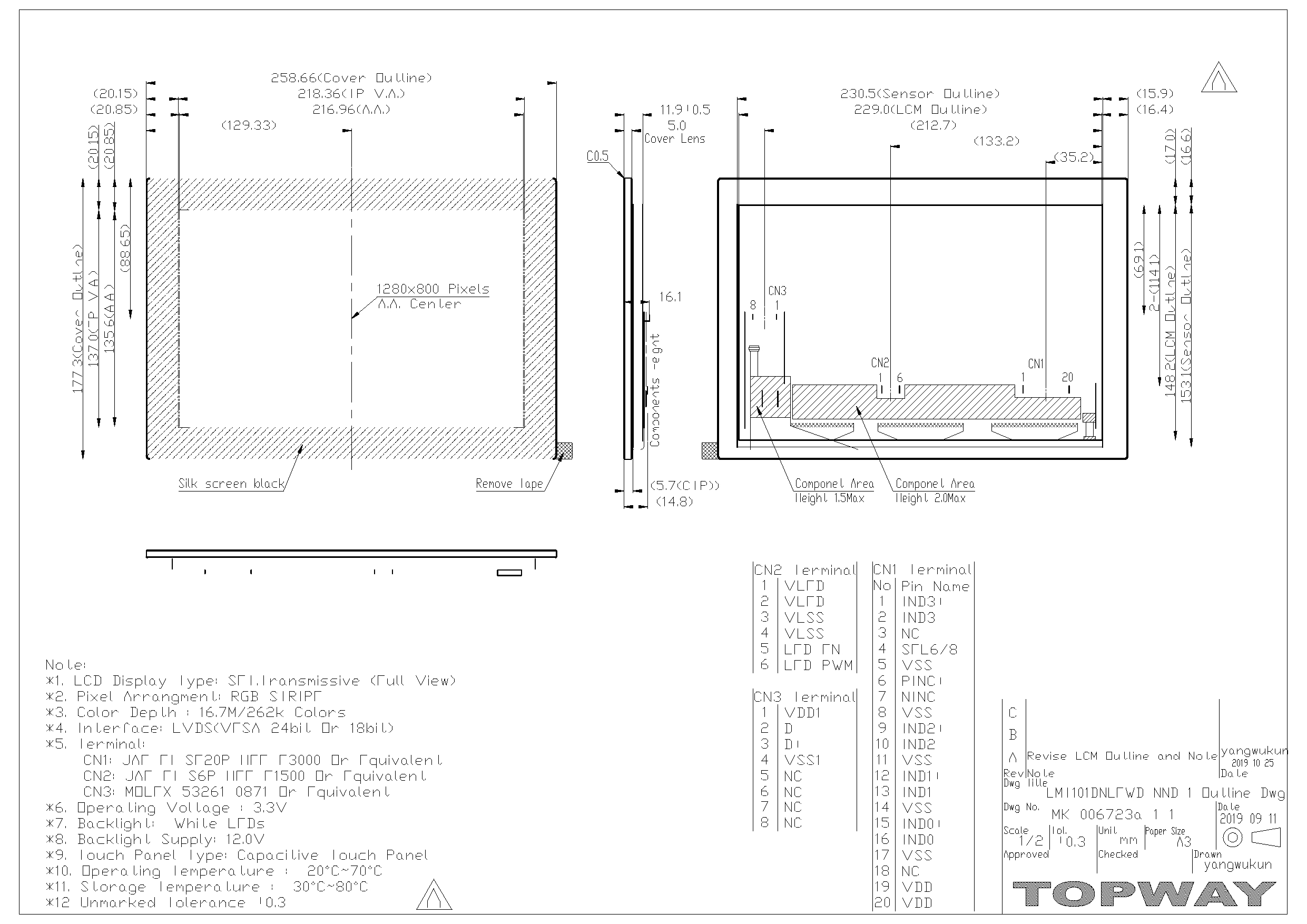

Add outline drawing and installation precautions

raoyao

2020-03-25

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 1 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

Table of Content

1. General Specification ............................................................................................................................... 3

2. Input/Output Terminals ............................................................................................................................ 4

3. Absolute Maximum Ratings .................................................................................................................... 5

4. Electrical Characteristics ........................................................................................................................ 6

5. Timing Chart ............................................................................................................................................... 9

6. Optical Characteristics .......................................................................................................................... 12

7. Environmental / Reliability Test ........................................................................................................... 15

8. LCD Module Design and Handling Precautions .............................................................................. 16

9. CTP Mounting Instructions ................................................................................................................... 17

10. RTP Mounting Instructions ................................................................................................................. 19

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 2 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

1. General Specification

1.1 Display Spec & Electrical Characteristics

Feature

Spec

Size

10.1 inch

Resolution

1280(RGB) x 800

Technology Type

Display Spec.

Pixel Configuration

R.G.B. Vertical Stripe

Pixel Pitch (mm)

0.178x0.178

Display Mode

Normally Black

Surface Treatment(Up Polarizer)

Viewing Direction

All direction

LCM (W x H x D) (mm)

258.66x177.30x15.45

Active Area(mm)

216.96x135.60

Mechanical

With /Without TSP

With CTSP

CN1:JAE FI-SE20P-HFE-E3000

Characteristics

Matching Connection Type

CN2:JAE FI-S6P-HFE-E1500

CN3:MOLEX 53261-0871

Weight (g)

TBD

Electrical

Interface

LVDS, 6/8bit selectable

Characteristics Color Depth

262K/16.7M

Note 1: Viewing direction for best image quality is different from TFT definition, there is a 180 degree shift.

Note 2 : Requirements on Environmental Protection: Q/S0002

Note 3 : LCM weight tolerance : +/- 5%

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 3 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

2. Input/Output Terminals

2.1TFT LCD Panel

CN1:JAE FI-SE20P-HFE-E3000

Symbol

I/O

Description

Comment

IND3+

I Positive LVDS Differential data input(3)

IND3-

I Negative LVDS Differential data input(3)

- No Connection

6bit/8bit mode select

SEL6/8

H : 6-bit mode

L : 8-bit mode

VSS

P Power Ground

PINC+

I Positive LVDS Differential clock input

NINC-

I Negative LVDS Differential clock input

VSS

P Power Ground

IND2+

I Positive LVDS Differential data input(2)

IND2-

I Negative LVDS Differential data input(2)

VSS

P Power Ground

IND1+

I Positive LVDS Differential data input(1)

IND1-

I Negative LVDS Differential data input(1)

VSS

P Power Ground

IND0+

I Positive LVDS Differential data input(0)

IND0-

I Negative LVDS Differential data input(0)

VSS

P Power Ground

- No Connection

VDD

P Power Supply

VDD

P Power Supply

CN2:JAE FI-S6P-HFE-E1500

Symbol

I/O

Description

Comment

VLED

P Backlight power supply

VLED

P Backlight power supply

VLSS

P VLED Ground

VLSS

P VLED Ground

LED_EN

I Backlight on/off control

LED_PWM

I Backlight dimming control

CN3:MOLEX 53261-0871

Symbol

I/O

Description

Comment

VDD1

P Power for ctp

D-

I/O USB data- pin

D+

I/O USB data+ pin

VSS1

P Power Ground

- No Connection

Note: I/O definition: I-----Input

O-----output

P----Power/Ground

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 4 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

3. Absolute Maximum Ratings

3.1Driving TFT LCD Panel

GND=0V

Item

Symbol

MIN

MAX

Unit

Remark

Voltage Input

Vin

-0.50

5.00

Note1

Operating Temperature

T op

-20.0

70.0

℃

Storage Temperature

T st

-30.0

80.0

℃

≤ 95

Ta ≤ 40 ℃

Relative Humidity

≤ 85

40 ℃＜ Ta ≤ 50 ℃

(Note2)

≤ 55

50 ℃＜ Ta ≤ 60 ℃

≤ 36

60 ℃＜ Ta ≤ 70 ℃

≤ 24

70 ℃＜ Ta ≤ 80 ℃

Absolute Humidity

≤ 70

g/m ³

Ta ＞ 70 ℃

Table 3.1 absolute maximum rating

Note1: Input voltage include Rxin0-/+, Rxin1-/+, Rxin2-/+, Rxin3-/+, RxCLK-/+, SEL6/8,VDD.

Note2: Ta means the ambient temperature.

It is necessary to limit the relative humidity to the specified temperature range.

Condensation on the module is not allowed.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 5 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

4. Electrical Characteristics

4.1 Driving TFT LCD Panel

VCC=3.3V, GND=0V, Ta=25 ℃

Item

Symbol

MIN

TYP

MAX

Unit

Remark

Power supply Voltage

VDD

3.00

3.30

3.60

Power supply ripple

Vp-p

100

Power supply current

IDD

280

Power consumption

924

Note1

Differential input voltage

|Vid|

200

600

Differential input common

Vcom

1.2

voltage

Differential

Low level

VTL

-100

input threshold

voltage

High level

VTH

100

Inrush current

Irush

1.5

Table 4.1 LCD module electrical characteristics

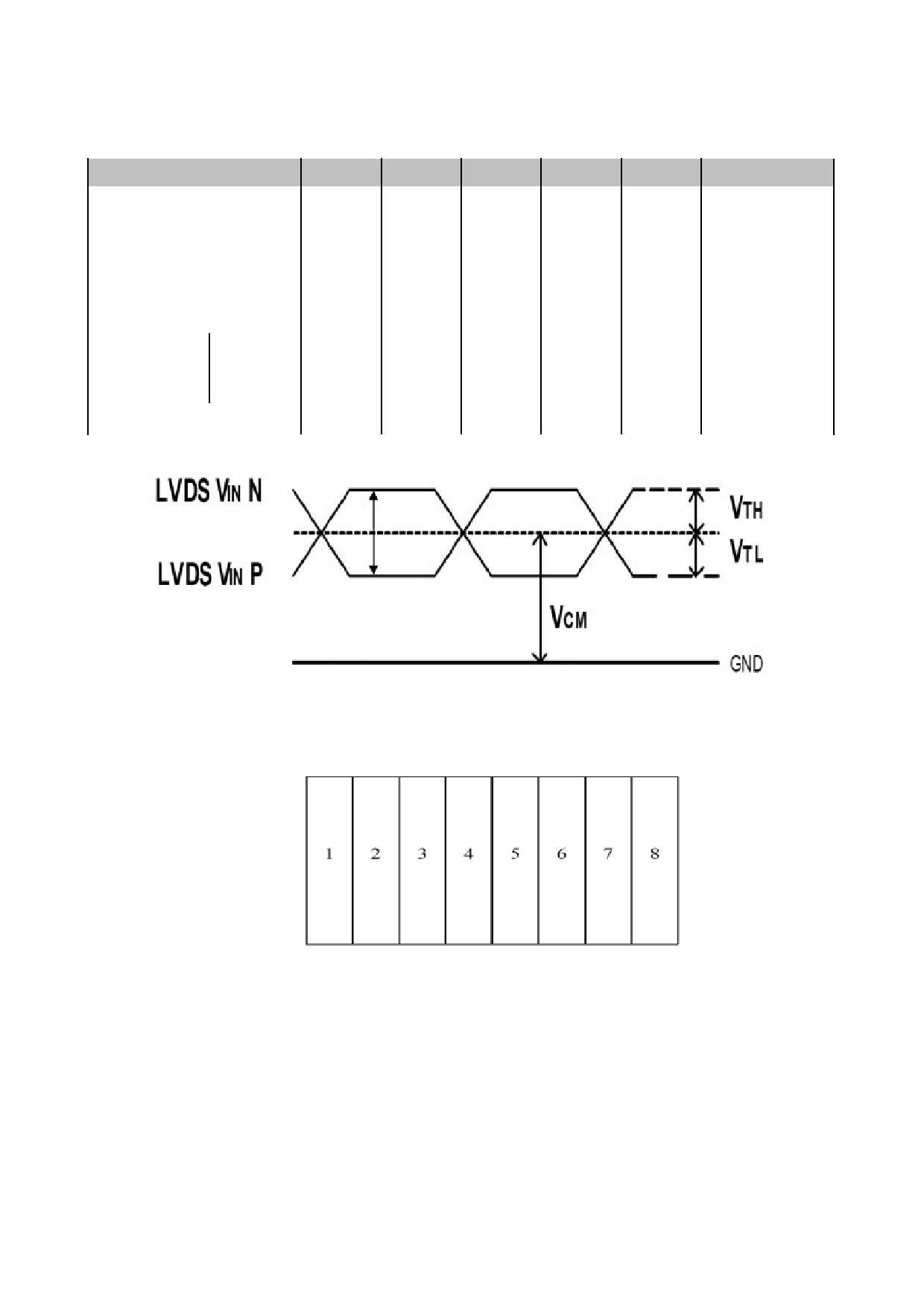

Figure4.1.1 LVDS DC characteristics

Note1: To test the current dissipation, using the “color bar” testing pattern shown as below:

1. White

2. Yellow

3. Cyan

4. Green

5. Magenta

6. Red

7. Blue

8. Black

Figure 4.1.2 Current dissipation testing pattern

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 6 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

4.2 Driving Backlight

Ta=25 ℃

Item

Symbol Min

Typ

Max

Unit

Remark

Backlight power supply voltage

VLED 11.5

12.5

Backlight power supply current

I_LED

TBD

Backlight power consumption

P_LED

TBD

Input voltage for High level

2.0

5.0

VLED_PWM

signal

Low level

0.4

Input voltage for

High level

2.0

5.0

VLED_EN

Low level

0.4

VLED_PWM frequency

Fpwm 200

20k

VLED_PWM duty

100

Note1

Operating Life Time

50000

hrs

Note2

Note 1: According to LED driver IC characteristics, the minimum value of VELD_PWM duty may vary with

VLED_PWM frequency, higher the frequency, bigger the duty.

Note 2: Optical performance should be evaluated at Ta=25 ℃ only.If LED is driven by high current, high

ambient temperature & humidity condition.The life time of LED will be reduced.

Operating life means brightness goes down to 50% of initial brightness.Typical operating life time is

estimated data.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 7 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

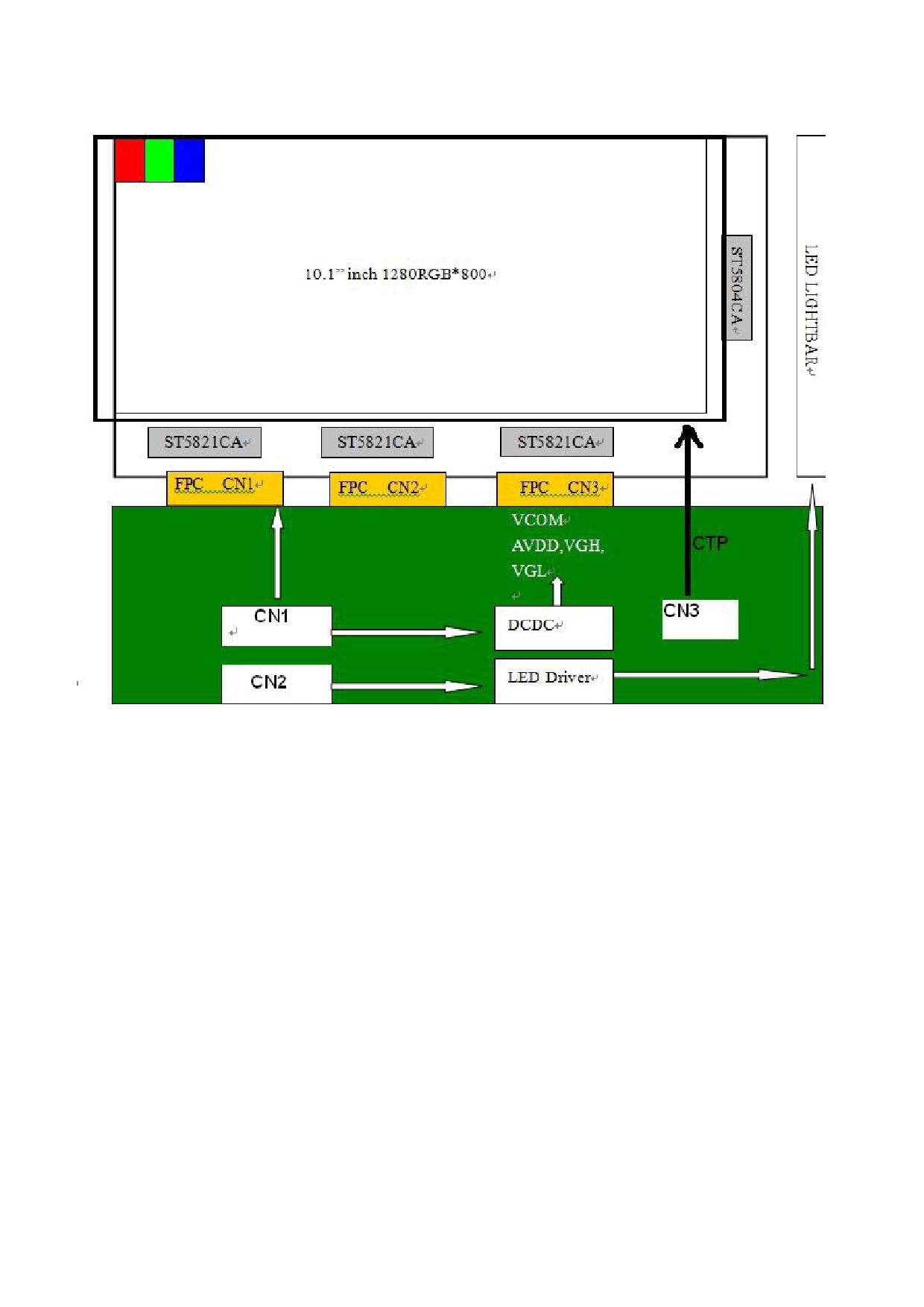

4.3 Block Diagram

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 8 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

5. Timing Chart

5.1 LVDS signal timing characteristics

VCC=3.3V, GND=0V, Ta=25 ℃

Parameter

Symb

Min

Typ

Max

Unit

Remark

CLK frequency

1/t clk

62.6 68.2

78.1

MHz

Horizontal blanking time

tHBT

164

t clk

thbp + tHFP

Horizontal back porch

tHBP

164- tHFP

t clk

Horizontal display area

tHD

1280

t clk

Horizontal front porch

tHFP

159

t clk

Horizontal period

1300 1349

1444

t clk

Horizontal pulse width

tHPW

256

t clk

Vertical blanking time

tVBT

101

tVBP + tVFP

Vertical back porch

tVBP

101- tVFP

Vertical display area

tVD

800

Vertical front porch

tVFP

Vertical period

803

842

901

Vertical pulse width

tVPW

128

Frame Rate

Table 5.1 timing parameter

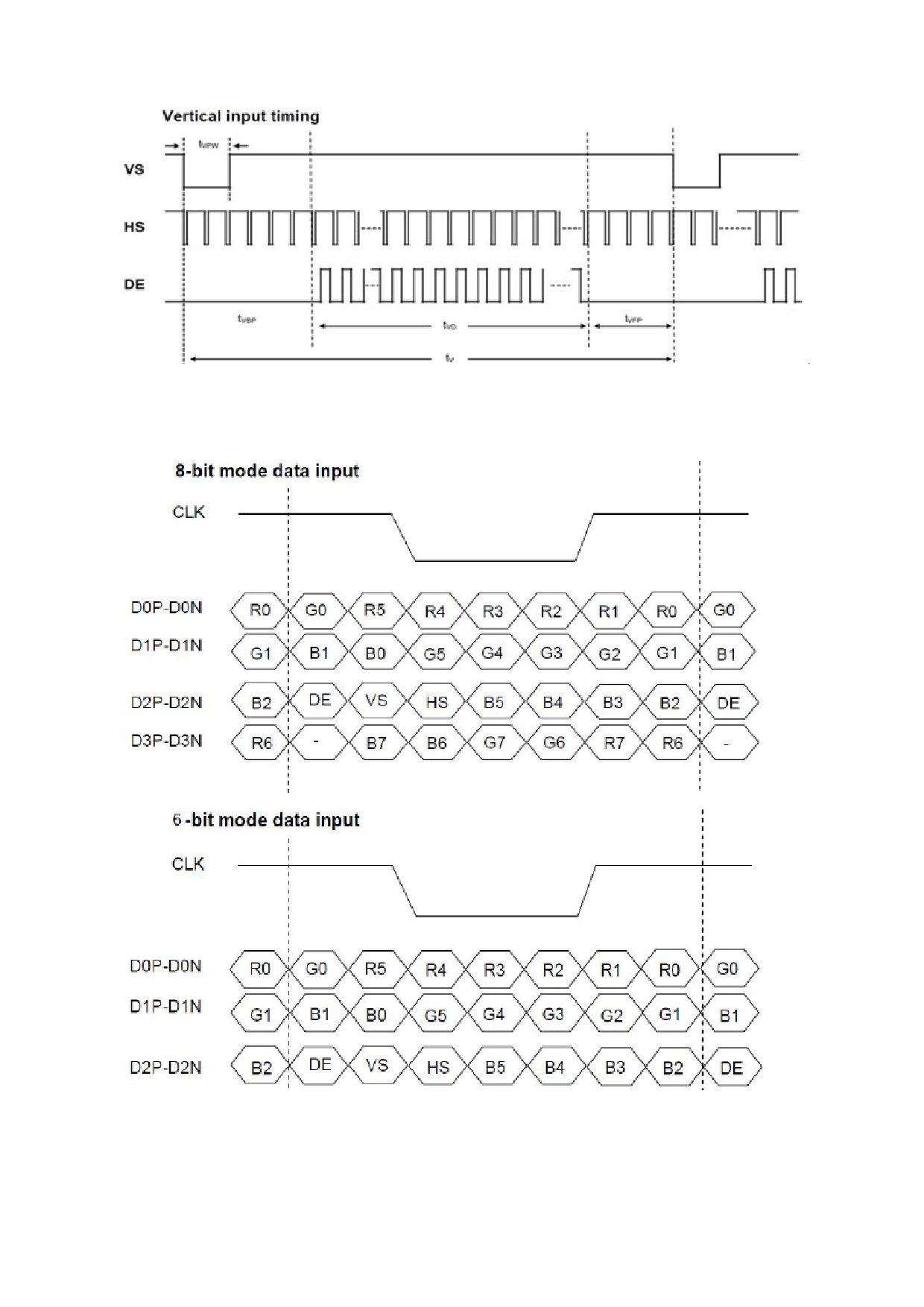

5.2 Input Clock and Data timing Diagram:

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 9 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

Figure 5.2 Input signal data timing

5.3 LVDS data input format

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 10 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

5.4 Power On/Off Sequence

Item

Symbol

Min

Typ

Max

Unit

Remark

VDD on to VDD stable

Tp1

0.5

VDD stable to signal on

Tp2

Signal on to VLED_EN on

Tp3

200

PWM on to VLED_EN on

Tp4

200

VLED to PWM on

Tp5

VLED on to VELD stable

Tp6

0.5

VDD off time

Tp7

VDD off to next VDD on

Tp8

500

Signal off before VDD off

Tp9

VLED_EN off before signal off

Tp10

200

VLED_EN off before PWM off

Tp11

200

PWM off before VLED off

Tp12

Table 5.1 Power on/off sequence

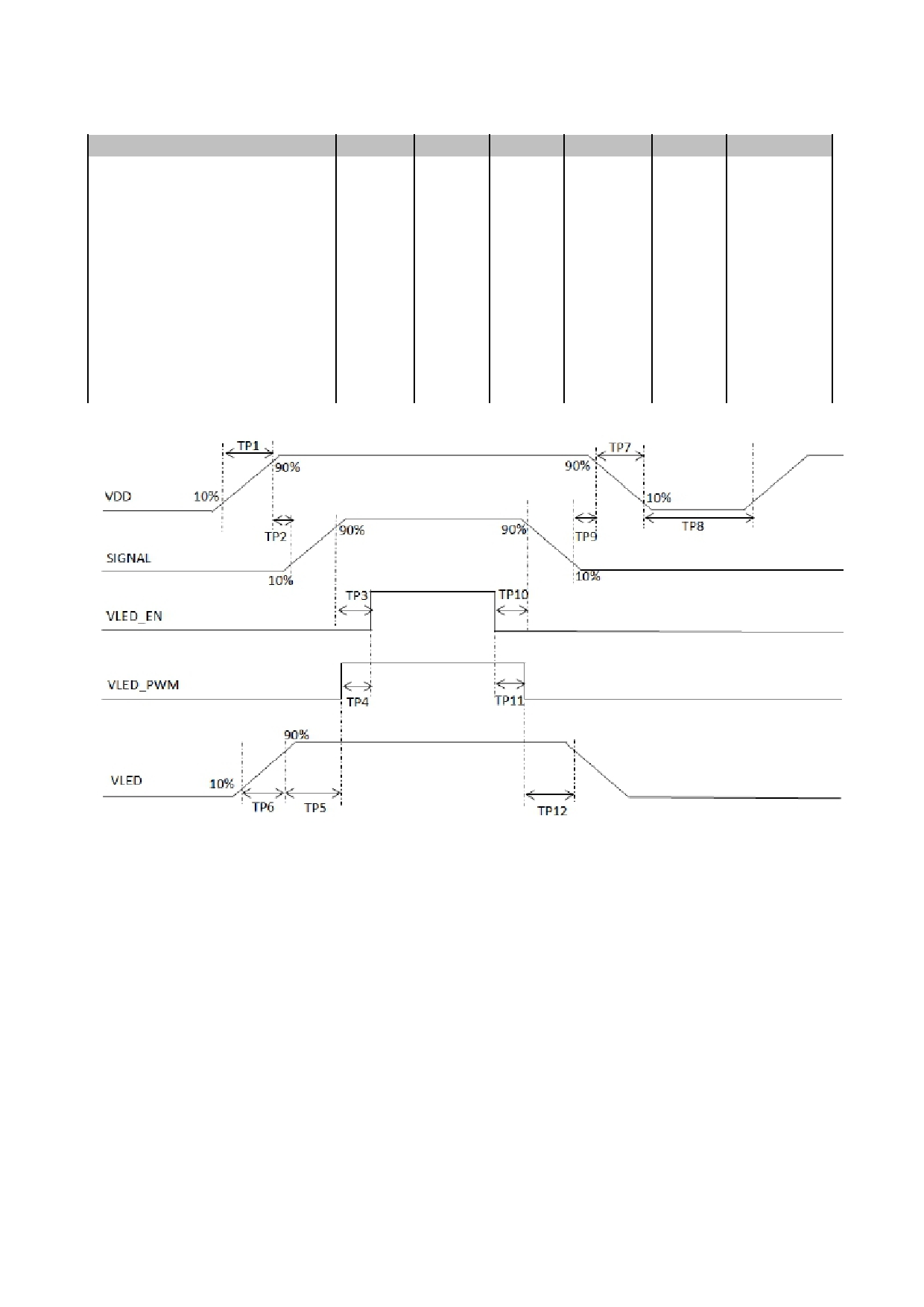

Figure 5.2 Interface power on/off sequence

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 11 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

6. Optical Characteristics

6.1 Optical Specification

Ta=25 ℃

Item

Symbol Condition

Min

Typ

Max

Unit

Remark

θT

View Angles

θB

CR ≧ 10

Degree Note 2

θL

θR

Contrast Ratio

θ=0°

600

800

Note1

Note3

Response Time

T ON+ T OFF

25 ℃

Note1

Note4

0.252

0.302

0.352

White

0.277

0.327

0.377

0.532

0.582

0.632

Red

Chromaticity

Backlight is

Note5

0.274

0.324

0.374

0.300

0.350

0.400

Note1

Green

0.532

0.582

0.632

0.104

0.154

0.204

Blue

0.044

0.094

0.144

Uniformity

Note1

Note6

NTSC

Note 5

Luminance

850

Note1

cd/m

Note7

Test Conditions:

1. The ambient temperature is 25±2 ℃ .humidity is 65±7%

2. The test systems refer to Note 1 and Note 2.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 12 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

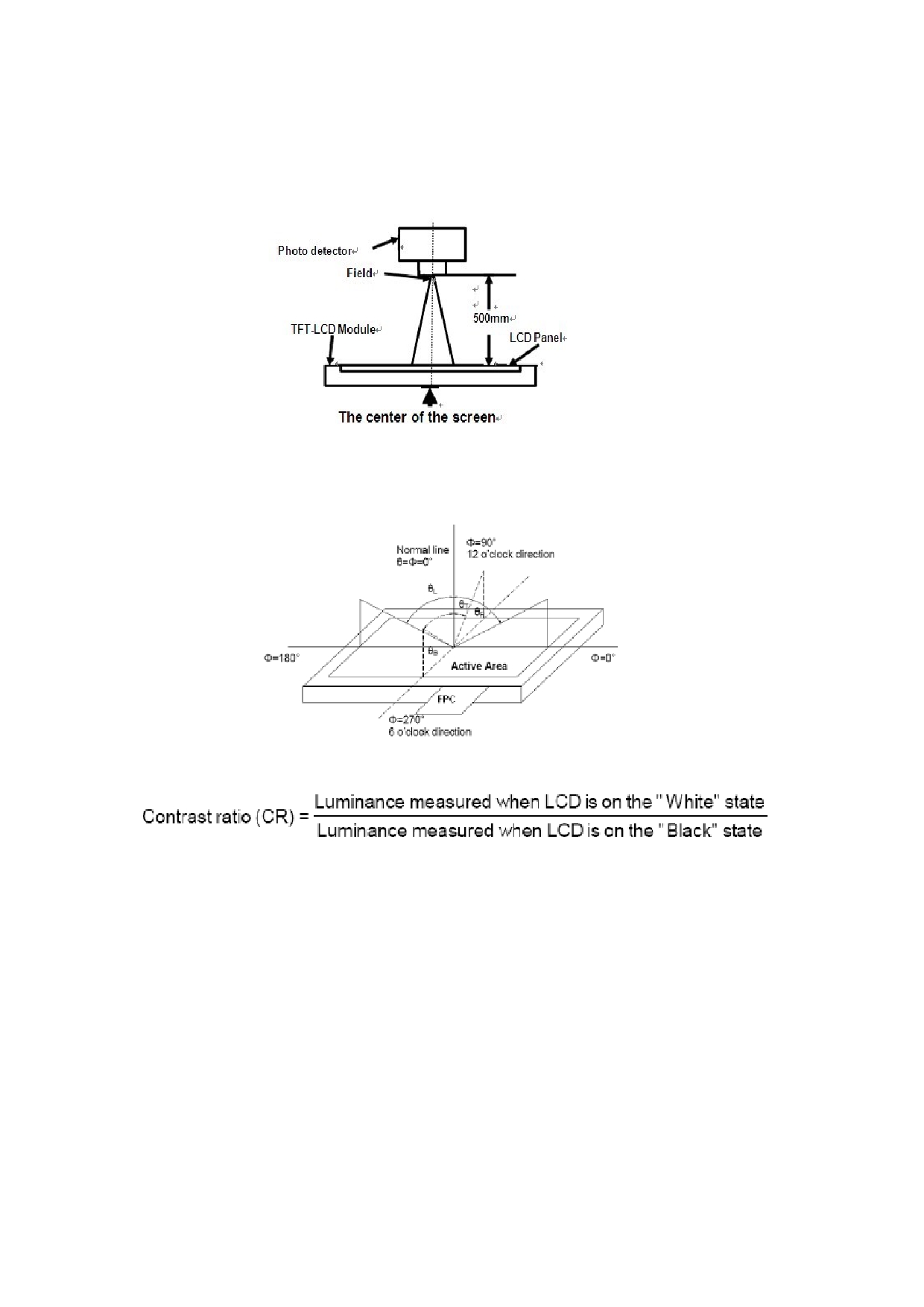

Note 1: Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

Note 2: Definition of viewing angle range and measurement system.

viewing angle is measured at the center point of the LCD.

Note 3:Definition of contrast ratio

“White state”: The state is that the LCD should driven by Vwhite.

“Black state”: The state is that the LCD should driven by Vblack.

Vwhite: To be determined

Vblack: To be determined.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 13 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

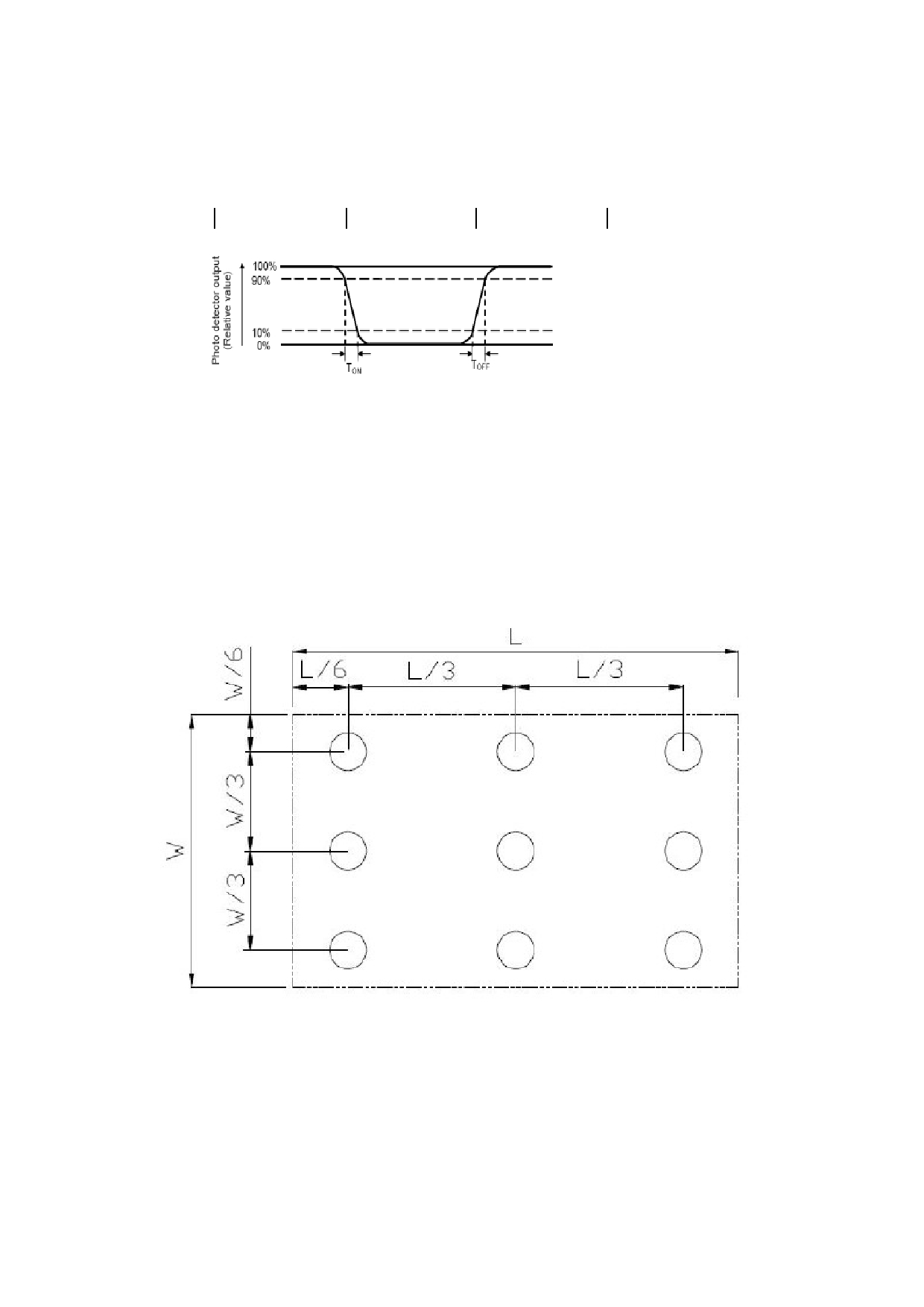

Note 4:Definition of Response time

The response time is defined as the LCD optical switching time interval between “White” state and “Black”

state. Rise time (TON) is the time between photo detector output intensity changed from 90% to 10%. And

fall time (TOFF) is the time between photo detector output intensity changed from 10% to 90%.

White (TFT off) Black (TFT on) White (TFT off)

Note 5: Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

Note 6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

L-------Active area length

W----- Active area width

Luminance Uniformity (U) = Lmin/ Lmax

Lmax: The measured Maximum luminance of all measurement position.

Lmin: The measured Minimum luminance of all measurement position.

Note 7: Definition of Luminance:

Measure the luminance of white state at center point.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 14 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

7. Environmental / Reliability Test

Test Item

Condition

Remark

High Temperature Ts=+70 ℃ , 240hrs

(Note1)

Operation

IEC60068-2-1:2007,GB2423.2-2008

Low Temperature

Ta=-20 ℃ , 240hrs

IEC60068-2-1:2007

Operation

GB2423.1-2008

High Temperature Ta=+80 ℃ , 240hrs

IEC60068-2-1:2007

Storage

GB2423.2-2008

(non-operation)

Low Temperature

Ta=-30 ℃ , 240hrs

IEC60068-2-1:2007

Storage

GB2423.1-2008

(non-operation)

High Temperature & Ta = +60 ℃ , 90% RH

(Note2)

High Humidity

max,240

IEC60068-2-78 :2001

Operation

hours

GB/T2423.3—2006

-30 ℃ 30 min~+80 ℃ 30 min, Start with cold temperature,

Thermal Shock

(non-operation)

Change time:5min,100cycles End with high temperature,

IEC60068-2-14:1984,GB2423.22-2002

Electro Static

C=150pF,R=330Ω;

IEC61000-4-2:2001

Discharge

Contact:±4Kv, 5times;

GB/T17626.2-2006

(operation)

Air: ± 8KV,5times;

Frequency range:10 ～ 55Hz,

Stroke:1.5mm

Vibration

IEC60068-2-6:1982

(non-operation)

Sweep:10Hz ～ 55Hz ～ 10Hz

GB/T2423.10—1995

2hours for each direction of

X.Y.Z (6 hours total)

Shock

60G 6ms, ±X,±Y,±Z 3 times IEC60068-2-27:1987

(non-operation)

for each direction

GB/T2423.5—1995

10 Package Drop Test

Height:80 cm,1 corner, 3

IEC60068-2-32:1990

edges, 6 surfaces

GB/T2423.8—1995

Note1: Ts is the temperature of panel’s surface.

Note2: Ta is the ambient temperature of sample.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 15 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

8. LCD Module Design and

Handling Precautions

8. 液晶显示模块设计和使用须知

- Please ensure V0, VCOM is adjustable, to enable LCD

- 请注意 V0, VCOM 的设定, 以确保液晶显示模块在不同

module get the best contrast ratio under different

的使用温度下以及在不同的视角和位置观察模块显

temperatures, view angles and positions.

示，均能达到最佳对比度，请务必将应用电路上设置

- Normally display quality should be judged under the

为对比度可调。

best contrast ratio within viewable area. Unexpected - 请注意液晶显示模块的显示品质判定是指在正常对比

display pattern may com out under abnormal contrast

度下以及视窗(V.A)范围内进行的，非正常对比度下液

ratio.

- Never operate the LCD module exceed the absolute

晶可能会出现非预期的显示不良，应注意区分。

maximum ratings.

- 请勿在最大额定值以外使用液晶显示模块。

- Never apply signal to the LCD module without power

supply.

- 请勿在没有接通电源的条件下，给液晶显示模块输送

- Keep signal line as short as possible to reduce external

信号。

noise interference.

- 请尽可能缩短信号线的连接，以避免对液晶显示模块

- IC chip (e.g. TAB or COG) is sensitive to light. Strong

的信号干扰。

light might cause malfunction. Light sealing structure

- 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线极为敏

casing is recommended.

感，强光环境下可能会引起液晶显示模块功能失效，

- Make sure there is enough space (with cushion)

故应采用不透光的外壳。

between case and LCD panel, to prevent external force - 请在液晶显示模块与外壳之间保留足够的空间(可使用

passed on to the panel; otherwise that may cause

衬垫)，以缓冲外力对液晶显示模块的损坏或因受力不

damage to the LCD and degrade its display result.

- Avoid showing a display pattern on screen for a long

均而产生的显示不匀等异常现象。

time (continuous ON segment).

- 避免液晶显示屏在某一画面下长时间点亮，否则有出

- LCD module reliability may be reduced by temperature

现残影的风险；请通过软件每隔一段时间改变一次画

shock.

- When storing and operating LCD module, avoids

面。

exposure to direct sunlight, high humidity, high or low - 液晶显示模块的可靠性可能因温度冲击而降低。

temperature. They may damage or degrade the LCD - 请勿在阳光直射、高湿、高温或低温下储存和使用液

module.

晶显示模块，这将造成液晶显示模块的损坏或失效。

- Never leave LCD module in extreme condition

(max./min storage/operate temperature) for more than

48hr.

- 请勿在极限环境(最大/最小存储/工作温度)下使用或

- Recommend LCD module storage conditions is

放置液晶显示模块超过 48 小时以上。

0 C~40 C <80%RH.

- 液晶显示模块建议存储条件为: 0 C~40 C <80%RH 。

- LCD module should be stored in the room without acid,

alkali and harmful gas.

- 请勿让液晶显示模块存储于带有酸性, 碱性, 有害气

- Avoid dropping & violent shocking during

体环境之中。

transportation, and no excessive pressure press, - 在运输过程中, 请勿让液晶显示模块跌落与猛烈震动,

moisture and sunlight.

同时避免异常挤压, 高湿度, 与阳光照射.

- LCD module can be easily damaged by static

electricity. Please maintain an optimum anti-static

- 液晶显示模块极易受静电损坏，请务必保证液晶显示

working environment to protect the LCD module. (eg.

模块在防静电的工作环境中使用或保存。(如: 烙铁正

ground the soldering irons properly)

确接地,等)

- Be sure to ground the body when handling LCD

- 拿取液晶显示模块时需注意操作人员的接地情况。

module.

- Only hold LCD module by its sides. Never hold LCD

- 请手持液晶显示模块的边沿取放模块，防止热压纸或

module by applying force on the heat seal or TAB.

TAB 部位受力。

- When soldering, control the temperature and duration

- 焊接液晶模块时，请注意控制烙铁的温度、焊接时

avoid damaging the backlight guide or diffuser which

间，以免烫坏导光板或偏光片，导致显示不匀等不良

might degrade the display result such as uneven

display.

现象发生。

- Never let LCD module contact with corrosive liquids, - 请勿使用洗板水等腐蚀性液体接触液晶模块，以免腐

which might cause damage to the backlight guide or

蚀导光板或模块电路。

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 16 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

the electric circuit of LCD module.

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol

- 仅可使用柔软的干布, 异丙醇或乙醇清洁液晶屏表

or Ethyl Alcohol. Other solvents (e.g. water) may

damage the LCD.

面，其他任何溶剂(如:水)都有可能损坏液晶模块。

- Never add force to components of LCD module. It may - 请勿挤压液晶显示模块上的元器件，以避免产生潜在

cause invisible damage or degrade the module's

的损坏或失效而影响产品可靠性。

reliability.

- 装配液晶显示模块时，请务必注意避免液晶显示模块

- When mounting LCD module, please make sure it is

free from twisting, warping and bending.

的扭曲或变形。

- Do not add excessive force on surface of LCD, which - 请勿挤压液晶显示屏表面，这将导致显示颜色的异

may cause the display color change abnormally.

常。

- LCD panel is made with glass. Any mechanical shock

- 液晶屏由玻璃制作而成，任何机械碰撞(如从高处跌

(e.g. dropping from high place) will damage the LCD

module.

落)均有可能损坏液晶显示模块。

- Protective film is attached on LCD screen. Be careful

- 液晶屏表面带有保护膜, 揭除保护膜时需要注意可能

when peeling off this protective film, since static

electricity may be generated.

产生的静电。

- Polarizer on LCD gets scratched easily. If possible, do - 因液晶显示屏表面的偏光片极易划伤，安装完成之前

not remove LCD protective film until the last step of

installation.

请尽量不要揭下保护膜。

- When peeling off protective film from LCD, static - 请缓慢揭除保护膜，在此过程中液晶显示屏上可能会

charge may cause abnormal display pattern. The

产生静电线，此为正常情况，可在短时间内消失。

symptom is normal, and it will turn back to normal in a

short while.

- 请注意避免被液晶显示屏的边缘割伤。

- LCD panel has sharp edges, please handle with care.

- 请不要试图拆卸或改造液晶显示模块。

- Never attempt to disassemble or rework LCD module.

- If display panel is damaged and liquid crystal

- 当液晶显示屏出现破裂, 内部液晶液体可能流出; 相

substance leaks out, be sure not to get any in your

关液体不可吞吃, 绝对不可接触嘴巴, 如接触到皮肤

mouth, if the substance comes into contact with your

或衣服, 请使用肥皂与清水彻底清洗.

skin or clothes promptly wash it off using soap and

water.

9. CTP Mounting Instructions

9. 电容触摸屏安装指导

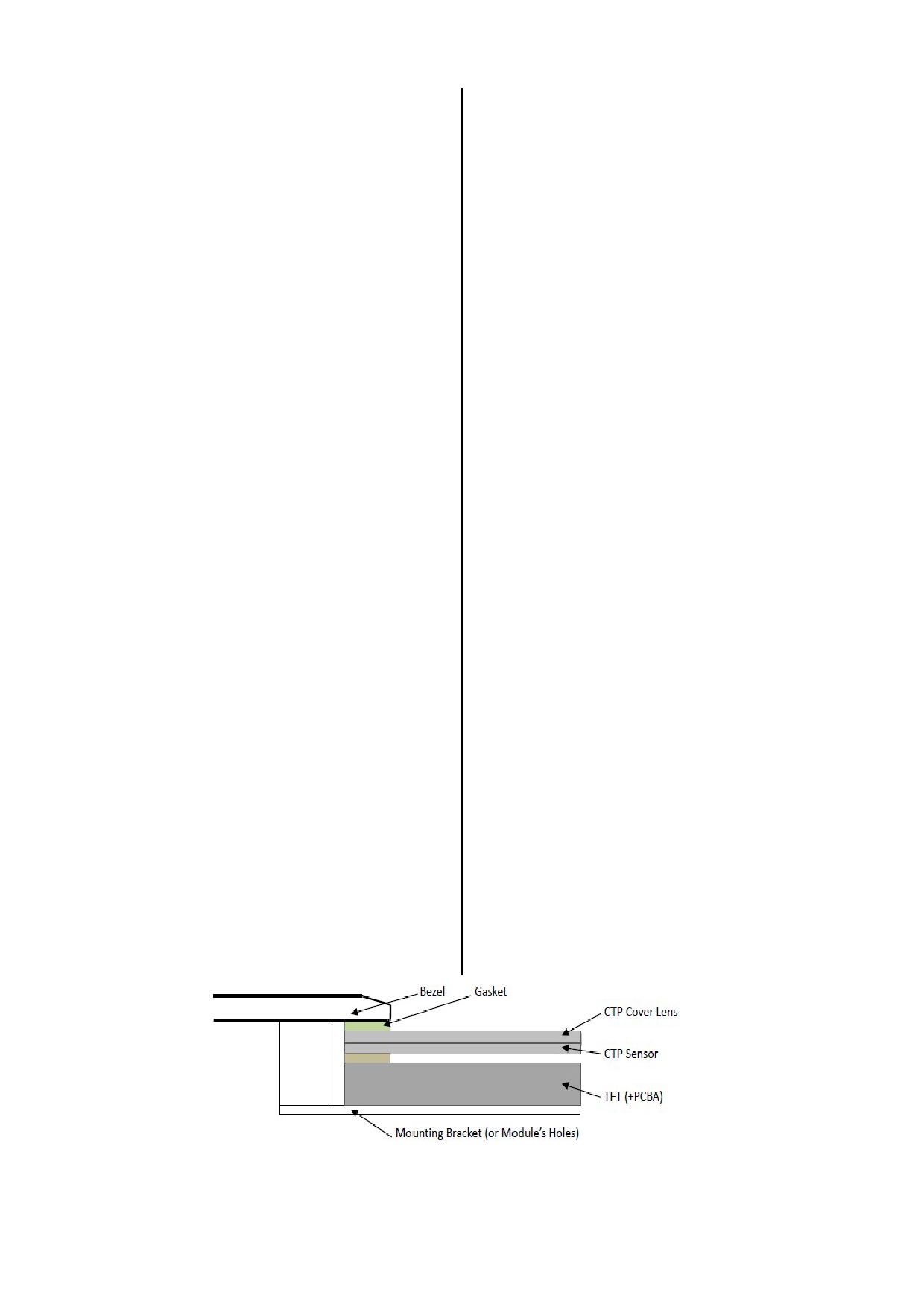

9.1 Bezel Mounting (Figure 1)

9.1 面框安装（附图 1）

- The bezel window should be bigger than the CTP

active area. It should be ≥ 0.5mm each side.

- 客户面框窗口应大于 CTP 动作区域，各边离动作区应

- Gasket should be installed between the bezel and the

≥0.5mm.

CTP

surface.

The final gap should be about 0.5~1.0mm.

- 面框与 CTP 面板间应垫有胶垫，其最终间隙约为 0.5～

- It is recommended to provide an additional support

1.0mm.

bracket for backside support when necessary (e.g. slim

type TFT module without mounding structure). They

- 建议必要时在背面提供附加支架(例如无安装结构的薄

should only provide appropriate support and keep the

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

module in place.

- 安装结构应具有足够的强度，以防止外部不均匀力或

- The mounting structure should be strong enough to

prevent external uneven force or twist act onto the

扭曲力作用到模块上.

module.

Figure

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 17 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

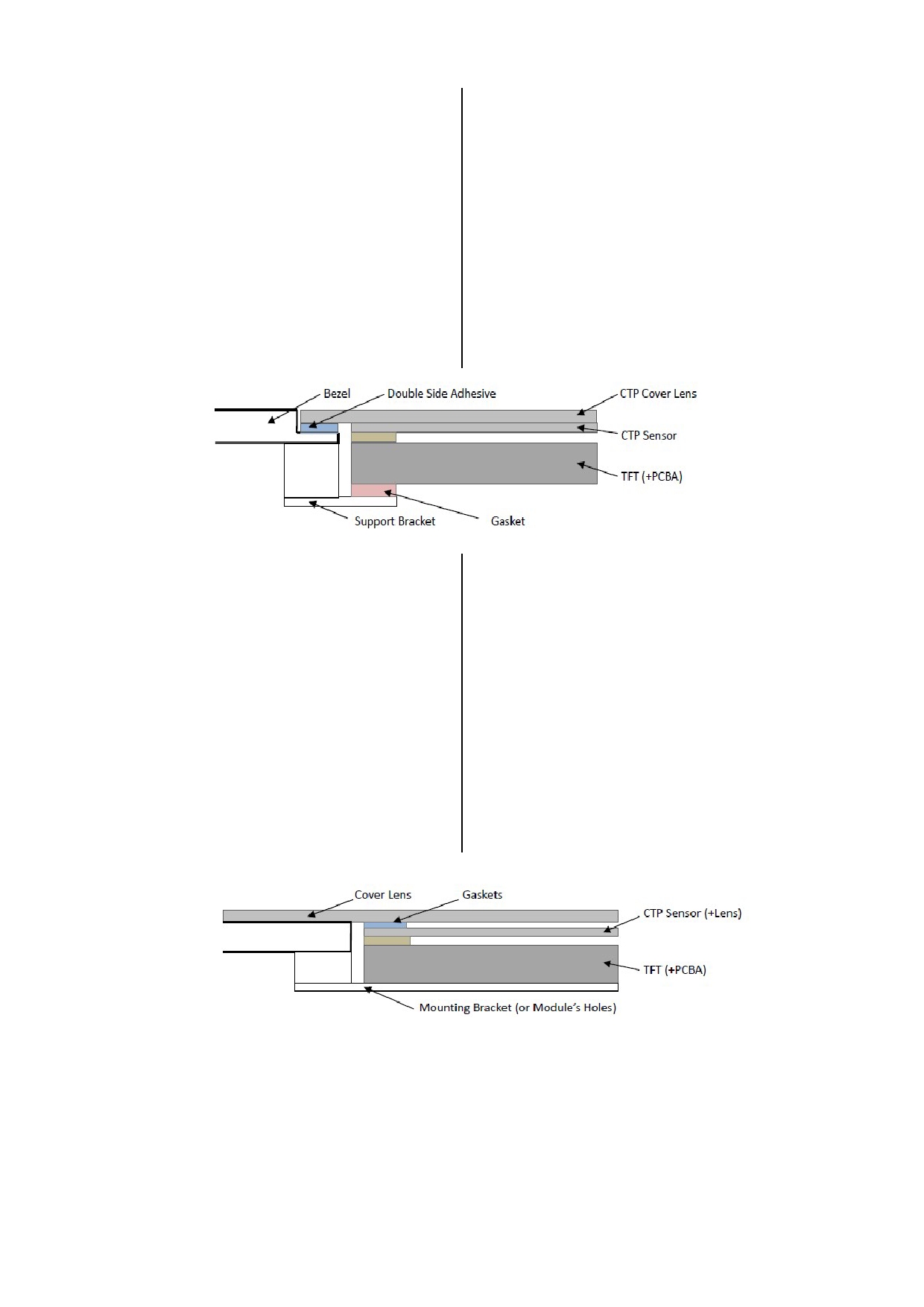

9.2 Surface Mounting (Figure 2)

9.2 嵌入安装（附图 2）

- As the CTP assembling on the countersink area with - 客户面框应具有使用双面胶粘贴 CTP 的结构沉台面，

double

side

adhesive.

其粘贴面要求平整且洁净无污以保证粘贴牢靠.

The countersink area should be flat and clean to

ensure the double side adhesive installation result.

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each - 考虑到制作误差，建议面框与 CTP 盖板之间四周留有

side) around the cover lens for tolerance.

≥0.3mm 间隙.

- It is recommended to provide an additional support - 建议必要时在背面提供垫有胶垫附加支架(例如无安装

bracket with gasket for backside support when

结构的 TFT 模块)，应仅利用适当支撑以保持模块位

necessary (e.g.

TFT module without mounding

置.

structure). They should only provide appropriate

support and keep the module in place.

- 安装结构应具有足够的强度，以防止外部不均匀力或

- The mounting structure should be strong enough to

扭曲力作用到模块上。

prevent external uneven force or twist act onto the

module

Figure 2

9.3 Additional Cover Lens Mounting (Figure 3)

9.3 覆加盖板（附图 3）

- For the case of additional cover Lens mounting, it is - 需要覆加玻璃盖板的安装，为确保其功能，有必要查

necessary to recheck with the CTP specification about

看产品规格书中有关盖板材料和厚度的说明.

the material and thickness to ensure the functionality.

- It should keep a 0.2~0.3mm gap between the cover - 玻璃盖板与 CTP 表面之间应留有 0.2～0.3mm 间隙.

lens and the CTP surface..

- The cover lens window should be bigger than the - 玻璃盖板视窗应大于 CTP 动作区域，各边离动作区应

active area of the CTP.It should be ≥ 0.5mm each side.

≥0.5mm。

- It is recommended to provide an additional support - 建议必要时在背面提供附加支架(例如无安装结构的薄

bracket for backside support when necessary (e.g. slim

型 TFT 模块)，应仅利用适当支撑以保持模块位置.

type TFT module without mounding structure). They

should only provide appropriate support and keep the

module in place.

- 安装结构应具有足够的强度，以防止外部不均匀力或

- The mounting structure should be strong enough to

扭曲力作用到模块上.

prevent external uneven force or twist act onto the

module.

Figure

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 18 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

10. RTP Mounting Instructions

10. 电阻触摸屏安装指导

- It should bezel touching the RTP Active Area (A.A.) to

- 为避免面框直接压在动作区(A.A.)上造成误动作，面框

prevent abnormal touch.It should left gab

与电阻触摸屏(RTP)之间应留有一定的空隙

D=0.2~0.3mm in between. (Figure 4)

D=0.2~0.3mm 之间.(附图 4)

- Outer bezel design should take care about the area

- 设计面框时，要注意用面框保护触摸屏四周的非保证操

outside the A.A. Those areas contain circuit wires

作区域，因为布线区域在此处形成一台阶，在此区域

which is having different thickness. Touching those

附近操作时 ITO Film 变形较大，容易导致 ITO 损坏而

areas could de-form the ITO film. As a result bezel the

降低寿命。为保护 RTP 和避免误操作，在 RTP 与面框

ITO film be damaged and shorten its lifetime.

之间垫缓冲物（Gasket），我们建议设计面框应覆盖

It is suggested to protect those areas with gasket

动作区的边缘，面框边缘到 V.A.区的距离 B≥0.50mm;

(between the bezel and RTP).The suggested figures

垫圈内边缘到 V.A.区的距离 C≥0.50mm. (附图 4)

are B≥0.50mm; C≥0.50mm. (Figure 4)

- The bezel side wall should keep space E= 0.2 ~ 0.3mm - 在设计面框与 RTP 组装时，应考虑到面框内侧与 RTP 外

from the RTP. (Figure 4)

侧的间距 E≥0.2mm. (附图 4)

Figure 4

- In general design,

- 通常设计时：

RTP V.A. should be bigger than the TFT V.A.

RTP 的可视区 V.A. 应不小于 TFT 的可视区 V.A.

and RTP A.A. should be bigger than the TFT A.A.

及 RTP 的动作区 A.A. 应不小于 TFT 的动作区 A.A.

(Figure 5)

(附图 5)

Figure 5

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 19 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND-1

Warranty

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from

general electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power

control equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct

risk to human life and where extremely high levels of reliability are required. If the product is to be used in any of the

above applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

product.

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

arise.

- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of

our product to our assembly with exception to those issues relating directly to the structure or method of

manufacturing of our product.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-1-Manual-Rev0.2.doc

Page: 20 of 20
