LMT101DNLFWD-NND

LMT101DNLFWD-NND

LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Liu Tihou

Date: 2016-12-17

Date:

Rev. Descriptions

Edit

Release Date

0.1

Preliminary release

2016-12-17

0.2

Update section 1

2019-10-11

0.3

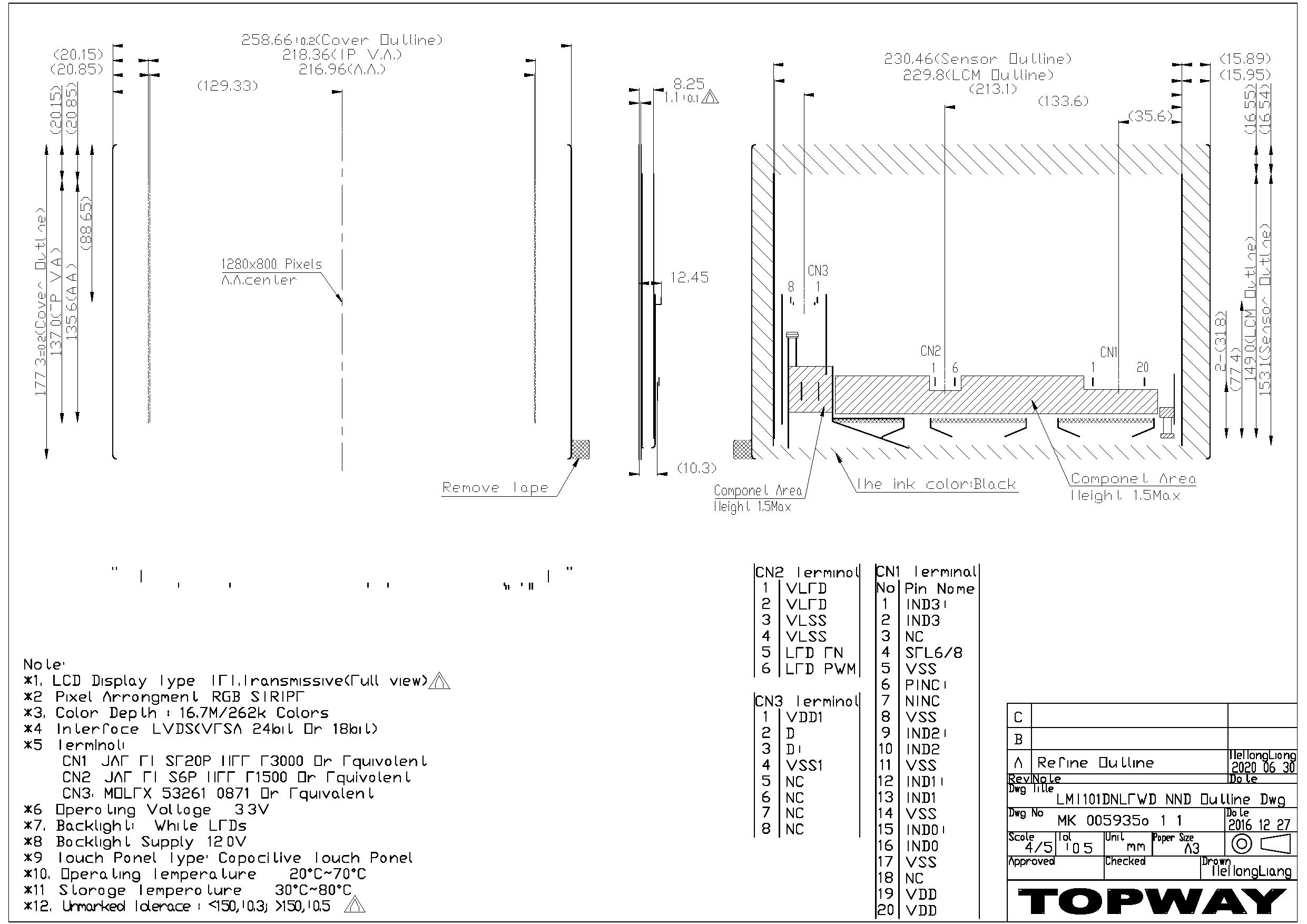

Update Outline

Song Mao 2020-07-07

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 1 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

Table of Content

1. General Specification ........................................................................................................................... 2

2. Input/Output Terminals ........................................................................................................................ 3

3. Absolute Maximum Ratings ................................................................................................................ 4

4. Electrical Characteristics ..................................................................................................................... 6

5. Timing Chart ............................................................................................................................................ 9

6. Optical Characteristics ....................................................................................................................... 12

7. Environmental / Reliability Test ....................................................................................................... 15

8. LCD Module Design and Handling Precautions .......................................................................... 16

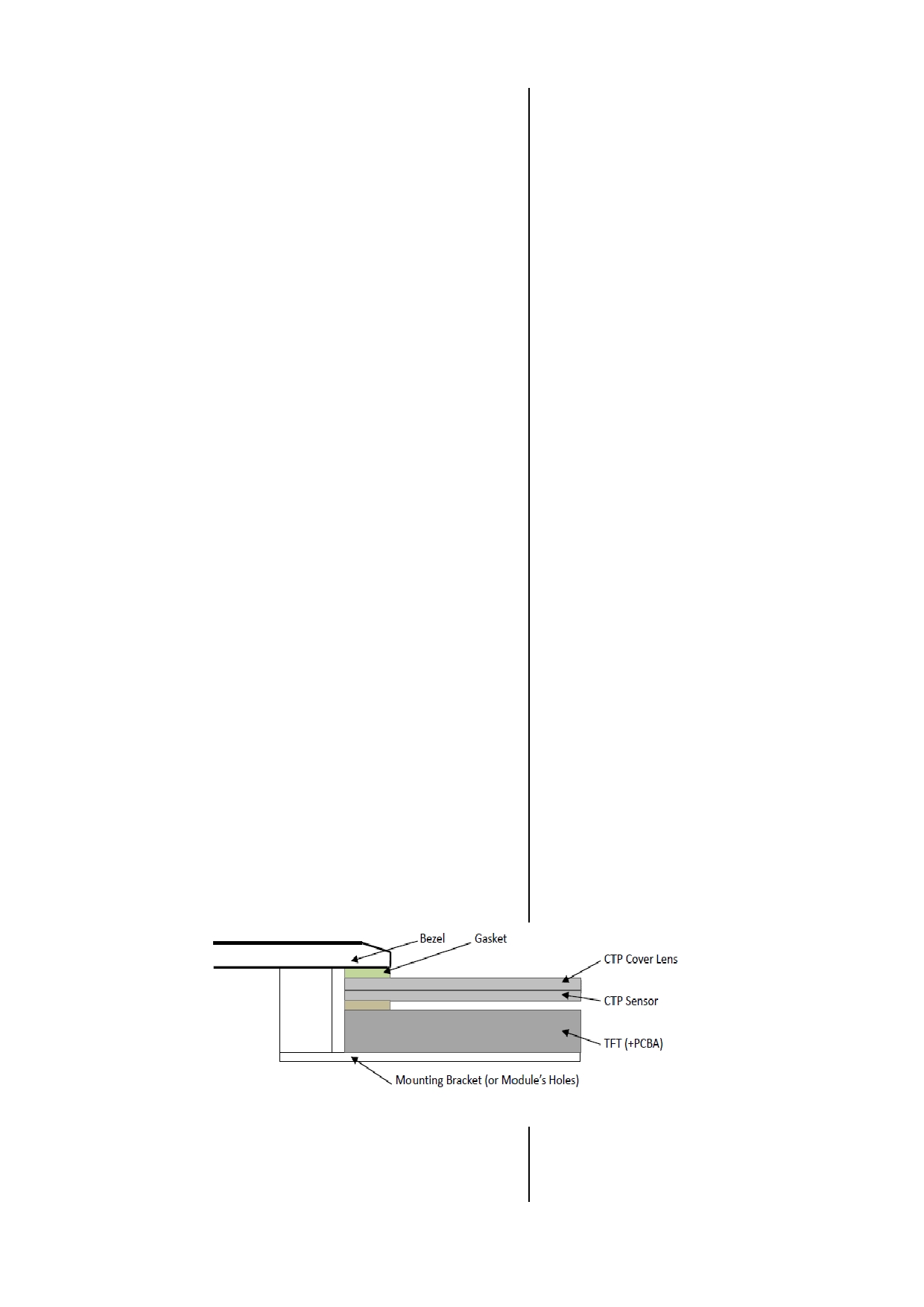

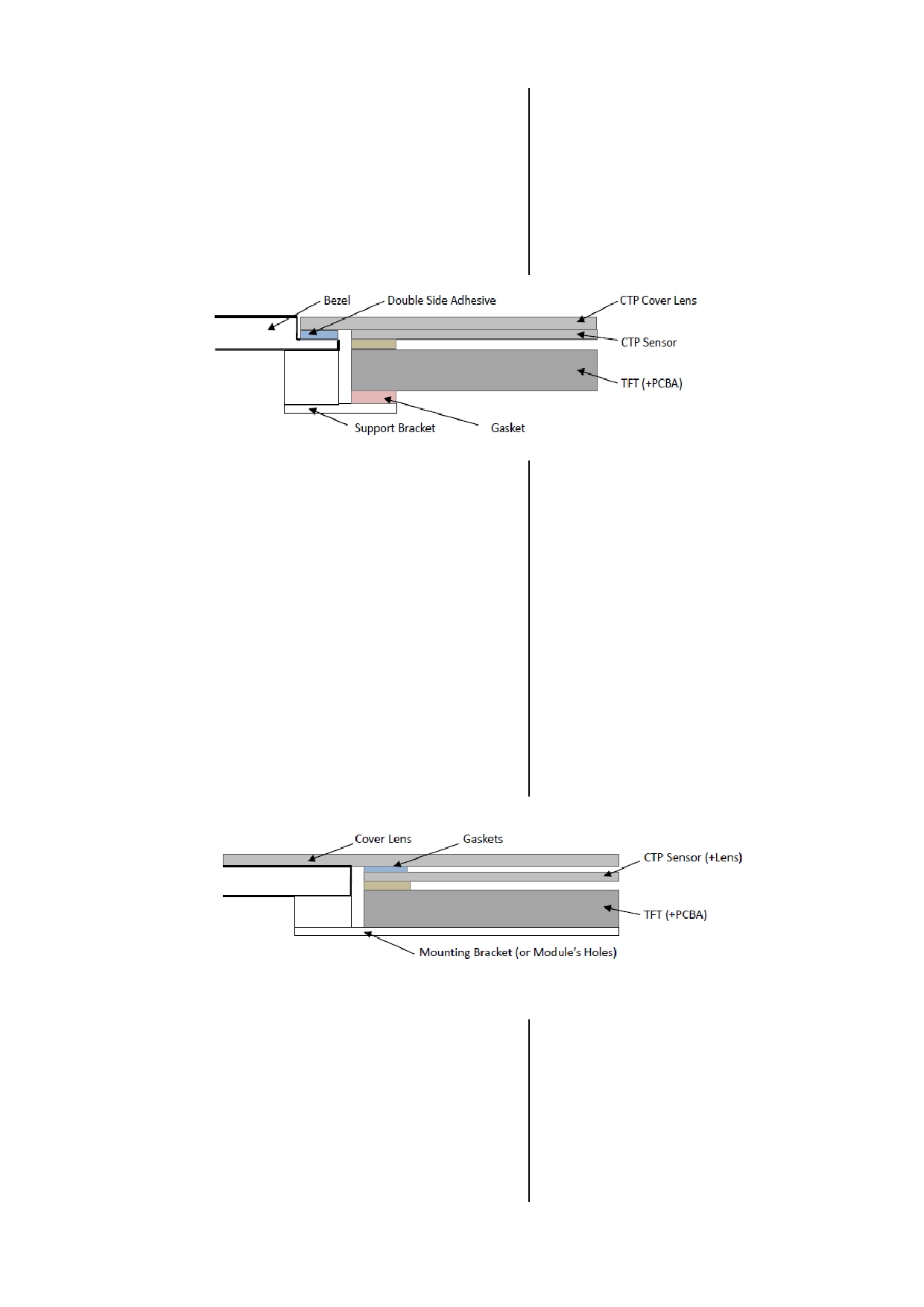

9. CTP Mounting Instructions ............................................................................................................... 17

10. RTP Mounting Instructions ............................................................................................................... 18

1. General Specification

1.1 Display Spec & Electrical Characteristics

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 2 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

Feature

Spec

Size

10.1 inch

Resolution

1280(RGB) x 800

Technology Type

a-Si TFT

Display Spec.

Pixel Configuration

R.G.B. Vertical Stripe

Pixel Pitch (mm)

0.178x0.178

Display Mode

Normally Black

Surface Treatment(Up Polarizer)

Viewing Direction

All direction

LCM (W x H x D) (mm)

258.66x177.30x12.45

Active Area(mm)

216.96x135.60

Mechanical

With /Without TSP

With CTSP

CN1:JAE FI-SE20P-HFE-E3000

Characteristics

Matching Connection Type

CN2:JAE FI-S6P-HFE-E1500

CN3:MOLEX 53261-0871

Weight (g)

TBD

Electrical

Interface

LVDS, 6/8bit selectable

Characteristics Color Depth

262K/16.7M

Note 1: Viewing direction for best image quality is different from TFT definition, there is a 180 degree shift.

Note 2 : Requirements on Environmental Protection: Q/S0002

Note 3 : LCM weight tolerance : +/- 5%

2. Input/Output Terminals

2.1TFT LCD Panel

CN1:JAE FI-SE20P-HFE-E3000

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 3 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

Symbol

I/O

Description

Comment

IND3+

Positive LVDS Differential data input(3)

IND3-

Negative LVDS Differential data input(3)

- No Connection

6bit/8bit mode select

SEL6/8

H : 6-bit mode

L : 8-bit mode

VSS

P Power Ground

PINC+

Positive LVDS Differential clock input

NINC-

Negative LVDS Differential clock input

VSS

P Power Ground

IND2+

Positive LVDS Differential data input(2)

IND2-

Negative LVDS Differential data input(2)

VSS

P Power Ground

IND1+

Positive LVDS Differential data input(1)

IND1-

Negative LVDS Differential data input(1)

VSS

P Power Ground

IND0+

Positive LVDS Differential data input(0)

IND0-

Negative LVDS Differential data input(0)

VSS

P Power Ground

- No Connection

VDD

P Power Supply

VDD

P Power Supply

CN2:JAE FI-S6P-HFE-E1500

Symbol

I/O

Description

Comment

VLED

P Backlight power supply

VLED

P Backlight power supply

VLSS

P VLED Ground

VLSS

P VLED Ground

LED_EN

Backlight on/off control

LED_PWM

Backlight dimming control

CN3:MOLEX 53261-0871

Symbol

I/O

Description

Comment

VDD1

P Power for ctp

D-

I/O USB data- pin

D+

I/O USB data+ pin

VSS1

P Power Ground

- No Connection

Note: I/O definition: I-----Input

O-----output

P----Power/Ground

3. Absolute Maximum Ratings

3.1Driving TFT LCD Panel

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 4 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

GND=0V

Item

Symbol

MIN

MAX

Unit

Remark

Voltage Input

Vin

-0.50

5.00

Note1

Operating Temperature

T op

-20.0

70.0

℃

Storage Temperature

T st

-30.0

80.0

℃

≤ 95

Ta ≤ 40 ℃

Relative Humidity

≤ 85

40 ℃＜ Ta ≤ 50 ℃

(Note2)

≤ 55

50 ℃＜ Ta ≤ 60 ℃

≤ 36

60 ℃＜ Ta ≤ 70 ℃

≤ 24

70 ℃＜ Ta ≤ 80 ℃

Absolute Humidity

≤ 70

g/m ³

Ta ＞ 70 ℃

Table 3.1 absolute maximum rating

Note1: Input voltage include Rxin0-/+, Rxin1-/+, Rxin2-/+, Rxin3-/+, RxCLK-/+, SEL6/8,VDD.

Note2: Ta means the ambient temperature.

It is necessary to limit the relative humidity to the specified temperature range.

Condensation on the module is not allowed.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 5 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

4. Electrical Characteristics

4.1 Driving TFT LCD Panel

VCC=3.3V, GND=0V, Ta=25 ℃

Item

Symbol

MIN

TYP

MAX

Unit

Remark

Power supply Voltage

VDD

3.00

3.30

3.60

Power supply ripple

Vp-p

100

Power supply current

IDD

280

Power consumption

924

Note1

Differential input voltage

|Vid|

200

600

Differential input common

Vcom

1.2

voltage

Differential

Low level

VTL

-100

input threshold

voltage

High level

VTH

100

Inrush current

Irush

1.5

Table 4.1 LCD module electrical characteristics

Figure4.1.1 LVDS DC characteristics

Note1: To test the current dissipation, using the “color bar” testing pattern shown as below:

1. White

2. Yellow

3. Cyan

4. Green

5. Magenta

6. Red

7. Blue

8. Black

Figure 4.1.2 Current dissipation testing pattern

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 6 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

4.2 Driving Backlight

Ta=25 ℃

Item

Symbol Min

Typ

Max

Unit

Remark

Backlight power supply voltage

VLED 11.5

12.5

Backlight power supply current

I_LED

TBD

Backlight power consumption

P_LED

TBD

Input voltage for High level

2.0

5.0

VLED_PWM

signal

Low level

0.4

Input voltage for

High level

2.0

5.0

VLED_EN

Low level

0.4

VLED_PWM frequency

Fpwm 200

20k

VLED_PWM duty

100

Note1

Operating Life Time

50000

hrs

Note2

Note 1: According to LED driver IC characteristics, the minimum value of VELD_PWM duty may vary with

VLED_PWM frequency, higher the frequency, bigger the duty.

Note 2: Optical performance should be evaluated at Ta=25 ℃ only.If LED is driven by high current, high

ambient temperature & humidity condition.The life time of LED will be reduced.

Operating life means brightness goes down to 50% of initial brightness.Typical operating life time is

estimated data.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 7 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

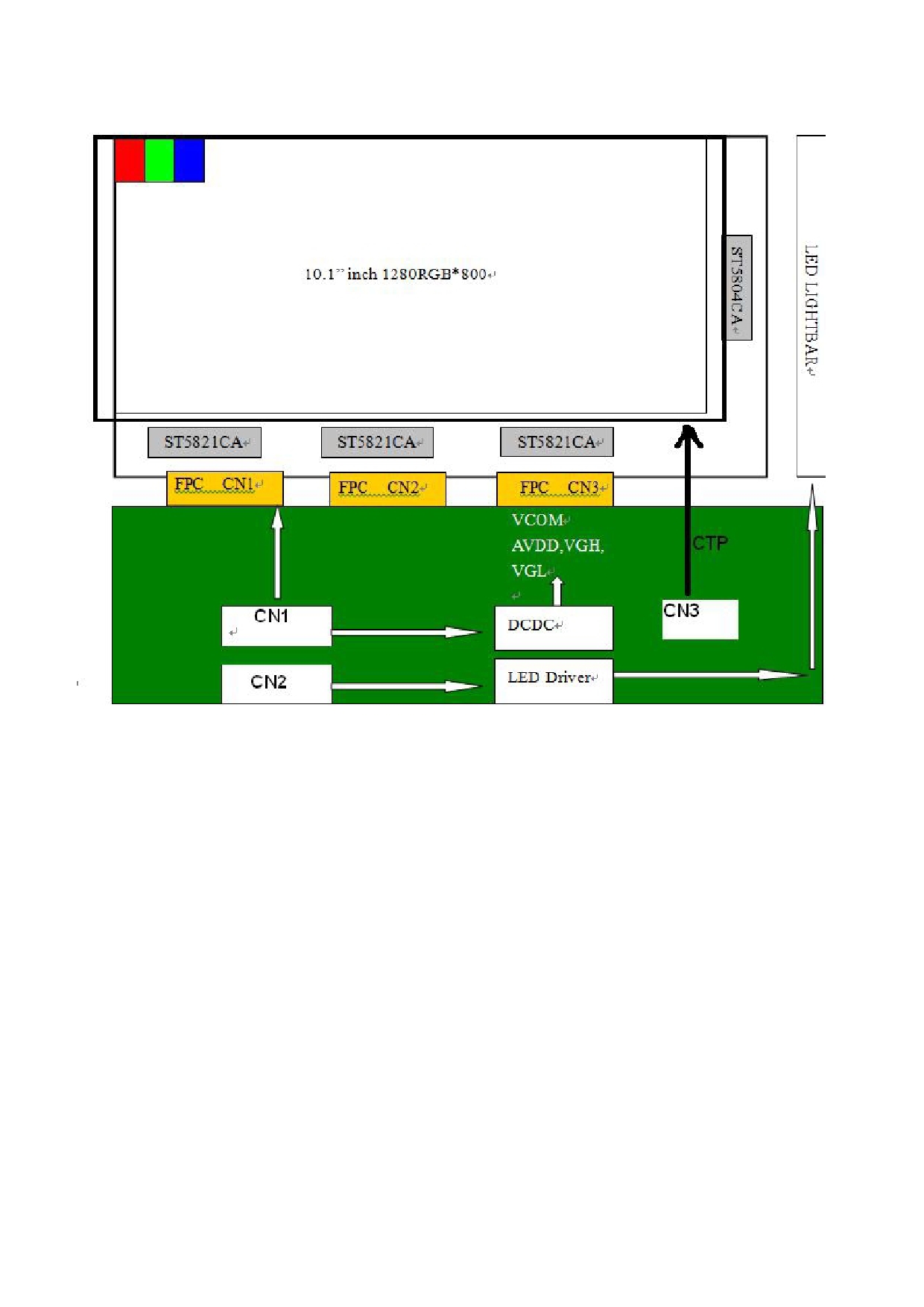

4.3 Block Diagram

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 8 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

5. Timing Chart

5.1 LVDS signal timing characteristics

VCC=3.3V, GND=0V, Ta=25 ℃

Parameter

Symb

Min

Typ

Max

Unit

Remark

CLK frequency

1/t clk

62.6 68.2

78.1

MHz

Horizontal blanking time

tHBT

164

t clk

thbp + tHFP

Horizontal back porch

tHBP

164- tHFP

t clk

Horizontal display area

tHD

1280

t clk

Horizontal front porch

tHFP

159

t clk

Horizontal period

1300 1349

1444

t clk

Horizontal pulse width

tHPW

256

t clk

Vertical blanking time

tVBT

101

tVBP + tVFP

Vertical back porch

tVBP

101- tVFP

Vertical display area

tVD

800

Vertical front porch

tVFP

Vertical period

803

842

901

Vertical pulse width

tVPW

128

Frame Rate

Table 5.1 timing parameter

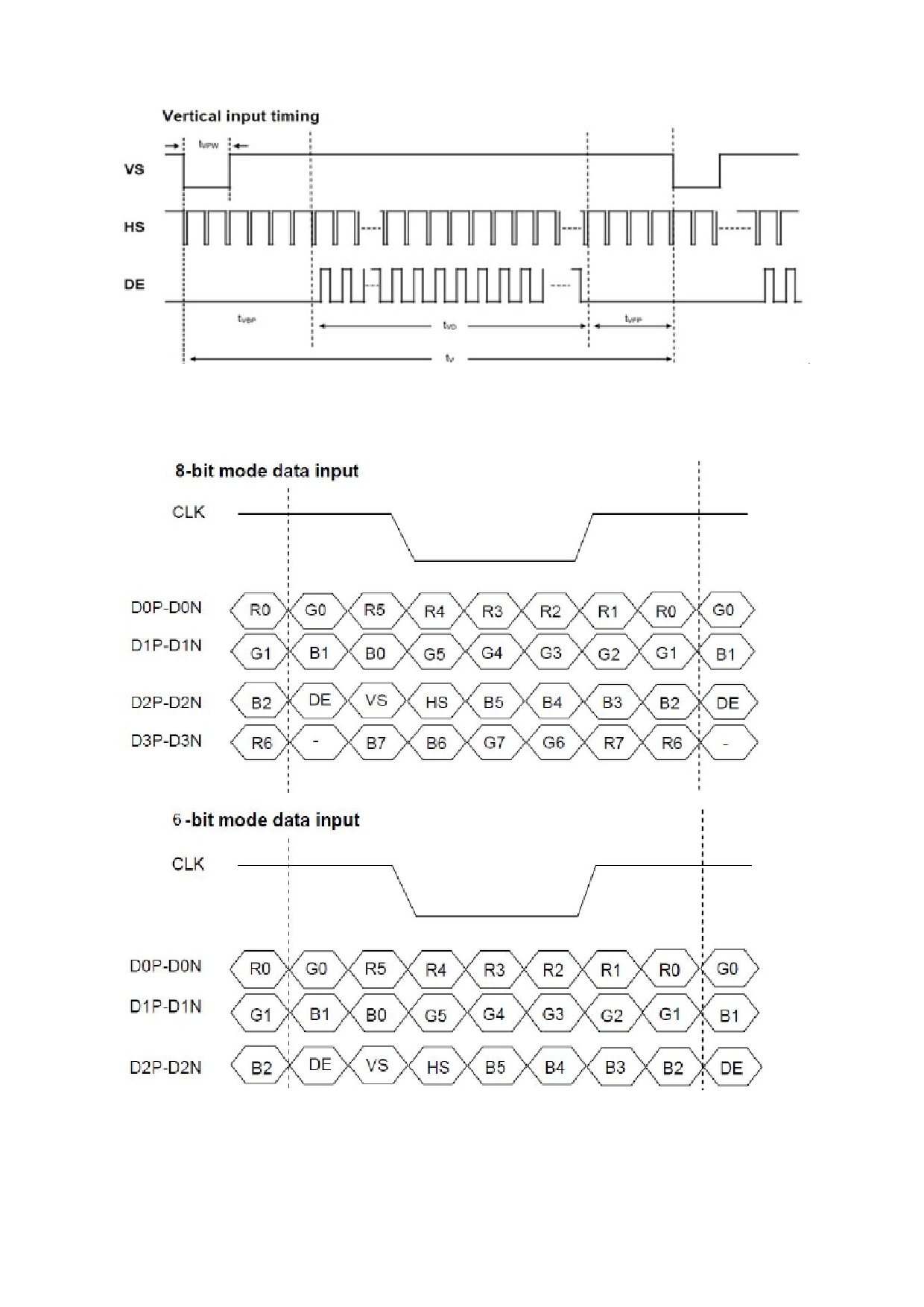

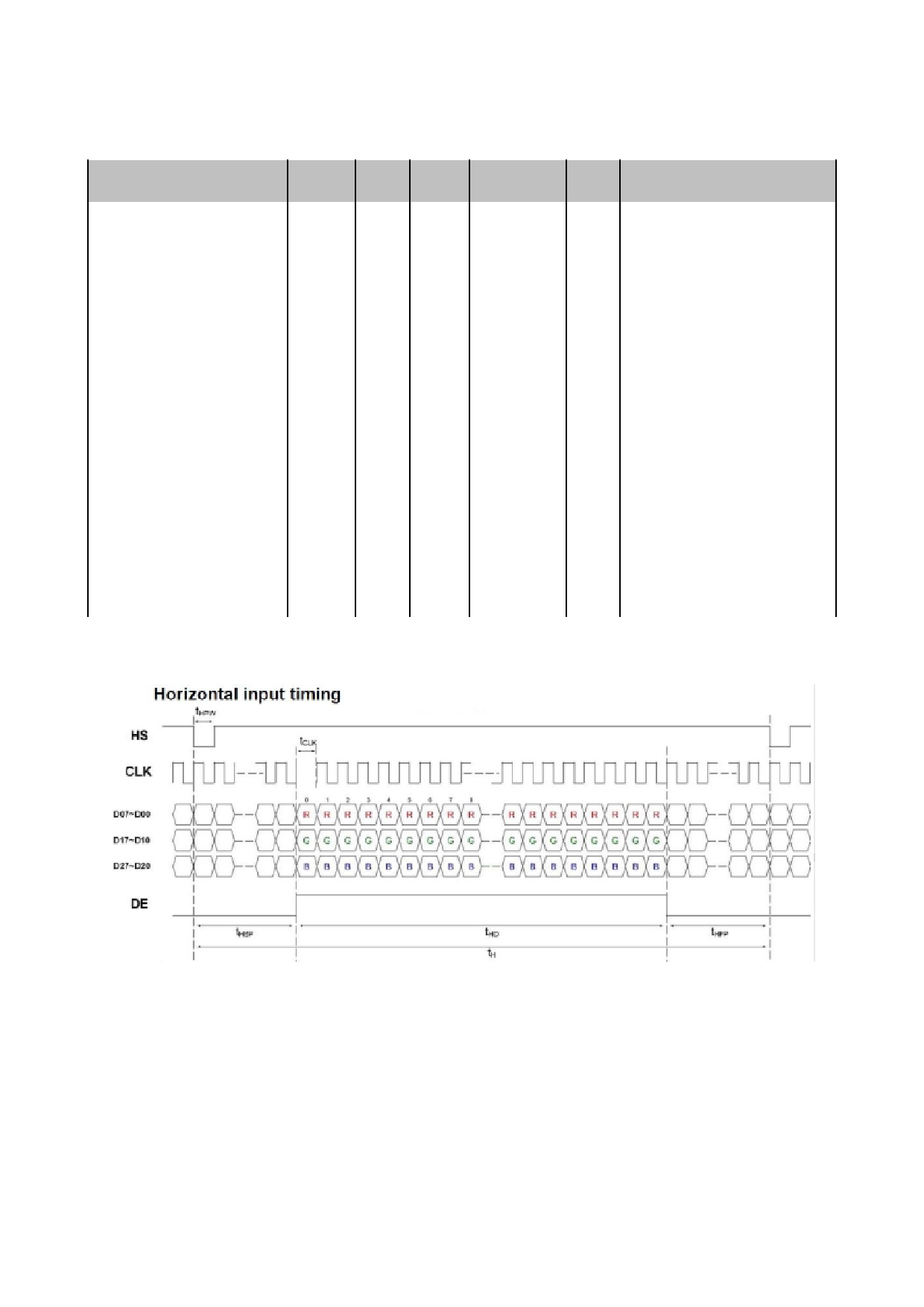

5.2 Input Clock and Data timing Diagram:

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 9 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

Figure 5.2 Input signal data timing

5.3 LVDS data input format

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 10 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

5.4 Power On/Off Sequence

Item

Symbol

Min

Typ

Max

Unit

Remark

VDD on to VDD stable

Tp1

0.5

VDD stable to signal on

Tp2

Signal on to VLED_EN on

Tp3

200

PWM on to VLED_EN on

Tp4

200

VLED to PWM on

Tp5

VLED on to VELD stable

Tp6

0.5

VDD off time

Tp7

VDD off to next VDD on

Tp8

500

Signal off before VDD off

Tp9

VLED_EN off before signal off

Tp10

200

VLED_EN off before PWM off

Tp11

200

PWM off before VLED off

Tp12

Table 5.1 Power on/off sequence

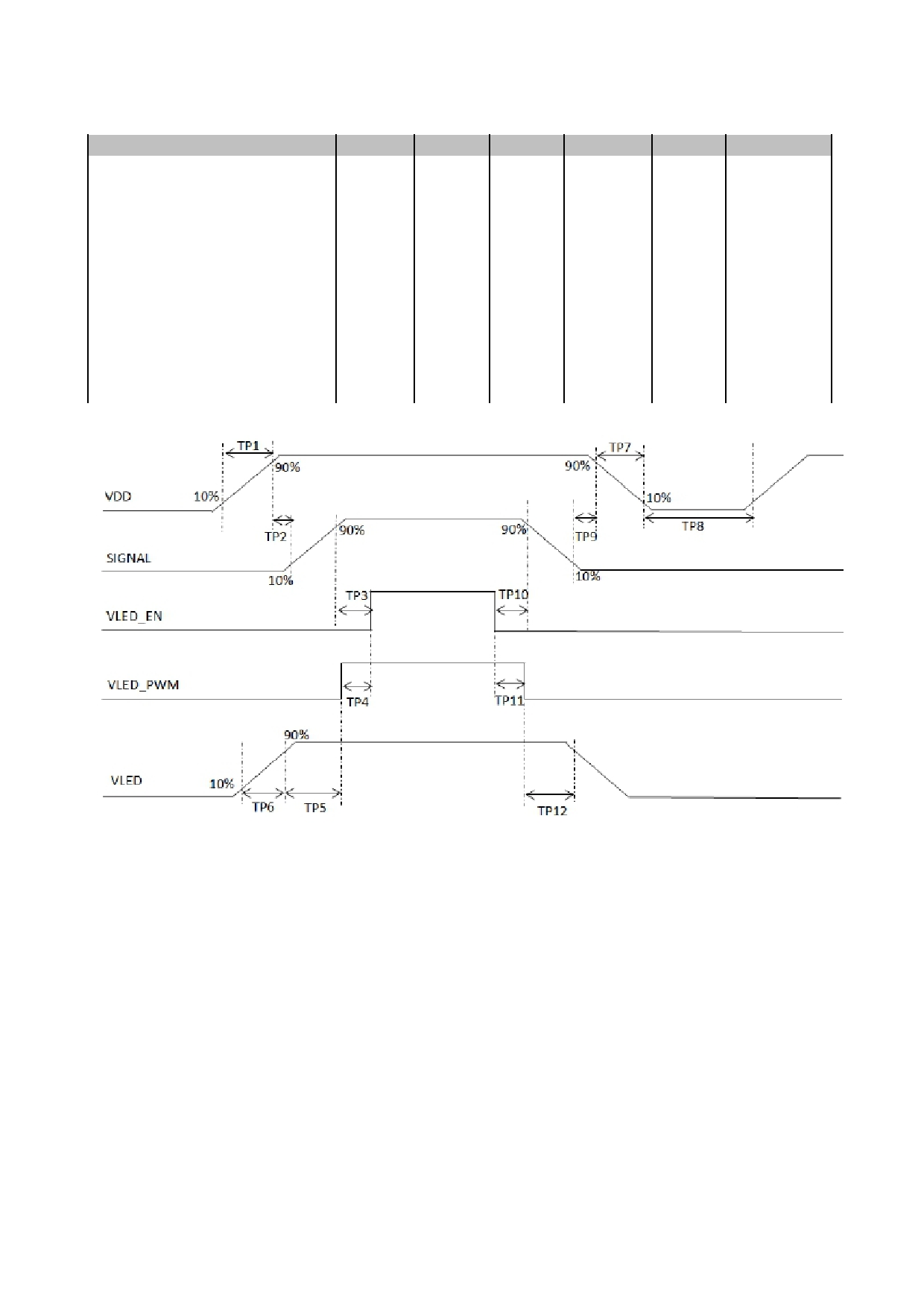

Figure 5.2 Interface power on/off sequence

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 11 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

6. Optical Characteristics

6.1 Optical Specification

Ta=25 ℃

Item

Symbol Condition

Min

Typ

Max

Unit

Remark

θT

View Angles

θB

CR ≧ 10

Degree Note 2

θL

θR

Contrast Ratio

θ=0°

600

800

Note1

Note3

Response Time

Note1

T ON+ T OFF

25 ℃

Note4

0.252

0.302

0.352

White

0.277

0.327

0.377

0.532

0.582

0.632

Red

Chromaticity

Backlight is

Note5

0.274

0.324

0.374

0.300

0.350

0.400

Note1

Green

0.532

0.582

0.632

0.104

0.154

0.204

Blue

0.044

0.094

0.144

Uniformity

Note1

Note6

NTSC

Note 5

Luminance

700

850

Note1

cd/m

Note7

Test Conditions:

1. The ambient temperature is 25±2 ℃ .humidity is 65±7%

2. The test systems refer to Note 1 and Note 2.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 12 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

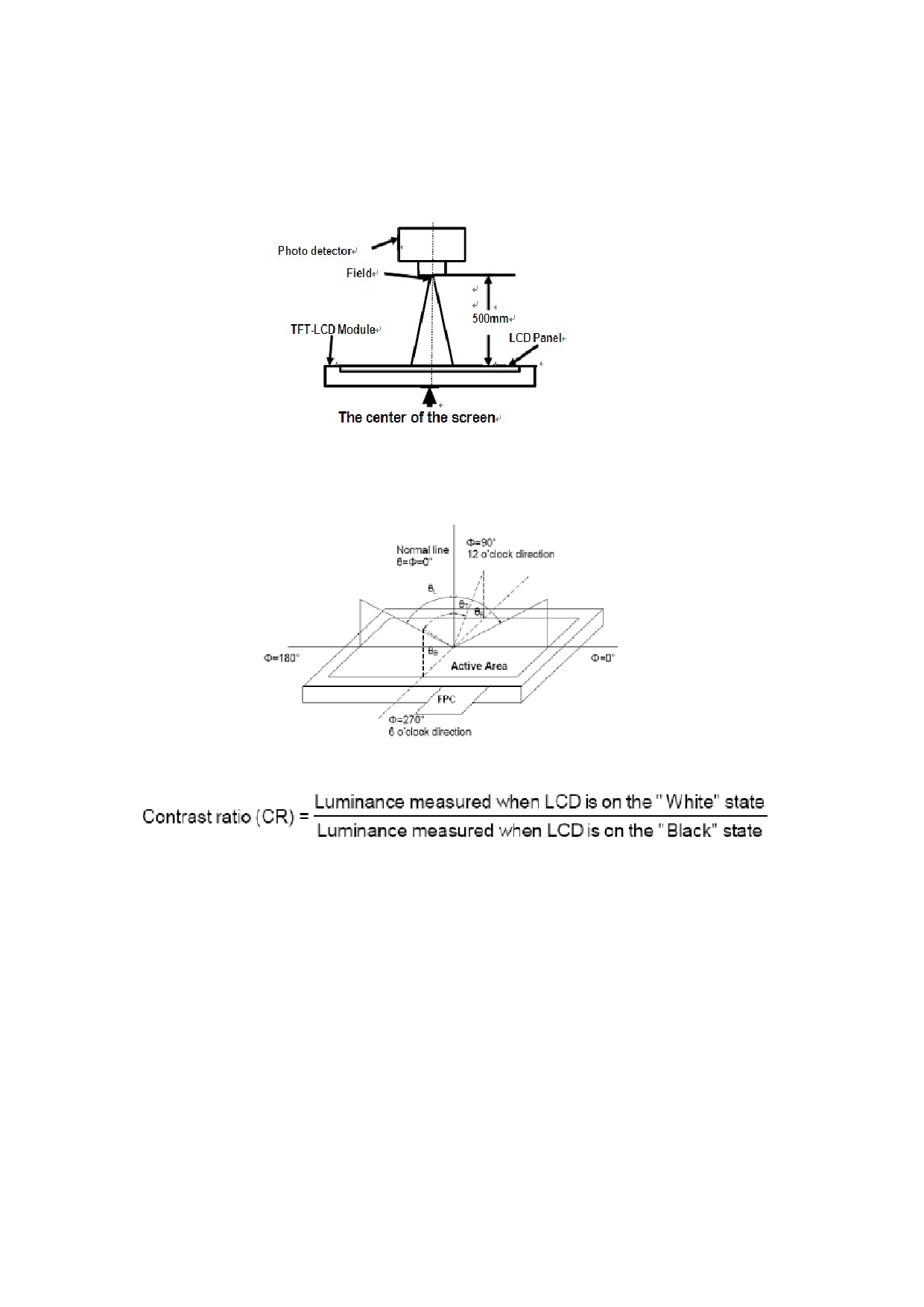

Note 1: Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

Note 2: Definition of viewing angle range and measurement system.

viewing angle is measured at the center point of the LCD.

Note 3:Definition of contrast ratio

“White state”: The state is that the LCD should driven by Vwhite.

“Black state”: The state is that the LCD should driven by Vblack.

Vwhite: To be determined

Vblack: To be determined.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 13 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

Note 4:Definition of Response time

The response time is defined as the LCD optical switching time interval between “White” state and “Black”

state. Rise time (TON) is the time between photo detector output intensity changed from 90% to 10%. And

fall time (TOFF) is the time between photo detector output intensity changed from 10% to 90%.

White (TFT off) Black (TFT on) White (TFT off)

Note 5: Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

Note 6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

L-------Active area length

W----- Active area width

Luminance Uniformity (U) = Lmin/ Lmax

Lmax: The measured Maximum luminance of all measurement position.

Lmin: The measured Minimum luminance of all measurement position.

Note 7: Definition of Luminance:

Measure the luminance of white state at center point.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 14 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

7. Environmental / Reliability Test

Test Item

Condition

Remark

High Temperature Ts=+70 ℃ , 240hrs

(Note1)

Operation

IEC60068-2-1:2007,GB2423.2-2008

Low Temperature

Ta=-20 ℃ , 240hrs

IEC60068-2-1:2007

Operation

GB2423.1-2008

High Temperature Ta=+80 ℃ , 240hrs

IEC60068-2-1:2007

Storage

GB2423.2-2008

(non-operation)

Low Temperature

Ta=-30 ℃ , 240hrs

IEC60068-2-1:2007

Storage

GB2423.1-2008

(non-operation)

High Temperature & Ta = +60 ℃ , 90% RH

(Note2)

High Humidity

max,240

IEC60068-2-78 :2001

Operation

hours

GB/T2423.3—2006

-30 ℃ 30 min~+80 ℃ 30 min, Start with cold temperature,

Thermal Shock

(non-operation)

Change time:5min,100cycles End with high temperature,

IEC60068-2-14:1984,GB2423.22-2002

Electro Static

C=150pF,R=330Ω;

IEC61000-4-2:2001

Discharge

Contact:±4Kv, 5times;

GB/T17626.2-2006

(operation)

Air: ± 8KV,5times;

Frequency range:10 ～ 55Hz,

Stroke:1.5mm

Vibration

IEC60068-2-6:1982

(non-operation)

Sweep:10Hz ～ 55Hz ～ 10Hz

GB/T2423.10—1995

2hours for each direction of

X.Y.Z (6 hours total)

Shock

60G 6ms, ±X,±Y,±Z 3 times IEC60068-2-27:1987

(non-operation)

for each direction

GB/T2423.5—1995

10 Package Drop Test

Height:80 cm,1 corner, 3

IEC60068-2-32:1990

edges, 6 surfaces

GB/T2423.8—1995

Note1: Ts is the temperature of panel’s surface.

Note2: Ta is the ambient temperature of sample.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 15 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

8. LCD Module Design and Handling

Precautions

8. 液晶显示模块设计和使用

须知

- Please ensure V0, VCOM is adjustable, to enable LCD module - 请注意 V0, VCOM 的设定, 以确保液晶显示

get the best contrast ratio under different temperatures, view

模块在不同的使用温度下以及在不同的视

angles and positions.

角和位置观察模块显示，均能达到最佳对

比度，请务必将应用电路上设置为对比度

- Normally display quality should be judged under the best contrast

可调。

ratio within viewable area. Unexpected display pattern may com - 请注意液晶显示模块的显示品质判定是指

out under abnormal contrast ratio.

在正常对比度下以及视窗(V.A)范围内进行

- Never operate the LCD module exceed the absolute maximum

的，非正常对比度下液晶可能会出现非预

ratings.

期的显示不良，应注意区分。

- Never apply signal to the LCD module without power supply.

- 请勿在最大额定值以外使用液晶显示模

块。

- Keep signal line as short as possible to reduce external noise

interference.

- 请勿在没有接通电源的条件下，给液晶显

- IC chip (e.g. TAB or COG) is sensitive to light. Strong light might

示模块输送信号。

cause malfunction. Light sealing structure casing is - 请尽可能缩短信号线的连接，以避免对液

recommended.

晶显示模块的信号干扰。

- 集成电路因 IC 芯片(如 TAB 或 COG)对紫外

- Make sure there is enough space (with cushion) between case

线极为敏感，强光环境下可能会引起液晶

and LCD panel, to prevent external force passed on to the panel;

显示模块功能失效，故应采用不透光的外

otherwise that may cause damage to the LCD and degrade its

壳。

display result.

- 请在液晶显示模块与外壳之间保留足够的

- Avoid showing a display pattern on screen for a long time

空间(可使用衬垫)，以缓冲外力对液晶显

(continuous ON segment).

示模块的损坏或因受力不均而产生的显示

不匀等异常现象。

- LCD module reliability may be reduced by temperature shock.

- When storing and operating LCD module, avoids exposure to - 避免液晶显示屏在某一画面下长时间点

direct sunlight, high humidity, high or low temperature. They may

亮，否则有出现残影的风险；请通过软件

damage or degrade the LCD module.

每隔一段时间改变一次画面。

- Never leave LCD module in extreme condition (max./min - 液晶显示模块的可靠性可能因温度冲击而

storage/operate temperature) for more than 48hr.

降低。

- Recommend LCD module storage conditions is 0 C~40 C - 请勿在阳光直射、高湿、高温或低温下储

<80%RH.

存和使用液晶显示模块，这将造成液晶显

- LCD module should be stored in the room without acid, alkali and

示模块的损坏或失效。

harmful gas.

- Avoid dropping & violent shocking during transportation, and no - 请勿在极限环境(最大/最小存储/工作温

excessive pressure press, moisture and sunlight.

度)下使用或放置液晶显示模块超过 48 小

- LCD module can be easily damaged by static electricity. Please

时以上。

maintain an optimum anti-static working environment to protect - 液晶显示模块建议存储条件为: 0 C~40 C

the LCD module. (eg. ground the soldering irons properly)

<80%RH 。

- Be sure to ground the body when handling LCD module.

- 请勿让液晶显示模块存储于带有酸性, 碱

- Only hold LCD module by its sides. Never hold LCD module by

性, 有害气体环境之中。

applying force on the heat seal or TAB.

- 在运输过程中, 请勿让液晶显示模块跌落

- When soldering, control the temperature and duration avoid

与猛烈震动, 同时避免异常挤压, 高湿

damaging the backlight guide or diffuser which might degrade the

度, 与阳光照射.

display result such as uneven display.

- 液晶显示模块极易受静电损坏，请务必保

- Never let LCD module contact with corrosive liquids, which might

证液晶显示模块在防静电的工作环境中使

cause damage to the backlight guide or the electric circuit of LCD

用或保存。(如: 烙铁正确接地,等)

module.

- 拿取液晶显示模块时需注意操作人员的接

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol or Ethyl

地情况。

Alcohol. Other solvents (e.g. water) may damage the LCD.

- 请手持液晶显示模块的边沿取放模块，防

- Never add force to components of LCD module. It may cause

止热压纸或 TAB 部位受力。

invisible damage or degrade the module's reliability.

- 焊接液晶模块时，请注意控制烙铁的温

- When mounting LCD module, please make sure it is free from

度、焊接时间，以免烫坏导光板或偏光

twisting, warping and bending.

片，导致显示不匀等不良现象发生。

- Do not add excessive force on surface of LCD, which may cause - 请勿使用洗板水等腐蚀性液体接触液晶模

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 16 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

the display color change abnormally.

块，以免腐蚀导光板或模块电路。

- LCD panel is made with glass. Any mechanical shock (e.g.

dropping from high place) will damage the LCD module.

- 仅可使用柔软的干布, 异丙醇或乙醇清洁

液晶屏表面，其他任何溶剂(如:水)都有可

能损坏液晶模块。

- 请勿挤压液晶显示模块上的元器件，以避

免产生潜在的损坏或失效而影响产品可靠

性。

- 装配液晶显示模块时，请务必注意避免液

晶显示模块的扭曲或变形。

- 请勿挤压液晶显示屏表面，这将导致显示

颜色的异常。

- 液晶屏由玻璃制作而成，任何机械碰撞(如

从高处跌落)均有可能损坏液晶显示模块。

- Protective film is attached on LCD screen. Be careful when - 液晶屏表面带有保护膜, 揭除保护膜时需

peeling off this protective film, since static electricity may be

要注意可能产生的静电。

generated.

- 因液晶显示屏表面的偏光片极易划伤，安

- Polarizer on LCD gets scratched easily. If possible, do not remove

装完成之前请尽量不要揭下保护膜。

LCD protective film until the last step of installation.

- 请缓慢揭除保护膜，在此过程中液晶显示

- When peeling off protective film from LCD, static charge may

屏上可能会产生静电线，此为正常情况，

cause abnormal display pattern. The symptom is normal, and it

可在短时间内消失。

will turn back to normal in a short while.

- LCD panel has sharp edges, please handle with care.

- 请注意避免被液晶显示屏的边缘割伤。

- Never attempt to disassemble or rework LCD module.

- 请不要试图拆卸或改造液晶显示模块。

- If display panel is damaged and liquid crystal substance leaks out, - 当液晶显示屏出现破裂, 内部液晶液体可

be sure not to get any in your mouth, if the substance comes into

能流出; 相关液体不可吞吃, 绝对不可接

contact with your skin or clothes promptly wash it off using soap

触嘴巴, 如接触到皮肤或衣服, 请使用肥

and water.

皂与清水彻底清洗.

9. CTP Mounting Instructions

9.1 Bezel Mounting (Figure 1)

9. 电容触摸屏安装指导

- The bezel window should be bigger than the CTP active area. It 9.1 面框安装（附图 1）

should be ≥ 0.5mm each side.

- 客户面框窗口应大于 CTP 动作区域，各边

- Gasket should be installed between the bezel and the CTP

离动作区应≥0.5mm.

surface.

- 面框与 CTP 面板间应垫有胶垫，其最终间

The final gap should be about 0.5~1.0mm.

隙约为 0.5～1.0mm.

- It is recommended to provide an additional support bracket for - 建议必要时在背面提供附加支架(例如无安

backside support when necessary (e.g. slim type TFT module

装结构的薄型 TFT 模块)，应仅利用适当支

without mounding structure). They should only provide appropriate

撑以保持模块位置.

support and keep the module in place.

- The mounting structure should be strong enough to prevent

external uneven force or twist act onto the module.

- 安装结构应具有足够的强度，以防止外部

不均匀力或扭曲力作用到模块上.

Figure

9.2 Surface Mounting (Figure 2)

9.2 嵌入安装（附图 2）

- As the CTP assembling on the countersink area with double side - 客户面框应具有使用双面胶粘贴 CTP 的结

adhesive.

构沉台面，其粘贴面要求平整且洁净无污

The countersink area should be flat and clean to ensure the

以保证粘贴牢靠.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 17 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

double side adhesive installation result.

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each side)

around the cover lens for tolerance.

- 考虑到制作误差，建议面框与 CTP 盖板之

- It is recommended to provide an additional support bracket with

间四周留有≥0.3mm 间隙.

gasket for backside support when necessary (e.g. TFT module - 建议必要时在背面提供垫有胶垫附加支架

without mounding structure). They should only provide appropriate

(例如无安装结构的 TFT 模块)，应仅利用

support and keep the module in place.

适当支撑以保持模块位置.

- The mounting structure should be strong enough to prevent

external uneven force or twist act onto the module

- 安装结构应具有足够的强度，以防止外部

不均匀力或扭曲力作用到模块上。

Figure 2

9.3 Additional Cover Lens Mounting (Figure 3)

9.3 覆加盖板（附图 3）

- For the case of additional cover Lens mounting, it is necessary to - 需要覆加玻璃盖板的安装，为确保其功

recheck with the CTP specification about the material and

能，有必要查看产品规格书中有关盖板材

thickness to ensure the functionality.

料和厚度的说明.

- It should keep a 0.2~0.3mm gap between the cover lens and the

CTP surface..

- 玻璃盖板与 CTP 表面之间应留有 0.2～

- The cover lens window should be bigger than the active area of

0.3mm 间隙.

the CTP.It should be ≥ 0.5mm each side.

- It is recommended to provide an additional support bracket for - 玻璃盖板视窗应大于 CTP 动作区域，各边

backside support when necessary (e.g. slim type TFT module

离动作区应≥0.5mm。

without mounding structure). They should only provide appropriate - 建议必要时在背面提供附加支架(例如无安

support and keep the module in place.

装结构的薄型 TFT 模块)，应仅利用适当支

- The mounting structure should be strong enough to prevent

撑以保持模块位置.

external uneven force or twist act onto the module.

- 安装结构应具有足够的强度，以防止外部

不均匀力或扭曲力作用到模块上.

Figure

10. RTP Mounting Instructions

10. 电阻触摸屏安装指导

- It should bezel touching the RTP Active Area (A.A.) to prevent

- 为避免面框直接压在动作区(A.A.)上造成误

abnormal touch.It should left gab D=0.2~0.3mm in between.

动作，面框与电阻触摸屏(RTP)之间应留有

(Figure 4)

一定的空隙 D=0.2~0.3mm 之间.(附图 4)

- Outer bezel design should take care about the area outside the

- 设计面框时，要注意用面框保护触摸屏四周

A.A. Those areas contain circuit wires which is having different

的非保证操作区域，因为布线区域在此处

thickness. Touching those areas could de-form the ITO film. As a

形成一台阶，在此区域附近操作时 ITO

result bezel the ITO film be damaged and shorten its lifetime.

Film 变形较大，容易导致 ITO 损坏而降低

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 18 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

It is suggested to protect those areas with gasket (between the

寿命。为保护 RTP 和避免误操作，在 RTP

bezel and RTP).The suggested figures are B≥0.50mm;

与面框之间垫缓冲物（Gasket），我们建

C≥0.50mm. (Figure 4)

议设计面框应覆盖动作区的边缘，面框边

缘到 V.A.区的距离 B≥0.50mm; 垫圈内边

缘到 V.A.区的距离 C≥0.50mm. (附图 4)

- The bezel side wall should keep space E= 0.2 ~ 0.3mm from the

- 在设计面框与 RTP 组装时，应考虑到面框内

RTP. (Figure 4)

侧与 RTP 外侧的间距 E≥0.2mm. (附图 4)

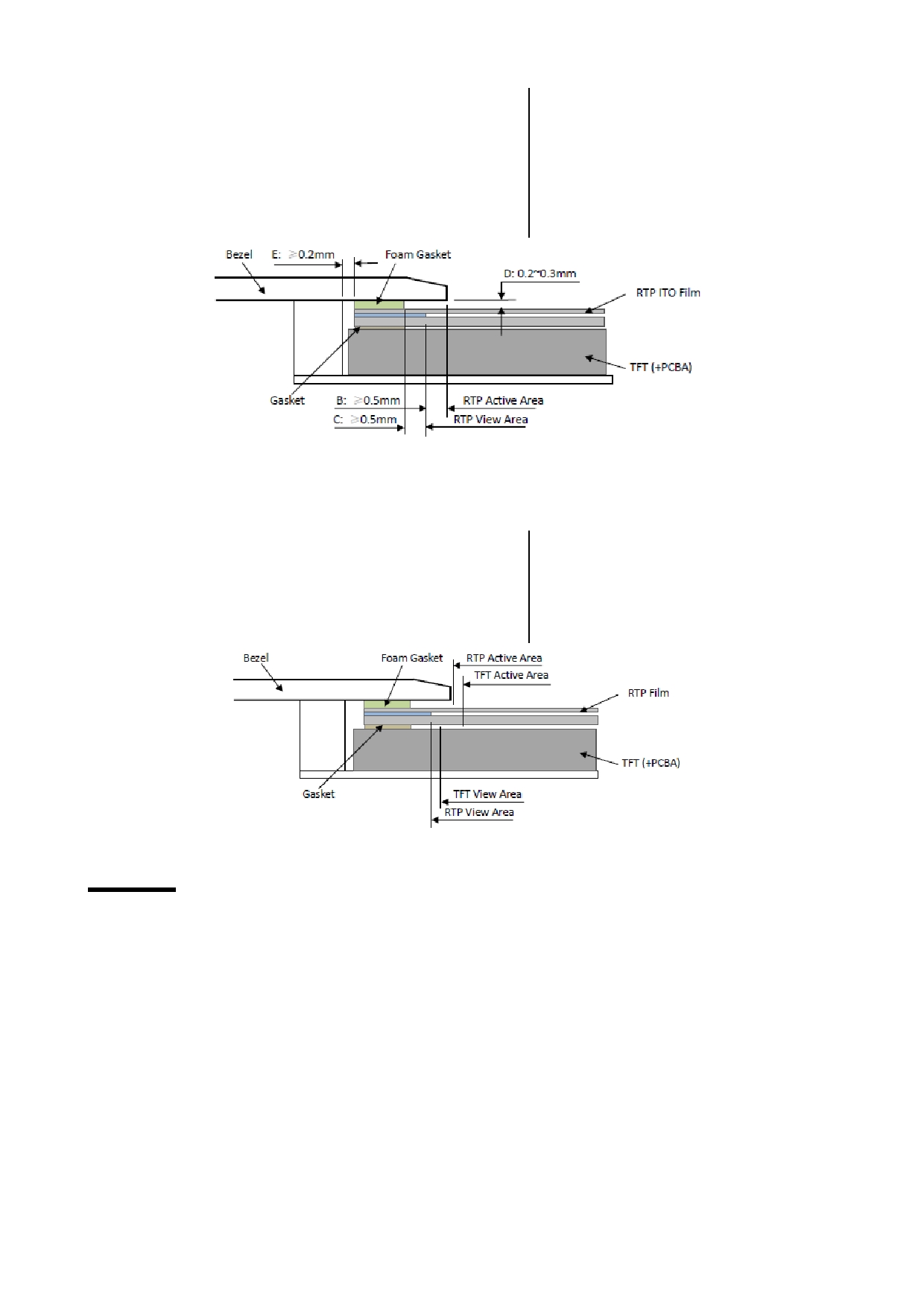

Figure 4

- In general design,

- 通常设计时：

RTP V.A. should be bigger than the TFT V.A.

RTP 的可视区 V.A. 应不小于 TFT 的可视

and RTP A.A. should be bigger than the TFT A.A.

区 V.A.

(Figure 5)

及 RTP 的动作区 A.A. 应不小于 TFT 的动

作区 A.A.

(附图 5)

Figure 5

Warranty

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from

general electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power

control equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct

risk to human life and where extremely high levels of reliability are required. If the product is to be used in any of the

above applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

product.

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

arise.

- We cannot accept responsibility for intellectual property of a third part, which may arise through the application of

our product to our assembly with exception to those issues relating directly to the structure or method of

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 19 of 20

TOPWAY

LCD Module User Manual

LMT101DNLFWD-NND

manufacturing of our product.

URL: www.topwaydisplay.com

Document Name: LMT101DNLFWD-NND-Manual-Rev0.3.doc

Page: 20 of 20
