LCD Module User Manual

Prepared by:

Checked by:

Approved by:

Chenzhonghua

Date: 2024-06-11

Date:

Rev.

Descriptions

Edit

Release Date

0.1

Preliminary release

Chenzhonghua 2024-02-23

0.2

Update section 1,2 and Outline Dwg

Chenzhonghua 2024-06-11

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 1 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

Table of Content

1. General Specifications................................................................................................................... 3

2. Input/Output Terminals................................................................................................................... 4

2.1 TFT LCD Panel (CN1)...........................................................................................................4

2.2 Backlight (CN2)......................................................................................................................5

2.3 K8 Capacitive Touch Panel Terminal.....................................................................................6

2.4 K9 Capacitive Touch Panel Terminal(USB TYPE-C)............................................................ 6

3. Absolute Maximum Ratings........................................................................................................... 7

4. Electrical Characteristics................................................................................................................8

4.1 Driving TFT LCD Panel..........................................................................................................8

4.2 Driving Backlight....................................................................................................................8

4.3 CTP recommended Operating Condition..............................................................................9

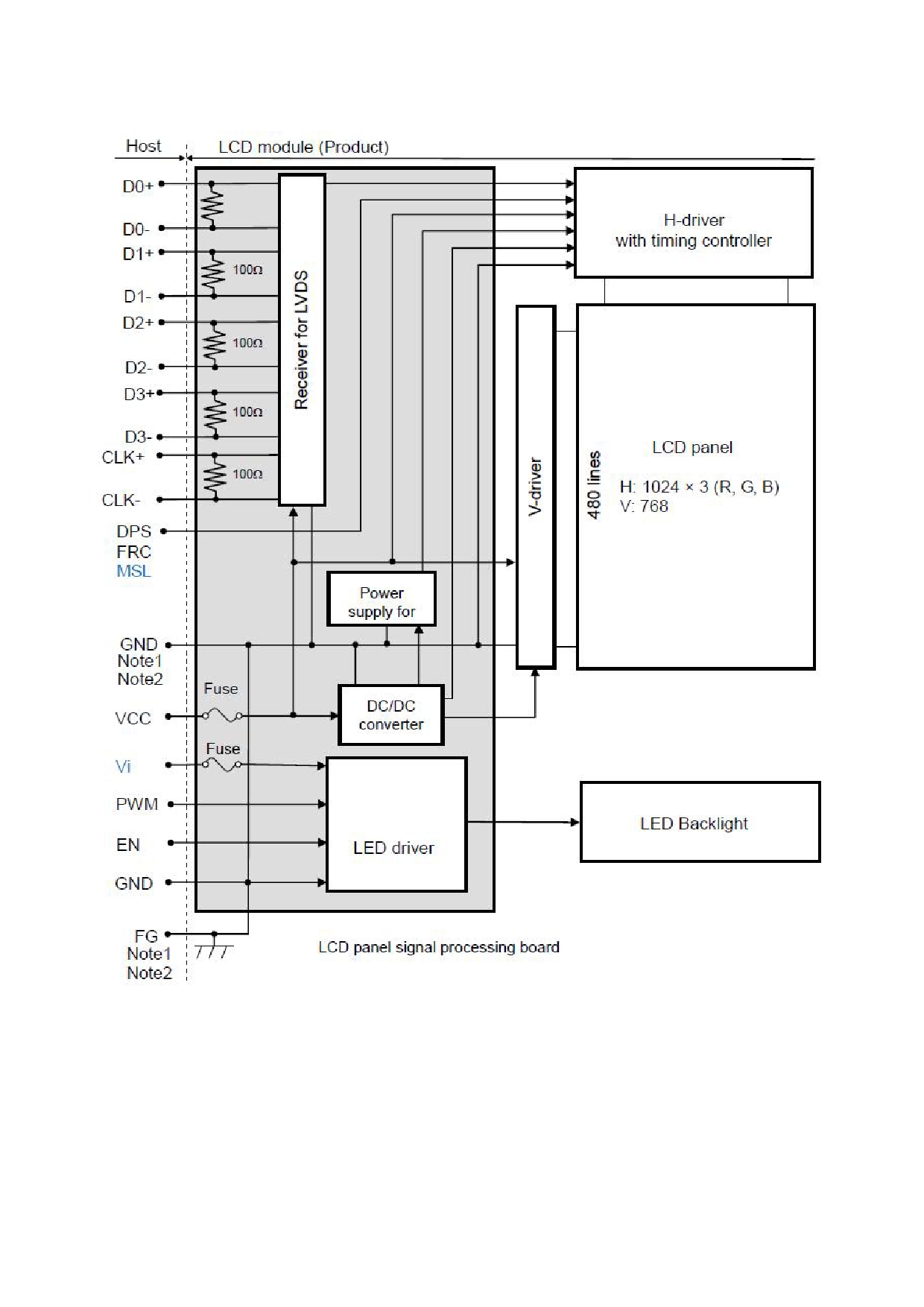

4.4 Block Diagram..................................................................................................................... 10

5. Timing Chart................................................................................................................................. 11

5.1 Timing Characteristics......................................................................................................... 11

5.2 Input signal timing chart.......................................................................................................11

5.3 LVDS data input format....................................................................................................... 12

5.4 LVDS Rx AC SPEC..............................................................................................................13

5.5 Display Colors and Input Data Signals............................................................................... 15

5.5.1 16,777,216colors......................................................................................................15

5.5.2 262,144colors...........................................................................................................16

5.6 Display Positions................................................................................................................. 16

5.7 Scanning Direction.............................................................................................................. 17

5.8 POWER SUPPLY VOLTAGE SEQUENCE.........................................................................17

5.8.1 LCD panel signal processing board.........................................................................17

5.8.2 LED Driver................................................................................................................18

6. Optical Characteristics................................................................................................................. 19

6.1 Optical Specification............................................................................................................19

7. Environmental / Reliability Test.................................................................................................... 23

8. Precautions for Use of LCD Modules...........................................................................................24

8.1 Handling Precautions.......................................................................................................... 24

8.2 Storage Precautions............................................................................................................24

8.3 Transportation Precautions................................................................................................. 24

9. LCD Module Design and Handling Precautions.......................................................................... 25

10. CTP Mounting Instructions......................................................................................................... 26

11. Warranty......................................................................................................................................28

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 2 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

1. General Specifications

Feature

Spec

Size

12.1 inch

Resolution

1024(RGB) x 768

Pixel Configuration

R.G.B. Vertical Stripe

Display Spec.

Pixel Pitch (mm)

0.240 (H)  0.240 (V)

Display Mode

Transmissive, Normally Black

Surface Treatment(Up Polarizer)

Viewing Direction

Full

LCM (W x H x D) (mm)

288.2x226.2x17.9

Active Area(mm)

245.76*184.32

Mechanical

With /Without TSP

With Capacitive Touch Panel

Characteristics Touch Interface

IIC/USB

Touch Point

10 Points Touch

Matching Connection Type

FI-SEB20P-HFE

Electrical

Interface

1port LVDS 8bit / 6-bit

Characteristics Color Depth

16.7M&262K

Note 1 : Requirements on Environmental Protection: Q/S0002

Note 2: LCM weight tolerance: +/-5%

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 3 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

2. Input/Output Terminals

2.1 TFT LCD Panel (CN1)

Connector type: JAE FI-SEB20P-HFE

Input data signal: 8-bit

Pin No. Symbol

Signal

Input data

Remark

MAP A

MAP B

signal: 6-bit

D3+

Pixel data

R0-R1,G0-G1,B0-B R6-R7,G6-G7,B6-B

GND

Ground

D3-

Pixel data

R0-R1,G0-G1,B0-B R6-R7,G6-G7,B6-B

GND

Ground

DPS

Selection

High :

Normal scan

of scan direction

Low or Open :

Reverse scan

FRC

Selection of the

number of colors

High

Low or Open

GND

Ground

CLK+

Pixel clock

CLK-

GND

Ground

D2+

Pixel data

B4-B7,DE

B2-B5,DE

D2-

GND

Ground

D1+

Pixel data

G3-G7,B2-B3

G1-G5,B0-B1

D1-

GND

Ground

D0+

Pixel data

R2-R7,G2

R0-R5,G0

D0-

GND

Ground

MSL

Selection of

LVDS input map

Low(Note1)

High or Open

Low(Note2)

VCC

Power supply

VCC

Note1: FRC is high

Note2: FRC is low

Note3: Detail can refer to Page 12~13

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 4 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

2.2 Backlight (CN2)

Connector type: SM10B-SHLS-TF(LF)

Symbol

I/O

Description

Remarks

Converter input voltage

V GND

Converter ground

V GND

Converter ground

V GND

Converter ground

V GND

Converter ground

Enable pin

Default L(Note1)

PWM

Backlight Adjust

Default H(Note2)

I/O definition:

I----Input O----Output I/O----Input/Output P----Power/Ground N—No Connect

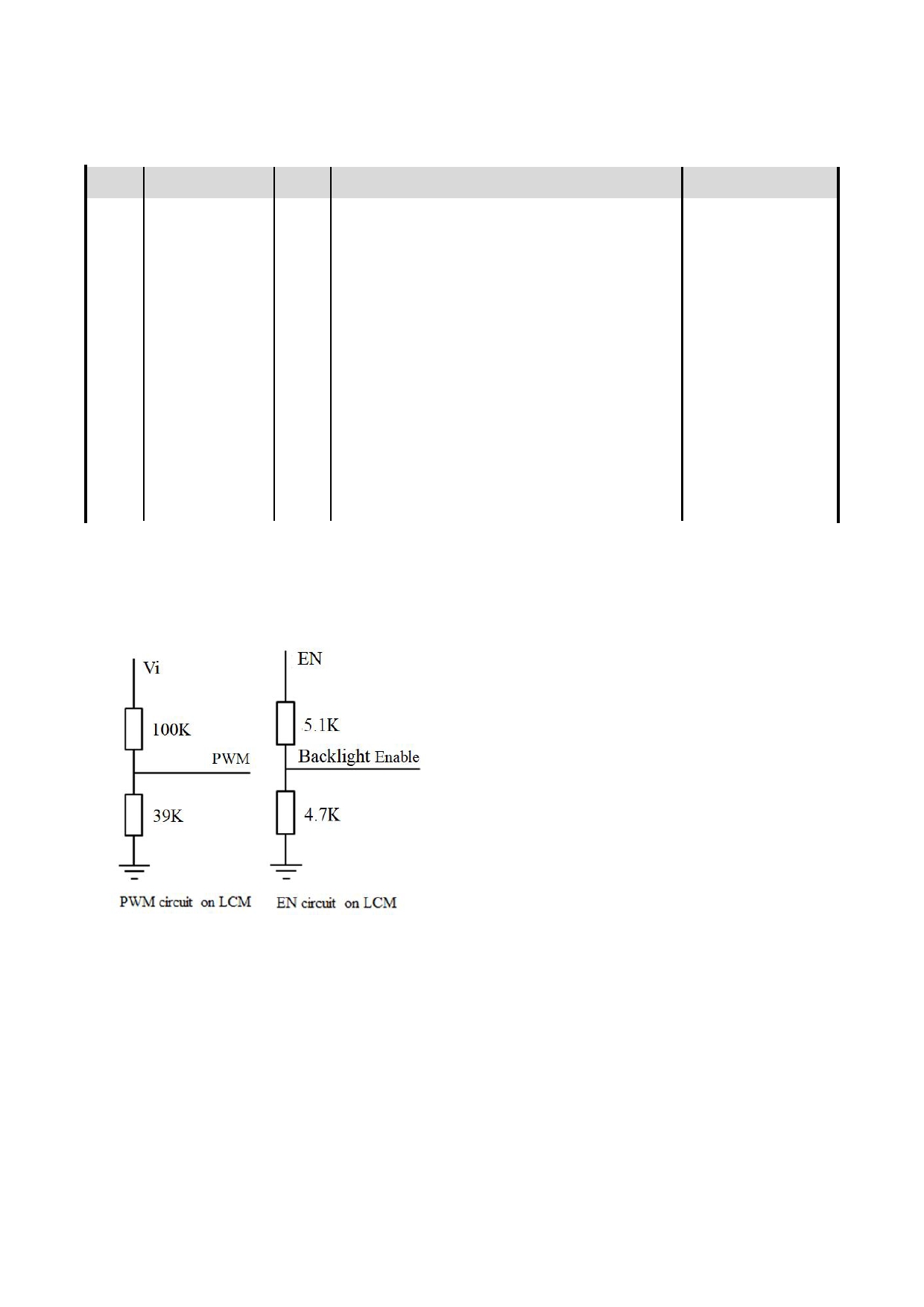

Note1 ： The circuit diagram of PWM on LCM is as follows

Note2 ： The circuit diagram of EN on LCM is as follows

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 5 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

2.3 K8 Capacitive Touch Panel Terminal

Pin No.

Pin Name

Descriptions

RST

Power Touch Panel Reset

VDD_3.3V

Power I2C Power Supply(3.3V)

GND

Power Power Supply GND (0V)

INT

I/O

Touch Panel INT

SDA

I/O

I2C DATA

SCL

I/O

I2C DCLK

GND

Power Power Supply GND (0V)

D+

I/O

USB D+ Signal

D-

I/O

USB D- Signal

VDD_+5V

Power USB Power Supply(5.0V)

Note:

*1: VDD_3.3V and VDD_5V cannot supply power at the same time.

*2: When using IIC communication, use 3.3V power supply.

*3: When using USB communication, use 5.0V power supply.

*4:CTP Driving IC:ILI2511.

2.4 K9 Capacitive Touch Panel Terminal(USB TYPE-C)

Pin No.

Pin Name

Descriptions

A1/B12 GND

Power Power Supply GND (0V)

A4/B9 VBUS

Power Positive Power Supply(5.0V)

No connection

D-

I/O

USB D- Signal

D+

I/O

USB D+ Signal

D+

I/O

USB D+ Signal

D-

I/O

USB D- Signal

No connection

B4/A9 VBUS

Power Positive Power Supply(5.0V)

A12/B1 GND

Power Power Supply GND (0V)

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 6 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

3. Absolute Maximum Ratings

Parameter

Symbol

Rating

Unit

Remarks

LCD panel signal processing

VCC

-0.5 to +5.0

Power supply

board

voltage

LED driver

V i

9V to 28V

Low level

Logic Input

VIL

0 to 0.3VCC

Ta=25  C

Voltage

Input voltage

High level

ViH

0.7VCC to VCC

for signals

PWM

TBD to +(5.5)

LED driver

TBD to(12)

Inrush current

Irush

Storage temperature

Tst

-40 to +90

 C

Front surface

TopF

-30 to +80

 C

Note1

Operating temperature

Rear surface

TopR

-30 to +80

 C

Note2

 95

Ta  40  C

 85

40  C < Ta  50  C

Relative humidity

 55

50  C < Ta  60  C

Note4

 36

60 < Ta  70  C

 24

70 < Ta  80  C

Absolute humidity

 70

Note3

g/m 3

Note4

Ta = 80  C

Note1: Measured at LCD panel surface (including self-heat)

Note2: Measured at LCD module's rear shield surface (including self-heat)

Note3: No condensation

Note4: Water amount at Ta= 80°C and RH= 24%

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 7 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

4. Electrical Characteristics

4.1 Driving TFT LCD Panel

(Ta= 25  C)

Parameter

Symbol

min.

typ.

max.

Unit

Remarks

Power supply voltage

VCC

(3.2)

3.3

(3.4)

Power supply current

ICC

(TBD)

Note1

Note2

at VCC= 3.3V

Permissible ripple voltage

VRPC

100

mVp-p

for VCC

High

VTH

(+100)

Differential input threshold

at VCM= 1.2 V

voltage

Note3

Low

VTL

(-100)

Input voltage for

High

VFH1

(0.7VCC)

(VCC)

DPS,FRC and MSL signal

CMOS level

Low

VFL1

0.3VCC

Input current for

High

IFH1

(-300)

DPS,FRC and MSL signal

 A

Low

IFH1

(-300)

Note1:

Checkered flag pattern [by IEC 61747-6]

Note2:

Pattern for maximum current

Note3:

Common mode voltage for LVDS receiver

4.2 Driving Backlight

(Ta= 25  C)

Parameter

Symbol

min.

typ.

max.

Unit

Remarks

Power supply voltage

V i

(11.2)

12.0

(12.8)

Note1

Power supply current

192

(TBD)

Note2

(TBD)

Note3

Note4

Permissible ripple voltage

VRPD

200

mVp-p

for VDD

High

VDFH1

(1.2)

(5.5)

Input voltage for

PWM signal

Low

VDFL1

(0.35)

High

VDFH2

(12)

12.5

Input voltage for

EN signal

Low

VDFL2

(0.8)

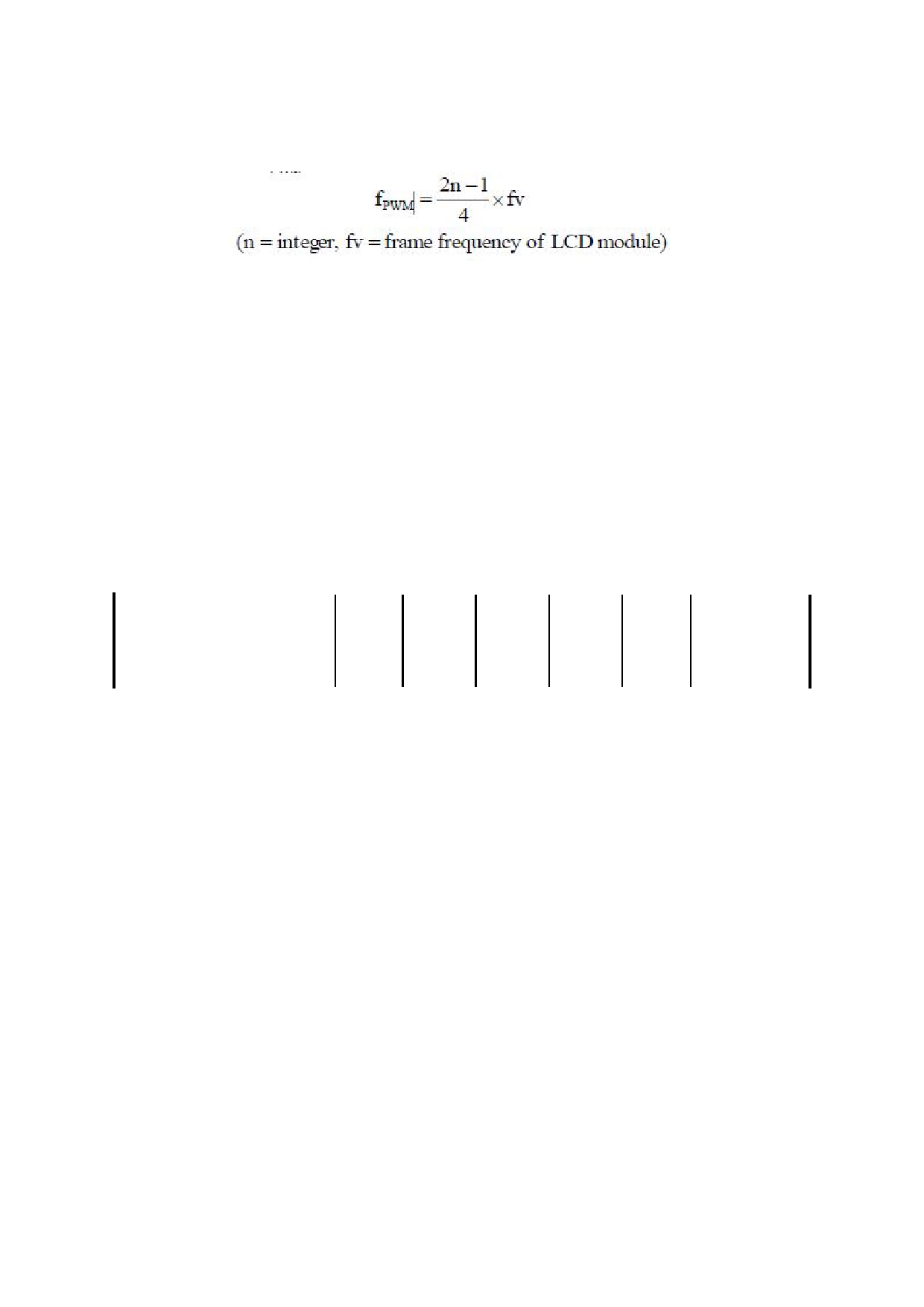

PWM frequency

f PWM

（ 200 ）

（ 10K ）

Note5, Note6

PWM duty ratio

DR PWM

（ 5% ）

（ 100 ）

Note7

PWM pulse width

tPWH

TBD

 s

LED Life Time

50000

Hrs

Note8

Note1:When designing of the power supply, take the measures for the prevention of surge

voltage.

Note2:The power supply lines (Viand GND) may have ripple voltage during luminance control of

LED. There is the possibility that the ripple voltage produces acoustic noise and signal

wave noise in audio circuit and so on. Put a capacitor between the power supply

lines (Viand GND) to reduce the noise if necessary.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 8 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

Note3:This value excludes peak current such as overshoot current.

Note4:At the maximum luminance control

Note5:A recommended f PWM value is as follows.

Note6:Depending on the frequency used, some noise may appear on the screen,

Please Conduct a thorough evaluation.

Note7:The recommended PWM frequency is 200Hz to 10kHz, but the LED current cannot be

100% proportional to duty cycle, especially for high frequency and low duty ratio.

While the EN signal is high, do not set the tPWH (PWM pulse width) is less than 0.1us.

It may cause abnormal working of the backlight. In this case, turn the backlight off and

then on again by EN signal.

Note8: Optical performance should be evaluated at Ta=25 ℃ only.

If LED is driven by high current, high ambient temperature & humidity condition.

he life time of LED will be reduced.

Operating life means brightness goes down to 50% of initial brightness.

Typical operating life time is estimated data.

4.3 CTP recommended Operating Condition

Parameter

Symbol

min.

typ.

max.

Unit

Remarks

Power supply voltage

VBUS

4.5

5.0

5.5

Power supply current

I_ VBUS

100

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 9 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

4.4 Block Diagram

Note1:GND (Signal ground)is connected to FG (Frame ground) in the LCD module

Note2:GND and FG must be connected to customer equipment’s ground, and it is

recommended that these grounds to be connected together in customer equipment.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 10 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

5. Timing Chart

5.1 Timing Characteristics

Parameter

Symbol

min.

typ.

max.

Unit

Remarks

CLK

Frequency

1/tc

(50.34) 50.66 (65.34) MHz

19.739ns (typ.)

21.477

 s

Cycle

46.561 kHz

Horizontal

(typ.)

1084

1,088

1214

CLK

Display period

thd

1024

CLK

Vertical

16.666

Cycle

60.0Hz (typ.)

(One

774

776

897

frame)

Display period

tvd

768

Note1:Definition of parameters is as follows.

tc= 1CLK, th= 1H

Note2:See the data sheet of LVDS transmitter.

Note3:Vertical cycle (tv) should be specified in integral multiple of Horizontal cycle (th).

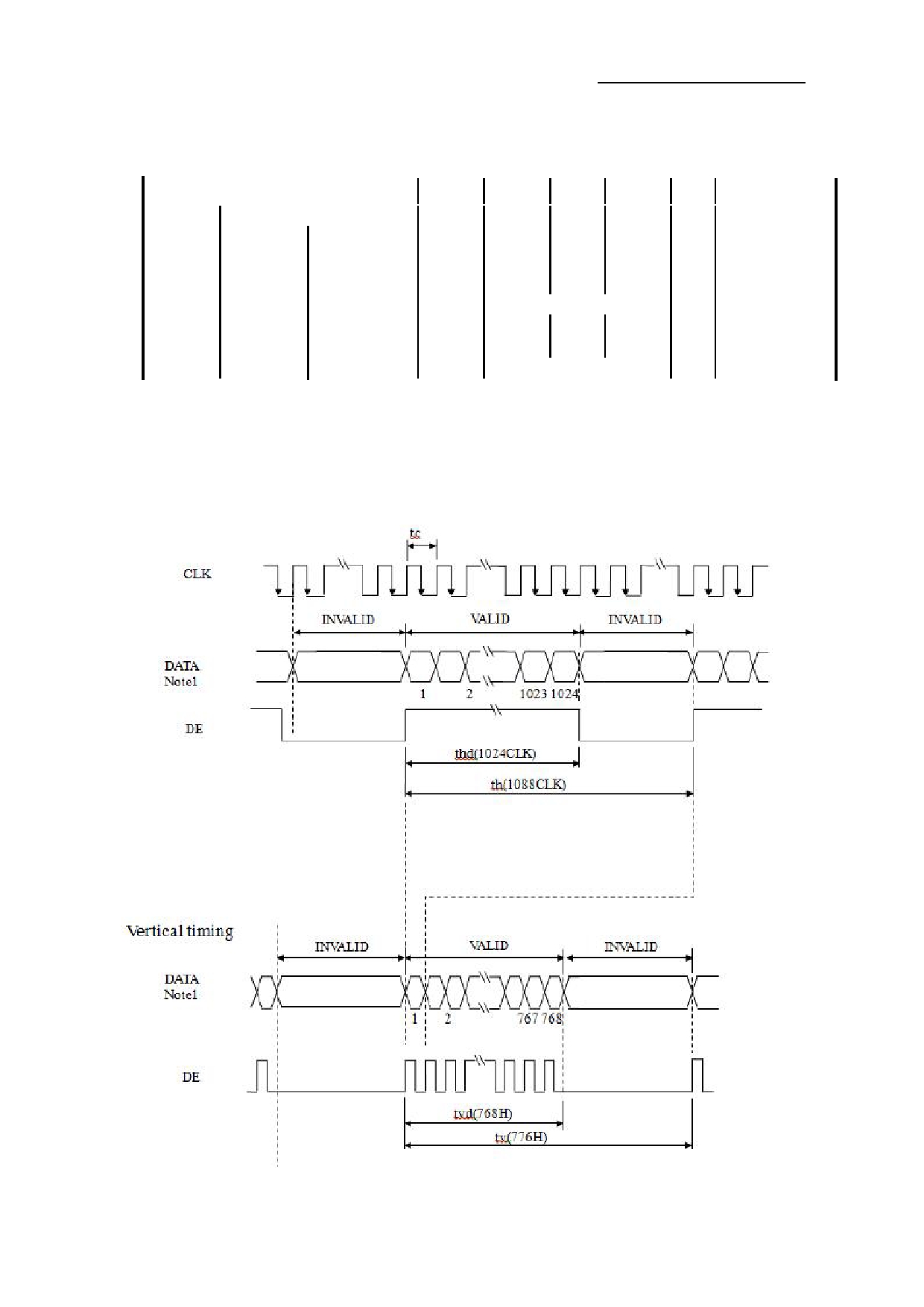

5.2 Input signal timing chart

Note1:DATA = R0-R7, G0-G7, B0-B7

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 11 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

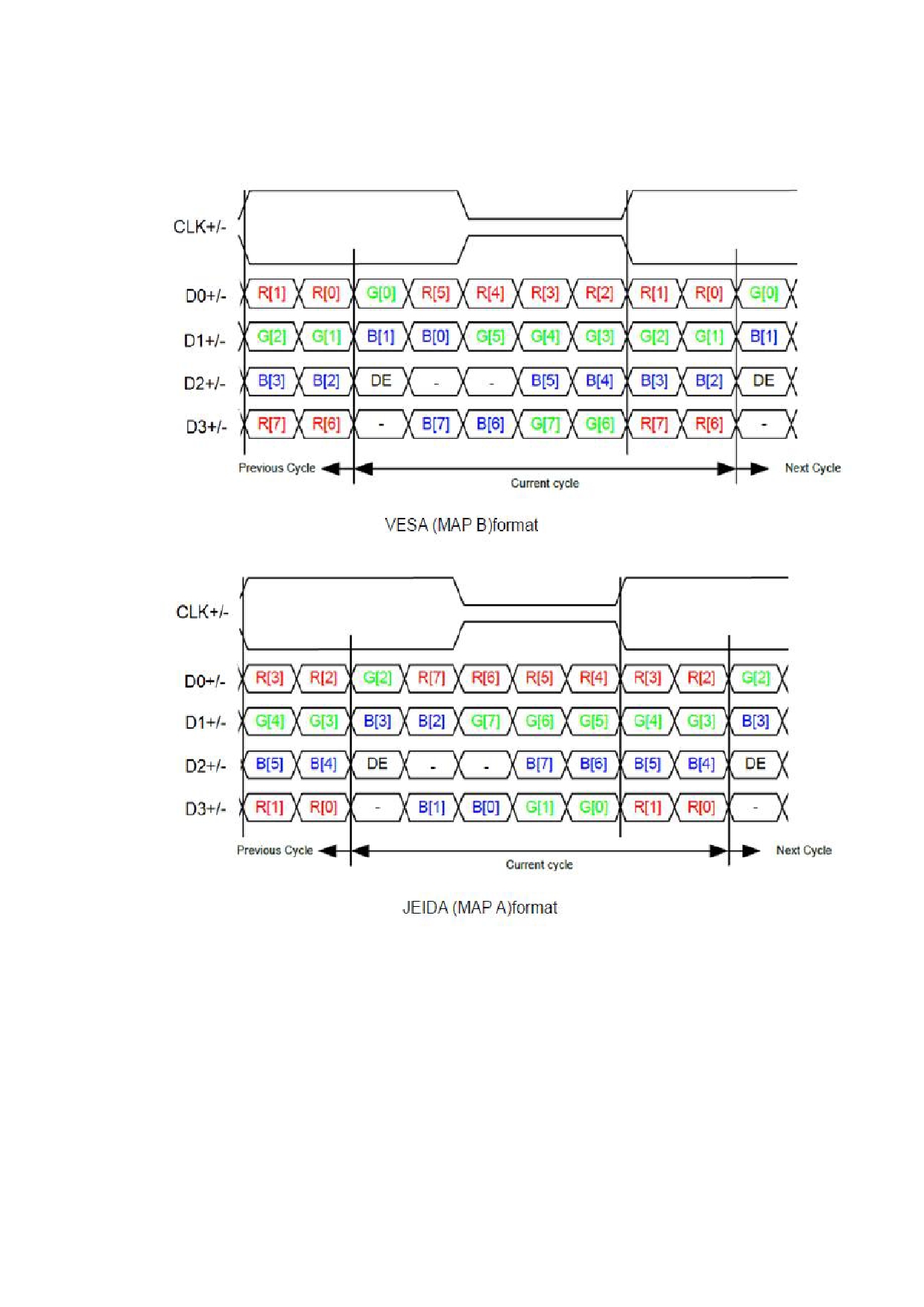

5.3 LVDS data input format

Input data signal: 8-bit

Note1:LSB (Least Significant Bit) – R0, G0, B0 ； MSB (Most Significant Bit) – R7, G7, B7

Note2:Twist pair wires with 100R(Characteristic impedance) should be used between

LCD panel signal processing board and LVDS transmitter.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 12 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

Input data signal: 6-bit

Note1:LSB (Least Significant Bit) – R0, G0, B0 MSB (Most Significant Bit) – R7, G7, B7

Note2:Twist pair wires with 100R(Characteristic impedance) should be used between

LCD panel signal processing board and LVDS transmitter.

5.4 LVDS Rx AC SPEC

Parameter

Symbol

Min.

Typ.

Max. Unit

Condition

Clock

frequency

RXFCLK

110

MHz

1 data bit time

1/7

1/RXFCLK

Position 1

Rspos1

-0.2

0.2

Position 2

Rspos2

0.8

1.2

Position 3

Rspos3

1.8

2.2

Position 4

Rspos4

2.8

3.2

Position 5

Rspos5

4.2

Position 6

Rspos6

4.8

5.2

Position 7

Rspos7

5.8

6.2

Input data skew

|VID|=100mV

margin

TRSKM

0.2

RXVCM=1.2V

RXFCLK=75MHz

Clock high time TLVCH

4/(7*RXFCLK)

Clock low time

TLVCL

3/(7*RXFCLK)

PLL wake-up

time

TenPLL

150

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 13 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

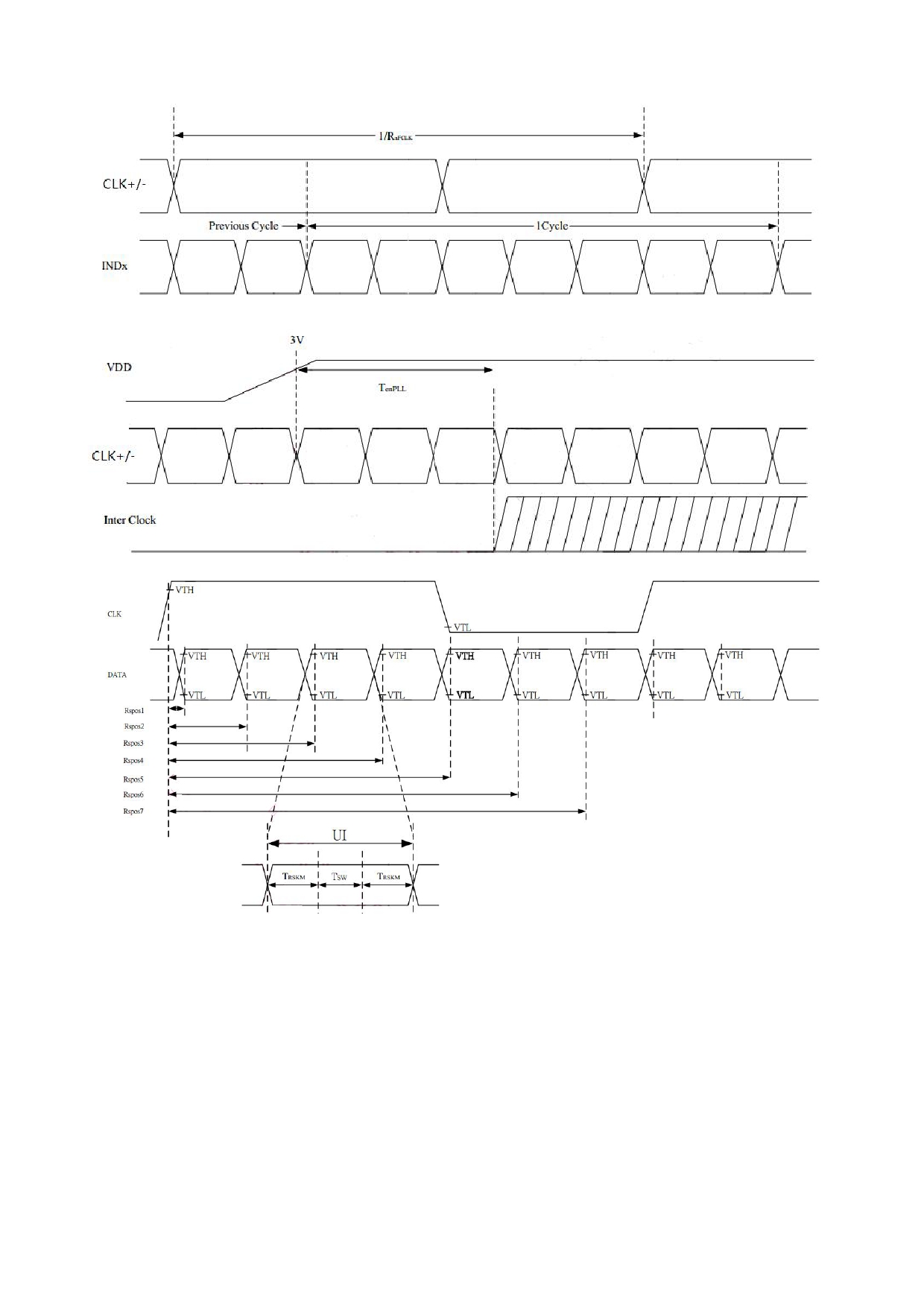

Ideal TX Pulse Position

TRSKM: Receiver strobe margin

Tsw : Strobe width ( internal data

sampling window )

VTH=Rxvcm+|VID|/2, VTL=Rxvcm-|VID|/2

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 14 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

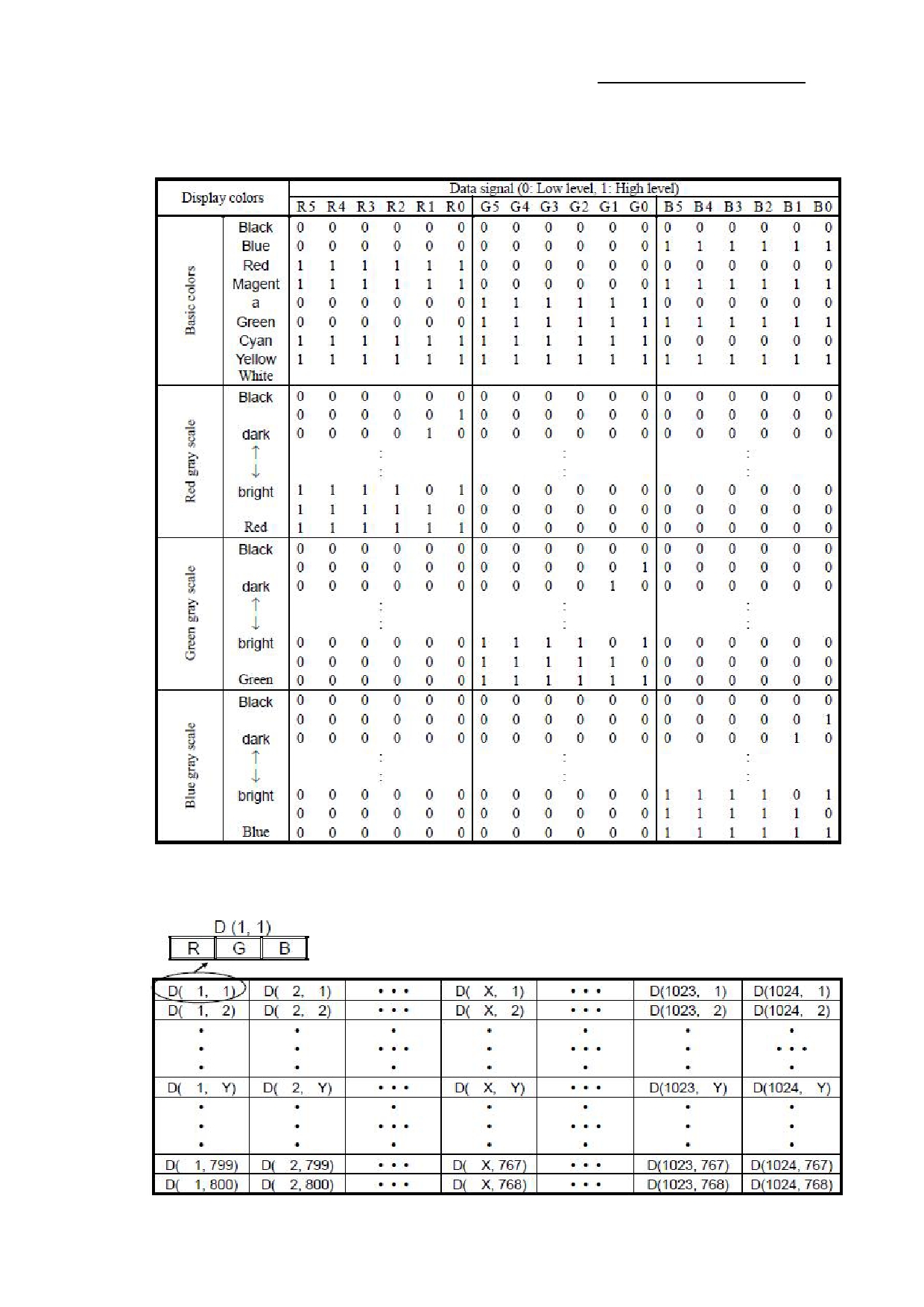

5.5 Display Colors and Input Data Signals

5.5.1 16,777,216colors

This product can display equivalent of 16,777,216colors with 256 gray scales(FRC:High).

Also the relation between display colors and input data signals is as follows.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 15 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

5.5.2 262,144colors

This product can display equivalent of 262,144colors with 64gray scales(FRC:Low).

Also the relation between display colors and input data signals is as follows.

5.6 Display Positions

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 16 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

5.7 Scanning Direction

The following figures are seen from a front view.

Figure1. Normal scan (DPS:High)

Figure2. Reverse scan (DPS:Low)

5.8 POWER SUPPLY VOLTAGE SEQUENCE

5.8.1 LCD panel signal processing board

* These signals should be measured at the terminal of 100R resistance.

Note1:If there is a voltage variation (voltage drop) at the rising edge of VCC below 3.0V,

there is a possibility that a product does not work due to a protection circuit.

Note2:Display signals (D0+/-, D1+/-, D2+/- and CLK+/-) and function signals (DPS) must

be set to Low or High-impedance, except the VALID period (See above sequence

diagram), in order to avoid the circuitry damage.

If some of display and function signals of this product are cut while this product is

working, even if the signal input to it once again, it might not work normally. If a

customer stops the display and function signals, VCC also must be shut down.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 17 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

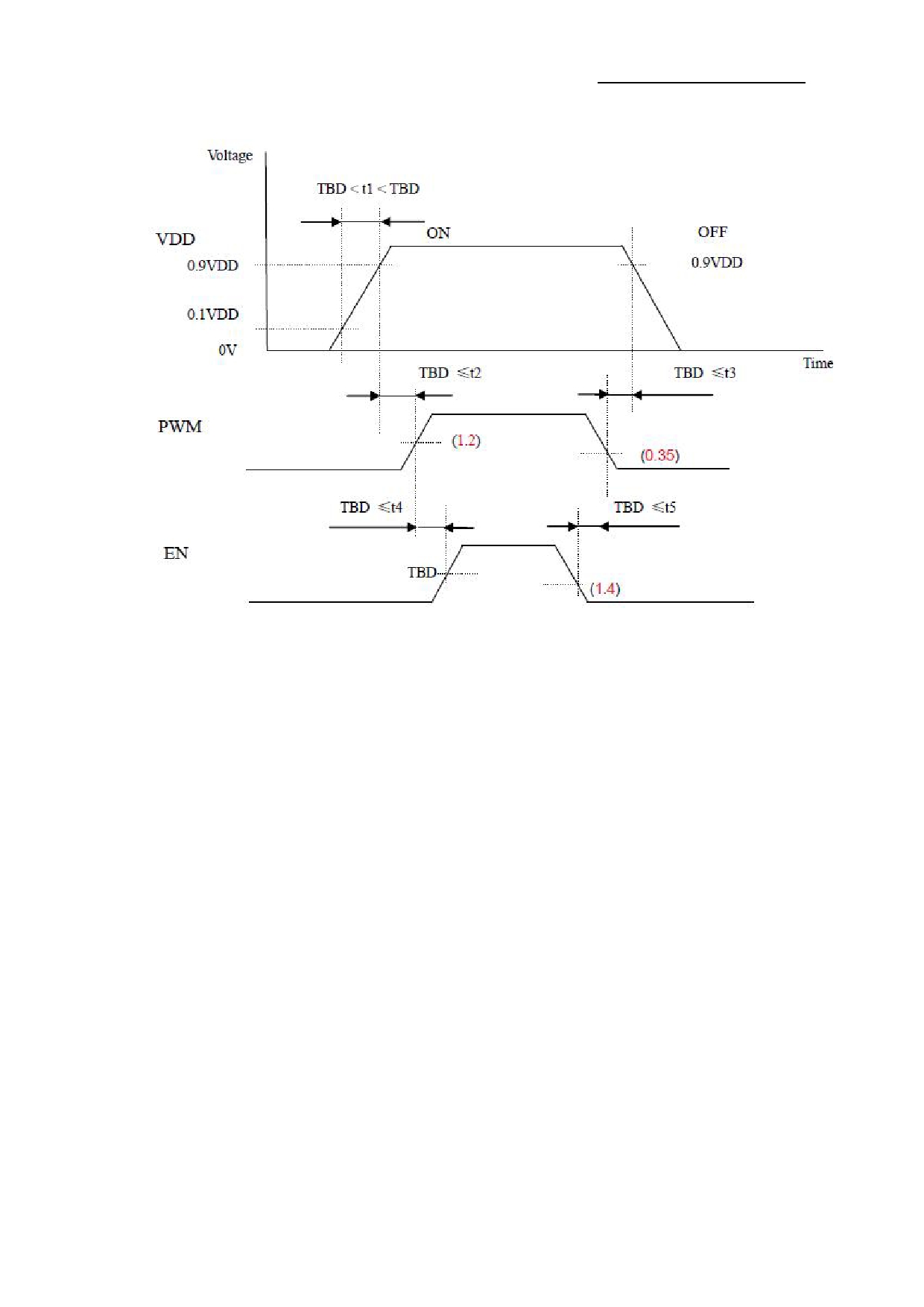

5.8.2 LED Driver

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 18 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

6. Optical Characteristics

6.1 Optical Specification

Ta=25 ℃

Item

Symbol Condition

Min

Typ

Max

Unit

Remark

θT

View Angles

θB

CR ≧ 10

Degree

Note 2

θL

θR

Contrast Ratio

θ=0°

800

1000

Note1

Note3

T ON

Response Time

25 ℃

Note1

T OFF

Note4

TBD

White

TBD

Red

Chromaticity

Backlight is on

TBD

Note5

Note1

Gree

TBD

Blue

TBD

Uniformity

Note1

Note6

NTSC

Note5

Luminance

400

cd/m 2

Note1

Test Conditions:

1. The ambient temperature is 25±2 ℃ .humidity is 65±7%

2. The test systems refer to Note 1 and Note 2.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 19 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

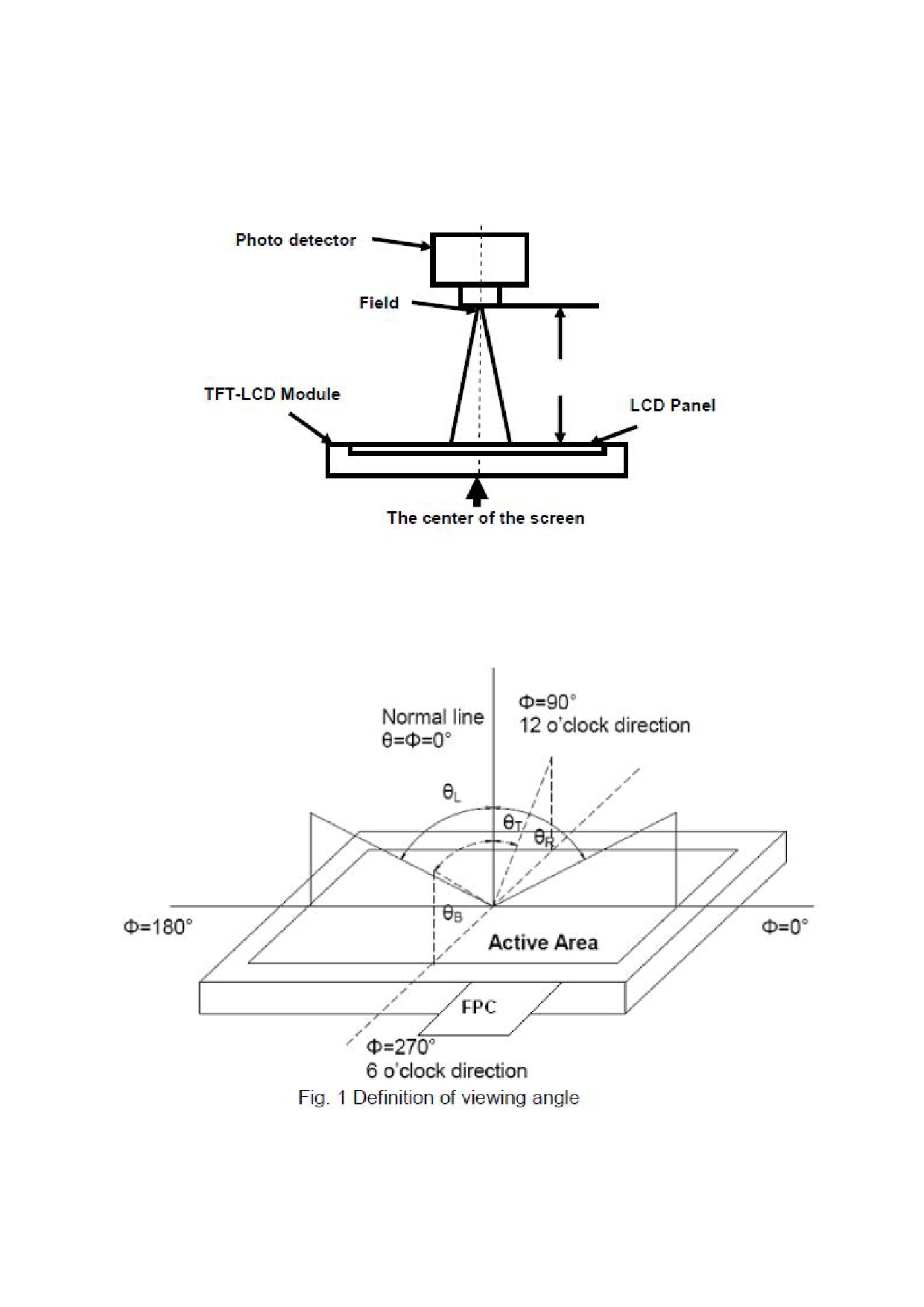

Note 1:Definition of optical measurement system.

The optical characteristics should be measured in dark room. After 5minutes operation, the optical

properties are measured at the center point of the LCD screen. All input terminals LCD panel must

be ground when measuring the center area of the panel.

Note 2: Definition of viewing angle range and measurement system.

viewing angle is measured at the center point of the LCD by CONOSCOPE(ergo-80) 。

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 20 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

Note 3: Definition of contrast ratio

“ White state “:The state is that the LCD should driven by Vwhite.

“Black state”: The state is that the LCD should driven by Vblack.

Vwhite: To be determined Vblack: To be determined.

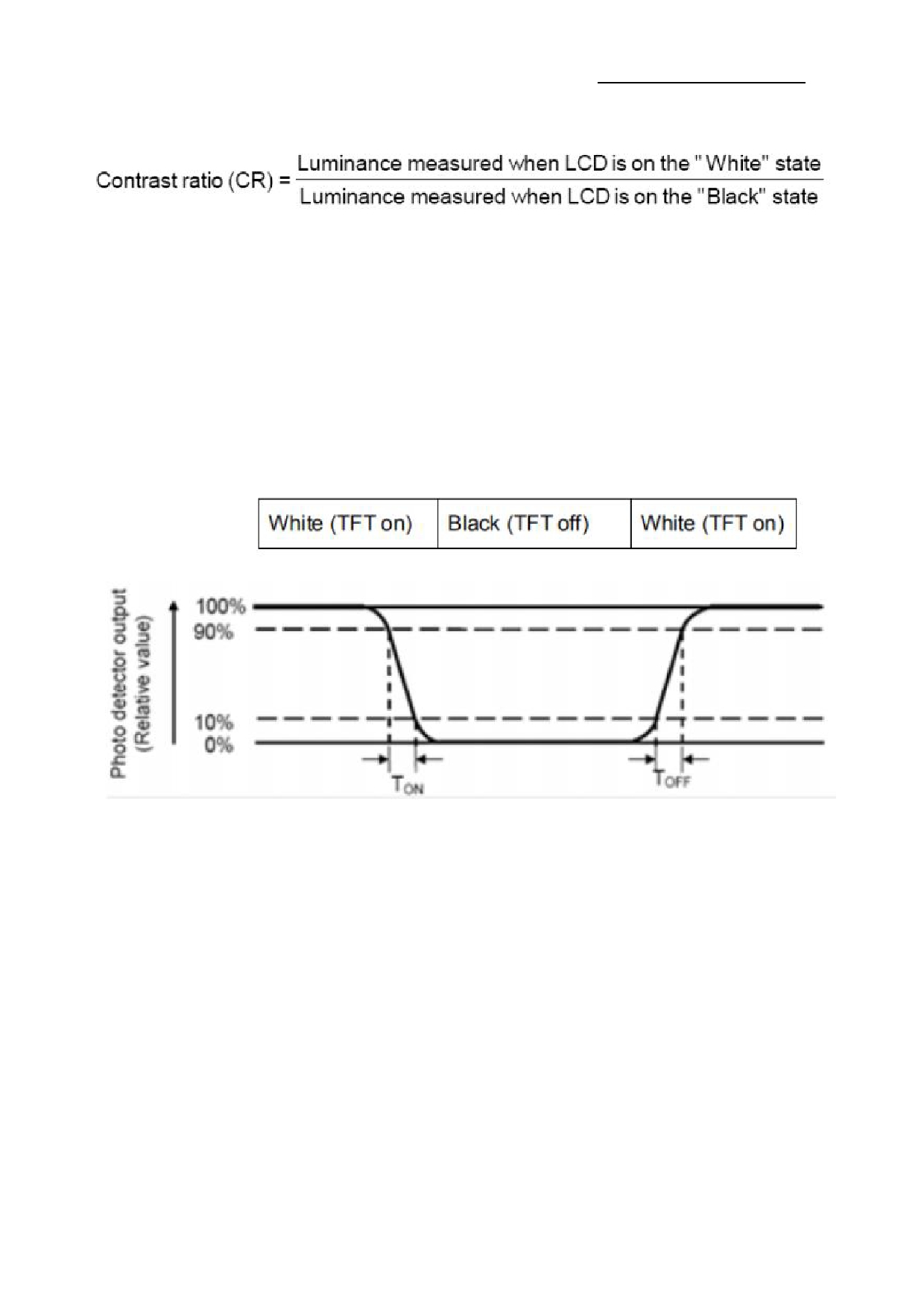

Note 4: Definition of Response time

The response time is defined as the LCD optical switching time interval between “White” state and

“Black” state. Rise time (TON) is the time between photo detector output intensity changed from

90% to 10%. And fall time (TOFF) is the time between photo detector output intensity changed from

10% to 90%.

Note 5: Definition of color chromaticity (CIE1931)

Color coordinates measured at center point of LCD.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 21 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

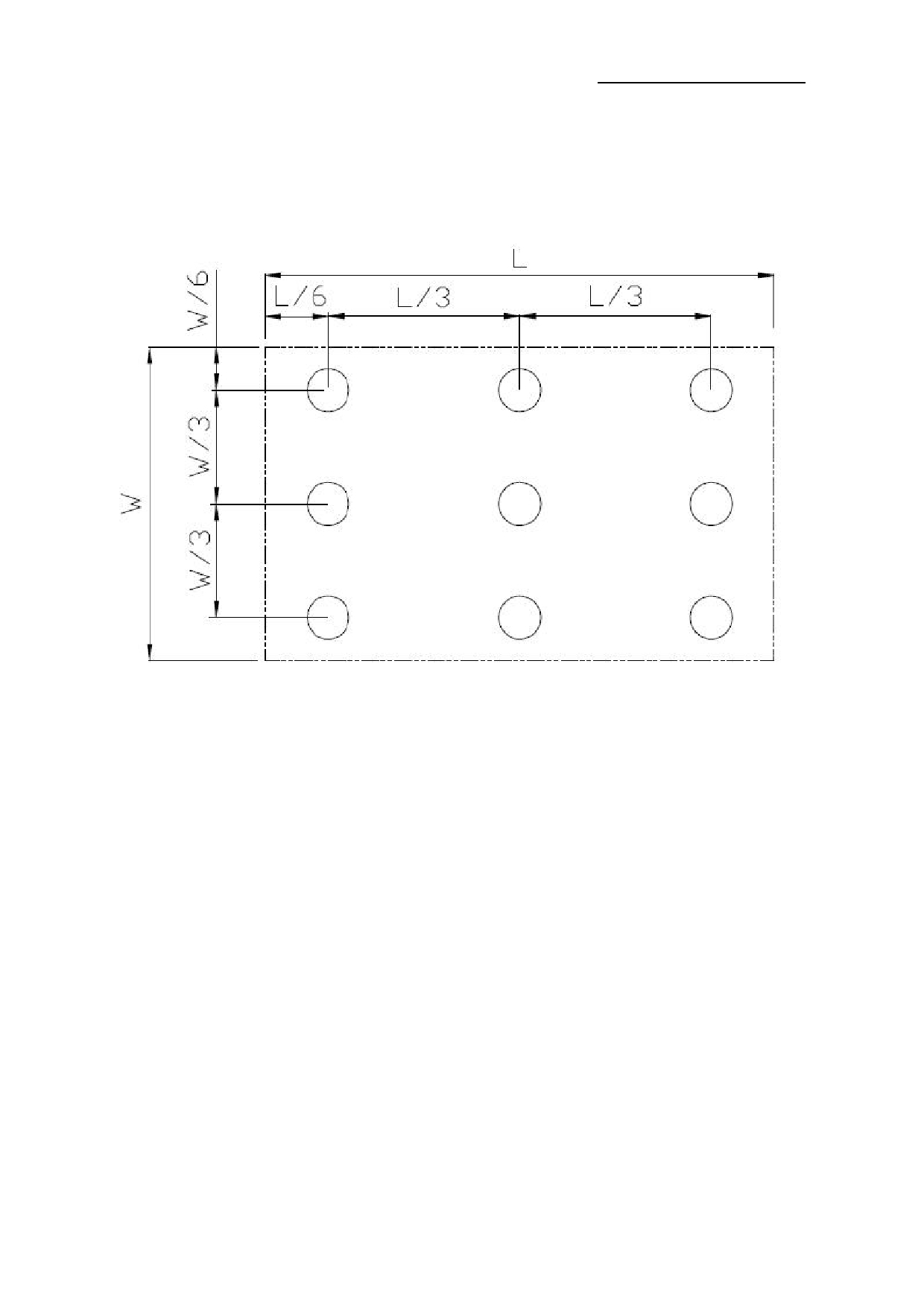

Note 6: Definition of Luminance Uniformity

Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the

center of each measuring area.

Luminance Uniformity(U) = Lmin/ Lmax

L-------Active area length W-----Active area width

Fig. 2 Definition of uniformity

Lmax: The measured maximum luminance of all measurement position.

Lmin: The measured minimum luminance of all measurement position.

Note 7: Definition of Luminance

Measure the luminance of white state at center point.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 22 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

7. Environmental / Reliability Test

Test Item

Condition

Remark

High Temperature

IEC60068-2-1

Operation

Ta= +80 ℃ ,240hours

GB2423.2

Low Temperature

IEC60068-2-1

Operation

Ta = -30 ℃ , 240 hours

GB2423.1

High Temperature Storage Ta = +90 ℃ , 240 hours

IEC60068-2-1

GB2423.2

Low Temperature Storage Ta = -40 ℃ , 240 hours

IEC60068-2-1

GB2423.1

High Temperature & High

Ta = +60 ℃ , 90% RH max,240 IEC60068-2-78

Humidity Operation

hours

GB/T2423.3

Start with cold temperature,

ThermalShock

-30 ℃ 30 min~+80 ℃ 30 min,

(non-operation)

End with high temperature,

Change time:5min, 100 Cycle

IEC60068-2-14,GB2423.22

C=150pF,R=330Ω,9point/pan

Air:±15Kv,5times;

ESD

IEC61000-4-2

Contact:±8Kv,5times

GB/T17626.2

(Environment:15 ℃ ~35 ℃ ,

30%~60%.86Kpa~106Kpa)

5~100HZ ， 19.60m/s2

Vibration Test(Non Op)

IEC60068-2-6

1min/cycle 120times Per

GB/T17626.6

X\Y\Z

539m/s2, 11ms

Mechanical Shock (Non

IEC60068-2-27

Op)

5times ± X 、± Y 、± Z

GB/T2423.5

Note1: Ts is the temperature of panel’s surface.

Note2: Ta is the ambient temperature of sample.

Note3: Before cosmetic and function test, the product must have enough recovery time, at least 2

hours at room temperature.

Note 4: In the standard condition, there shall be no practical problem that may affect the display

function. After the reliability test, the product only guarantees operation, but don’t guarantee all of

the cosmetic specification.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 23 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

8. Precautions for Use of LCD Modules

8.1 Handling Precautions

8.1.1 The display panel is made of glass. Do not subject it to a mechanical shock by dropping

it from a high place, etc.

8.1.2 If the display panel is damaged and the liquid crystal substance inside it leaks out, be

sure not to get any in your mouth, if the substance comes into contact with your skin or

clothes, promptly wash it off using soap and water.

8.1.3 Do not apply excessive force to the display surface or the adjoining areas since this may

cause the color tone to vary.

8.1.4 The polarizer covering the display surface of the LCD module is soft and easily

scratched. Handle this polarizer carefully.

8.1.5 If the display surface is contaminated, breathe on the surface and gently wipe it with a

soft dry cloth. If still not completely clear, moisten cloth with one of the following solvents:

－ Isopropyl alcohol

－ Ethyl alcohol

Solvents other than those mentioned above may damage the polarizer. Especially, do

not use the following:

－ Water

－ Ketone

－ Aromatic solvents

8.1.6 Do not attempt to disassemble the LCD Module.

8.1.7 If the logic circuit power is off, do not apply the input signals.

8.1.8 To prevent destruction of the elements by static electricity, be careful to maintainan

optimum work environment.

8.1.8.1 Be sure to ground the body when handling the LCD Modules.

8.1.8.2 Tools required for assembly, such as soldering irons, must be properly ground.

8.1.8.3 To reduce the amount of static electricity generated, do not conduct assembly and

other work under dry conditions.

8.1.8.4 The LCD Module is coated with a film to protect the display surface. Be care when

peeling off this protective film since static electricity may be generated.

8.2 Storage Precautions

8.2.1 When storing the LCD modules, avoid exposure to direct sunlight or to the light of

fluorescent lamps.

8.2.2 The LCD modules should be stored under the storage temperature range. If the LCD

modules will be stored for a long time, the recommend condition is:

Temperature : 0 ℃ ～ 40 ℃

Relatively humidity: ≤80%

8.2.3 The LCD modules should be stored in the room without acid, alkali and harmful gas.

8.3 Transportation Precautions

The LCD modules should be no falling and violent shocking during transportation, and also

should avoid excessive press, water, damp and sunshine.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 24 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

9. LCD Module Design and Handling

9. 液晶显示模块设计和使用须知

Precautions

- Please ensure V0, VCOM is adjustable, to enable LCD module get - 请注意 V0, VCOM 的设定, 以确保液晶显示

the best contrast ratio under different temperatures, view angles

模块在不同的使用温度下以及在不同的视角

and positions.

和位置观察模块显示，均能达到最佳对比度，

请务必将应用电路上设置为对比度可调。

- 请注意液晶显示模块的显示品质判定是指在

- Normally display quality should be judged under the best contrast

正常对比度下以及视窗(V.A)范围内进行的，

ratio within viewable area. Unexpected display pattern may com

非正常对比度下液晶可能会出现非预期的显

out under abnormal contrast ratio.

示不良，应注意区分。

- 请勿在最大额定值以外使用液晶显示模块。

- Never operate the LCD module exceed the absolute maximum - 请勿在没有接通电源的条件下，给液晶显示

ratings.

模块输送信号。

- Never apply signal to the LCD module without power supply.

- 请尽可能缩短信号线的连接，以避免对液晶

显示模块的信号干扰。

- Keep signal line as short as possible to reduce external noise - 集成电路因 IC 芯片(如 TAB 或 COG)对紫外线

interference.

极为敏感，强光环境下可能会引起液晶显示

模块功能失效，故应采用不透光的外壳。

- IC chip (e.g. TAB or COG) is sensitive to light. Strong light might - 请在液晶显示模块与外壳之间保留足够的空

cause malfunction. Light sealing structure casing is

间(可使用衬垫) ，以缓冲外力对液晶显示模

recommended.

块的损坏或因受力不均而产生的显示不匀等

异常现象。

- Make sure there is enough space (with cushion) between case - 避免液晶显示屏在某一画面下长时间点亮，

and LCD panel, to prevent external force passed on to the panel;

否则有出现残影的风险；请通过软件每隔一

otherwise that may cause damage to the LCD and degrade its

段时间改变一次画面。

display result.

- 液晶显示模块的可靠性可能因温度冲击而降

低。

- Avoid showing a display pattern on screen for a long time - 请勿在阳光直射、高湿、高温或低温下储存

(continuous ON segment).

和使用液晶显示模块，这将造成液晶显示模

块的损坏或失效。

- LCD module reliability may be reduced by temperature shock.

- 请勿在极限环境(最大/最小存储/工作温度)

下使用或放置液晶显示模块超过 48 小时以

- When storing and operating LCD module, avoids exposure to

上。

direct sunlight, high humidity, high or low temperature. They may - 液晶显示模块建议存储条件为: 0 C~40 C

damage or degrade the LCD module.

<80%RH 。

- Never leave LCD module in extreme condition (max./min - 请勿让液晶显示模块存储于带有酸性, 碱

storage/operate temperature) for more than 48hr.

性, 有害气体环境之中。

- 在运输过程中, 请勿让液晶显示模块跌落与

- Recommend LCD module storage conditions is 0 C~40 C

猛烈震动, 同时避免异常挤压, 高湿度,

<80%RH.

与阳光照射.

- 液晶显示模块极易受静电损坏，请务必保证

- LCD module should be stored in the room without acid, alkali and

液晶显示模块在防静电的工作环境中使用或

harmful gas.

保存。 (如: 烙铁正确接地,等)

- 拿取液晶显示模块时需注意操作人员的接地

- Avoid dropping & violent shocking during transportation, and no

情况。

excessive pressure press, moisture and sunlight.

- 请手持液晶显示模块的边沿取放模块，防止

热压纸或 TAB 部位受力。

- LCD module can be easily damaged by static electricity. Please - 焊接液晶模块时，请注意控制烙铁的温度、

maintain an optimum anti-static working environment to protect

焊接时间，以免烫坏导光板或偏光片，导致

the LCD module. (eg. ground the soldering irons properly)

显示不匀等不良现象发生。

- Be sure to ground the body when handling LCD module.

- 请勿使用洗板水等腐蚀性液体接触液晶模

块，以免腐蚀导光板或模块电路。

- Only hold LCD module by its sides. Never hold LCD module by

applying force on the heat seal or TAB.

- 仅可使用柔软的干布, 异丙醇或乙醇清洁液

- When soldering, control the temperature and duration avoid

晶屏表面，其他任何溶剂(如:水)都有可能损

damaging the backlight guide or diffuser which might degrade the

坏液晶模块。

display result such as uneven display.

- 请勿挤压液晶显示模块上的元器件，以避免

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 25 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

- Never let LCD module contact with corrosive liquids, which might

产生潜在的损坏或失效而影响产品可靠性。

cause damage to the backlight guide or the electric circuit of LCD - 装配液晶显示模块时，请务必注意避免液晶

module.

显示模块的扭曲或变形。

- 请勿挤压液晶显示屏表面，这将导致显示颜

- Only clean LCD with a soft dry cloth, Isopropyl Alcohol or Ethyl

色的异常。

Alcohol. Other solvents (e.g. water) may damage the LCD.

- 液晶屏由玻璃制作而成，任何机械碰撞(如从

高处跌落)均有可能损坏液晶显示模块。

- Never add force to components of LCD module. It may cause

invisible damage or degrade the module's reliability.

- When mounting LCD module, please make sure it is free from

twisting, warping and bending.

- Do not add excessive force on surface of LCD, which may cause

the display color change abnormally.

- LCD panel is made with glass. Any mechanical shock (e.g.

dropping from high place) will damage the LCD module.

- Protective film is attached on LCD screen. Be careful when - 液晶屏表面带有保护膜, 揭除保护膜时需要

peeling off this protective film, since static electricity may be

注意可能产生的静电。

generated.

- 因液晶显示屏表面的偏光片极易划伤，安装

- Polarizer on LCD gets scratched easily. If possible, do not remove

完成之前请尽量不要揭下保护膜。

LCD protective film until the last step of installation.

- 请缓慢揭除保护膜，在此过程中液晶显示屏

- When peeling off protective film from LCD, static charge may

上可能会产生静电线，此为正常情况，可在

cause abnormal display pattern. The symptom is normal, and it

短时间内消失。

will turn back to normal in a short while.

- 请注意避免被液晶显示屏的边缘割伤。

- LCD panel has sharp edges, please handle with care.

- 请不要试图拆卸或改造液晶显示模块。

- Never attempt to disassemble or rework LCD module.

- 当液晶显示屏出现破裂, 内部液晶液体可能

- If display panel is damaged and liquid crystal substance leaks out,

流出; 相关液体不可吞吃, 绝对不可接触嘴

be sure not to get any in your mouth, if the substance comes into

巴, 如接触到皮肤或衣服, 请使用肥皂与清

contact with your skin or clothes promptly wash it off using soap

水彻底清洗.

and water.

10. 电容触摸屏安装指导

10. CTP Mounting Instructions

10.1 面框安装（附图 1 ）

- 客户面框窗口应大于 CTP 动作区域，各边离

10.1 Bezel Mounting (Figure 1)

动作区应 ≥ 0.5mm.

- The bezel window should be bigger than the CTP active area. It

- 面框与 CTP 面板间应垫有胶垫，其最终间隙

should be ≥ 0.5mm each side.

约为 0.5 ～ 1.0mm.

- Gasket should be installed between the bezel and the CTP

- 建议必要时在背面提供附加支架(例如无安

surface. The final gap should be about 0.5~1.0mm.

装结构的薄型 TFT 模块) ，应仅利用适当支撑

- It is recommended to provide an additional support bracket for

以保持模块位置.

backside support when necessary (e.g. slim type TFT module

without mounding structure). They should only provide appropriate

support and keep the module in place.

- 安装结构应具有足够的强度，以防止外部不

均匀力或扭曲力作用到模块上.

- The mounting structure should be strong enough to prevent

external uneven force or twist act onto the module.

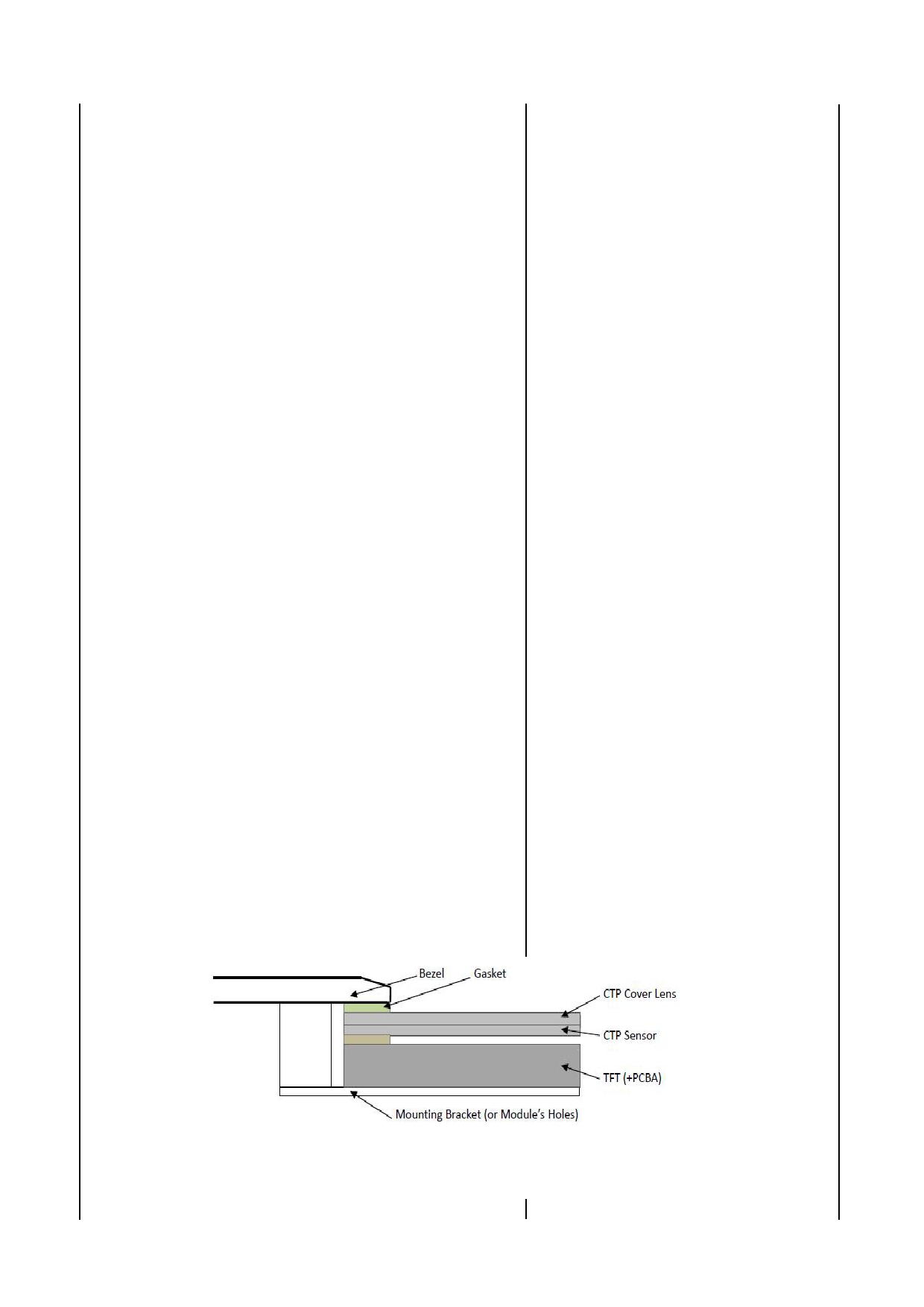

Figure 1

10.2 Surface Mounting (Figure 2)

10.2 嵌入安装（附图 2 ）

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 26 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

- As the CTP assembling on the countersink area with double side - 客户面框应具有使用双面胶粘贴 CTP 的结构

adhesive.The countersink area should be flat and clean to ensure

沉台面，其粘贴面要求平整且洁净无污以保

the double side adhesive installation result.

证粘贴牢靠.

- The Bezel is recommend to keep a gap ( ≥ 0.3mm each side) - 考虑到制作误差，建议面框与 CTP 盖板之间

around the cover lens for tolerance.

四周留有 ≥ 0.3mm 间隙.

- It is recommended to provide an additional support bracket with - 建议必要时在背面提供垫有胶垫附加支架

gasket for backside support when necessary (e.g. TFT module

(例如无安装结构的 TFT 模块) ，应仅利用适

without mounding structure). They should only provide appropriate

当支撑以保持模块位置.

support and keep the module in place.

- The mounting structure should be strong enough to prevent - 安装结构应具有足够的强度，以防止外部不

external uneven force or twist act onto the module

均匀力或扭曲力作用到模块上。

Figure 2

10.3 Additional Cover Lens Mounting (Figure 3)

10.3 覆加盖板（附图 3 ）

- For the case of additional cover Lens mounting, it is necessary to - 需要覆加玻璃盖板的安装，为确保其功能，

recheck with the CTP specification about the material and

有必要查看产品规格书中有关盖板材料和厚

thickness to ensure the functionality.

度的说明.

- It should keep a 0.2~0.3mm gap between the cover lens and the - 玻璃盖板与 CTP 表面之间应留有 0.2 ～ 0.3mm

CTP surface..

间隙.

- 玻璃盖板视窗应大于 CTP 动作区域，各边离

- The cover lens window should be bigger than the active area of

动作区应 ≥ 0.5mm 。

the CTP.It should be ≥ 0.5mm each side.

- 建议必要时在背面提供附加支架(例如无安

- It is recommended to provide an additional support bracket for

装结构的薄型 TFT 模块) ，应仅利用适当支撑

backside support when necessary (e.g. slim type TFT module

以保持模块位置.

without mounding structure). They should only provide appropriate - 安装结构应具有足够的强度，以防止外部不

support and keep the module in place.

均匀力或扭曲力作用到模块上.

- The mounting structure should be strong enough to prevent

external uneven force or twist act onto the module.

Figure 3

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 27 of 28

TOPWAY

LCD Module User Manual

LMT121EAGFWA-NND-1

11. Warranty

This product has been manufactured to our company’s specifications as a part for use in your company’s general

electronic products. It is guaranteed to perform according to delivery specifications. For any other use apart from general

electronic equipment, we cannot take responsibility if the product is used in medical devices, nuclear power control

equipment, aerospace equipment, fire and security systems, or any other applications in which there is a direct risk to

human life and where extremely high levels of reliability are required. If the product is to be used in any of the above

applications, we will need to enter into a separate product liability agreement.

- We cannot accept responsibility for any defect, which may arise form additional manufacturing of the product

(including disassembly and reassembly), after product delivery.

- We cannot accept responsibility for any defect, which may arise after the application of strong external force to the

product.

- We cannot accept responsibility for any defect, which may arise due to the application of static electricity after the

product has passed our company’s acceptance inspection procedures.

- When the product is in CCFL models, CCFL service life and brightness will vary according to the performance of the

inverter used, leaks, etc. We cannot accept responsibility for product performance, reliability, or defect, which may

arise.

We cannot accept responsibility for intellectual property of a third part, which may arise through the

application of our product to our assembly with exception to those issues relating directly to the

structure or method of manufacturing of our product.

URL: www.topwaydisplay.com

Document Name: LMT121EAGFWA-NND-1-Manual-Rev0.2.doc

Page: 28 of 28
