+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
MODEL NO. :
TM035KDH03
ISSUED DATE:
2013-12-5
VERSION
:
2.4
□ Preliminary Specification
■ Final Product Specification
Customer :
Approved by
Notes
TIANMA Confirmed :
Prepared by
Checked by
Approved by
This technical specification is subjected to change without notice
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 1 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
Table of Contents
Table of Contents ..............................................................................................................................2
Record of Revision............................................................................................................................3
1
General Specifications................................................................................................................4
2
Input/Output Terminals ...............................................................................................................5
3
Absolute Maximum Ratings........................................................................................................7
4
Electrical Characteristics ............................................................................................................8
5
Timing Chart.............................................................................................................................10
6

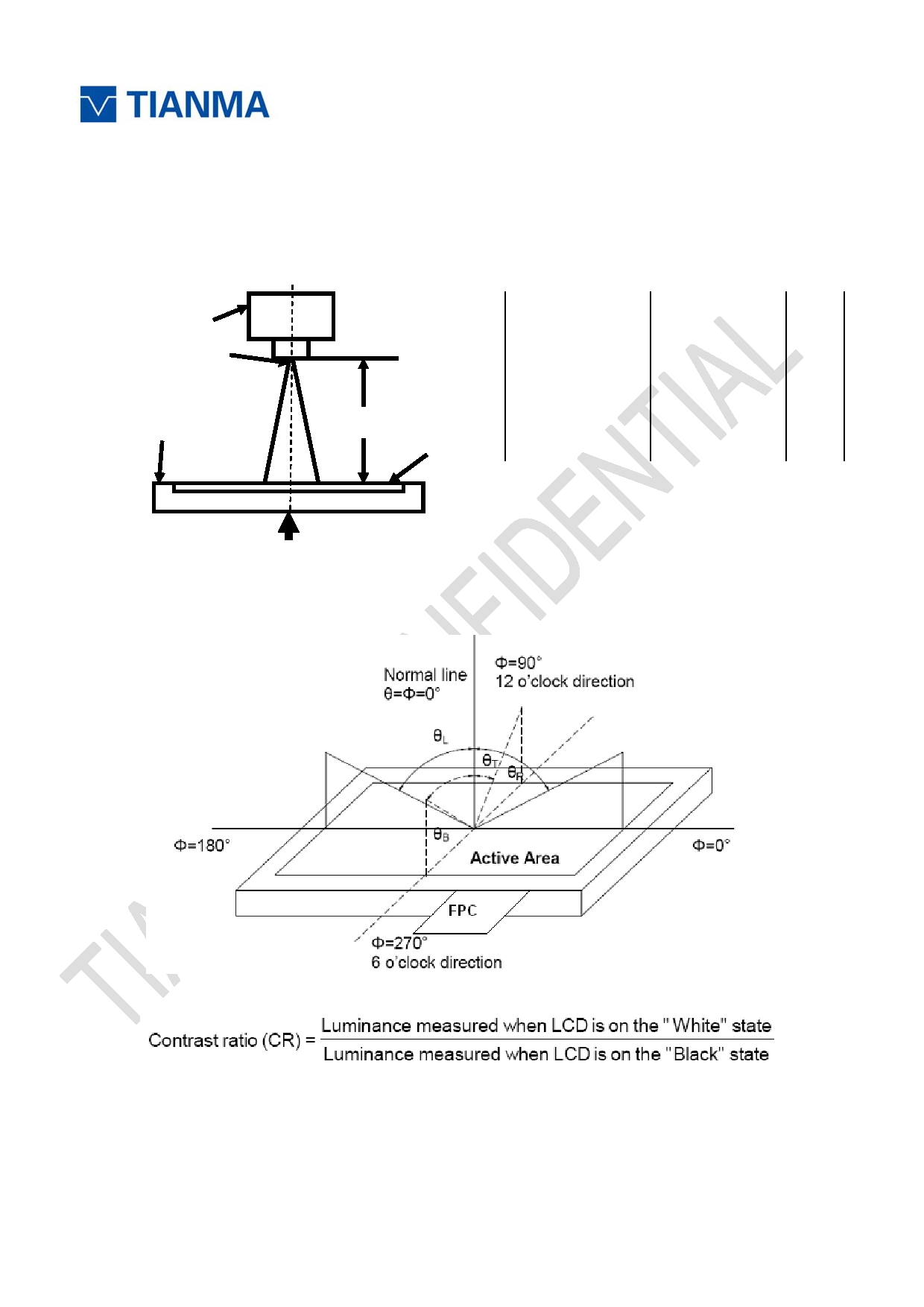

Optical Characteristics..............................................................................................................17
7
Environmental / Reliability Test .................................................................................................20
8

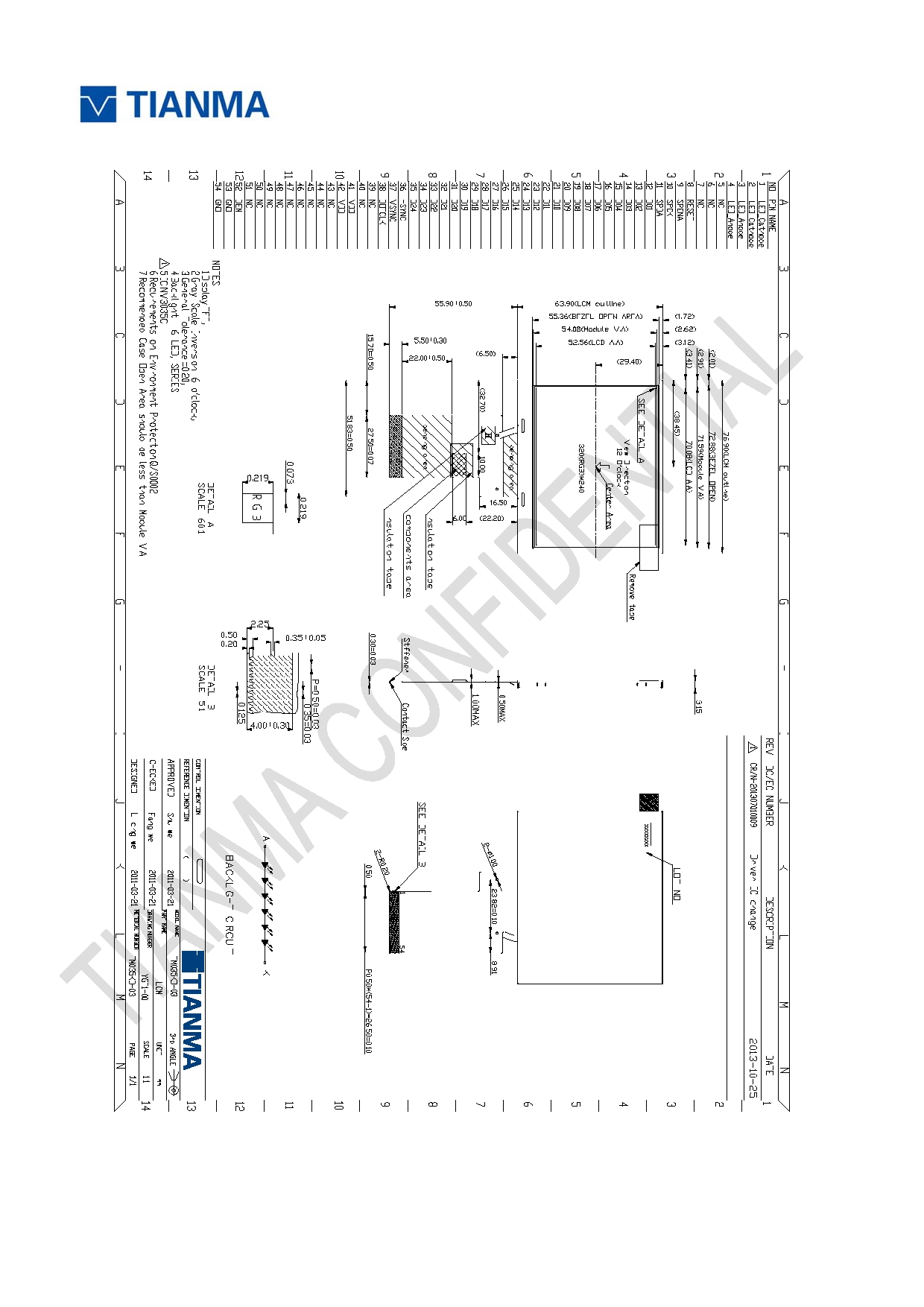

Mechanical Drawing .................................................................................................................21
9

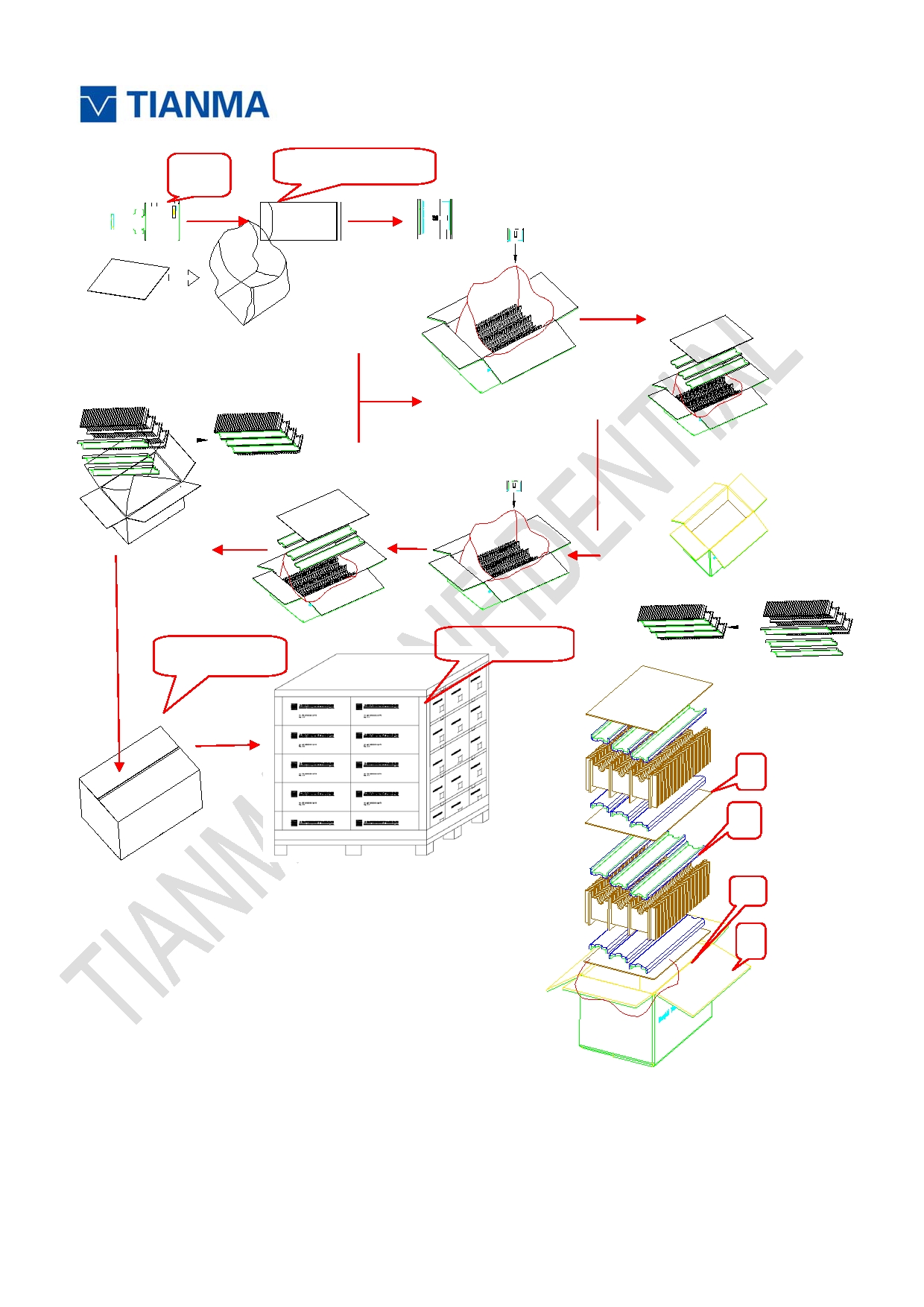

Packing Drawing ......................................................................................................................22
10 Precautions for Use of LCD Modules .......................................................................................24
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 2 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
Record of Revision
Rev
Issued Date
Description
Editor
2.0
2011-01-27
Final Specification Release
Zhenying Zhang
2.1
2011-02-23
Revised LED circuit in P8
Zhenying Zhang
2.2
2011-04-25 Update Surface Treatment from AG to HC in P4 Zhenying Zhang
2.3
2013-10-28
Change IC from NT39016D to NV3035C, update
RGB timing and initial code
Jin Zhao
2.4
2013-12-5
Update RGB timing
Jin Zhao
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 3 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
1
General Specifications
Feature
Spec
Size
3.5inch
Resolution
320(RGB) X 240
Technology Type
a-Si TFT
Pixel Configuration
R.G.B. Vertical Stripe
Display Spec.
Pixel pitch(mm)
0.219 x 0.219
Display Mode
TM with Normally White
Surface Treatment
Anti-glare type (3H)
Viewing Direction
12 o’clock
Gray Scale Inversion Direction
6 o’clock
LCM (W x H x D) (mm)
76.90 x 63.90 x 3.15
Active Area(mm)
70.08 x 52.56
Mechanical
With /Without TSP
Without TSP
Characteristics
Connection Type
ZIF connector
LED Numbers
6 LEDs Serial
Weight (g)
30g
Interface
RGB/CCIR656/601
Electrical
Characteristics
Color Depth
16.7M dithering
Driver IC
NV3035C
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180
degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 4 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
2
Input/Output Terminals
Recommend connector: Kyocera elco: 6240 serials
No
Symbol
I/O/P
Description
Remarks
1
LED_Cathode
P
LED_Cathode
2
LED_Cathode
P
LED_Cathode
3
LED_Anode
P
LED_Anode
4
LED_Anode
P
LED_Anode
5
NC
-
No Connect
6
NC
-
No Connect
7
NC
-
No Connect
8
RESET
I
Reset
9
SPENA
I
Serial port data enable signal
10
SPCK
I
SPI Serial Clock
11
SPDA
I/O
SPI Serial Data Input/output
12
D00
I
Data 00
Note 2-1
13
D01
I
Data 01
Note 2-1
14
D02
I
Data 02
Note 2-1
15
D03
I
Data 03
Note 2-1
16
D04
I
Data 04
Note 2-1
17
D05
I
Data 05
Note 2-1
18
D06
I
Data 06
Note 2-1
19
D07
I
Data 07
Note 2-1
20
D08
I
Data 08
Note 2-1
21
D09
I
Data 09
Note 2-1
22
D10
I
Data 10
Note 2-1
23
D11
I
Data 11
Note 2-1
24
D12
I
Data 12
Note 2-1
25
D13
I
Data 13
Note 2-1
26
D14
I
Data 14
Note 2-1
27
D15
I
Data 15
Note 2-1
28
D16
I
Data 16
Note 2-1
29
D17
I
Data 17
Note 2-1
30
D18
I
Data 18
Note 2-1
31
D19
I
Data 19
Note 2-1
32
D20
I
Data 20
Note 2-1
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 5 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
33
D21
I
Data 21
Note 2-1
34
D22
I
Data 22
Note 2-1
35
D23
I
Data 23
Note 2-1
36
HSYNC
I
Horizontal Synchronous Signal
37
VSYNC
I
Vertical Synchronous Signal
38
CLK
I
Data Clock
39
NC
-
No Connect
40
NC
-
No Connect
41
VDD
P
power supply （ 3.3V ）
42
VDD
P
power supply （ 3.3V ）
43
NC
-
No Connect
44
NC
-
No Connect
45
NC
-
No Connect
46
NC
-
No Connect
47
NC
-
No Connect
48
NC
-
No Connect
49
NC
-
No Connect
50
NC
-
No Connect
51
NC
-
No Connect
52
DEN
I
Data enabling signal
53
GND
P
Ground
54
GND
P
Ground
I: input
O: output
P: power
Note 2-1:
Mode
D(23:16)
D(15:8)
D(7:0)
HSYNC
VSYNC
DEN
CCIR 656
D(23:16)
GND
GND
NC
NC
NC
CCIR 601
D(23:16)
GND
GND
HSYNC
VSYNC
NC
NC for HV mode
8 Bit RGB
D(23:16)
GND
GND
HSYNC
VSYNC
DEN for DEN mode
24 Bit RGB
R(7:0)
G(7:0)
B(7:0)
HSYNC
VSYNC
NC for HV mode
DEN for DEN mode
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 6 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
3
Absolute Maximum Ratings
Ta = 25 ℃
Item
Symbol
MIN
MAX
Unit
Remark
Power Supply Voltage
VDD
-0.3
5.0
V
Back Light Forward
Current
ILED
25
mA
One LED
Operating Temperature
T OPR
-20
70
℃
Storage Temperature
T STG
-30
80
℃
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 7 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
4
Electrical Characteristics
4.1. Driving TFT LCD Panel
GND=0V, Ta=25 ℃
Item
Symbol
MIN
TYP
MAX
Unit
Remark
Power Supply Voltage
VDD
3.0
3.3
3.6
V
Low Level
V IL
0
0.2VCC
V
Input Signal
Voltage
High
Level
V IH
0.8VCC
VCC
V
Black
(Panel+LSI)
45
65
mW
Mode(60HZ)
Power Consumption
Standby Mode
0.2
0.3
mW
4.2 Driving Backlight
Ta=25 ℃
Item
Symbol
MIN
TYP
MAX
Unit
Remark
Forward Current
I F
--
20
25
mA
Forward Current Voltage
V F
16.8
19.2
21.6
V
Backlight Power
W BL
--
384
--
mW
Consumption
Note 1: Each LED: I F =20mA, V=3.2V.
Note 2: The figure below shows the connection of LED
Note 3: IF is defined for one channel LED.
Optical performance should be evaluated at Ta=25 ℃ only.
If LED is driven by high current, high ambient temperature & humidity condition, the life time
of LED will be reduced.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 8 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03

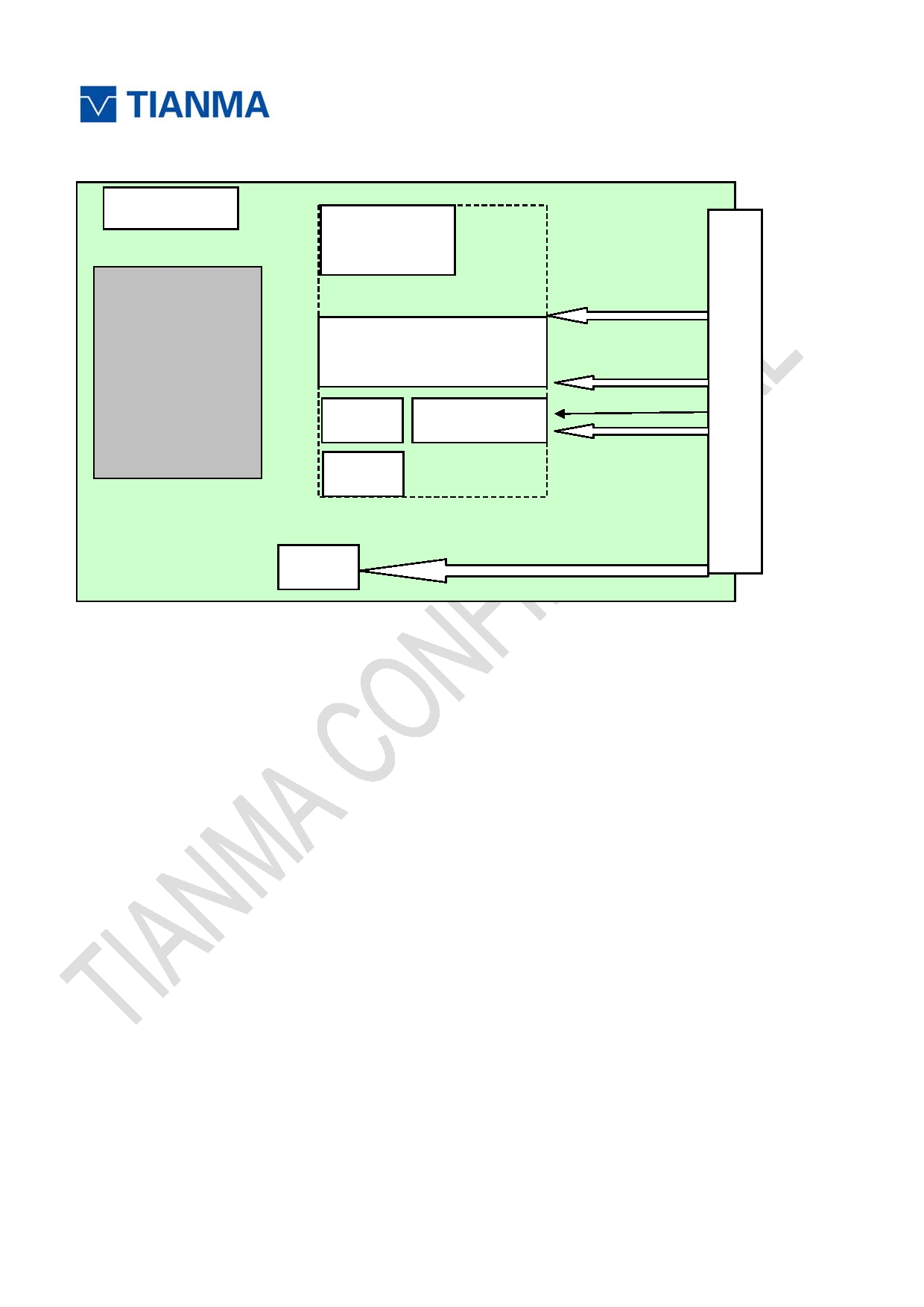

4.3 Block Diagram
LCD PANEL
Source+ Gate
Driver
D00~D23,
HSYNC, VSYNC
CLK,
Data Bus
3.5inch
Grayscale Manipulation
320 (RGB) X240
S PCK,SPENA,
Voltage
SPDA,DEN,CLK.
RGB CCIR
RESET
601/656
TCON
Charge pump
GND,VDD
VCOM
LCD Driver Chip (COG)
LED_Anode , LED_Cathode
B/L
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 9 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
5

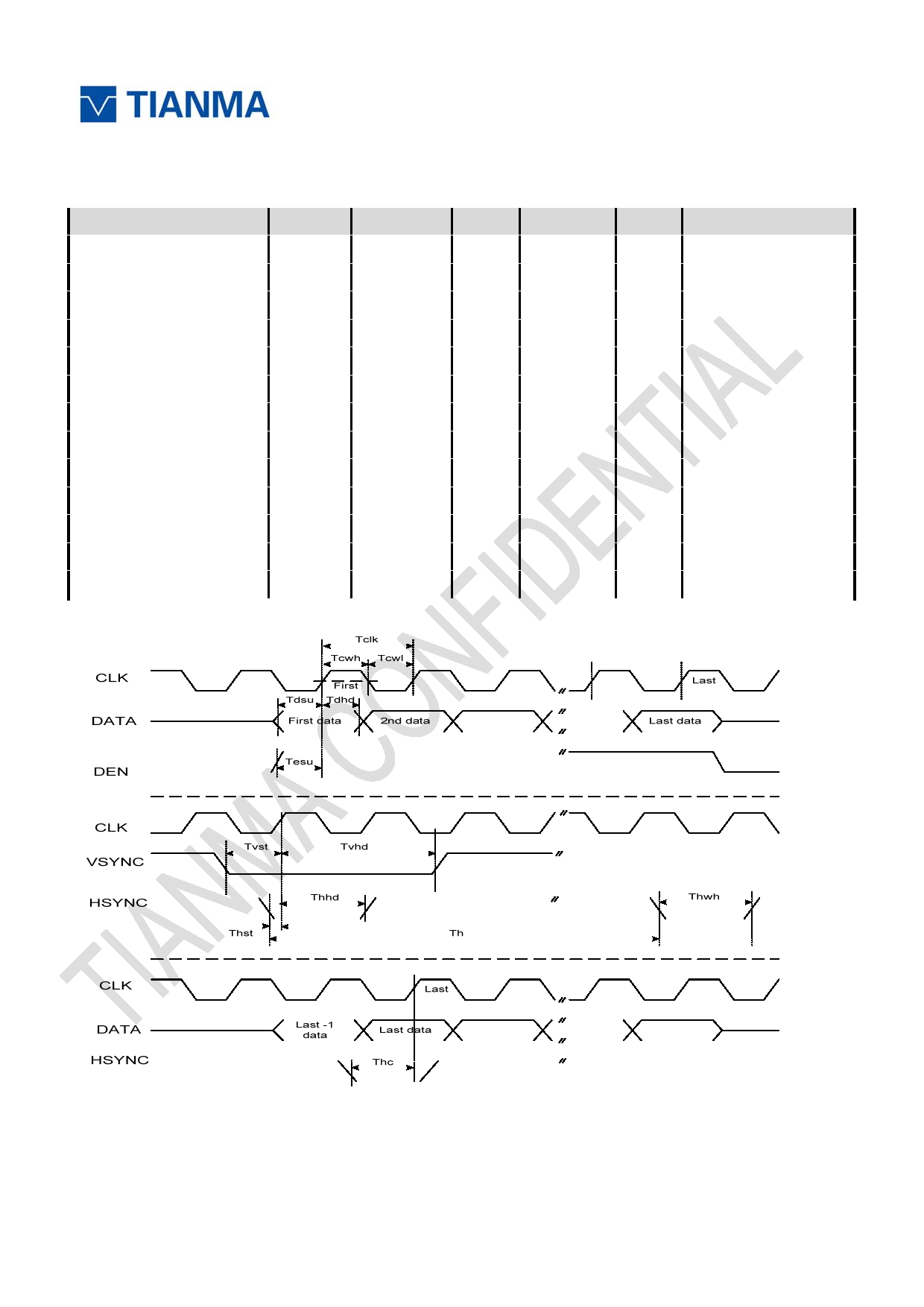

Timing Chart
5.1 Timing Parameter
(VCC=3.3V GND =0V,Ta=25 Ԩ )
Parameter
Symbol
Min
Typ
Max
Unit
Condition
CLK Clock Time
T clk
1/Max(F clk )
--
1/Min(F clk )
ns
CLK Pulse Duty
T chw
40
50
60
%
T clk
HSYNC to CLK
T hc
--
--
1
CLK
--
HSYNC Width
T hwh
1
--
--
CLK
--
VSYNC Width
T vwh
1
--
--
ns
--
HSYNC Period Time
T h
60
63.56
67
ns
--
VSYNC Set-up Time
T vst
8
--
--
ns
--
VSYNC Hold Time
T vhd
10
--
--
ns
--
HSYNC Setup Time
T hst
8
--
--
ns
--
HSYNC Hold Time
T hhd
10
--
--
ns
--
Data Set-up Time
T dsu
8
--
--
ns
D00~D23 to CLK
Data Hold Time
T dhd
10
--
--
ns
D00~D23 to CLK
DEN Set up Time
T esu
12
--
--
ns
DEN to CLK
Note: Each CLK Frequency of 24 Bit RGB Mode,8 Bit RGB Mode,CCIR601and CCIR656 are different.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 10 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03

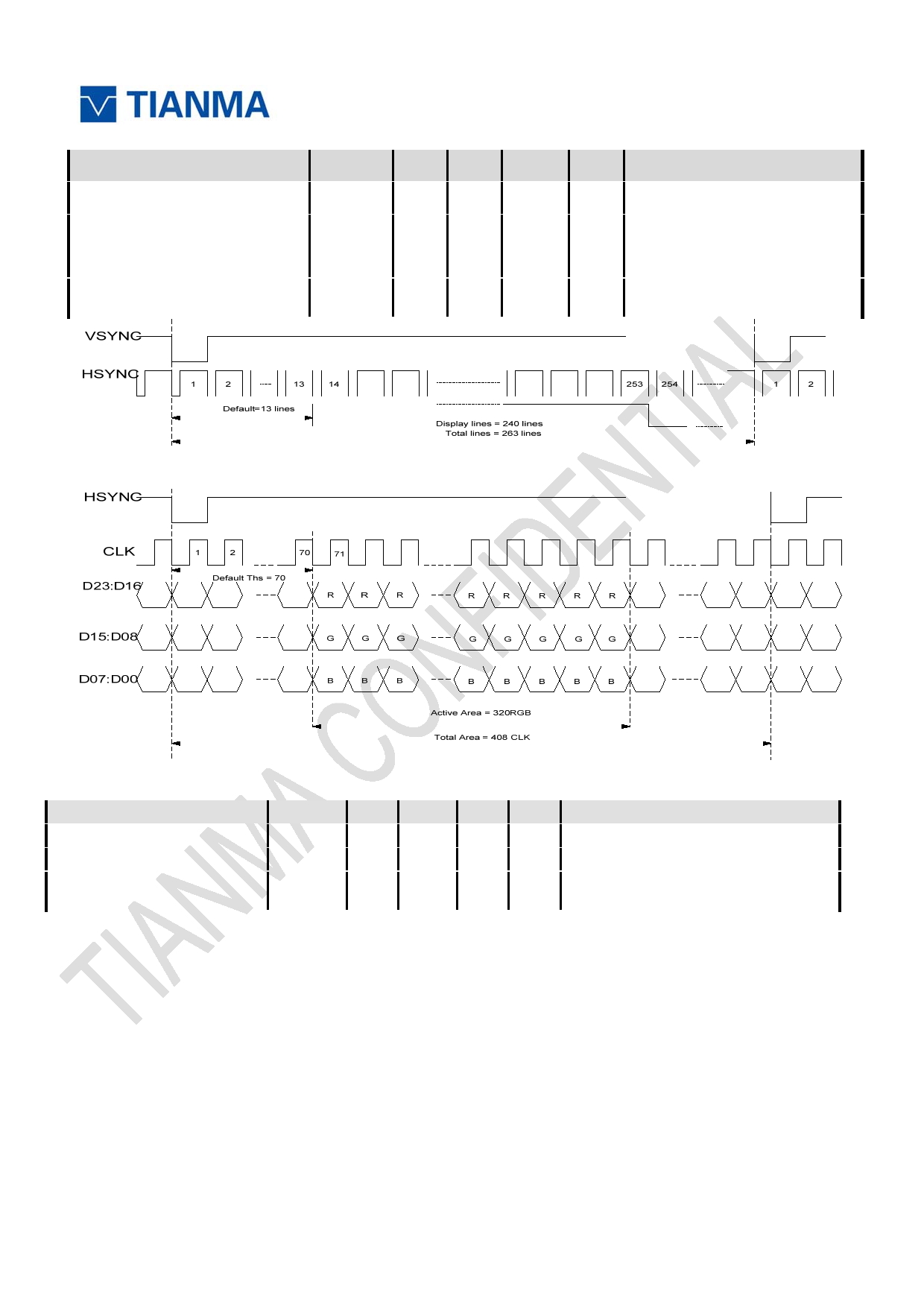

5.2 24 Bit RGB Mode for 320RGB x 240
Parameter
Symbol
Min
Typ
Max
Unit
Condition
CLK Frequency
F clk
6.1
6.4
8.0
MHz
VCC=3.0V~3.6V
CLK Cycle Time
T clk
125
156
164
ns
CLK Pulse Duty
T cwh
40
50
60
%
Time that HSYNC to 1 st data
input(NTSC)
T hs
40
70
255
CLK
DDLY =70, Offset = 0 (fixed)
5.3 8 Bit RGB Mode for 320RGB x 240
Parameter
Symbol
Min
Typ
Max
Unit
Condition
CLK Frequency
Fclk
--
27
30
MHz
VCC=3.0~3.6V
CLK Cycle Time
Tclk
--
37
--
ns
Time that HSYNC to 1’st
data input(NTSC)
Ths
35
70
255
CLK
DDLY = 70, Offset = 0 (fixed)
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 11 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03

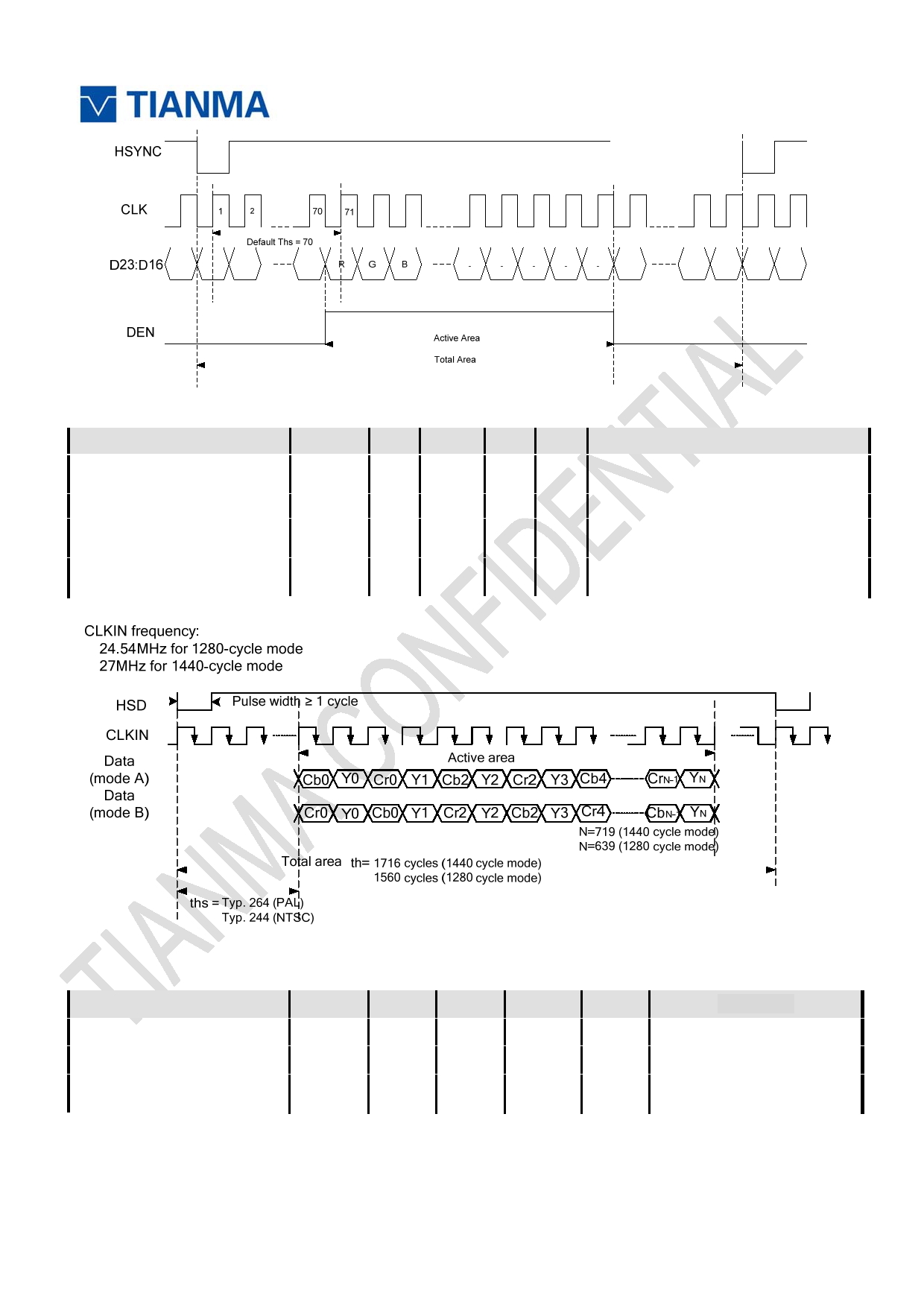

5.4 CCIR601
Parameter
Symbol
Min
Typ
Max
Unit
Condition
CLK Frequency
F clk
--
24.54/
27
30
MHz
VCC=3.0V~3.6V
CLK Cycle Time
T clk
--
40/37
--
ns
Time From HSYNC to1 st
data input(PAL)
T hs
128
264
--
CLK
DDLY = 136, Offset = 128 (fixed)
Time From HSYNC to1 st
data input(NTSC)
T hs
128
244
--
CLK
DDLY = 116, Offset = 128 (fixed)
5.5 CCIR656
Parameter
Symbol
Min
Typ
Max
Unit
Condition
CLK Frequency
Fclk
--
27
30
MHz
VCC=3.0V~3.6V
CLK Cycle Time
Tclk
--
37
--
ns

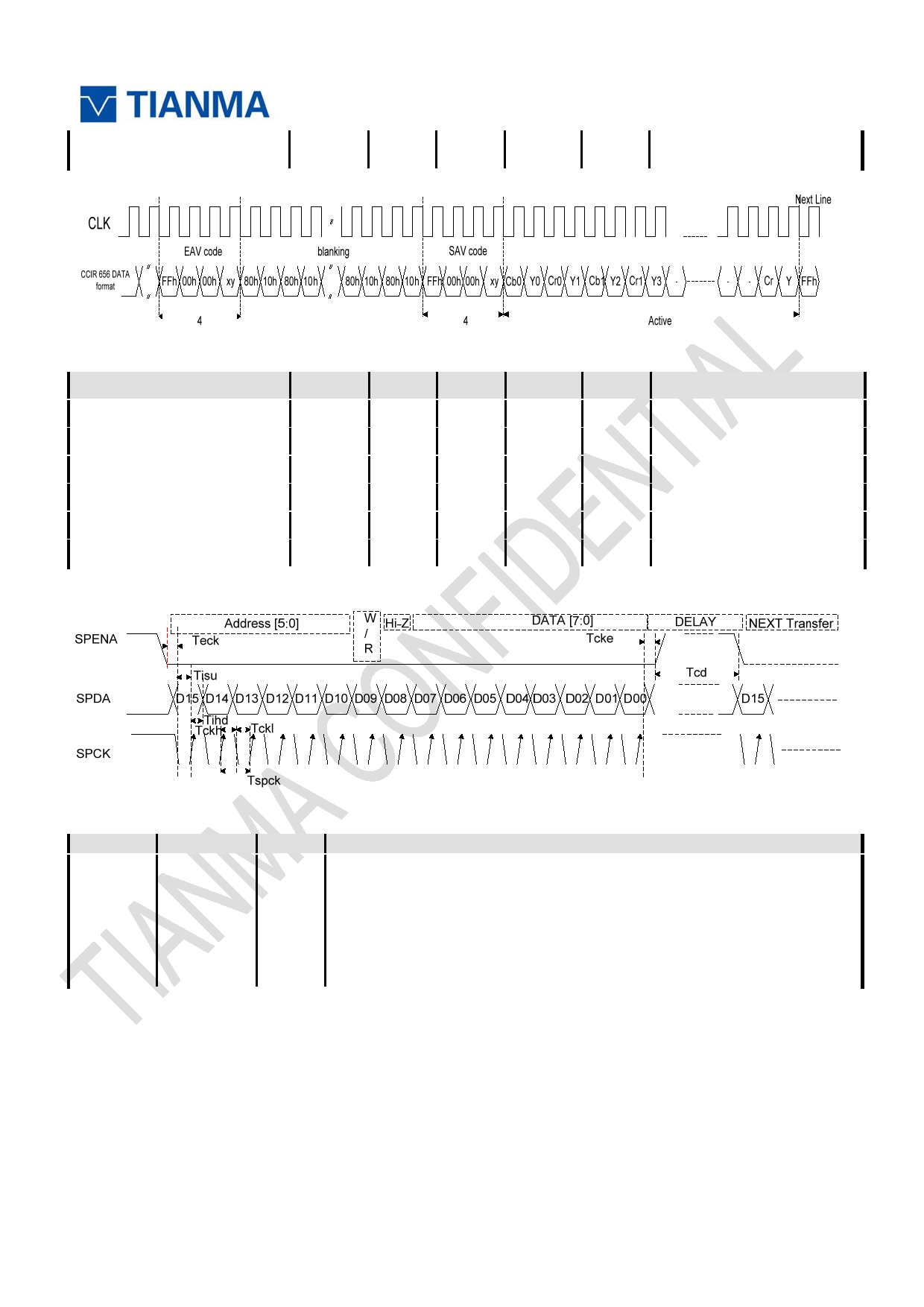

Time that EVA
DDLY = 152, Offset = 128
to 1’st data input(PAL)
Ths
128
288
--
CLK
(fixed)
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 12 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
Time that EVA
DDLY = 140, Offset = 128
to1’stdatainput(NTSC)
Ths
128
276
--
CLK
(fixed)
5.6 3-Wire Serial Communication AC Timing
Parameter
Symbol
Min
Typ
Max
Unit
Remark
Serial Clock
T SPCK
320
--
--
ns
SPCK Pulse Duty
T scdut
40
50
60
%
Serial Data Setup Time
T isu
120
--
--
ns
Serial Data Hold Time
T ihd
120
--
--
ns
Serial Clock High/Low
T ssw
120
--
--
ns
Chip Select Distinguish
T cd
1
--
--
us
Note ： DDLY Description (Ths= DDLY+ Offset)
R04: Source Timing Delay Control Register
Bit
Name
Initial
Description
Select the HSD signal to 1’st input data delay timing
Under CCIR601 mode, Ths = DDLY[7:0] + 128, (Unit = CLKIN)
Under CCIR656 mode, Ths = DDLY[7:0] + 136, (Unit = CLKIN)
Bit [7:0]
DDLY[7:0]
46h
Under RGB 8/24 bit mode, Ths = DDLY[7:0] , (Unit = CLKIN)
The register value will be update to the different mode,such as
24RGB,8RGB,CCIR mode.
Read the section of “24RGB, 8RGB, CCIR mode” for the detail.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 13 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
5.7 3-Wire Control Registers List
3-Wire Registers
Register Description
D[15:10]
Name
Init
R/W
Function Description
000000b
R00
03h
R/W
System control register
000001b
R01
00h
R/W
Timing controller function register
000010b
R02
03h
R/W
Operation control register
000011b
R03
CCh
R/W
Input data Format control register
000100b
R04
46h
R/W
Source timing delay control register
000101b
R05
0Dh
R/W
Gate timing delay control register
000111b
R07
00h
R/W
Internal function control register
001000b
R08
08h
R/W
RGB contrast control register
001001b
R09
40h
R/W
RGB brightness control register
001011b
R0B
88h
R/W
R/B sub-contrast control register
001100b
R0C
20h
R/W
R sub-brightness control register
001101b
R0D
20h
R/W
B sub-brightness control register
001110b
R0E
2Bh
R/W
VCOMDC level control register
001111b
R0F
A6h
R/W
VCOMAC level control register
010000b
R10
04h
R/W
VGAM2 level control register
010001b
R11
24h
R/W
VGAM3/4 level control register
010010b
R12
24h
R/W
VGAM5/6 level control register
011101b
R1D
00h
R/W
OTP operation control register
011110b
R1E
00h
R/W
OTP operation control register
011111b
R1F
00h
R/W
OTP operation control register
Note :
R03: C4h:CCIR656 Mode
C2h:CCIR601 Mode
C8h:8 bit RGB Mode(HV Mode)
C9h:8 bit RGB Mode(DEN Mode)
CCh(default):24 bit RGB Mode (HV mode)
CDh:24 bit RGB Mode (DEN mode)
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 14 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03

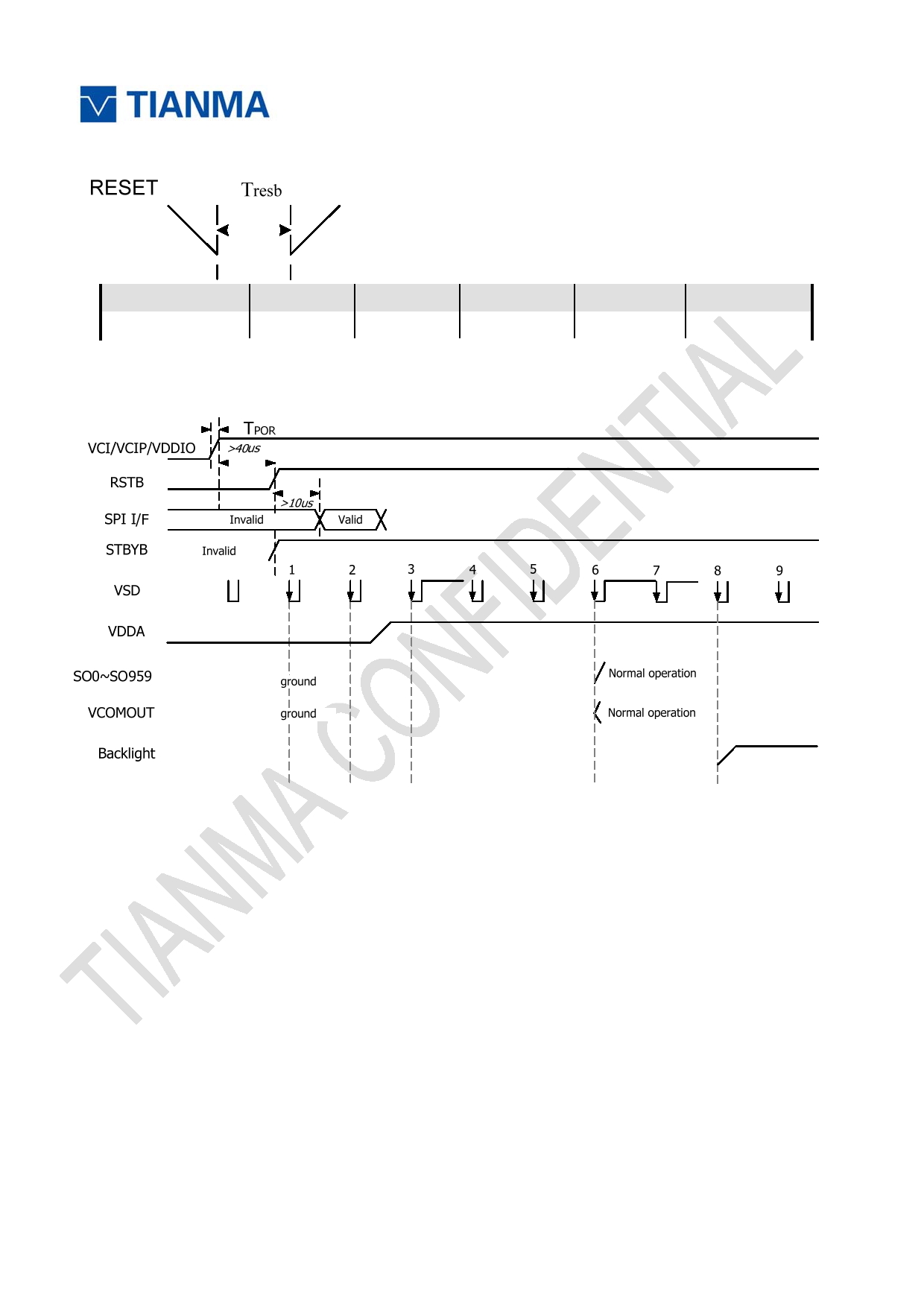

5.8 Reset Timing
Parameter
Min
Typ
Max
Unit
Conditions
T resb
40
-----
----
us
VCC = 3.3V
5.9 Power On Sequence
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 15 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03

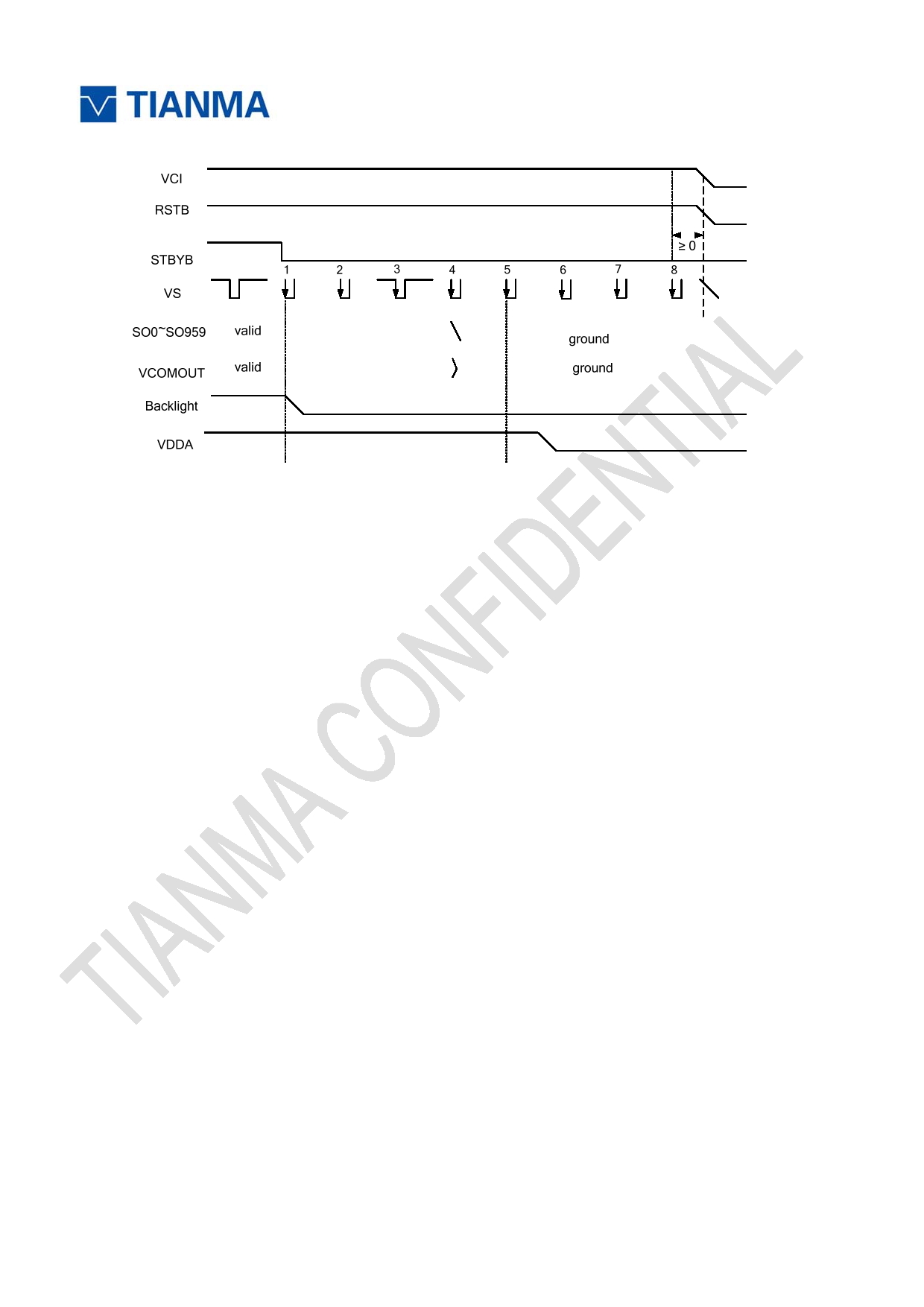

5.10 Power off Sequence
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 16 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
6
Optical Characteristics
Item
Symbol Condition
Min
Typ
Max
Unit
Remark
θ T
50
60
θ B
60
70
View Angles
CR ≧ 10
Degree Note2,3
θ L
60
70
θ R
60
70
Contrast Ratio
CR
θ =0 o
400
500
Note 3
T ON
Response Time
25 ℃
25
40
ms
Note 4
T OFF
x
0.230
0.280
0.330
White
Note 1,5
y
0.255
0.305
0.355
x
0.530
0.580
0.630
Red
Note 1,5
y
0.270
0.320
0.370
Chromaticity
Backlight is
x
on
0.280
0.330
0.380
Green
Note 1,5
y
0.535
0.585
0.635
x
0.100
0.150
0.200
Blue
Note 1,5
y
0.050
0.100
0.150
Uniformity
U
75
80
%
Note 6
NTSC
50
%
Note 5
Luminance
L
240
300
cd/m 2
Note 7
Test Conditions:
1. I F = 20 mA, and the ambient temperature is 25 ℃ .
2. The test systems refer to Note 1 and Note 2.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 17 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
Note 1: Definition of optical measurement system.
The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical
properties are measured at the center point of the LCD screen. All input terminals LCD panel must be
ground when measuring the center area of the panel.
Item
Photo detector
Field
Photo detector
Contrast Ratio
Field
Luminance
SR-3A
1°
Chromaticity
500mm
Lum Uniformity
TFT-LCD Module
LCD Panel
Response Time
BM-7A
2°
The center of the screen
Note 2: Definition of viewing angle range and measurement system.
viewing angle is measured at the center point of the LCD by CONOSCOPE(ergo-80) 。
Note 3: Definition of contrast ratio
“White state “: The state is that the LCD should drive by Vwhite.
“Black state”: The state is that the LCD should drive by Vblack.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 18 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
Vwhite: To be determined
Vblack: To be determined.
Note 4: Definition of Response time
The response time is defined as the LCD optical switching time interval between “White” state and
“Black” state. Rise time (T ON ) is the time between photo detector output intensity changed from 90%
to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from 10% to
90%.
Note 5: Definition of color chromaticity (CIE1931)
Color coordinates measured at center point of LCD.
Note 6: Definition of Luminance Uniformity
Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the
center of each measuring area.
Luminance Uniformity (U) = Lmin/ Lmax
L-------Active area length W----- Active area width
Lmax: The measured Maximum luminance of all measurement position.
Lmin: The measured Minimum luminance of all measurement position.
Note 7: Definition of Luminance:
Measure the luminance of white state at center point.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 19 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
7
Environmental / Reliability Test
No
Test Item
Condition
Remarks
1
High Temperature
Ts=+70 ℃ , 240hrs
IEC60068-2-1:2007
Operation
GB2423.2-2008
2
Low Temperature
Ta=-20 ℃ , 240hrs
IEC60068-2-1:2007
Operation
GB2423.1-2008
3
High Temperature
Ta=+80 ℃ , 240hrs
IEC60068-2-1:2007
Storage
GB2423.2-2008
4
Low Temperature
Ta=-30 ℃ , 240hrs
IEC60068-2-1:2007
Storage
GB2423.1-2008
Storage at High
5
Temperature and
+60 ℃ , 90% RH max,240 hours
IEC60068-2-78 :2001
Humidity
GB/T2423.3—2006
Start with cold
temperature,
6
Thermal Shock
-30 ℃ 30 min~+70 ℃ 30 min,
End with high
(non-operation)
Change time:5min, 30 Cycle
temperature,
IEC60068-2-14:1984,G
B2423.22-2002
C=150pF, R=330 Ω ， 5points/panel
Air:±8KV ， 5times;Contact:±4KV ， 5 times; IEC61000-4-2:2001
7
ESD
（ Environment: 15 Ԩ ～ 35 Ԩ ， 30% ～
GB/T17626.2-2006
60% ， 86Kpa ～ 106Kpa ）
Frequency range:10~55Hz, Stroke:1.5mm
8
Vibration Test
Sweep:10Hz~55Hz~10Hz 2 hours for each
IEC60068-2-6:1982
direction of X.Y.Z.(package condition)
GB/T2423.10—1995
9
Mechanical Shock
60G 6ms, ±X,±Y,±Z 3times for each
IEC60068-2-27:1987
(Non OP)
di-rection
GB/T2423.5—1995
10 Package Drop Test
Height:80 cm ， 1 corner, 3 edges, 6
IEC60068-2-32:1990
surfaces
GB/T2423.8—1995
Note1: Ts is the temperature of panel’s surface.
Note2: Ta is the ambient temperature of sample.
Note3: Before cosmetic and function test, the product must have enough recovery time, at least 2
hours at room temperature.
Note 4: In the standard condition, there shall be no practical problem that may affect the display function.
After the reliability test, the product only guarantees operation, but don’t guarantee all of the cosmetic
specification.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 20 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
8
Mechanical Drawing
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 21 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
9
Packing Drawing
No
Item
Model
Unit
(Material)
Dimensions(mm)
Weight(Kg)
Quantity
Remark
1 LCM module
TM035KDH03
76.90 x 63.90 x 3.15
0.03
168
2
Partition_1
Corrugated
Paper
513x333x106
0.782
2
3.
Anti-Static
Bag
PE
155x85x0.05
0.003
168
Anti-static
4
Dust-Proof
Bag
PE
--------------------
0.060
1
5
Partition_2
Corrugated
Paper
505x332x4.00
0.095
3
6
Corrugated
Corrugated
Bar
Paper
513x117x4
0.032
12
7
Carton
Corrugated
Paper
530x350x250
1.1000
1
8 Total weight
8.937 ± 5%
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 22 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
LCM
Anti_Static_Bag
1
号
浦
东
新
区
龙
东
大
道
6
1 0
上
海
国
1
2 0
華
硊
: 中
：
2
0 1
邮
编
Carton/168p
2*3tier*5tie
5
1
号
上
海
浦
东
新
区
龙
东
大
道
6
1 0
国
6
1
硊
: 中
2 0
華
编
：
2
0 1
邮
4
7
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 23 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM035KDH03
10
Precautions for Use of LCD Modules
10.1
Handling Precautions
10.1.1 The display panel is made of glass. Do not subject it to a mechanical shock by dropping it
from a high place, etc.
10.1.2 If the display panel is damaged and the liquid crystal substance inside it leaks out, be
sure not to get any in your mouth, if the substance comes into contact with your skin or clothes,
promptly wash it off using soap and water.
10.1.3 Do not apply excessive force to the display surface or the adjoining areas since this may
cause the color tone to vary.
10.1.4 The polarizer covering the display surface of the LCD module is soft and easily scratched.
Handle this polarizer carefully.
10.1.5 If the display surface is contaMinated, breathe on the surface and gently wipe it with a
soft dry cloth. If still not completely clear, moisten cloth with one of the following solvents:
－ Isopropyl alcohol
－ Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use the
following:
－ Water
－ Ketone
－ Aromatic solvents
10.1.6 Do not attempt to disassemble the LCD Module.
10.1.7 If the logic circuit power is off, do not apply the input signals.
10.1.8 To prevent destruction of the elements by static electricity, be careful to maintain an
optimum work environment.
10.1.8.1 Be sure to ground the body when handling the LCD Modules.
10.1.8.2 Tools required for assembly, such as soldering irons, must be properly ground.
10.1.8.3 To reduce the amount of static electricity generated, do not conduct assembly and
other work under dry conditions.
10.1.8.4 The LCD Module is coated with a film to protect the display surface. Be care when
peeling off this protective film since static electricity may be generated.
10.2
Storage precautions
10.2.1 When storing the LCD modules, avoid exposure to direct sunlight or to the light of
fluorescent lamps.
10.2.2 The LCD modules should be stored under the storage temperature range. If the LCD
modules will be stored for a long time, the recommend condition is:
Temperature : 0 ℃ ～ 40 ℃ Relatively humidity: ≤ 80%
10.2.3 The LCD modules should be stored in the room without acid, alkali and harmful gas.
10.3
Transportation Precautions
10.3.1 The LCD modules should be no falling and violent shocking during transportation, and
also should avoid excessive press, water, damp and sunshine.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 24 of 24
www.topwaydisplay.com
sales@topwaydisplay.com
