Model No. TM080TDGP01-00
MODEL NO
:
TM080TDGP01
MODEL VERSION:
00
SPEC VERSION :
2.3
ISSUED DATE:
2020-09-28
□ Preliminary Specification
■ Final Product Specification
Customer :
Approved by
Notes
TIANMA Confirmed :
Prepared by
Checked by
Approved by
Runnan_kong
Liang_ming
Huiping_qing
Wenyi_li
Guangkun_an
Wei_guo
This technical specification is subjected to change without notice
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 1 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
Table of Contents
Table of Contents ............................................................................................................................ 2
Record of Revision .......................................................................................................................... 3
1
General Specifications.............................................................................................................. 4
2
Input/Output Terminals ............................................................................................................. 5
3
Absolute Maximum Ratings ...................................................................................................... 7
4
Electrical Characteristics .......................................................................................................... 8
5
Timing Chart ........................................................................................................................... 11
6
Optical Characteristics ........................................................................................................... 15
7
Environmental / Reliability Test ............................................................................................... 18
8
Mechanical Drawing ............................................................................................................... 19
9
Packing Drawing .................................................................................................................... 20
10
Precautions for Use of LCD Modules .................................................................................. 23
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 2 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
Record of Revision
Rev
Issued Date
Description
Editor
1.0
2019-01-07 Preliminary Specification Release
Haiping_luo
Change contrast Ratio ,luminance,
2.0
2019-06-10 Power ON/OFF Sequence
Liang_ming
2.1
2019-08-28 Change luminance
Liang_ming
2.2
2020-02-28 Final Product Specification Release
Liang_ming
2.3
2020-09-28 Add Power Consumption
Liang_ming
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 3 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
1 General Specifications
Feature
Spec
Size
8 inch
Resolution
1024RGB×768
Technology Type
a-Si
Display Spec.
Pixel Configuration
R.G.B. Stripe
Pixel pitch(mm)
0.158(H) ×0.158(V)
Display Mode
SFT
Surface Treatment
HC
Viewing Direction
All
LCM (W x H x D) (mm)
183.43 × 138.35 × 3.75
Active Area(mm)
162.05 × 121.54
Mechanical
With /Without TSP
Without TSP
Characteristics
Matching Connection Type
ZIF
LED Numbers
27 LEDS
Weight (g)
TBD
Interface
LVDS
Electrical
Characteristics
Color Depth
16.7M
Driver IC
RM51150+HX8684B
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180
degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 4 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
2 Input/Output Terminals
Matched connector: FH12A-40S-0.5SH
Pin
Symbol
I/O
Function
Remark
No.
1
NC
-
No connection
2
VDD
P
Power Voltage for digital circuit
3
VDD
P
Power Voltage for digital circuit
4
NC
---
No connection
5
RESET
I
Global reset pin
Standby mode, Normally pulled high
6
STBYB
I
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source
driver will turn off, all output are GND
7
GND
P
Ground
8
RXIN0-
I
- LVDS differential data input
9
RXIN0+
I
+ LVDS differential data input
R[0]~G[0]
10
GND
P
Ground
11
RXIN1-
I
- LVDS differential data input
12
RXIN1+
I
+ LVDS differential data input
G[1]~B[1]
13
GND
P
Ground
14
RXIN2-
I
- LVDS differential data input
15
RXIN2+
I
+ LVDS differential data input
DE/VS/HS/
B[2]~B[5]
16
GND
P
Ground
17
RXCLKIN-
I
- LVDS differential clock input
18
RXCLKIN
+
I
+ LVDS differential clock input
19
GND
P
Ground
20
RXIN3-
I
- LVDS differential data input
R[6]/R[7]/G[
21
RXIN3+
I
+ LVDS differential data input
6]/G[7]/B[6]/
B[7]
22
GND
P
Ground
23
NC
---
No connection
24
NC
---
No connection
25
GND
P
Ground
26
NC
---
No connection
27
DIMO
O
Backlight CABC controller signal output
Note1
28
SELB
I
6bit/8bit mode select Pin
Note2
29
AVDD
P
Power for Analog Circuit
30
GND
P
Ground
31
LED-
P
LED Cathode
32
LED-
P
LED Cathode
33
L/R
I
Horizontal Scanning direction setting
Note3
34
U/D
I
Vertical Scanning direction setting
Note3
35
VGL
P
Gate OFF Voltage
36
CABCEN1
I
CABC H/W enable pin
Note4
37
CABCEN0
I
CABC H/W enable pin
Note4
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 5 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
38
VGH
P
Gate ON Voltage
39
LED+
P
LED Anode
40
LED+
P
LED Anode
I/O----definition, I----Input, O----Output, P----Power, No used I/O pin please fix to GND level
Note1: PWM output after CABC function;
Note2: LVDS mode 6bits/8bits input select pin,If LVDS input data in 6 bits,SELB must be set
To high,If LVDS input data in 8 bits,SELB must be set to low,
Note3: When L/R="0",set right to left scan direction, L/R="1" set left to right scan direction, source
IC@6 o ’ clock .
When U/D="0",set top to bottom scan direction, U/D="1" set bottom to top scan direction,
source IC@6 o ’ clock .

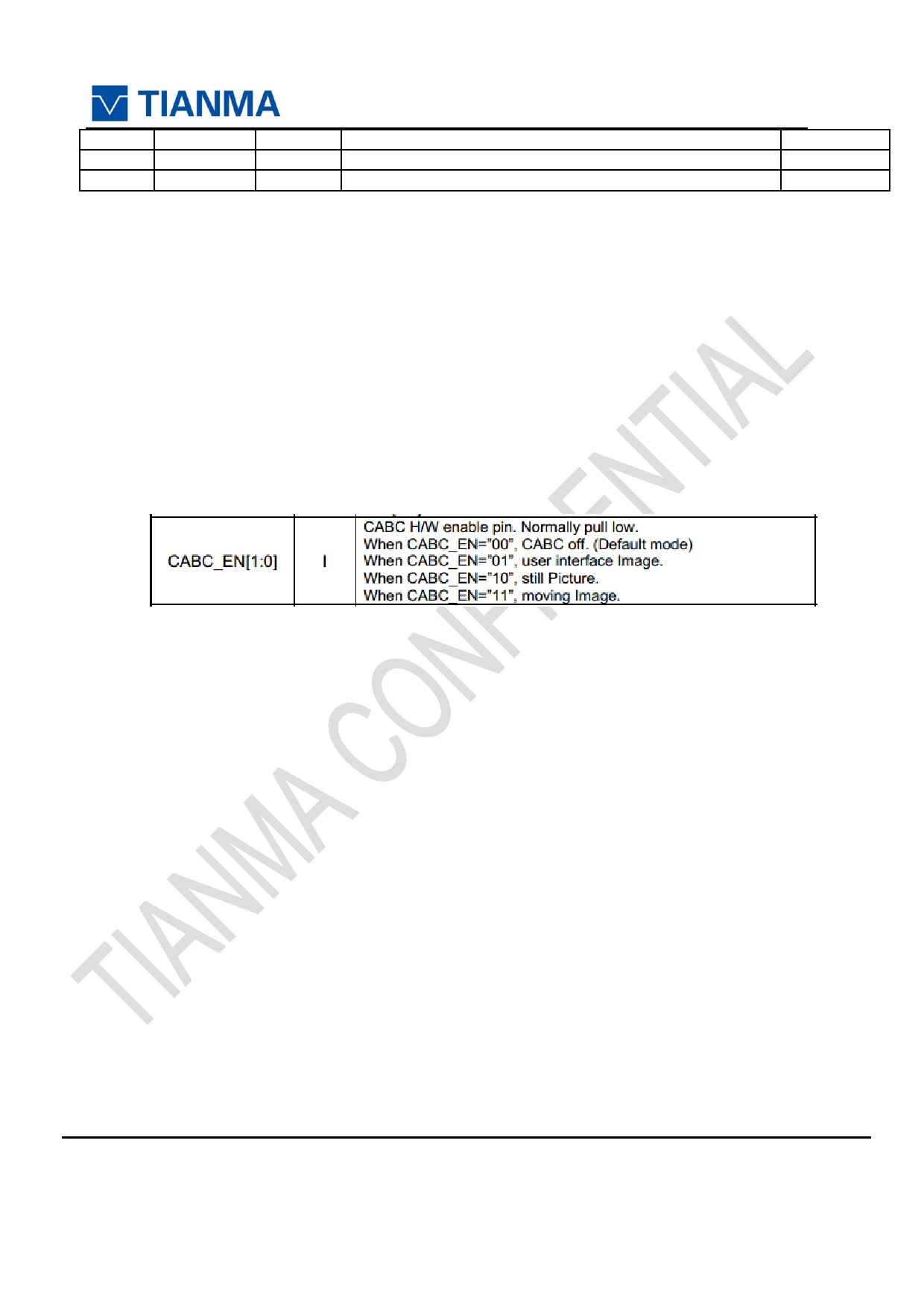

Note4:
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 6 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
3 Absolute Maximum Ratings
GND=0V
Item
Symbol
MIN
MAX
Unit
Remark
Power Voltage
VDD
-0.3
5.0
V
Note1
Power Supply Voltage 2
AVDD
-0.5
13.5
V
Base on IC Spec
Power Supply Voltage 3
VGH
-0.3
VGL+42
V
Base on IC Spec
Power Supply Voltage 4
VGL
-25
+0.3
V
Base on IC Spec
Operating Temperature
Top
-20
70
℃
Storage Temperature
Tst
-30
80
℃
--
≤ 95
%
Ta ≤ 40 ℃
--
≤ 85
%
40 ℃＜ Ta ≤ 50 ℃
Relative Humidity
Note2
RH
--
≤ 55
%
50 ℃＜ Ta ≤ 60 ℃
--
≤ 36
%
60 ℃＜ Ta ≤ 70 ℃
--
≤ 24
%
70 ℃＜ Ta ≤ 80 ℃
Absolute Humidity
AH
--
≤ 70
g/m ³
Ta ＞ 70 ℃
Table 3 Absolute Maximum Ratings
Note1: Input voltage include RESET , STBYB ,SELB , L/R ,U/D, CABCEN1, CABCEN0.
.
Note2: Ta means the ambient temperature.
It is necessary to limit the relative humidity to the specified temperature range.
Condensation on the module is not allowed.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 7 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
4 Electrical Characteristics
4.1
Recommended Operating Condition
AGND=GND=0V, Ta = 25 ℃
Item
Symbol
Min
Typ.
Max
Unit
Remark
Digital Supply Voltage
VDD
3.2
3.3
3.4
V
-
Analog Supply Voltage
AVDD
12.4
12.6
12.8
V
-
Gate On Voltage
VGH
22.0
23.0
24.0
V
-
Gate Off Voltage
VGL
-7.5
-7.0
-6.5
V
-
Low level input voltage
VIL
0
0.3*VDD
V
High level input voltage
VIH
0.7*VDD
VDD
V
Low level output voltage
VOL
0
GND+0.4
V
High level output voltage
VOH
VDD-0.4
VDD
V
4.2
Power Consumption
AGND=GND=0V, Ta = 25 ℃
Item
Symbol
Condition
Min
Typ.
Max
Unit Remark
Digital Supply Current
I VCC
VDD=3.3V
-
19.3
-
mA
Note1
Analog Supply
Current
I AVDD
AVDD=12.6V
-
57
-
mA
Note1
Gate On Current
I VGH
VGH=23.0V
-
0.65
-
mA
Note1
Gate Off Current
I VGL
VGL=-7.0V
-
0.65
-
mA
Note1
Power Consumption
P
-
801
1200
mW
Note1
Note1: Test condition:VDD=3.3V, AVDD=12.6V, VGH=23.0V , VGL=-7.0V ,white pattern.
Actual power consumption is based on actual measurement.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 8 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
4.3
Recommended Driving Condition for Backlight
Ta=25 ℃
Item
Symbol
Min
Typ
Max
Unit
Remark
Forward Current
I F
-
180
225
mA
27LEDs
Forward Voltage
V F
8.4
9.3
10.2
V

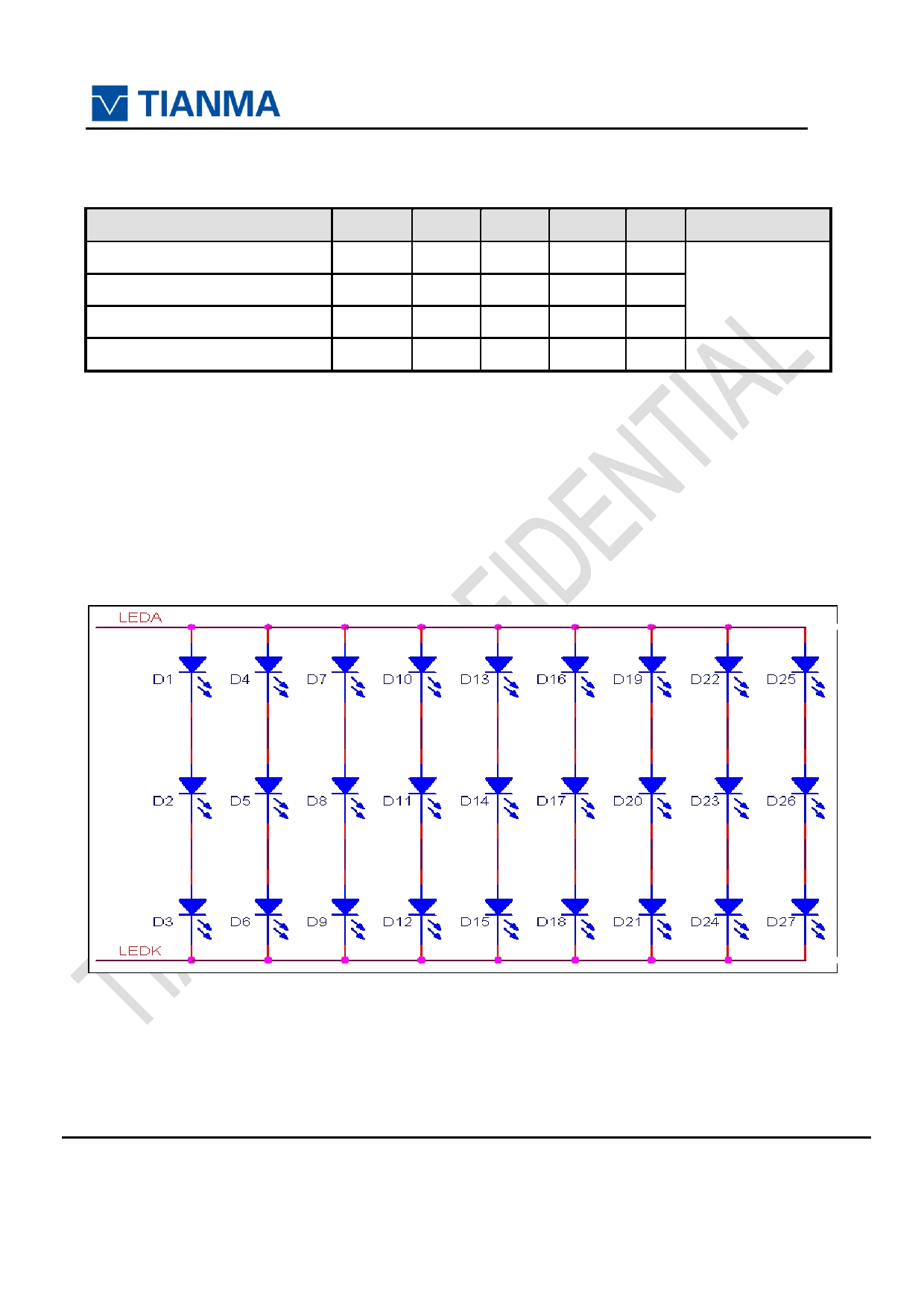

(3 LED Serial, 9
LED Parallel)
Backlight Power Consumption
W BL
-
1.674
2.295
W
Operating Life Time
-
20,000 30,000
-
Hrs
I F =20mA
Note1: The LED driving condition is defined for each LED module (3 LED Serial, 9 LED Parallel).For
each LED: I F (1/9) =20mA, V F (1/3) =3.1V.
Note2: Under LCM operating, the stable forward current should be inputted. And forward voltage is
for reference only.
Note3: I F is defined for one channel LED.Optical performance should be evaluated at Ta=25 ℃ only
If LED is driven by high current, high ambient temperature & humidity condition. The life time of LED
will be reduced.Operating life means brightness goes down to 50% initial brightness. Typical
operating life time is estimated data.
Note4: The LED driving condition is defined for each LED module
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 9 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
4.4

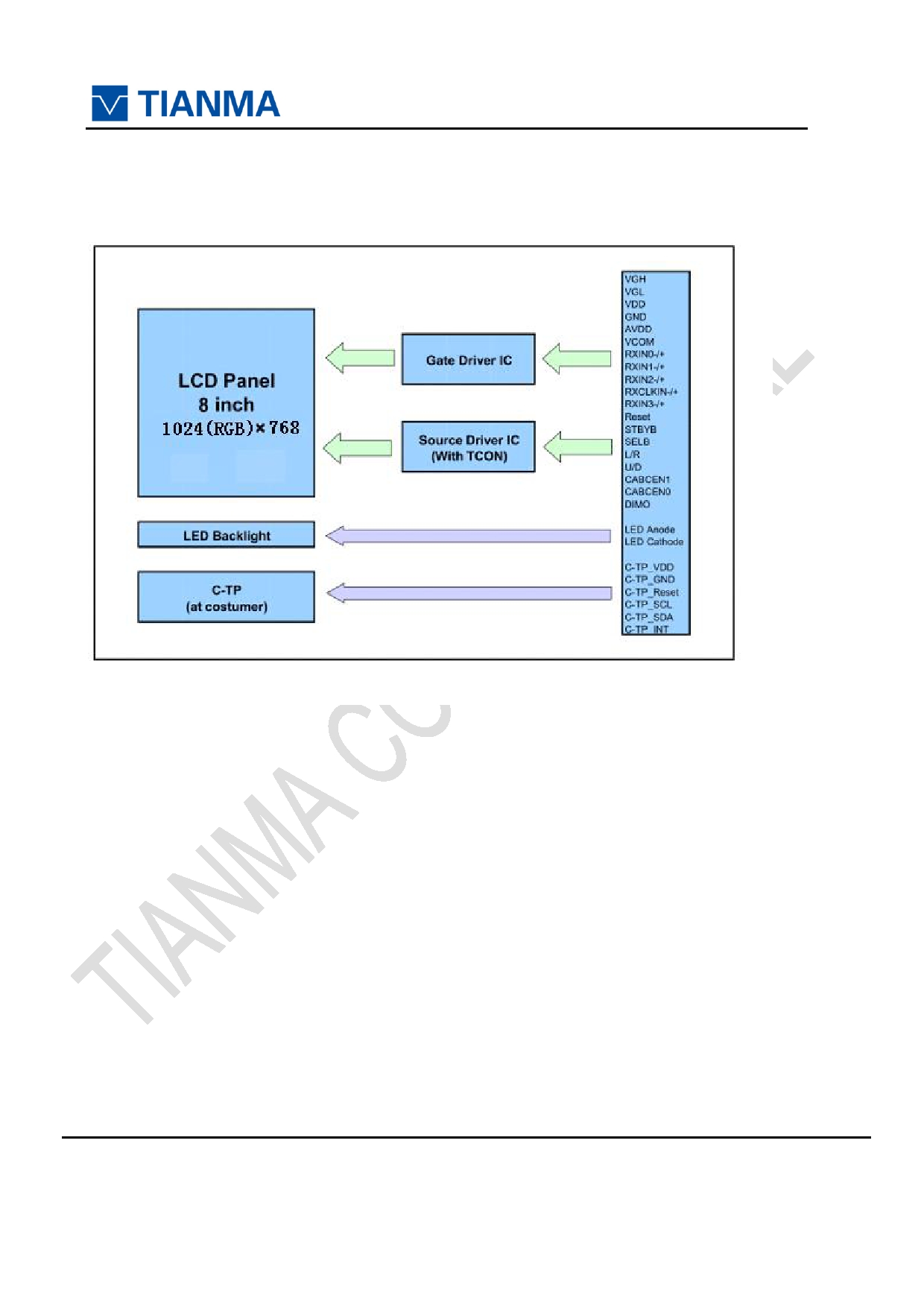

Block Diagram
LCD module diagram
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 10 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
5 Timing Chart

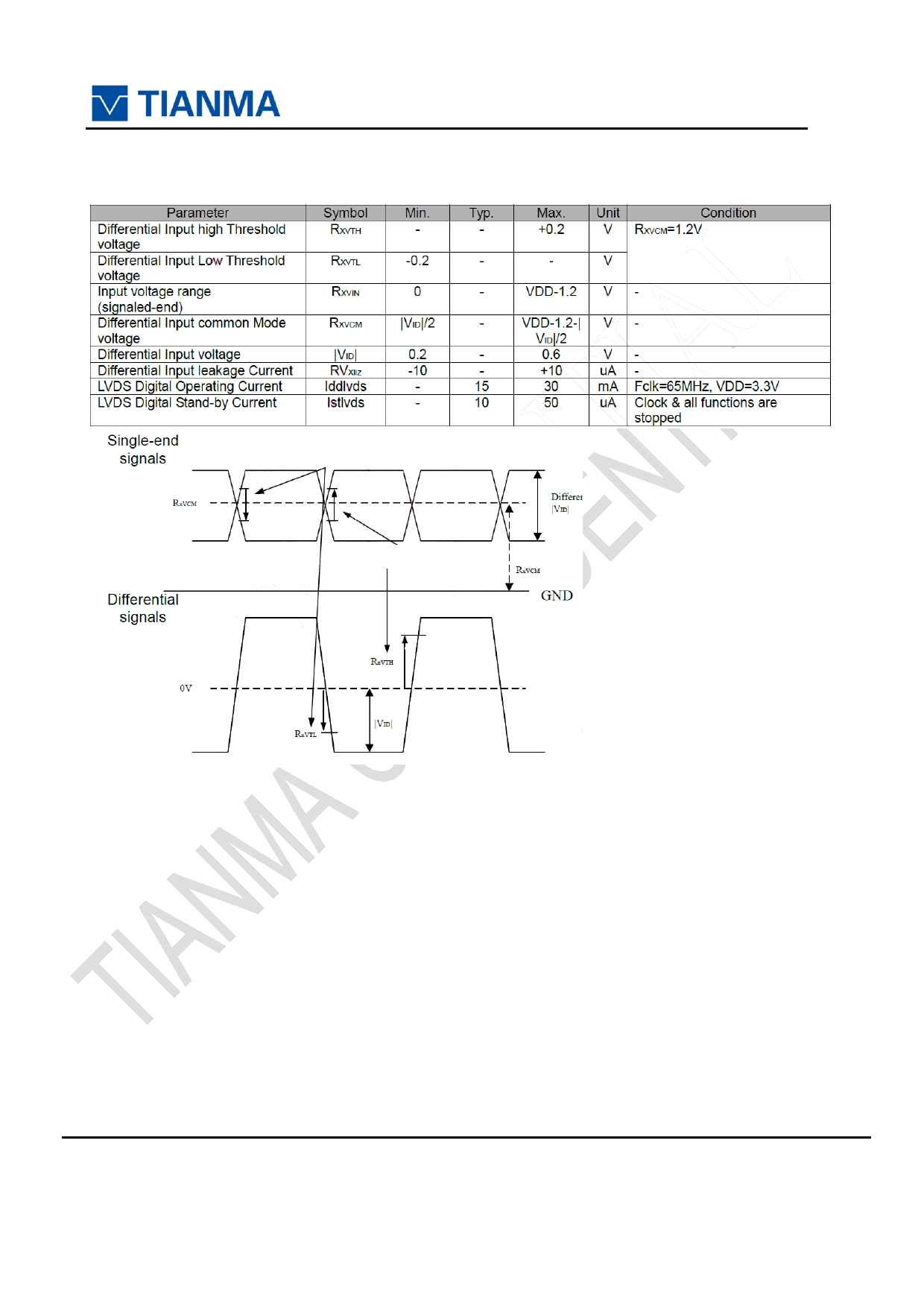

5.1 LVDS mode DC electrical characteristics
RXINx+ - RXINx- = -|V ID |<R xVTH = ” LOW ”
RXINx+ - RXINx- = |V ID |>R xVTH = ” HIGH ”
RXINx+ - RXINx-
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 11 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00

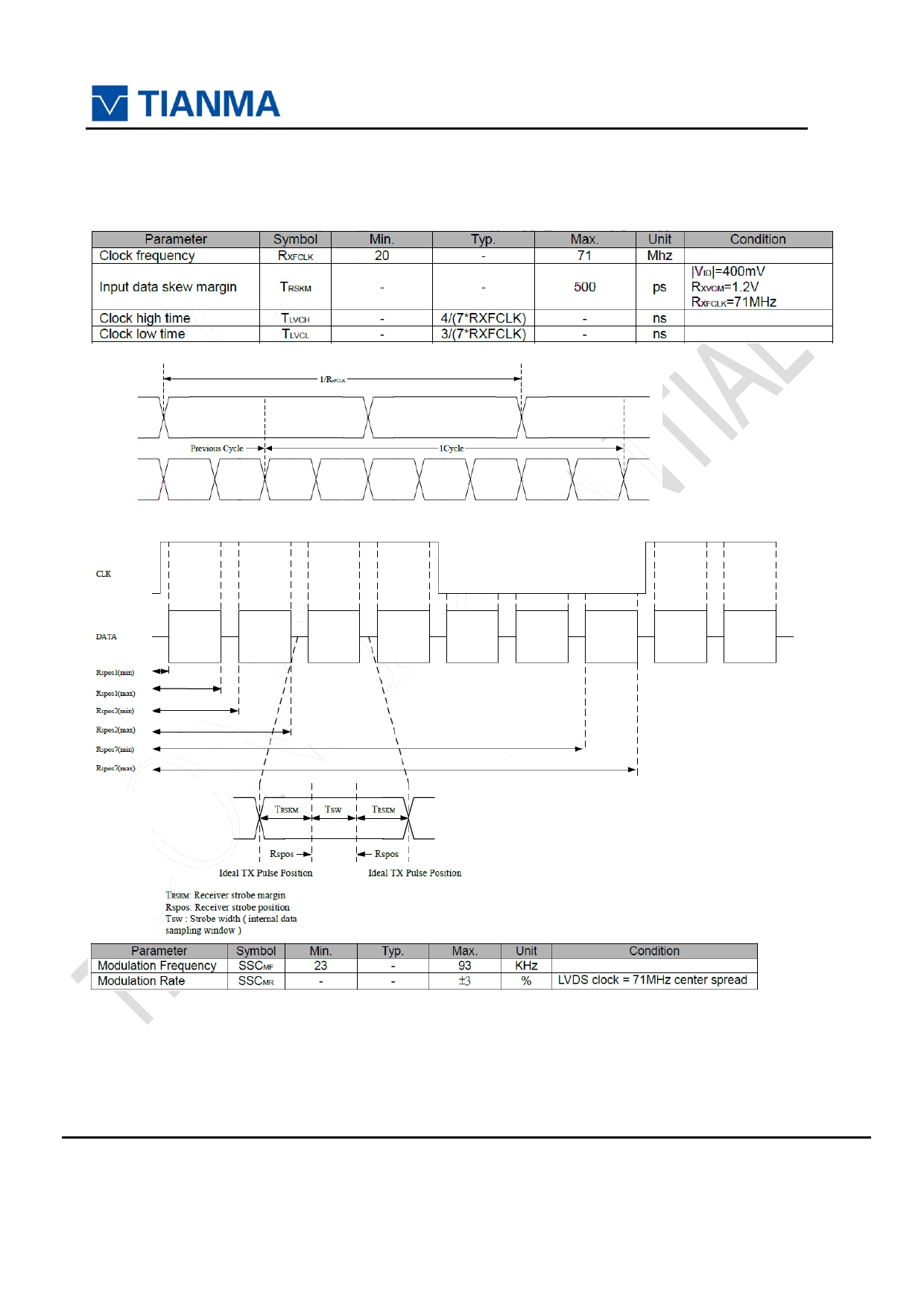

5.2 LVDS mode AC electrical characteristics
RXCLKIN+
RXCLKIN-
RXINx+/-
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 12 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00

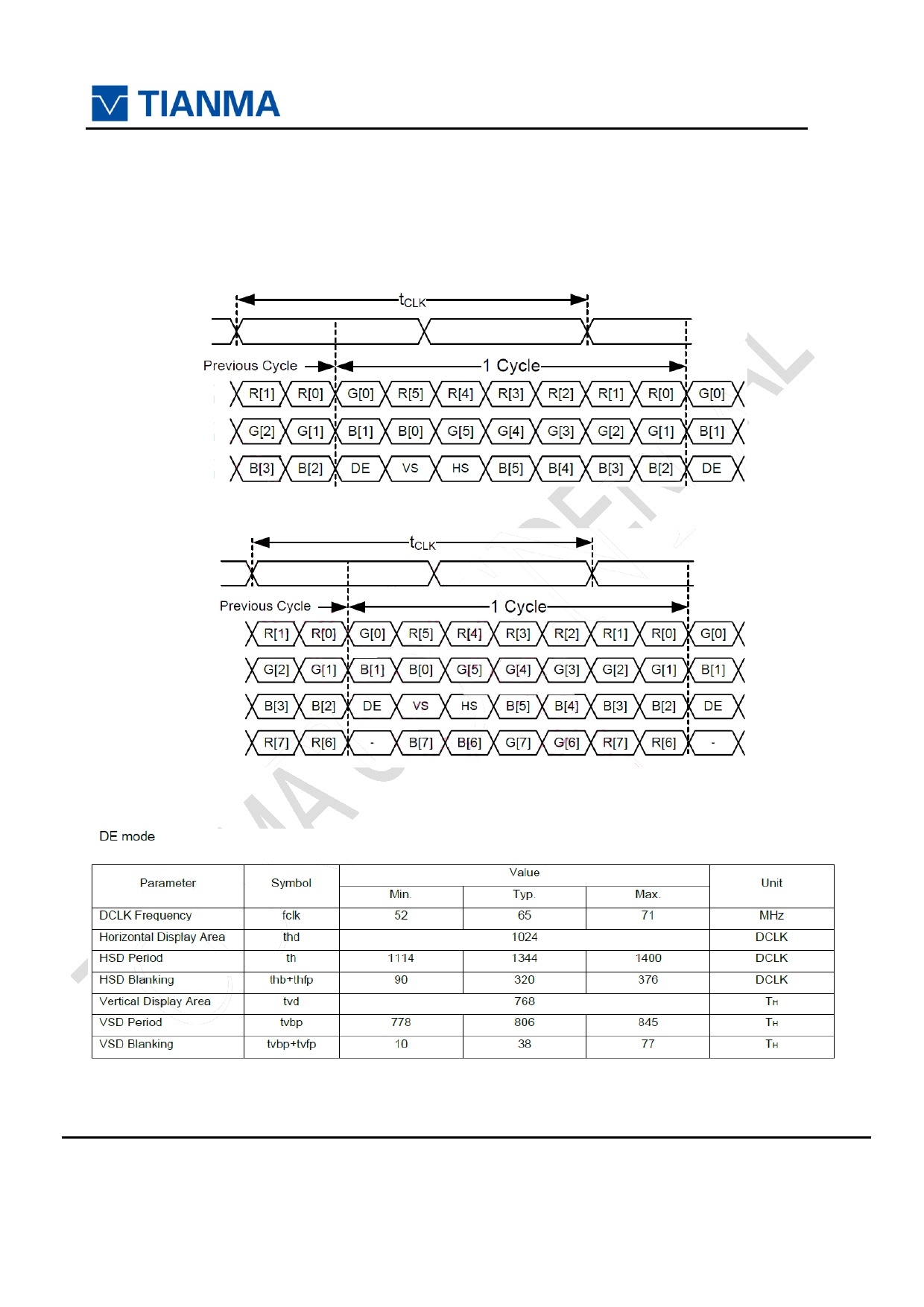

5.3 Data input format
5.3.1 LVDS data mapping
6-bit LVDS input ( SELB= “ H ” )
RXCLKIN+
RXCLKIN-
RXIN0+
RXIN0-
RXIN1+
RXIN1-
RXIN2+
RXIN2-
8-bit LVDS input ( SELB= “ L ” )
RXCLKIN+
RXCLKIN-
RXIN0+
RXIN0-
RXIN1+
RXIN1-
RXIN2+
RXIN2-
RXIN3+
RXIN3-
5.3.2
Parallel RGB input timing table
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 13 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
5.4 Power ON/OFF Sequence
Item
Symbol
MIN
Typ
MAX
Unit
Remark
VDD on 10% to 90%
T0
1
20
ms
VDD on to Standby
-
-
off(Standby is high)
T1
1
ms
Standby off to Reset
-
-
signal on
T2
0
ms
Reset signal to Display
signal on
T3
1
-
-
ms
Display signal to AVDD
on
T4
67
-
-
ms
AVDD on to VGL on
T5
16.7
-
-
ms
VGL on to VGH on
T6
16.7
-
-
ms
VGH on to B/L on
T7
200
-
-
ms
B/L off to Standby on
T8
500
-
-
ms
Standby on to VGL off
T9
83.5
-
-
ms
VGL off to VGH off
T10
16.7
-
-
ms
VGH off to AVDD off
T11
16.7
-
-
ms
AVDD off to Display
signal off
T12
16.7
-
-
ms
Display signal off to VDD
and Reset off
T13
16.7
-
-
ms
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 14 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
6 Optical Characteristics
Item
Symbol Condition
Min
Typ
Max
Unit
Remark
θT
75
85
-
θB
75
85
-
View Angles
CR ≧ 10
Degree Note2,3
θL
75
85
-
θR
75
85
-
Contrast Ratio
CR
θ=0 o
1500
1800
-
Note 3
T ON
Response Time
25 ℃
-
35
45
ms
Note 4
T OFF
x
0.251
0.310
0.351
White
Note 1,5
y
0.279
0.329
0.379
x
0.537
0.587
0.637
Red
Note 1,5
y
0.280
0.330
0.380
Chromaticity
Backlight is
x
on
0.308
0.358
0.408
Green
Note 1,5
y
0.536
0.586
0.636
x
0.106
0.156
0.206
Blue
Note 1,5
y
0.048
0.098
0.148
Uniformity
U
80
85
%
Note 6
NTSC
45
50
%
Note 5
2
Luminance
L
400
450
cd/m
Note 7
Test Conditions:
1. IF= 180 mA, and the ambient temperature is 25 ℃ .
2. The test systems refer to Note 1 and Note 2.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 15 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
Note 1: Definition of optical measurement system.
The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical
properties are measured at the center point of the LCD screen. All input terminals LCD panel must
be ground when measuring the center area of the panel.
Photo detector
Field
500mm
TFT-LCD Module
LCD Panel
The center of the screen
Note 2: Definition of viewing angle range and measurement system.
viewing angle is measured at the center point of the LCD 。
Note 3: Definition of contrast ratio
“White state “: The state is that the LCD should drive by Vwhite.
“Black state”: The state is that the LCD should drive by Vblack.
Vwhite: To be determined
Vblack: To be determined.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 16 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00

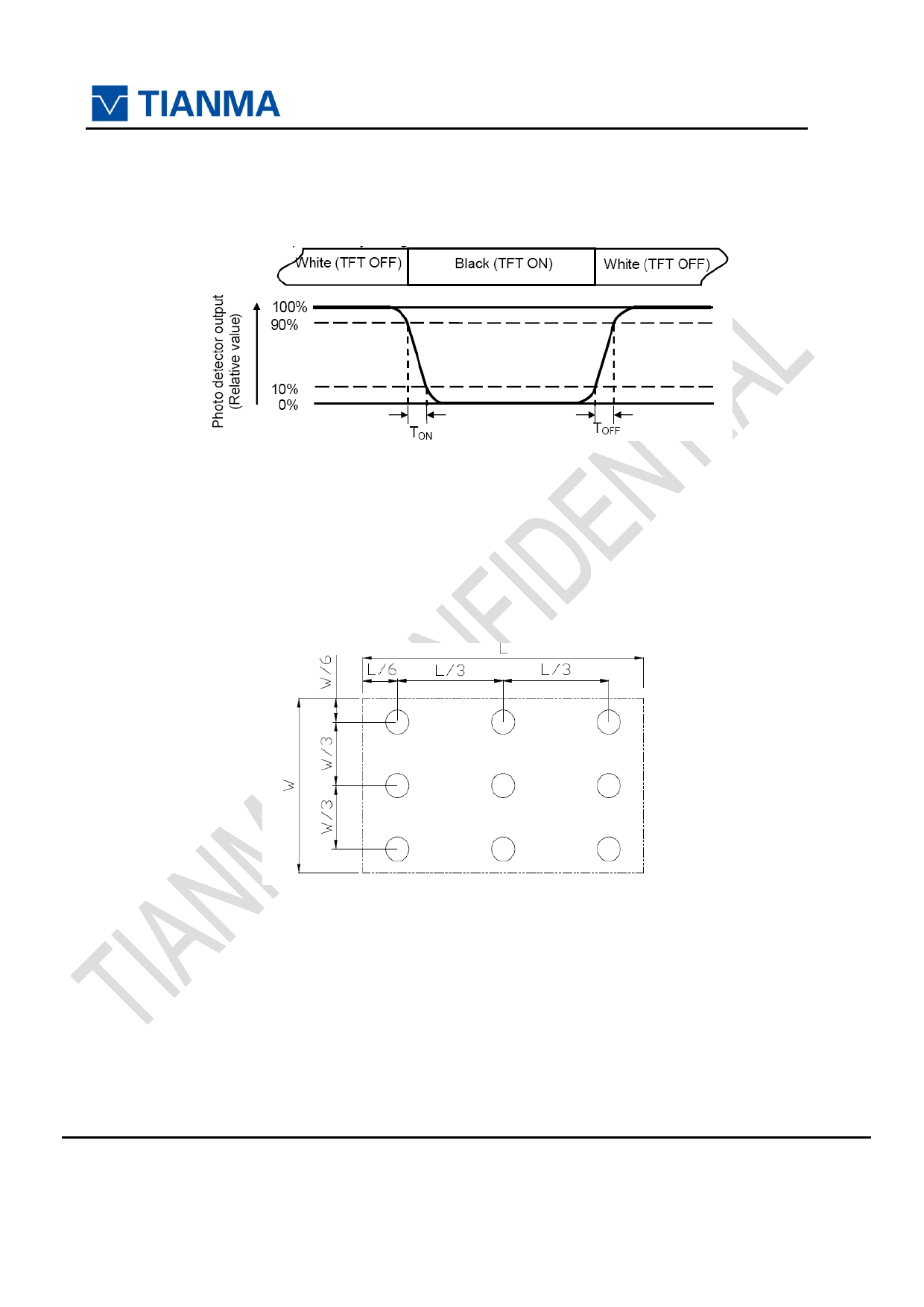

Note 4: Definition of Response time
The response time is defined as the LCD optical switching time interval between “White” state and
“Black” state. Rise time (T ON ) is the time between photo detector output intensity changed from 90%
to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from 10%
to 90%.
Note 5: Definition of color chromaticity (CIE1931)
Color coordinates measured at center point of LCD.
Note 6: Definition of Luminance Uniformity
Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the
center of each measuring area.
Luminance Uniformity (U) = Lmin/ Lmax
L-------Active area length W----- Active area width
Lmax: The measured Maximum luminance of all measurement position.
Lmin: The measured Minimum luminance of all measurement position.
Note 7: Definition of Luminance:
Measure the luminance of white state at center point.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 17 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
7 Environmental / Reliability Test
No
Test Item
Condition
Remarks
1
High Temperature
IEC60068-2-1:2007
Operation
Ta = +70 ℃ , 240 hours (Note1)
GB2423.2-2008
2
Low Temperature
IEC60068-2-1:2007
Operation
Ta = -20 ℃ , 240 hours (Note 2 )
GB2423.1-2008
3
High Temperature
IEC60068-2-1:2007
Storage
Ta = +80 ℃ , 240 hours
GB2423.2-2008
4
Low Temperature
IEC60068-2-1:2007
Storage
Ta = -30 ℃ , 240 hours
GB2423.1-2008
Storage at High
5
Temperature and
Ta = +60 ℃ , 90% RH max, 240hours
IEC60068-2-78 :2001
Humidity
GB/T2423.3 — 2006
Start with cold
temperature,
6
Thermal Shock
-30 ℃ 30 min ~ +80 ℃ 30 min,
End with high
(non-operation)
Change time:5min, 100 Cycle
temperature,
IEC60068-2-14:1984,G
B2423.22-2002
C=150pF, R=330Ω, 5point/panel
Air: ±8Kv, 5times;
7
ESD
Contact: ±4Kv, 5times
IEC61000-4-2:2001
(Environment: 15 ℃ ~35 ℃ , 30%~60%.
GB/T17626.2-2006
86Kpa~106Kpa)
5Hz~20Hz~200Hz ，
8
Vibration Test
0.01g2/Hz~0.01g2/Hz~0.001g2/Hz ， X/Y/Z GB/T 4857.23-2012
各轴 30min
Drop 1 corner, 3 edges, 6 surfaces from height
9
Package Drop Test
of 80cm (Weight ≦ 10kg); of 60 cm
GB/T 4857.5-1992
(Weight>10kg)
Note1: Ta is the ambient temperature of sample.
Note2: Before cosmetic and function test, the product must have enough recovery time, at least
24 hours at room temperature.
Note 3 : In the standard condition, there shall be no practical problem that may affect the display
function. After the reliability test, the product only guarantees operation, but don’t guarantee all of the
cosmetic specification.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 18 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00

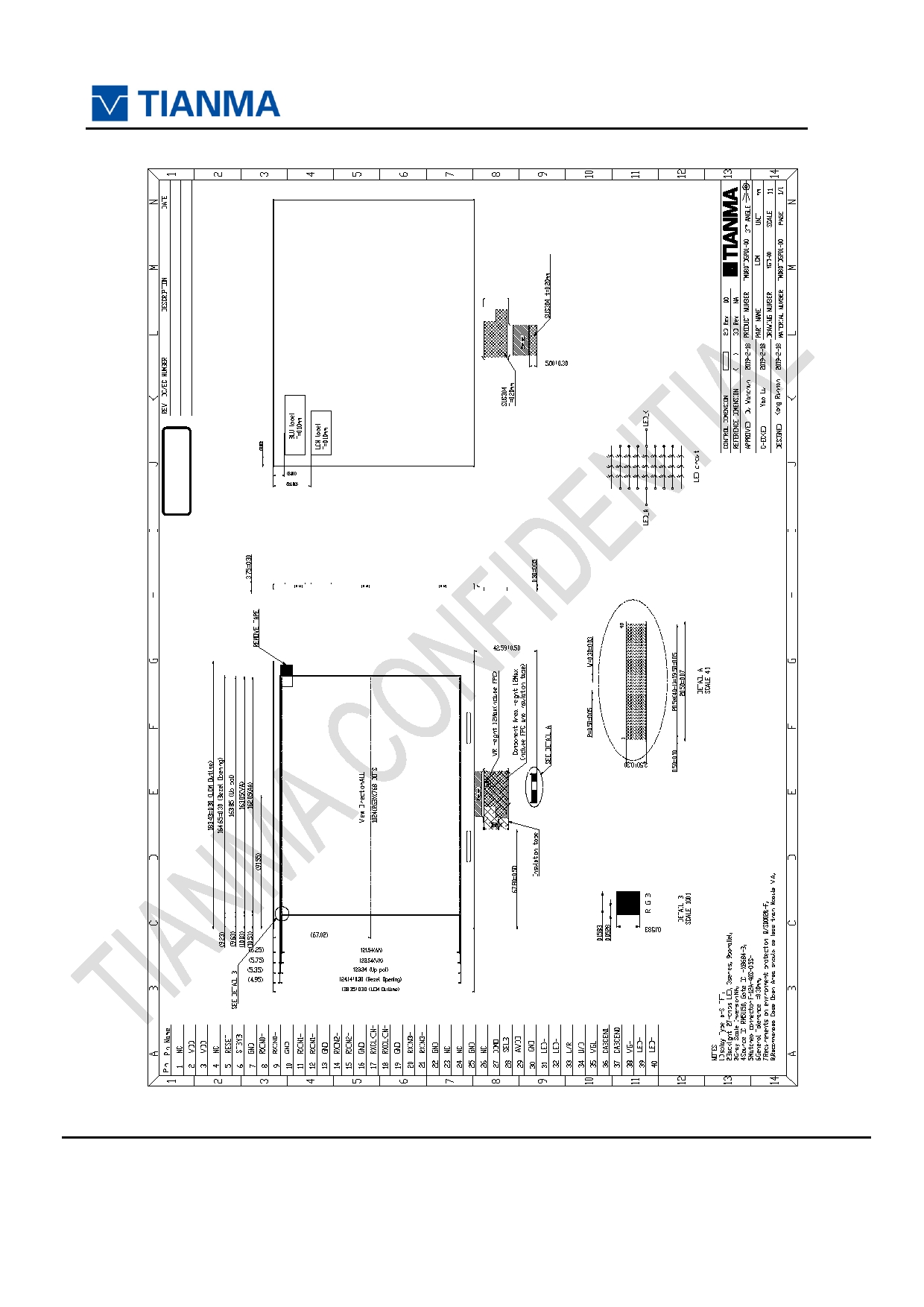

8 Mechanical Drawing
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 19 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
9
Packing Drawing
9.1 Packaging Material
Per Carton
No
Item
Model (Material)
Dimensions(mm)
Unit
Weight(Kg)
Quantity
Remark
1
LCM module TM080TDGP01-00
183.43×138.35×3.75
0.180
36
2
Tray
PET
485×330×1.0
0.18
21
3
Dust-proof
Bag
PE
700×545×0.05
0.021
1
4
Carton
Corrugated Paper
544×365×250
1.01
1
5
BOX
Corrugated Paper
520×345×74
0.227
3
6
Label
paper
100×52
0.001
1
7
EPE
EPE
485×330×5
0.05
3
8
Total weight
12.1
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 20 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00

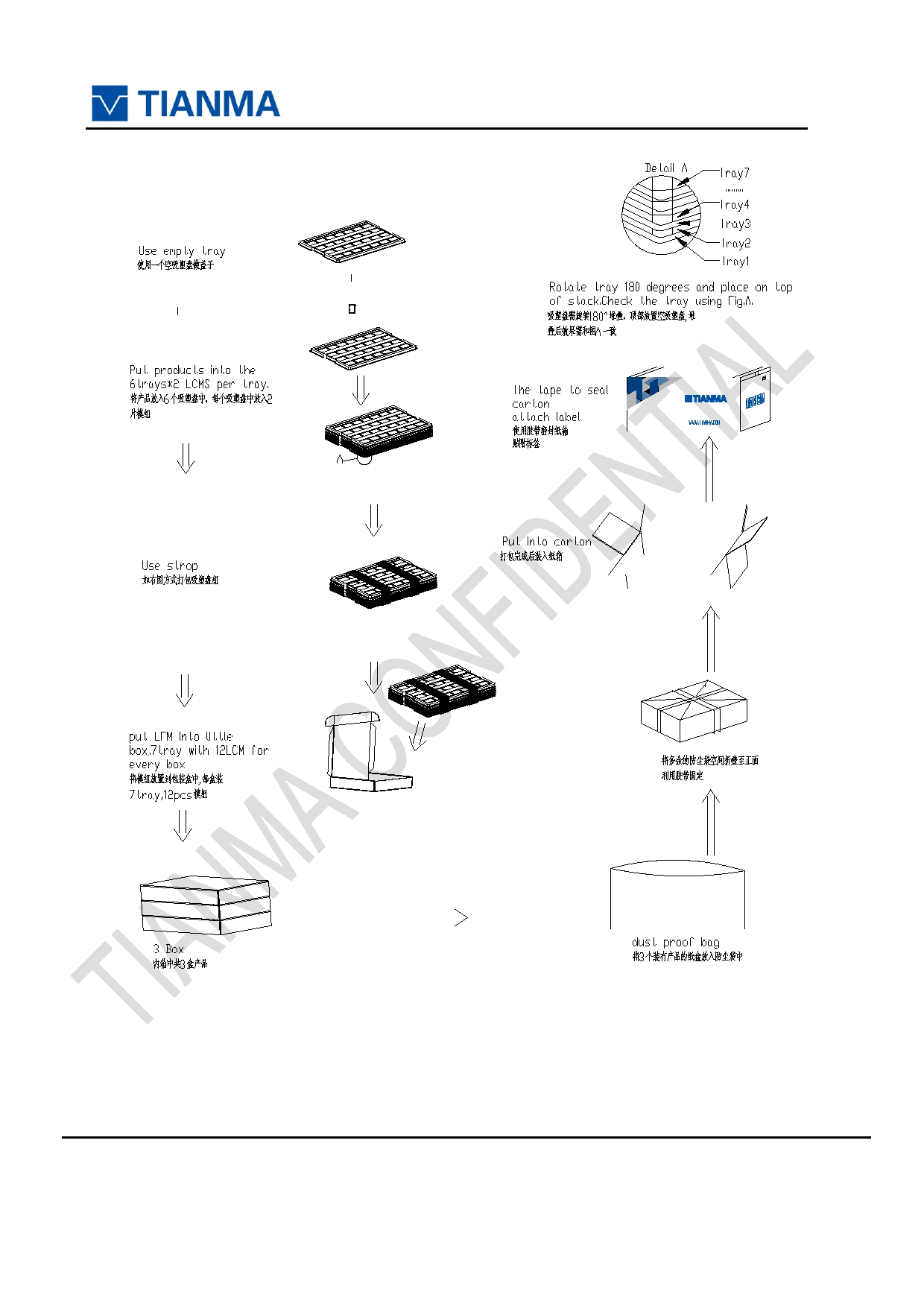

9.2 Packing instruction
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 21 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 22 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No. TM080TDGP01-00
10 Precautions for Use of LCD Modules
10.1
Handling Precautions
10.1.1 The display panel is made of glass. Do not subject it to a mechanical shock by dropping
it from a high place, etc.
10.1.2 If the display panel is damaged and the liquid crystal substance inside it leaks out, be
sure not to get any in your mouth, if the substance comes into contact with your skin or clothes,
promptly wash it off using soap and water.
10.1.3 Do not apply excessive force to the display surface or the adjoining areas since this
may cause the color tone to vary.
10.1.4 The polarizer covering the display surface of the LCD module is soft and easily
scratched. Handle this polarizer carefully.
10.1.5 If the display surface is contaMinated, breathe on the surface and gently wipe it with a
soft dry cloth. If still not completely clear, moisten cloth with one of the following solvents:
－ Isopropyl alcohol
－ Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use the
following:
－ Water
－ Ketone
－ Aromatic solvents
10.1.6 Do not attempt to disassemble the LCD Module.
10.1.7 If the logic circuit power is off, do not apply the input signals.
10.1.8 To prevent destruction of the elements by static electricity, be careful to maintain an
optimum work environment.
10.1.8.1 Be sure to ground the body when handling the LCD Modules.
10.1.8.2 Tools required for assembly, such as soldering irons, must be properly ground.
10.1.8.3 To reduce the amount of static electricity generated, do not conduct assembly and
other work under dry conditions.
10.1.8.4 The LCD Module is coated with a film to protect the display surface. Be care when
peeling off this protective film since static electricity may be generated.
10.2
Storage precautions
10.2.1 When storing the LCD modules, avoid exposure to direct sunlight or to the light of
fluorescent lamps.
10.2.2 The LCD modules should be stored under the storage temperature range. If the LCD
modules will be stored for a long time, the recommend condition is:
Temperature : 0 ℃ ～ 40 ℃ Relatively humidity: ≤ 80%
10.2.3 The LCD modules should be stored in the room without acid, alkali and harmful gas.
10.3
Transportation Precautions
10.3.1 The LCD modules should be no falling and violent shocking during transportation, and
also should avoid excessive press, water, damp and sunshine.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 23 of 23
www.topwaydisplay.com
sales@topwaydisplay.com
