+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
MODEL NO :
TM101DDHG06
MODEL VERSION:
01
SPEC VERSION :
2.1
ISSUED DATE:
2020-03-26
□Preliminary Specification
■Final Product Specification
Customer :
Approved by
Notes
TIANMA Confirmed :
Prepared by
Checked by
Approved by
Panpan Cao
Longping Deng
KimMinHong
This technical specification is subjected to change without notice
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 1 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
Table of Contents
Table of Contents ............................................................................................................................ 2
Record of Revision .......................................................................................................................... 3
1 General Specifications.............................................................................................................. 4
2 Input/Output Terminals ............................................................................................................. 5
3 Absolute Maximum Ratings ...................................................................................................... 7
4 Electrical Characteristics .......................................................................................................... 8
5 Timing Chart............................................................................................................................. 9
6 Optical Characteristics ........................................................................................................... 13
7 Environmental / Reliability Test ............................................................................................... 16
8 Mechanical Drawing ............................................................................................................... 17

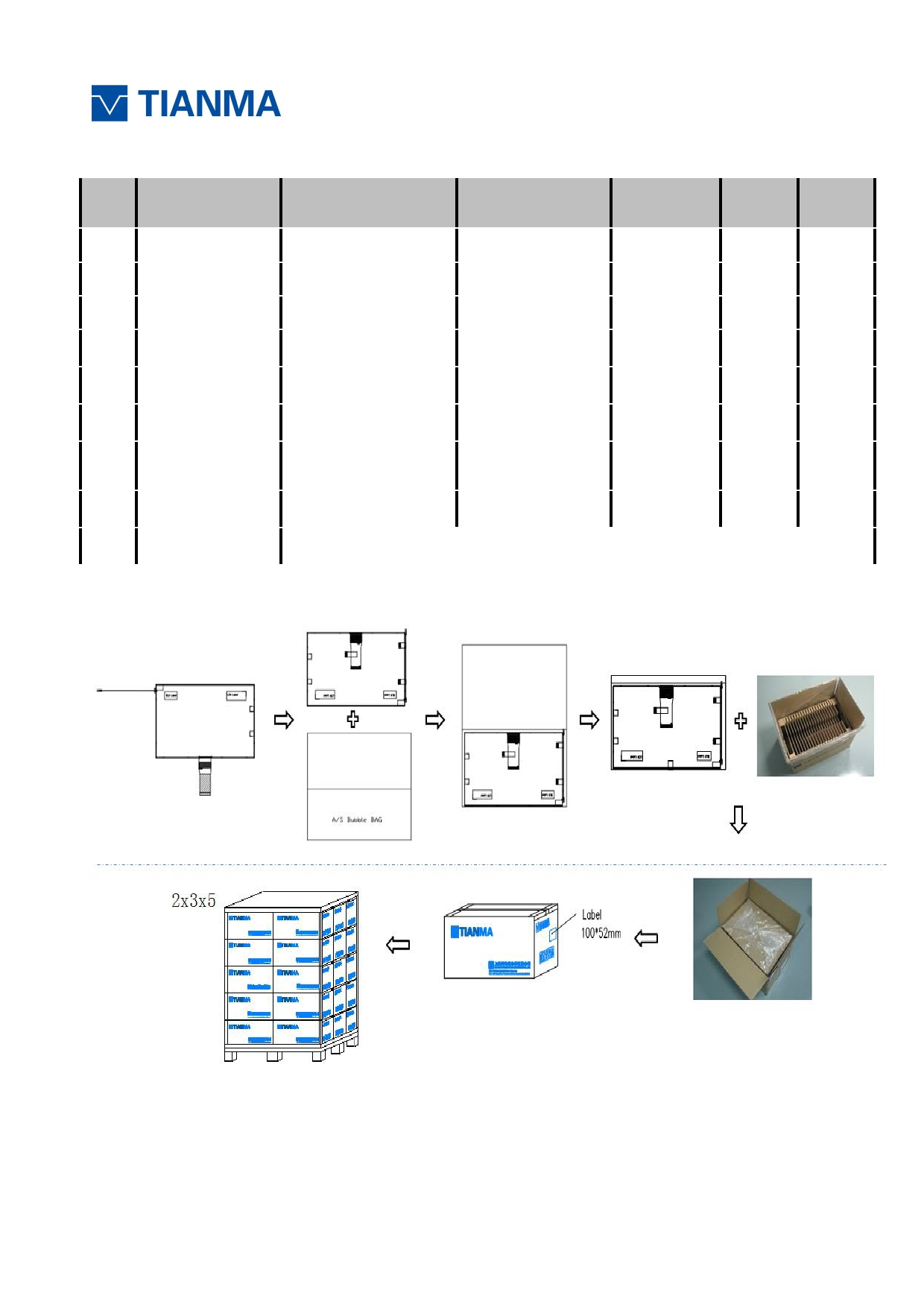

9 Packing Drawing .................................................................................................................... 18
10
Precautions for Use of LCD Modules .................................................................................. 19
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 2 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
Record of Revision
Rev
Issued Date
Description
Editor
1.0
2019-01-04 Preliminary Specification Release.
Panpan Cao
2.0
2019-6-18 Final Specification Release.
Panpan Cao
2.1
2020-3-26 Update View Angles in page 13.
Panpan Cao
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 3 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
1 General Specifications
Feature
Spec
Size
10.1 inch
Resolution
1024(RGB )× 600
Technology Type
a-Si TFT
Pixel Configuration
R.G.B. Vertical Stripe
Display Spec.
Pixel pitch(mm)
0.2175x0.2088
Display Mode
Transmissive, Normally White
Surface Treatment
AG
Viewing Direction
12 o’clock
Gray Scale Inversion Direction
6 o’clock
LCM (W x H x D) (mm)
235.00 x 143.00 x 5.0
Active Area(mm)
222.72 x 125.28
Mechanical
With /Without TSP
Without TSP
Characteristics
Matching Connection Type
Starconn:089H50-000100-G2-R
LED Numbers
24 LED
Weight (g)
272.3
Interface
24 bit RGB
Electrical
Characteristics
Color Depth
16.7M
Driver IC
HX8282-A02*1+HX8677-G*2
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180
degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 4 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
2 Input/Output Terminals
Recommended connector: STARCONN 089H50-000100-G2-R
Pin
Symbol
I/O
Description
Remark
1
NC
-
No connection
2
NC
-
No connection
3
NC
-
No connection
4
NC
-
No connection
5
GND
P
Power GND
6
NC
-
No connection
7
VDD
P
Digital Power
8
MODE
I
DE/SYNC mode select
(“1”:DE “0”:SYNC)
Note1
9
DE
I
Data input enable
10
VS
I
Vertical sync input
11
HS
I
Horizontal sync input
12
B7
I
Blue data(MSB)
13
B6
I
Blue data
14
B5
I
Blue data
15
B4
I
Blue data
16
B3
I
Blue data
17
B2
I
Blue data
18
B1
I
Blue data
19
B0
I
Blue data(LSB)
20
G7
I
Green data(MSB)
21
G6
I
Green data
22
G5
I
Green data
23
G4
I
Green data
24
G3
I
Green data
25
G2
I
Green data
26
G1
I
Green data
27
G0
I
Green data(LSB)
28
R7
I
Red data(MSB)
29
R6
I
Red data
30
R5
I
Red data
31
R4
I
Red data
32
R3
I
Red data
33
R2
I
Red data
34
R1
I
Red data
35
R0
I
Red data(LSB)
36
GND
P
Power GND
37
DCLK
I
Clock for input data Latch at falling
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 5 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
edge
38
GND
P
Power GND
39
SHLR
I
Left or right display control
Note2
40
UPDN
I
UP/down display control
Note3
41
VGH
P
Positive power for TFT
42
VGL
P
Negative power for TFT
43
AVDD
P
Analog power
44
RESET
I
Global reset pin
45
NC
-
No connection
46
NC
-
No connection
47
DITHB
I
Dithering function
Note4
48
GND
P
Power GND
49
NC
-
No connection
50
NC
-
No connection
BackLight Connector
Connector: JST BHSR-02VS-1
No
Symbol
I/O
Description
Wire Color
1
LEDA
P
LED driving anode (high voltage)
Red
2
LEDK
P
LED driving cathode (low voltage)
White
*Shrouded header: SM02B-BHSS-1-TB
Note1: DE/SYNC mode select. Normally pull high.
When MODE=H: DE mode.
When MODE=L : SYNC mode.
Note2: Source Driver internal shift register is controlled by this pin as shown below:
Normally pull high.
SHLR=H:SO1 SO2 SO3…SO1024.(Default)
SHLR=L: SO1024 SO1023 SO1022…SO1.
Note3: Gate Driver Up/down scan setting. Normally pull low.
When UPDN=H: Reverse scan. G600 G599 G598…G1.
When UPDN=L, normal scan. (Default)G1 G2 G3…G600.
Note4: Dithering function enable control. Normally pull low.
When DITHB=H: Enable internal dithering function.
When DITHB=VFL: Disable internal dithering function.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 6 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
3 Absolute Maximum Ratings
GND=0V
Item
Symbol
Min
Max
Unit
Remark
Power Voltage
VDD
-0.3
3.9
V
Positive power for TFT
VGH
-0.3
+42.0
V
Negative power for TFT
VGL
VGH-42
+0.3
V
Analog power
AVDD
-0.5
14.85
V
Operating Temperature
TOPR
-20
70
℃
Storage Temperature
TSTG
-30
80
℃
RH
--
≤ 95
%
Ta ≤ 40 ℃
--
≤ 85
%
40 ℃＜ Ta ≤ 50 ℃
Relative Humidity
Note1
--
≤ 55
%
50 ℃＜ Ta ≤ 60 ℃
--
≤ 36
%
60 ℃＜ Ta ≤ 70 ℃
--
≤ 24
%
70 ℃＜ Ta ≤ 80 ℃
Absolute Humidity
AH
--
≤ 70
g/m ³
Ta ＞ 70 ℃
Note1: Ta means the ambient temperature.
It is necessary to limit the relative humidity to the specified temperature range.
Condensation on the module is not allowed.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 7 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
4 Electrical Characteristics
4.1 Driving TFT LCD Panel
GND=0V, Ta=25 ℃
Item
Symbol
Min
Typ
Max
Unit
Remark
Power Supply Voltage
VDD
3.0
3.3
3.6
V
Positive power for TFT
VGH
21
22
23
V
Negative power for TFT
VGL
-6.5
-7
-7.5
V
Analog power
AVDD
10.8
11
11.2
V
Low Level
V IL
GND
-
0.3VCC
V
Input
Signal Voltage
High Level
V IH
0.7VCC
-
VCC
V
4.2 Recommended Driving Condition for Backlight
Ta=25 ℃
Item
Symbol
Min
Typ
Max
Unit
Remark
Forward Current
I F
-
224
240
mA
24LEDs
Forward Voltage
V F
8.7
9.6
10.5
V
(3 LED Serial, 8
LED Parallel,
Backlight Power Consumption
W BL
-
2.418
2.520
W
28mA for each)
Operating Life Time
-
-
30000
-
Hrs
I F =224mA
4.3 Power Consumption
AGND=GND=0V, Ta = 25 ℃
Item
Symbol
Condition
Min
Typ.
Max
Unit Remark
Digital Supply Current
I VCC
VDD=3.3V
3
5
8
mA Note1
Analog Supply
mA
Note1
Current
I AVDD
AVDD=11V
10
40
60
Gate On Current
I VGH
VGH=22V
0.3
0.50
1
mA
Note1
Gate Off Current
I VGL
VGL=-7.0V
0.3
0.50
1
mA
Note1
Pane l& Gamma
360
450
540
mW Note1
Power Consumption
Backlight
1760
2200
2650
mW
-
Total
2120
2650
3190
mW Note1
Note1: Tested at black pattern @60Hz.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 8 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
5 Timing Chart
5.1 Power sequence
Item
Symbol
Min
Typ
Max
Unit
Remark
VCC 3.3V rising time
T1
0
-
20
ms
VCC to AVDD on time
T2
16.7
-
-
ms
AVDD to VGL on time
T3
>0
-
-
ms
VGL to VGH on time
T4
>0
-
-
ms
VGH to DATA on time
T5
>0
-
-
ms
DATA to BL on time
T6
>0
-
-
ms
Figure 5.1.1 Power on/off sequence
Note:1. Power on sequence: VDD  AVDD  VGL  VGH  DATA ON  BACKLIGHT ON
2. Power off sequence: BACKLIGHT OFF  DATA OFF  VGH  VGL  AVDD  VDD
3. When VCC turned on, the rising time T1 should less than 20ms.
4. AVDD stable to VCC stable time T2 should better longer than 1 frame time.
5. The power off sequence can be set according to power on settings.

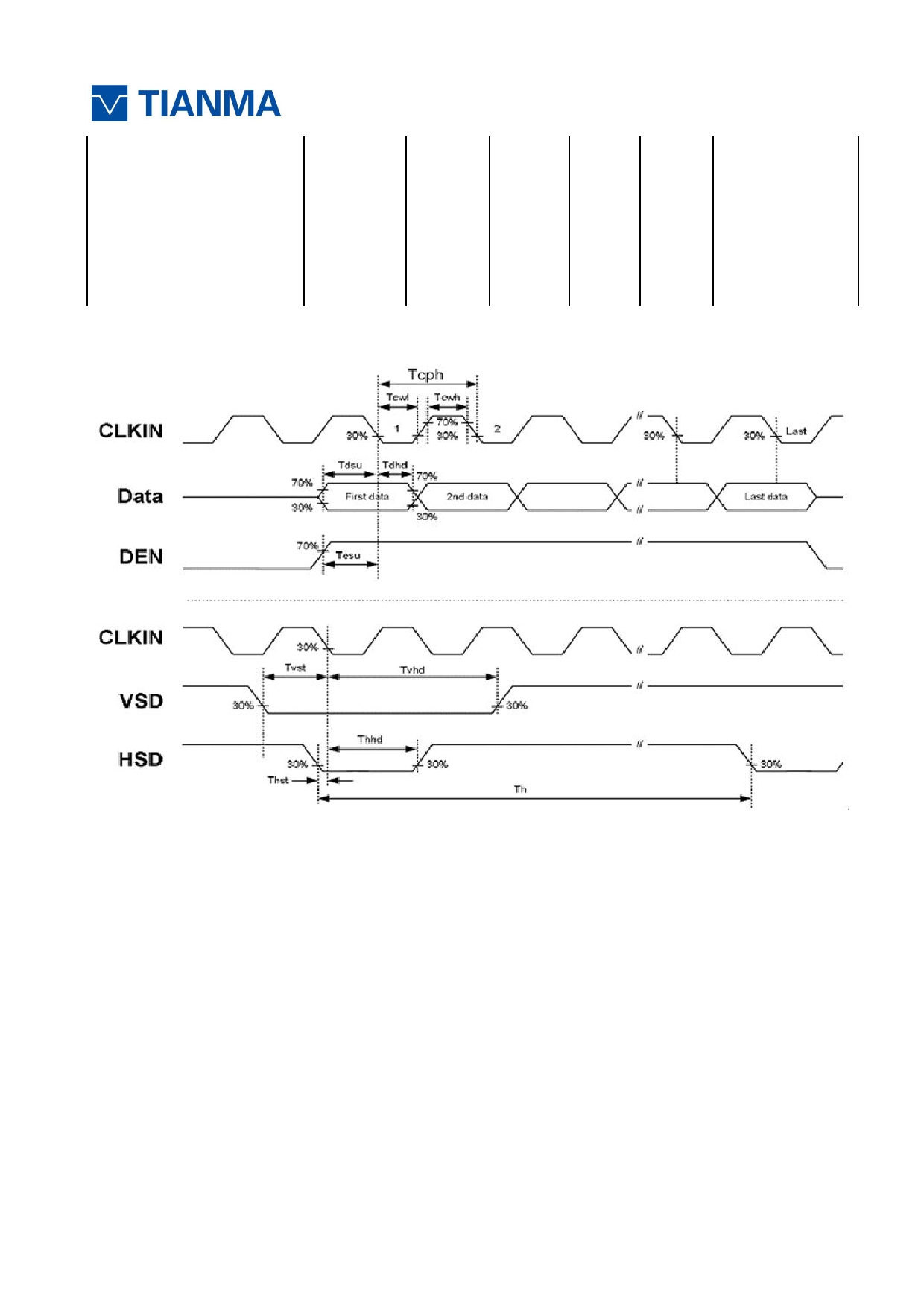

5.2.1 TTL mode AC electrical characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Conditions
VDD Power on slew rate
Tpor
-
-
20
ms
From 0V to 90%
Reset pulse width
Tgrb
50
-
-
us
DCLK=65MHz
DCLK Cycle Time
Tcph
14
-
-
ns
DCLK Pulse Width
Tcw
40%
50%
60%
-
VSD Setup Time
Tvst
5
-
-
ns
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 9 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
VSD Hold Time
Tvhd
5
-
-
ns
HSD Setup Time
Thst
5
-
-
ns
HSD Hold Time
Thhd
5
-
-
ns
Data Setup Time
Tdsu
5
-
-
ns
Data to DCLK
Data Hold Time
Tdhd
5
-
-
ns
Data to DCLK
DE Setup Time
Tesu
5
-
-
ns
DE Hold Time
Tehd
5
-
-
ns
Table 5 . 2.1 Parallel 24-bit RGB mode
Figure 5.2.1 Input clock and data timing diagram
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 10 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06

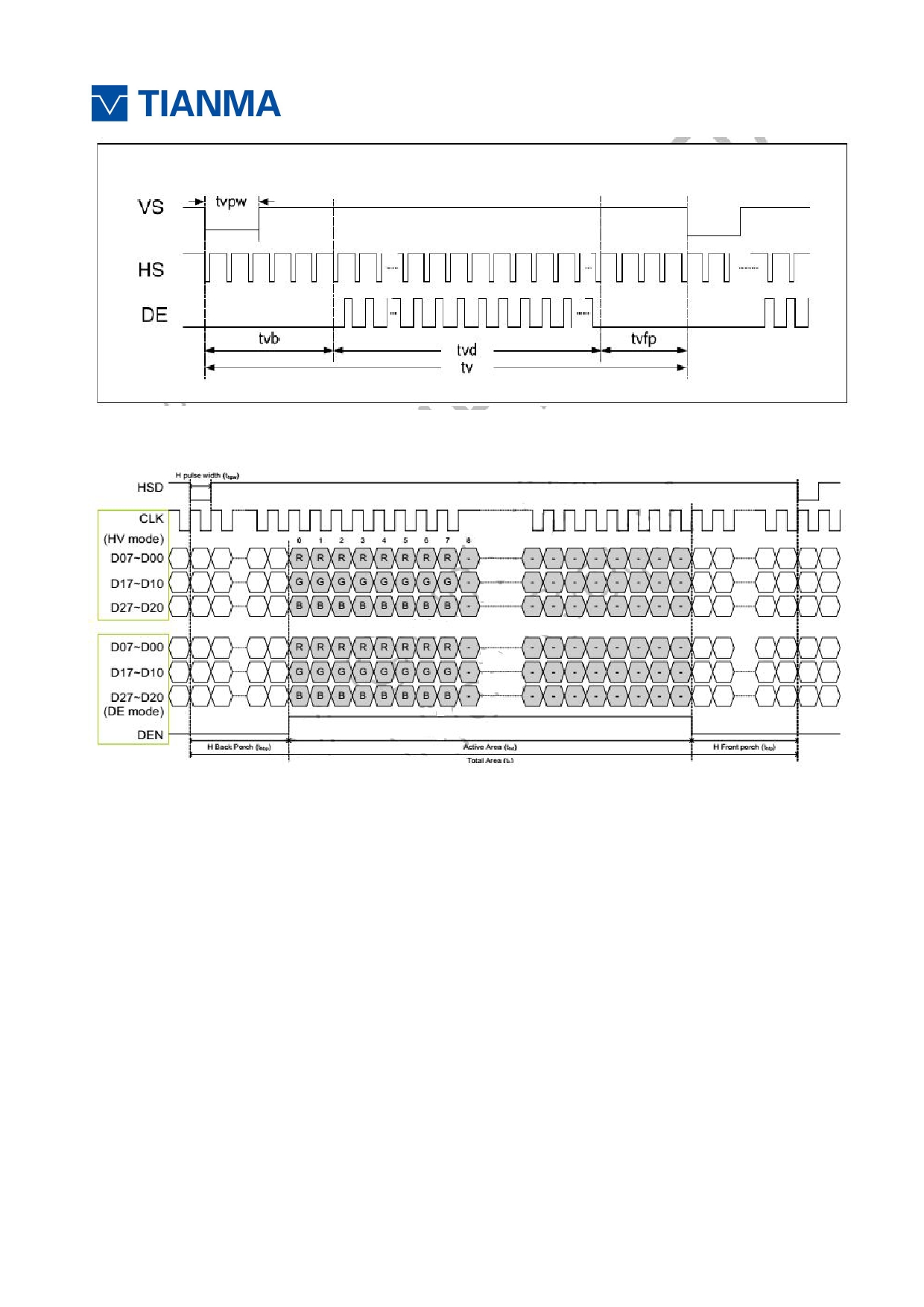

Figure 5.2.2 Vertical input timing
Figure 5.2.3 Horizontal input timing Diagram
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 11 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06

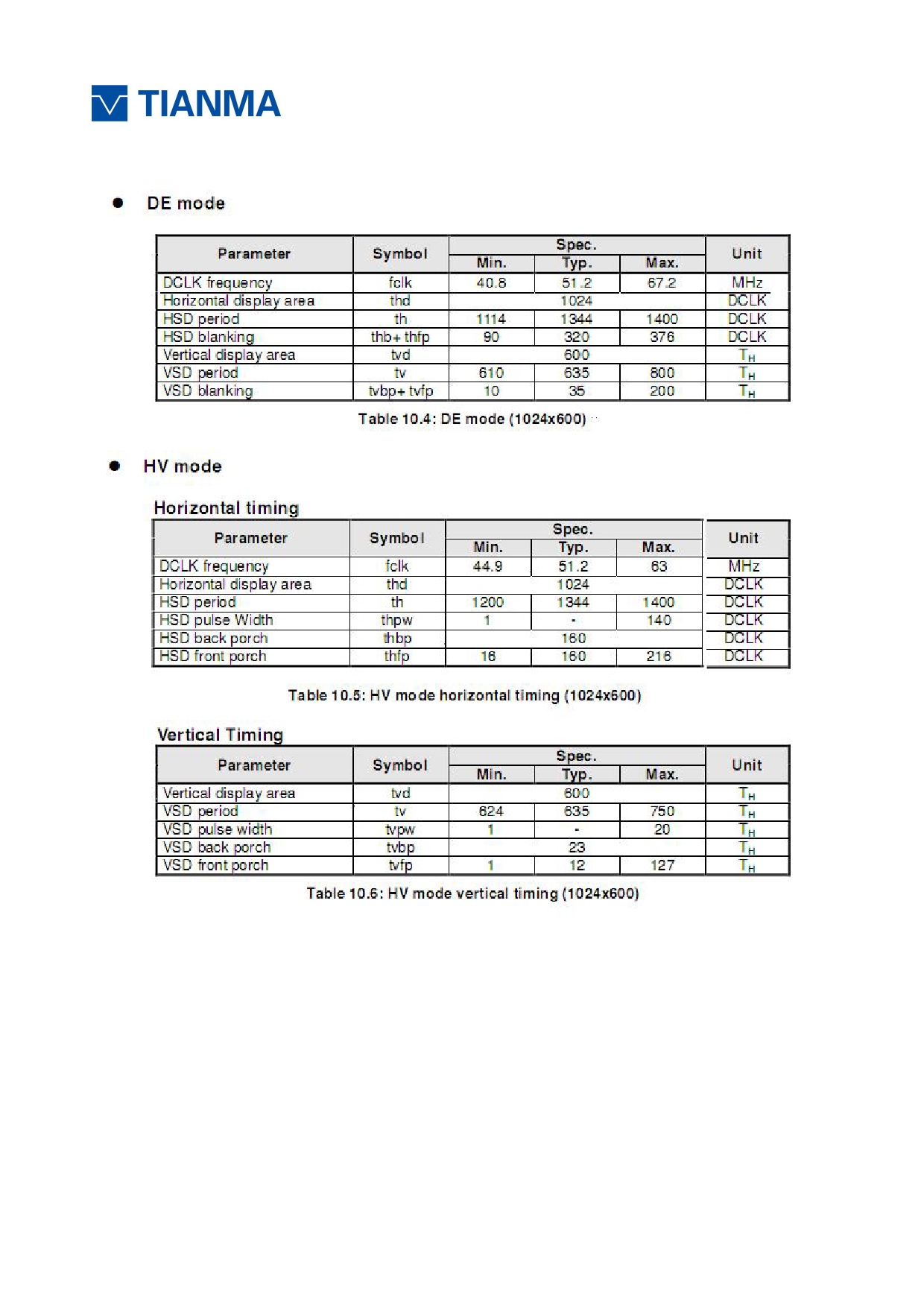

5.5 Timing characteristics
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 12 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
6 Optical Characteristics
Item
Symbol Condition
Min
Typ
Max
Unit
Remark
θT
60
75
-
θB
70
80
-
View Angles
CR ≧ 10
Degree Note2,3
θL
70
80
-
θR
70
80
-
θ=0
o
Contrast Ratio
CR
400
500
Note 3
T ON
-
7
10
Response Time
25 ℃
ms
Note 4
T OFF
-
9
18
x
0.263
0.313
0.363
White
Note 1,5
y
0.279
0.329
0.379
x
0.524
0.574
0.624
Red
Note 1,5
y
0.285
0.335
0.385
Chromaticity
Backlight is
x
on
0.280
0.330
0.380
Green
Note 1,5
y
0.525
0.575
0.625
x
0.108
0.158
0.208
Blue
Note 1,5
y
0.090
0.140
0.190
Uniformity
U
70
80
-
%
Note 6
NTSC
42
47
-
%
Note 5
cd/m Note 7
2
Luminance
L
280
350
-
Test Conditions:
1. I F = 20 mA, and the ambient temperature is 25 ℃ .
2. The test systems refer to Note 1 and Note 2.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 13 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
Note 1: Definition of optical measurement system.
The optical characteristics should be measured in dark room. After 5 Minutes operation, the optical
properties are measured at the center point of the LCD screen. All input terminals LCD panel must
be ground when measuring the center area of the panel.
Photo detector
Field
500mm
TFT-LCD Module
LCD Panel
The center of the screen
Note 2: Definition of viewing angle range and measurement system.
viewing angle is measured at the center point of the LCD by CONOSCOPE(ergo-80) 。
Note 3: Definition of contrast ratio
“White state “: The state is that the LCD should drive by Vwhite.
“Black state”: The state is that the LCD should drive by Vblack.
Vwhite: To be determined
Vblack: To be determined.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 14 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06

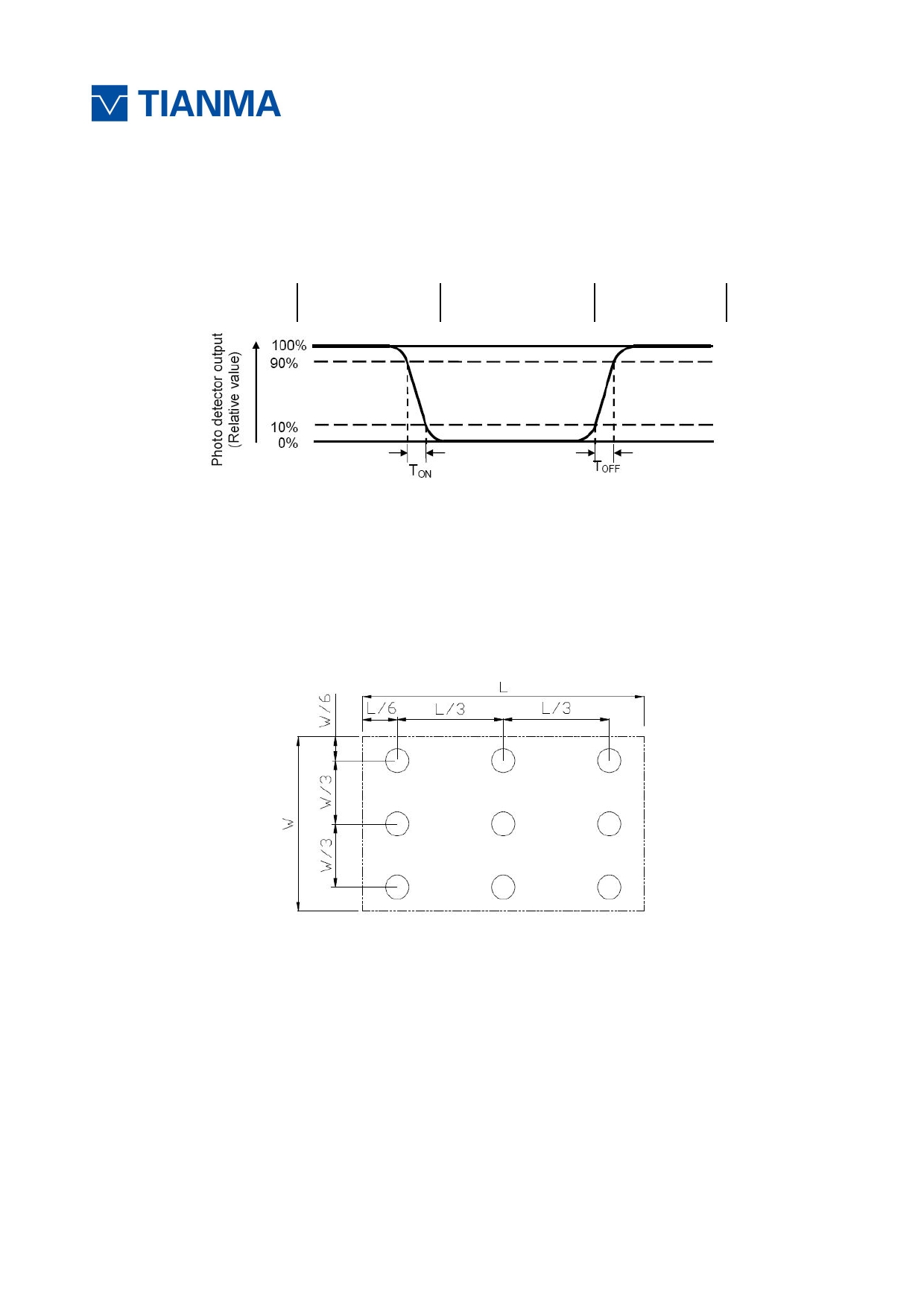

Note 4: Definition of Response time
The response time is defined as the LCD optical switching time interval between “White” state and
“Black” state. Rise time (T ON ) is the time between photo detector output intensity changed from 90%
to 10%. And fall time (T OFF ) is the time between photo detector output intensity changed from 10%
to 90%.
White (TFT off)
Black (TFT on)
White (TFT off)
Note 5: Definition of color chromaticity (CIE1931)
Color coordinates measured at center point of LCD.
Note 6: Definition of Luminance Uniformity
Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the
center of each measuring area.
Luminance Uniformity (U) = Lmin/ Lmax
L-------Active area length W----- Active area width
Lmax: The measured Maximum luminance of all measurement position.
Lmin: The measured Minimum luminance of all measurement position.
Note 7: Definition of Luminance:
Measure the luminance of white state at center point.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 15 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
7 Environmental / Reliability Test
No
Test Item
Condition
Remarks
1
High Temperature
Ta= +70 ℃ ,240hrs
IEC60068-2-1:2007
Operation
GB2423.2-2008
2
Low Temperature
IEC60068-2-1:2007
Operation
Ta= -20 ℃ ,240hrs
GB2423.1-2008
3
High Temperature
IEC60068-2-1:2007
Storage
Ta = +80 ℃ ,240hrs
GB2423.2-2008
4
Low Temperature
IEC60068-2-1:2007
Storage
Ta = -30 ℃ ,240 hrs
GB2423.1-2008
Storage at High
5 Temperature and
Ta=+60 ℃ , 90% RH 240 hours
IEC60068-2-78 :2001
Humidity
GB/T2423.3—2006
Start with cold
temperature,
6
Thermal Shock
-30 ℃ 30 min~+80 ℃ 30 min,
End with high
(non-operation)
Change time:5min,20 Cycles
temperature,
IEC60068-2-14:1984,G
B2423.22-2002
C=150pF ， R=330 Ω， 5point/panel
Air ：± 8kv ， 5times ；
7 ESD
Contact ：± 4kv ， 5times ；
IEC61000-4-2:2001
GB/T17626.2-2006
（ Environment ： 15 ℃ ~35 ℃， 30%~60% ，
86Kpa~106Kpa ）
Note1: Ta is the ambient temperature of sample.
Note2: Before cosmetic and function test, the product must have enough recovery time, at least
24 hours at room temperature.
Note3: In the standard condition, there shall be no practical problem that may affect the display
function. After the reliability test, the product only guarantees operation, but don’t guarantee all of the
cosmetic specification.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 16 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
8 Mechanical Drawing
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 17 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
9
Packing Drawing
No
Item
Model(Material)
Dimensions(mm)
Unit
Weight(Kg)
Quantity Remark
1 LCM module
TM101DDHG06
235.0 × 143.0 × 5.0
0.2723
20
2 Partition_1
Corrugated Paper
409×253×37
1.382
1
3 Dust-Proof Bag
PE
700×545
0.046
1
4 Partition_2
Corrugated Paper
505*332
0.1
1
5 Crepe Paper Tape PE
30*10
0.002
80
6 Carton
Corrugated Paper
513×333×217
0.76
1
7
Anti-Static Bubble
Bag
PE
315×250×4
0.011
20
8 Label
Label
100*52
0.002
1
9
Total weight
8.116±5%kg
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 18 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
+86(755)3699-5528
Shenzhen TOPWAY Technology Co., Ltd.
+86(755)8179-5700
Model No.TM101DDHG06
10 Precautions for Use of LCD Modules
10.1
Handling Precautions
10.1.1 The display panel is made of glass. Do not subject it to a mechanical shock by dropping
it from a high place, etc.
10.1.2 If the display panel is damaged and the liquid crystal substance inside it leaks out, be
sure not to get any in your mouth, if the substance comes into contact with your skin or clothes,
promptly wash it off using soap and water.
10.1.3 Do not apply excessive force to the display surface or the adjoining areas since this
may cause the color tone to vary.
10.1.4 The polarizer covering the display surface of the LCD module is soft and easily
scratched. Handle this polarizer carefully.
10.1.5 If the display surface is contaminated, breathe on the surface and gently wipe it with a
soft dry cloth. If still not completely clear, moisten cloth with one of the following solvents:
－ Isopropyl alcohol
－ Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use the
following:
－ Water, Ketone ,Aromatic solvents
10.1.6 Do not attempt to disassemble the LCD Module.
10.1.7 If the logic circuit power is off, do not apply the input signals.
10.1.8 To prevent destruction of the elements by static electricity, be careful to maintain an
optimum work environment.
10.1.8.1 Be sure to ground the body when handling the LCD Modules.
10.1.8.2 Tools required for assembly, such as soldering irons, must be properly ground.
10.1.8.3 To reduce the amount of static electricity generated, do not conduct assembly and
other work under dry conditions.
10.1.8.4 The LCD Module is coated with a film to protect the display surface. Be care when
peeling off this protective film since static electricity may be generated.
10.2
Storage precautions
10.2.1 When storing the LCD modules, avoid exposure to direct sunlight or to the light of
fluorescent lamps.
10.2.2 The LCD modules should be stored under the storage temperature range. If the LCD
modules will be stored for a long time, the recommend condition is:
Temperature : 0 ℃ ～ 40 ℃ Relatively humidity: ≤ 80%
10.2.3 The LCD modules should be stored in the room without acid, alkali and harmful gas.
10.3
Transportation Precautions
10.3.1 The LCD modules should be no falling and violent shocking during transportation, and
also should avoid excessive press, water, damp and sunshine.
The information contained herein is the exclusive property of TIANMA MICRO-ELECTRONICS Corporation
and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of
TIANMA MICRO-ELECTRONICS Corporation.
Page 19 of 19
www.topwaydisplay.com
sales@topwaydisplay.com
