Enhancing Laser Welding Precision and Efficiency with Smart TFT LCD

2025-02-26

In the dynamic world of laser welding, precision, efficiency, and real-time monitoring are critical. Laser welding machines, renowned for their high-speed, non-contact welding capabilities, are increasingly integral to industries such as automotive, aerospace, and electronics. However, the effectiveness of these machines heavily relies on the quality of their display systems, which serve as the interface between the operator and the machine's intricate processes.

Challenges with Traditional Display Systems

Traditional display technologies often fall short in meeting the demands of modern laser welding applications. Common issues include:

  • Limited Resolution and Clarity: Displays with insufficient resolution can obscure fine details, making it challenging to monitor intricate welding processes accurately.
  • Slow Response Times: Delays in display updates can hinder real-time monitoring, potentially leading to errors or inefficiencies.
  • Poor Contrast and Color Accuracy: Inadequate contrast and color representation can make it difficult to distinguish between different welding parameters or detect subtle process variations.
  • Energy Inefficiency: Displays that consume excessive power can increase operational costs and contribute to environmental concerns.

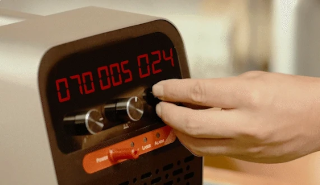

old welder with LED​

Smart TFT LCD in Laser Welding Machines

Laser welding machines are sophisticated instruments that require precise control and monitoring. The display system is central to this, providing operators with critical information such as welding parameters, real-time process data, and system diagnostics. A high-quality Smart TFT LCD display ensures that operators can make informed decisions promptly, thereby enhancing the overall welding process.

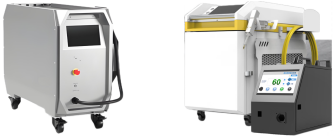

modern laser welder with smart tft lcd​

Advantages of Smart TFT LCD Displays in Laser Welding Machines

Smart Thin-Film Transistor (TFT) Liquid Crystal Displays (LCDs) offer a compelling solution to these challenges. Their benefits include:

  • High Resolution and Clarity: Smart TFT LCDs provide sharp, detailed images, allowing operators to monitor welding processes with exceptional precision.
  • Fast Response Times: With rapid refresh rates, Smart TFT LCDs ensure that real-time data is displayed promptly, facilitating immediate decision-making.
  • Enhanced Contrast and High Visibility: Smart TFT display offers superior contrast ratios, color fidelity and anti-glare coating. It is perfect for high ambient light environment, caused by laser welding.
  • Energy Efficiency: Smart TFT LCDs consume less power compared to traditional displays, contributing to lower operational costs and a reduced environmental footprint.
  • Durability and Reliability: Designed for industrial environments, Smart TFT LCDs are built to withstand the rigors of manufacturing settings, ensuring longevity and consistent performance.
  • Quick and Speedy UI Creation: Creating user interface for laser welder is easy and quick, using free SGTools from Topway Display.

Implementing Smart TFT LCD Displays in Laser Welding Machines

Integrating TFT LCD displays into laser welding machines involves several considerations:

  • Compatibility: Smart TFT LCD communicates with welding machine through standard serial interface, RS232.
  • Customization: Tailoring the display to present relevant welding parameters and diagnostics can enhance usability and operator efficiency. Smart TFT LCD's graphical UI editor simplifies user interface creation with drag-and-drop, no coding needed.
  • Ergonomics: Positioning and designing the display for ease of viewing and interaction can reduce operator fatigue and improve workflow.
  • Environmental Resistance: Selecting displays with appropriate protective coatings can safeguard against factors such as dust, moisture, and temperature fluctuations commonly found in industrial settings.

Conclusion

The integration of Smart TFT LCD displays into laser welding machines represents a significant advancement in welding technology. By addressing the common display-related challenges faced by manufacturers, TFT LCDs enhance precision, efficiency, and operator satisfaction. As industries continue to demand higher quality and more reliable welding solutions, the adoption of TFT LCD technology stands as a forward-thinking approach to meeting these evolving needs.

For laser welding machine manufacturers seeking to elevate their product offerings, incorporating TFT LCD displays is a strategic investment that promises substantial returns in performance and customer satisfaction.
