5 Important Characters of TFT LCD for Agricultural Machinery
Over the past fifty years, significant advancements in TFT LCD technology have greatly enhanced display quality. Key improvements include increased resolutions, superior contrast ratios, broader viewing angles, and quicker response times. Technology has become integral to every aspect of modern life, with TFT LCDs firmly establishing themselves in the consumer electronics market. Their influence extends even further into commercial sectors such as advertising, automotive, and notably, agriculture, where they contribute to a range of innovative applications.
In agriculture today, cutting-edge technologies are transforming traditional farming methods. Precision farming, sustainable agriculture, vertical farming, crop management, livestock management and produce-processing are some of the essential aspects of Agritech that are benefiting from advances in technology to improve efficiency and productivity. This ensures greater sustainability and efficiency amid global challenges. Looking ahead, future trends emphasize the integration of digital tools and technological innovations into farming practices, paving the way for smarter and more productive agriculture.
Agricultural Machinery Requirements
Agricultural environments expose machinery to dust, moisture, temperature fluctuations, and vibrations. The devices are exposed to extreme heat and cold, as well as rainwater, mud, dirt, and dust. TFT LCD display needs to be strong enough to survive any external impacts, whether they're accidental or not. It also needs to be readable in bright sunlight or complete darkness. Followings are five important factors of TFT LCD for agritech:
Sunlight readability
Thermal management
Industrial graded component
Strengthened glass
Flawless touch operation
This combination of requirements is not unique to the the Agritech market, they are also a feature of most industrial display designs, so this extreme case contains lessons for everyone.
TFT LCD Sunlight readability

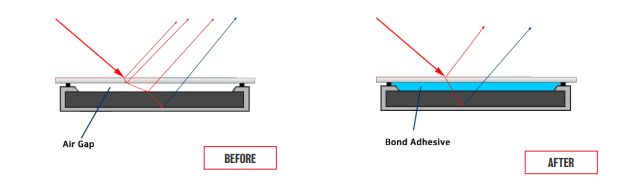

TFT LCD display readability is essential for agricultural machinery. The display needs to be readable in various lighting conditions, especially under direct sunlight. The best way to make your display readable in sunlight is to make sure it has a really bright backlight and to use optical bonding between the cover glass and TFT LCD. This will improve readability and eliminate internal reflections between different layers of the glass.
However, increasing the brightness of the backlight, will draw more power and create more heat, so proper thermal management is important.
Thermal management
When you have a display that's exposed to the sun, you need to make sure it doesn't get too hot, so thermal management is imperative.. Fitting an Infra-red filter is one option to protect the display from IR radiation and prevent display damage or failure, but it can be expensive.
Industrial graded component
The display components need to be able to handle the maximum anticipated temperature. The polarisers and liquid crystal fluid can be particularly affected by high temperatures. Standard polarisers have a temperature range of -20° to +70°C, but extended temperature range solutions with -30° to +85°C are available. UV resistance materials are also important to protect the display from damage caused by ultraviolet radiation from the Sun.
Strengthened glass
For Agritech applications such as farm vehicles or milking stations, strengthened glass is a must. The units need to stand up to external impacts and machine vibration, as well as cope with extremes in environmental conditions. Glass strengthening can be achieved using different methods to ensure it can still perform perfectly regardless of whatever is thrown at it.
Flawless touch operation
Since agricultural machinery can get dusty and require gloves, capacitive touchscreens with high sensitivity to gloved hands or even resistive touch options could be beneficial, depending on the cab's intended use and the touchscreen's required precision.
TFT LCD Application in Agricultural Machinery
Tractor and Combine Displays
Precision agriculture is at the forefront in agricultural industry. Introduction of GPS technology and Geographic Information System(GIS) enable real-time performance monitoring and yield mapping. TFT LCD screens are the center of this trend, providing user interface for GPS systems, field mapping tools, and machinery controls. Through TFT LCD screens, farmers obtain real-time information about their crops and soil conditions. Which enables them to make precise decisions about planting, fertilizing, and watering.

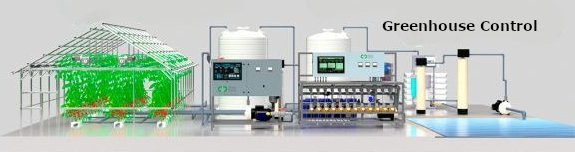

Greenhouse and Indoor Farming Control Panels
In old days, farming was a business heavily relied on weather. As technology advancing, we grow more and more crops in greenhouse. Precise climate control, irrigation management, and lighting automation are building blocks of indoor farming. TFT LCD with touch panel (for example, 10.1" TFT LCD with capacitive touch) greatly simplifies the controls.
Livestock Monitoring Systems
Vital sign monitoring, feed management, and animal tracking are needed for animal farm house. Smart TFT LCD with network capability can easily fit into such applications, providing telematics and data collection. In an animal farm, each barn feeds data via ethernet to Smart TFT LCD. Farmer receives live information and sends control commands back using Smart TFT LCD touchscreen.
Weather Stations and Environmental Monitoring Systems
Outdoor weather stations and environmental monitoring systems face weather's challenge directly. Wide operating temperature (-20°C~70°C) and weather proofing measurement (for example sealed to IP65) allow TFT LCD provide real-time data visualization and analysis.
Conclusion
So if you are tired of guesswork and inefficient farm management, step into the future of agriculture with the power of TFT LCD displays! These vibrant, high-resolution screens are transforming how farmers monitor, control, and optimize their operations, leading to increased yields and reduced costs. Talk to us today, let's work out a display solution for your project.
