Advanced TFT LCDs for Battery Testers
I. Introduction: The Critical Role of Displays in Next-Generation Battery Testers
The rapid evolution of battery technology, encompassing Li-ion, LiFePO4, NiMH, and NiCd chemistries across diverse applications, demands advanced battery testing equipment. Modern testers offer intricate diagnostics, including real-time capacity, internal resistance, and self-discharge rates. The display is central to these devices, serving as the primary interface for conveying complex, multi-parameter data, diagnostic graphs, and error messages. Its clarity and reliability directly impact data interpretation, user experience, and operational efficiency. For design engineers, display selection is a foundational decision influencing product functionality, form factor, power budget, and market appeal.
Topway offers cutting-edge TFT LCD technology specifically engineered for advanced battery tester applications, tailored for both compact handheld and robust portable/benchtop form factors. This report details how Topway's LMT043DEFFWA-NNA (4.3-inch) and LMT070FNMFWA-NND-1 (7-inch) modules address core design challenges in this specialized field.
II. Understanding the Design Engineer's Challenge: Key Display Pain Points in Battery Testers
Designing battery testers requires balancing performance, durability, and user experience. Key display-related challenges include:
A. Power Efficiency: Maximizing Battery Life in Portable Applications
Portable battery testers rely heavily on battery power, making display power efficiency critical. Displays are significant power consumers, and their ability to transition efficiently between active and low-power states directly impacts overall battery life and user satisfaction. Selecting power-efficient displays contributes to a more sustainable product lifecycle and reduced operational costs for end-users.
B. Ruggedness and Environmental Resilience: Built for Demanding Environments
Battery testers often operate in harsh industrial and outdoor conditions, requiring displays to withstand extreme temperatures, humidity, dust, vibration, and physical impact. Environmental tests simulate conditions from -60°C to +100°C and include vibration and shock tests. Ruggedization involves robust enclosures, thick touchscreens, optical bonding, and high Ingress Protection (IP) ratings like IP65 or IP66. Displays must offer wide operating temperature ranges and robust touch technologies to ensure reliability in challenging field conditions.
C. Clarity and Readability: Ensuring Accurate Data Interpretation
Battery testers display critical numerical values and complex graphical data, demanding high precision and legibility. Glare and washout in bright environments can severely impair visibility, compromising data accuracy and safety. Sunlight readable displays are essential for outdoor use, utilizing technologies like LED high-brightening, optical bonding, and anti-reflective/anti-glare treatments to enhance visibility by up to 400% . Optimal brightness, contrast, and viewing angles are fundamental to the tester's functional integrity.
D. Intuitive User Interface: Enhancing Usability and Efficiency
Modern battery testers require responsive interfaces for complex test sequences and data navigation. Key considerations include touchscreen responsiveness, especially with gloved operators, and clear data presentation. Poor UI design can undermine the precision of underlying measurements. The choice between Resistive Touch Panels (RTP) for gloved operation and Projected Capacitive Touch Panels (PCAP/CTP) for multi-touch functionality is crucial for user interaction and environmental factors.
E. Compactness and Seamless Integration: Balancing Form and Function
Handheld and portable battery testers face strict size and weight constraints. Display thickness and size are critical. Integrating the display without adding bulk or complexity is a significant hurdle, impacting manufacturing complexity, cost, and time-to-market. Design engineers seek compact modules with simplified electrical interfaces (e.g., RGB vs. LVDS) and integrated functionalities to reduce design complexity and accelerate development.
III. Topway's Solution: Precision TFT LCD Modules for Battery Tester Innovation
Topway's LMT043DEFFWA-NNA and LMT070FNMFWA-NND-1 TFT LCD modules are engineered to address these challenges, offering optimal display solutions for handheld and portable applications.
A. The 4.3-inch LMT043DEFFWA-NNA: Engineered for Handheld Precision

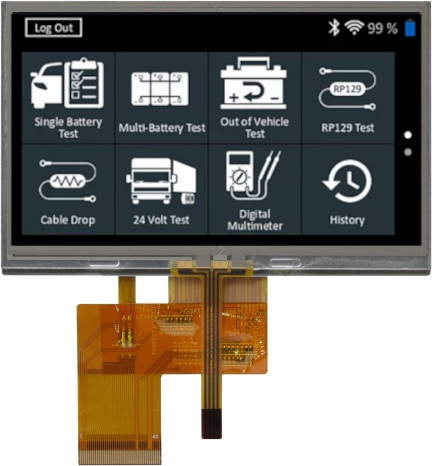

The LMT043DEFFWA-NNA is a 4.3-inch Color TFT LCD Module with an RGB interface, ideal for compact handheld devices.
Key Features:
Size: 4.3 inches, balancing visibility with ergonomic portability.
Resolution: 480x272 pixels, providing clarity for numerical data and basic graphics.
Interface: RGB, simplifying electrical integration and cost-effectiveness.
Touch Screen: Resistive Touch Panel (RTP), ensuring reliable input even with gloves, crucial for industrial environments.
Operating Temperature: -20°C to 70°C, guaranteeing robust performance in diverse conditions.
Brightness: 300 cd/m², suitable for indoor and moderately lit outdoor use.
Voltage: 3.3V, contributing to power efficiency.
Outline Dimensions: 105.5mm x 67.2mm x 4.1mm, facilitating tight form factors.
B. The 7-inch LMT070FNMFWA-NND-1: Powering Portable Performance

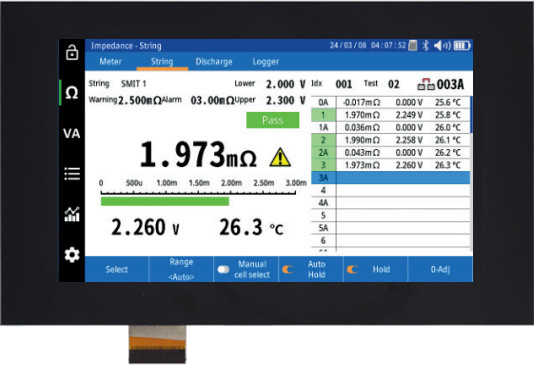

The LMT070FNMFWA-NND-1 is a 7.0-inch Color TFT LCD Module with an LVDS interface, designed for portable and benchtop testers requiring extensive data visualization.
Key Features:
Size: 7.0 inches, providing ample screen real estate for detailed diagnostics and complex graphical interfaces.
Resolution: 1024x600 pixels, enabling richer graphical displays and simultaneous multi-parameter readouts.
Interface: LVDS (VESA 24 bit), essential for high-speed, low-noise data transmission, simplifying PCB design and reducing EMI.
Touch Panel: Capacitive Touch Panel (CTP) with ILI2118A driver IC, offering a modern, intuitive multi-touch experience with superior optical clarity and durability.
Operating Temperature: -20°C to 70°C, matching industrial requirements.
Display Mode: Transmissive / Normally Black, offering superior contrast and wider viewing angles.
Surface Treatment: AF (Anti-Fingerprint), enhancing readability by reducing reflections and smudges.
Voltage: 3.3V, supporting efficient power management.
Outline Dimensions: 195.8 x 116.0 x 9.7 (mm).
C. Topway TFT LCD Module Specifications for Battery Testers
| Feature / Model | LMT043DEFFWA-NNA | LMT070FNMFWA-NND-1 |
|---|---|---|
| Size | 4.3 inches | 7.0 inches |
| Resolution | 480x272 pixels | 1024x600 pixels |
| Interface | RGB | LVDS |
| Touch Type | RTP (Resistive Touch Panel) | CTP (Capacitive Touch Panel) |
| Brightness (cd/m²) | 300 | 800 |
| Outline Dimensions (mm) | 105.5 x 67.2 x 4.1 | 195.8 x 116.0 x 9.7 |
| Active Area (mm) | 95.04 x 53.86 | 154.21 x 85.92 |
| Key Application | Handheld Battery Testers | Portable/Benchtop Battery Testers |
IV. Strategic Advantages: Why Choose Topway Displays
Topway's TFT LCD modules offer distinct advantages for battery tester designs:
A. Optimized Power Consumption for Extended Field Use
Both modules operate at 3.3V , supporting low-power system designs. The choice between RGB (simpler, lower power for basic displays) and LVDS (efficient for high-speed data) allows for tailored power management. This contributes to extended battery life, reduced operational costs, and a smaller environmental footprint.
B. Unrivaled Durability for Harsh Operating Conditions
With a wide operating temperature range of -20°C to 70°C , both modules ensure reliable performance in diverse industrial environments. The tailored touch technologies — RTP for gloved operation and CTP for scratch resistance and multi-touch —provide robust solutions. When integrated into appropriate enclosures, Topway displays support high IP ratings (e.g., IP65/66), protecting against dust, water and impact.
C. Superior Visual Clarity for Critical Diagnostics
Resolutions of 480x272 (4.3-inch) and 1024x600 (7-inch) ensure crisp display of complex data, graphs, and error messages, crucial for accurate interpretation. Wide viewing angles and the 7-inch module's Anti-Fingerprint (AF) surface treatment enhance readability. Compatibility with optical bonding and high-brightness backlights further ensures visibility in all lighting conditions.
D. Streamlined Integration and Design Flexibility
Topway's use of standard electrical interfaces (RGB, LVDS) and comprehensive datasheets simplifies electrical and software integration, reducing development time. The compact dimensions and slim profiles enable smaller, more portable products. The integrated touch driver IC on the 7-inch module further streamlines touch functionality, accelerating design cycles and reducing BOM complexity.
E. Future-Proofing Your Product Line
Choosing Topway's industrial-grade TFT LCDs provides robust, high-performance components adaptable to future advancements. Their durable design and wide operating ranges contribute to longer product lifecycles, reducing maintenance and total cost of ownership. The availability of both RTP and CTP, along with different interfaces, enables modularity and scalability in product development, simplifying the supply chain and allowing for efficient product diversification.
V. Conclusion: Partnering with Topway for Display Excellence
In the evolving battery testing landscape, the display is crucial for performance, reliability, and user experience. Topway's LMT043DEFFWA-NNA and LMT070FNMFWA-NND-1 modules offer purpose-built solutions for handheld and portable battery testers. These modules address critical engineering needs in power efficiency, ruggedness, visual clarity, intuitive user interfaces, and seamless integration, ensuring competitive market standing.
Topway's expertise in industrial-grade displays empowers design engineers with technically superior, reliable, and easy-to-integrate components. We provide foundational display technology that drives the development of next-generation products.
Design engineers are invited to explore the full technical capabilities of the LMT043DEFFWA-NNA and LMT070FNMFWA-NND-1 by downloading their detailed datasheets from the Topway website. For specific requirements, customization, or samples, direct engagement with Topway's technical experts is encouraged. Partnering with Topway offers a pathway to elevate the performance, durability, and market appeal of your next-generation battery testers.
