Capacitive vs. Resistive Touch: A Definitive Guide for Design Engineers
1. Introduction: The Touchscreen Choice for Modern User Interfaces
Touchscreens have gone from a cool feature to a fundamental part of how we interact with machines and devices. Touchscreen can make or break the user experience, affecting everything from how responsive a device feels to how long it lasts. While other options exist, two technologies dominate the market: resistive and capacitive touch. Capacitive technology, the one we see in most modern consumer devices, works by detecting the electrical properties of a conductive object. For any design engineer working on a new product, it's essential to understand the technical details and real-world trade-offs between these two approaches
2. Touchscreen Working Principles and Structures
To make the best choice, you need to understand the touchscreens' core principles and different versions of each technology. The decision goes beyond surface-level features and gets down to fundamental physics and engineering.
2.1. Resistive Touch: The Pressure-Sensing Mechanism

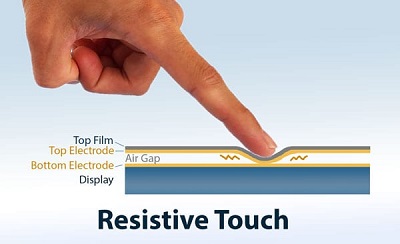

Resistive touchscreen works on a simple mechanical principle to sense a touch. The screen is made of a flexible top layer and a rigid bottom layer, both coated with a transparent conductive material, usually Indium Tin Oxide (ITO). A small air gap separates these two layers. When you press on the top layer, it flexes and makes contact with the bottom layer at the point of touch. This contact closes a circuit, and the controller measures this to figure out the exact coordinates of the touch.
4-Wire and 5-Wire Resistive Touch
Resistive technology comes in two main architectures: 4-wire and 5-wire, with the latter being the standard for tough applications. A 4-wire resistive touch screen measures voltage on both the flexible top sheet and the rigid bottom sheet to determine the X and Y coordinates. It's the most cost-effective design because it's so simple.
In contrast, the more rugged 5-wire design places both the X and Y coordinate measurements on the rigid bottom sheet. The flexible top film simply acts as a voltage-sensing probe and a protective cover. This difference in design is critical for durability. Since the top layer doesn’t have to maintain precise resistance for position accuracy, it can withstand long-term wear and tear without a major drop in performance. This is why 5-wire resistive technology is the go-to choice for industrial applications that need long-term reliability and heavy use.
2.2. Capacitive Touch: The Electrostatic Field Method

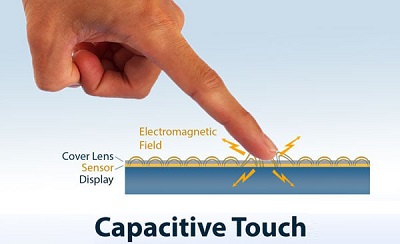

Capacitive touchscreens work by detecting changes in an electrostatic field, an approach that means you don't need to apply any pressure. These screens are usually made of an insulating material, like glass, with a transparent conductive layer on top. This layer maintains a constant electrostatic field. When a conductive object, like your bare finger, touches the screen, it disrupts this field, causing a measurable change in local capacitance. Sensors around the screen detect this disruption, and a controller pinpoints the exact location of the touch.
PCAP vs. SCAP
Capacitive technology is broken down into two main types: Surface Capacitive (SCAP) and Projected Capacitive (PCAP).
SCAP panels have a single conductive coating. When touched, a small amount of the electrical charge transfers to the user, and the location is determined by measuring the voltage change from the screen's four corners. SCAP is generally less sensitive, only supports single-touch. It's a more affordable option for low-end devices.
PCAP is the more advanced technology used in modern devices like smartphones and tablets. It uses a grid of transparent electrodes arranged in rows and columns that create a three-dimensional electrostatic field. A touch is detected by measuring the change in capacitance between these intersecting electrodes. This design makes PCAP incredibly sensitive and accurate, detecting even the slightest touch. It also offers superior clarity and multi-touch capabilities
3. Capacitive and Resistive Touch Performance Analysis
Choosing between resistive and capacitive technology requires a deep dive into their performance on key engineering criteria. The decision depends on a series of critical trade-offs that affect usability, durability, and cost.
3.1. Sensory and Usability Factors
Capacitive screens are known for their great touch sensitivity and responsiveness, needing only a light touch to register an input.4 This provides a fluid, intuitive user experience. In contrast, resistive screens are pressure-sensitive and require a firmer, more deliberate touch. While this can help prevent accidental inputs, it doesn't feel as responsive
Multi-touch capability is a major difference. PCAP is the industry standard for multi-touch, recognizing gestures like swiping, pinching, and rotation. Most resistive screens are limited to a single touch, although some newer systems can handle two-touch input on 5-wire controllers.
The biggest usability advantage of resistive technology is its input flexibility. Because it works on pressure, it can be used with any object, including a gloved hand, a stylus, or even a tool. Capacitive touch screens typically require a bare finger or a special conductive stylus. However, modern industrial-grade PCAP displays can be specially tuned to work with gloves and even handle liquids or gels on the screen, closing a traditional gap between the technologies.
3.2. Physical and Environmental Durability
Durability is a critical factor in component selection. Capacitive screens, which are usually made of toughened glass, are very resistant to scratches and impacts. Since they don't rely on mechanical pressure, they aren't subject to the wear and tear that can degrade resistive screens over time. This means capacitive devices generally have a longer service lifespan and better long-term reliability. The layered construction of resistive screens makes them more vulnerable to mechanical fatigue from constant use.
Environmental tolerance is another key point. Resistive screens are excellent at resisting contaminants like dust and moisture, which makes them a top choice for tough industrial environments. While traditional capacitive screens can struggle in wet conditions or with electromagnetic interference (EMI), modern industrial-grade PCAP displays are built with features like advanced water handling and EMI shielding to work reliably in challenging environments.
To ensure a display can handle its operating conditions, engineers should look at industry-recognized durability standards, which turn subjective terms like "rugged" into measurable metrics.
3.3. Optical and Display Quality
Optical clarity is a major difference. Capacitive screens, with their single-layer glass surface and highly transparent conductive coating, offer better light transmission, clarity, brightness, and color accuracy. The multiple layers of a resistive screen, on the other hand, can reduce light transmission and are more prone to glare. This can make the display look dimmer and might require extra backlighting in brightly lit environments.

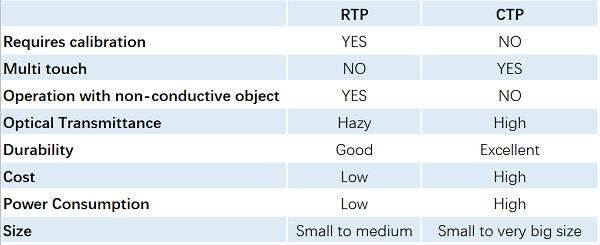

| Feature | Resistive | Projected Capacitive | Surface Capacitive |
|---|---|---|---|
| Input Method | Finger, gloved hand, stylus, or any object | Bare finger, conductive stylus, tuned for gloves | Bare finger, conductive stylus |
| Multi-Touch | No (typically); some 5-wire controllers support 2-touch | Yes; industry standard for multi-touch | Single touch only |
| Optical Clarity | Lower; multiple layers reduce light transmission | Excellent; high transparency because of glass layer | High; conductive coating reduces clarity |
| Durability | Prone to mechanical wear; susceptible to fatigue over time | Highly durable; resistant to scratches and impact | Good; resistant to scratches |
| Cost | Lowest | Highest; premium price for advanced features | Low; attractive for low-end devices |
| Environmental | Resistance to dust, oil, and moisture | Can falter with moisture; industrial grades offer water/EMI resistance | Less sensitive to moisture than PCAP |
4. Selection Guide: Matching Technology to Use Case
The technical differences between resistive and capacitive touch technologies directly impact which one is best for a given industry. The right choice always depends on the application.
4.1. Industrial Automation and Control Panels
For decades, resistive touch was the standard for industrial human-machine interfaces (HMIs) because it works reliably in environments with dust, oil, and moisture, and it's compatible with gloved hands. But the industrial sector is changing. Modern applications are increasingly adopting industrial-grade PCAP for its better image quality and multi-touch functionality, which allows for more complex and intuitive user interfaces. The key is that these PCAP displays are specially hardened to overcome traditional limitations, with features like glove support and resistance to moisture and EMI, making them suitable for a wider range of industrial uses.
4.2. Medical and Healthcare Devices
In the medical field, the trend is strongly moving toward PCAP technology, especially hardened versions that work with gloves. A sealed glass surface not only provides superior optical clarity for high-precision diagnostic tools like ultrasounds and EKGs but is also more hygienic, as it's easy to clean and sanitize. The fact that modern PCAP screens can be used with surgical gloves and in the presence of fluids and electrical noise makes them perfect for patient monitors and other critical diagnostic equipment.
4.3. Automotive Infotainment and Displays
The automotive industry is quickly adopting PCAP technology to create a more integrated and dynamic user experience. As vehicle interiors shift to larger, more complex displays, technologies like LTPS TFT LCD and OLED are driving the need for seamless PCAP integration. PCAP's excellent optical properties and support for curved and free-form displays are essential for modern infotainment systems, digital instrument clusters, and reconfigurable dashboards. The design also needs to include careful EMI shielding to protect the sensitive electronics from the vehicle's electrical systems.
4.4. Outdoor Kiosks and Point-of-Sale (POS) Systems
For kiosks and POS systems, the decision often comes down to a practical trade-off between cost and user experience. Resistive technology remains a reliable and cost-effective choice for many POS systems that don't need multi-touch. Its durability and ability to handle various input methods make it a dependable option for high-traffic public terminals. For modern, high-end kiosks, PCAP offers a better user experience, faster response time, and superior durability, making it the preferred choice when multi-touch gestures and a sleek look are critical.
5. Conclusion: A Practical Framework for Engineers
Choosing between resistive and capacitive touch technology is a crucial decision that determines a product's performance, durability, and user experience. The key takeaway for design engineers is that there is no one "best" technology; the optimal choice is always dictated by the application's specific needs. To help you with the decision-making process, here is a practical framework:
Define the Use Case: Start by thoroughly analyzing the intended environment and user. Will the device be used in a harsh, dirty setting? Will operators be wearing gloves? Does the user interface require complex gestures? Answering these questions first provides the necessary constraints for component selection.
Evaluate Trade-offs Based on Data: Resistive technology is the right choice for applications that need a low cost, flexible input, and great durability against contaminants. It remains a reliable solution for many industrial and POS systems where multi-touch and high clarity aren't the top priorities. On the other hand, capacitive technology, especially PCAP, is the better choice for applications where a highly responsive, multi-touch interface, excellent optical clarity, and a sleek design are a must.
Consider the Entire System: The touchscreen is just one part of a larger system. Your choice of technology must be made along with other critical factors, including the display's core technology (different types of LCD panel), EMI shielding, and thermal management. This holistic approach ensures the final product is not only functional but also optimized for its intended purpose and set up for success in its market.
If you have upcoming project that uses touchscreen, talk to us. Topway's engineers are happy to share the know-how of implementing touchscreen, no matter it is capacitive touch or resistive touch.
