8 inch TFT LCD Display Module With LVDS Interface
Informations
Resolution
1024x768
Interface
LVDS
Voltage
3.3V
Temperature
-20°C ~ 70°C
Wide Viewing Angle
Yes
Outline
183.43x138.35x3.75 (mm)
Size
8"
Protocol
Topway
Active Area
162.05x121.54(mm)
Brightness：580 cd/m²

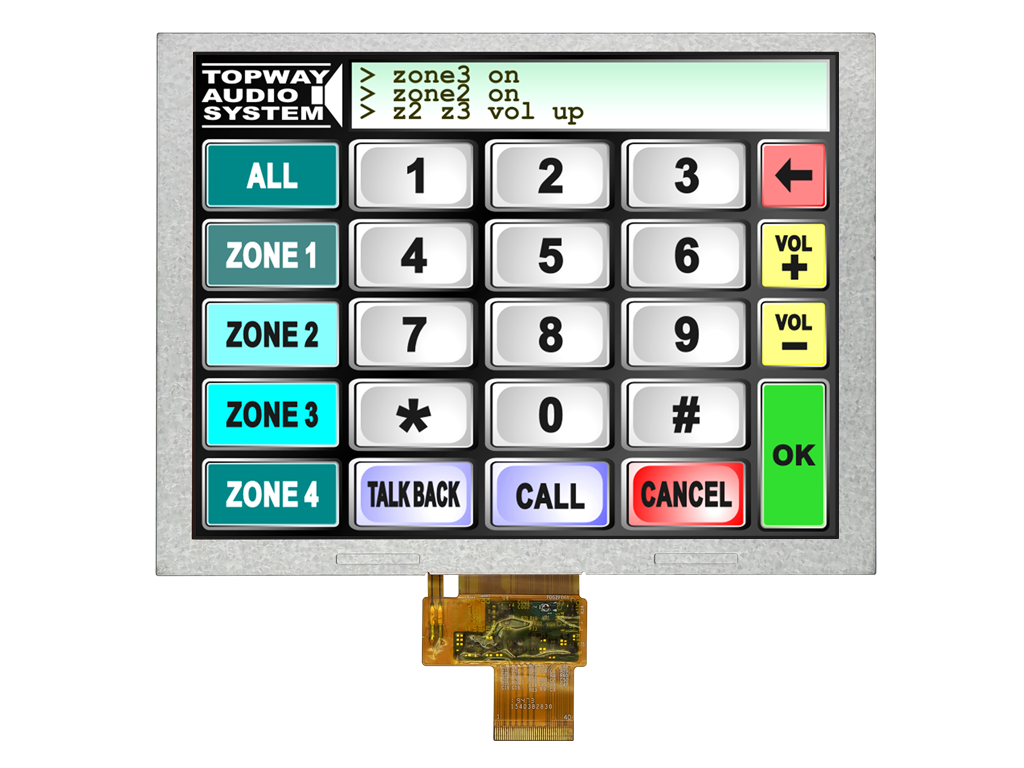

LMT080TDGP01 is a TFT LCD module with high resolution and wide viewing angle. This Module is designed for portable DVD, GPS car TV& PMP(portable multimedia player) application which require high quality flat panel displays. It is also a good substitute for many outmoded CSTN module in the industrial application.
